Basic Specifications
Operation Condition
Indoor
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Common Insulating Materials
Magnetic Circuit
Single Stage Type
Voltage Principle
Electromagnetic Type
Antistop
DIN Rail Mounted Current Transformer
Rated Test Voltage
3kv AC (1min)
Insulation Voltage
AC 0.72kv
Housing Class
Vo (Self-Extinguishing)

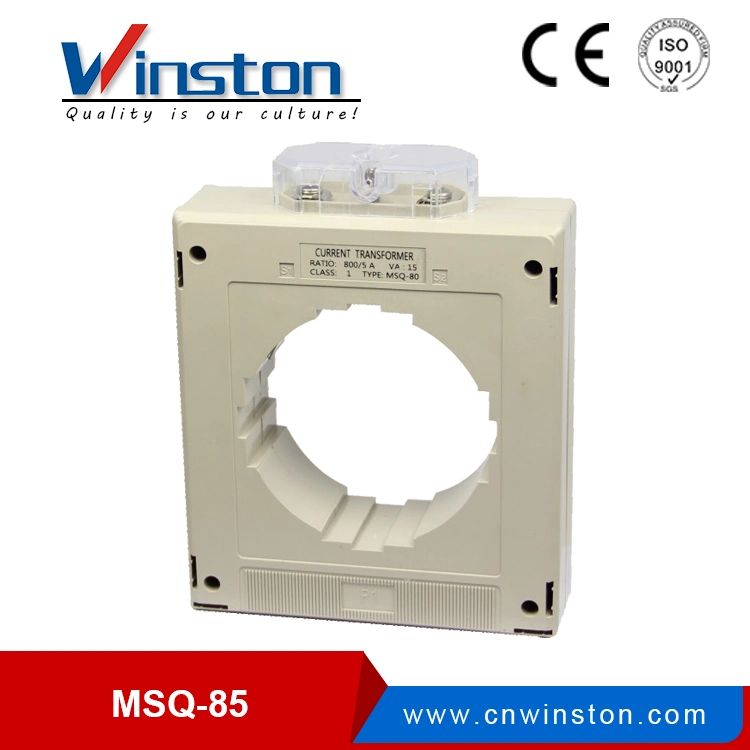

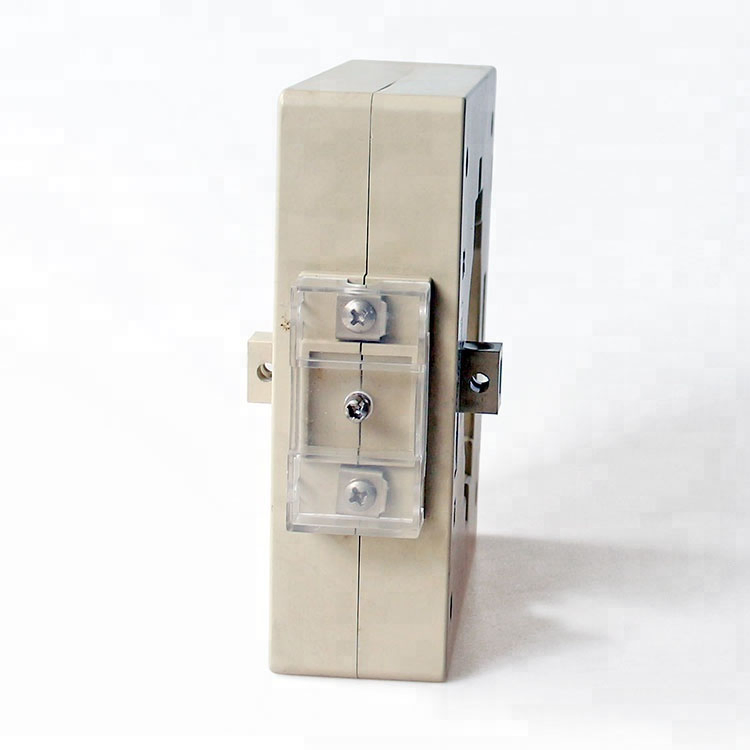

Product Description
The MSQ Series current transformer has been specially designed to facilitate their installation in new or already existing networks. They may be installed without opening any cable or busbar circuit. The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or busbar through the transformer core to connect such cables to the primary terminals.

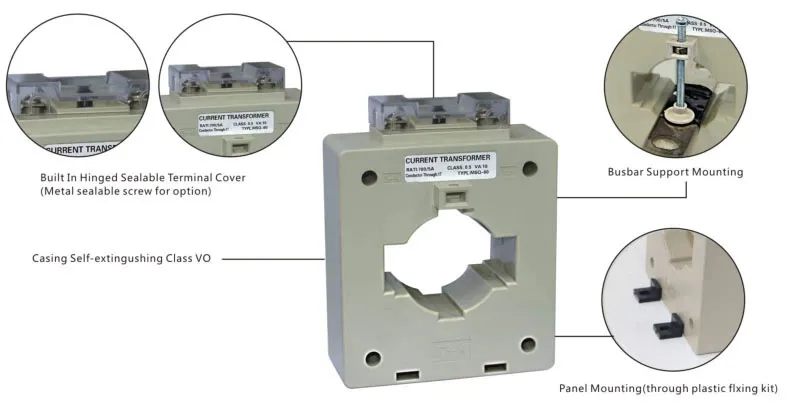

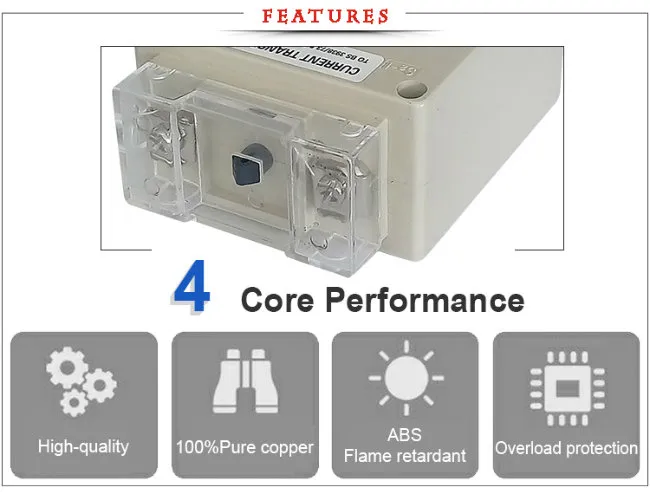

Key Features
- ● Two installation methods: Panel / Busbar.
- ● Wide inner window, allowing clamping of big cables or busbar.
- ● Wide range of sizes to accommodate all the existing installation.
- ● Primary current from 5A to 5000A.
Technical Specifications
| Parameter |
Value |
| Rated frequency | 50Hz/60Hz |
| Rated test voltage | 3kv AC (1min) |
| Rated short-time thermal current (lth) | 60in |
| Rated dynamic current (ldyn) | 2.5lth |
| Rated voltage (Um) | 0.72kv AC |
| Continuous overload (ld) | 1.2In |
| Operating temperature | -10°C~50°C |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |

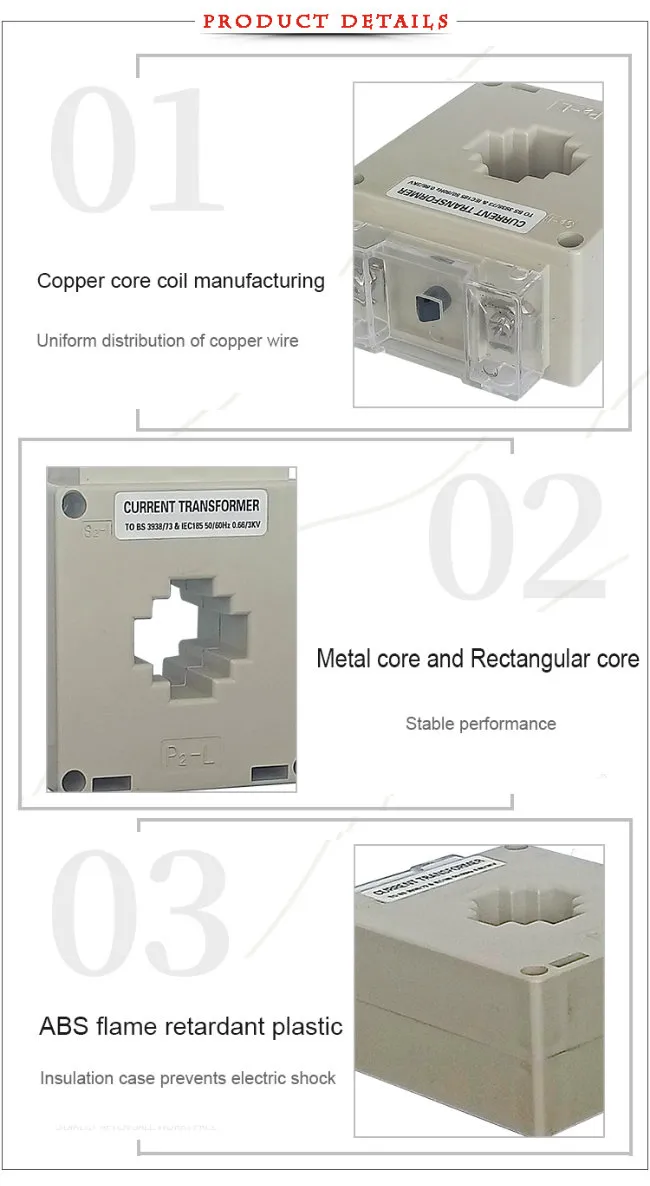

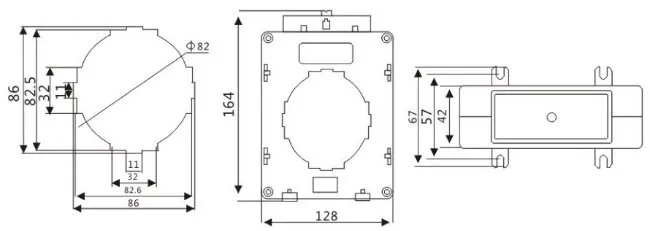

Technical Data and Dimension
| Type |
Ration (A) |
Rated power (VA) |
| Class: 0.5 |
Class: 1.0 |
| MSQ-85 | 750/5 | 5 | 10 |
| MSQ-85 | 800/5 | 7.5 | 10 |
| MSQ-85 | 1000/5 | 10 | 10 |
| MSQ-85 | 1200/5 | 10 | 15 |
| MSQ-85 | 1500/5 | 15 | 15 |
| MSQ-85 | 1600/5 | 15 | 15 |
| MSQ-85 | 2000/5 | 15 | 15 |
Services & Trade Terms
| Prompt Reply | Inquiry replied within 24 hours. |
| Quality Assurance | Each product tested and calibrated. |
| Delivery | 3-7 working days standard delivery. |
| Trade Terms | FOB, CIF, CFR, EXW |
| Payment Terms | T/T, L/C, Western Union, Paypal, MoneyGram |
| Packing | Neutral carton, Wooden case for large size |
Frequently Asked Questions
1. Can the MSQ-85 be installed without cutting the circuit?
Yes, the MSQ series is designed to be installed in existing networks without the need to open any cable or busbar circuit, ensuring easy installation.
2. What mounting options are available for this current transformer?
The MSQ-85 supports two main installation methods: Panel mounting and Busbar mounting. It is also designed for DIN rail compatibility.
3. What is the rated insulation voltage of the MSQ-85?
The rated insulation voltage (Um) for this model is AC 0.72kv, with a rated test voltage of 3kv AC for 1 minute.
4. What are the secondary current output options?
The transformer provides standard secondary current outputs of either 5A or 1A, depending on your requirements.
5. Is the housing of the transformer fire-resistant?
Yes, the housing is made of common insulating materials with a self-extinguishing class of V0, ensuring high safety standards.
6. What is the working temperature range for indoor operation?
The device is designed to operate reliably within a temperature range of -10°C to +50°C.
