Product Description

Basic Information
Model NO.
AKH-0.66/I 40I 100/5A
Operation Condition
Indoor
Usage
Measurement
Winding Form
Single Layer & Tightly Wound Type
Installation
Busbar Type
Voltage Principle
Electromagnetic Type
Ratio
100/5A
Accuracy
Class 0.5/Class 1.0
Measurement
Alternating Current (AC)
Primary Current
10~1000A AC
Package Size
17.00cm * 15.00cm * 13.00cm
Gross Weight
0.233kg
Product Description

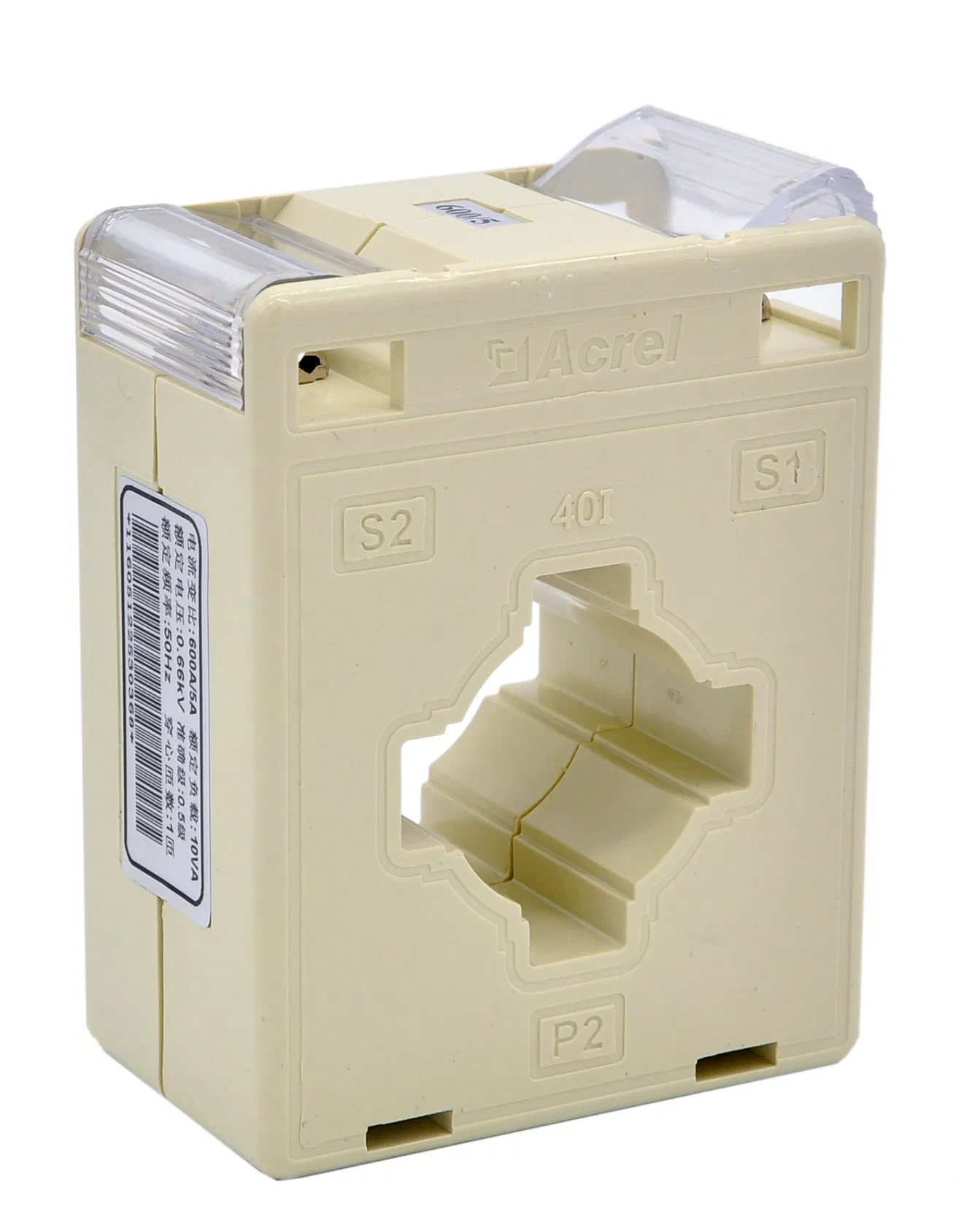

AKH-0.66/I 40I Closed Type Solid Core Current Transformer

AKH-0.66/K series split current transformers are mainly used in reconstructing projects of urban and rural power grids. They can be mounted easily without removal of primary bus. They also can be operated with electricity, which prevents the normal utilization of electricity. Thus, they save manpower, material resources, and financial resources while improving user efficiency. This series matches with relay protection, measuring, and metering equipment.

Key Specifications:
• Rated Voltage: 660V AC
• Rated Frequency: 50~60Hz
• Installation: Fixed by Sheet Metal / Clutch Cover / 35mm DIN Rail
• Loop Count: 1~10 Loops
• Standards: IEC/EN61869-1; IEC/EN61869-2; CE
Solid Core Current Transformer
Series Overview

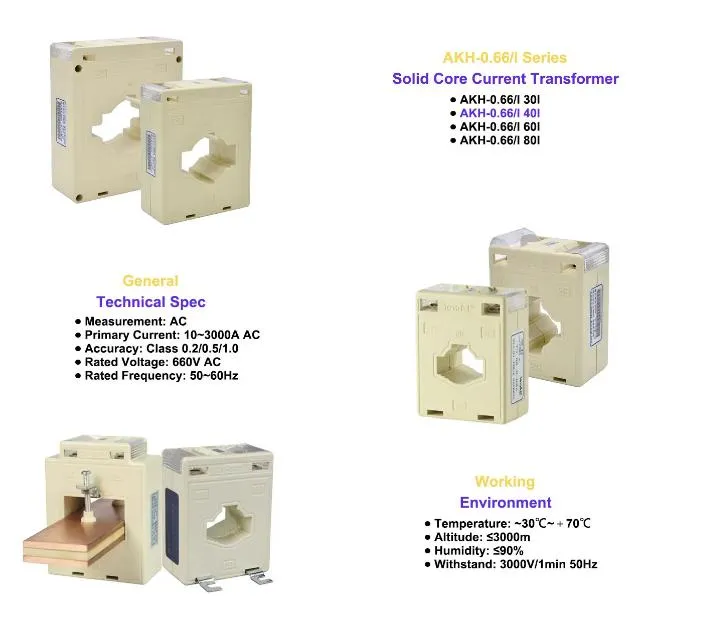

Series Overview 1

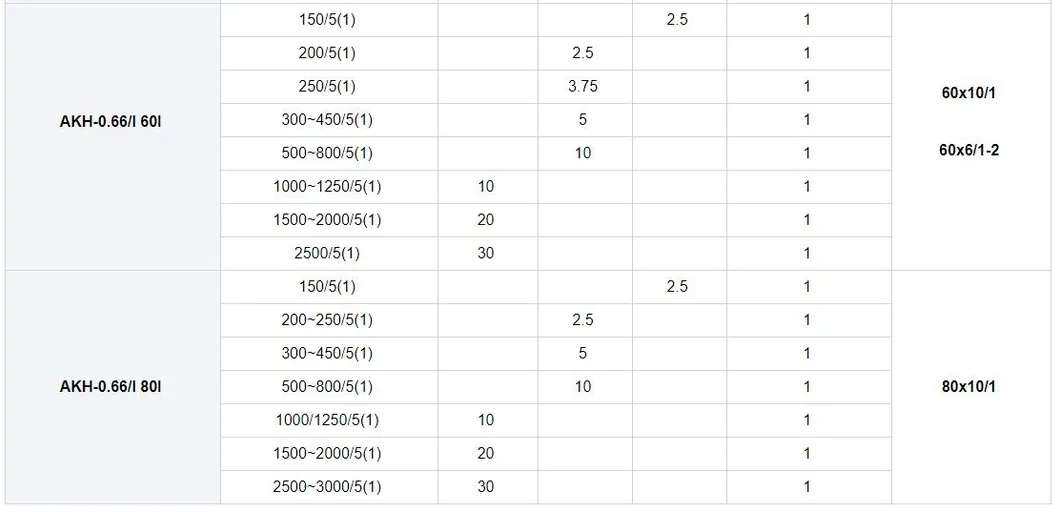

Series Overview 2
Dimension

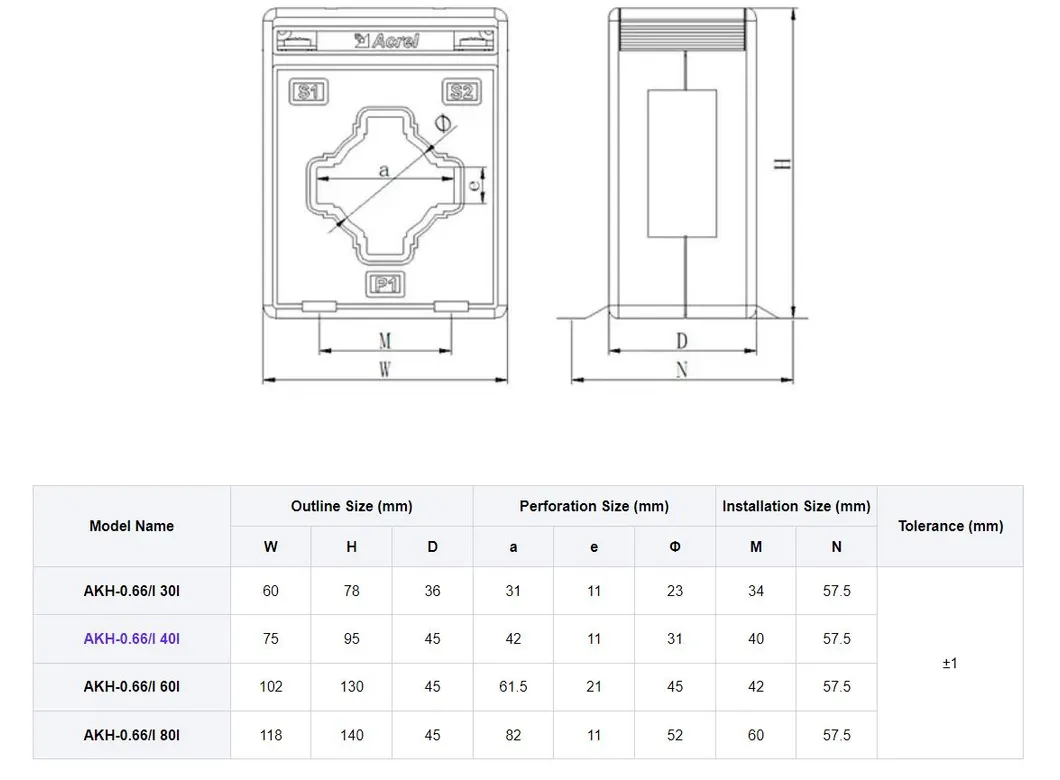

Product Dimensions
Installation Guide

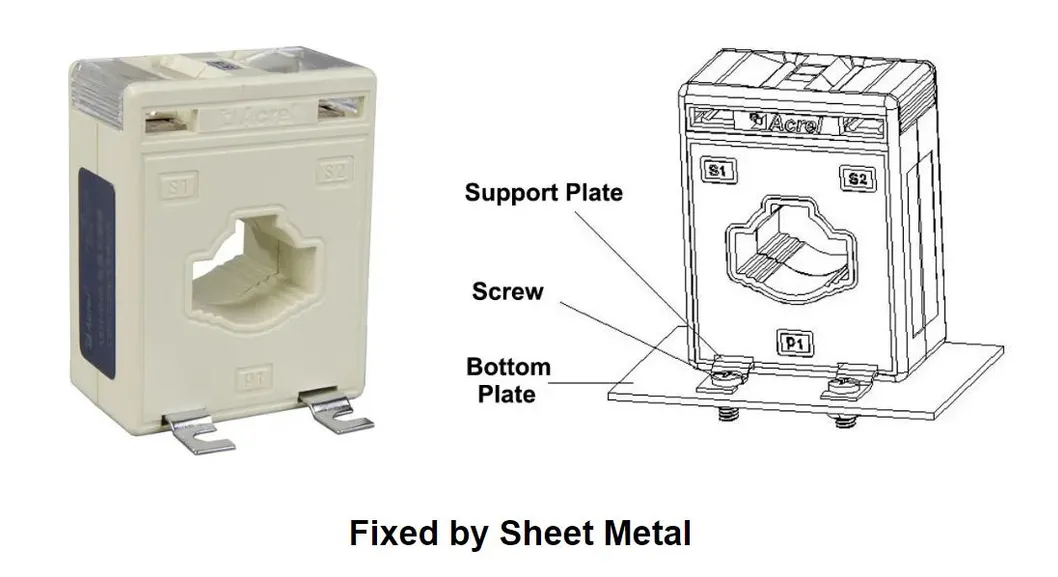

Installation 1

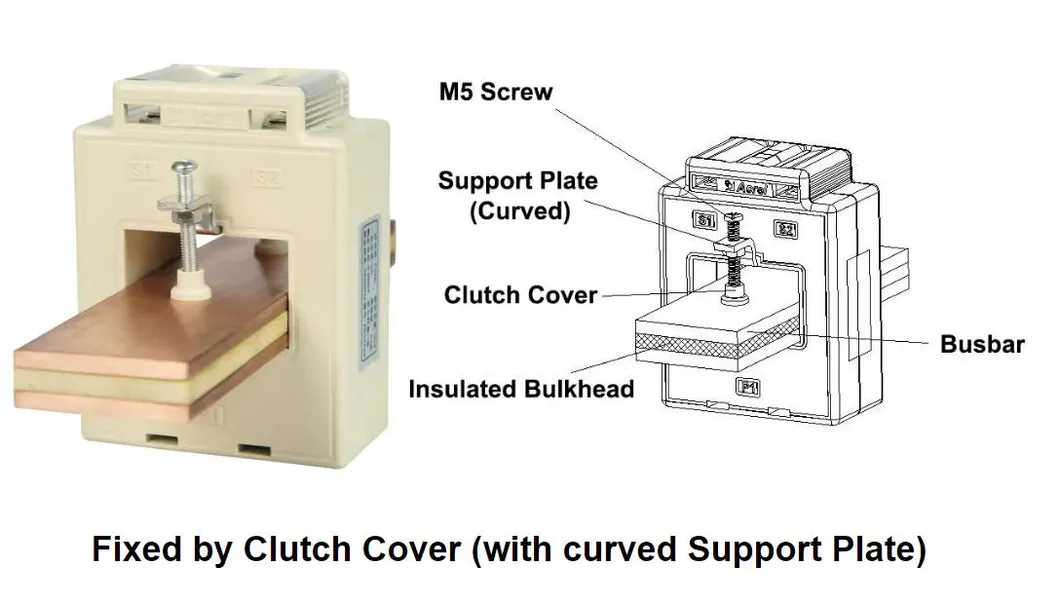

Installation 2

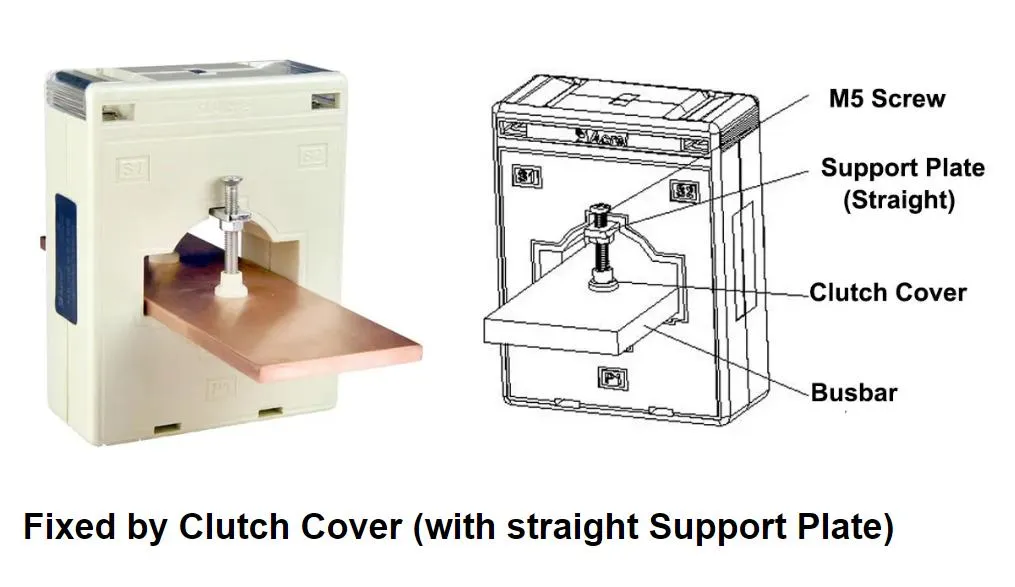

Installation 3

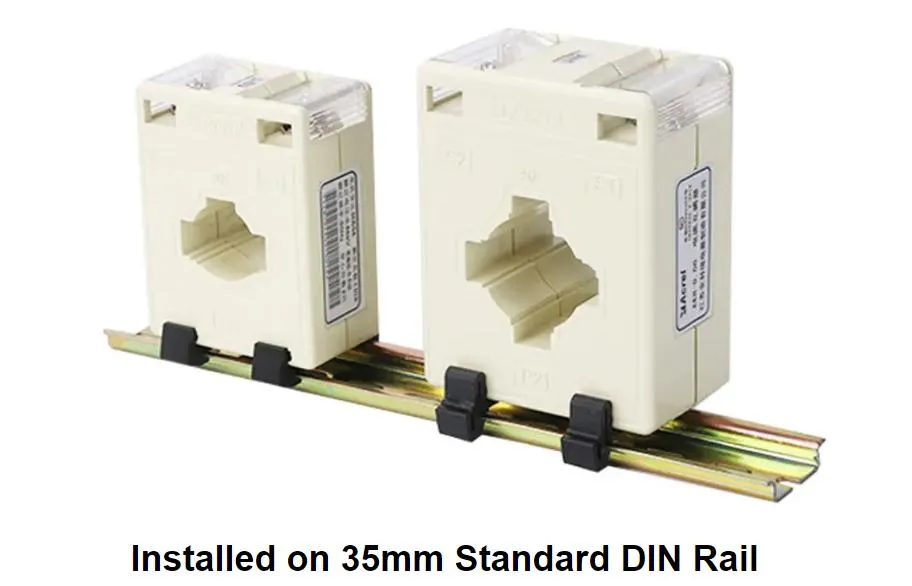

Installation 4
Site Application

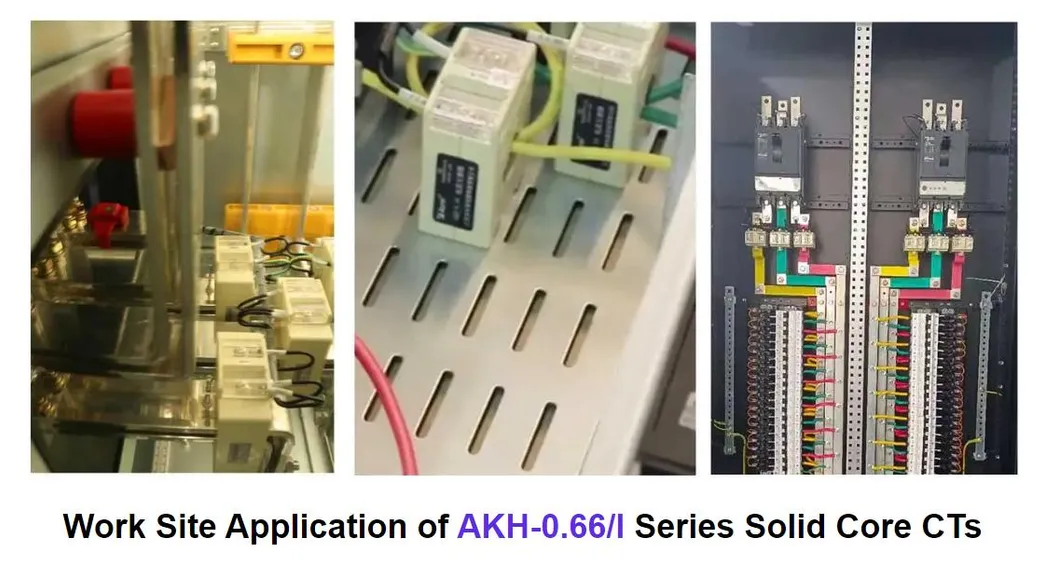

Site Picture
Series Products & Energy Meter Applications

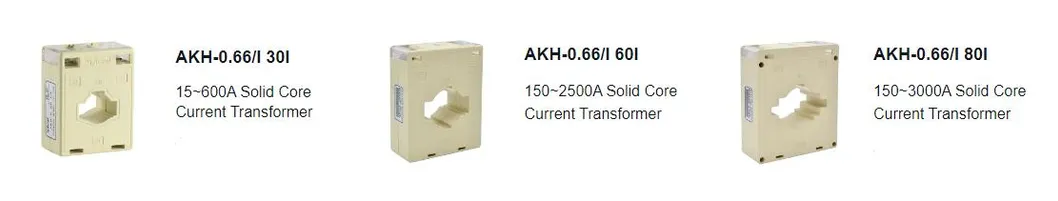

Series Products

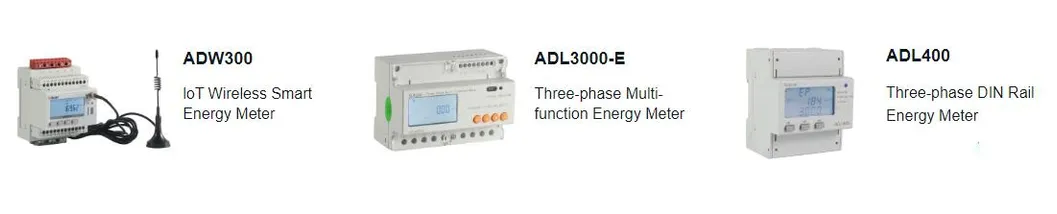

Energy Meter Application
Frequently Asked Questions
1. Where is your production base located?
Our production base is located in Jiangsu Province, China, equipped with advanced manufacturing facilities.
2. What is the expected lifespan of this equipment?
Generally, our current transformers are designed for a service life of more than 10 years under standard operating conditions.
3. How long does it take to receive an order?
Stock products are typically shipped within 5 days. For customized products, the lead time is usually 10-15 days, depending on the design and quantity.
4. What certifications do your products hold?
We hold various international certifications, including ISO9001, CE, and IEC standards to ensure high quality and safety.
5. Can I request a sample for quality testing?
Yes, we are happy to provide samples for quality verification and testing purposes.
6. What is the Minimum Order Quantity (MOQ)?
Our MOQ is flexible, starting from at least one piece.
