Medium Voltage Outdoor Current Transformer

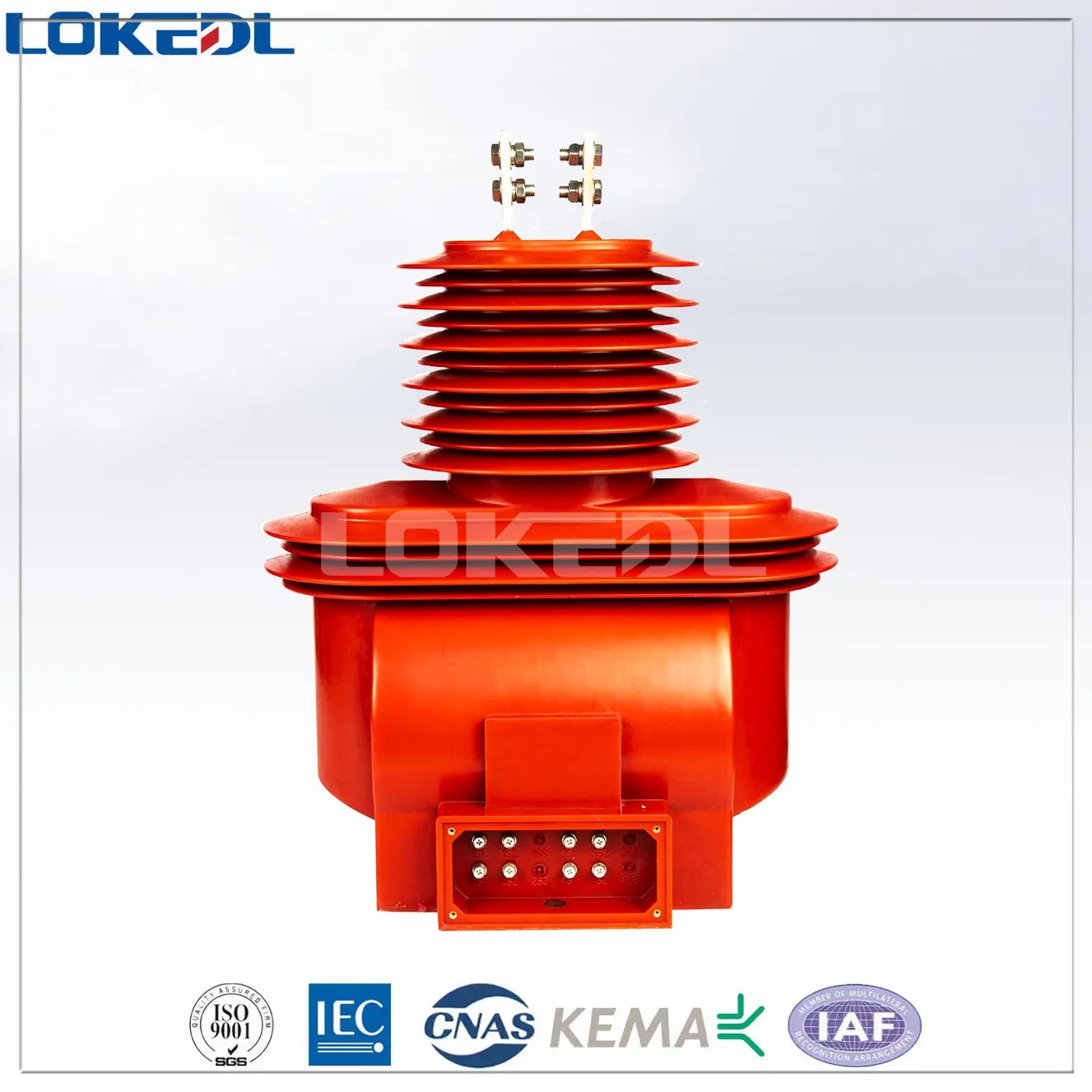

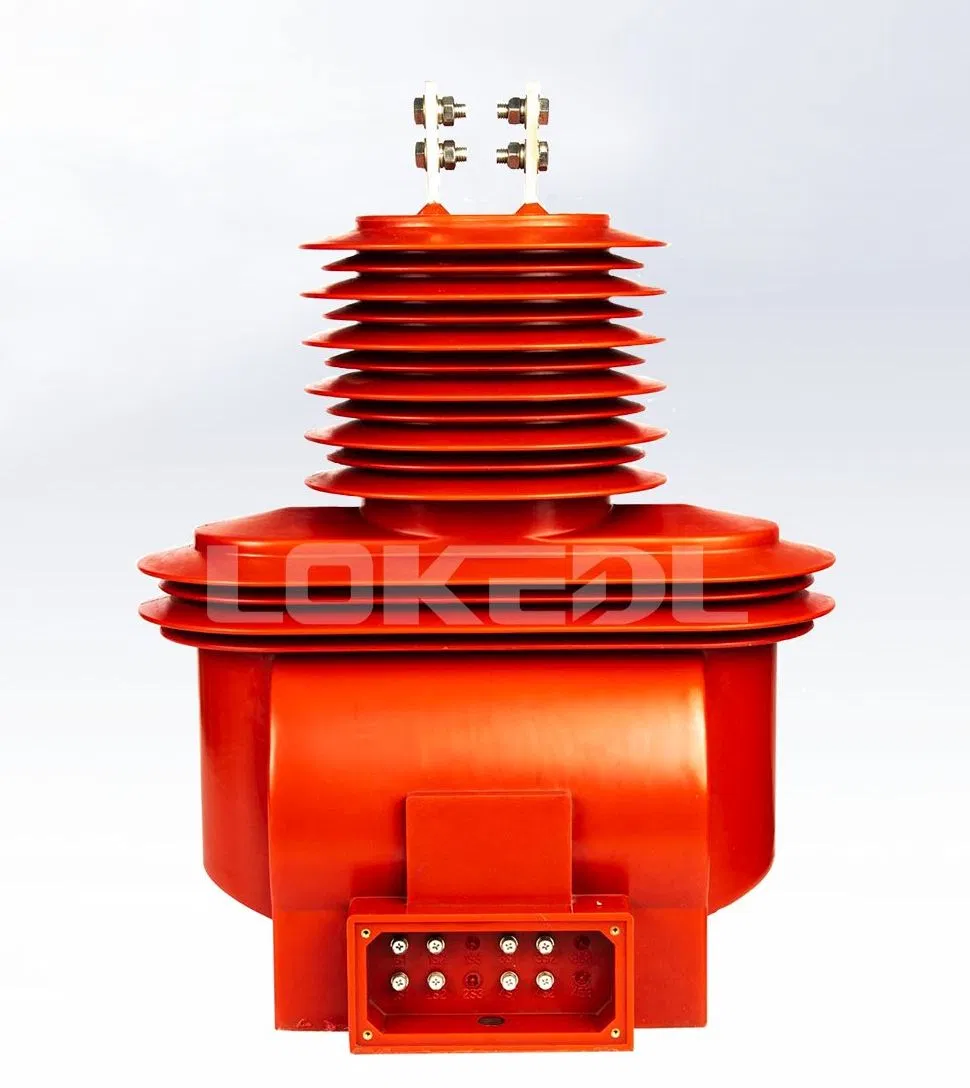

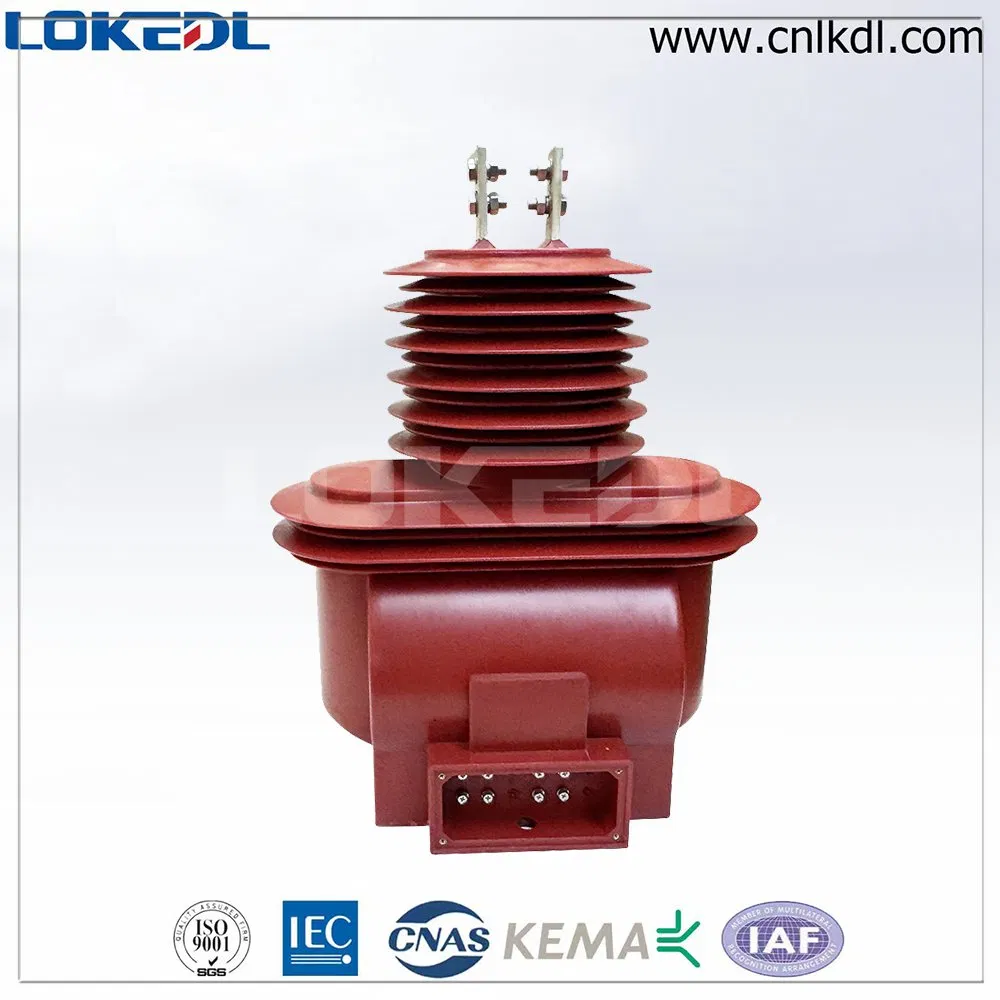

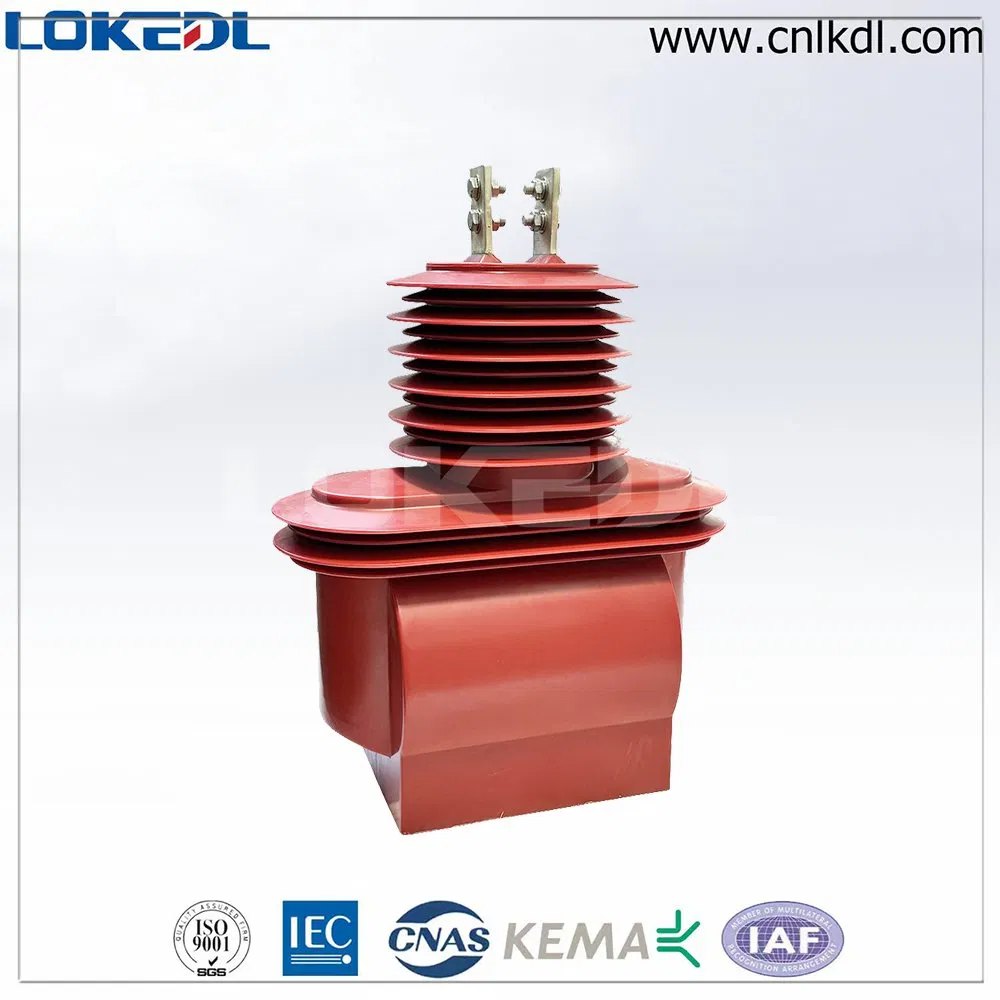

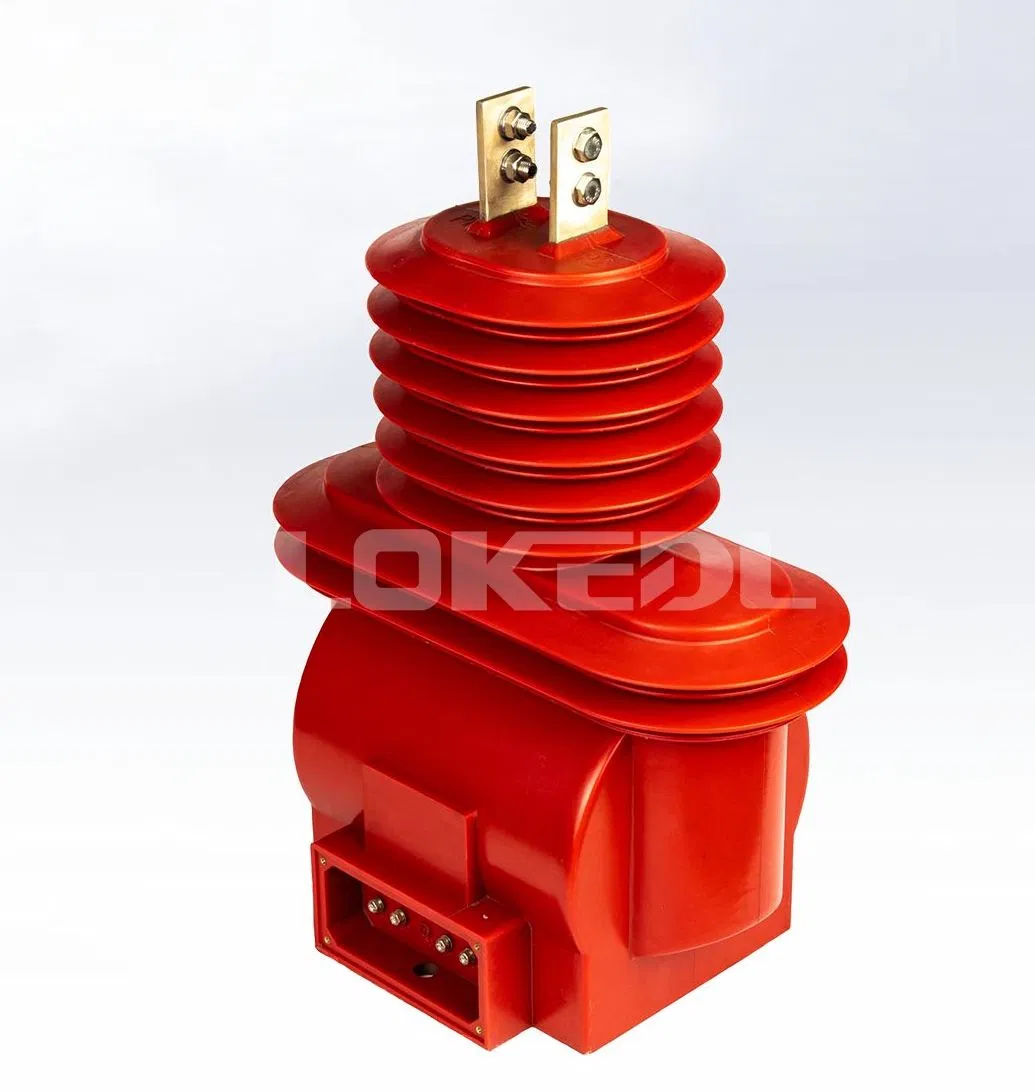

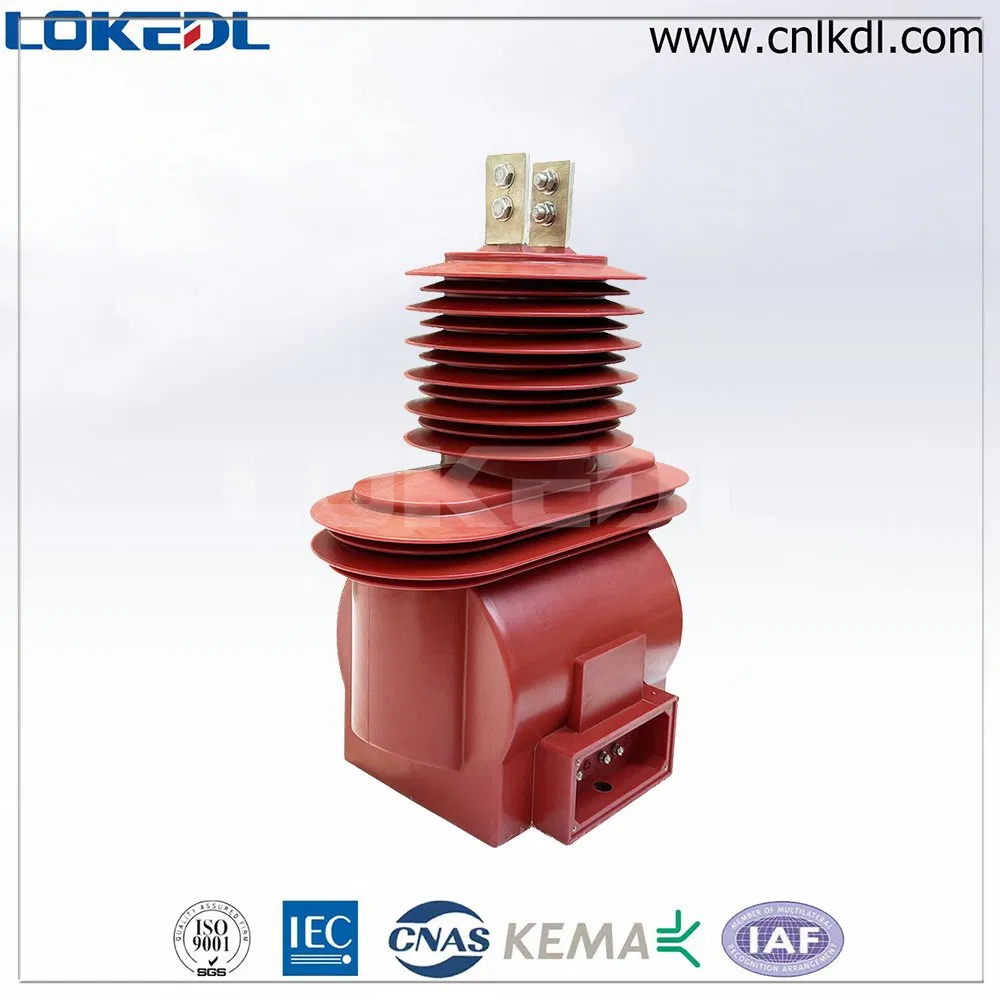

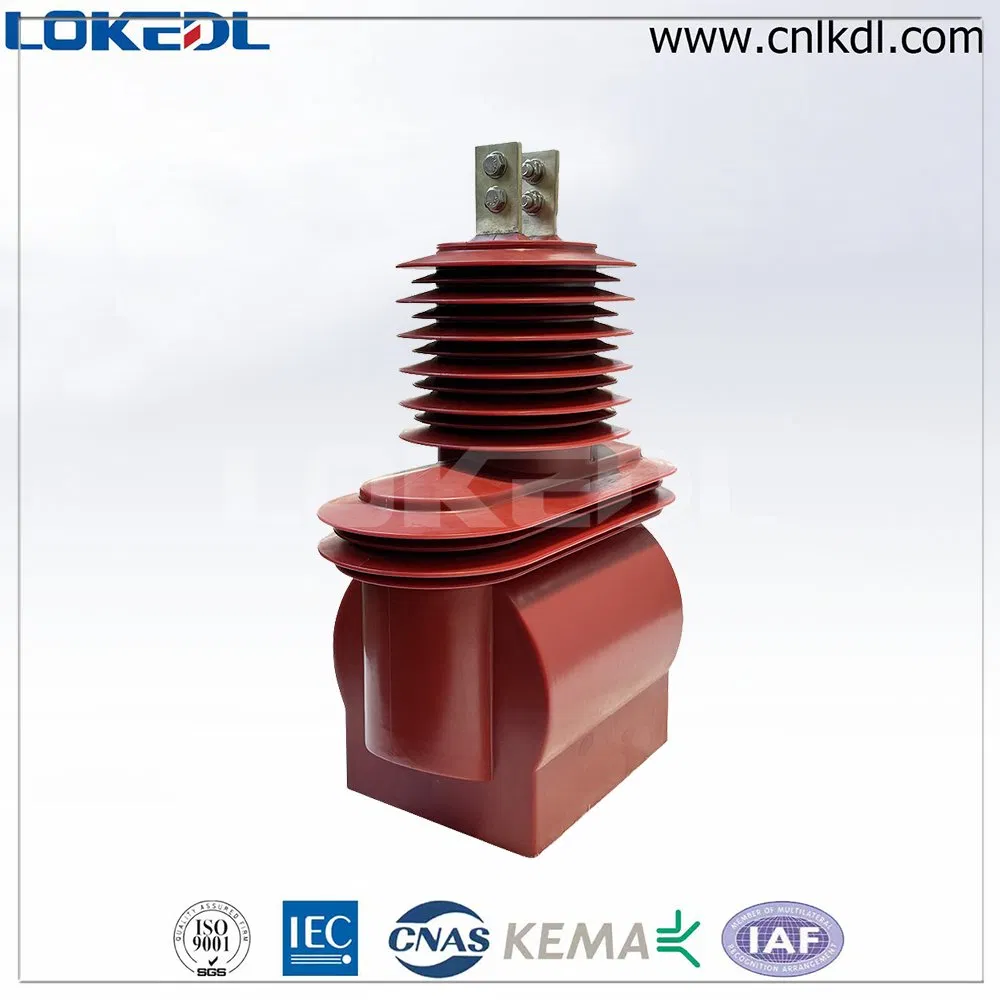

This outdoor dry type current transformer is used in 33kV, 35kV, 36kV and 40.5kV power system, for measuring and protection. It has been used in outdoor pole mounted and transmission line.
The current transformer is made from high quality ultraviolet-proof epoxy resin, amorphous alloy core for metering and high quality silicon steel core for protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.
| Rated primary current(A) | Accuracy classes combination | Accuracy class and output (VA) | Short-time thermal current(kA/1s) | Rated dynamic current(kA) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.2s | 0.2 | 0.5s | 0.5 | 10P10 | 10P15 | 10P20 | ||||
| 5 - 75 | 0.2S/10P10 0.2S/10P15 0.2S/10P20 0.2/10P10 0.2/10P15 0.2/10P20 0.5/10P10 0.5/10P15 0.5/10P20 |
10 | 10 | 10 | 10 | 15 | 15 | 15 | 0.5 - 7.5 | 12.5 - 18.75 |
| 100 - 500 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 10 - 50 | 25 - 75 | |
| 600 - 800 | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 60 - 80 | 150 - 200 | |
| 1000 - 2000 | 15 | 20 | 15 | 30 | 30 | 30 | 20 | 80 | 200 | |
Optimized Packaging Solutions:

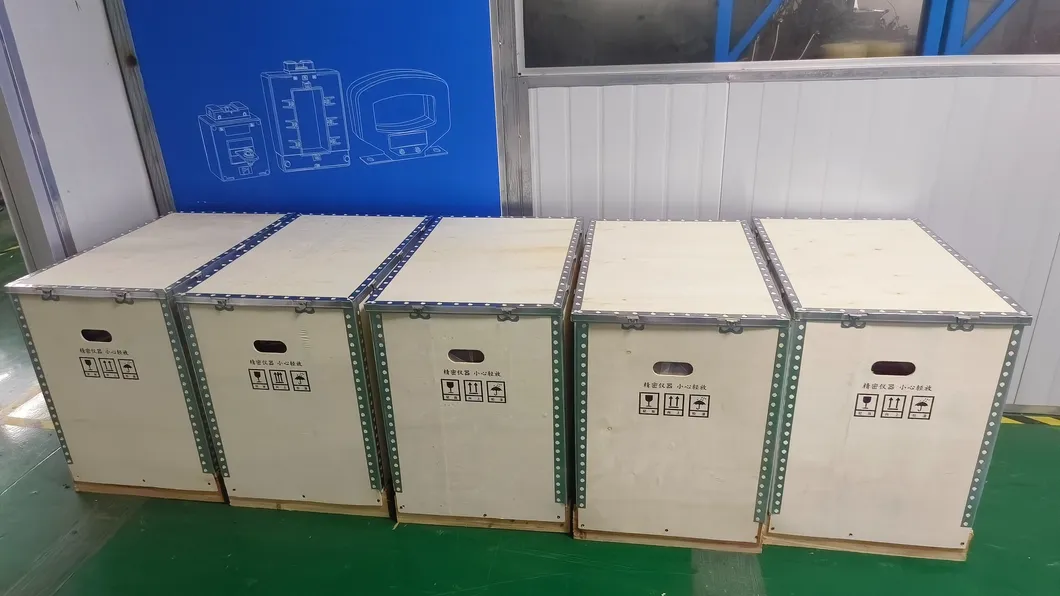

1. Small Products: Heavy-duty 5-layer corrugated boxes with custom foam inserts and PE bags.

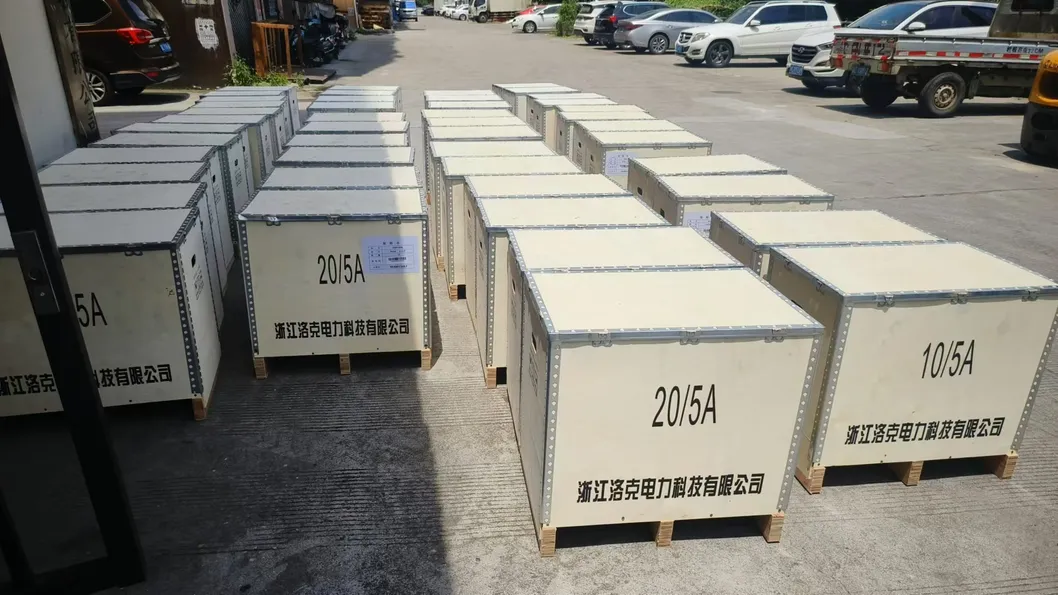

2. Large Products: Export-grade 12mm-15mm plywood crates with EPE foam for shock absorption.
Universal Safeguards: Clear labeling, waterproof tape, and palletized for safe forklift handling.
High-grade silicon steel or nanocrystalline cores for minimal losses. Robust epoxy resin for harsh environments.
Accuracy Class 0.2/0.5 for metering. Compliant with IEC 61869, IEEE, and ANSI standards. Low thermal rise design.
Custom ratios and sizes. Global certifications (CE, ISO). Fast delivery in 2-4 weeks for standard products.
