Medium voltage Outdoor Current Transformer

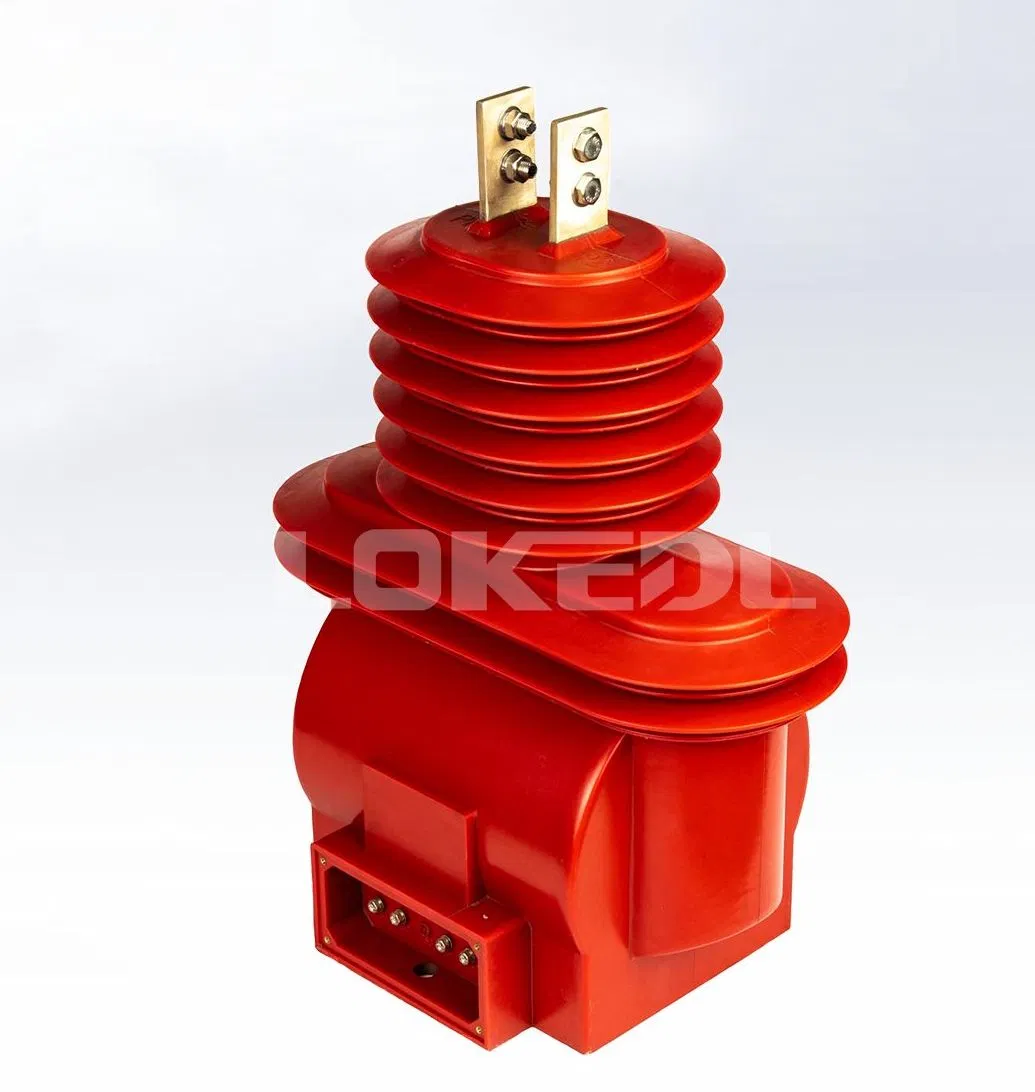

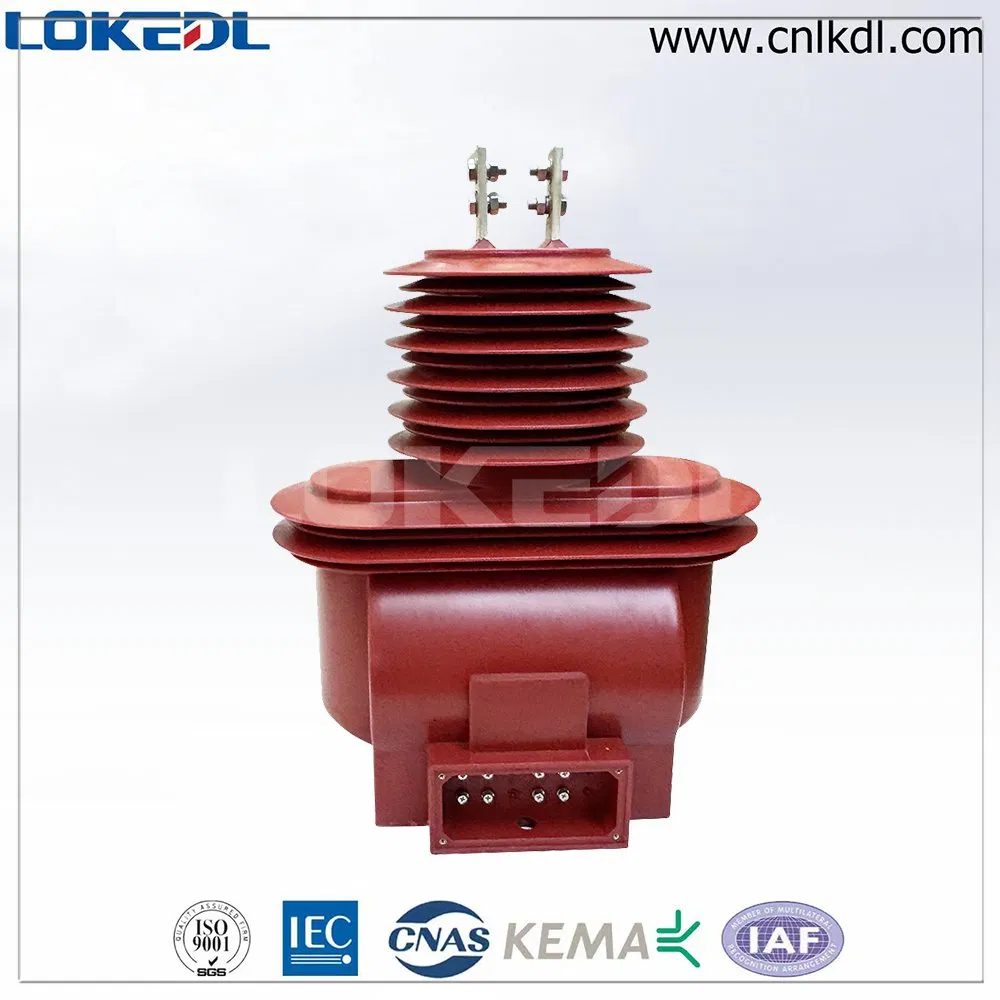

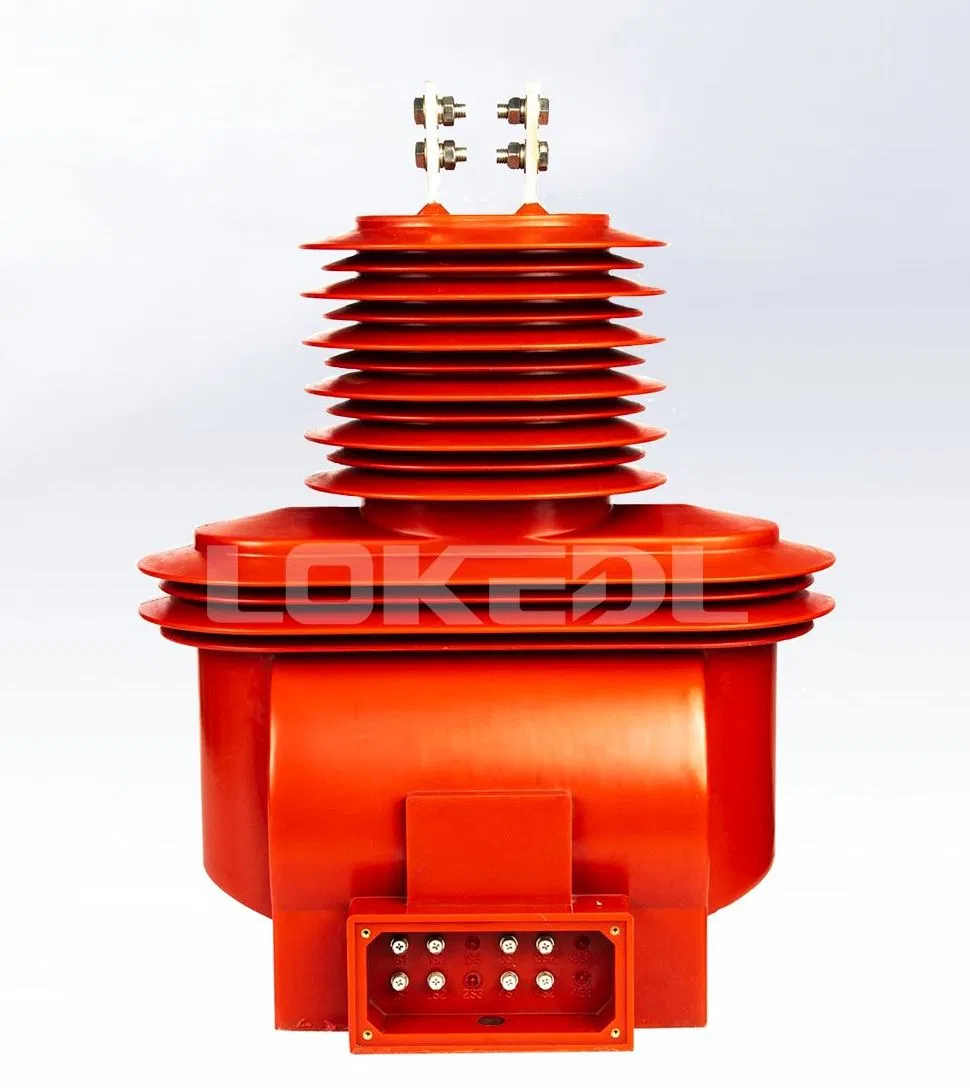

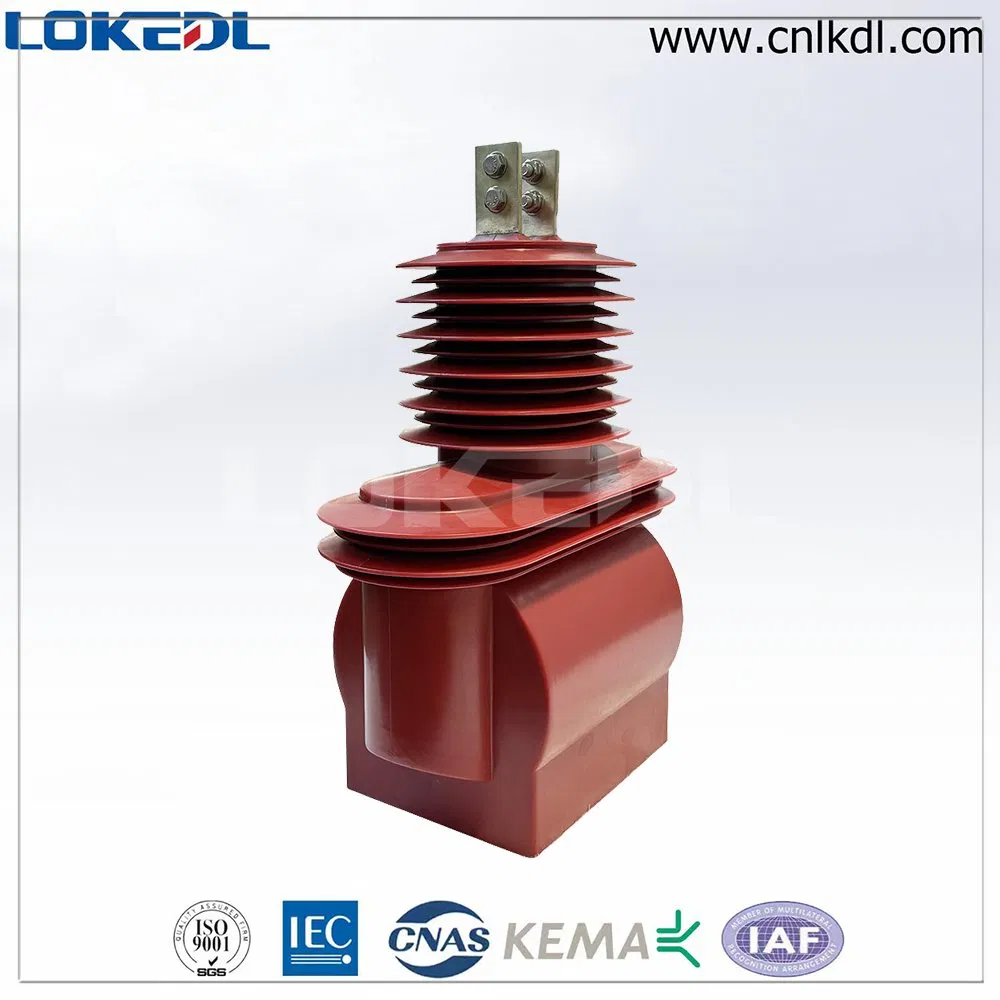

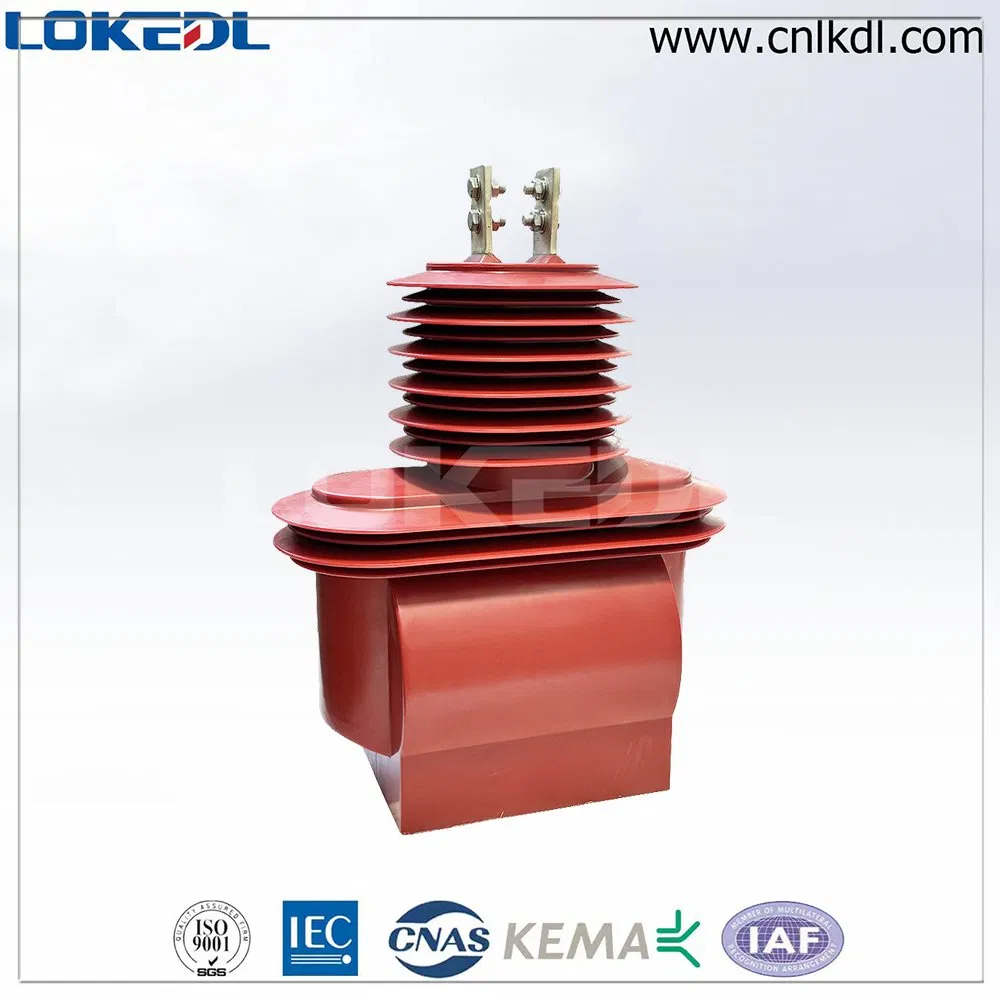

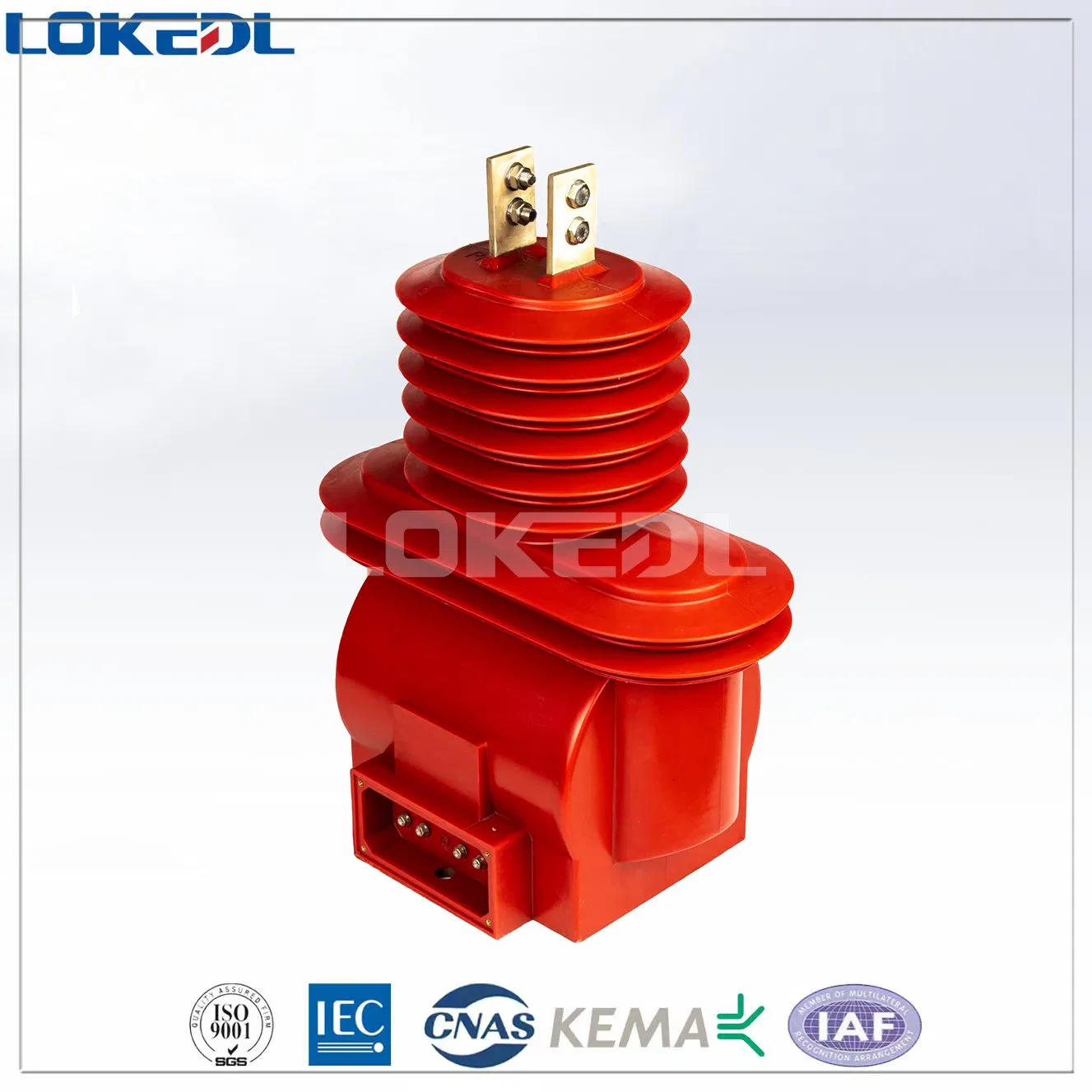

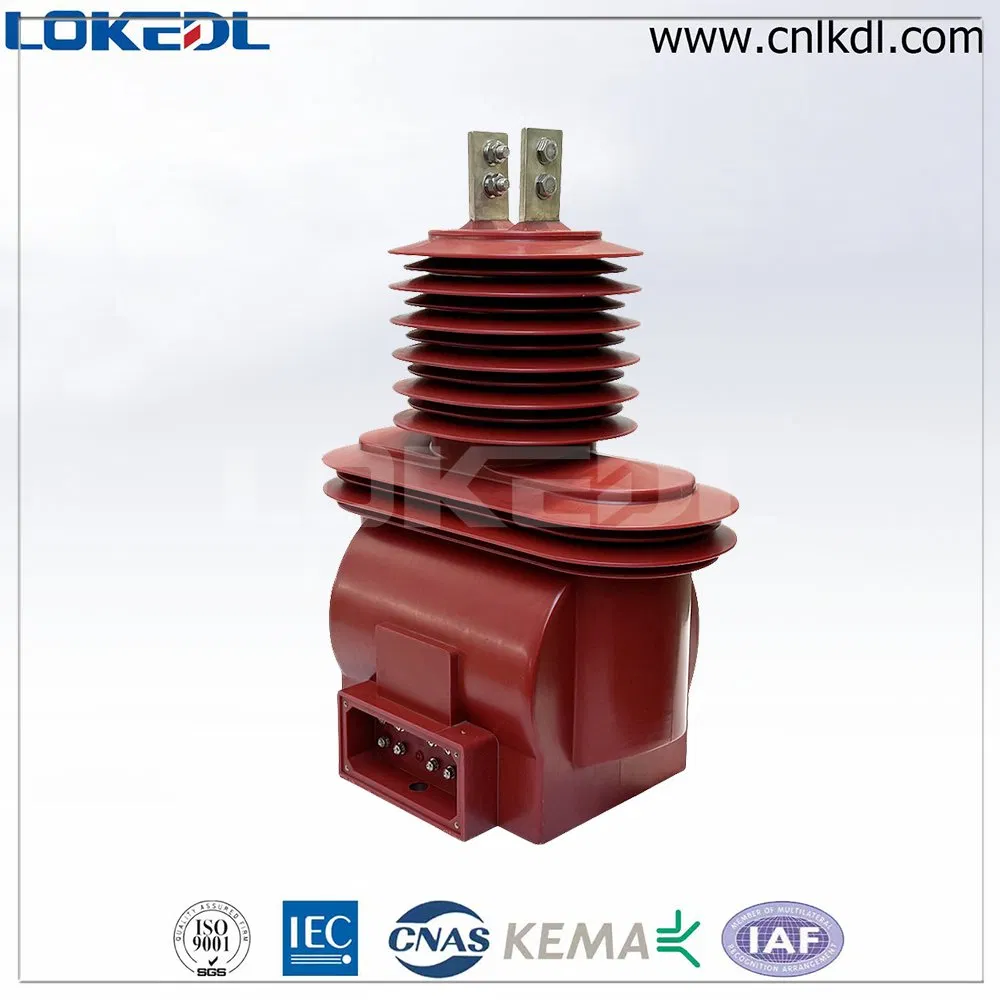

This outdoor dry type current transformer is used in 33kV, 35kV, 36kV and 40.5kV power system, for measuring and protection. It has been used in outdoor pole mounted and transmission line. The current transformer is made from high quality ultraviolet-proof epoxy resin, amorphous alloy core for metering and high quality silicon steel core for protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.
Standard: IEC standards IEC 61869, IEEE C57.13
| Rated primary current(A) | Accuracy classes combination | Accuracy class and output (VA) | Short-time thermal current(kA/1s) | Rated dynamic current(kA) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.2s | 0.2 | 0.5s | 0.5 | 10P10 | 10P15 | 10P20 | ||||
| 5 - 75 | 0.2S/10P10 to 0.2S/0.2/10P20 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 0.5 - 7.5 | 12.5 - 18.75 |
| 100 - 500 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 10 - 50 | 25 - 100 | |
| 600 - 800 | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 60 - 80 | 150 - 200 | |
| 1000 - 2000 | 15 | 20 | 15 | 30 | 30 | 30 | 20 | 80 | 200 | |

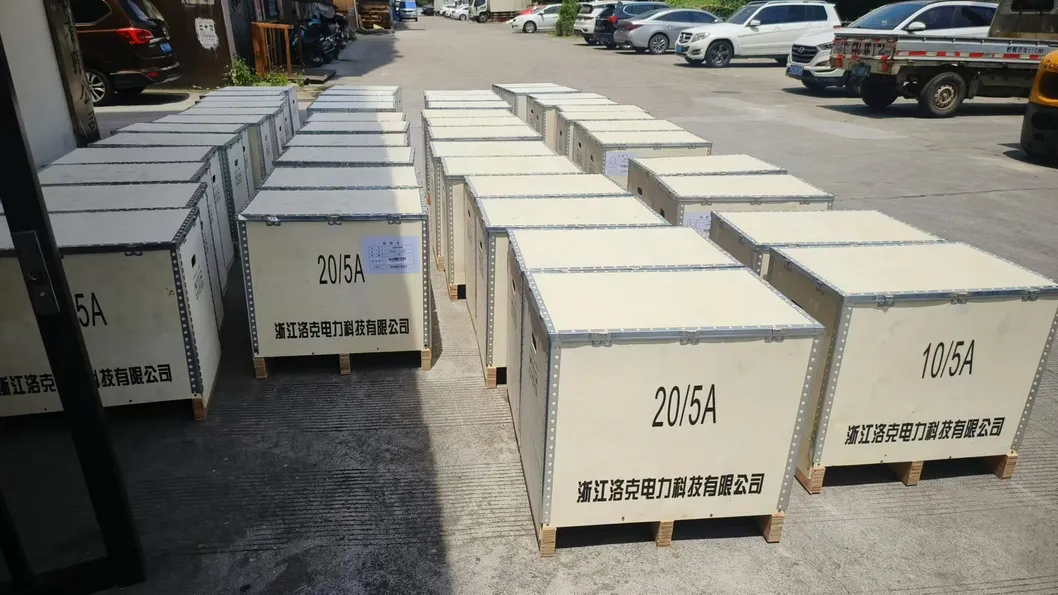

Optimized Packaging Solutions:
1. Small & Lightweight Products
- Secure 5-layer corrugated cardboard boxes.
- Internal Protection: Custom foam inserts, air cushions, or PE bags.
- Reinforcement: Waterproof tape + strapping.
2. Large & Heavy Products
- Export-Grade Plywood Crates: 12mm-15mm plywood.
- Shock Absorption: EPE foam edges.
- Palletized: Standard pallets for forklift handling.
High-Grade Cores: Precision-laminated silicon steel or nanocrystalline cores. Robust Epoxy Resin designs ensure long-term stability.
Accuracy: Class 0.2/0.5 for metering, 5P/10P for protection. Compliant with IEC 61869, 60044, IEEE, and ANSI standards.
Custom Solutions: Tailored ratios and sizes. Lifelong technical aid including installation guidance and spare parts.
