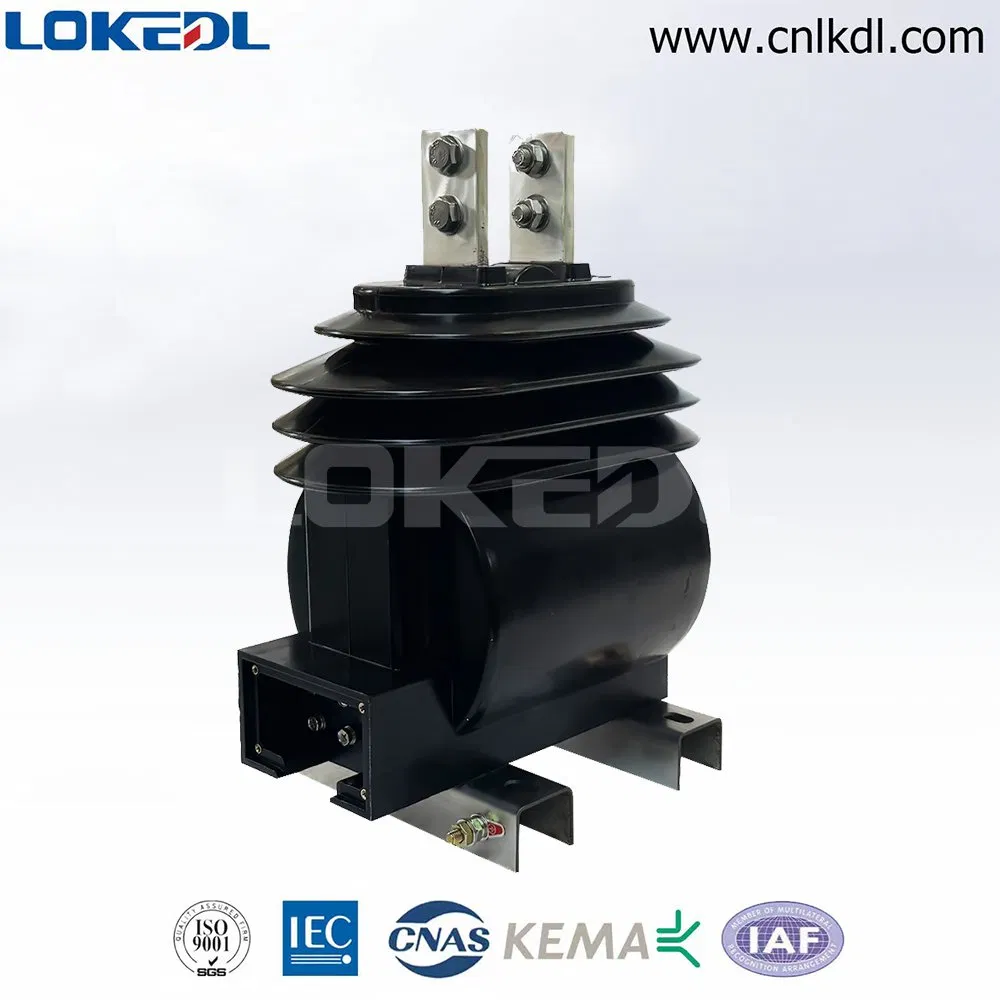

Precision 10kv Outdoor Current Transformer for Accurate Energy Monitoring

Basic Information

Model NO.

LZZW1-10

Phase

Single

Condition

Outdoor

Usage

Protection, Measurement

Insulation

Epoxy Resin

Rated Voltage

3.3kv to 13.8kv

Standard

IEC61869-2

Frequency

50Hz or 60Hz

Product Description

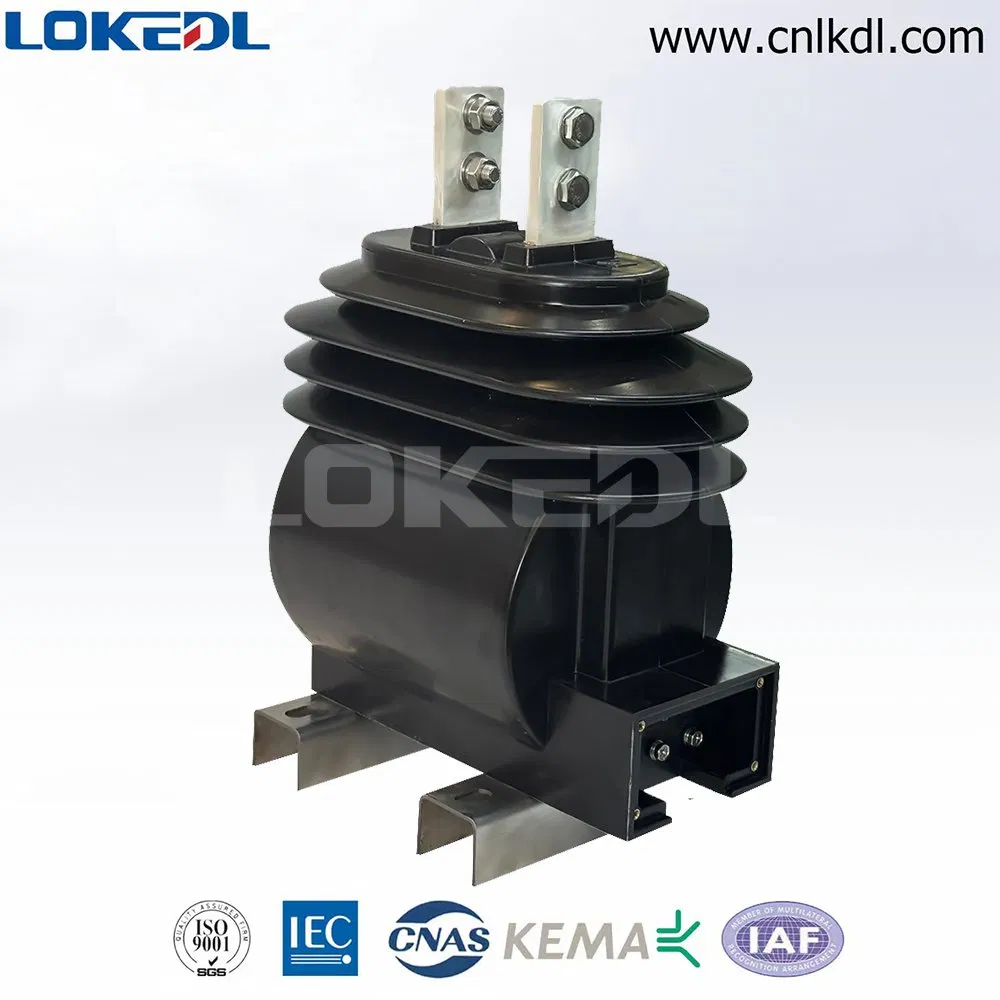

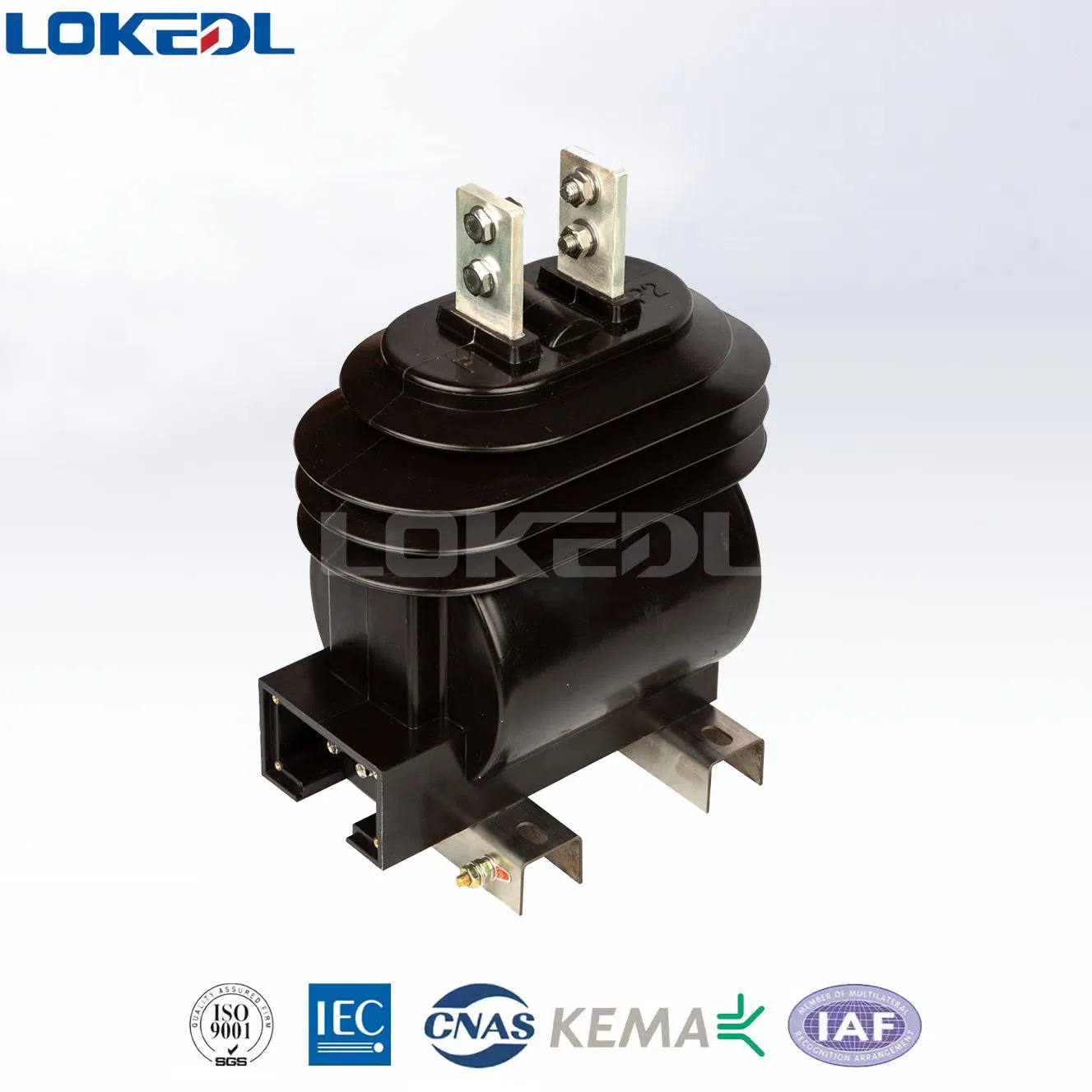

Medium Voltage 10/11KV Outdoor Current Transformer

◈ Outdoor epoxy resin current transformer
◈ Rated voltage: 3.3kV, 6kV, 10kV, 11kV, 12.5kV, 13.8kV
◈ Metering class: 0.2S, 0.2, 0.3, 0.5, 0.5S, 0.6, 1
◈ Type: LZZW-10, LZZBW-11, LZZW-13.8

Constructed with high-quality ultraviolet-proof epoxy resin and amorphous alloy cores, this transformer ensures superior accuracy for metering and reliable protection for outdoor pole-mounted systems and transmission lines.

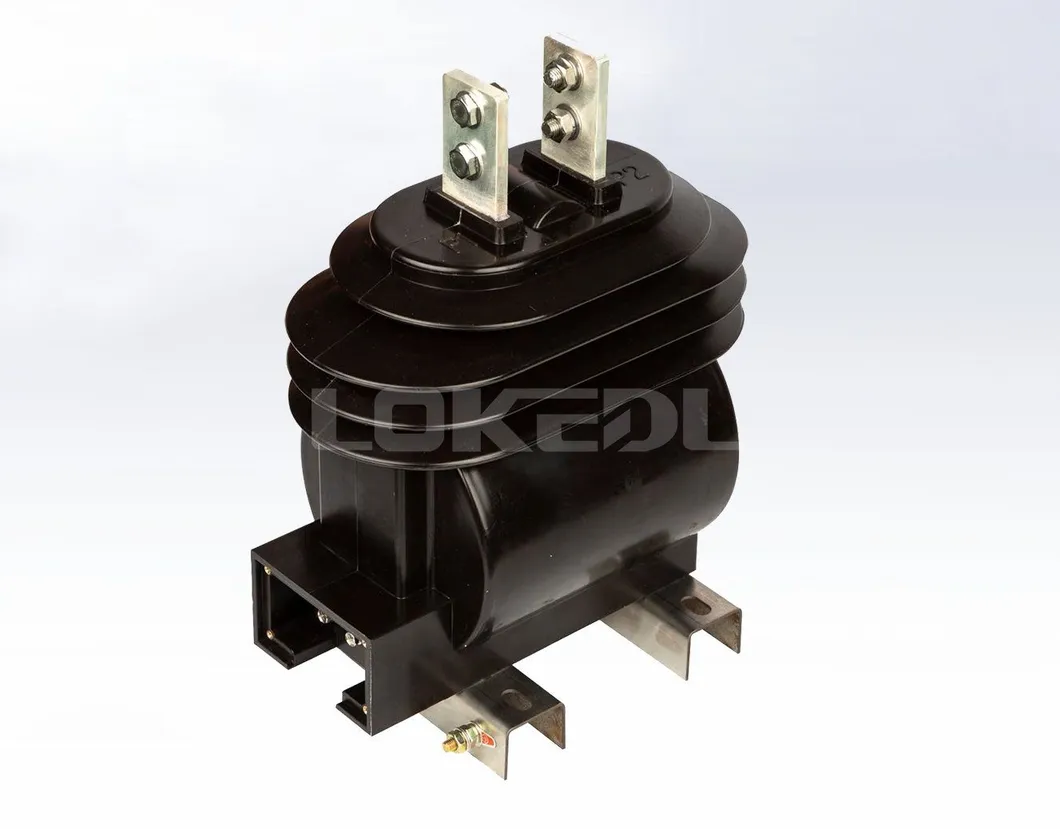

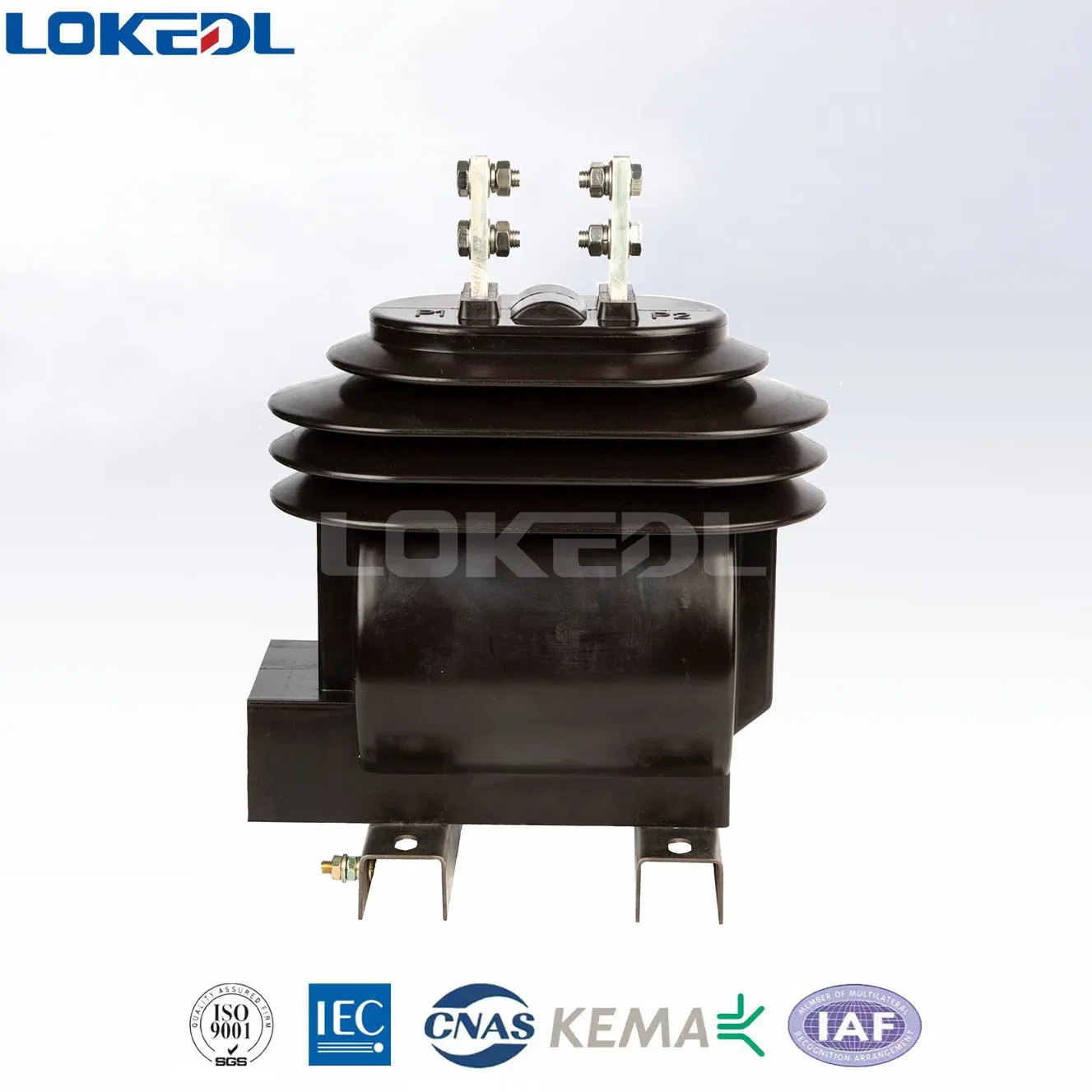

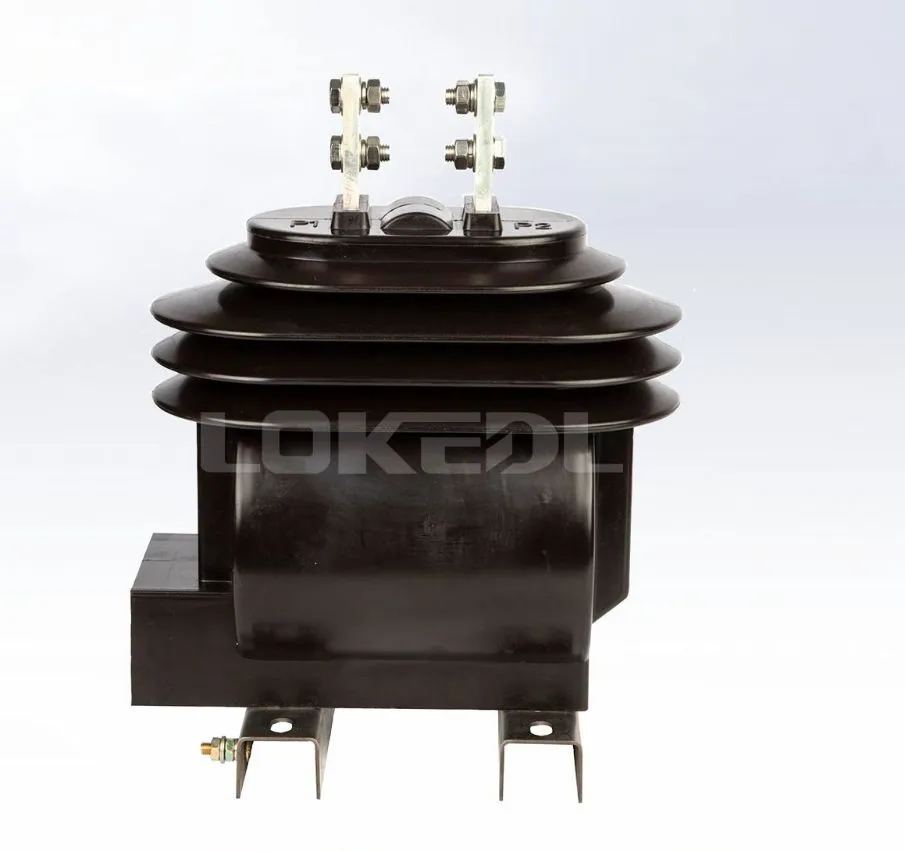

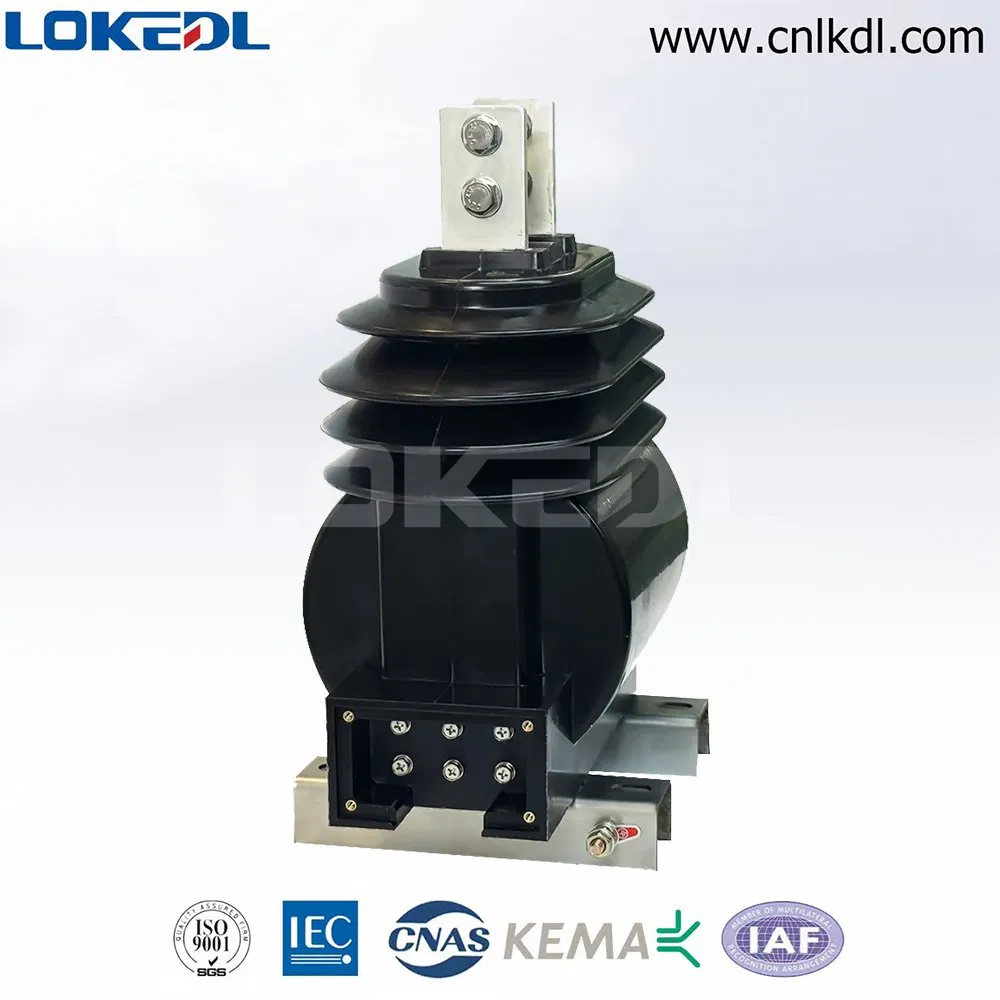

Detailed Photos

Product Parameters

Rated Primary Current (A)	Accuracy Class & Output (VA)			Thermal Current (kA/1s)
Rated Primary Current (A)	0.2s	0.5	10P15	Thermal Current (kA/1s)
5 - 75	10	10	15	0.5 - 7.5
100 - 500	10	10	15	10 - 50
600 - 800	15	15	20	60 - 80
1000 - 2000	15	30	30	80

Certifications

Our Advantages

Premium Materials

Utilizing high-grade silicon steel or nanocrystalline cores for minimal losses and epoxy resin for long-term outdoor stability.

Superior Performance

Compliant with IEC 61869, IEEE, and ANSI. Supports a wide range from 0.6kV to 36kV systems with EMC immunity.

Expert Support

15+ years in the power industry with a "Zero major failure" record since 2015. Fast delivery in 2-4 weeks.

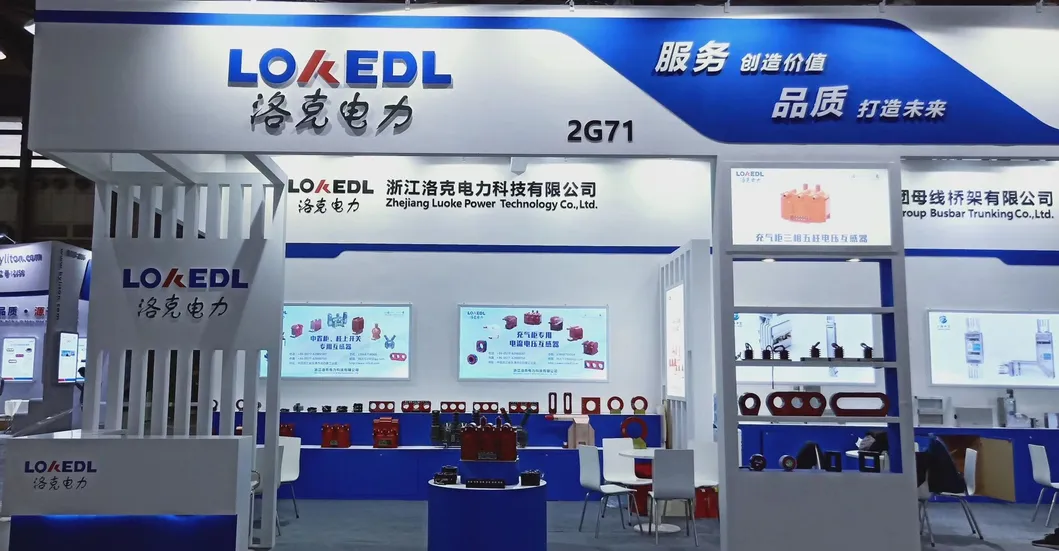

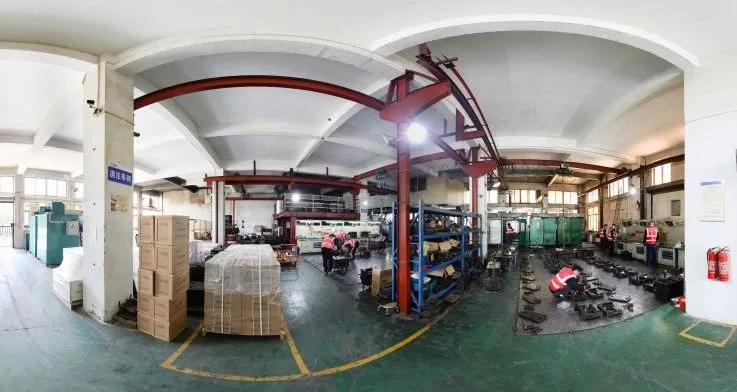

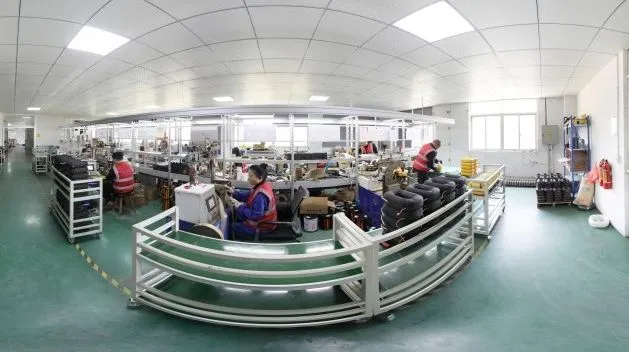

Workshop & Team

Frequently Asked Questions

What customization options do you offer?

We provide tailored solutions based on specific requirements, including dimensions, performance specifications, and other technical parameters.

How do I request a custom product?

Simply send your detailed specifications such as technical drawings or performance standards. Our team will provide a solution within 2 business days.

What's the lead time for orders?

Standard products typically ship in 2 weeks, while customized projects may take longer depending on complexity.

Can you meet international certifications?

Yes, our products comply with major international standards including IEC, CE, and ISO.

How do you ensure product quality?

We conduct 100% rigorous in-house routine testing and can offer third-party inspections and reports upon request.

Is technical support available after purchase?

Yes, we provide lifelong technical assistance including installation guides, troubleshooting, and spare parts supply.
