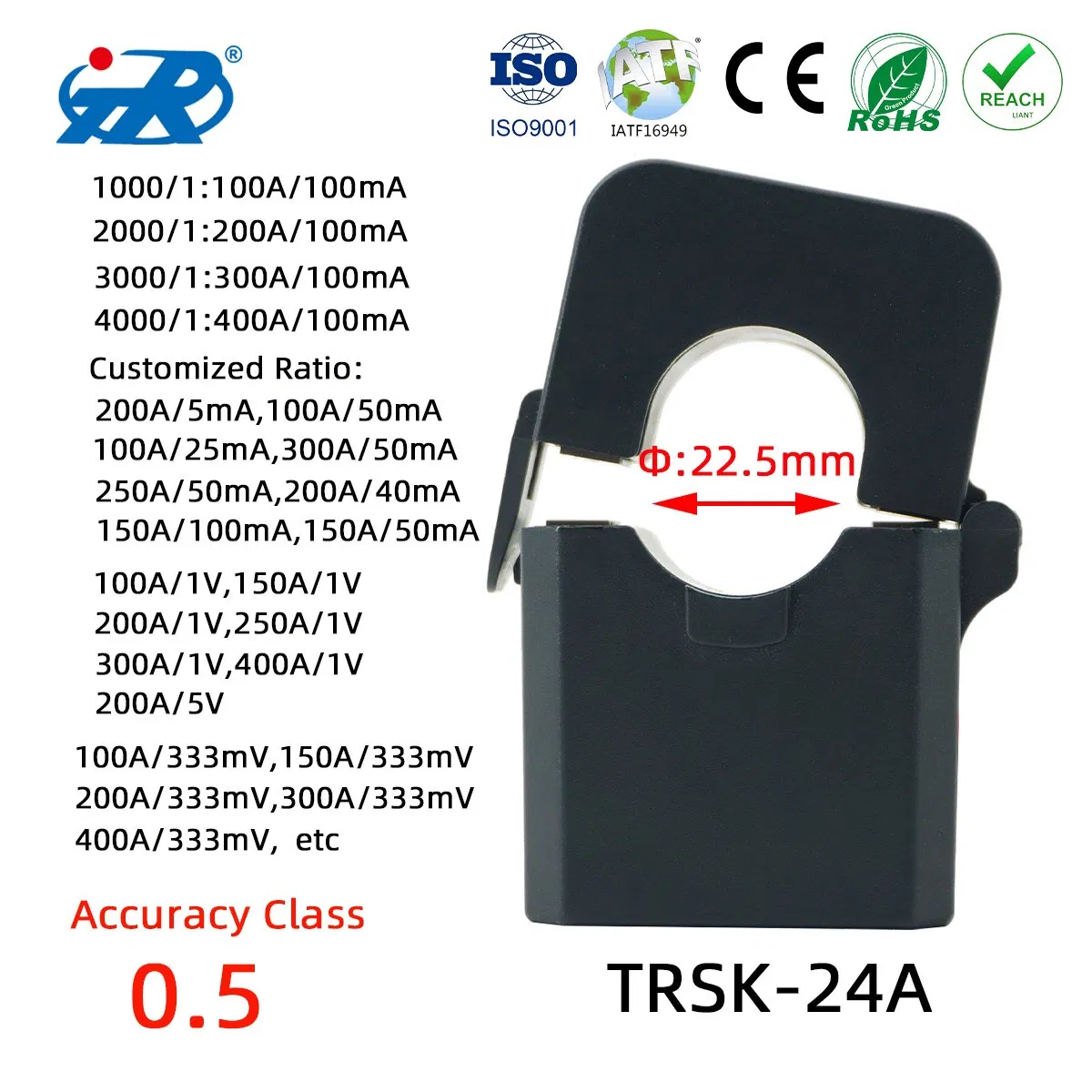

TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
1 / 5
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser
TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser

TRSK-24A Current Transformer 50A 100mA Split Core Current Transformer to 50mA AC Cureent Transformer Transreduser

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.TRSK-24A-06PhaseSingle
Operation ConditionIndoorUsageMeasurement
Winding FormMultilayer Honeycomb TypeInsulating MediumEpoxy Resin
InstallationActive TypeMagnetic CircuitSingle Stage Type
Rated Input Current0~1500ARated Capacity0~5va
Accuracy Class0.5, 1.0Rated Frequency50/60Hz
Core MaterialSilicon steel/manganese zinc ferriteOriginChina

Split-core Cable Type Current Transformer

TR-A series open and close current transformer, 180 degrees open and close freely, indoor use. It can be quickly installed and disassembled in the state of no power failure and continuous line and the operation is simple. Through the principle of electromagnetic induction, the measured source is isolated from personnel and equipment, effectively ensuring the safety of personnel and property. This series of products has a variety of apertures and specifications to meet different use and installation needs.

Key Characteristics

  • The buckle structure is fixed and the stability is good.
  • Various core hole diameters corresponding to various cable specifications.
  • Wide quantity limit and strong anti-saturation ability.

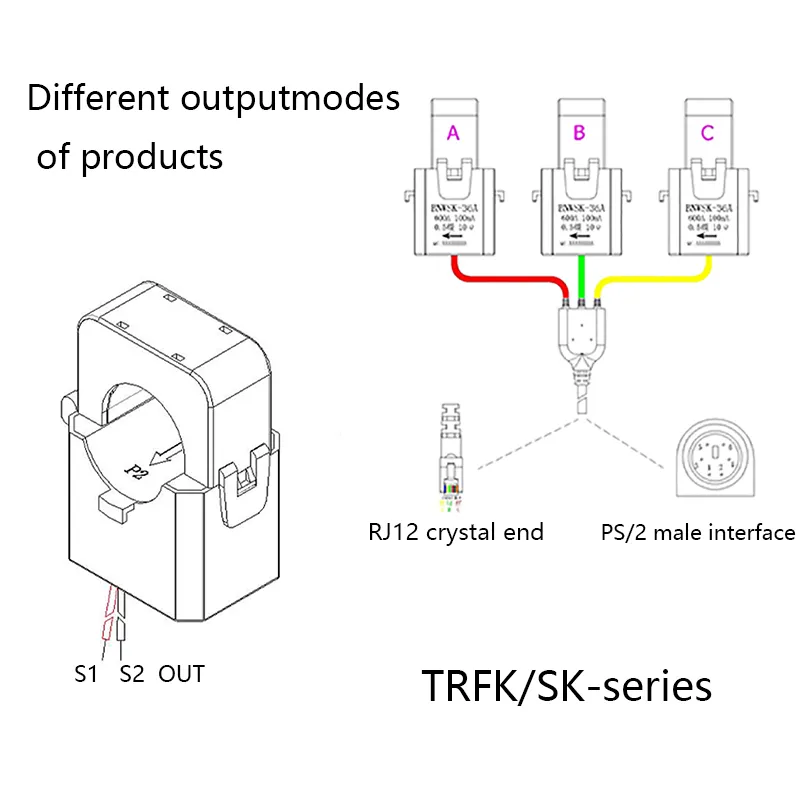

  • Multiple combined output methods (PVC sheathed wire, RJ12, PS/2 interfaces).
  • High magnetic permeability core for excellent linearity and sensitivity.

Electrical & Mechanical Performance

Technical Parameters
Operation temperature-40ºC~+70ºCRelative humidity≤90%
Voltage level0.4/0.66/0.72KVLinear range5%~120%
Dielectric strength1000MΩ/500V/minWithstand voltage3KV/min
Shell MaterialPA/PC (94-V0)Opening StructureSnap/Buckle

Applications

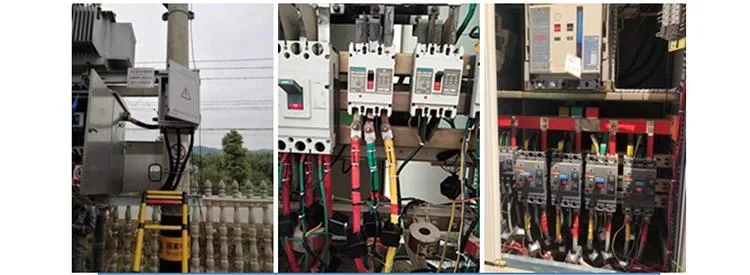

Suitable for rural power grid reconstruction, online environmental monitoring, smart fire-fighting, low-voltage power distribution, smart power consumption systems, electricity measurement, power quality analysis, and electrical equipment signal collection.

Product Display

Current Transformer 1
Current Transformer 2
Current Transformer 3
Current Transformer 4
Current Transformer 5
Current Transformer 6

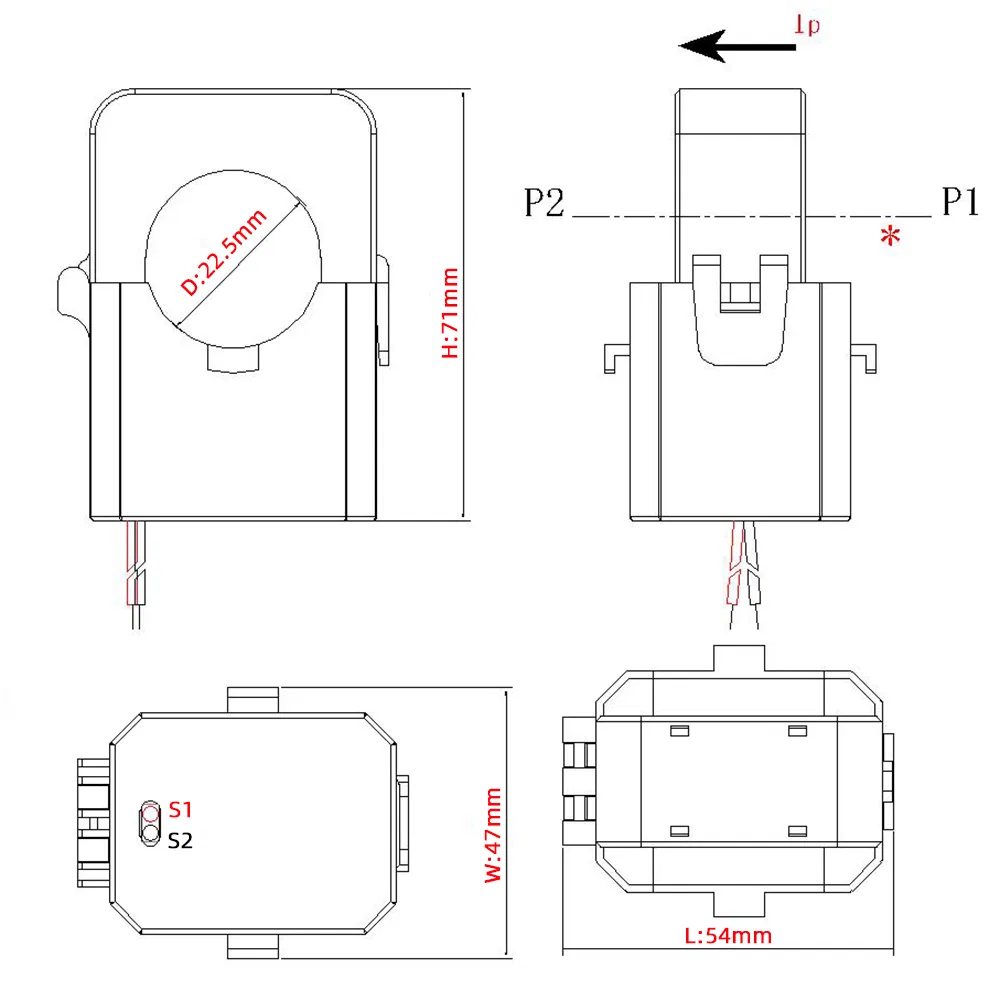

Shape and Installation Dimensions

ModelInputOutputD (mm)L (mm)W (mm)H (mm)
TRFK-10A0~75A0~50mA934.537.545
TRFK-16A0~150A0~100mA1540.542.552
TRFK-24A0~250A0~100mA22.5544771

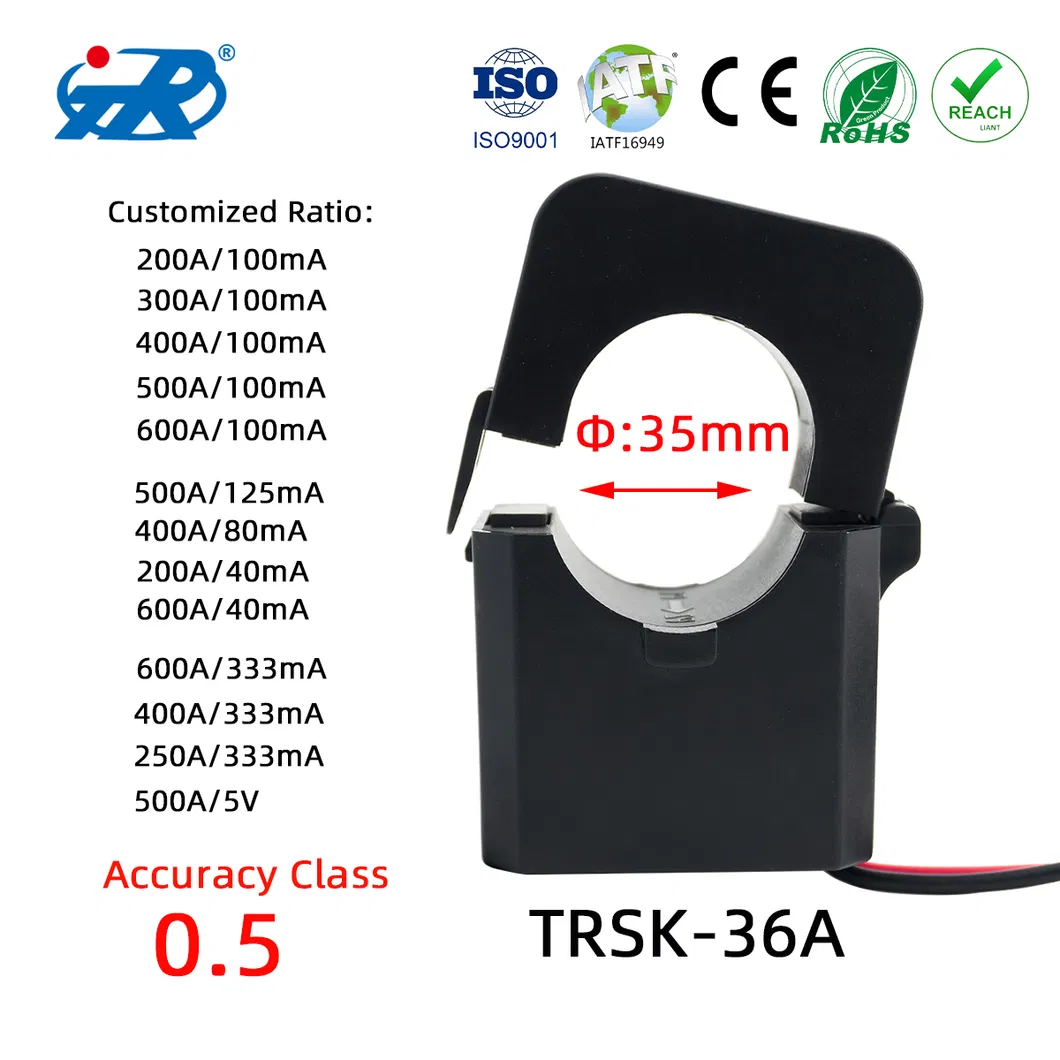

TRSK-36A0~500A0~100mA35665387

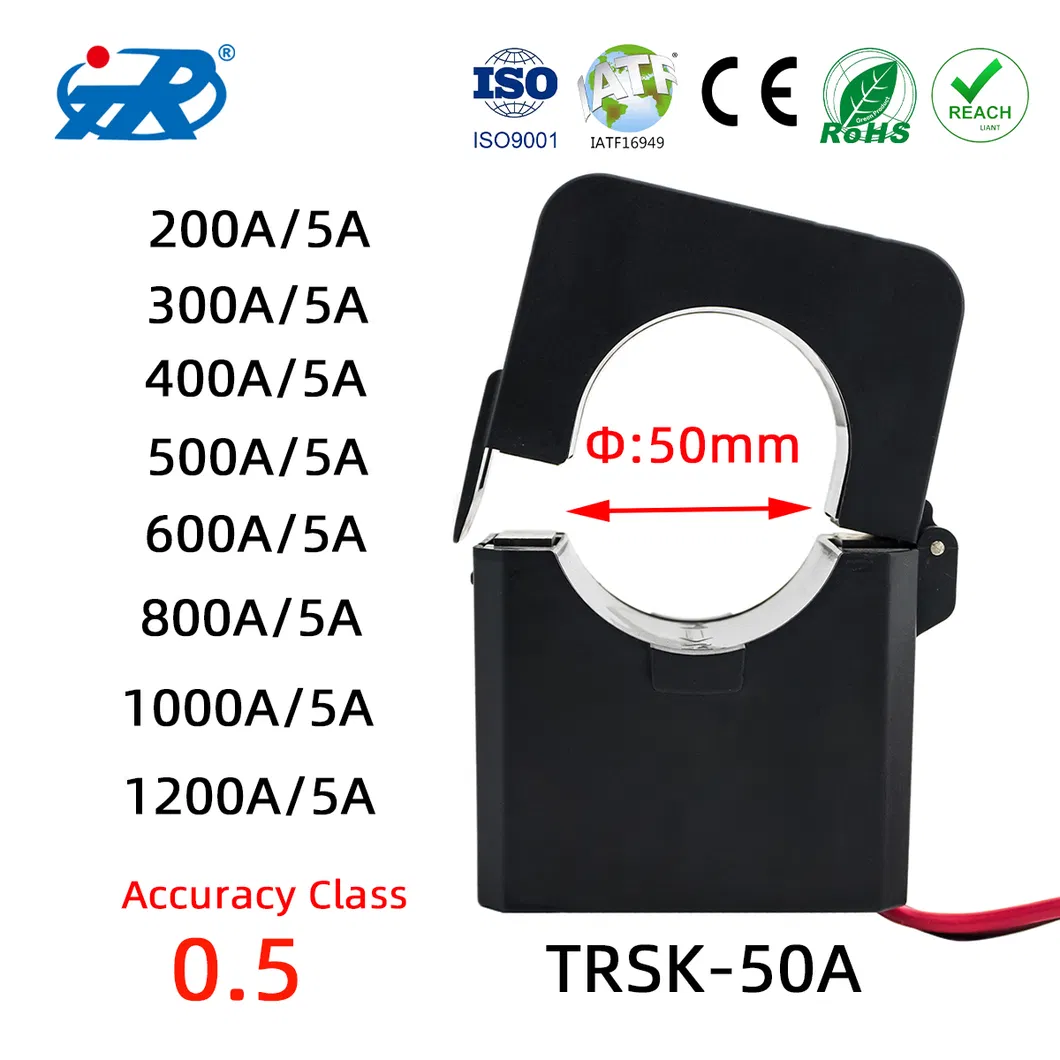

TRSK-50A0~1500A0~5A508859114

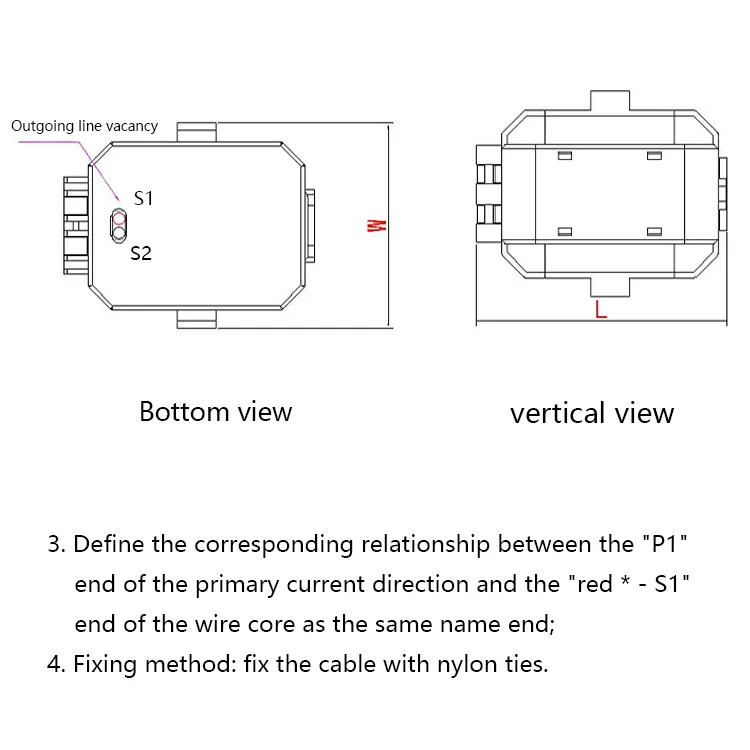

Diagram 1

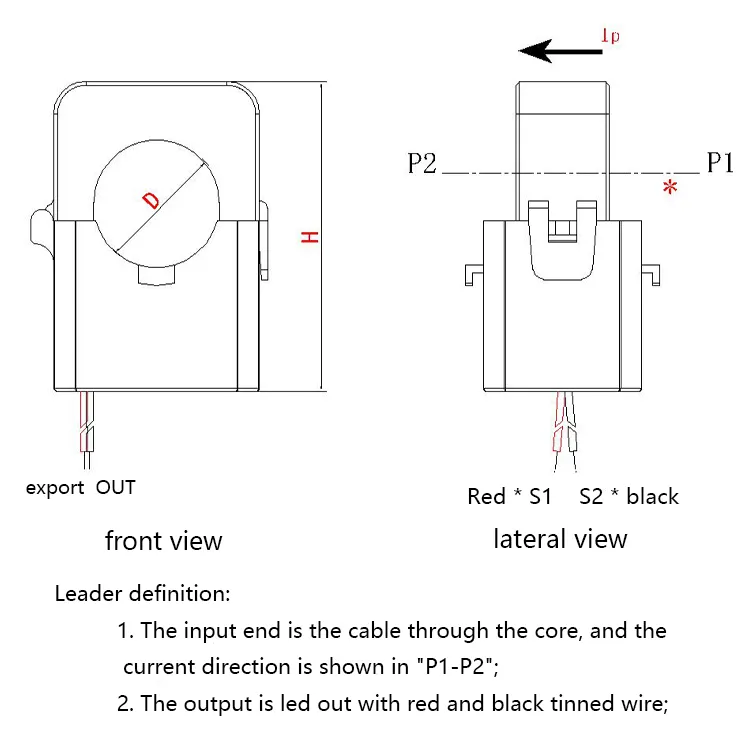

Diagram 2
Full Spec 1
Full Spec 2

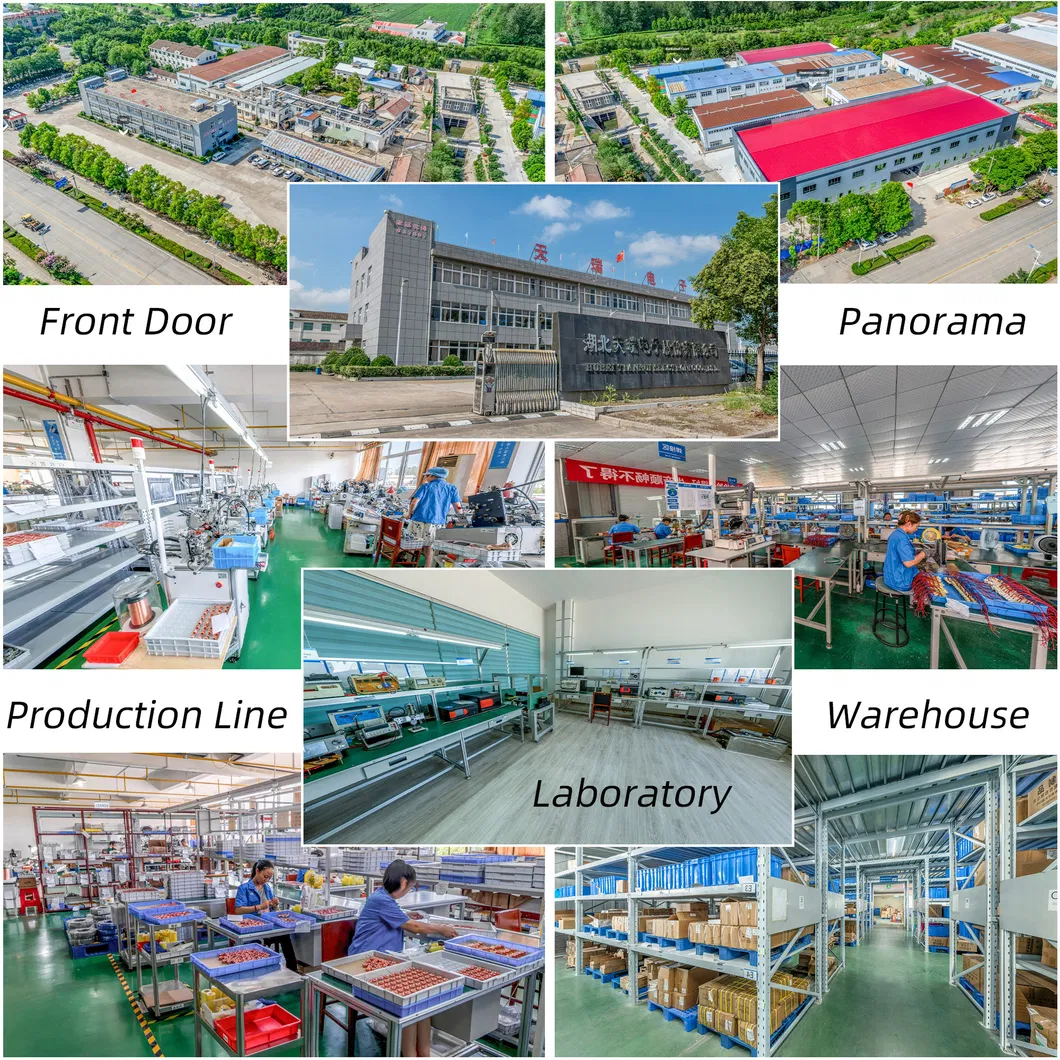

Full Spec 3

Frequently Asked Questions

Can this current transformer be installed without power interruption?
Yes, the TR-A series features an open-and-close (split-core) design that allows for quick installation and disassembly without the need for power failure or cutting the line.
What is the fire safety rating of the casing?
The shell is made of PA/PC materials with a flammability rating of 94-V0, ensuring high safety standards for industrial and indoor use.
What is the accuracy class of these transformers?
These transformers are designed with high-precision standards, typically falling into accuracy classes 0.5 or 1.0 depending on the specific model and application.
What are the primary output options available?
We provide various output methods including PVC sheathed cables, RJ12 crystal terminals, and PS/2 round head male interfaces to suit different signal collection needs.
What environment is this product suitable for?
It is designed for indoor use within a temperature range of -40ºC to +70ºC and relative humidity ≤90%, making it ideal for power distribution cabinets and monitoring systems.
What core materials are used in the construction?
The product utilizes high magnetic permeability cores made from silicon steel or manganese zinc ferrite to ensure good linearity and sensitivity.
