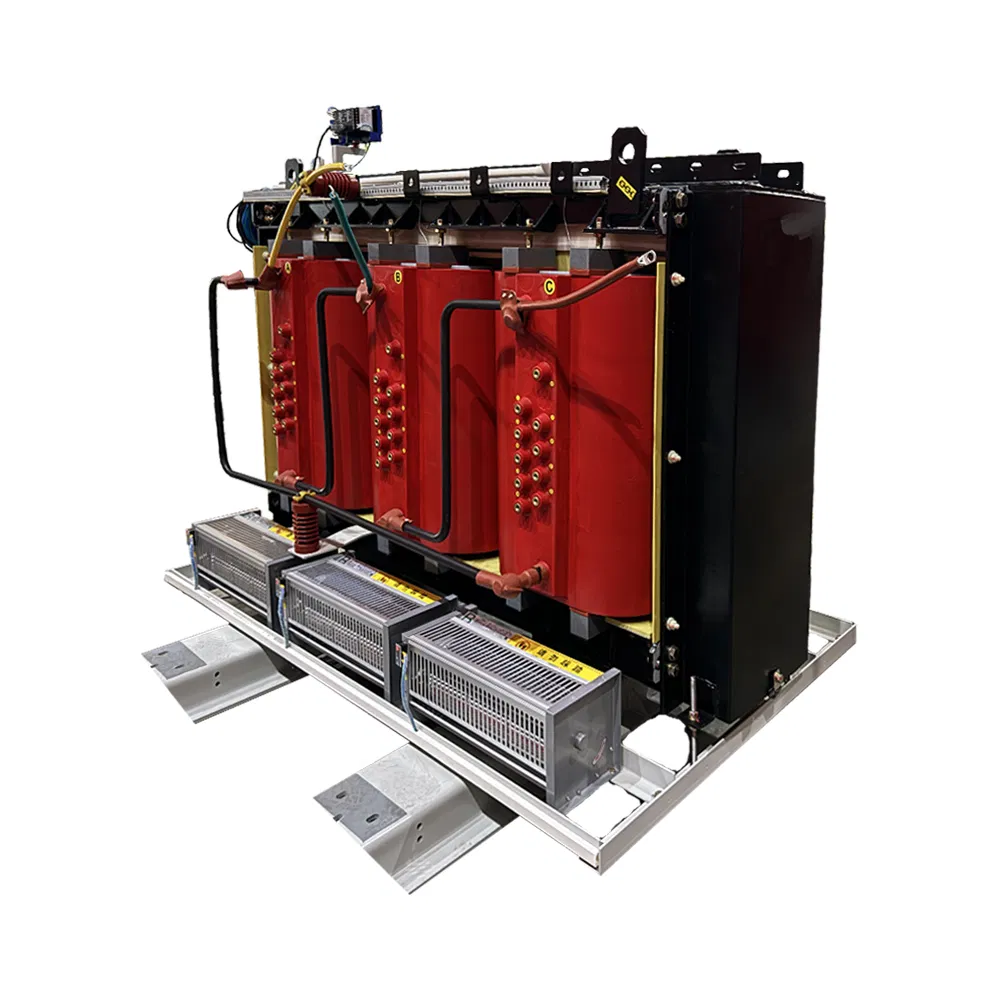

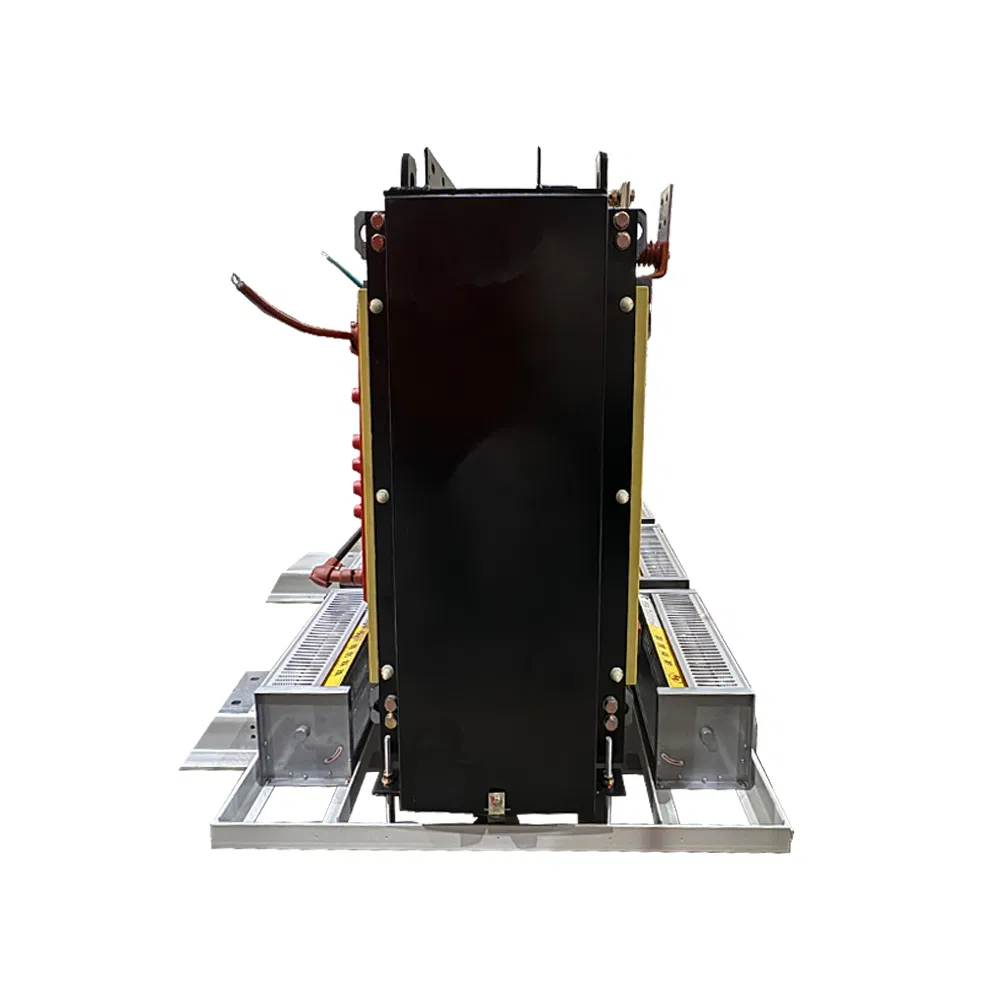

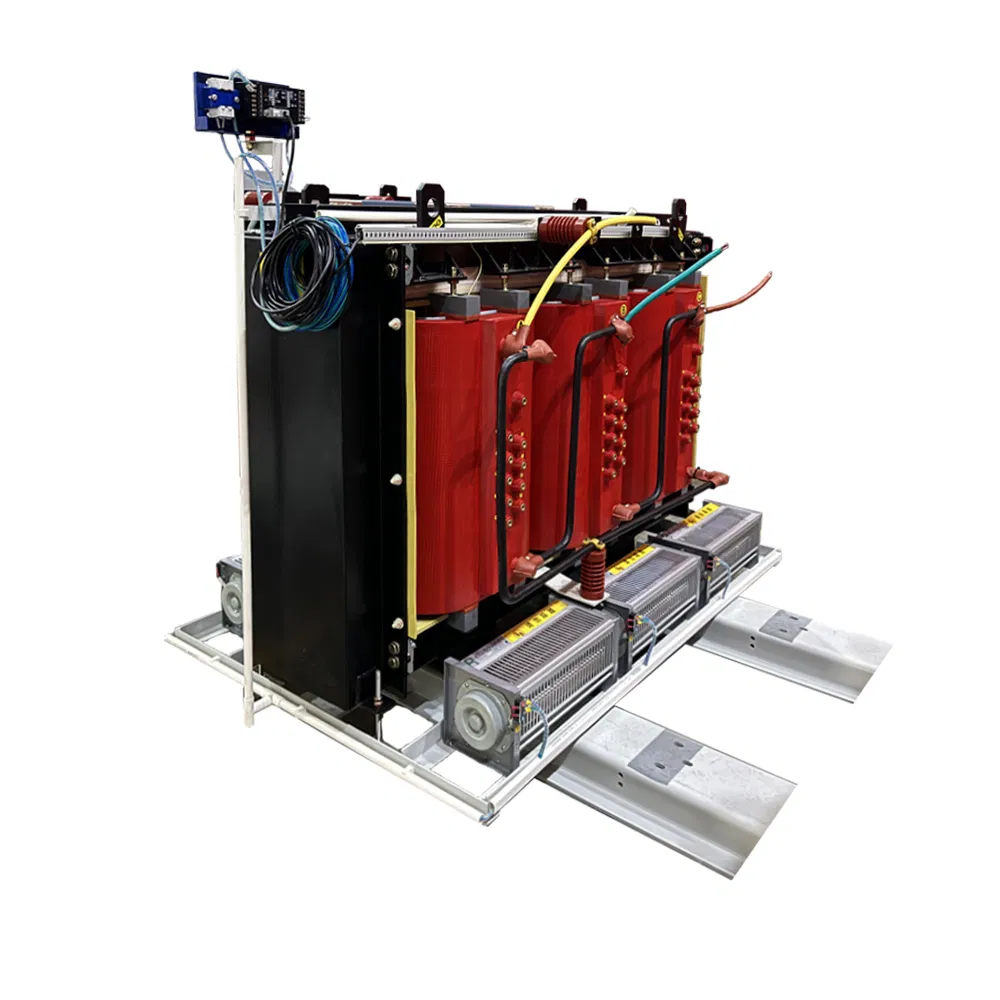

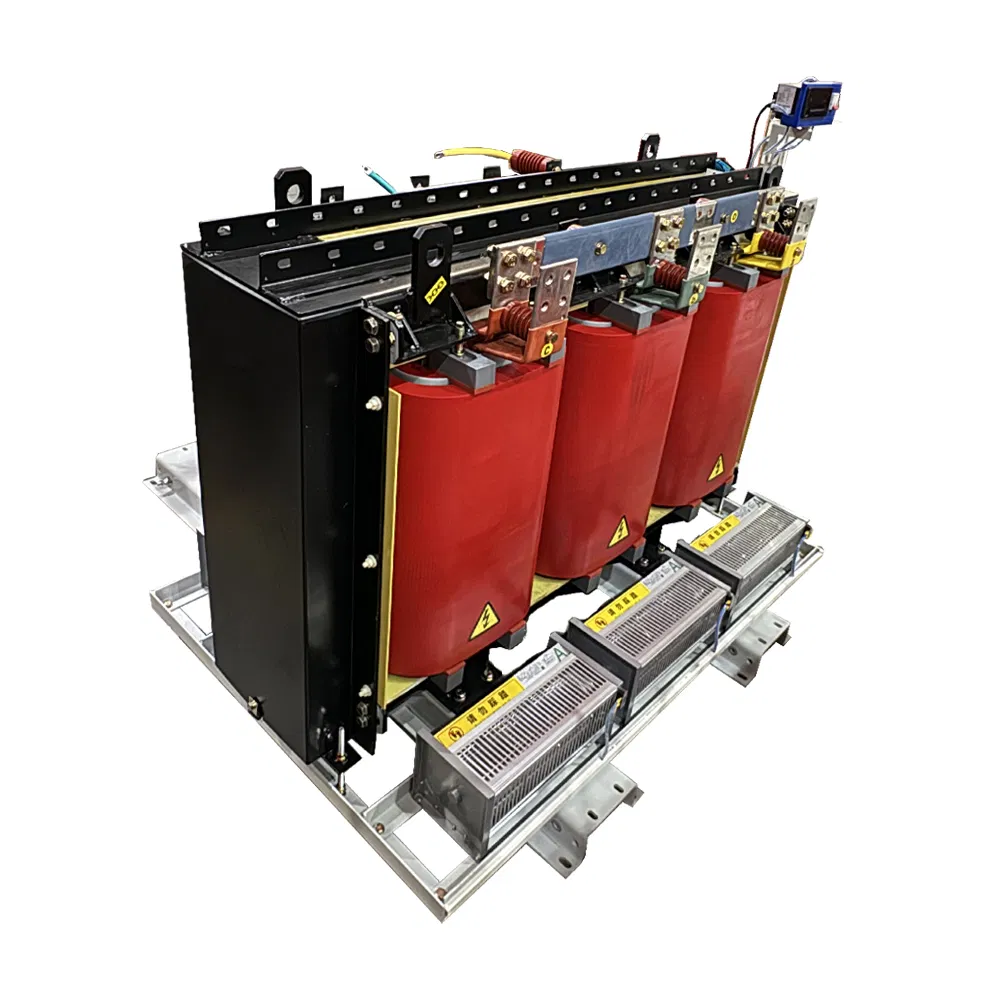

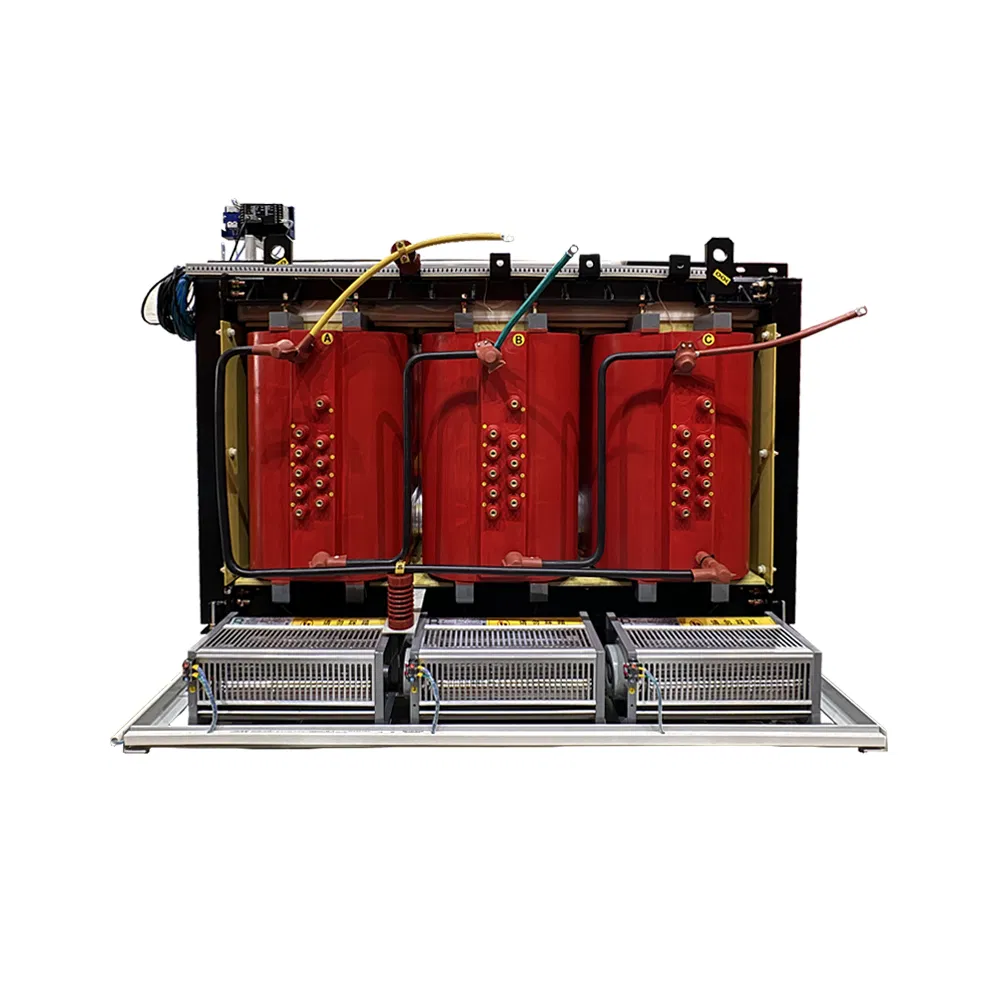

High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
1 / 5
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized
High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized

High permeability 2500kva Power Distribution Amorphous Alloy Dry-Type Transformer Customized

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Three
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.PECH-S-2500/35/0.42
CoreCore-type Transformer
Cooling MethodDry-type Transformer
Winding TypeThree-winding Transformer
CertificationISO9001, CCC, ISO14001, ISO45001, CE, KEMA
UsagePower Transformer, Distribution Transformer
Capacity2500kVA
Voltage (HV/LV)35/0.42kv
Core materialsSilicon Steel
Winding materialsCopper
Insulation ClassH-Class/F-Class(Customized)
OriginChina
⚡ Product Description
2500kva Power Distribution Amorphous Alloy Dry-Type Transformer

A dry type transformer, also known as an air-cooled transformer, utilizes air or gas instead of liquid (such as oil) for insulation and cooling purposes. This design does not immerse its core and windings in insulating oil, making it distinct from oil-filled transformers.

2500kva Power Distribution Amorphous Alloy Dry-Type Transformer

Types of Dry Type Transformers

Cast Resin Dry Type Transformer (CRT)
  • Uses epoxy resin to encapsulate windings for protection from moisture, dust, and corrosion.
  • Suitable for high humidity areas and fire-risk zones.
  • Ratings from 25 kVA to 12,500 kVA.
Vacuum Pressure Impregnated Transformer (VPI)
  • Impregnates windings with class H polyester resin under vacuum.
  • Enhances mechanical strength and thermal stability.
  • Ideal for outdoor installations and seismic events.
📊 Technical Datasheet
Capacity2500kVA
Reference standardsIEC 60076
Voltage (HV)35kV
Voltage (LV)0.42kV
Applied inWind Turbines / Power Distribution
Impedance %6~8%
Vector GroupDyn11
Frequency50Hz / 60Hz
Tapping Range±2×2.5%, NLTC/OLTC
Noise LevelAs per IEC Specifications
Cooling methodAN / AF

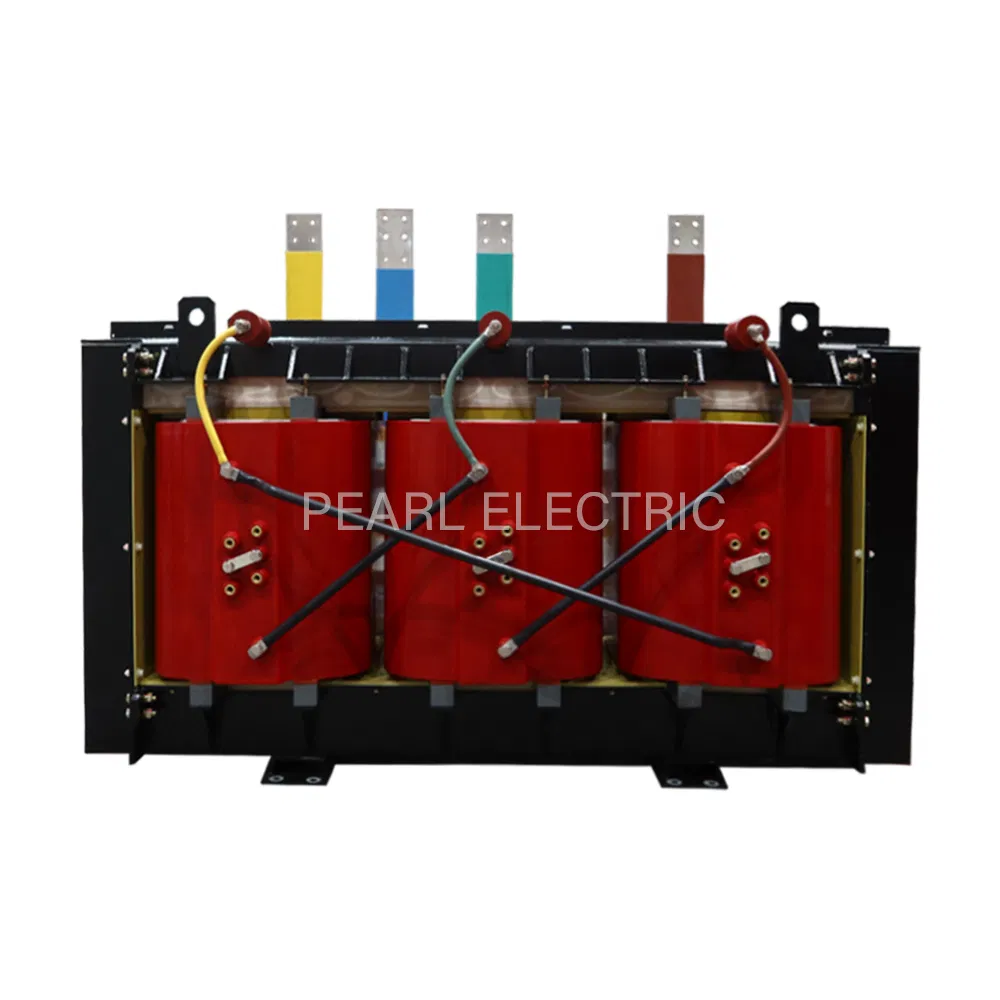

Transformer Component 1

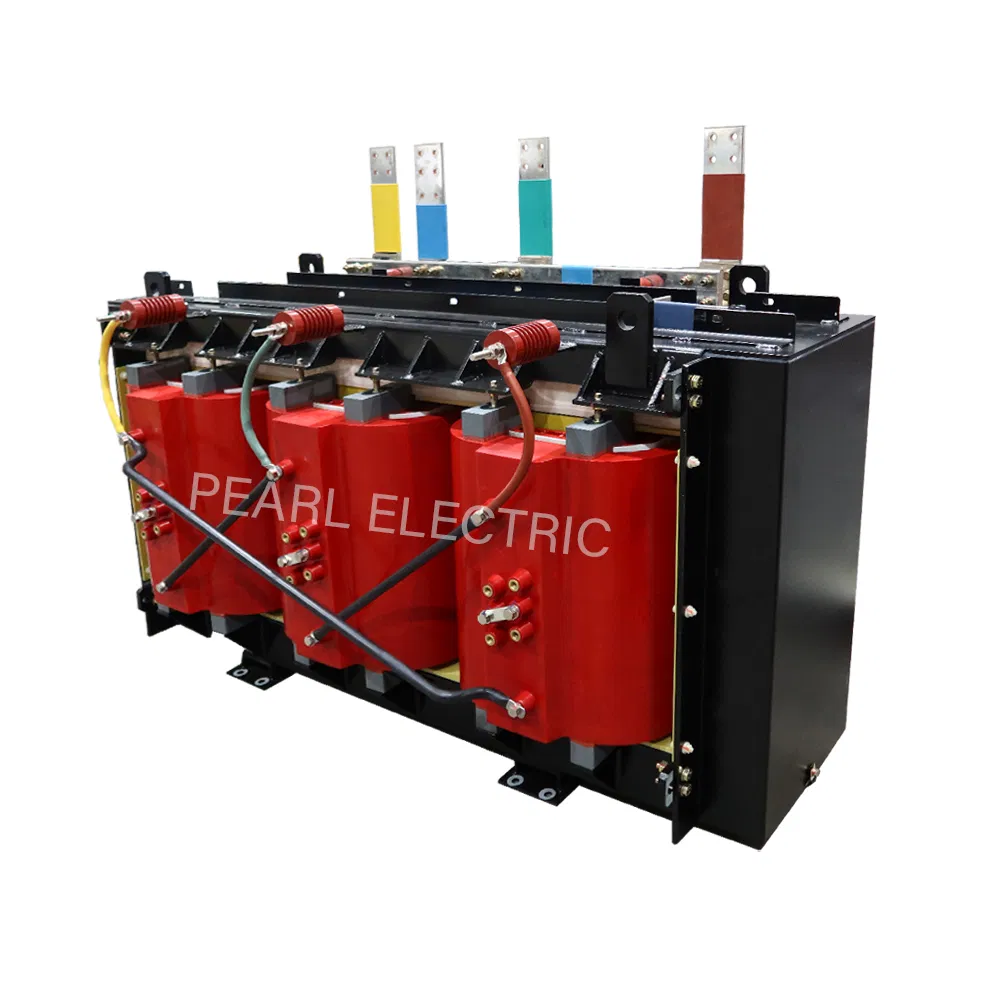

Transformer Component 2

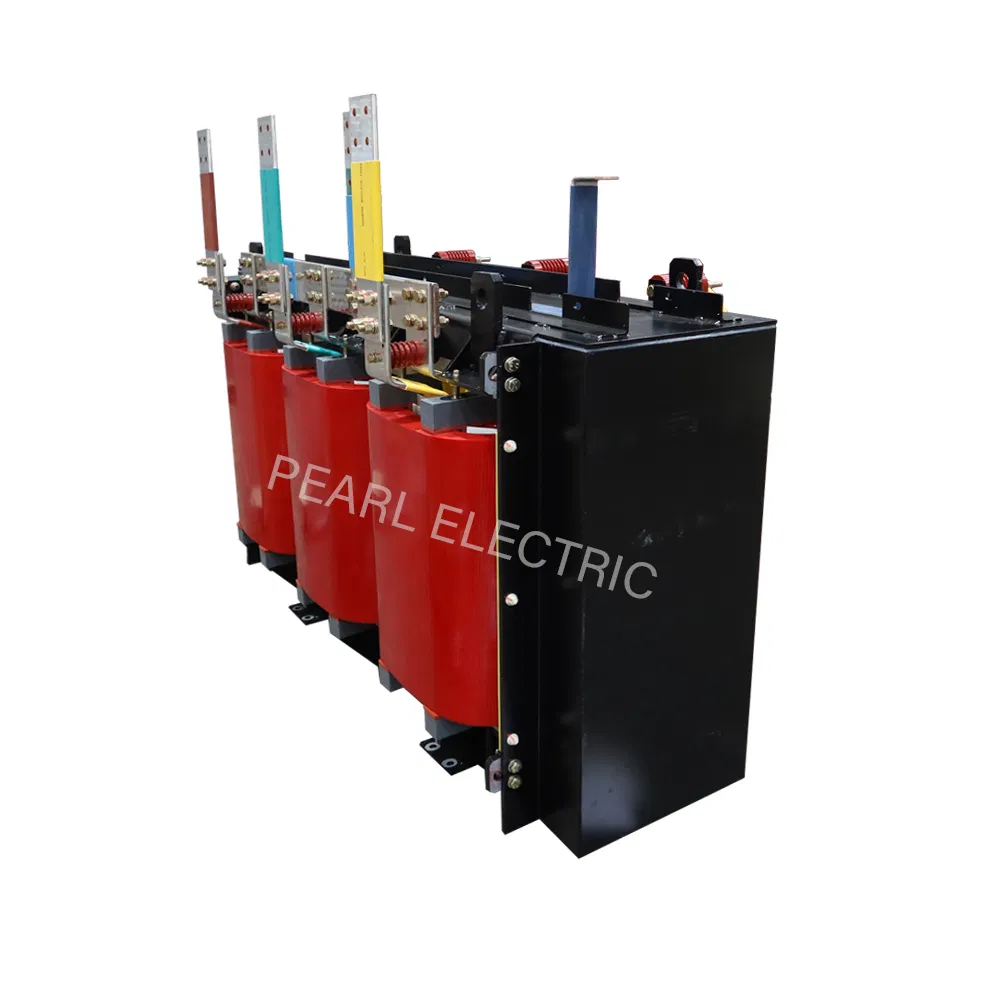

Transformer Component 3
📜 Certifications and Test Reports
  • ISO 9001:2015 Quality Management System Certificate
  • ISO 14001:2015 Environmental Management System Certificate
  • ISO 45001: 2018 Occupational Health and Safety Certificate
  • CE Certifications for Dry type and Oil-immersed transformers
  • KEMA Test Report for Cast Resin Dry Type Transformer
  • DEKRA TYPE TEST CERTIFICATES for Prefabricated Substation
Certificates Display
🏭 Manufacturing Capability

Founded in 1958, our production facility covers 100,000 square meters with over 600 employees. We are an outstanding power equipment supplier with over 200,000 transformers in operation worldwide, including Southeast Asia, Europe, and North America.

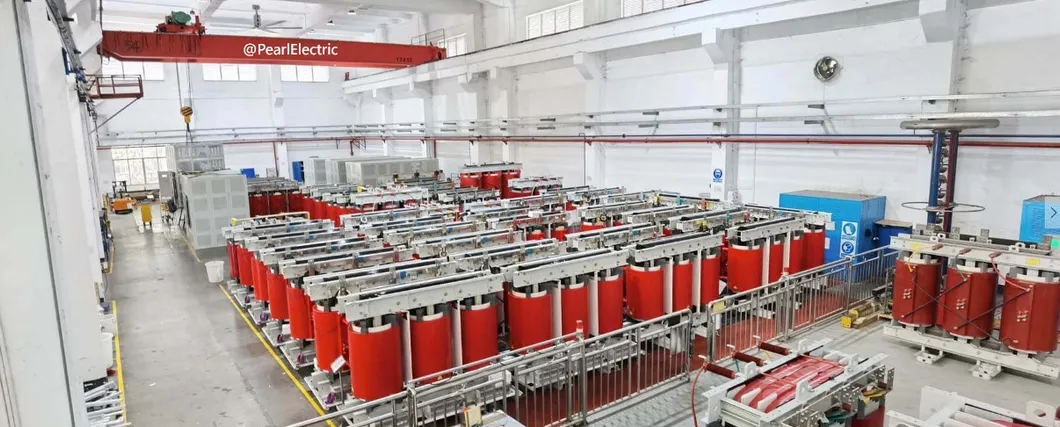

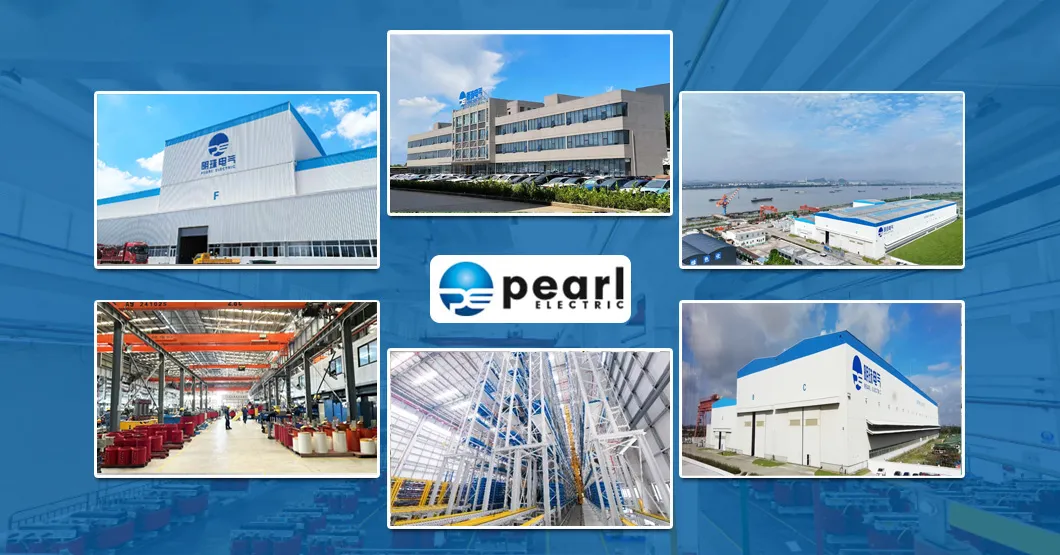

Factory Overview
Production Line 1
Production Line 2
Logistics
Finished Product
❓ Frequently Asked Questions
1. What is the difference between CRT and VPI dry-type transformers? Cast Resin (CRT) uses epoxy resin to fully encapsulate windings, making it ideal for high-humidity and fire-risk areas. VPI uses polyester resin under vacuum for better mechanical strength and thermal stability, often used in outdoor or seismic-prone areas.
2. What international standards do your transformers comply with? Our transformers are designed and manufactured in accordance with IEC 60076 standards and have achieved CE, UL, and KEMA certifications.
3. Can the tapping range be customized? Yes, we offer a standard tapping range of ±2×2.5% with options for both Off-Circuit Tap Changer (NLTC) and On-Load Tap Changer (OLTC) based on customer requirements.
4. What are the main materials used for the core and windings? We utilize high-quality Silicon Steel for the transformer core and 100% Copper for the windings to ensure maximum efficiency and durability.
5. What is the typical production lead time? In general, production takes approximately 4 to 6 weeks, depending on the specific transformer configuration and design requirements.
6. How is the cooling of these dry-type transformers managed? The transformers can be cooled using Natural Air (AN) or Forced Air (AF) methods, with optional cooling fans and temperature control sensors for enhanced protection.
