High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
1 / 5
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer
High Permeability Nanocrystalline Core Ring Type for Electric Transformer

High Permeability Nanocrystalline Core Ring Type for Electric Transformer

Customization: Available

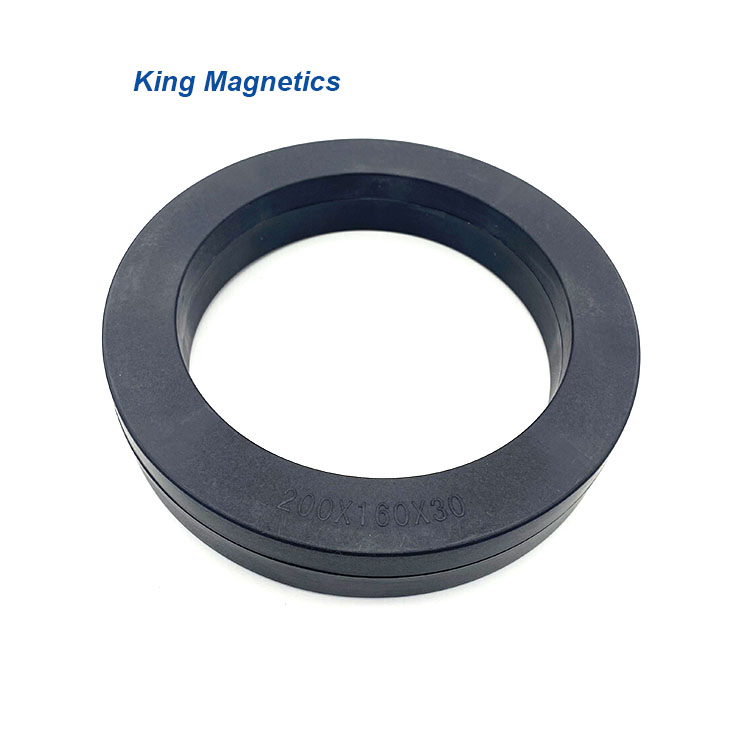

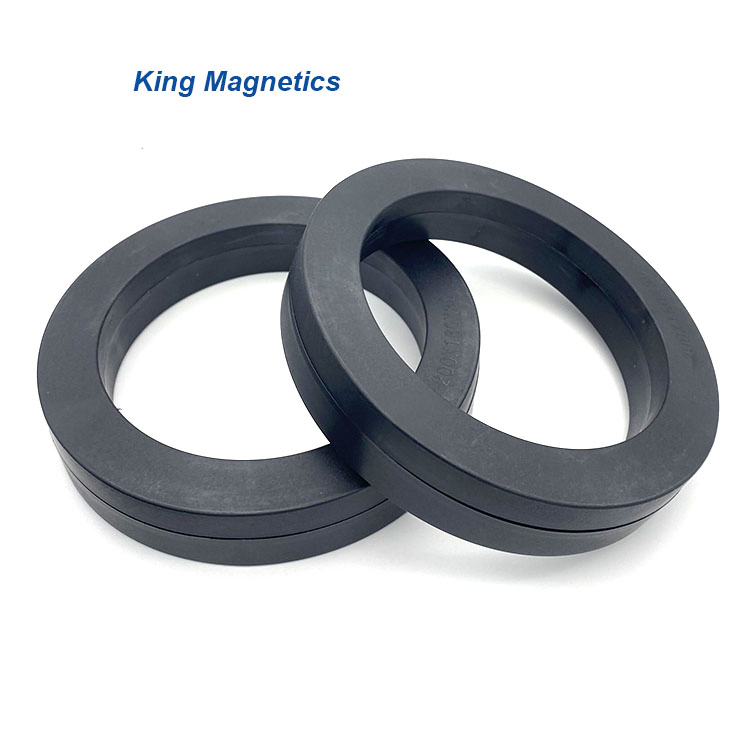

Product Name: Nanocrystalline Toroidal Core
Model No.: Kmn20016030
Send Inquiry

Product Description

📋 Basic Information
Model NO.
KMN20016030
Core Dimensions
200*160*30mm
Finishing
Plastic Case
Type
Tape Wound Core
Ribbon Thickness
25 Um
Customization
Size, Material, Shape
Application
Common Mode Choke and Transformer
Lead Time
25-30 days
Transport Package
Carton, Pallet, Foam
Specification
Nanocrystalline Alloy, 1K107B
HS Code
8504901900
Production Capacity
500,000 PCS/Month
🖼️ Product Description

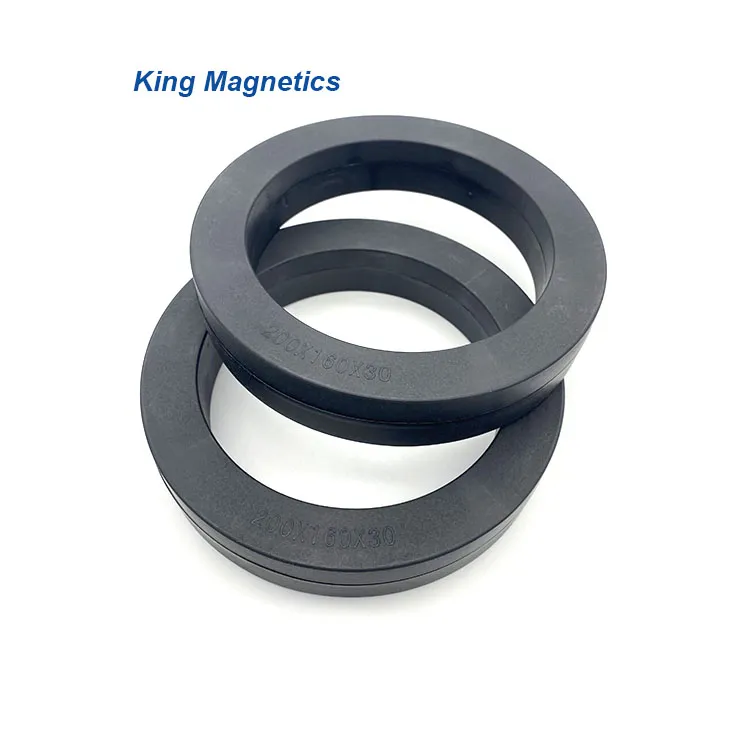

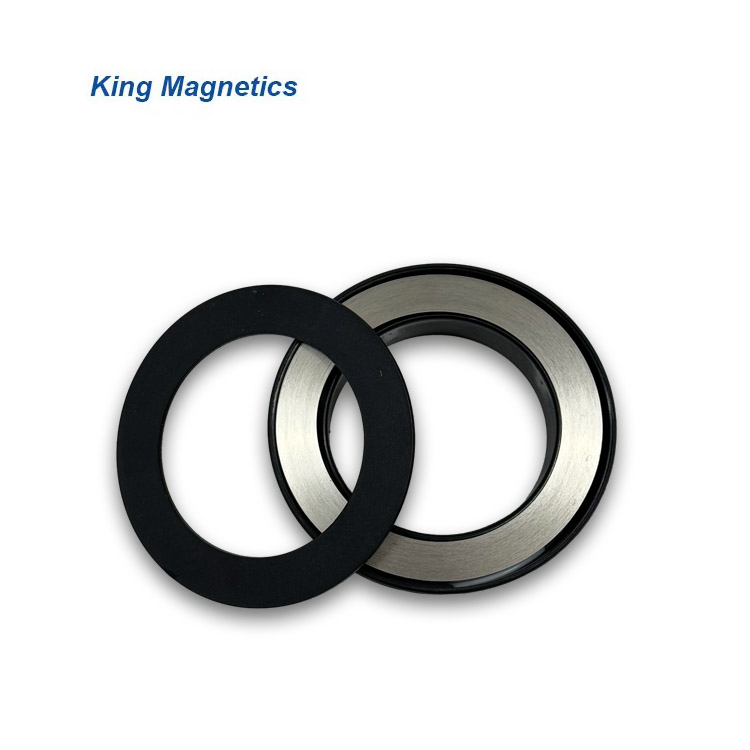

Nanocrystalline Core Ring Type 1

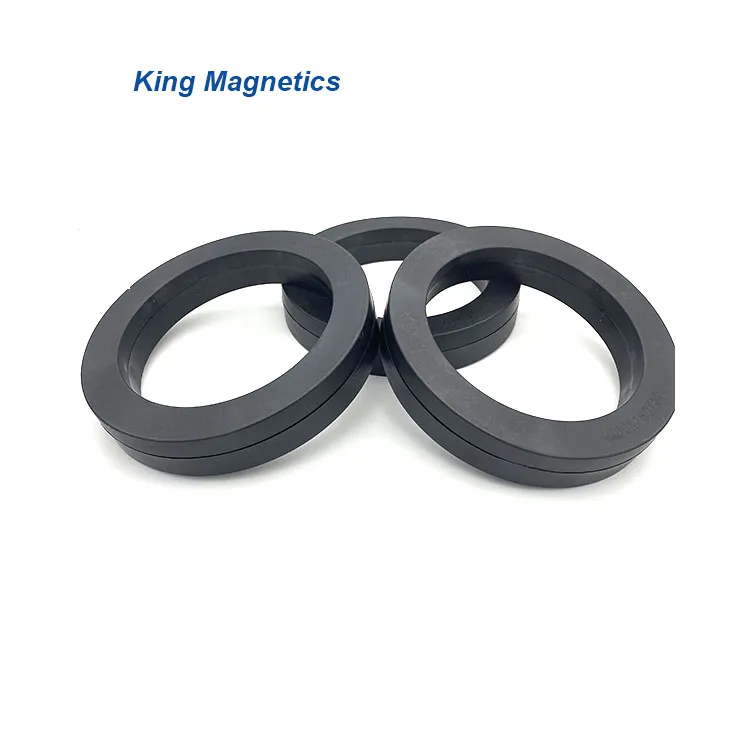

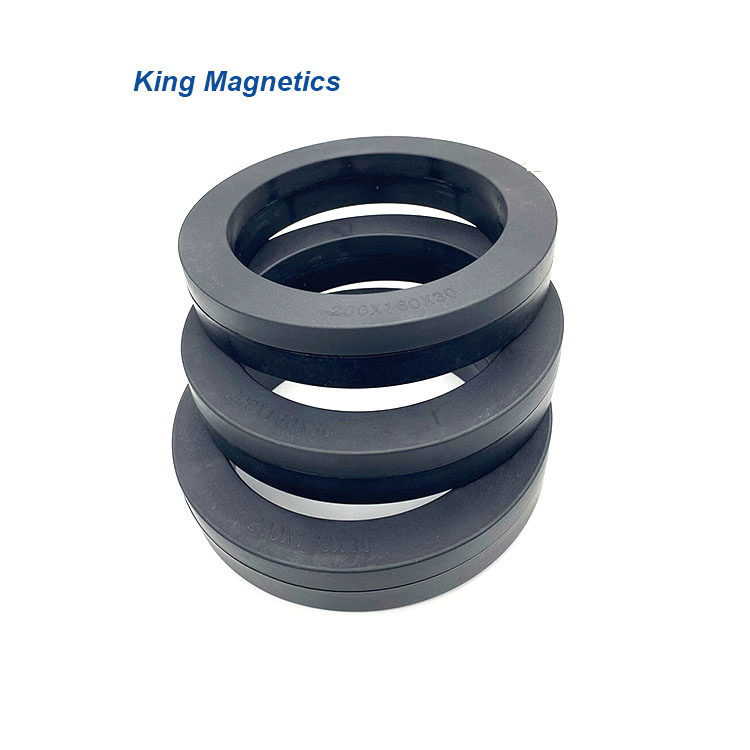

Nanocrystalline Core Ring Type 2
✨ Key Features
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: 80000
Permeability @ 100KHz: 20000
Curie temperature(ºC): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): < 2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Toroidal core
🚀 Wide Applications
EMC Filter & SMPS
Computer & Communication Power Supplies
Laser and X-ray Power Supply
Welding & Electrical Plating Equipment
Solar & Wind Power Systems
Household Appliances & UPS
Frequency Converters & Induction Heating
High-speed Railway Power Supplies
VFD Inverter Drive Motor Systems
📏 Standard Dimensions

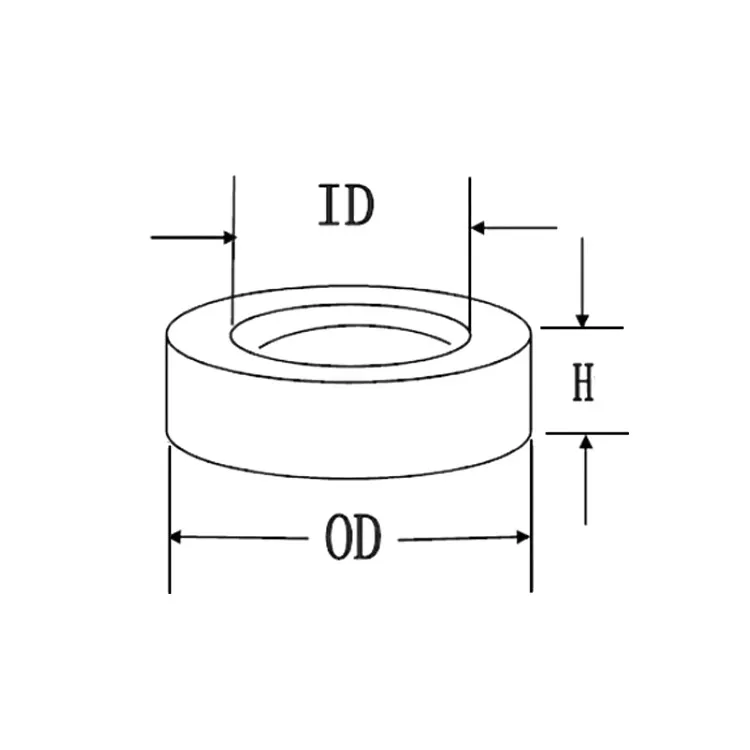

Nanocrystalline Core Dimensions
Part No. Core Dimensions (mm) Case Dimensions (mm) AFe (cm²) lFe (cm) AL Nominal (μH) VAC Equivalent
odidh ODIDH Cross Sec. Path Len. 10kHz100kHz
KMN9865459.86.54.511.356.10.062.625.56.4W914
KMN1208051284.514.56.36.90.083.128.06.8W902
KMN1610061610617.98.18.10.144.143.010.1W403
KMN2012082012821.710.89.90.255.055.213.6W409
KMN2516102516102814.013.10.356.467.015.5W380
KMN40251540251543.821.618.80.8810.299.023.1W424
KMN64402564402567.43729.22.3416.3144.036.0-
KMN10276251027625108.170.030.32.5427.991.122.8W468
KMN2001603020016030207153374.556.583.22.8-

* Epoxy coated cores and custom designs available. AL tolerance -30%/+50%.

🏭 Our Services & Production

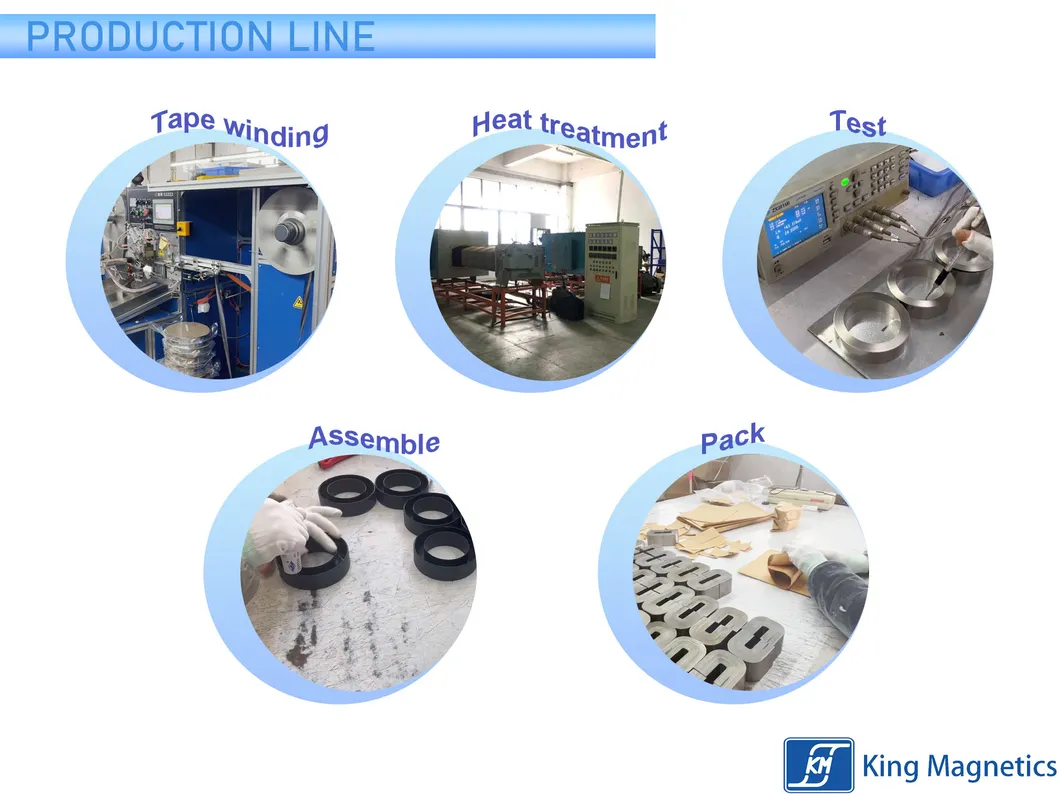

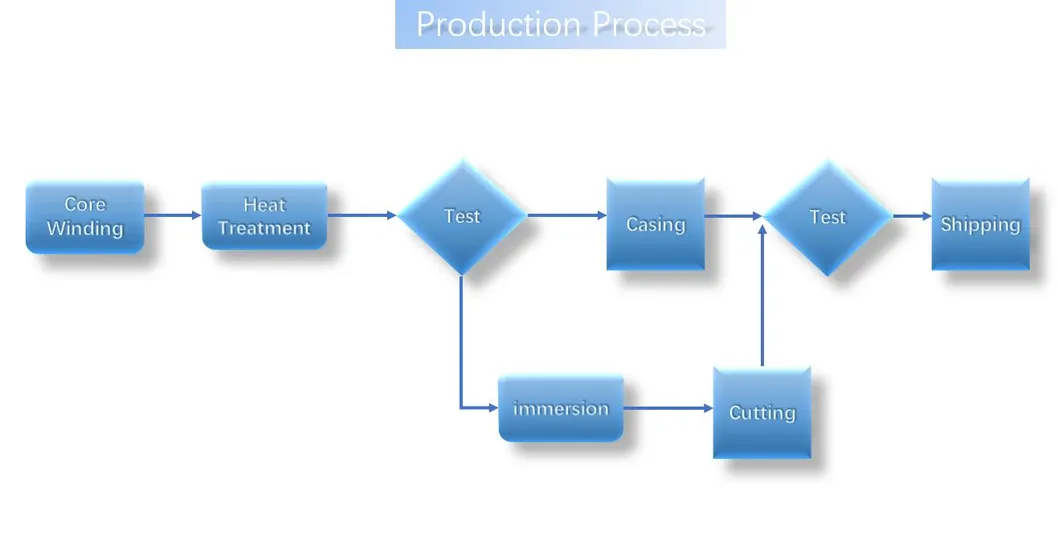

Production Process 1
Production Process 2
Production Process 3
Quality Control
Testing Equipment

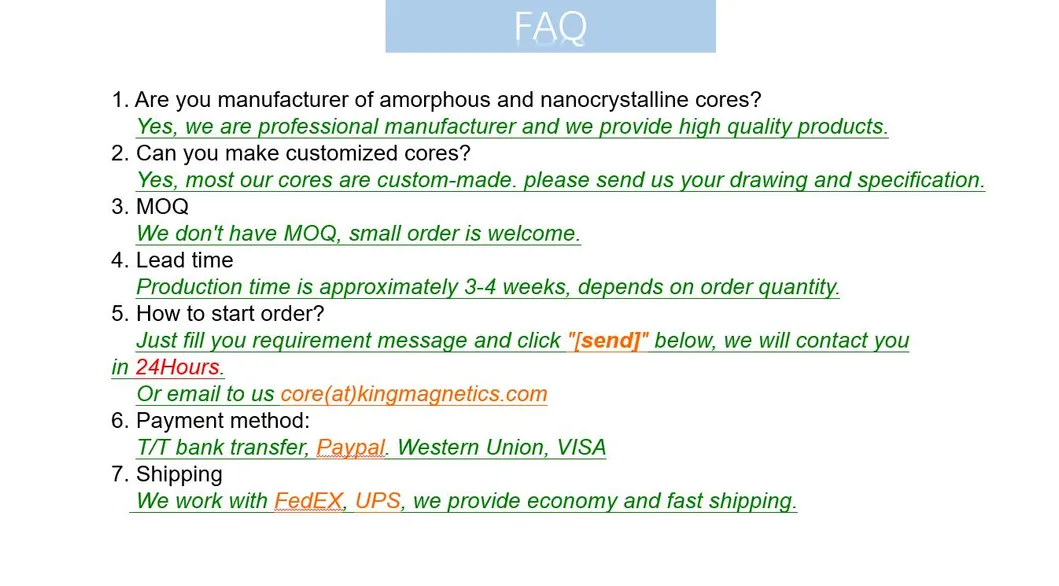

Global Service
Packaging Detail
Product Range
❓ Frequently Asked Questions
What are the main advantages of Nanocrystalline cores?
They offer high permeability, high saturation flux density (1.25T), and excellent thermal stability, making them ideal for high-efficiency transformers and EMC filters.
Can you provide customized sizes and shapes?
Yes, we can design and produce high-performance cores according to specific customer requirements, including custom dimensions, inductance levels, and shapes beyond the standard toroidal type.
What is the standard lead time for an order?
Our standard lead time is generally between 25 to 30 days, depending on the order volume and customization requirements.
In which applications are these cores typically used?
They are widely used in switched-mode power supplies (SMPS), UPS systems, solar inverters, frequency converters, and high-speed railway power equipment.
What is the Curie temperature of the material?
The Curie temperature for our Fe-based Nanocrystalline alloy is 560ºC, ensuring reliable performance in high-temperature environments.
Are your cores compatible with international brands like VAC?
Yes, many of our standard products are equivalent to VAC part numbers (e.g., W914, W403, W424) and offer comparable performance in professional applications.
