Product Description

Basic Information
Model NO.
KMNC12.5-7.5-5
Core
Nanocrystalline Core
Cooling Method
Dry-type Transformer
Winding Type
Auto-transformer
Certification
ISO9001
Usage
Power Transformer
Frequency
High Frequency
Shape of Core
C Shape
Construction
Nano Strip
Type
Tape Wound Core
Features
High Initial Permeability
Lead Time
7-21 days
Package Size
24.00cm * 20.00cm * 15.00cm
Gross Weight
1.000kg
Product Description
Nanocrystalline Core Banner

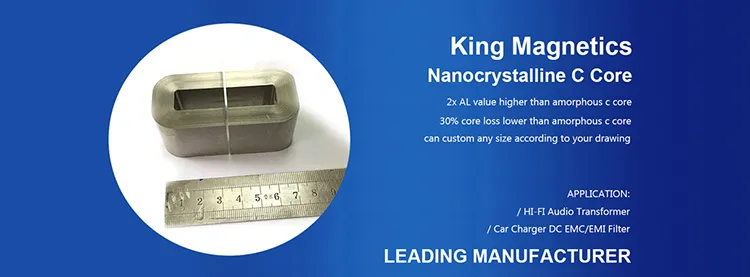

C Magnetic Core - High Permeability Nanocrystalline

Nanocrystalline C core is an upgrade product of amorphous c core, featuring high saturation flux density, low coercivity, low core loss, and very low noise. It supports higher frequencies up to 20KHz, making it suitable for main power transformers, audio transformers, output inductors, and boost PFC choke coils. It is an excellent replacement for ferrite cores, permalloy cores, and silicon steel cores. Dimensions can be custom-made.

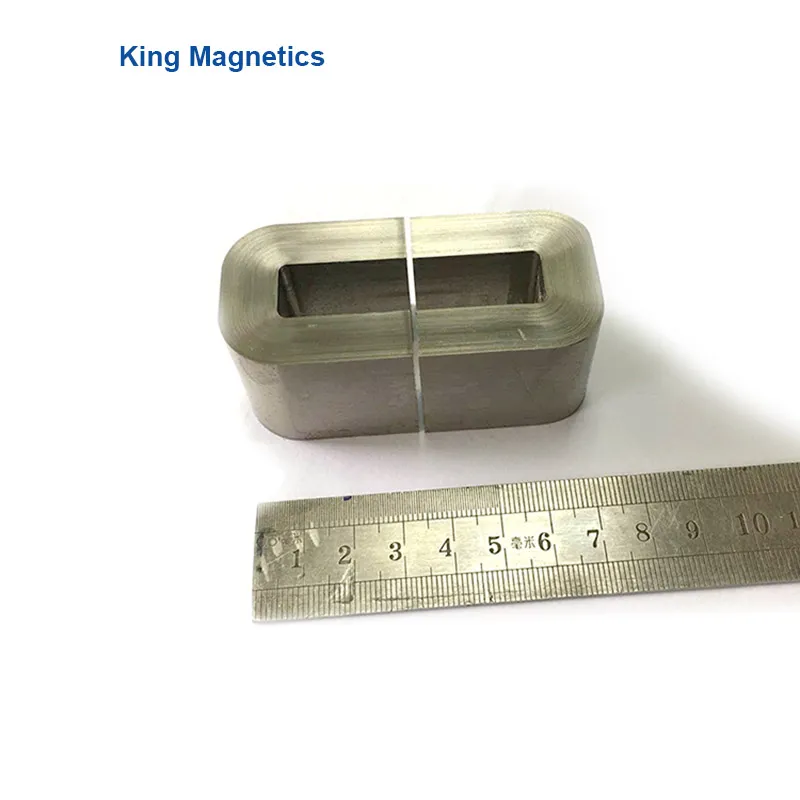

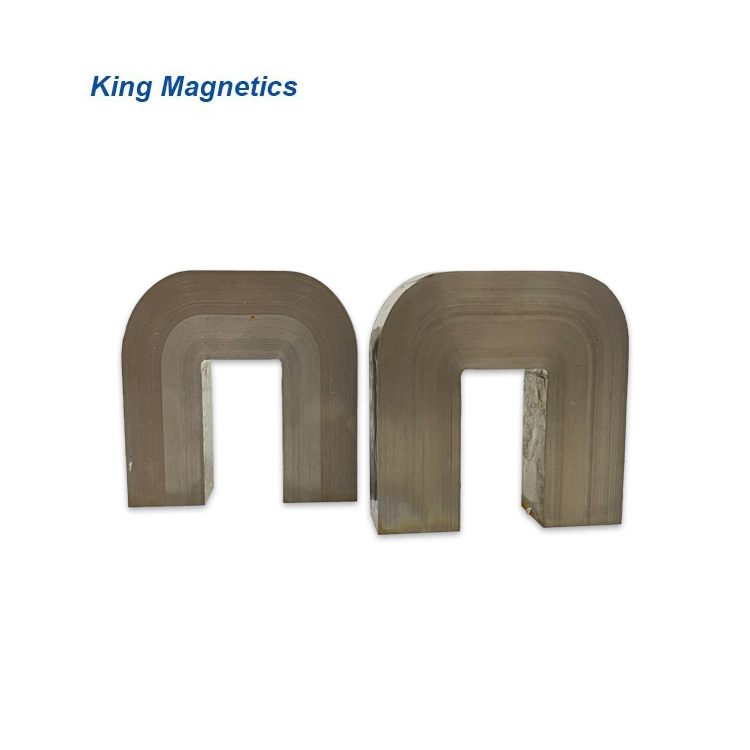

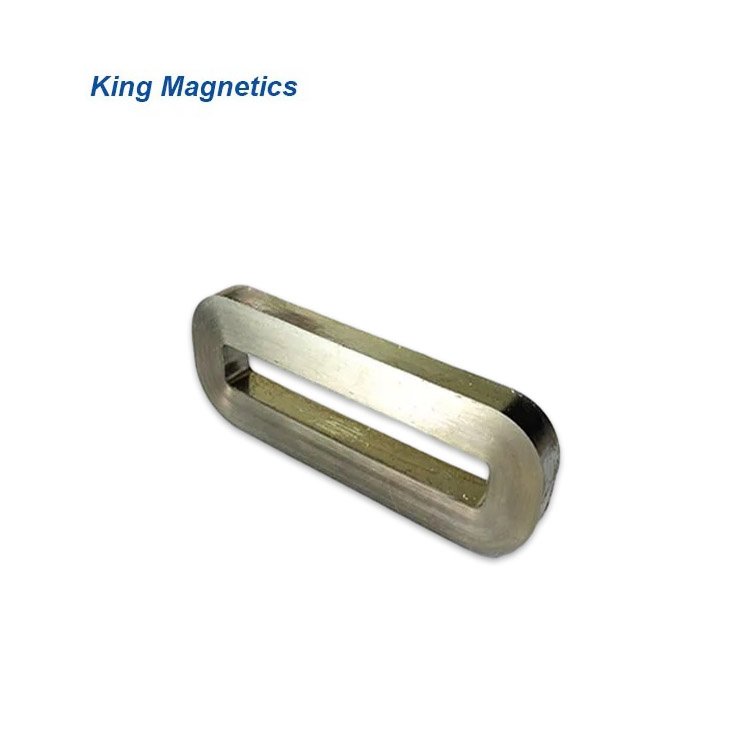

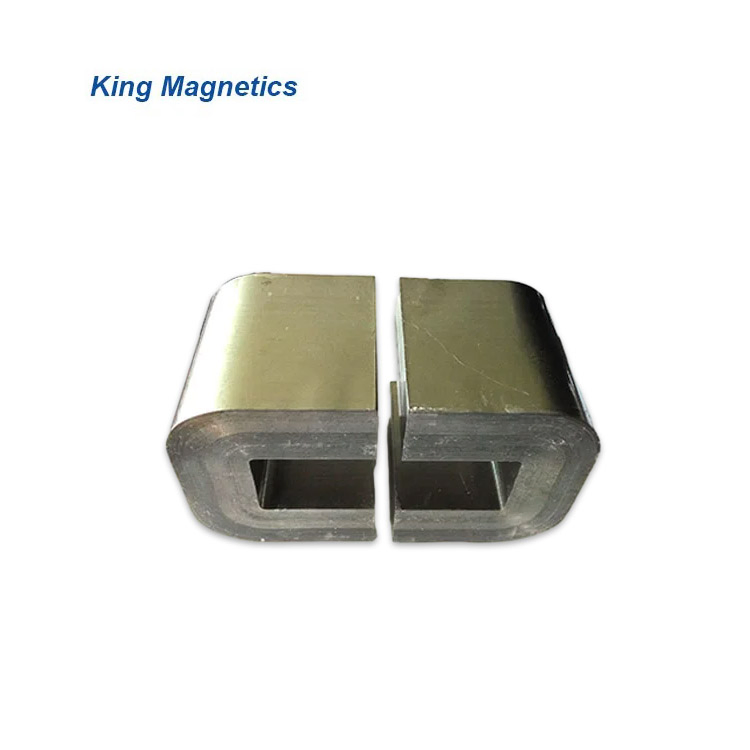

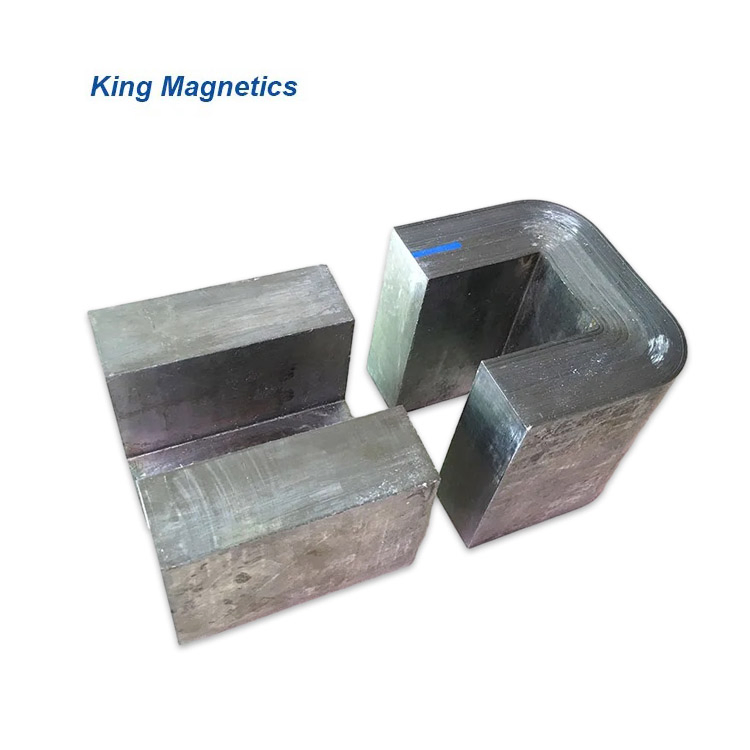

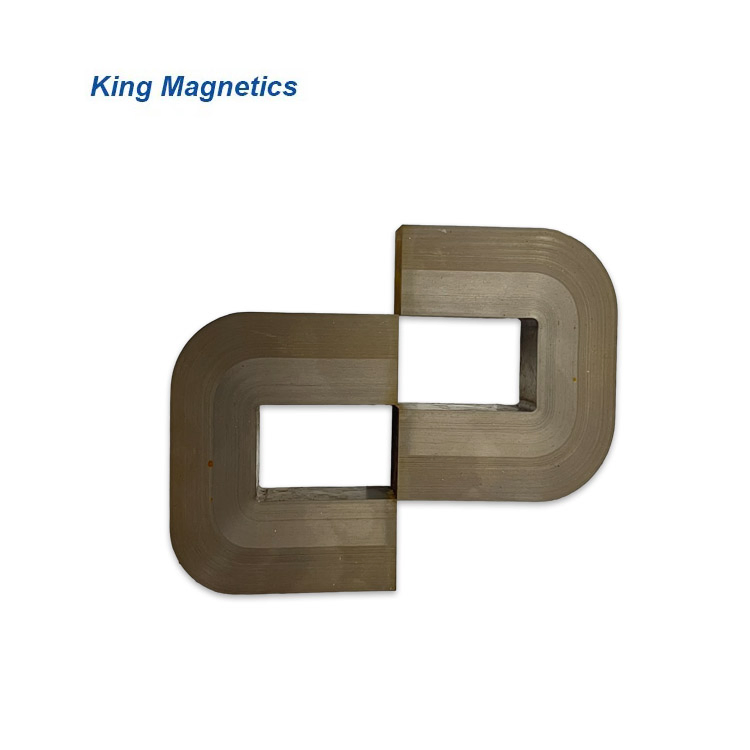

Product View

🌟 Key Features

  • Material: Fe-based nanocrystalline
  • Saturation flux density induction: 1.25T
  • Curie temperature (ºC): 560
  • Stacking factor: >0.75
  • Saturation magnetostriction (*10^-6): <2
  • Resistivity (μΩ.cm): 130
  • Ribbon thickness: 25μm
  • Core shape: C type cut core

🚀 Applications

  • High frequency transformer (20-30KHz)
  • Solar inverter filter & PFC choke
  • Differential mode & Output filter
  • Hi-Fi Audio transformer
  • High efficient power transformers
Standard Core Dimensions
Part No. Core Dimensions (mm) Path Length Cross Section Weight
ABCDEF LFe (cm)Ae (cm²)Wt (g)
KMNC-6.310113320315312.81.56141
KMNC-1011134020356215.01.72184
KMNC-2513155625418219.42.54355
KMNC-50162070255210222.73.12567
KMNC-100162070455210222.25.62994
KMNC-200192583506312127.27.411575
KMNC-500254085559013532.510.732722
KMNC-100033401058510617139.021.886665

* Other specifications are available according to customer's requirements.

Additional Services & Components

1. Nanocrystalline cores for common mode chokes: Very high permeability, ideal for EMI suppression.

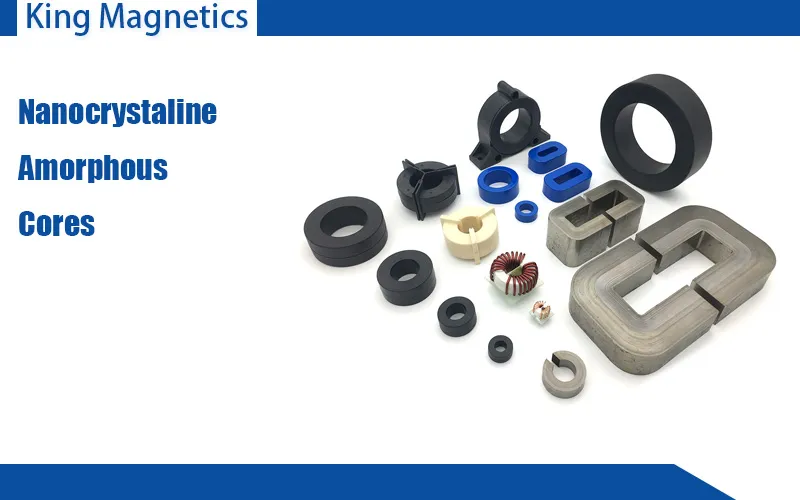

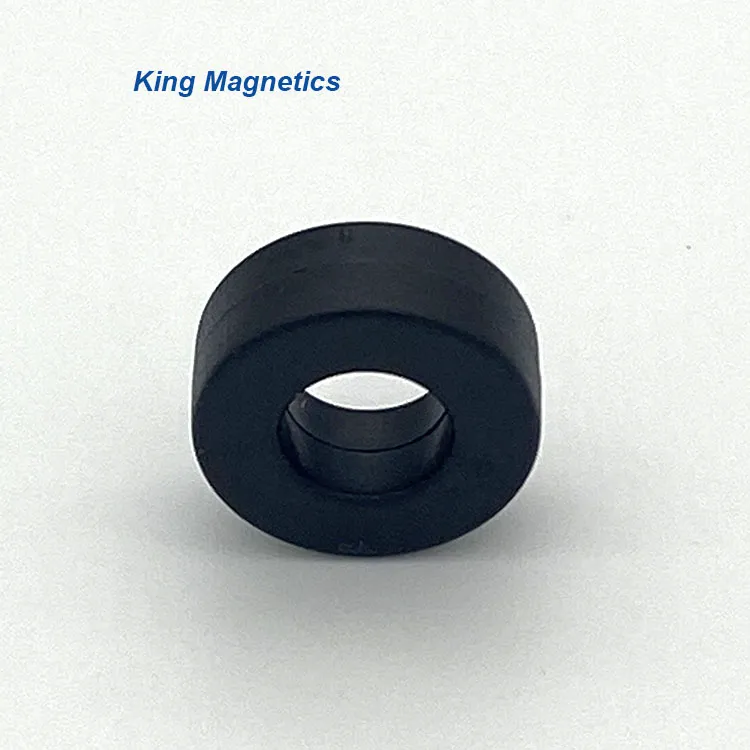

Common Mode Choke Amorphous C Cores Custom Cores

2. Custom Magnetic Components: We provide oval shape nanocrystalline cores for VFD noise suppressors, amorphous inductors for DC chokes, and specialized toroidal cores.

Frequently Asked Questions
What are the main advantages of Nanocrystalline C cores over Ferrite?
Nanocrystalline cores offer higher saturation flux density (1.25T vs ~0.5T for ferrite) and significantly lower core loss at high frequencies, allowing for smaller and more efficient transformer designs.
What is the recommended frequency range for these cores?
While they can operate at various frequencies, they are highly recommended for applications in the 20KHz to 30KHz range.
Are custom dimensions available for the C cores?
Yes, dimensions can be custom-made to meet specific customer requirements and application constraints.
What is the Curie temperature of the material?
The Curie temperature for our Fe-based nanocrystalline material is 560ºC, ensuring stability in high-temperature environments.
Can these cores be used for solar inverters?
Absolutely. They are ideal for solar inverter filters, PFC chokes, and high-efficiency power conversion systems.
What is the stacking factor of the nanocrystalline ribbon?
The stacking factor is greater than 0.75, which contributes to the excellent magnetic performance of the C type cut core.
