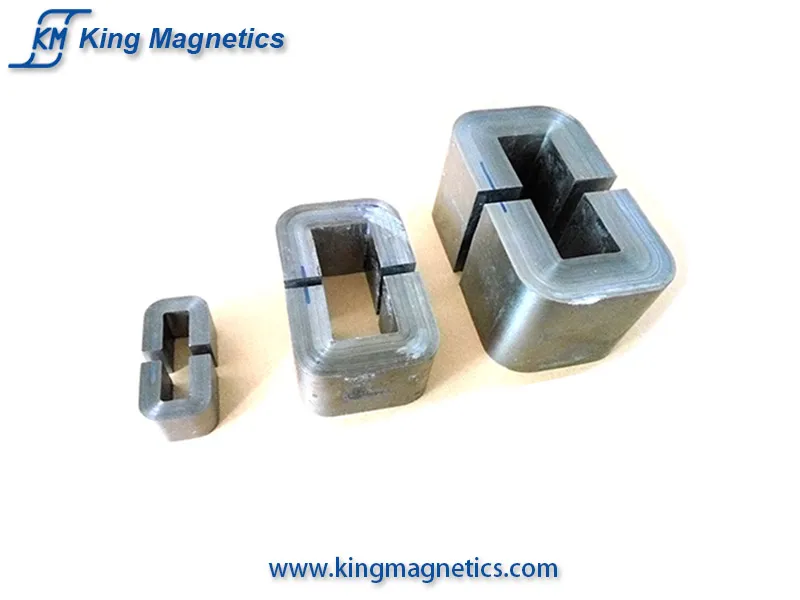

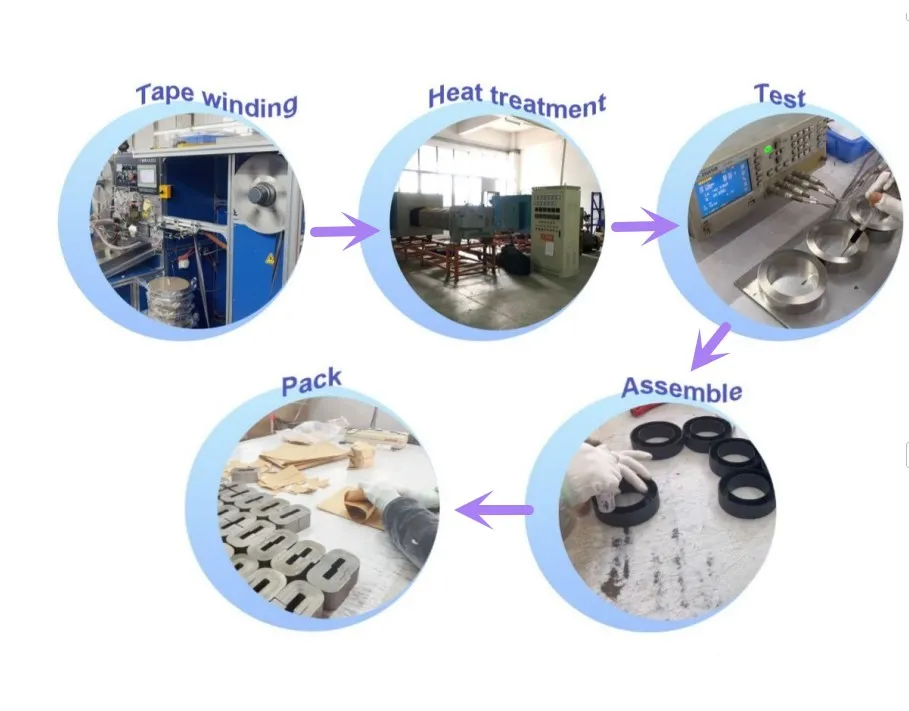

Nanocrystalline C core is an upgrade product of amorphous C core, featuring high saturation flux density, low coercivity, and low core loss. It offers very low noise and supports higher frequencies up to 20KHz. It is ideal for main power transformers, audio transformers, output inductors, and boost PFC choke coils. These cores can effectively replace ferrite, permalloy, and silicon steel cores. Dimensions can be custom-made to specific requirements.
| Part No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | LFe (cm) | Ae (cm2) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| KMNC-6.3 | 10 | 11 | 33 | 20 | 31 | 53 | 12.8 | 1.56 | 141 |
| KMNC-10 | 11 | 13 | 40 | 20 | 35 | 62 | 15.0 | 1.72 | 184 |
| KMNC-20 | 11 | 13 | 50 | 30 | 35 | 72 | 17.0 | 2.57 | 316 |
| KMNC-50 | 16 | 20 | 70 | 25 | 52 | 102 | 22.7 | 3.12 | 567 |
| KMNC-100 | 16 | 20 | 70 | 45 | 52 | 102 | 22.2 | 5.62 | 994 |
| KMNC-400 | 22 | 35 | 85 | 65 | 79 | 129 | 30.6 | 11.15 | 2662 |
| KMNC-1000 | 33 | 40 | 105 | 85 | 106 | 171 | 39.0 | 21.88 | 6665 |
* Other specifications are available according to customer's requirements.
