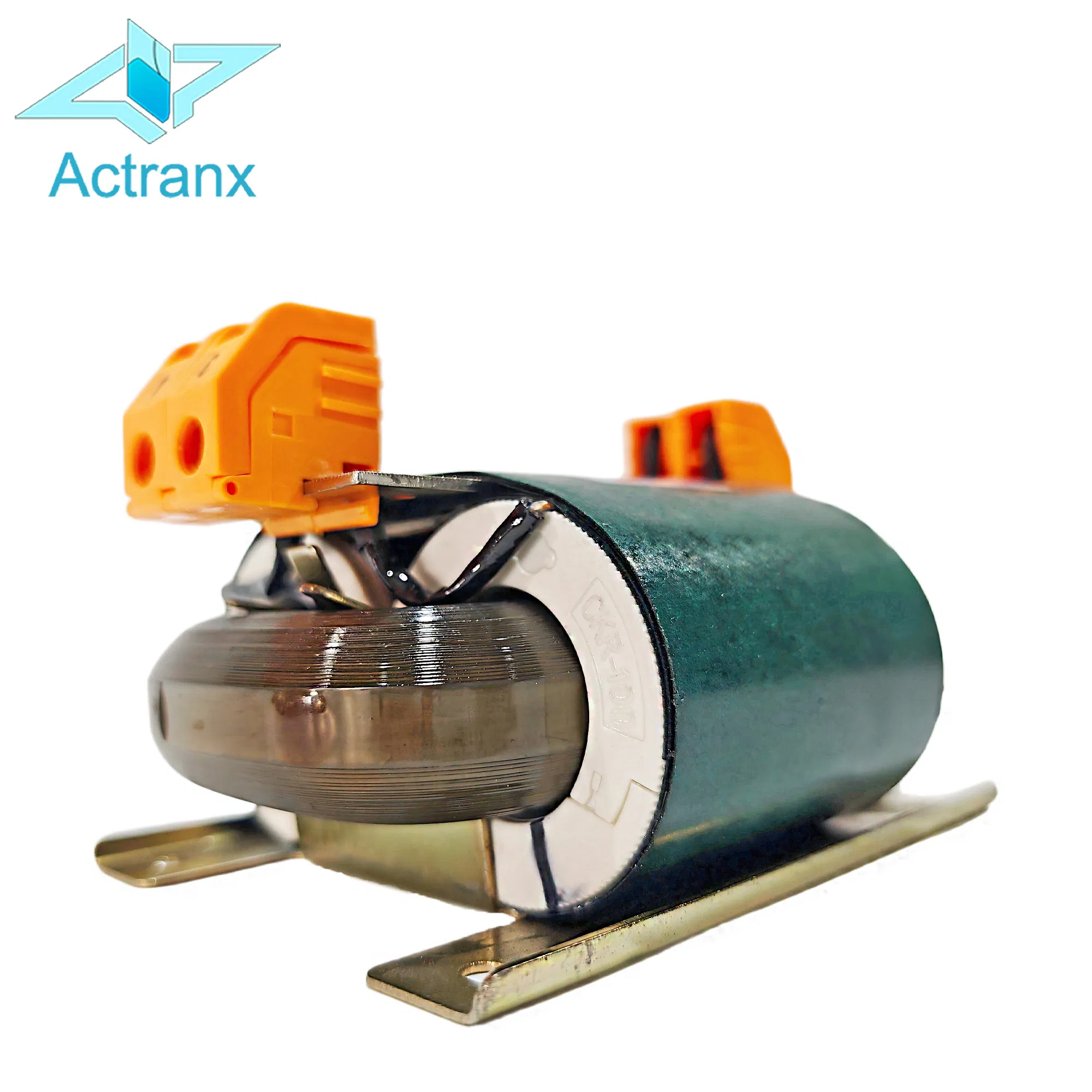

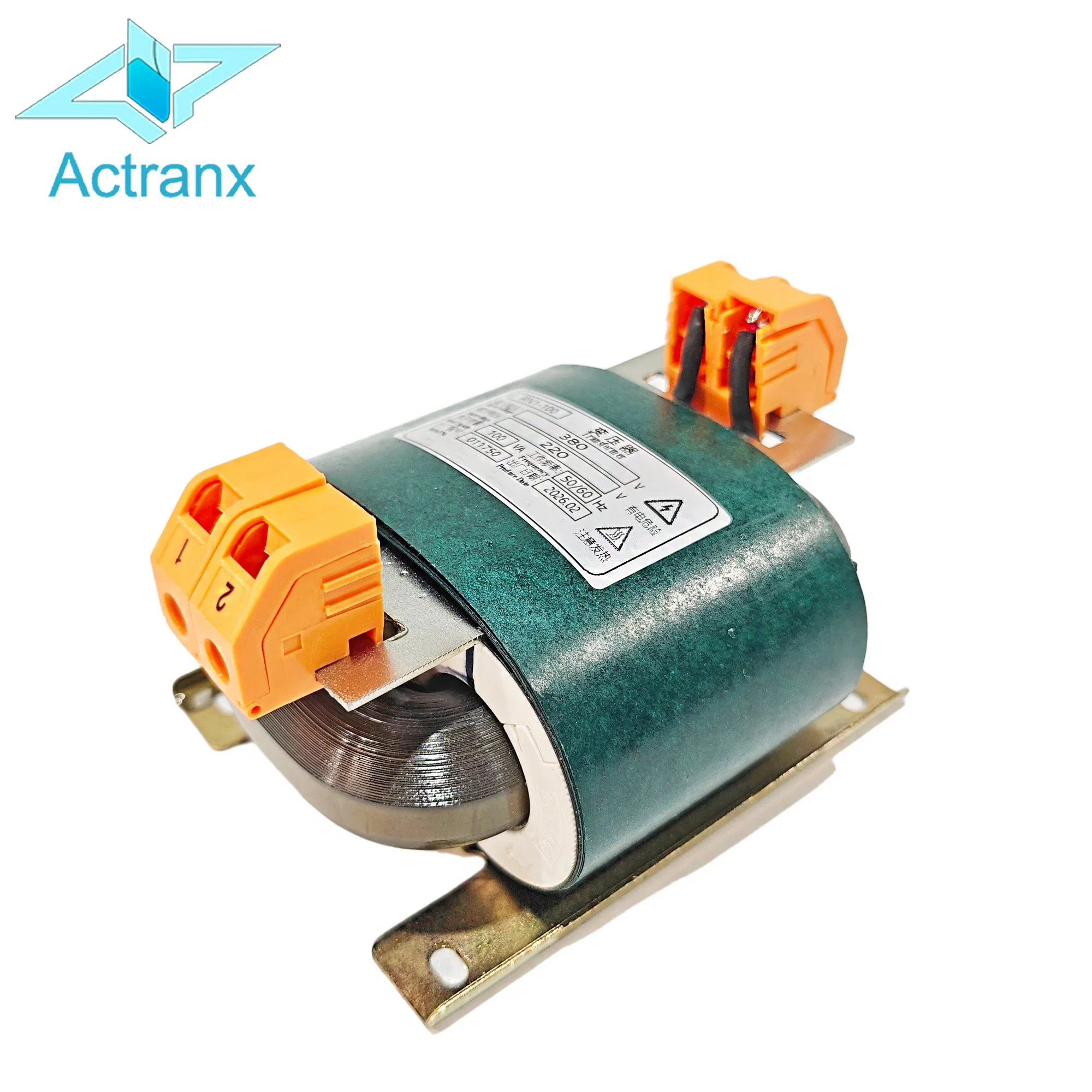

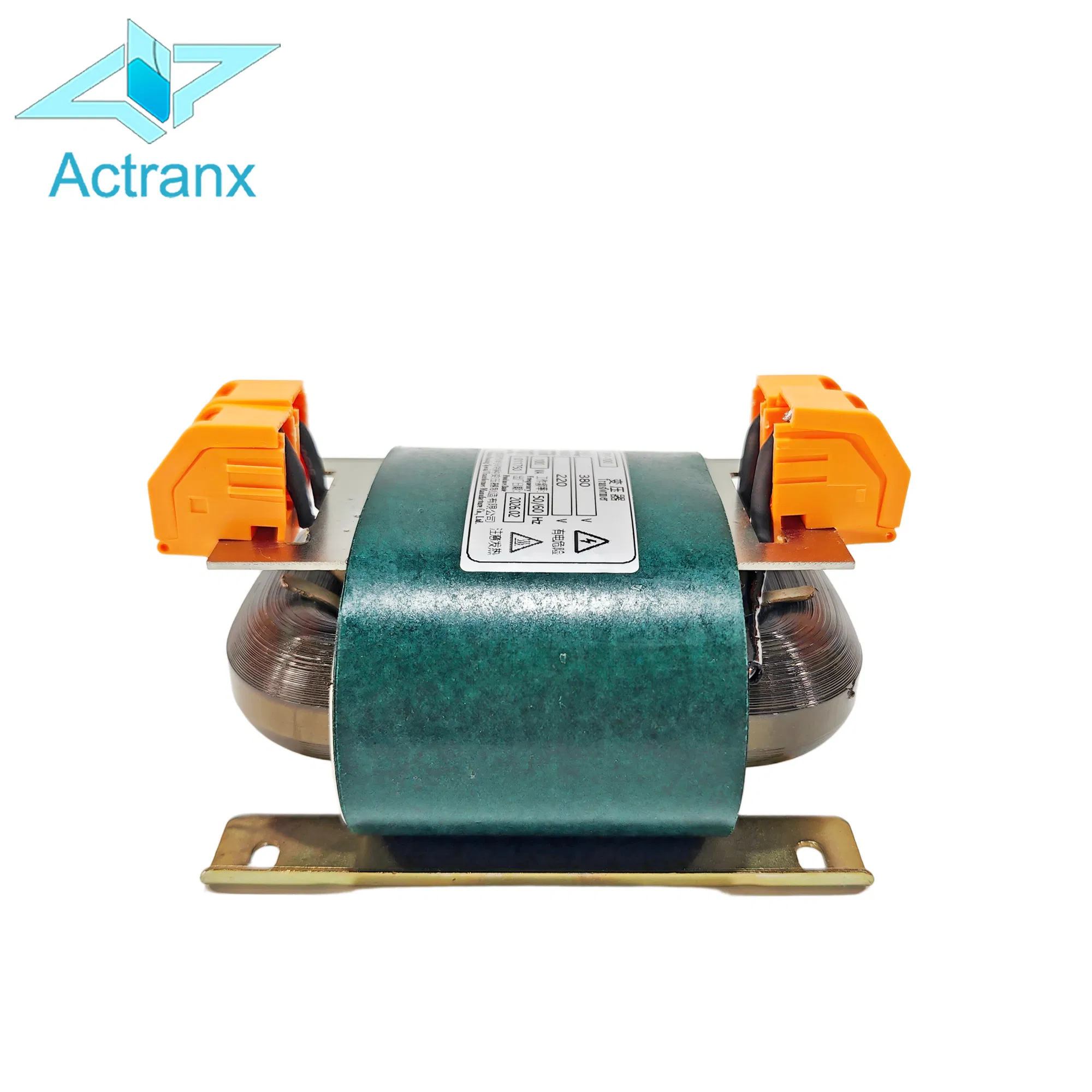

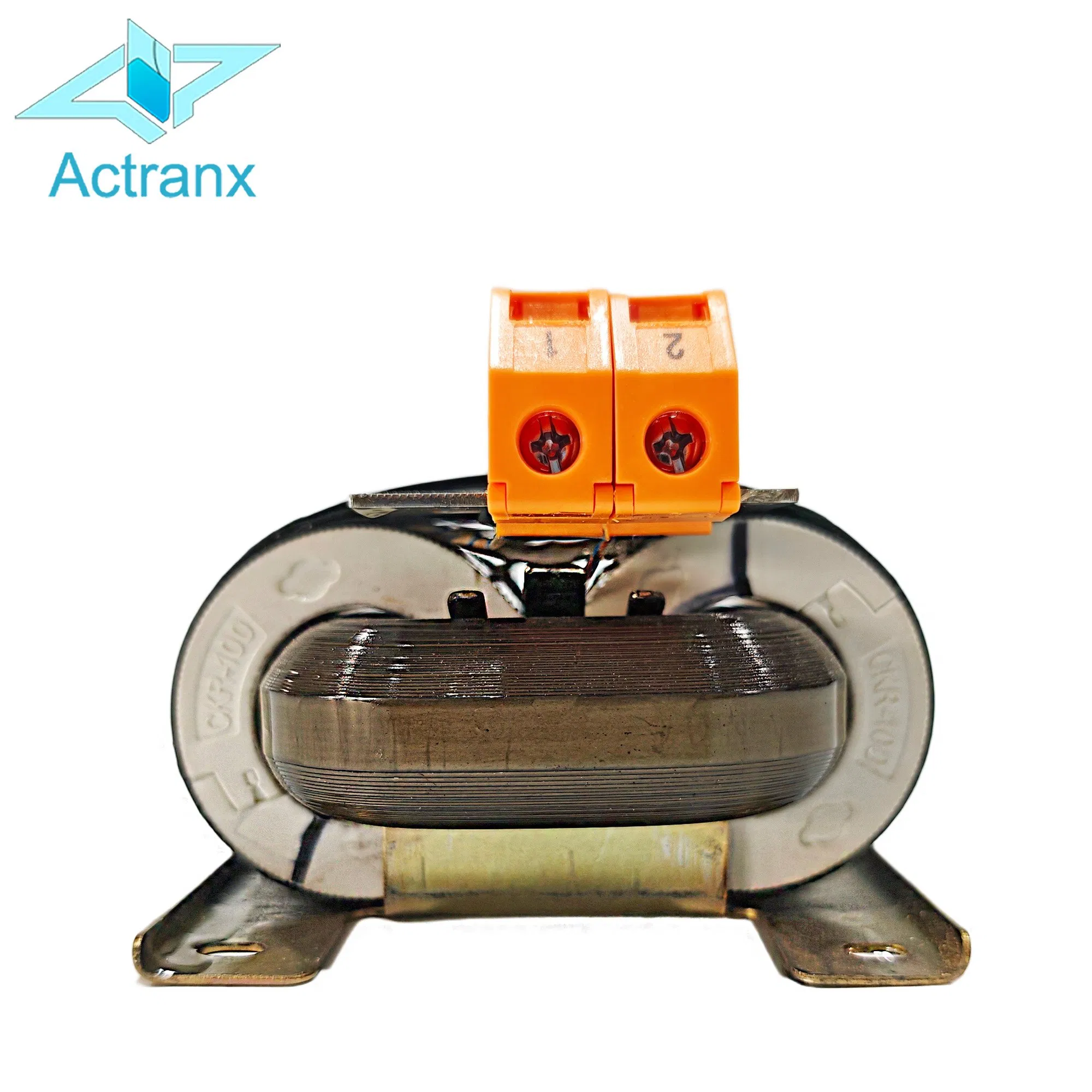

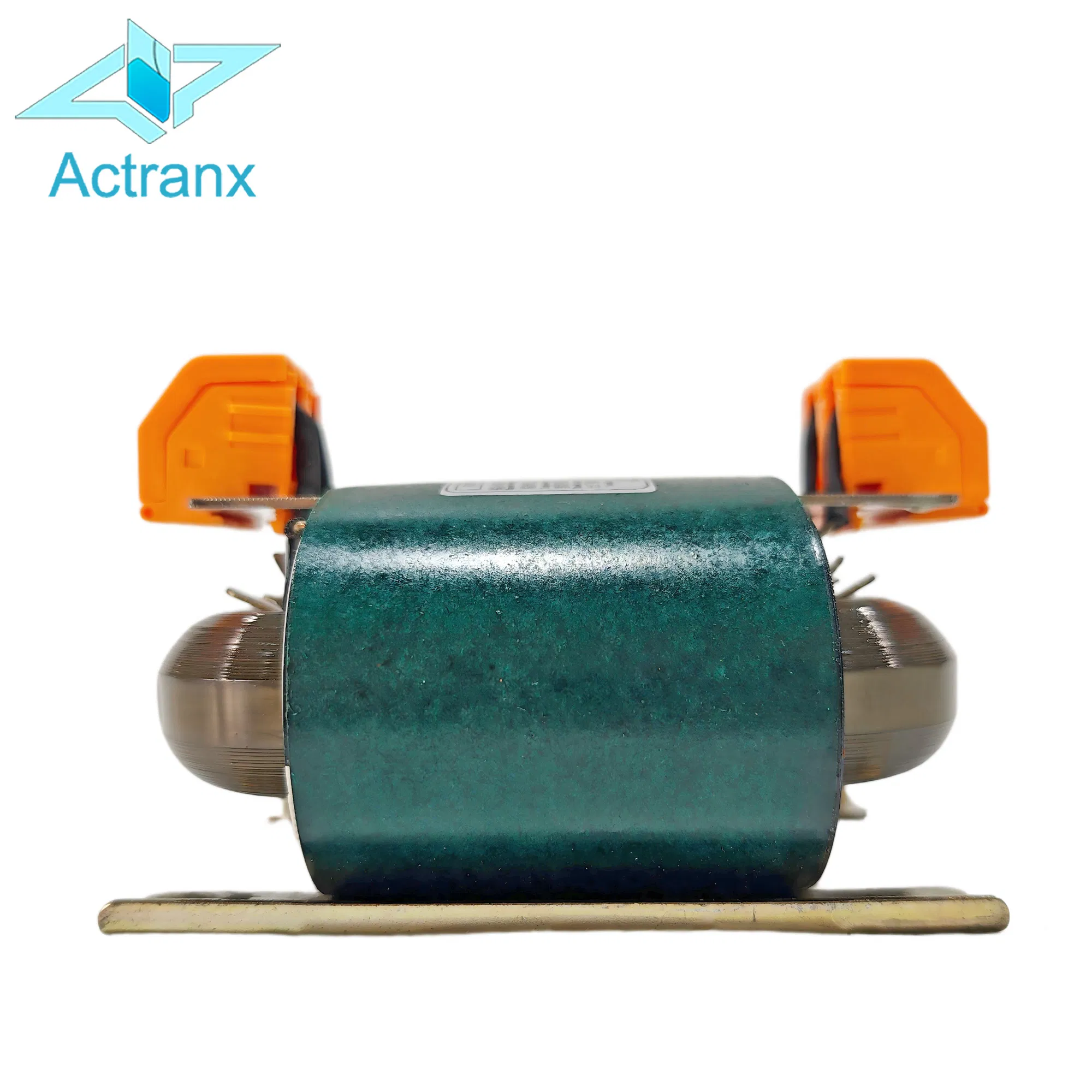

Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
1 / 5
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer
Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer

Air Coil Inductor Induction Coil Current Rod Core Power Coil Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview

Model NO.
RN-100-36
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Certification
ISO9001, CCC, UL, CE, RoHS, Reach
Efficiency
≥98%
Core Material
High Permeability Silicon Steel Sheet
Frequency
Low Frequency
Usage
Medical Equipment, Power Transformer

Product Description

The R-Type transformer features a continuously wound, non-cut core made from grain-oriented silicon steel, resulting in a circular cross-section that delivers exceptional electromagnetic performance. Specifically engineered for medical equipment, this transformer operates with near-zero noise and ultra-low leakage flux—critical for sensitive diagnostic and life-support devices. Its cylindrical coil design minimizes copper losses, reduces temperature rise, and achieves efficiency exceeding 97%.

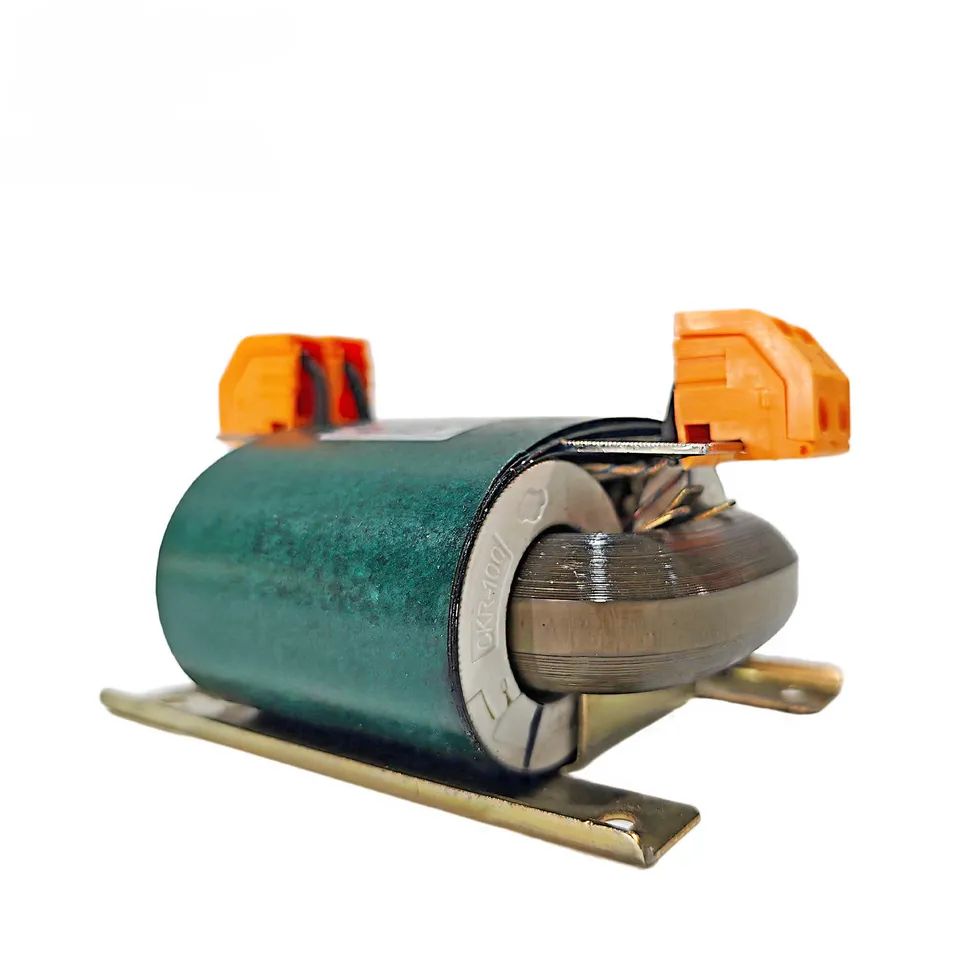

R-Type Transformer Details

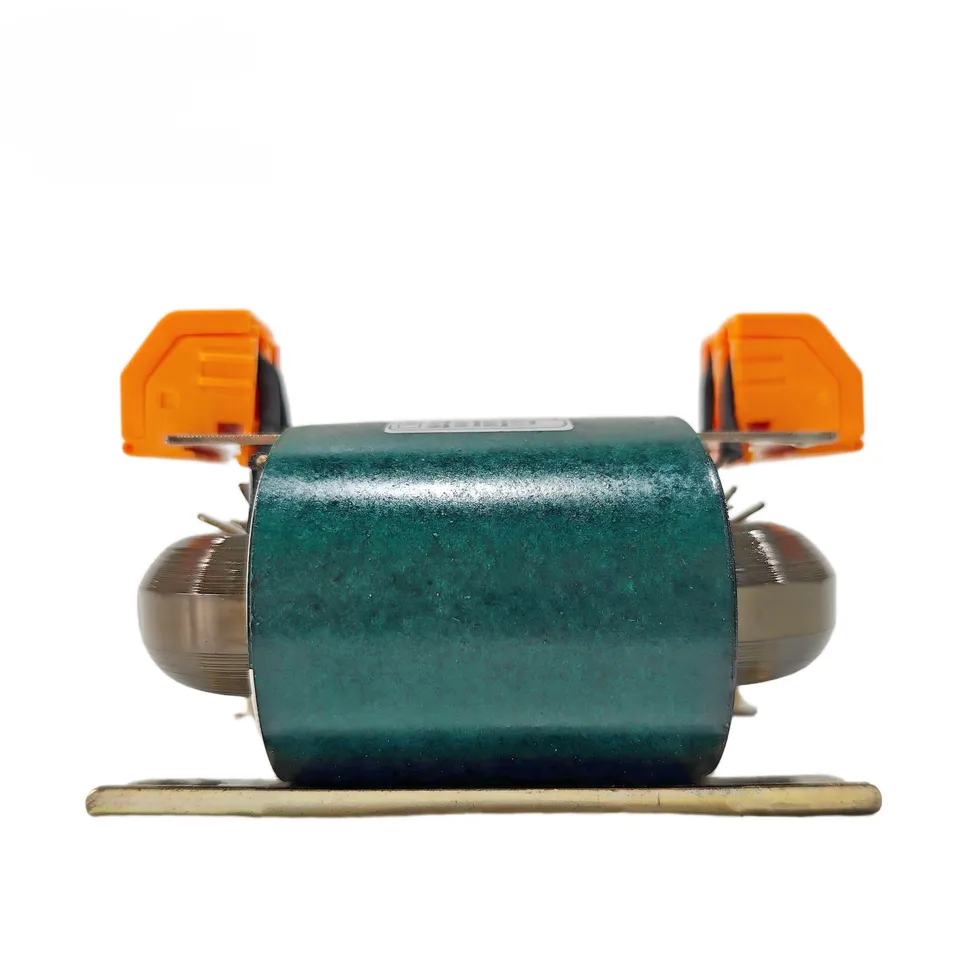

Transformer Core Structure

◈Low Loss & High Efficiency

Uses high-grade cold-rolled silicon steel strips wound into a toroidal core with a circular cross-section, minimizing magnetic flux and eddy current losses.

◈High Mechanical Strength

Firm core lamination and solid structure provide strong shock resistance, adapting to various medical transportation and operational scenarios.

◈Strong Anti-Interference

Excellent electrical isolation and shielding performance suppress external electromagnetic interference, ensuring data accuracy in monitoring equipment.

Technical Specifications

Model Power L×W×H (mm) Bore Distance Model Power L×W×H (mm) Bore Distance
R52-6VA58×47×2645×33R5055-65VA102×90×4875×65
R87-10VA70×61×3353×44R8075-95VA125×90×5290×70
R1011-15VA75×61×3768×48R10096-130VA126×103×55100×80
R2525-34VA83×72×4270×55R260201-280VA160×121×66130×95
R4045-54VA99×80×4470×60R600371-640VA227×192×99180×140

Applications

Power Supplier
Power Supplier
Electric Vehicle
Electric Vehicle
Aerospace
Aerospace
Communication Equipment
Communication Equipment
Medical Device
Medical Device
Renewable Energy
Renewable Energy

Manufacturing Process & Equipment

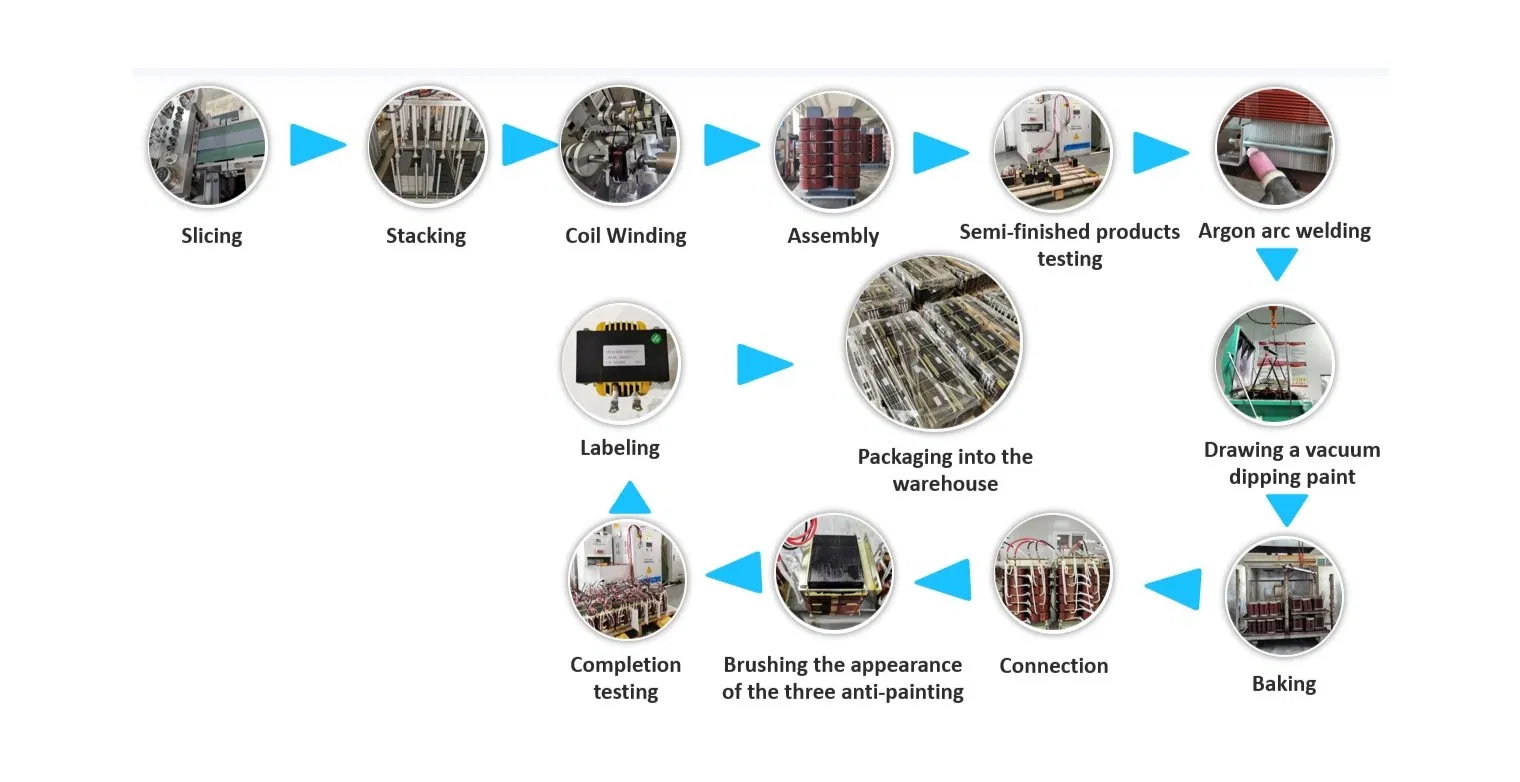

Manufacturing Process Flow

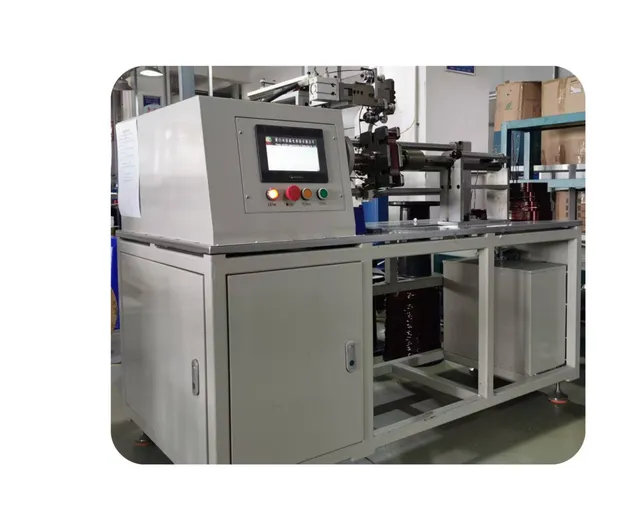

Winding Machine
Automatic Winding

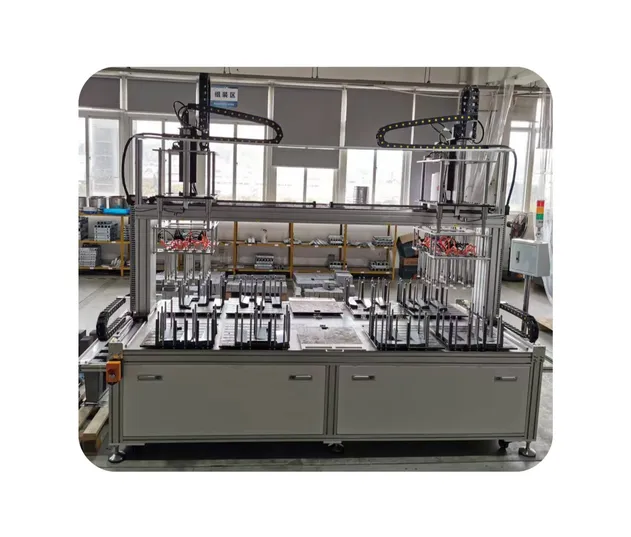

Stacking Machine
Core Stacking

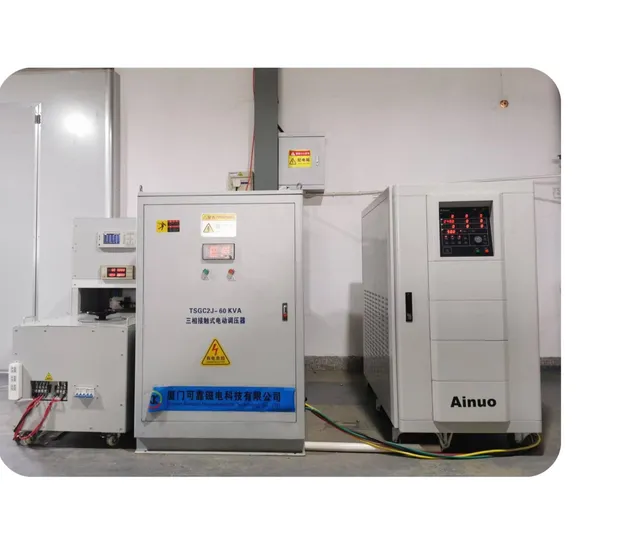

Test Platform
Quality Control Test

Manufacturing Facility

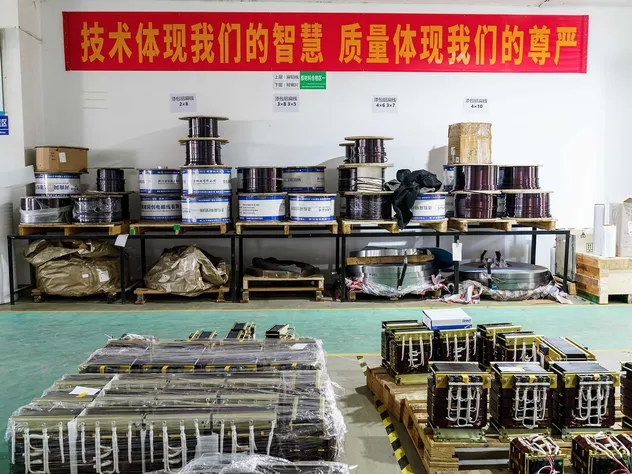

Factory Unit 1

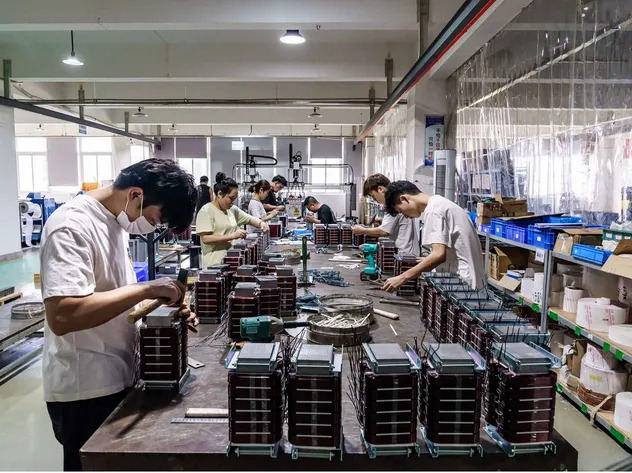

Factory Unit 2

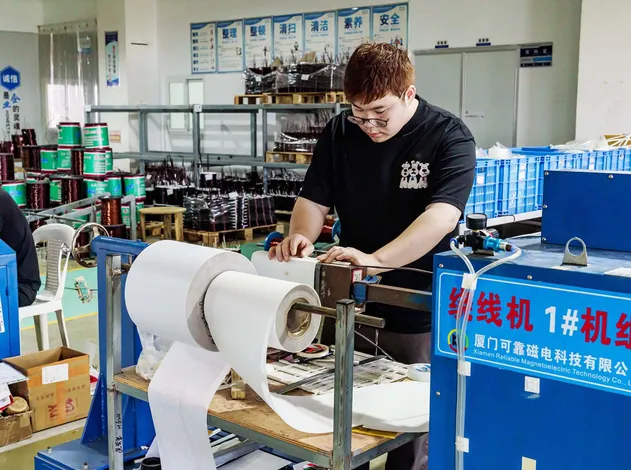

Factory Unit 3

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company?
We are a professional manufacturer with our own factory and dedicated R&D team.
Q2: Can you provide custom designs?
Yes, we specialize in OEM and ODM services. We can manufacture products based on your specific samples or technical drawings.
Q3: Do you test all your goods before delivery?
Yes, we perform 100% testing on all electrical characteristics before shipping to ensure quality.
Q4: what is the typical delivery time?
Stock items are ready to ship immediately; mass production typically takes 15 to 30 days.
Q5: What after-sales service do you provide?
We offer a one-year guarantee and provide 24-hour online technical support.
Q6: Are your transformers suitable for sensitive medical equipment?
Absolutely. Our R-type transformers are designed with low noise and ultra-low leakage flux specifically for medical diagnostic and life-support devices.
