Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control
1 / 5
Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control
Set up Power Pole Mounted Distribution Transformer Machinery Control

Set up Power Pole Mounted Distribution Transformer Machinery Control

Customization: Available
Application: Electronic
Phase: Single
Send Inquiry

Product Description

📋
Basic Info & Overview
Model NO.
JBK5-1000
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC, CE, RoHS
Usage
Combined Transformer
Frequency
50/60Hz
Capacity
40VA~60kVA
IP Code
IP20
Input/Output
1120V/220V
Customized
Available
Lead Time
4 Weeks
⚙️
Product Description

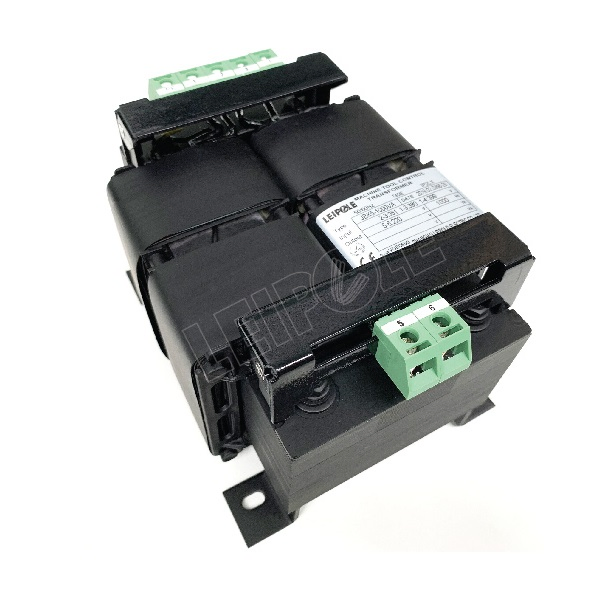

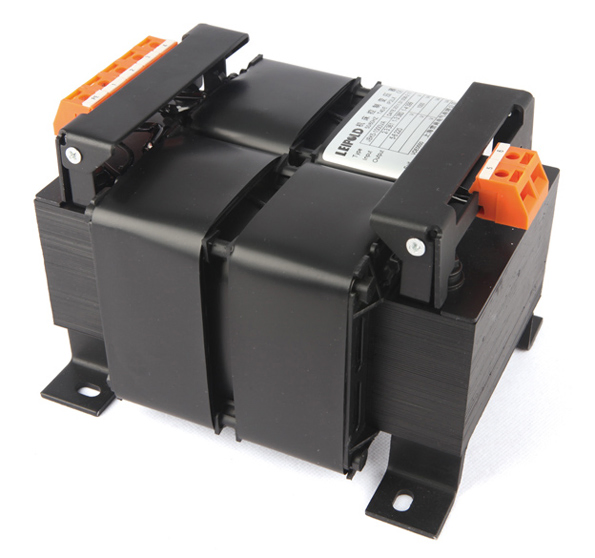

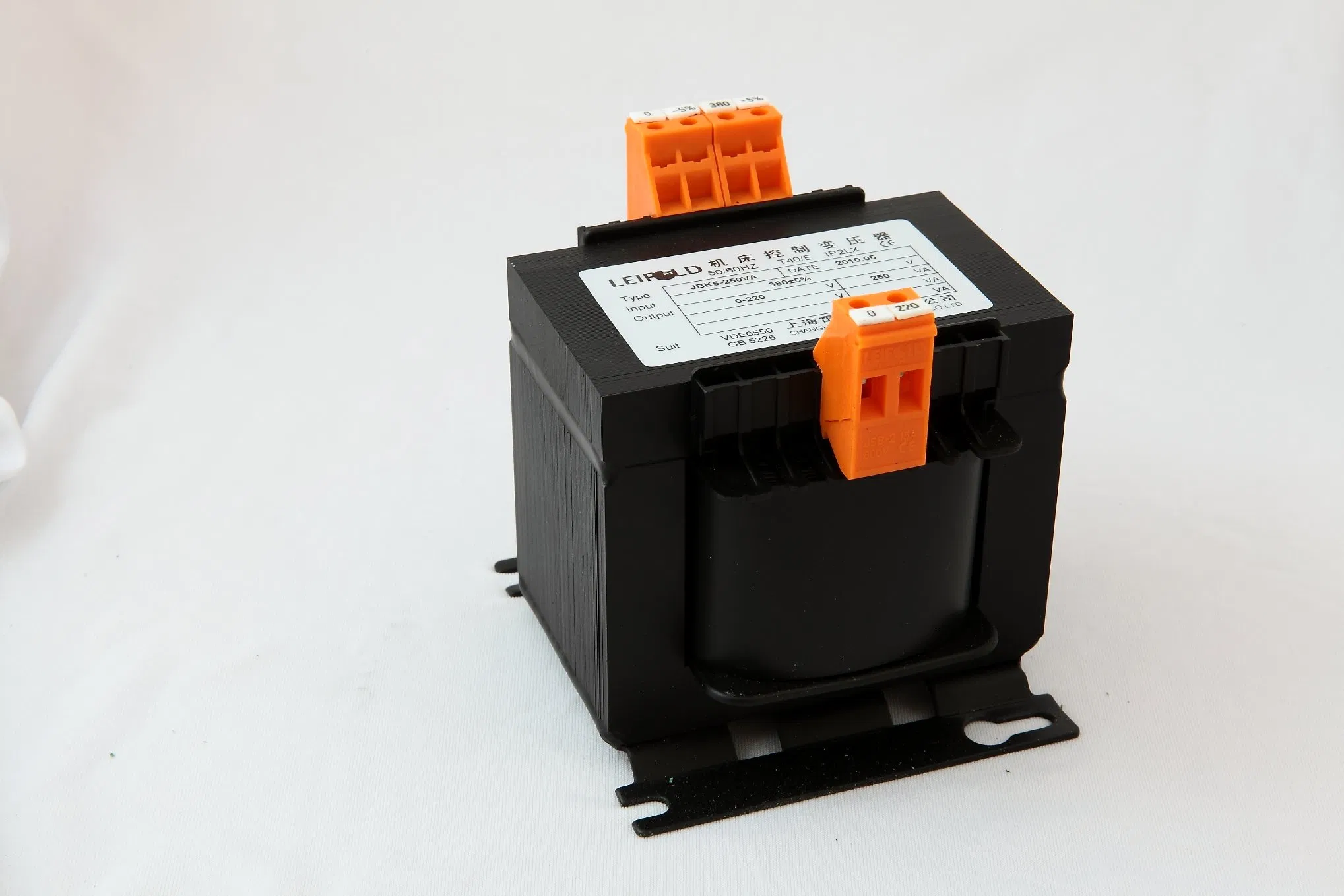

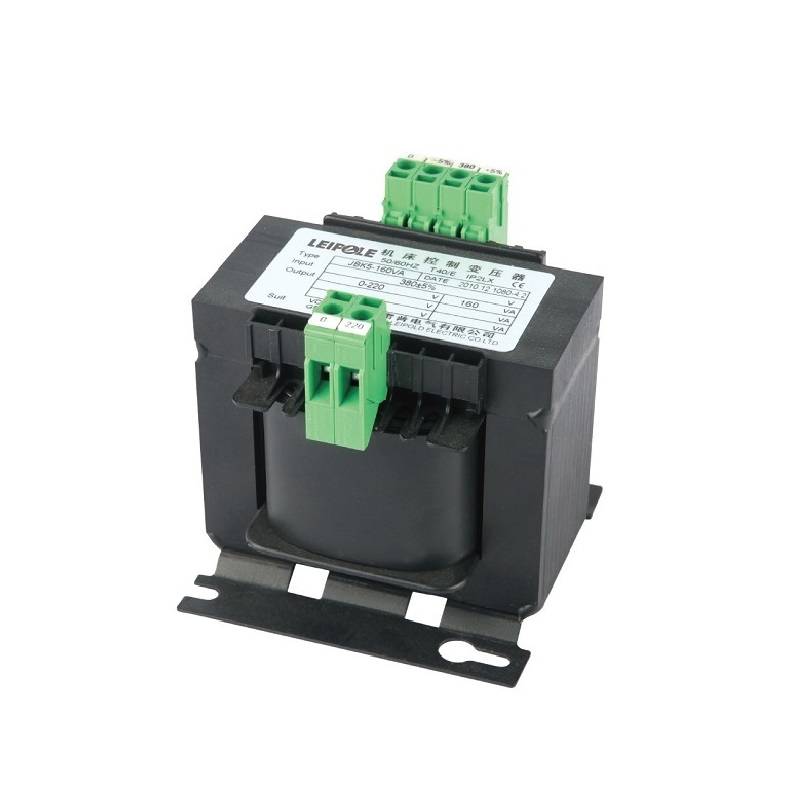

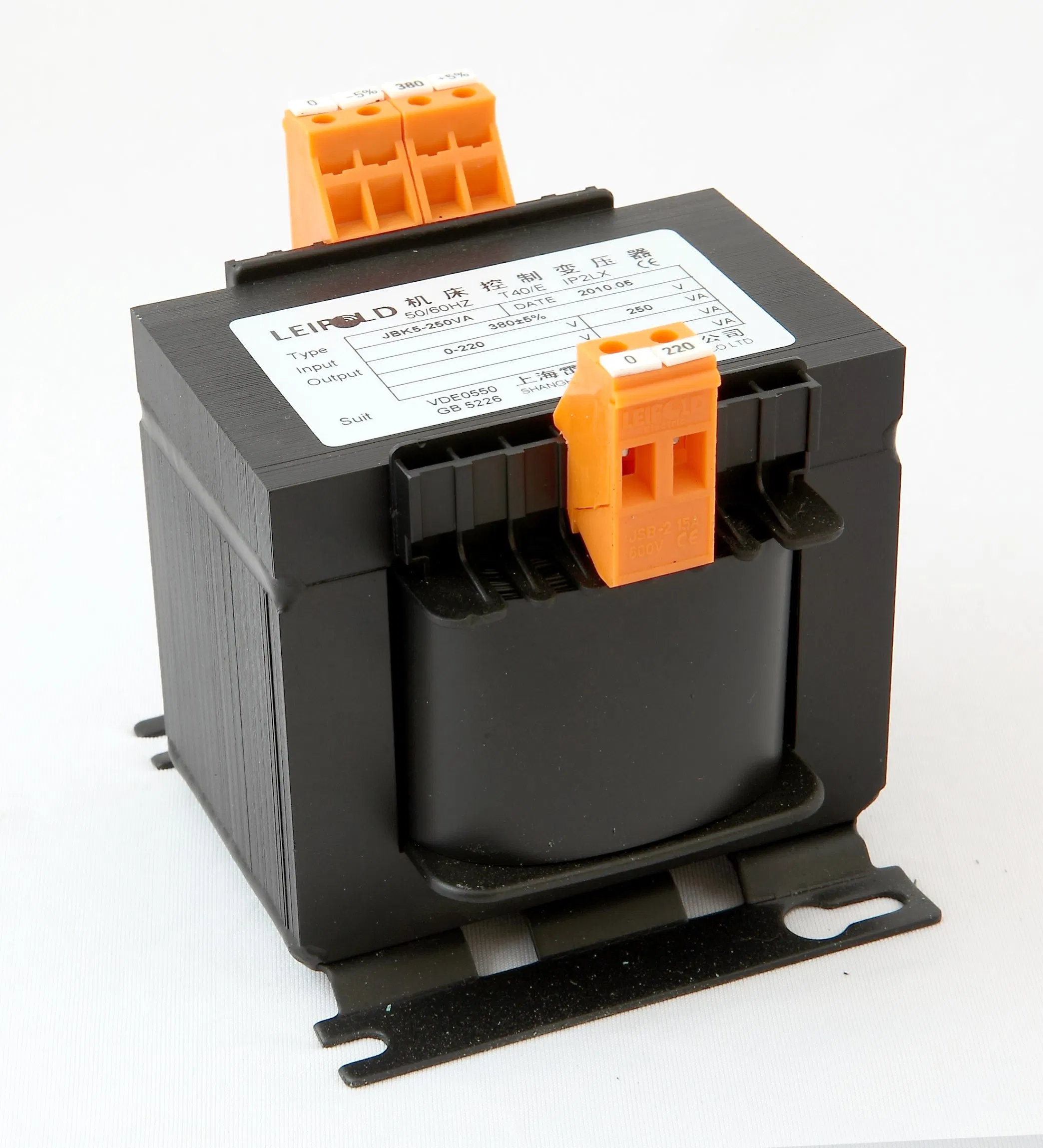

Set up Power Pole Mounted Distribution Transformer Machinery Control

Distribution Transformer Control Banner

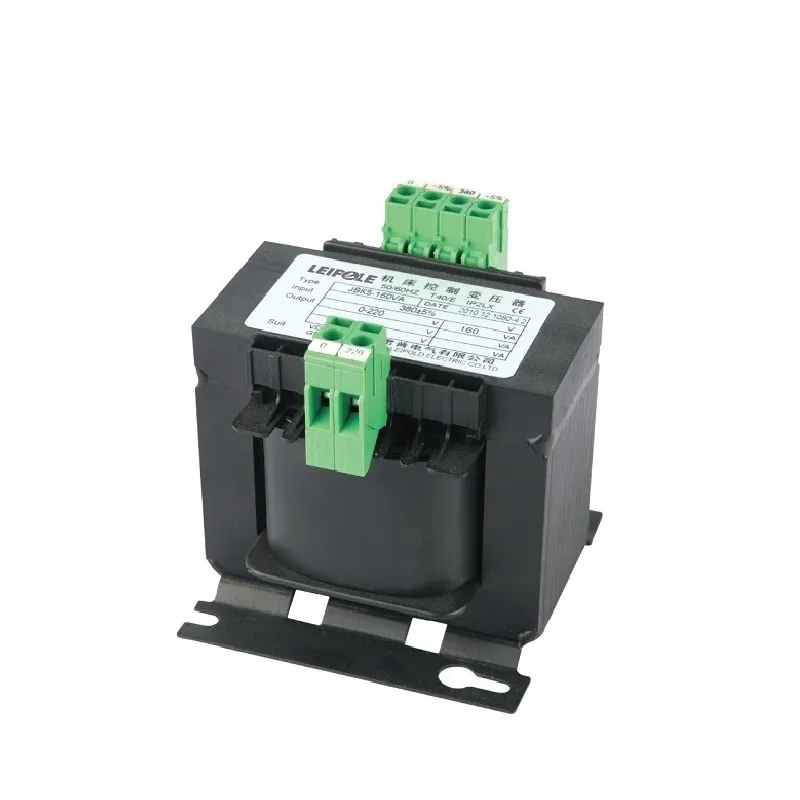

Transformer Detail
  • ● Exceptional Voltage Stability: Precision CRGO silicon-steel cores and tightly-wound copper coils keep secondary voltage within ±2% under full-load.
  • ● Ultra-Low No-Load Losses: Optimized laminations reduce idle current draw and heat generation.
  • ● Superior Thermal Management: Class B or F insulation with vacuum-pressure-impregnated windings.
  • ● Flexible Mounting Styles: DIN-rail clip or rugged panel bracket options available.
  • ● Built-In Tap Adjustments: Primary tap options (±5 × 2.5%) for on-site fine-tuning.
📊
Technical Parameters
Model B max D max E max Hole Distance (A/C) Hole Dia K F max Type
JBK5-10084759664 / 624.61.5Standard
JBK5-40012010012290 / 855.82Standard
JBK5-1000150190142126 / 15273Horizontal
JBK5-1000168125155138 / 10592Vertical
JBK5-2500228200230190 / 122104Vertical
JBK5-5000240225240200 / 152104Vertical

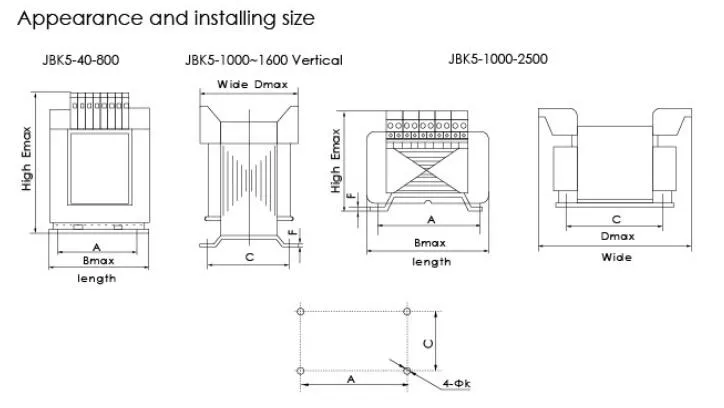

Technical Drawing
🔥
Hot-Selling Products
Fan Filter Unit
Terminal Blocks
Thermostats
Panel Heaters
Transformer
Busbar Adaptor
🖼️
Product Showcase
Showcase 1
Showcase 2

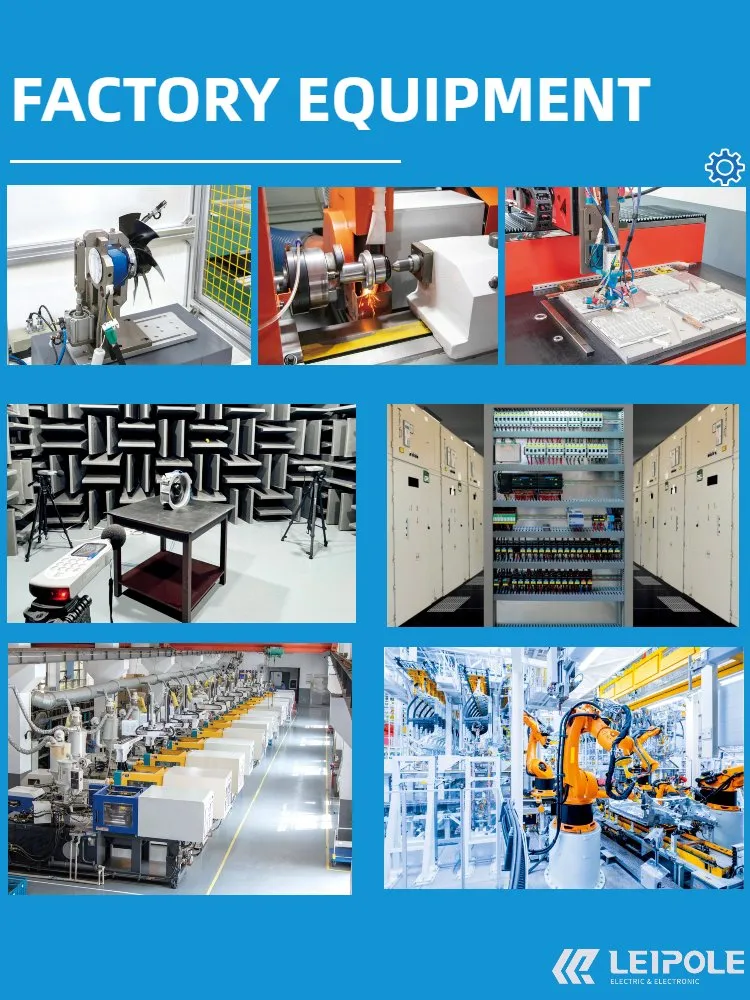

Showcase 3

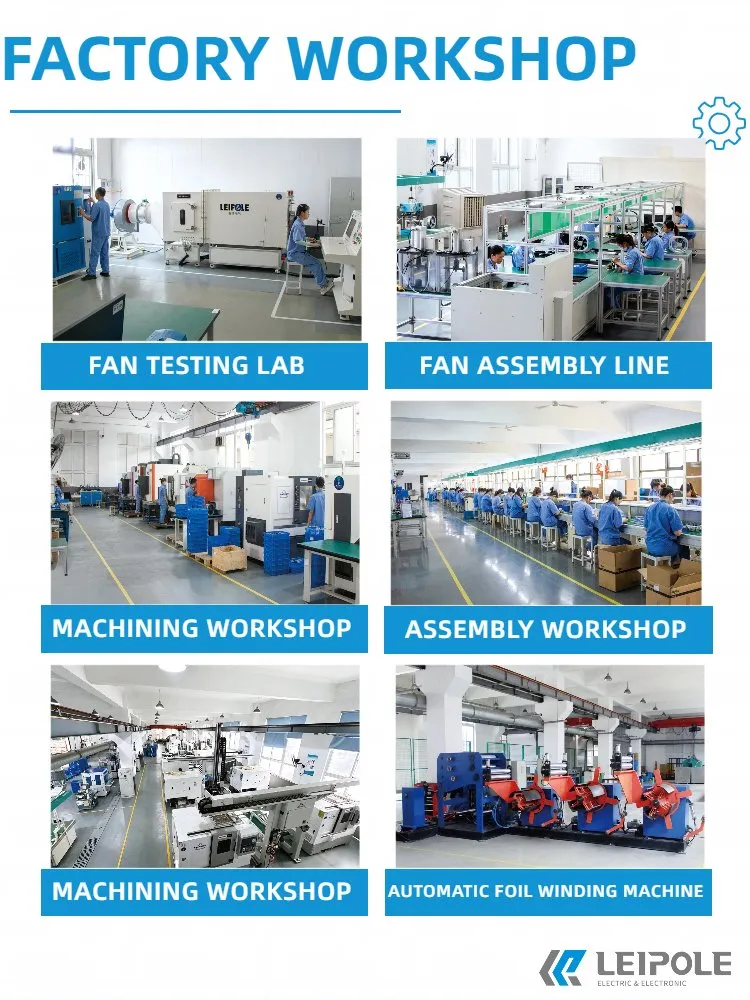

Showcase 4
Showcase 5
Showcase 6
Common Questions (FAQ)
How do I select the right VA rating for a control transformer?
Add the VA of all control loads (relays, coils, PLC inputs) plus a 25% margin, then choose the next available standard size.
When should I choose an industrial control transformer for machine tools?
Use an industrial control transformer when you need reliable, low-voltage power for machine tool control circuits to ensure stable operation under high inrush and frequent switching.
How does a 110V to 24V step-down control transformer improve safety?
It isolates the high-voltage mains from control wiring, significantly reducing shock hazards and allowing safer interface with relays and PLC inputs.
Why use an isolation control transformer for PLCs?
An isolation control transformer prevents ground loops and electrical noise from reaching sensitive PLC power supplies, enhancing signal integrity.
What are the benefits of a toroidal control transformer?
Toroidal designs offer lower magnetic stray fields and less audible hum compared to traditional EI-core designs, ideal for noise-sensitive environments.
What ambient temperature range is supported by these transformers?
Standard models operate reliably from -5°C up to +40°C (with some specialized versions supporting -20°C to +60°C). Always ensure adequate ventilation.
