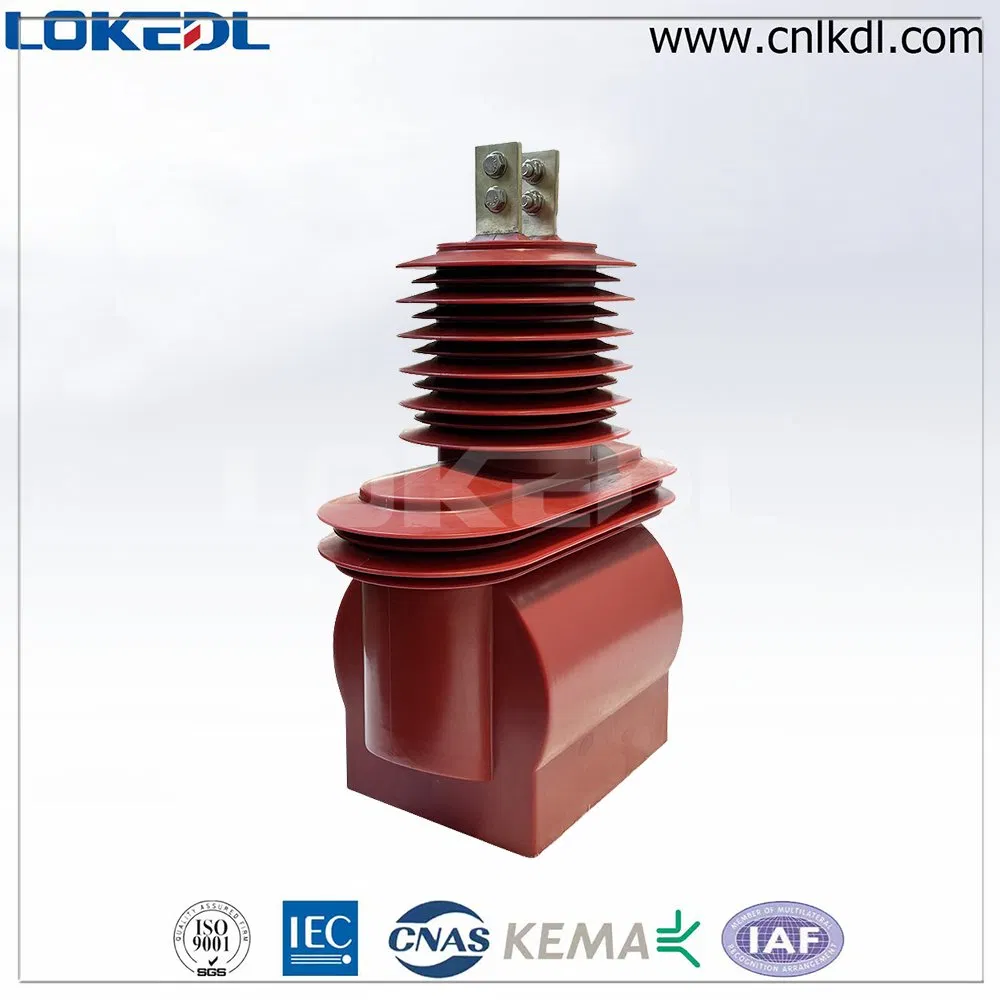

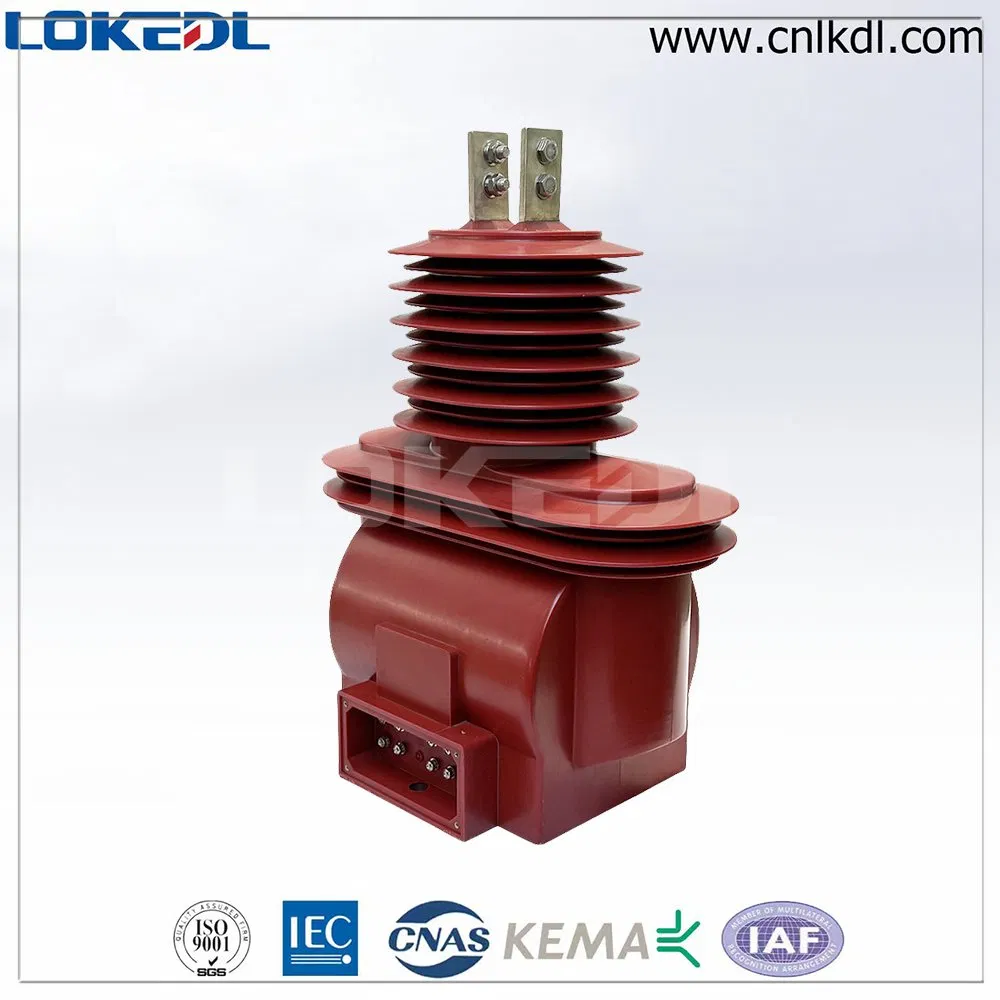

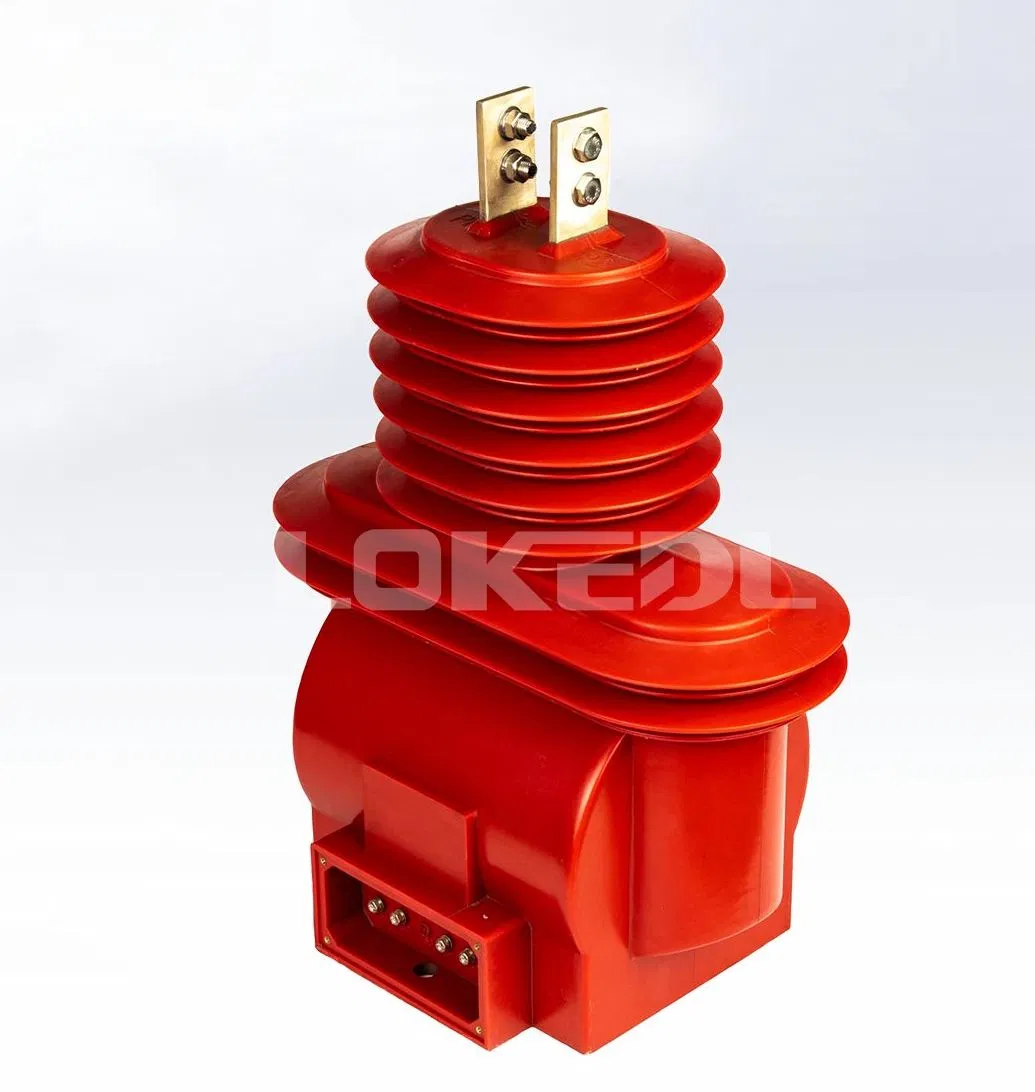

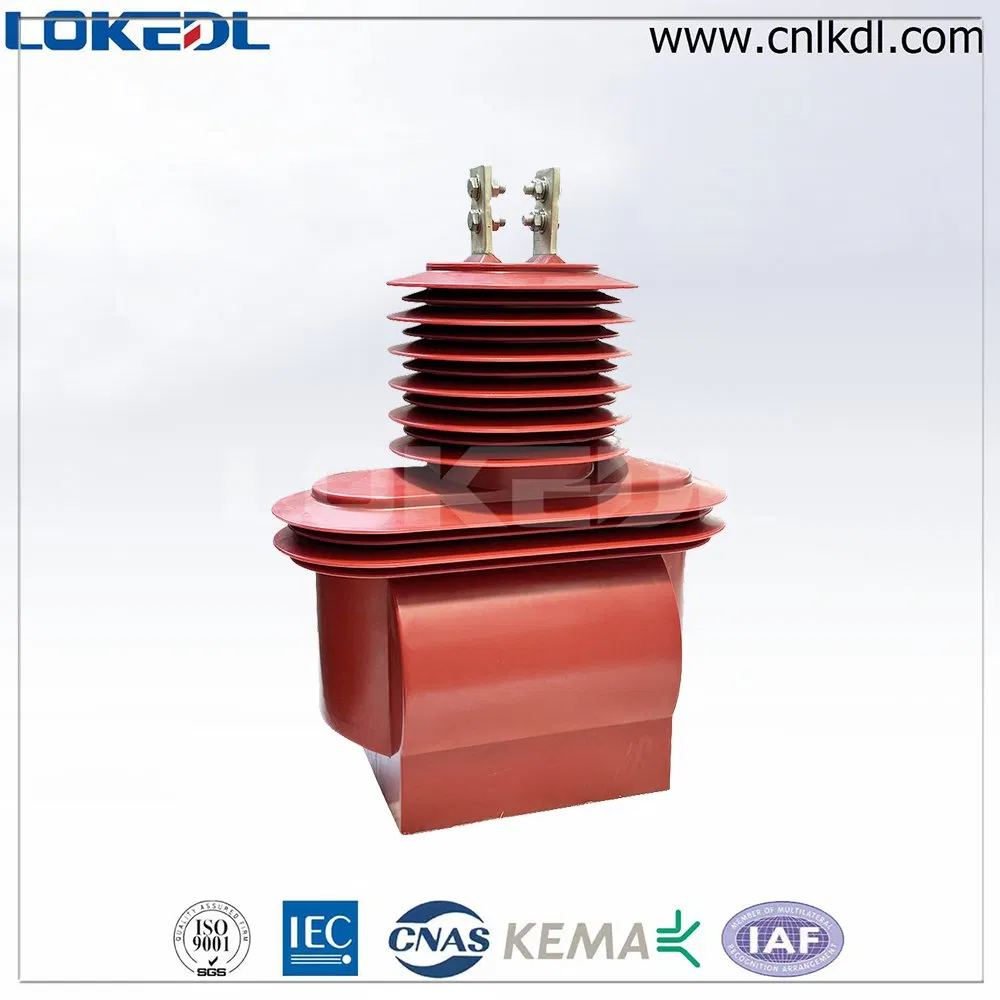

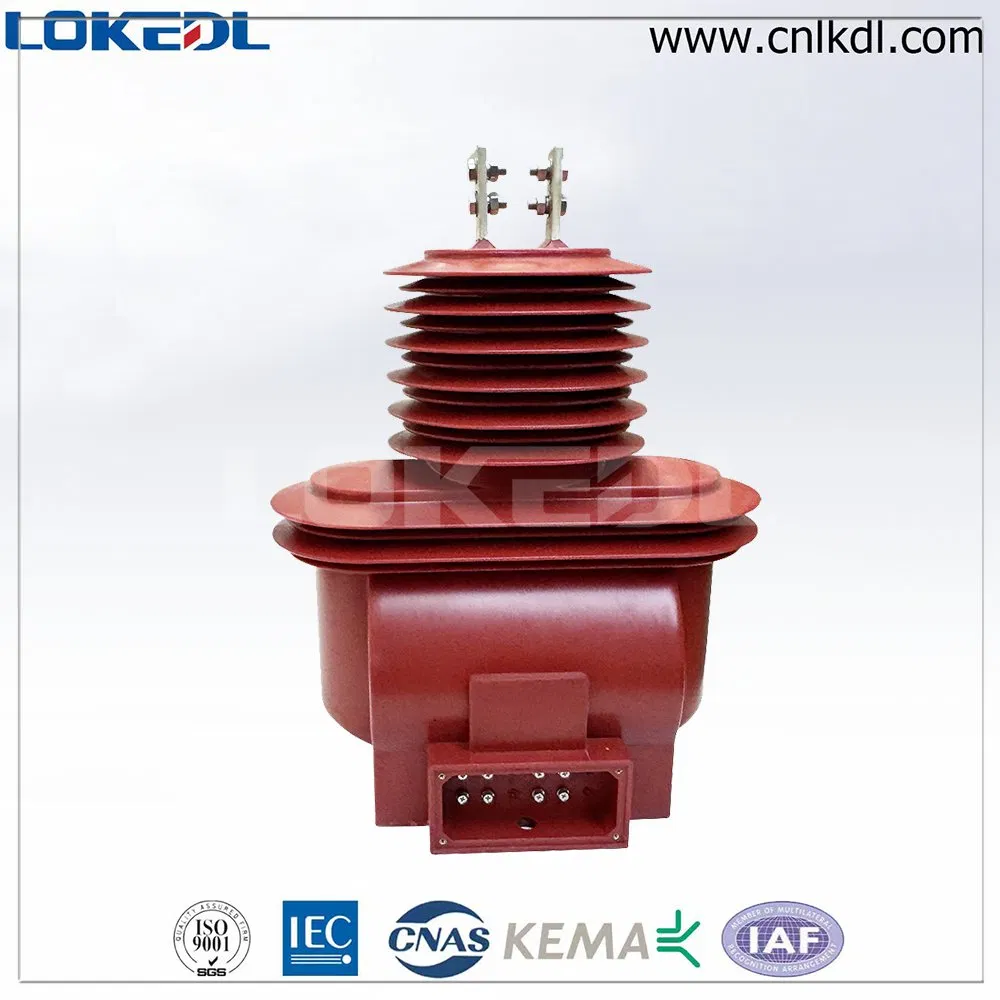

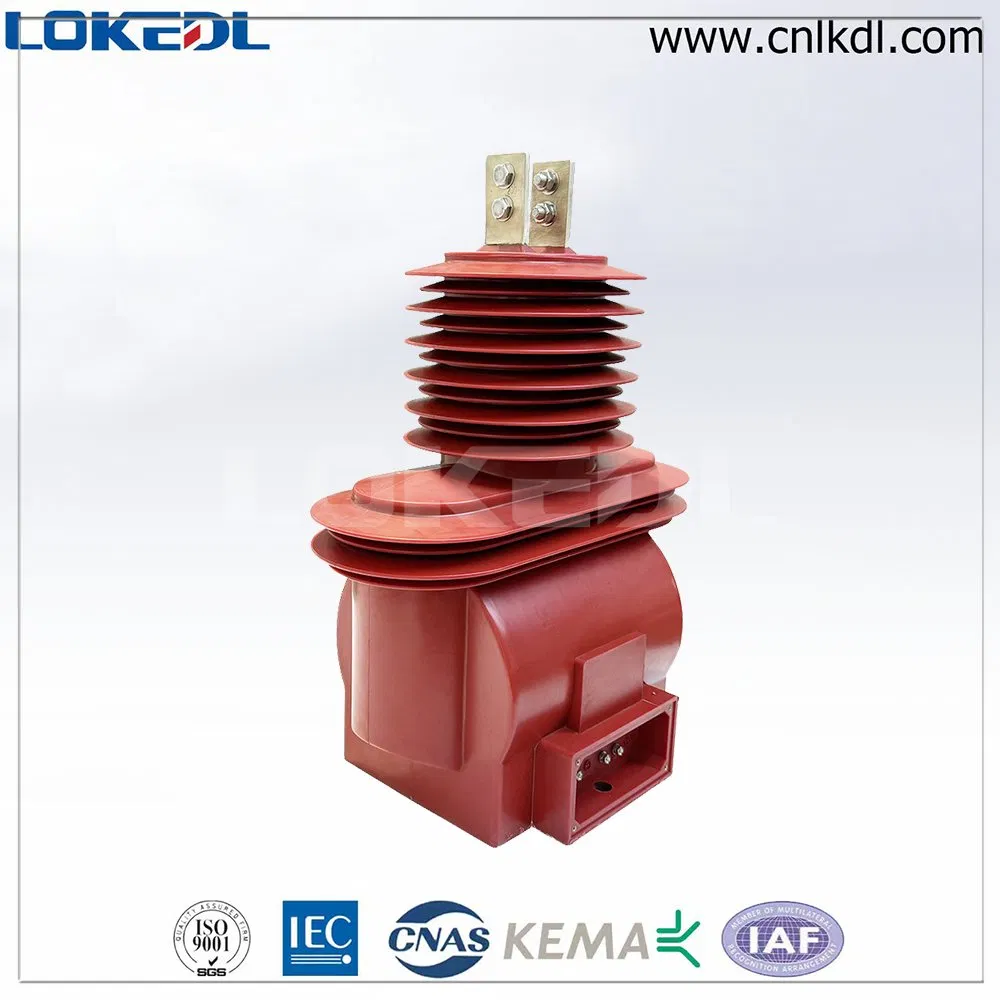

Lzzw-33, Lzzbw-33, Lzzw-35, Lzzw-36 Outdoor Current Transformer

Basic Information

Model NO.LZZW1

PhaseSingle

Operation ConditionOutdoor

UsageProtection, Measurement

Winding FormSingle Layer & Tightly Wound Type

Insulating MediumEpoxy Resin

InstallationStrut Type

Rated Voltage33kv, 35kv, 36kv, 40.5kv

StandardIEC61869-2

OriginChina

Production Capacity50000 Pieces/Year

Product Description

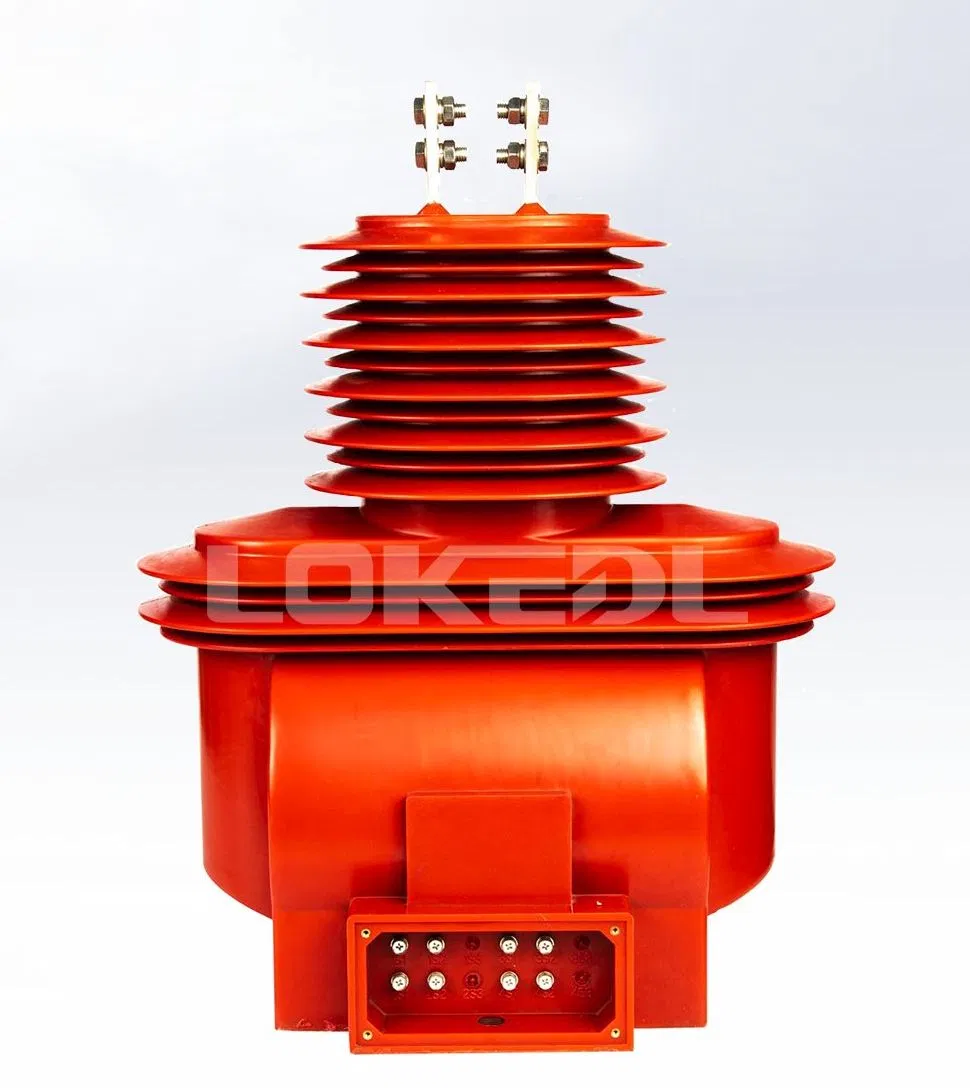

Medium voltage Outdoor Current Transformer

Outdoor epoxy resin current transformer, Single phase
Rated voltage: 33kV, 35kV, 36kV, 40.5kV
Metering class for CT: 0.2S, 0.2, 0.3, 0.5, 0.5S, 0.6, 1, 3
Standard: IEC61869, IEEE C57.13

This outdoor dry type current transformer is used in 33kV, 35kV, 36kV and 40.5kV power system for measuring and protection. It is widely applied in outdoor pole-mounted systems and transmission lines. Crafted from high-quality ultraviolet-proof epoxy resin, it features an amorphous alloy core for metering and high-quality silicon steel core for protection. Primary and secondary components utilize pure electrolytic copper with shielding processing for both winding and core.

Product Parameters

Rated primary current(A)	Accuracy classes combination	Accuracy class and output (VA)							Short-time thermal current(kA/1s)	Rated dynamic current(kA)
Rated primary current(A)	Accuracy classes combination	0.2s	0.2	0.5s	0.5	10P10	10P15	10P20	Short-time thermal current(kA/1s)	Rated dynamic current(kA)
5 - 75	0.2S/10P10 0.2S/10P15 0.2S/10P20 0.2/10P10 0.2/10P15 0.2/10P20 0.5/10P10 0.5/10P15 0.5/10P20	10	10	10	10	15	15	15	0.5 - 7.5	12.5 - 18.75
100 - 500		10	10	10	10	15	15	15	10 - 50	25 - 75
600 - 2000		15	20	15	30	30	30	20	60 - 80	150 - 200
