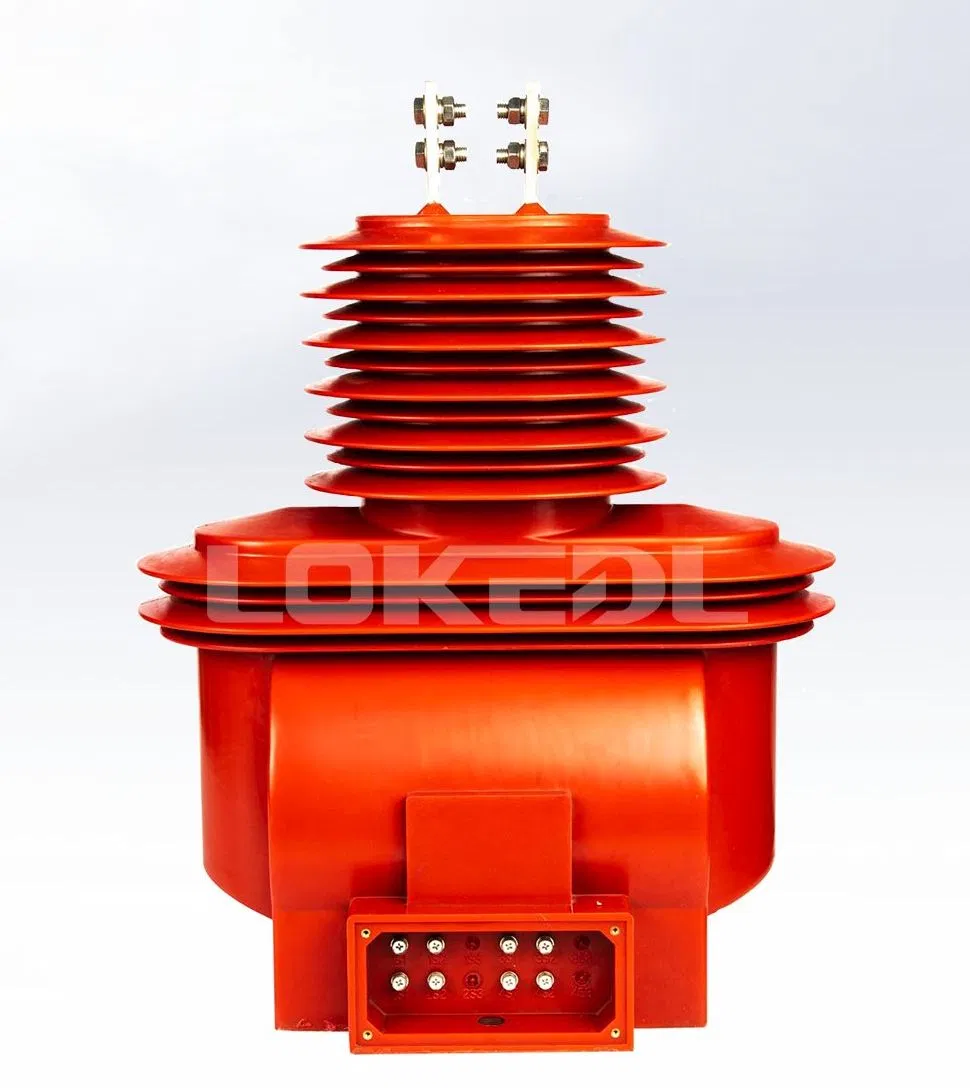

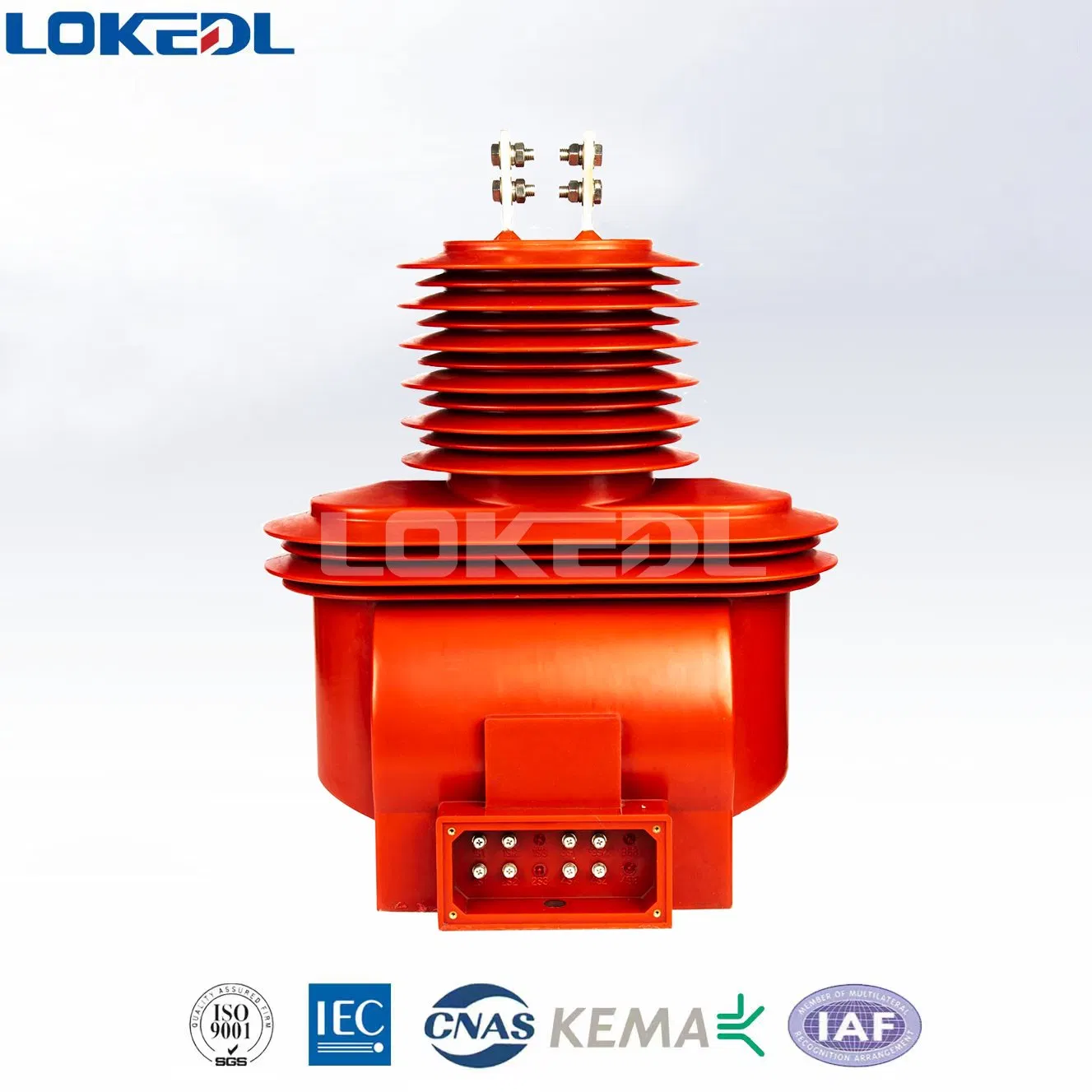

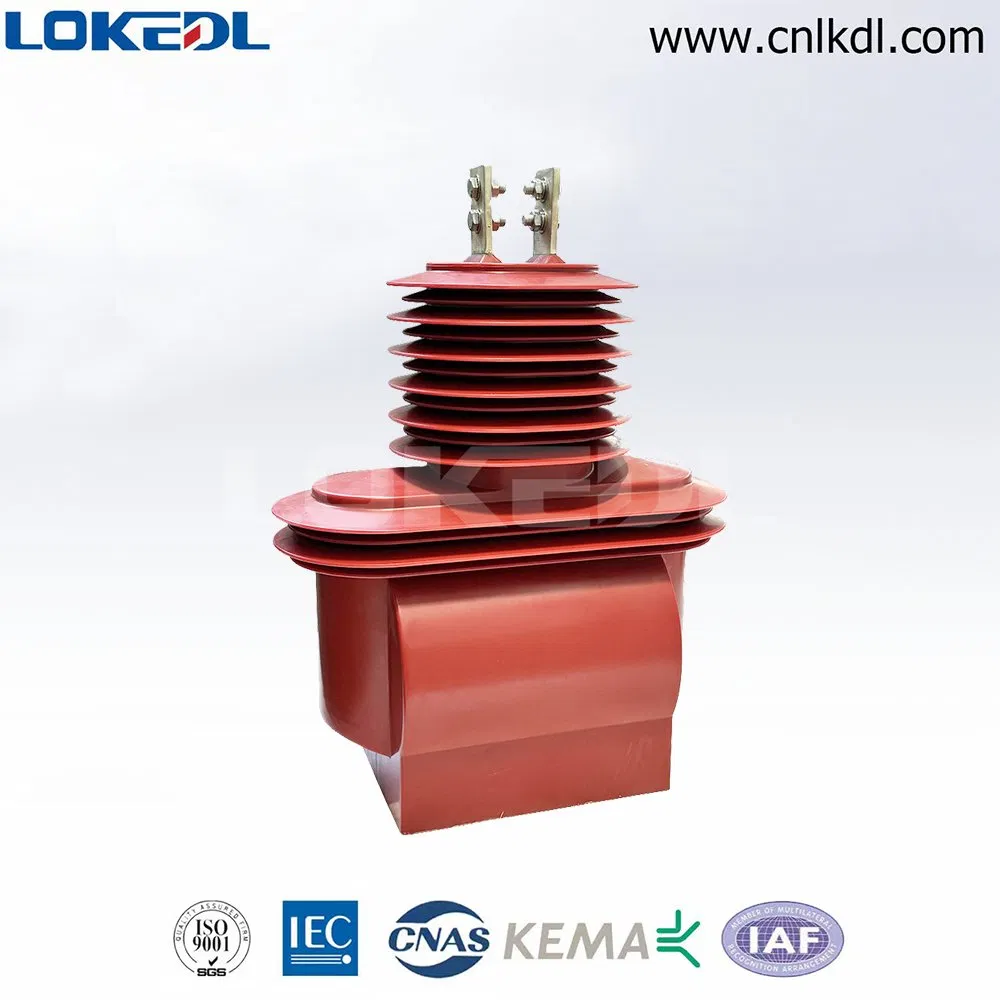

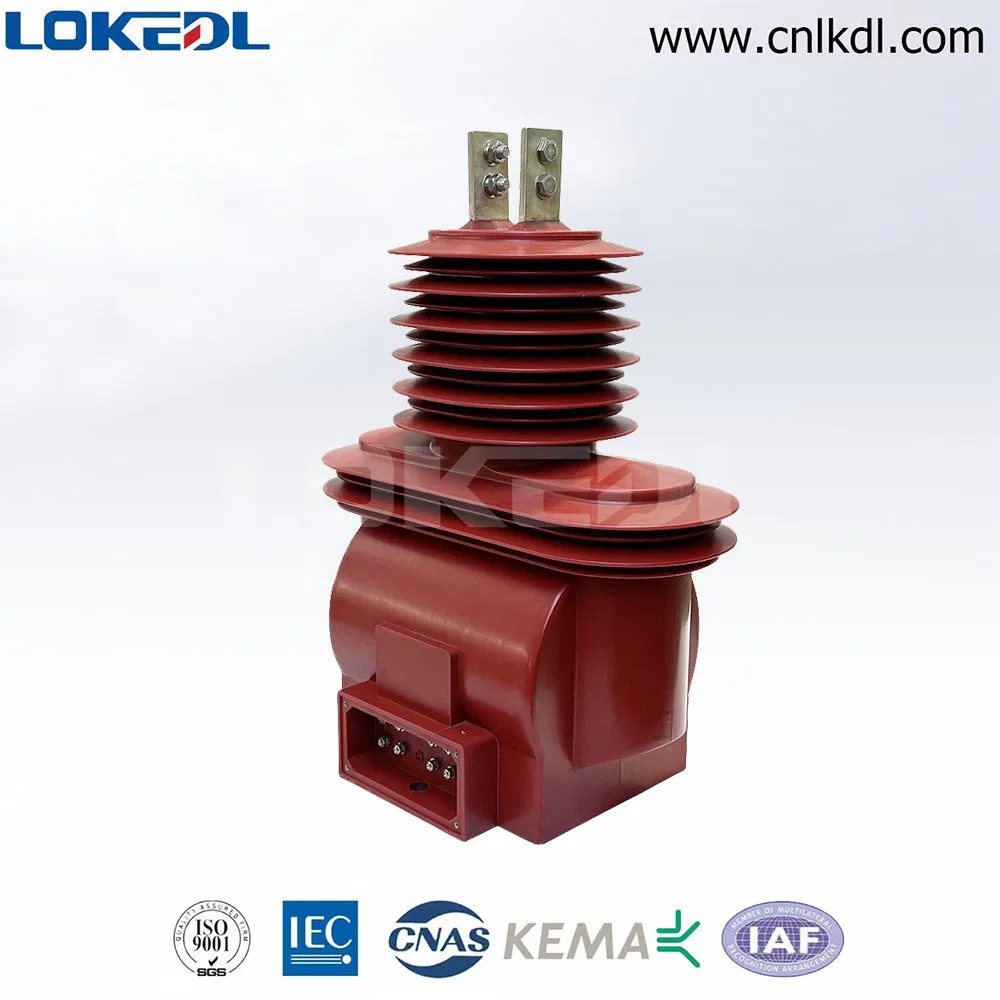

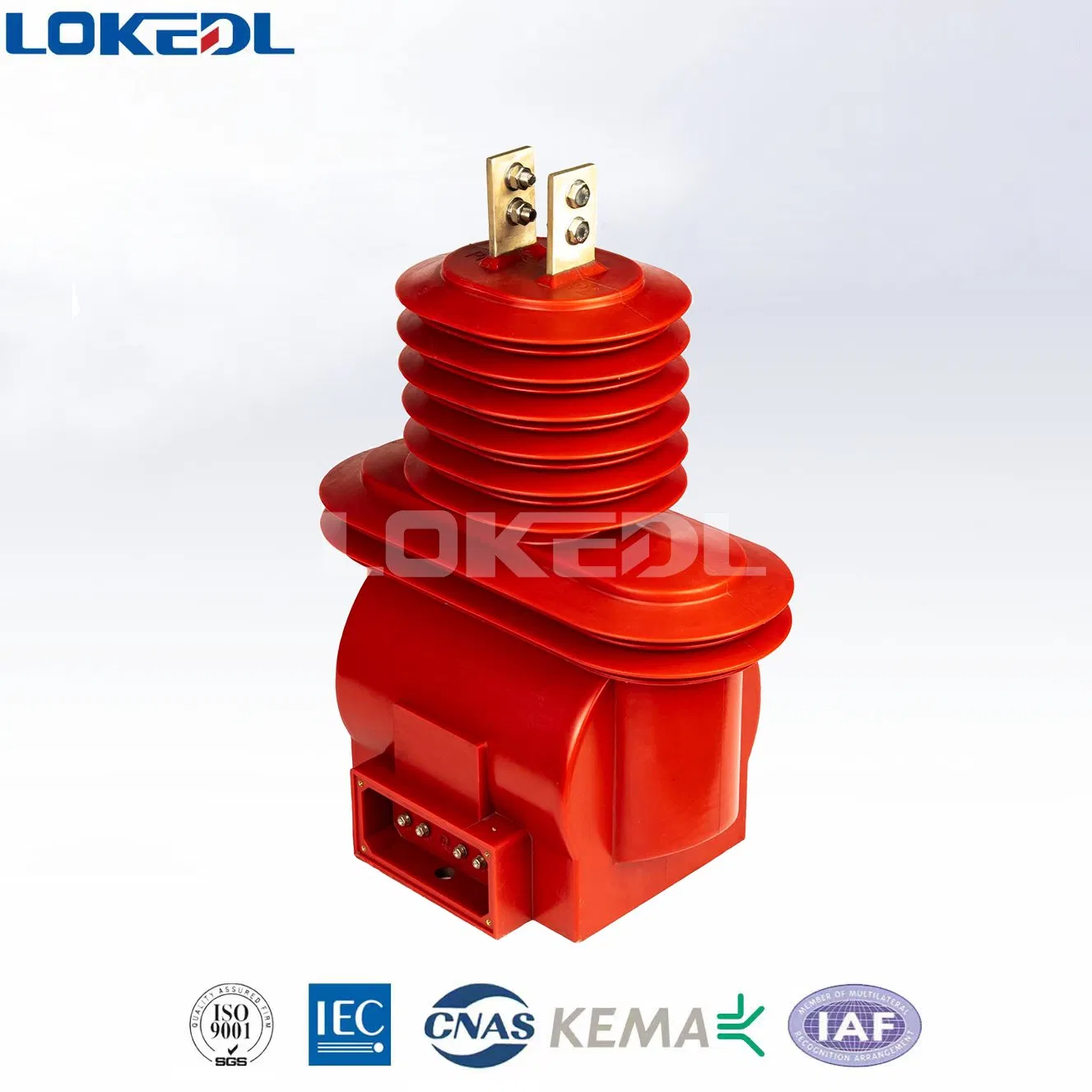

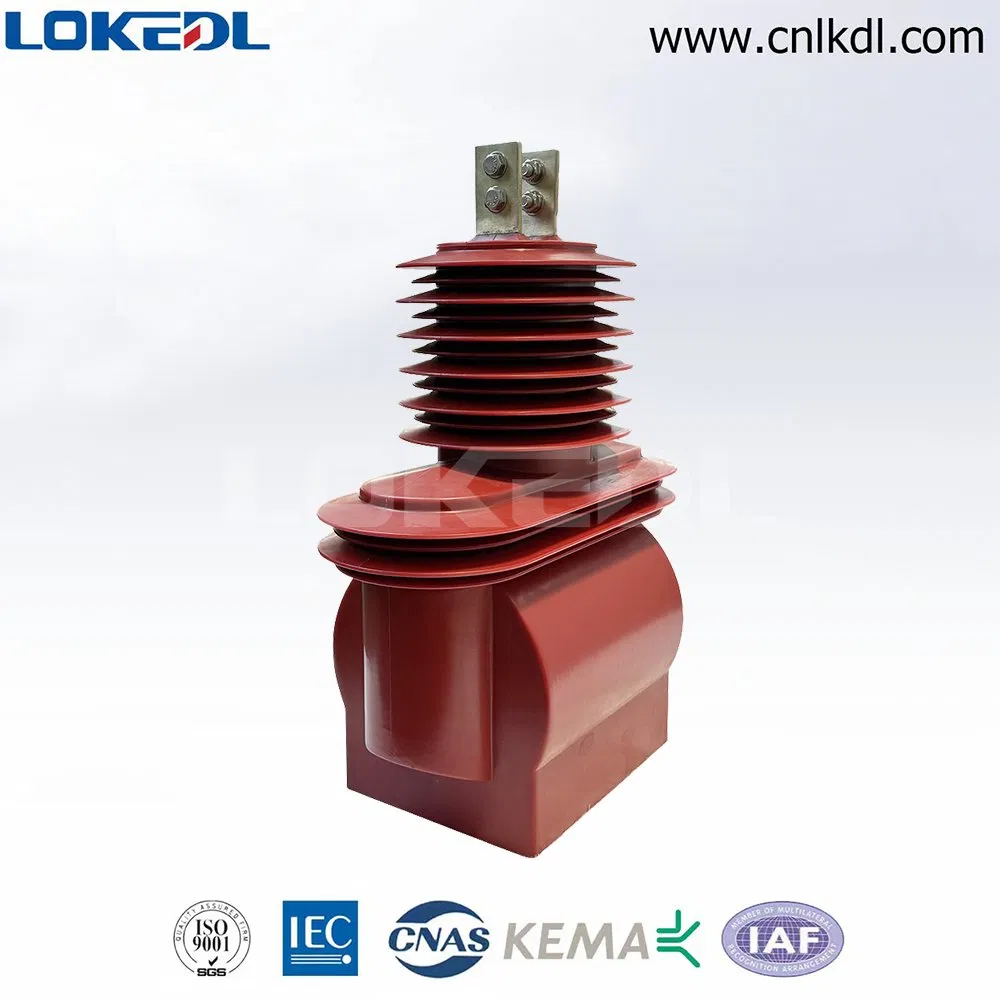

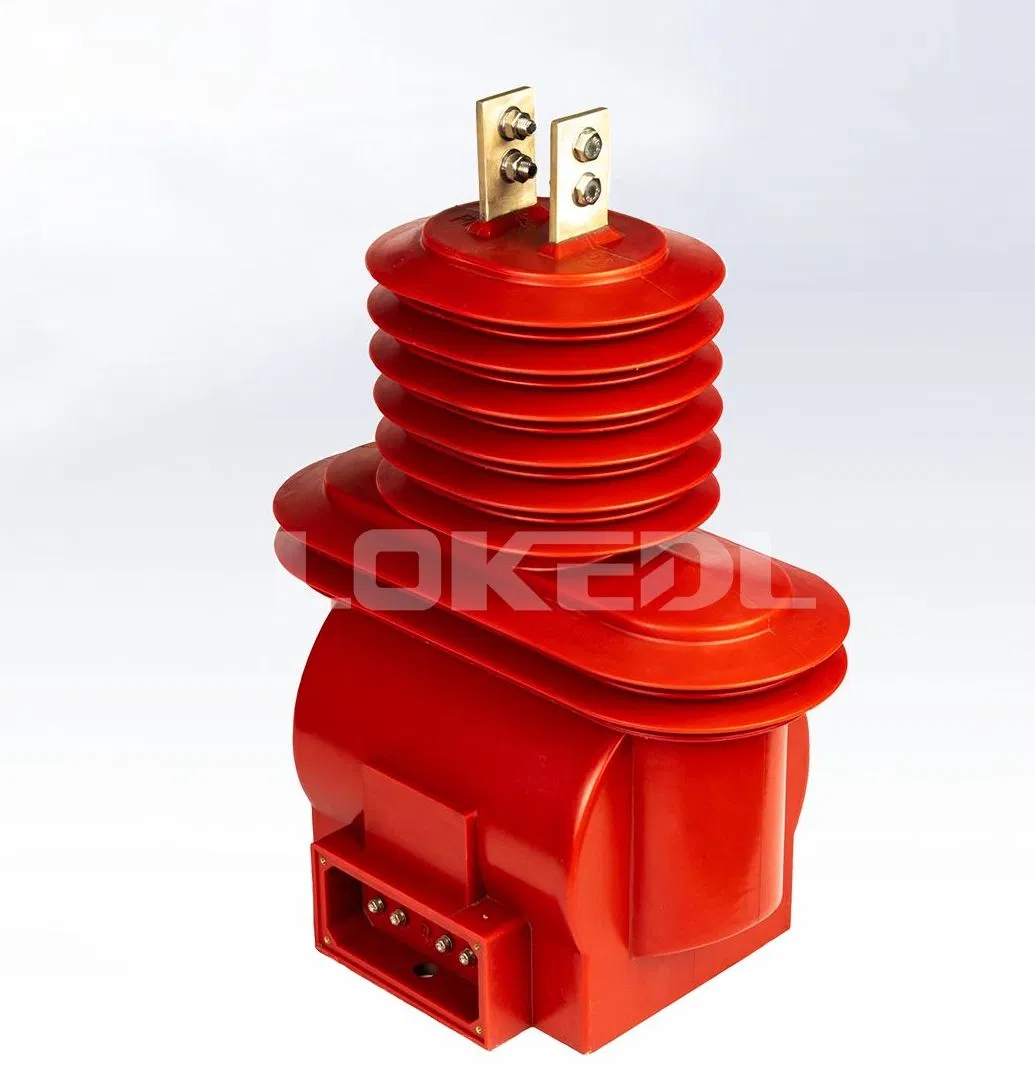

Medium Voltage Outdoor Current Transformer
This outdoor dry type current transformer is designed for 33kV to 40.5kV power systems, specifically for measuring and protection. It is widely used in outdoor pole-mounted installations and transmission lines. Constructed from high-quality ultraviolet-proof epoxy resin, it features an amorphous alloy core for metering and high-quality silicon steel core for protection. Both primary and secondary windings use pure electrolytic copper with professional shielding processing.
| Rated primary current(A) | Accuracy classes combination | Accuracy class and output (VA) | Short-time thermal current(kA/1s) | Rated dynamic current(kA) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.2s | 0.2 | 0.5s | 0.5 | 10P10 | 10P15 | 10P20 | ||||
| 5 - 75 | 0.2S/10P10 0.2S/10P15 0.2S/10P20 0.2/10P10 0.5/10P20 ... |
10 | 10 | 10 | 10 | 15 | 15 | 15 | 0.5 - 7.5 | 12.5 - 18.75 |
| 100 - 500 | 10 | 10 | 10 | 10 | 15 | 15 | 15 | 10 - 50 | 25 - 75 | |
| 600 - 800 | 15 | 15 | 15 | 15 | 20 | 20 | 20 | 60 - 80 | 150 - 200 | |
| 1000 - 2000 | 15 | 20 | 15 | 30 | 30 | 30 | 20 | 80 | 200 | |
1. Small & Lightweight Products: Heavy-duty 5-layer corrugated boxes with custom foam inserts and waterproof tape.

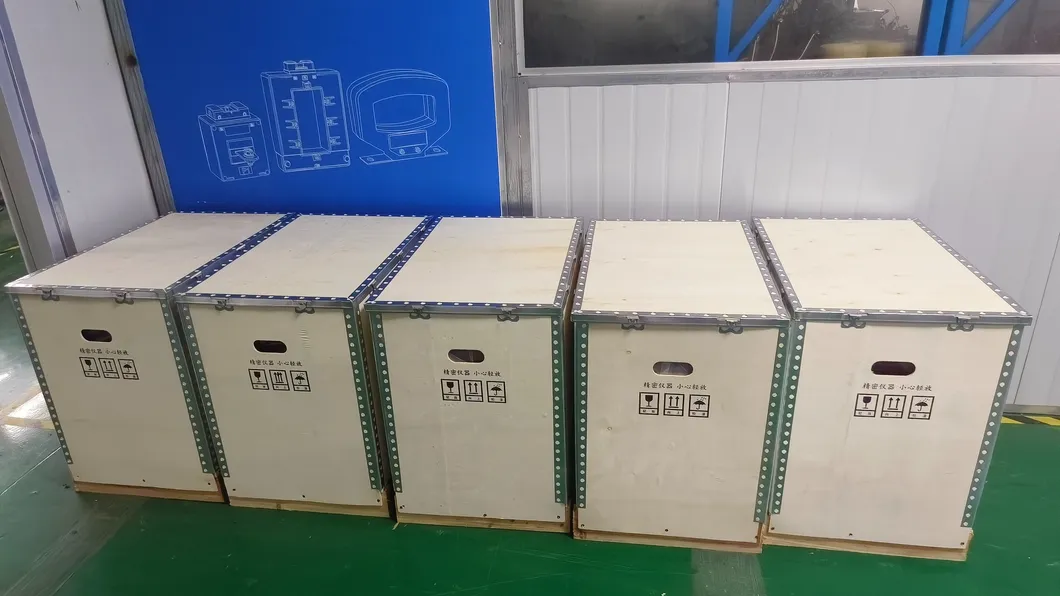

2. Large & Heavy Products: Export-grade 12mm-15mm plywood crates with EPE foam for shock absorption and standardized pallets for forklift handling.
High-grade silicon steel or nanocrystalline cores for minimal losses; robust epoxy resin for harsh environments.
Accuracy Class 0.2/0.5 for metering; compliant with IEC 61869, IEEE, and ANSI standards. Low thermal rise design.
Custom ratios and sizes; fast delivery (2-4 weeks); lifelong technical assistance and 24/7 support.
