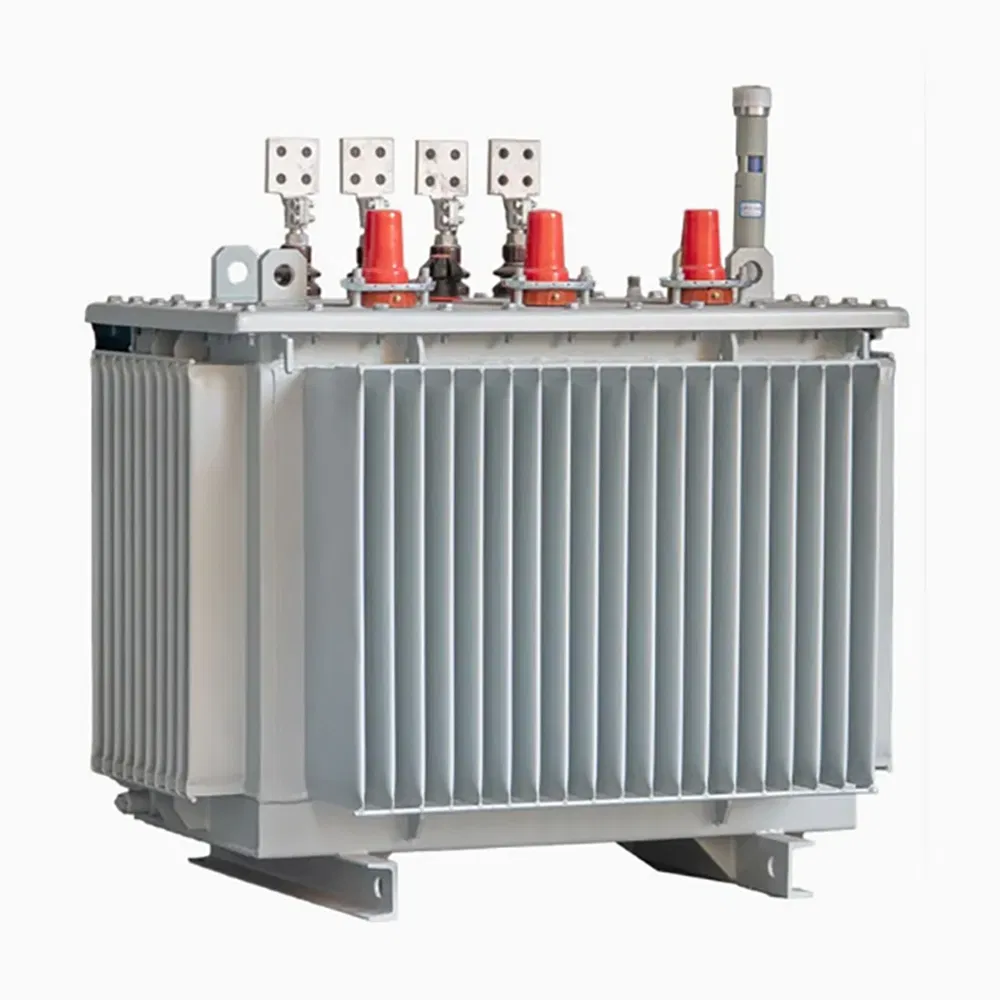

Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
1 / 5
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer
Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer

Low-Loss 10kv Oil-Immersed Electronics Current Power Voltage Regulator Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
S13
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Rectifier, Combined, Power, Distribution Transformer
Rated Capacity
50kVA-4500kVA
High Voltage
6-36kv or Others
Low Voltage
380V or Others
Installation Altitude
≤1000m
Product Description

With over 35 years of experience in the power transmission and distribution equipment industry, we specialize in a comprehensive range of products including dry-type transformers, oil-immersed transformers, compact substations, switchgear, and vacuum circuit breakers. Our products are widely deployed across power grids, railways, mining, shipping, and residential sectors.

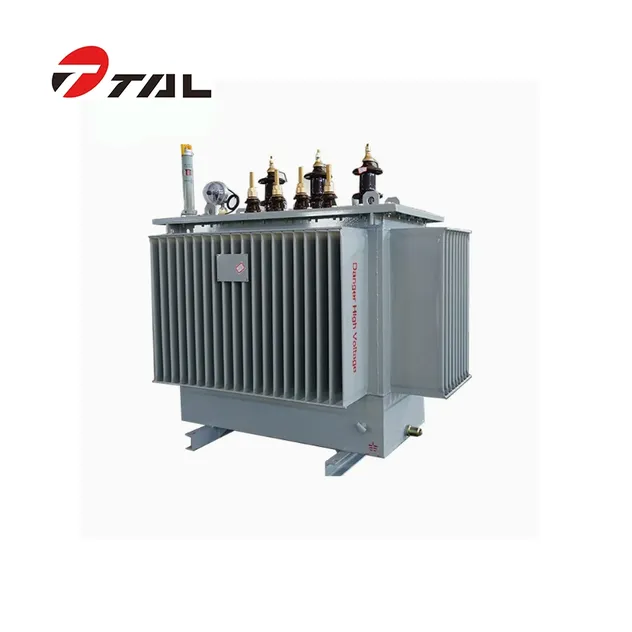

Oil-Immersed Transformer 1

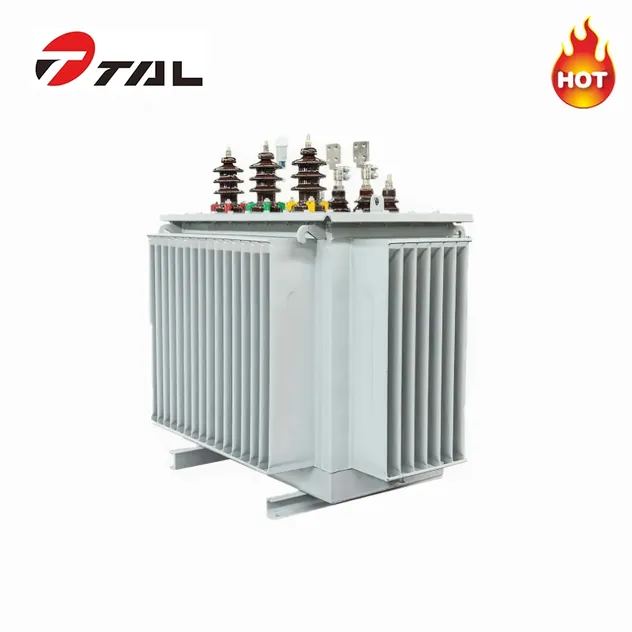

Oil-Immersed Transformer 2

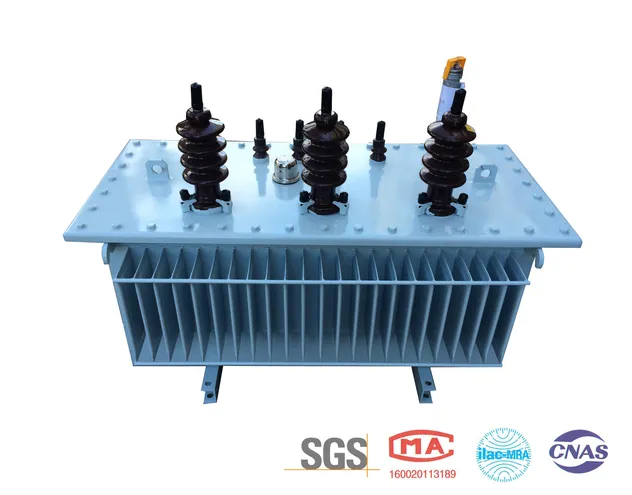

Oil-Immersed Transformer 3
Key Features
  • Natural self-cooling (ONAN), three-phase, 50/60 Hz for indoor and outdoor installation.
  • Corrugated type tank: automatic welding, zero leakage rate, strong corrosion resistance.
  • Positioning device for active-part: free core suspending, maintenance-free, safe and reliable.
  • Dedicated automatic winding machine to ensure coil quality.
  • Special structural design and material selection to ensure strong short circuit resistance.
Core Components

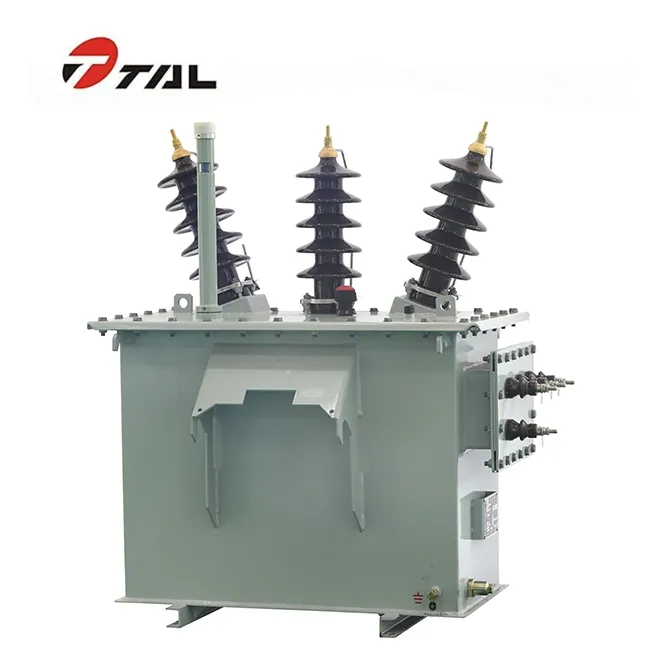

Transformer Core Detail

High-Permeability Core: Made of grain-oriented cold-rolled silicon steel. The design boosts energy efficiency and load-handling capacity. The tightly-stacked laminations form a continuous magnetic path crucial for performance.

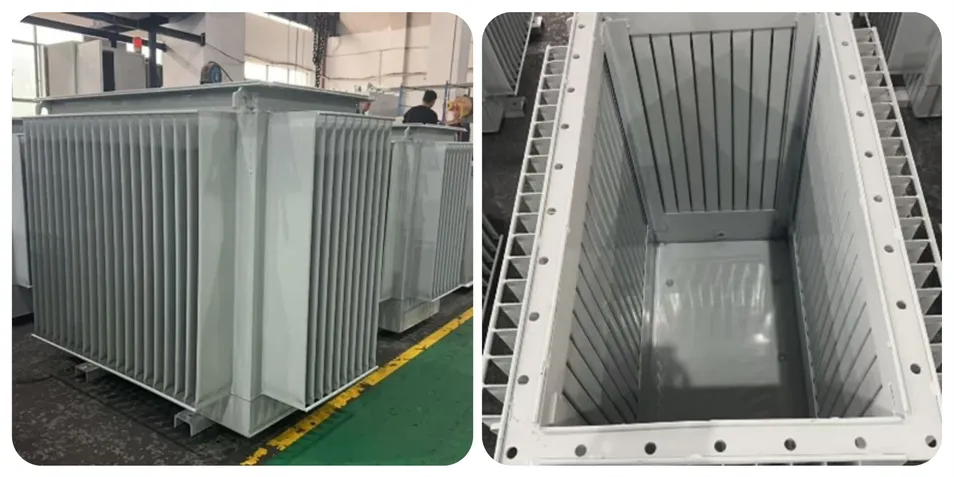

Oil Tank with Corrugated Heat Sinks: Provides insulation protection, efficient heat dissipation, and mechanical protection for internal components.

Insulators
Heat Sinks

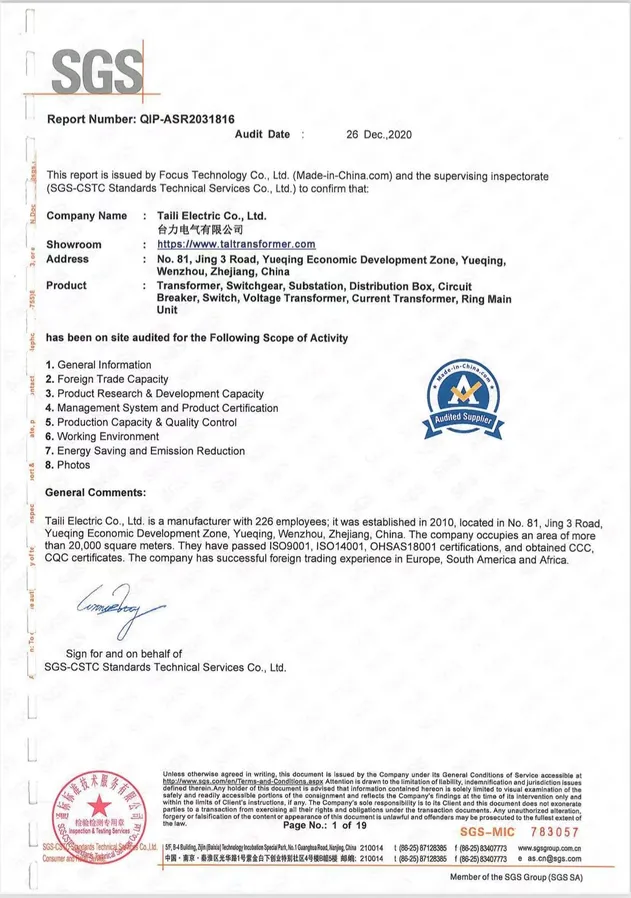

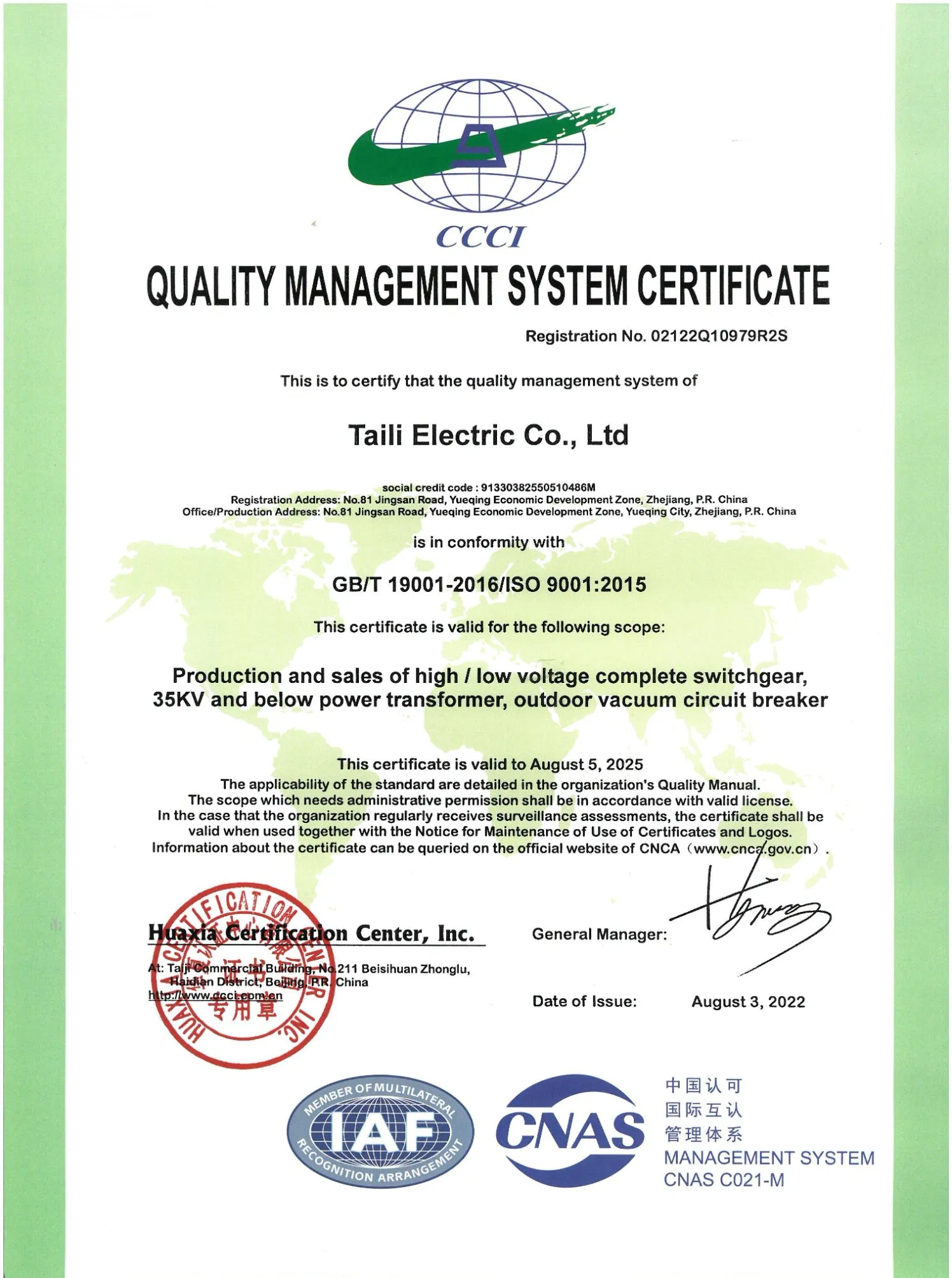

Certifications

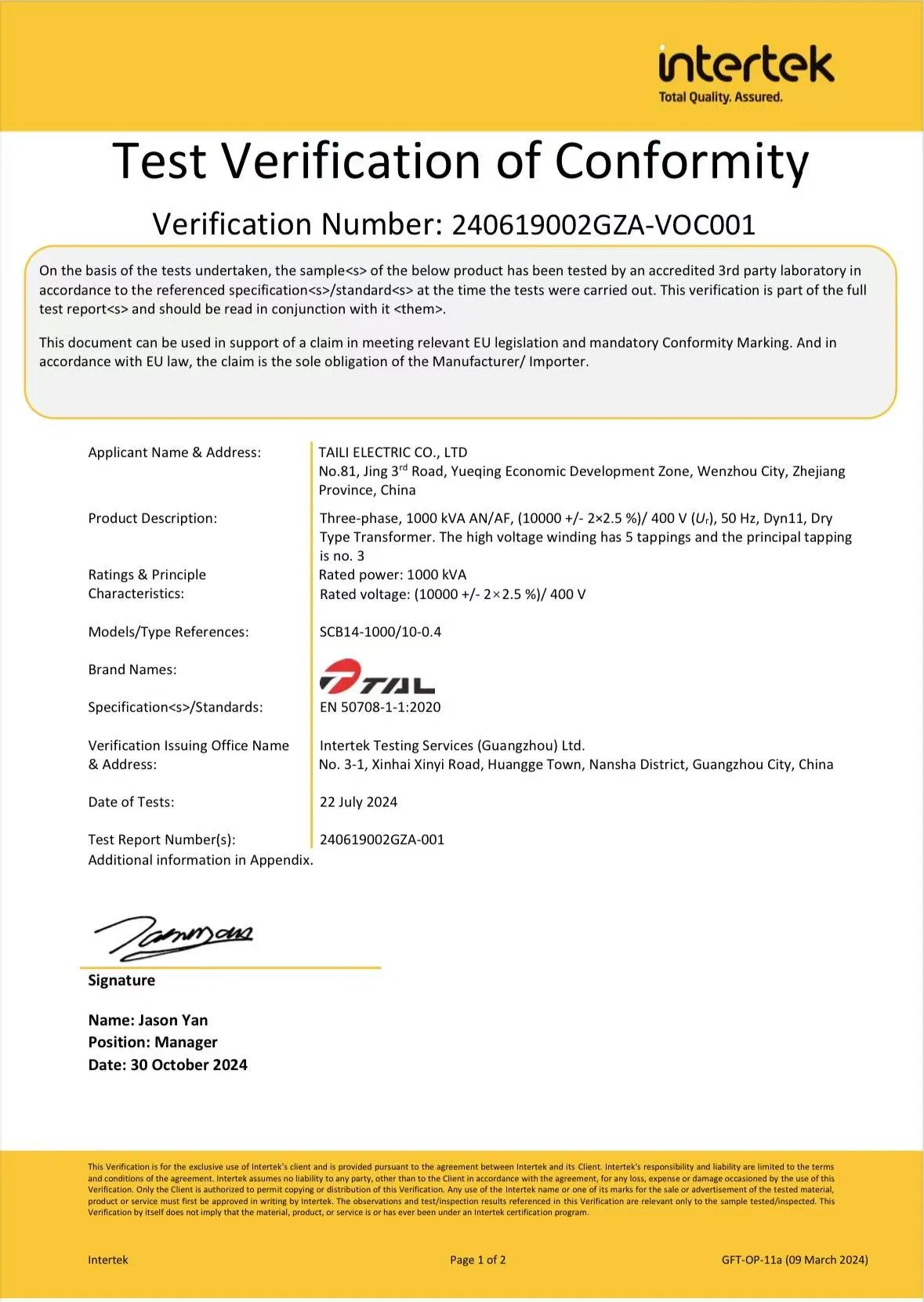

Certification 1
Certification 2
Certification 3
Technical Specifications
Values can be customized according to local demand!
Capacity (kVA) High Voltage (kV) Low Voltage (V) Vector Group No-load Loss (kW) Load Loss (kW)
506 / 10 / 11 / 20 / 33 / 36380 / 400 / 415 / 433Dyn11104870
100Dyn111601500
500Dyn115445100
1000Dyn1192010300
2500Dyn11237620700

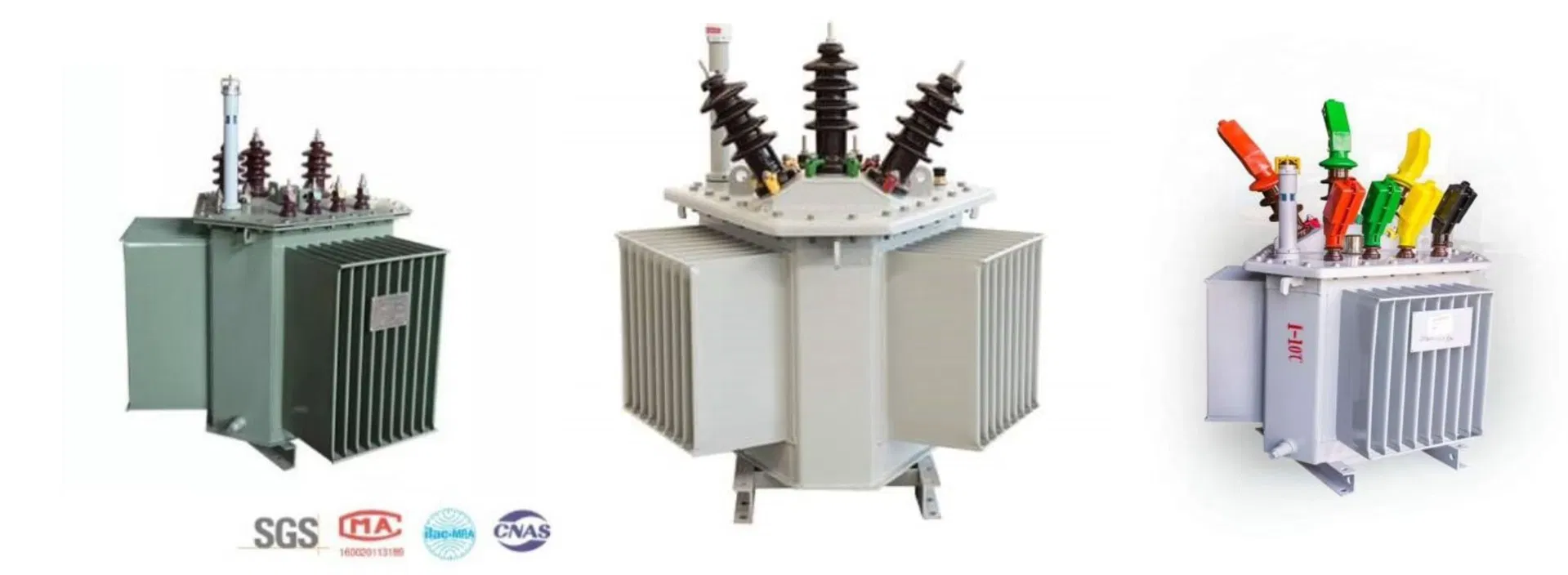

Specification Chart
After Sales Service
Support 1
Support 2
Support 3
Professional Technical Support

7×24-hour technical consulting services with remote guidance for installation and commissioning.

Comprehensive Guarantee

Standardized warranty service with free repair or replacement for non-human damage.

Customized Training

Online training courses for product use and maintenance to help teams master equipment operation.

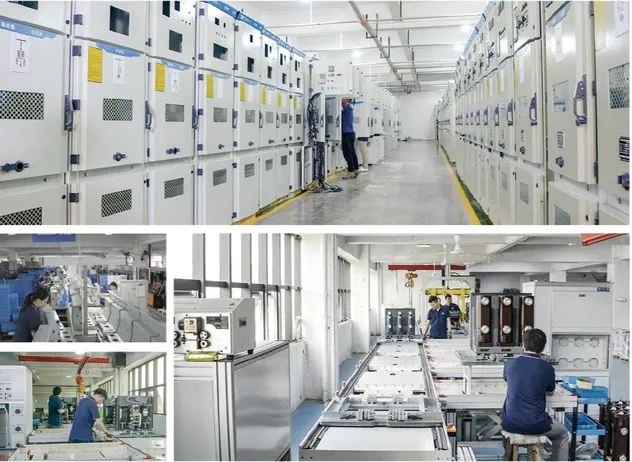

Production Excellence

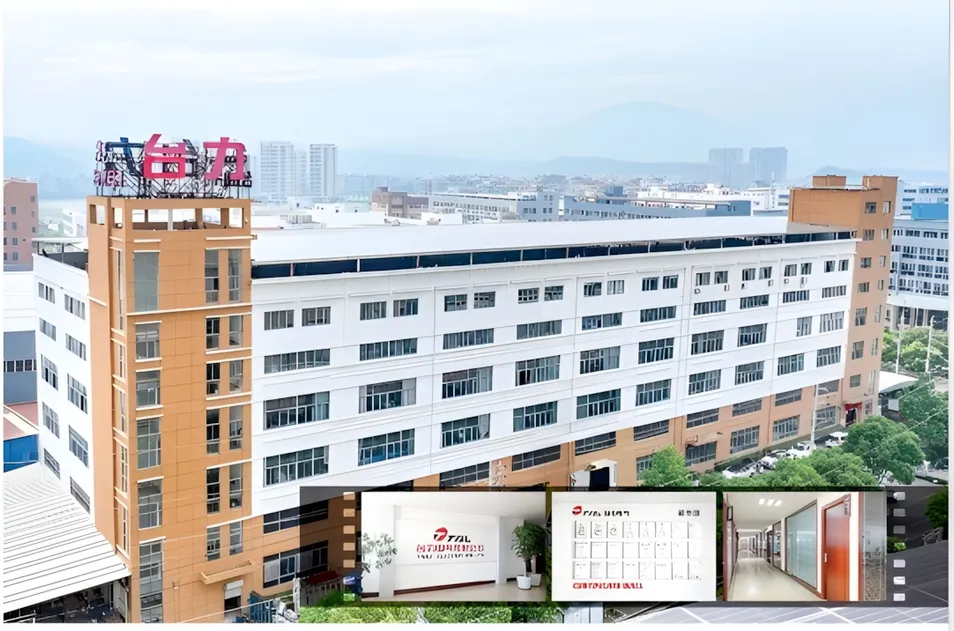

Factory View 1
Factory View 2
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are a manufacturer dedicated to designing customized products according to different country standards and producing high-quality transformers, switchgears, and power substations.
Q2: How does your factory handle quality control?
A2: All products are 100% checked and tested before delivery. We have an inspection team to provide video verification for customers online.
Q3: How quickly can I get a price quote?
A3: Usually, we quote within 1 hour after receiving an inquiry. For customized designs, we provide detailed specifications within 12 hours.
Q4: What are your payment and delivery terms?
A4: We accept TT (30% deposit, 70% balance). Delivery usually takes about 15-20 days using strong plywood cases for protection.
Q5: What is the product warranty period?
A5: Every product comes with a 2-3 year quality warranty, provided the products are used correctly according to specifications.
Q6: Do your products have international certificates?
A6: Yes, our products carry CE, 3C, and CQC certificates. We can also assist in applying for other specific certificates as required.
