High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
1 / 5
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics
High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics

High-Quality Toroidal Inductor Ferrite Core Copper Coil for Power Supply Electronics

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Product Overview

Model NO.RN-100-32
CoreCore-type Transformer
Cooling MethodDry-type Transformer
CertificationISO9001, CCC, UL, CE, RoHS, Reach
UsageSingle-phase, Rectifier, Power Distribution
FrequencyLow Frequency (50Hz/60Hz)
Shape of CoreRing / R-Type
Core MaterialHigh Permeability Silicon Steel
Voltage Accuracy±1%
OriginChina

Technical Features

The R-Type transformer features a continuously wound, non-cut core made from grain-oriented silicon steel, resulting in a circular cross-section that delivers exceptional electromagnetic performance. Specifically engineered for medical equipment, this transformer operates with near-zero noise and ultra-low leakage flux—critical for sensitive diagnostic and life-support devices.

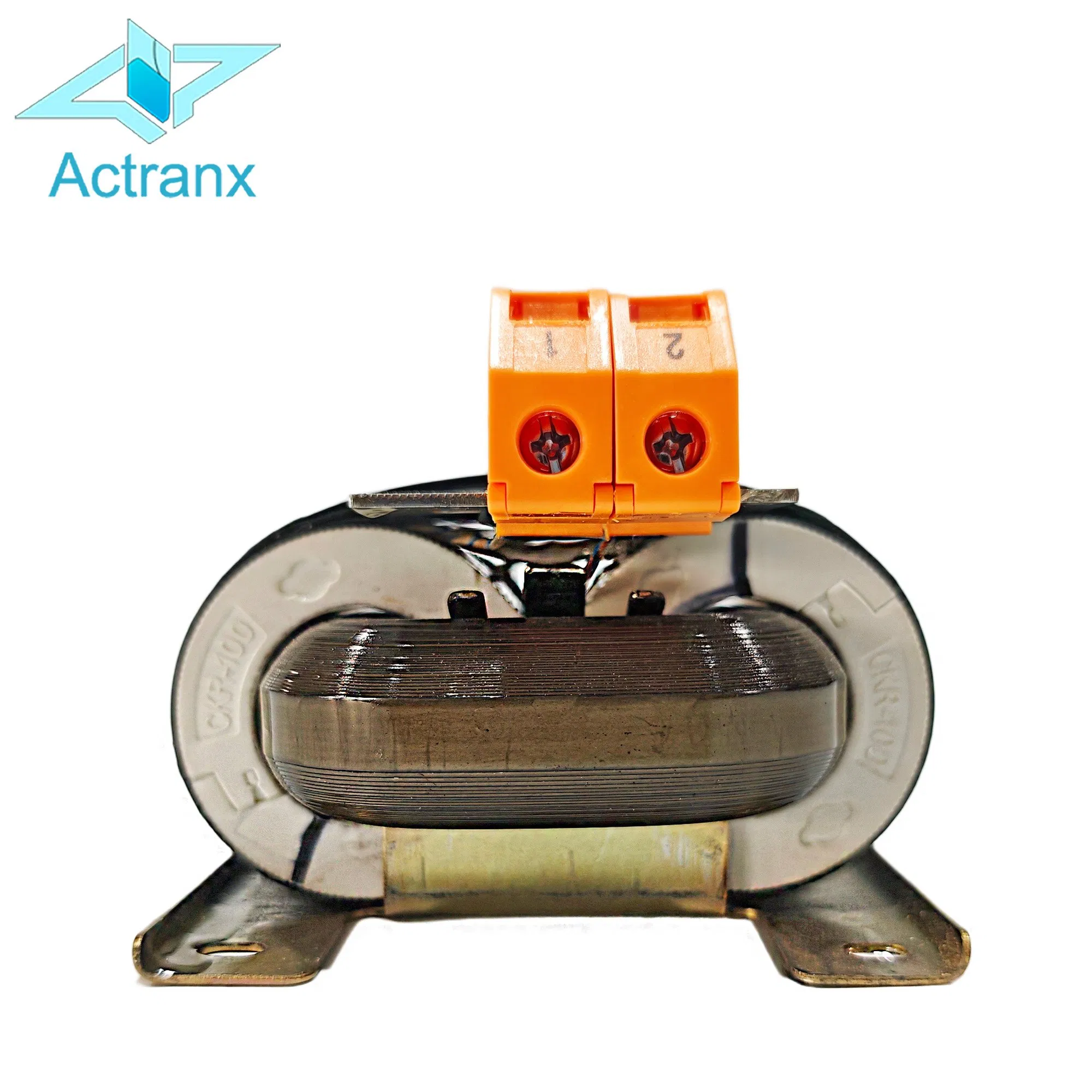

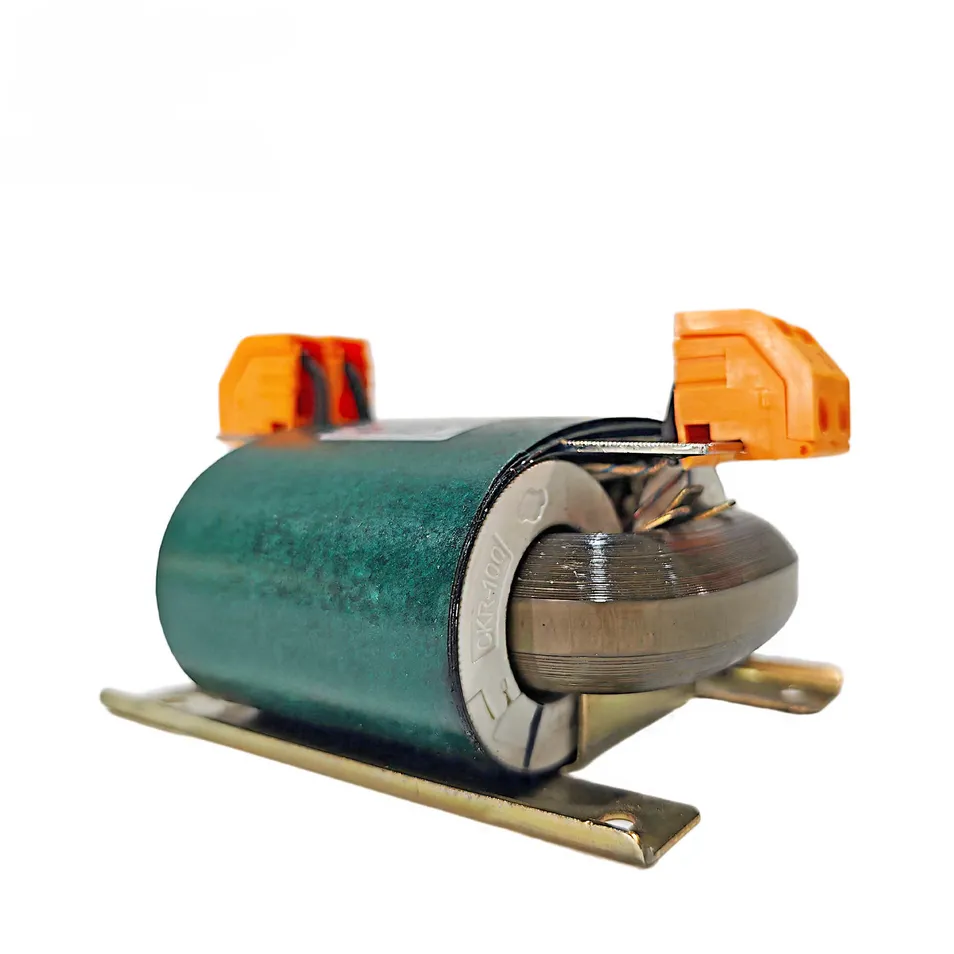

R-Type Transformer Core

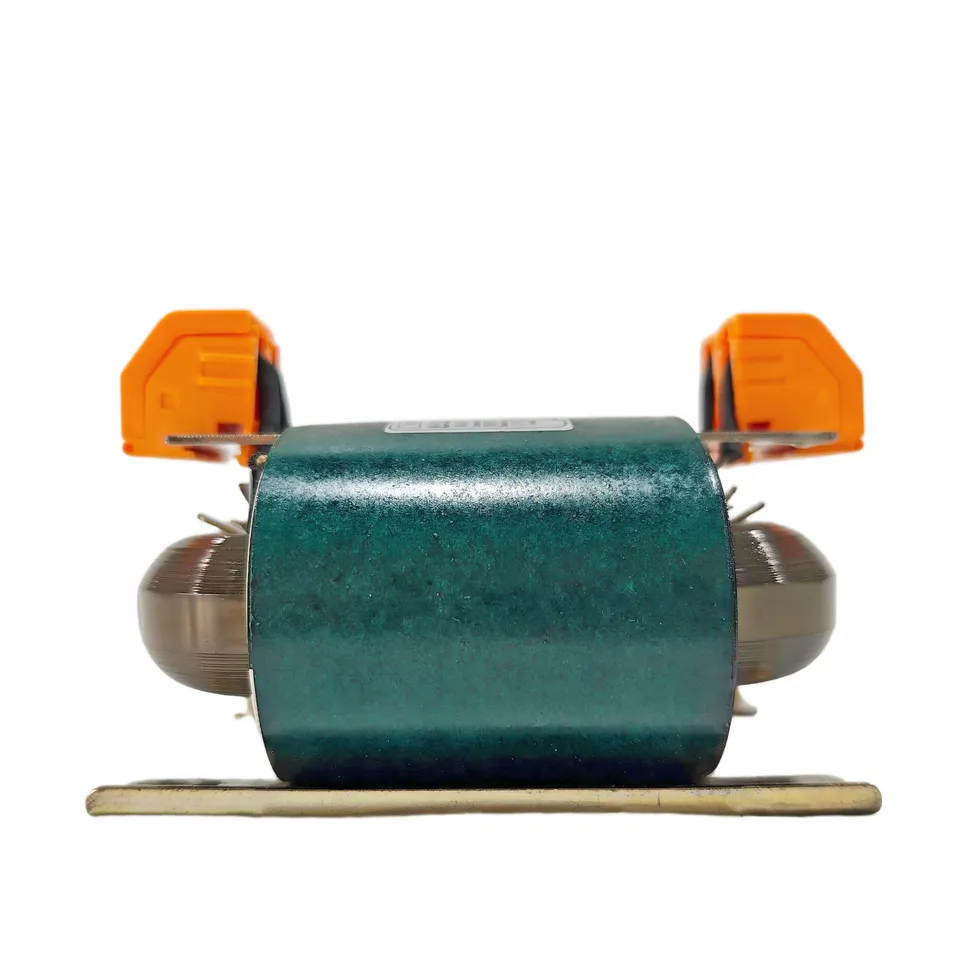

Transformer Coil Structure
★
Low Loss Design: Adopts an advanced seamless R-shaped silicon steel core structure, effectively reducing iron loss for energy savings.
★
Silent Operation: Gapless wound core absorbs magnetostrictive stress, ensuring a quiet environment for medical recovery areas.
★
High Efficiency: Achieves efficiency exceeding 97%, reducing thermal stress and eliminating the need for forced cooling.
★
Safety First: Flame-retardant PBT bobbins and high-standard insulation ensure high dielectric strength for medical safety.

Product Specifications

Model Power L×W×H (mm) Installing Bore Model Power L×W×H (mm) Installing Bore
R52-6VA58×47×2645×33R5055-65VA102×90×4875×65
R87-10VA70×61×3353×44R8075-95VA125×90×5290×70
R1011-15VA75×61×3768×48R10096-130VA126×103×55100×80
R2525-34VA83×72×4270×55R260201-280VA160×121×66130×95

Applications

Power Supplier
Power Supply
Electric Vehicle
Electric Vehicles
Aerospace
Aerospace
Communication
Communication
Medical Device
Medical Devices
Renewable Energy
Renewable Energy

Manufacturing Process

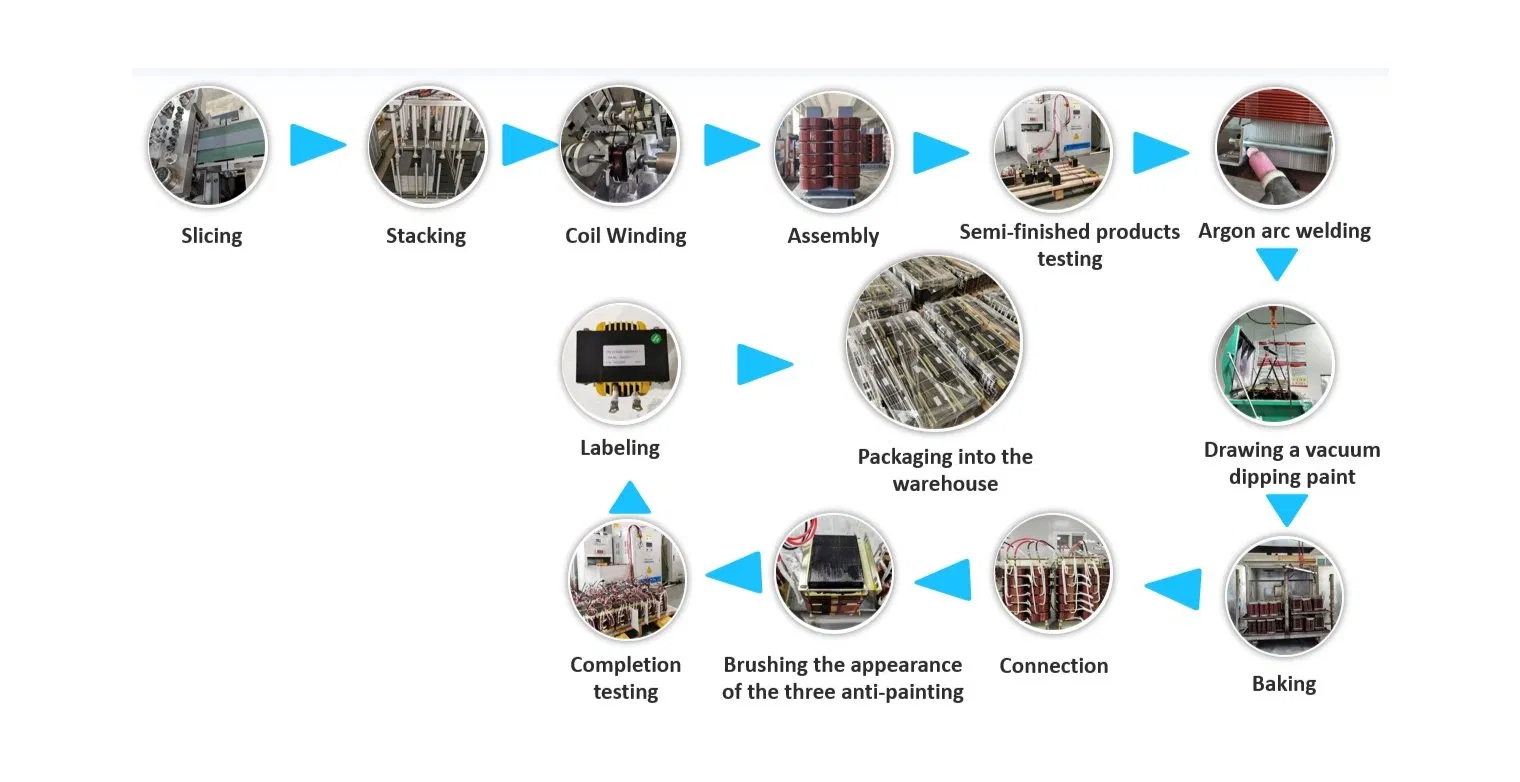

Manufacturing Workflow

Advanced Equipment

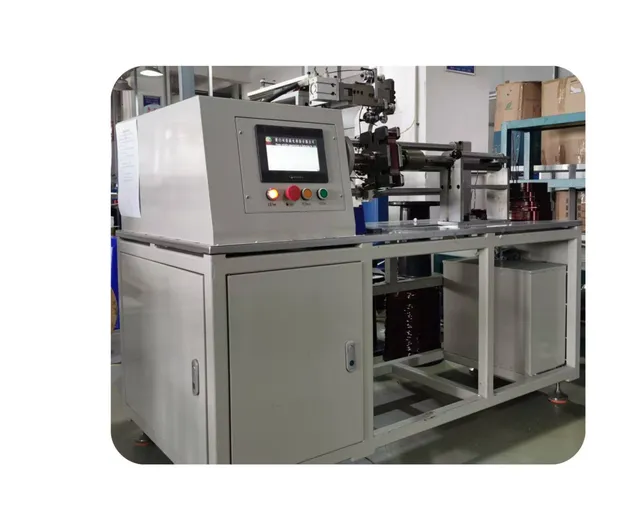

Winding Machine
Auto Winding Machine

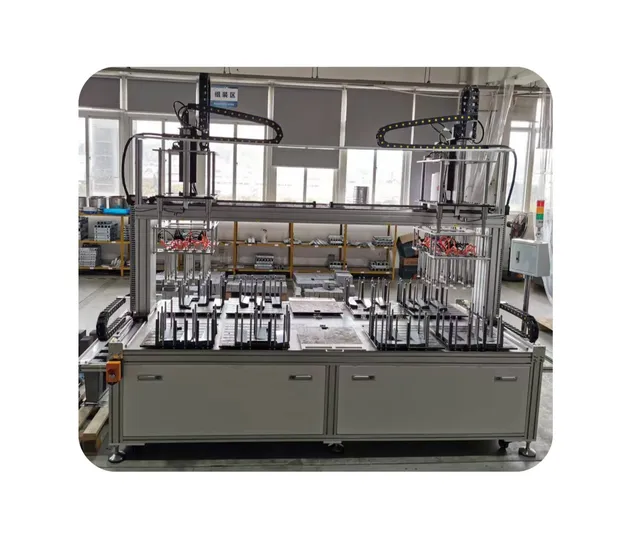

Stacking Machine
Auto Stacking Machine

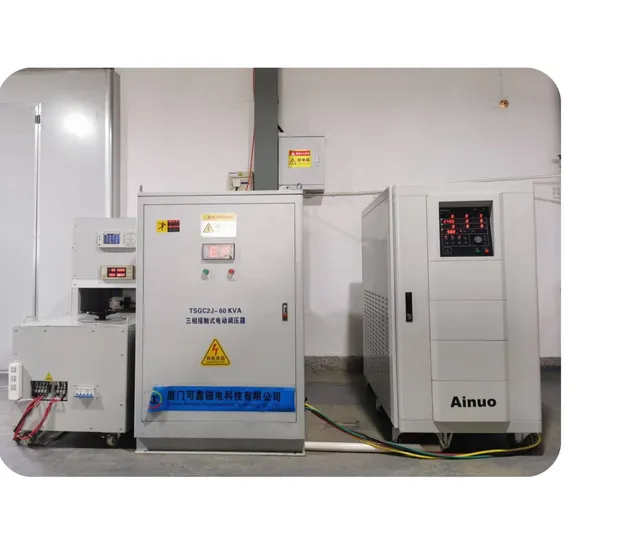

Test Platform
Quality Test Platform

About Our Expertise

Specializing in magnetic components for high and low frequency applications for over a decade, our facility focuses on the R&D, production, and innovation of bespoke magnetic components. We serve the new energy storage market, focusing on power frequency transformers and high-quality reactors developed through advanced technical partnerships.

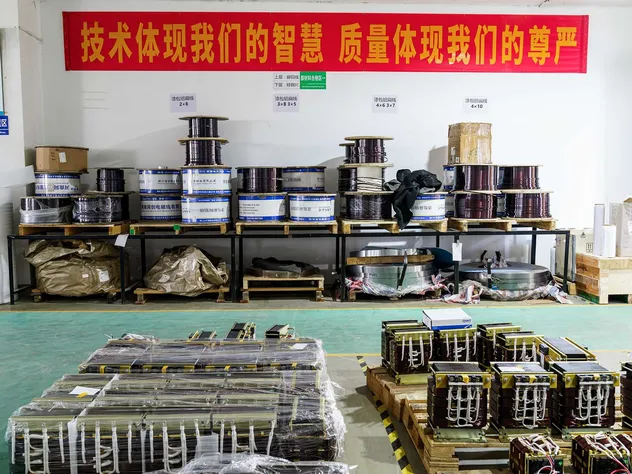

Production Facility

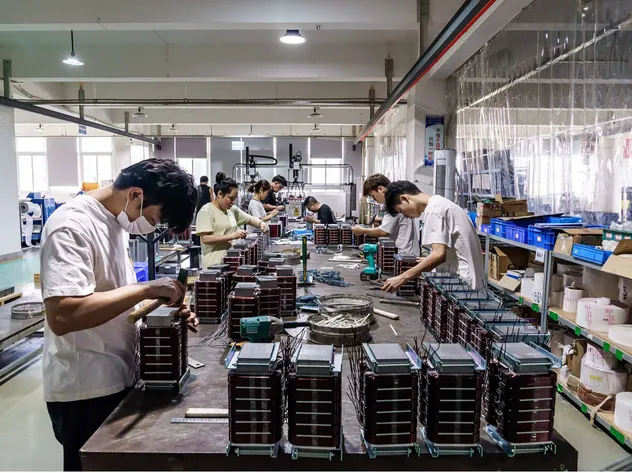

R&D Center

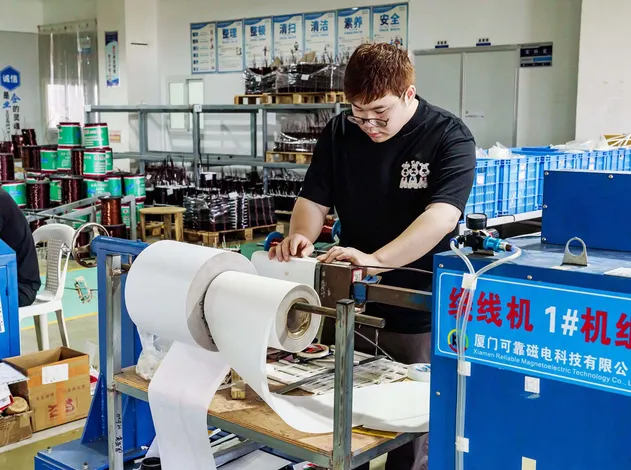

Quality Lab

Frequently Asked Questions

Are you a manufacturer?
Yes, we are a professional manufacturer with our own factory and dedicated R&D team specialized in magnetic components.
Do you offer custom design services?
Absolutely. We specialize in OEM and ODM services, producing components based on your specific samples or technical drawings.
How do you ensure product quality?
We perform 100% testing on all goods before delivery, covering electrical characteristics, insulation, and safety standards.
What is the typical lead time?
Stock items are ready to ship immediately. For mass production, the delivery time typically ranges from 15 to 30 days.
What kind of after-sales support do you provide?
We provide a one-year guarantee period along with 24-hour online technical support to assist with any operational needs.
What certifications do your products hold?
Our products are compliant with ISO9001, CCC, UL, CE, RoHS, and Reach standards to meet international quality requirements.
