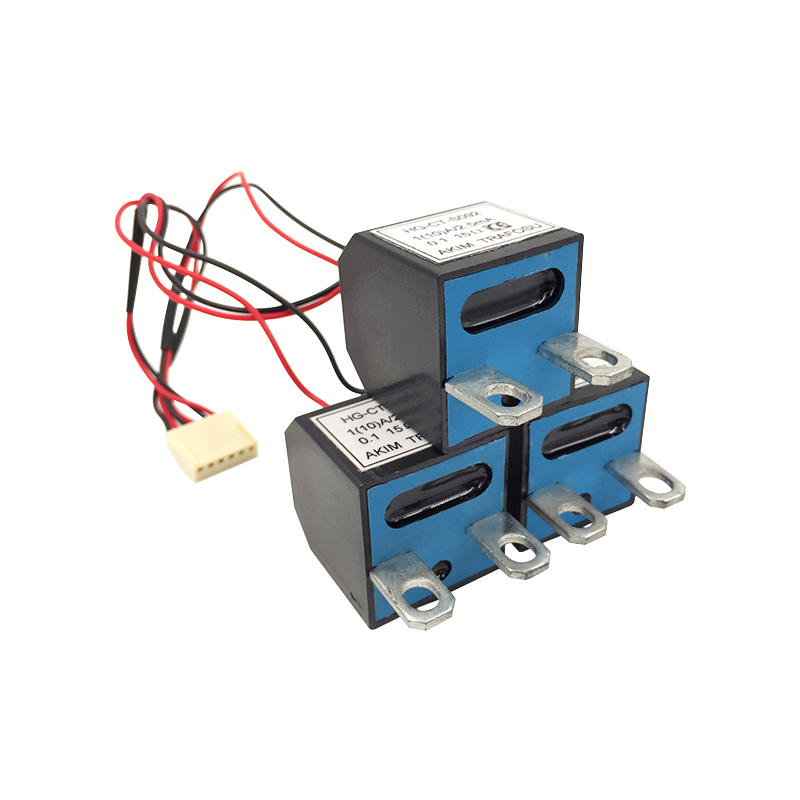

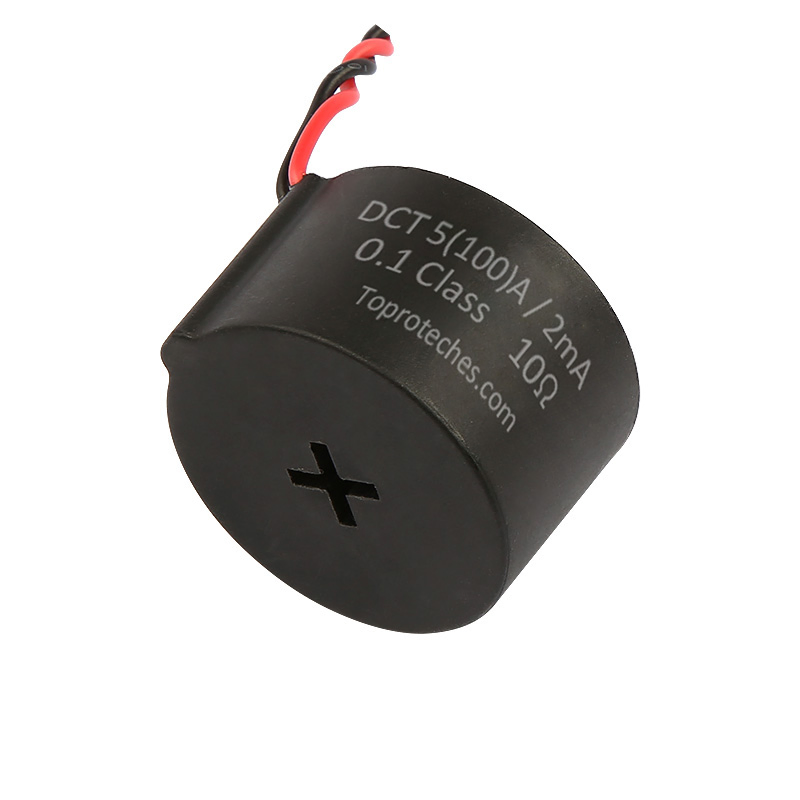

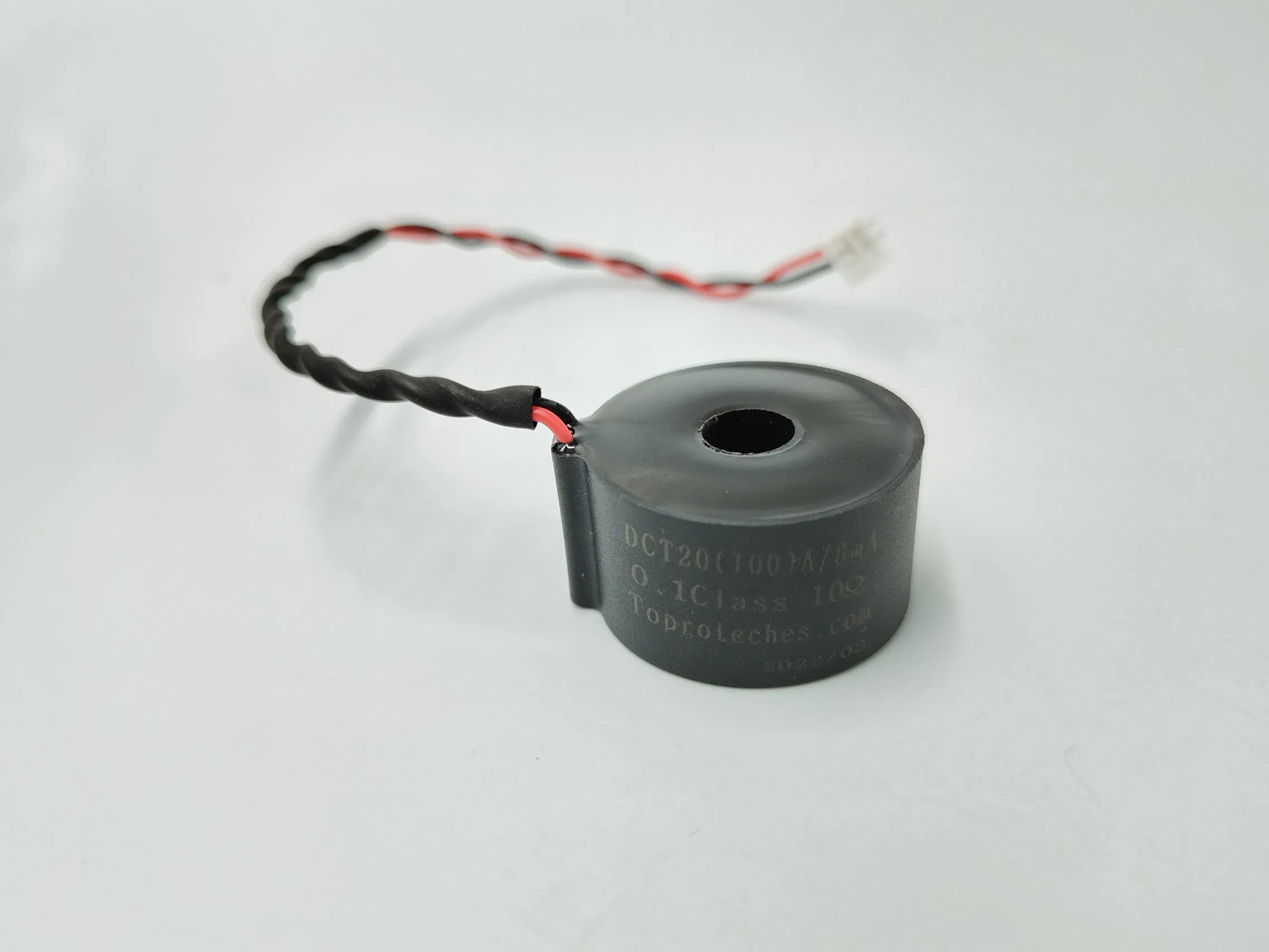

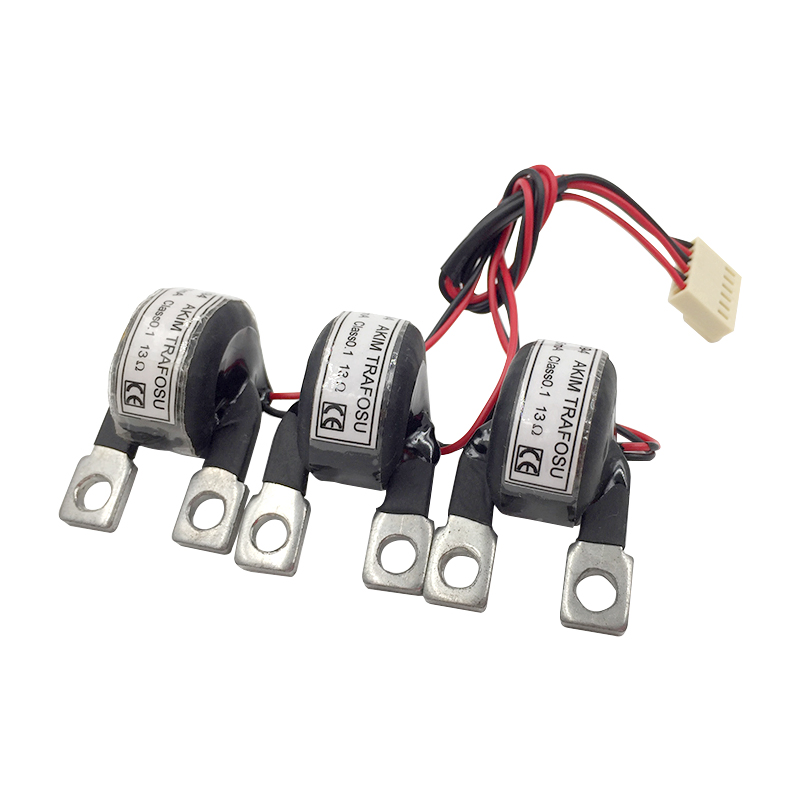

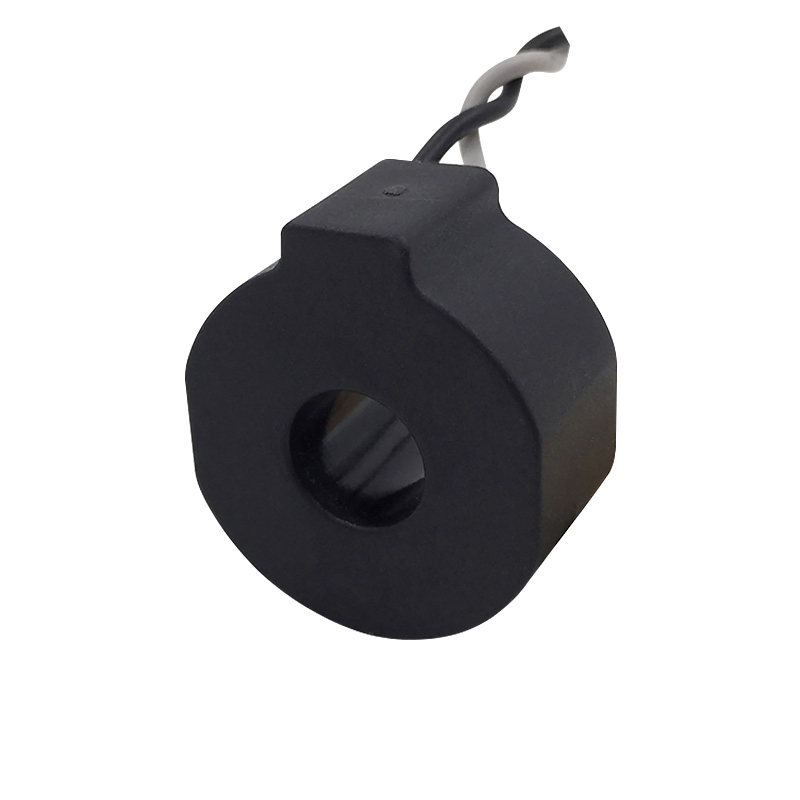

100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
1 / 5
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter
100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter

100A 1: 2500 0.1class High Precision Micro Current Transformer for Electricity Meter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
DIN-05
Phase
Three
Usage
Protection, Measurement, Meter
Insulating Medium
Epoxy Resin
Accuracy Class
0.05, 0.1, 0.2
Max Current
5A-300A
Core Material
Nano Crystalline, Ferrite
Standard
IEC62052-31

Product Overview

A DIN Rail meter is a compact and modular meter mounted to a standard DIN rail. It has a compact design that makes it ideal for saving space in switchgear and control panels.

The DIN-05 current transformers are designed for high-precision, small phase error requirements for current, power, and electric energy monitoring and metering devices. They are perfectly suited for DIN rail-mounted energy meters and digital display meters.

Product Characteristics

1
Optimized for Digital Display Meters and DIN Rail Meter applications.
2
High-quality amorphous alloy core ensures excellent linearity and 0.1 class precision.
3
Flame retardant PBT housing offers superior mechanical and electrical strength.
4
Epoxy resin encapsulation provides powerful insulation capabilities.
5
Fully RoHS compliant and CE certified for global safety standards.

Dimensions & Visuals

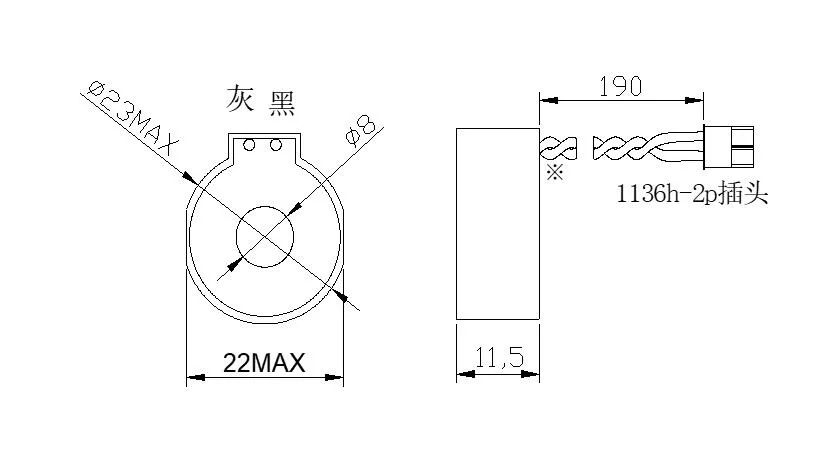

Current Transformer Dimensions

Technical Datasheet

Parameter Specification Details
Model100 A Current transformer for DIN rail meters DIN-05
Rated Primary Current5 Amps
Maximum Primary Current (Imax)100 Amps
Secondary Current (Output)2.5 mA
Turn Ratio1 : 2000
Operating Temperature-40° C to 70° C
Storage Temperature-40° C to 85° C
Core MaterialNano Crystalline
Accuracy Class0.1 Class
ComplianceRoHS, CE

Frequently Asked Questions

What is the accuracy class of the DIN-05 transformer?
The DIN-05 current transformer supports high-precision accuracy classes of 0.05, 0.1, and 0.2, depending on the specific configuration.
What materials are used for the core and casing?
It utilizes a high-quality amorphous alloy/nano-crystalline core for linearity and a flame-retardant PBT case for mechanical durability.
Is this transformer suitable for outdoor use?
As per the specifications, the operation condition is designed for indoor use within a temperature range of -40°C to 70°C.
Does the product comply with environmental standards?
Yes, the transformer is fully RoHS compliant and has received CE certification.
What is the turn ratio for the 100A model?
The standard turn ratio for the 100A current transformer model is 1:2000.
