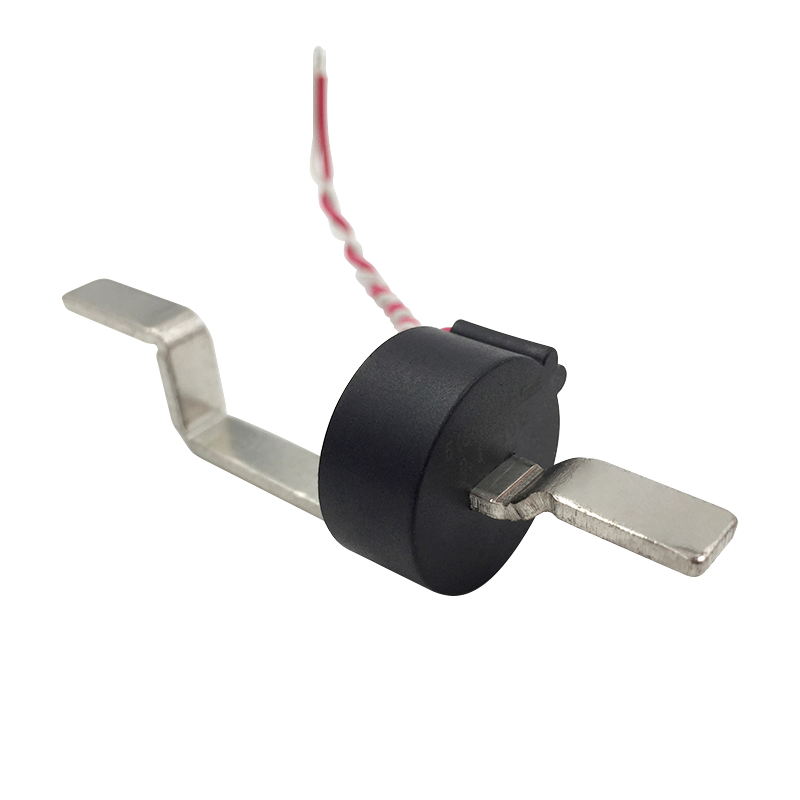

High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring
1 / 5
High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring
High Precision 80A Micro Current Transformer for Energy Monitoring

High Precision 80A Micro Current Transformer for Energy Monitoring

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
DIN-06
Phase
Three
Operation
Indoor
Usage
Protection, Metering
Winding Form
Honeycomb Type
Insulating
Epoxy Resin
Installation
Busbar Type
Accuracy
0.05, 0.1, 0.2
Max Current
5A-300A
Ratio
1:1000 - 1:2500
Core Material
Nano Crystalline
Standard
IEC62052-31
Product Description

A DIN Rail meter is a compact and modular meter mounted to a standard DIN rail. Its compact design makes it ideal for saving space in switchgear and control panels.

The DIN-06 current transformers are designed for high-precision requirements, specifically for small phase error current, power, and electric energy monitoring. They are perfectly suited for DIN rail-mounted energy meters and digital display devices.

Product Characteristics
  • Optimized for Digital Display Meters and DIN Rail Meters.
  • High-quality amorphous alloy core providing excellent linearity and high precision (0.1 class).
  • Flame retardant PBT material case for superior mechanical and electrical strength.
  • Encapsulated with epoxy resin for robust insulation performance.
  • Fully Rosh compliant and CE certificated.
Technical Dimensions

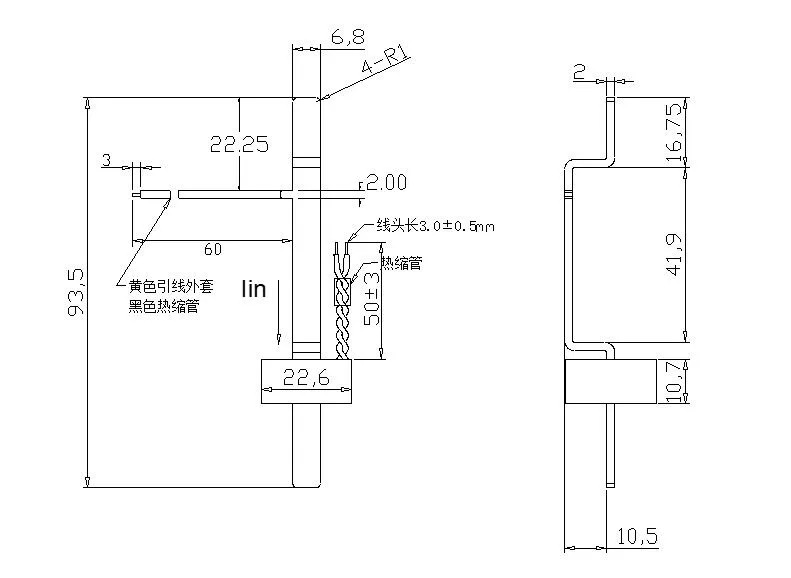

DIN-06 Current Transformer Dimensions
Product Datasheet
  • Accuracy Class
    • Model80 A Current transformer DIN-06
    Rated Primary Current5 Amps
    Maximum Primary Current (Imax)80 Amps
    Secondary Current (Output)2.5 mA
    Turn Ratio1 : 2000
    Operating Temperature-40° C to 70° C
    Core MaterialNano Crystalline
    0.1 Class
    ROSH ComplianceYes
    Frequently Asked Questions
    What is the main application of the DIN-06 current transformer?
    It is primarily used for high-precision current, power, and electric energy monitoring in DIN rail-mounted energy meters and digital display devices.
    What core material is used in this transformer?
    The product features a high-quality amorphous alloy/nano crystalline core, which ensures excellent linearity and high precision.
    Is the casing fire-resistant?
    Yes, the case is made from flame retardant PBT materials, providing both safety and high mechanical strength.
    What are the environmental certifications for this product?
    The DIN-06 is Rosh compliant and CE certificated, meeting international safety and environmental standards.
    What is the accuracy class of the DIN-06?
    This current transformer provides high precision reaching up to 0.1 class accuracy.
    How is the transformer protected against moisture and insulation failure?
    It is fully encapsulated with epoxy resin, which offers strong insulation and protection against environmental factors.
