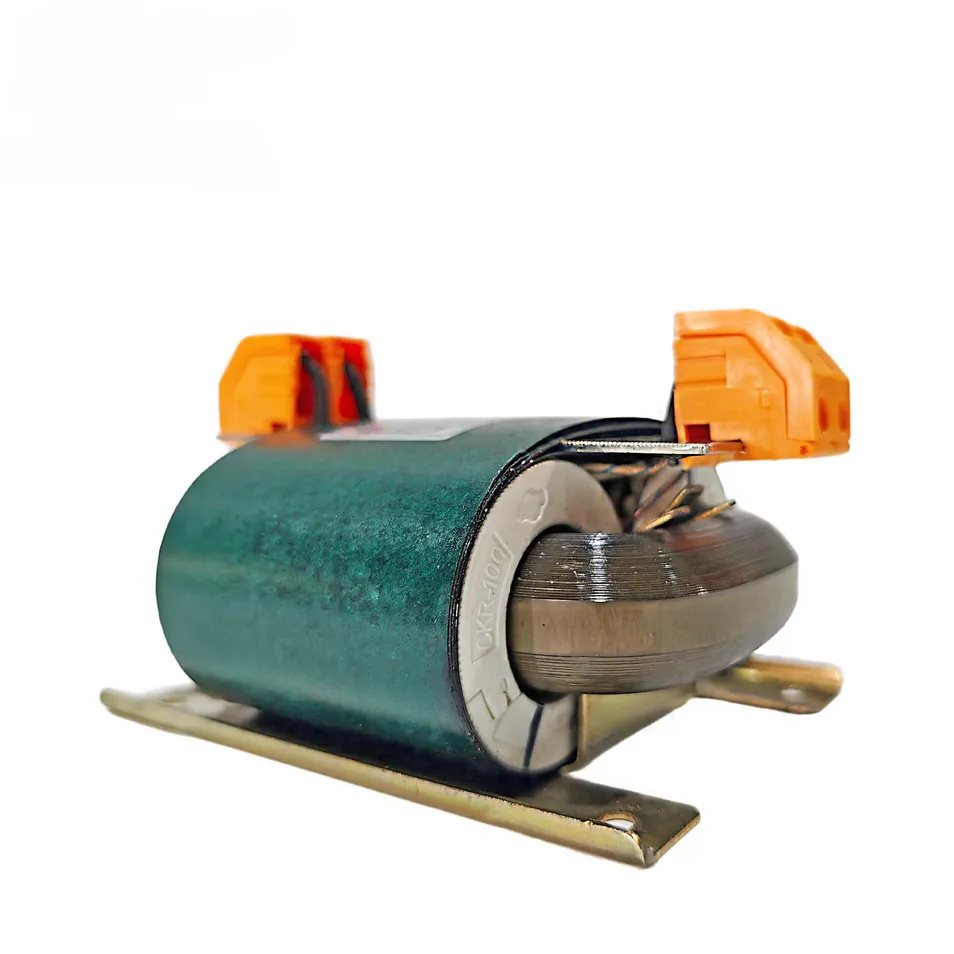

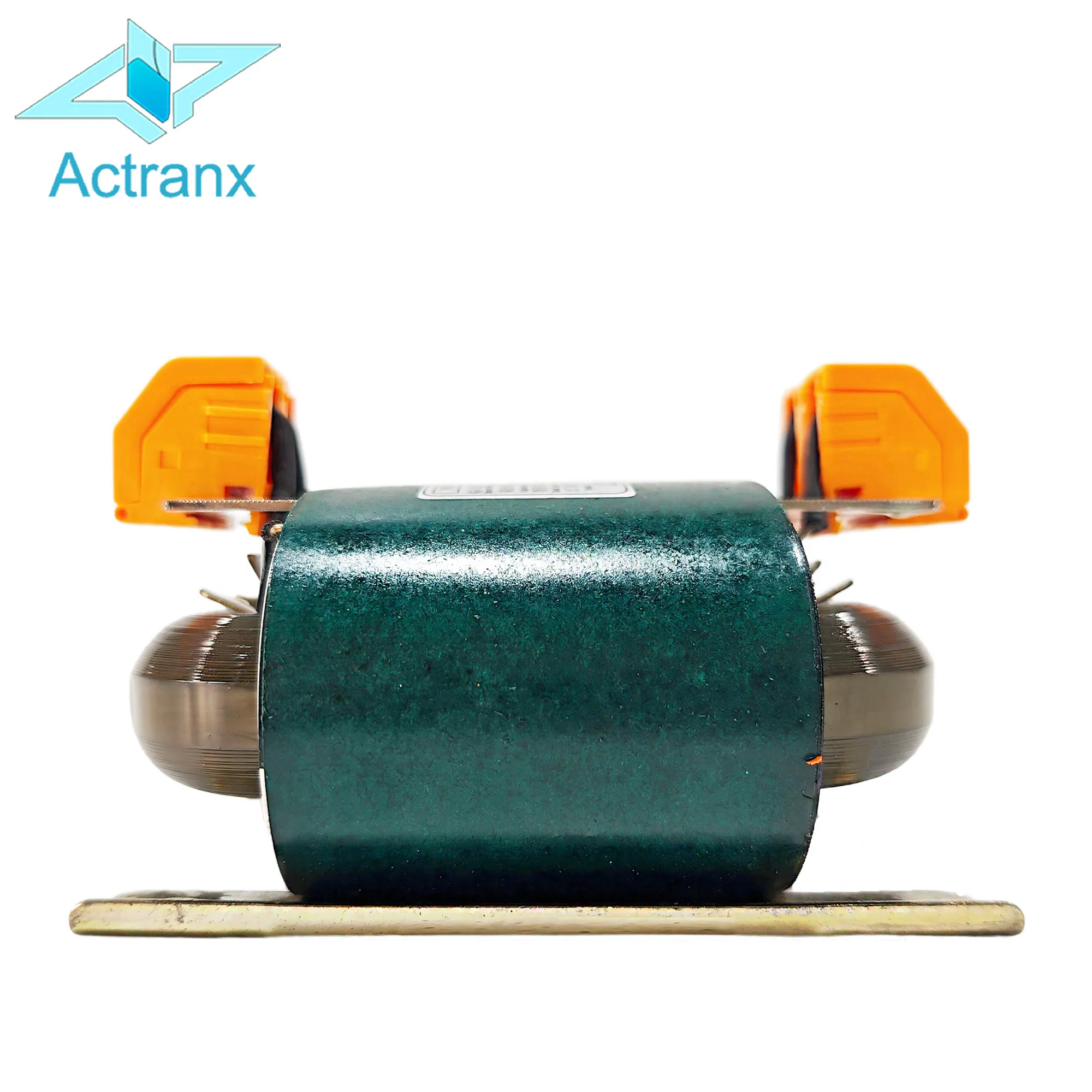

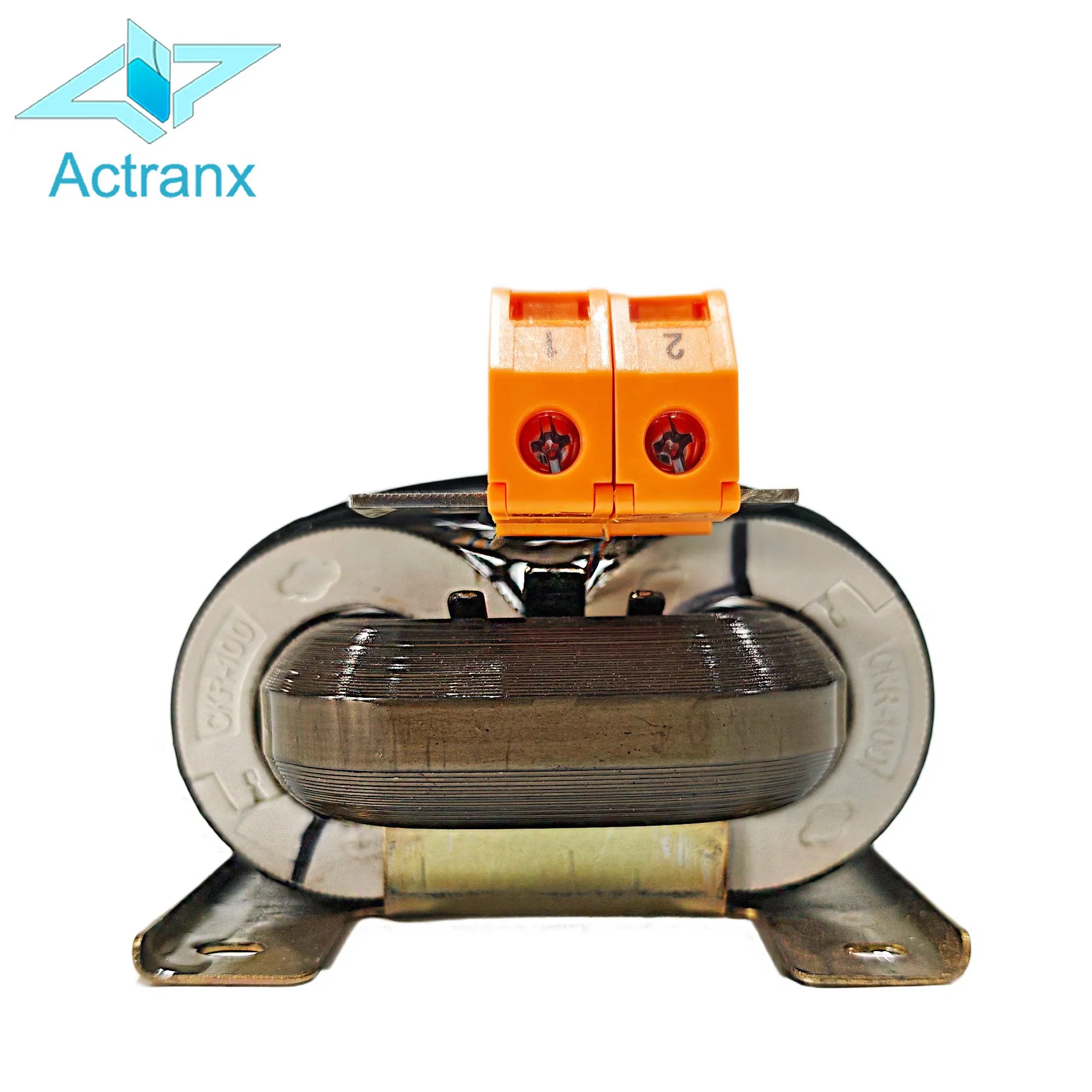

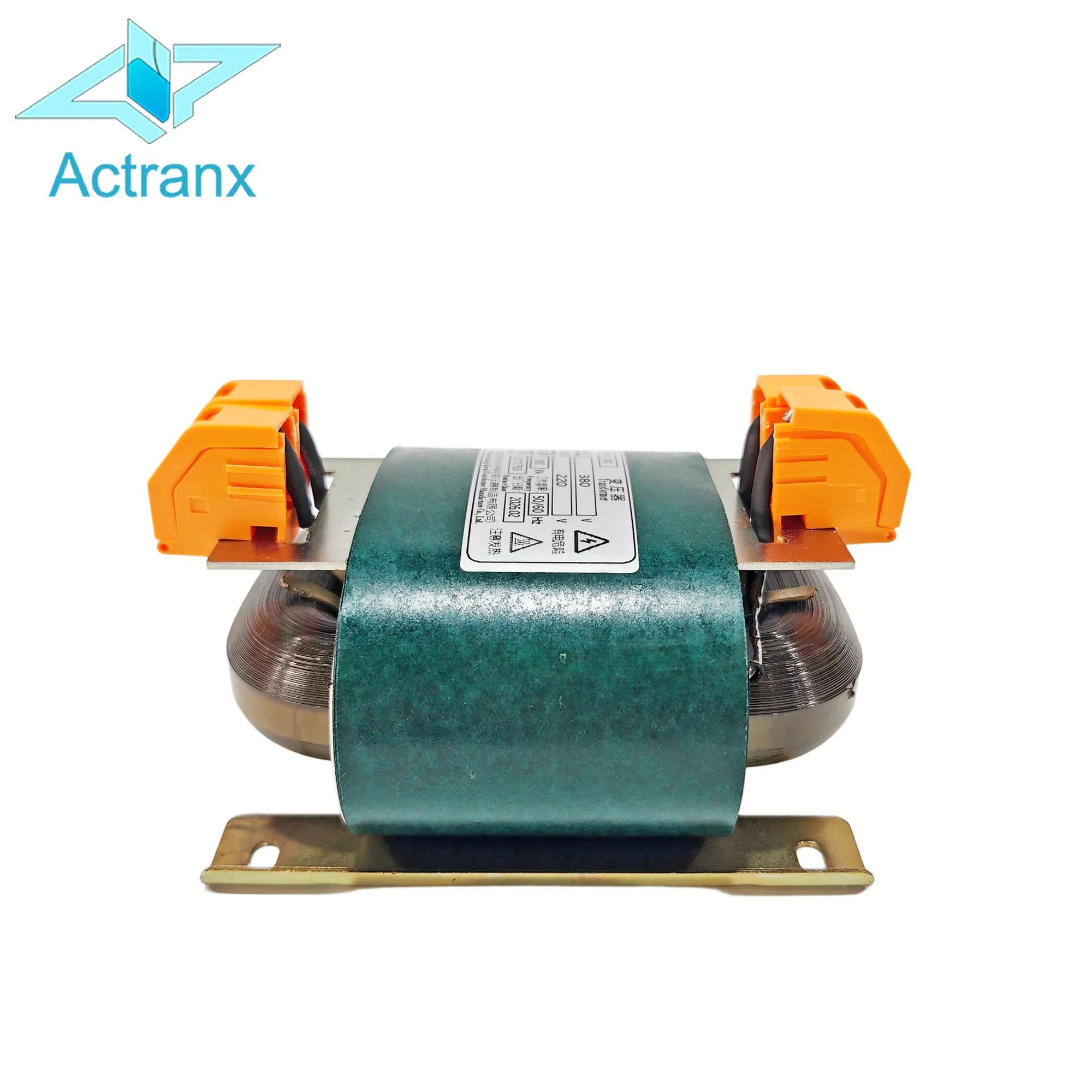

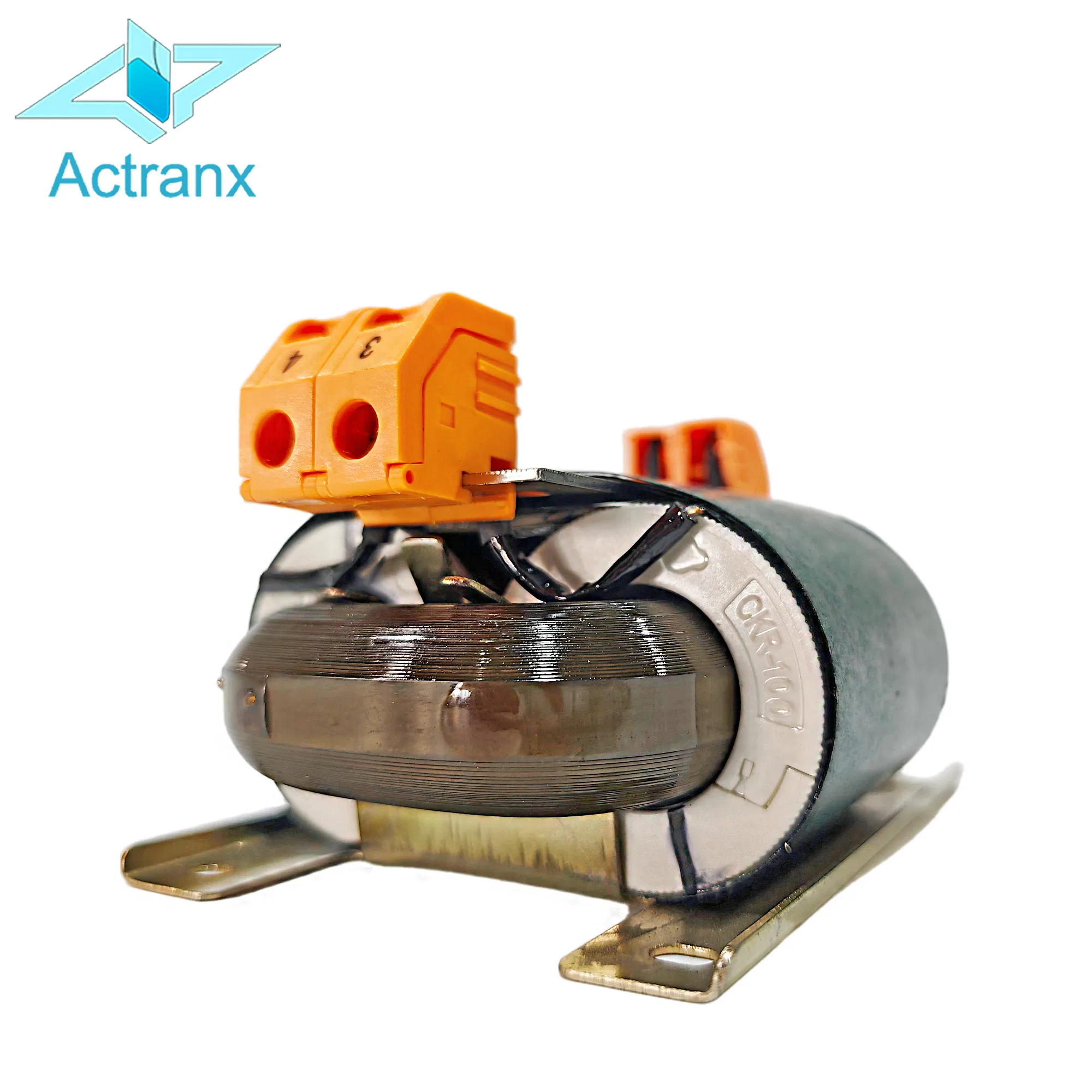

The R-Type transformer features a continuously wound, non-cut core made from grain-oriented silicon steel, resulting in a circular cross-section that delivers exceptional electromagnetic performance. Specifically engineered for medical equipment, this transformer operates with near-zero noise and ultra-low leakage flux—critical for sensitive diagnostic and life-support devices.
Its cylindrical coil design minimizes copper losses, reduces temperature rise, and achieves efficiency exceeding 97%. The primary and secondary windings are wound on separate flame-retardant PBT bobbins, ensuring high dielectric strength and complete electrical isolation.
| Model | Power | L×W×H (mm) | Install Distance | Model | Power | L×W×H (mm) | Install Distance |
|---|---|---|---|---|---|---|---|
| R5 | 2-6VA | 58×47×26 | 45×33 | R50 | 55-65VA | 102×90×48 | 75×65 |
| R8 | 7-10VA | 70×61×33 | 53×44 | R80 | 75-95VA | 125×90×52 | 90×70 |
| R10 | 11-15VA | 75×61×37 | 68×48 | R100 | 96-130VA | 126×103×55 | 100×80 |
| R20 | 20-24VA | 82×70×39 | 56×46 | R160 | 131-200VA | 140×115×63 | 100×85 |
| R25 | 25-34VA | 83×72×42 | 70×55 | R260 | 201-280VA | 160×121×66 | 130×95 |

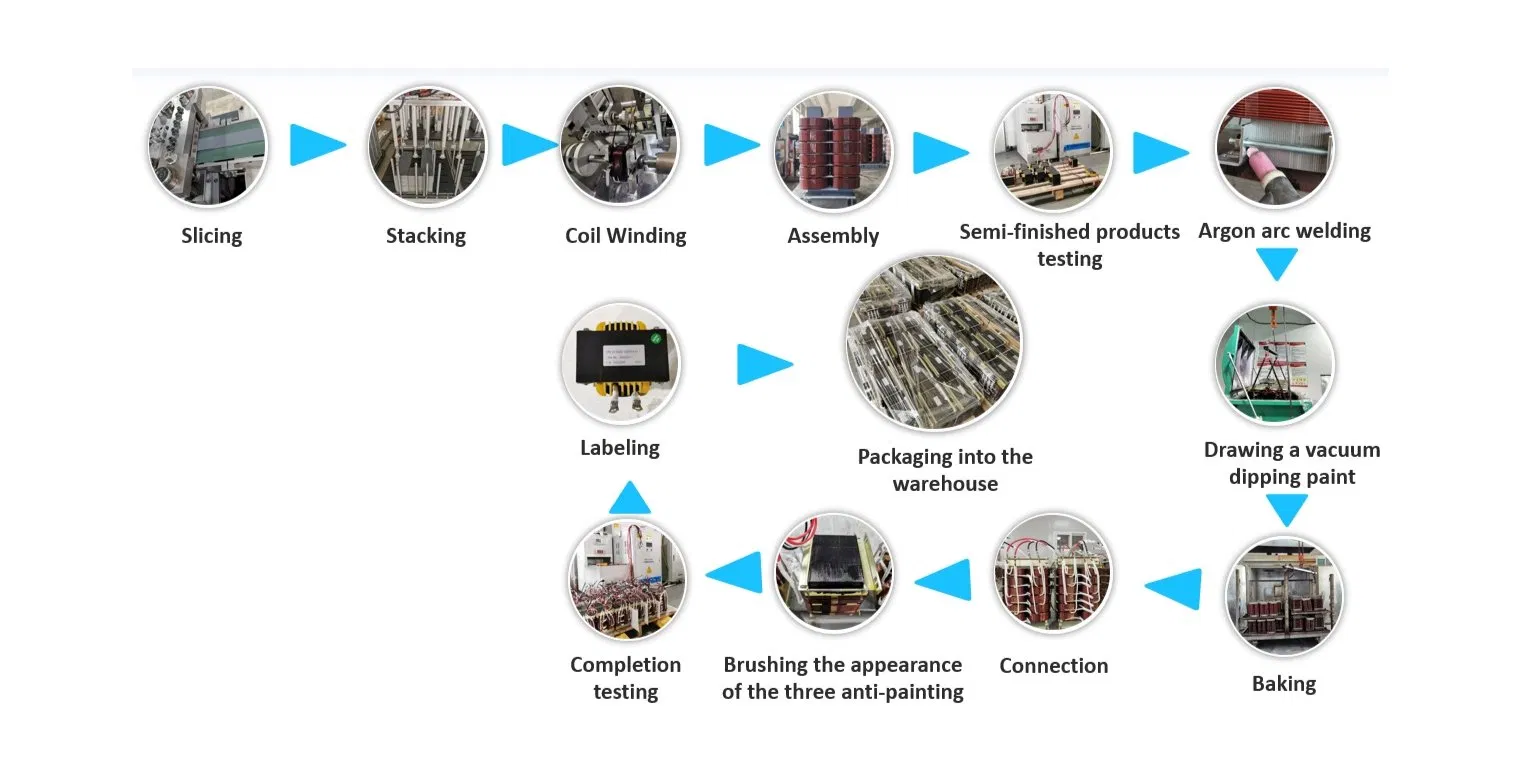

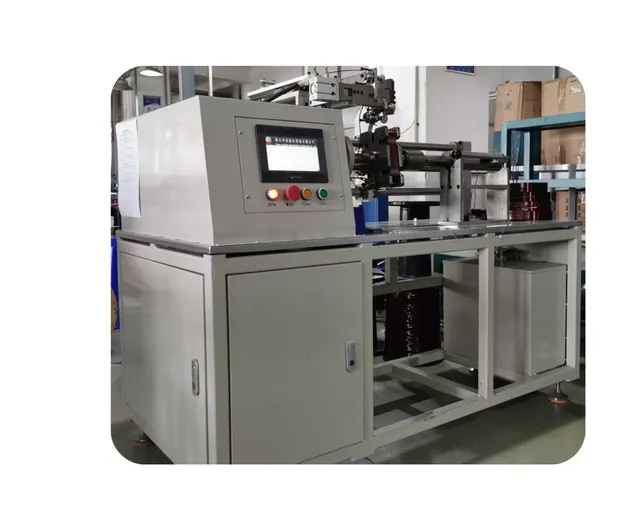

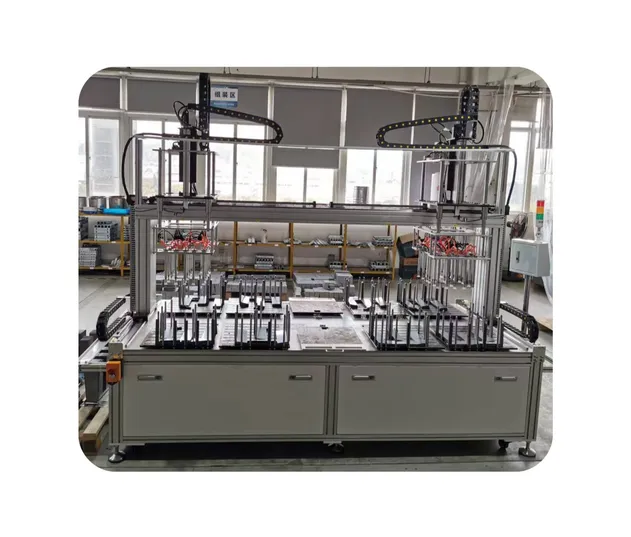

Adopting international standard raw materials and strict process control, our facility supports large wire diameter and high tension winding. The fully automatic stacking machine realizes accurate gripping of silicon steel sheets down to 0.01mm, ensuring precision for every inductor and transformer produced.
Specializing in magnetic components for high and low frequency applications for over a decade, our facility has expanded to target the new energy storage market. We focus on power frequency transformers and reactors, driven by evolving technology and market demands. Our dedicated R&D team partners with academic institutions to innovate bespoke magnetic components, including high-frequency transformers and inductor coils, ensuring high-quality power solutions for global industries.
