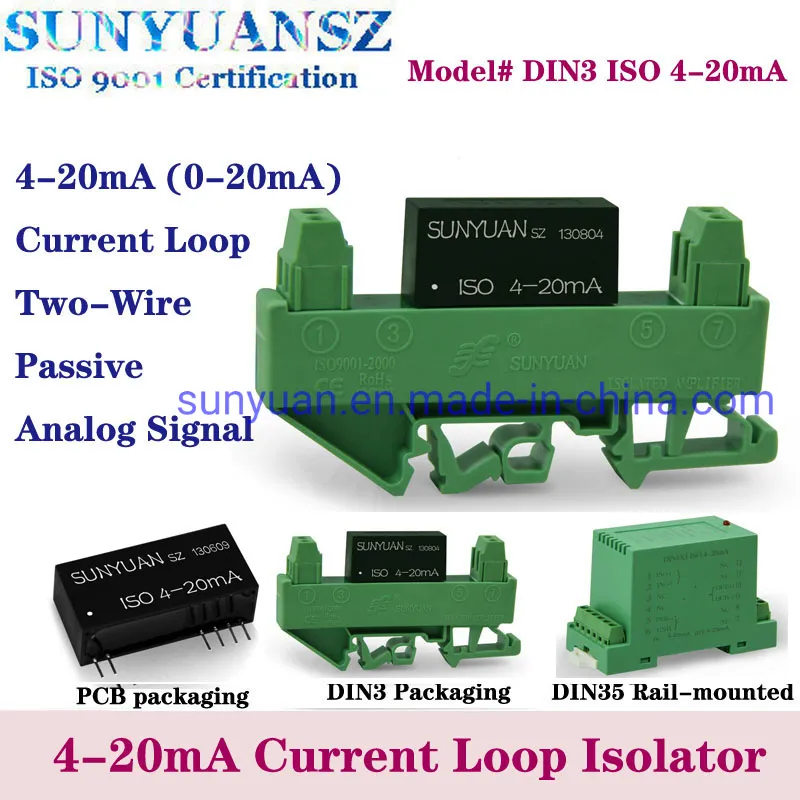

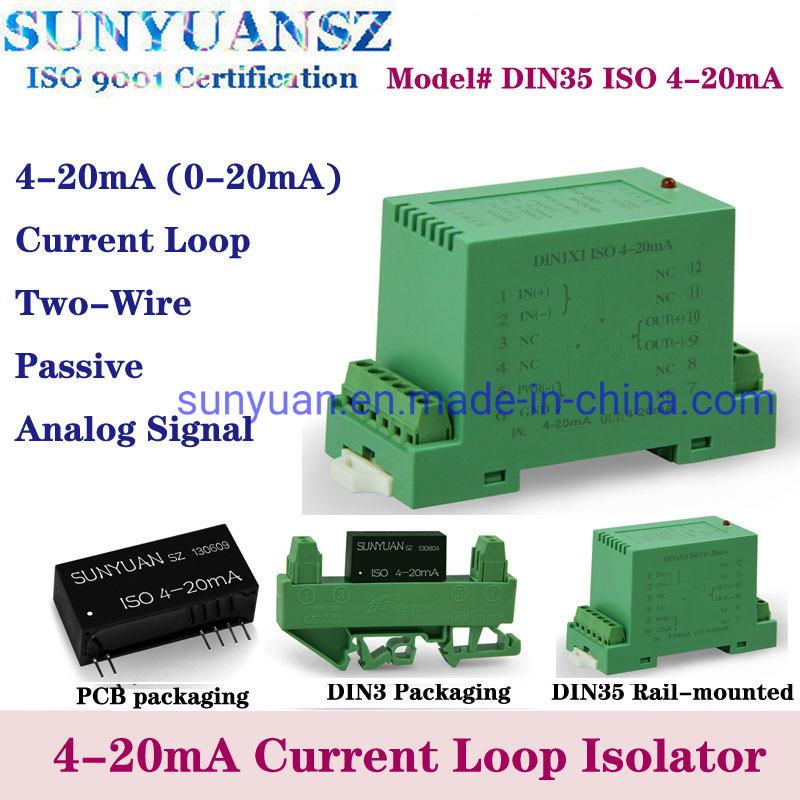

DIN 2*2 Rail Mounted ISO 4-20mA Signal Loop Isolator Module
✔ Accuracy Grade: 0.1, 0.2
✔ No need external power supply
✔ High accuracy (distortion < 0.2%)
✔ Industrial temperature (-45~+80ºC)
✔ High linearity (nonlinearity < 0.2%)
✔ 3000VDC isolation
✔ Wide range input voltage: 8-32VDC
?
Frequently Asked Questions
Q1: Does this isolator module require an external power supply?
A: No, this is a passive signal loop isolator and does not require an external power source.
Q2: What is the isolation voltage rating?
A: The module provides high-level 3000VDC isolation between input and output.
Q3: How is the accuracy of the signal transmission?
A: It features an accuracy grade of 0.1 or 0.2 with a nonlinearity of less than 0.2%.
Q4: Can this be used in outdoor industrial environments?
A: Yes, it is designed for industrial use with a wide operating temperature range from -45 to +85°C.

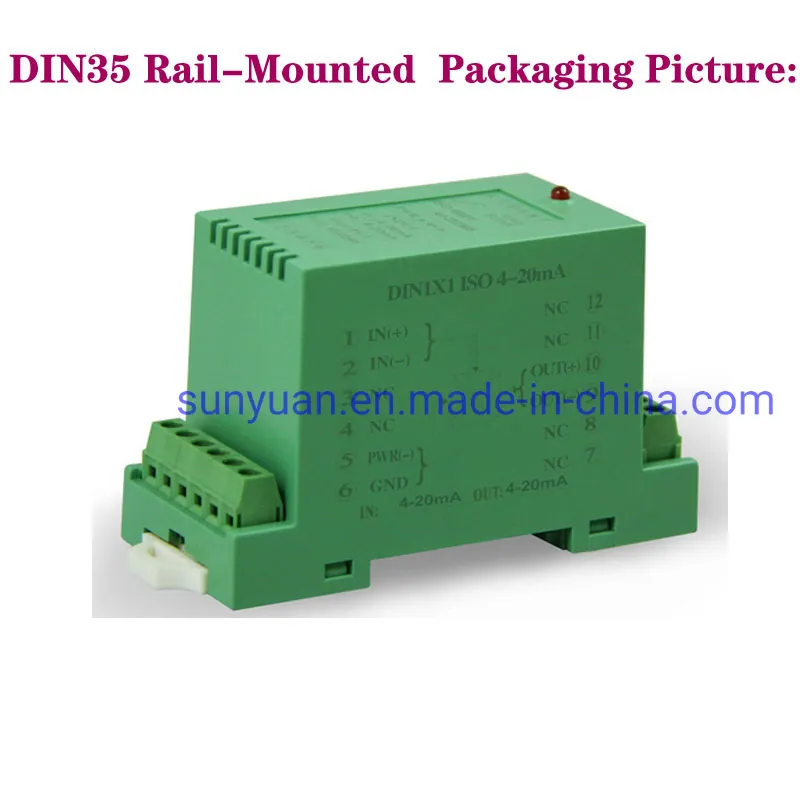

Q5: What is the mounting method for this module?
A: The module is designed for standard DIN35 Rail-Mounted installation, making it compatible with most industrial cabinets.
Q6: What is the frequency response of the signal?
A: The small signal bandwidth frequency response is 50Hz when Io is 20mA.
