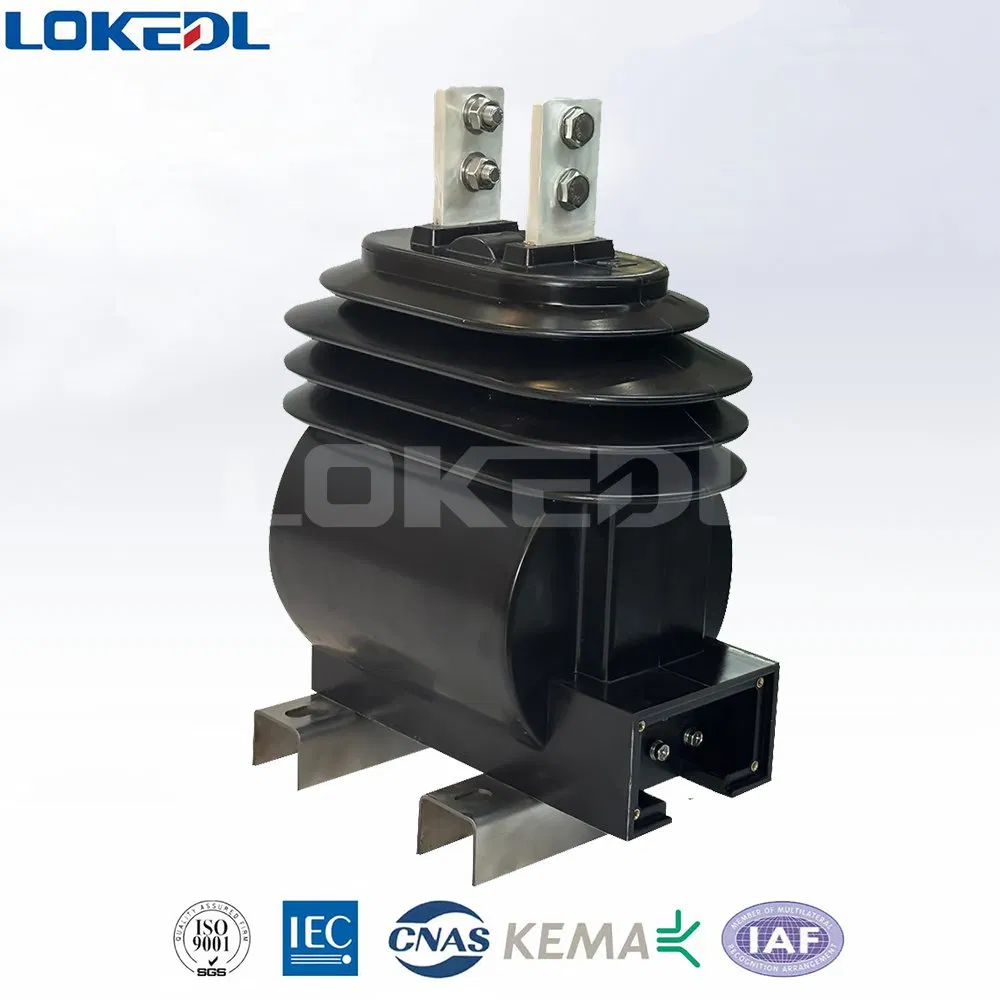

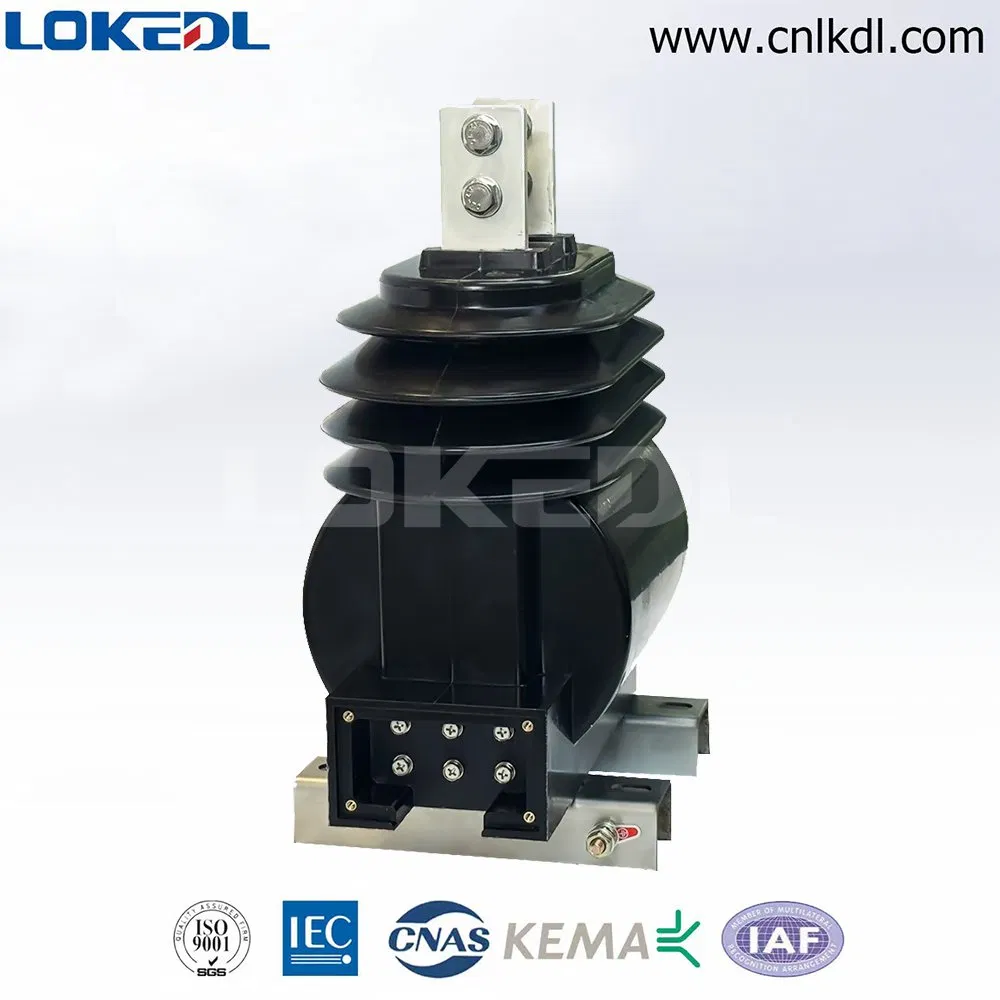

6kv Outdoor Current Transformer for Accurate Energy Monitoring

1 / 5

6kv Outdoor Current Transformer for Accurate Energy Monitoring

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

LZZW1-6

Phase

Single

Operation Condition

Outdoor

Usage

Protection, Measurement

Insulating Medium

Epoxy Resin

Rated Voltage

3.3kv - 13.8kv

Standard

IEC61869-2

Origin

China

Product Description

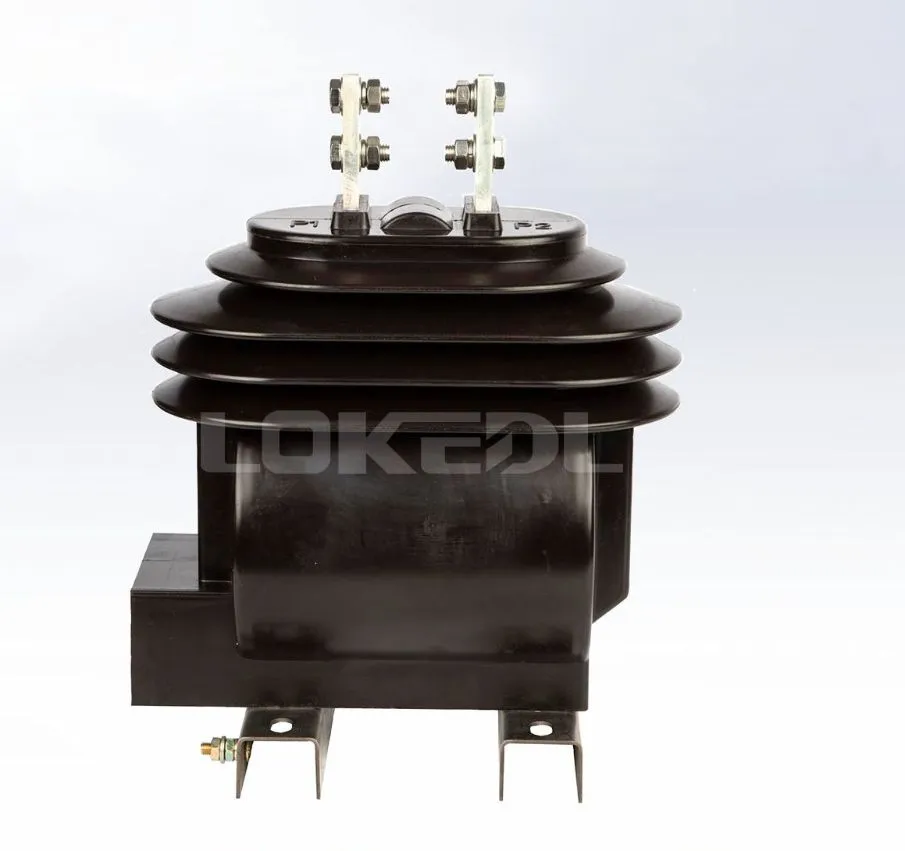

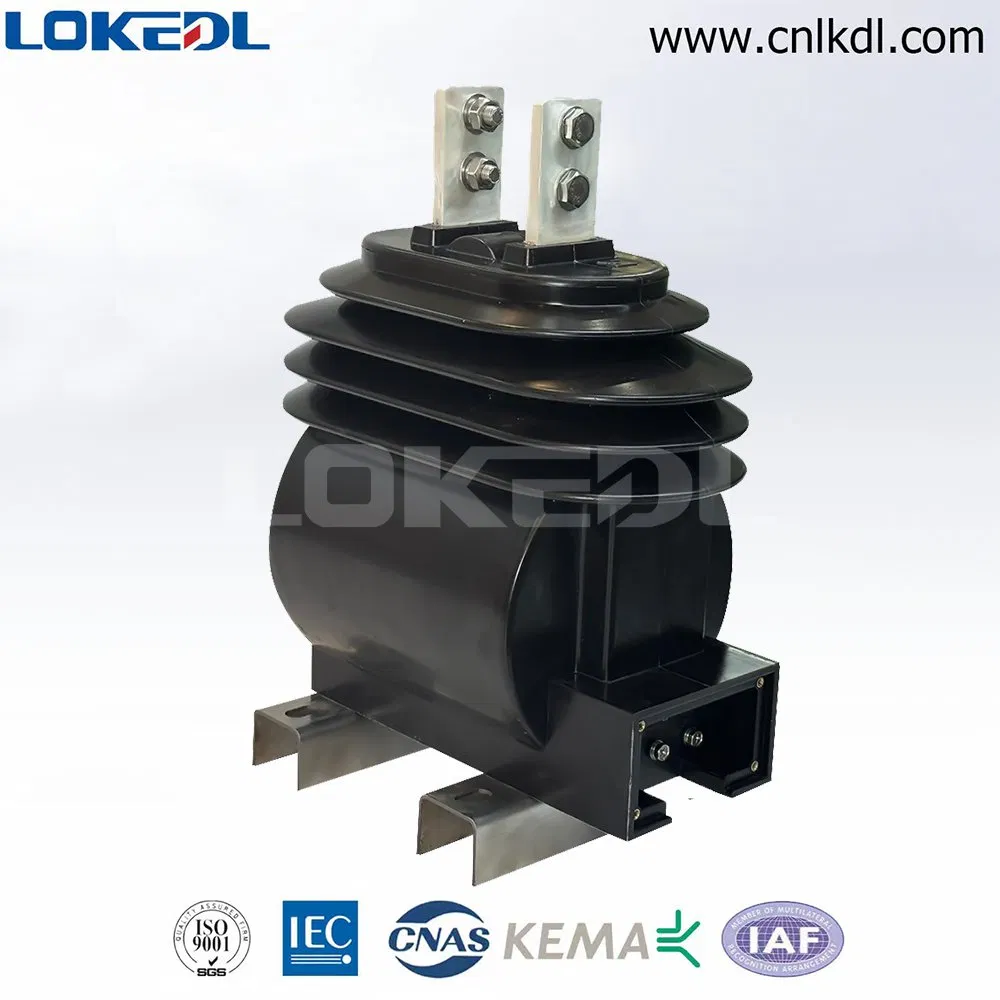

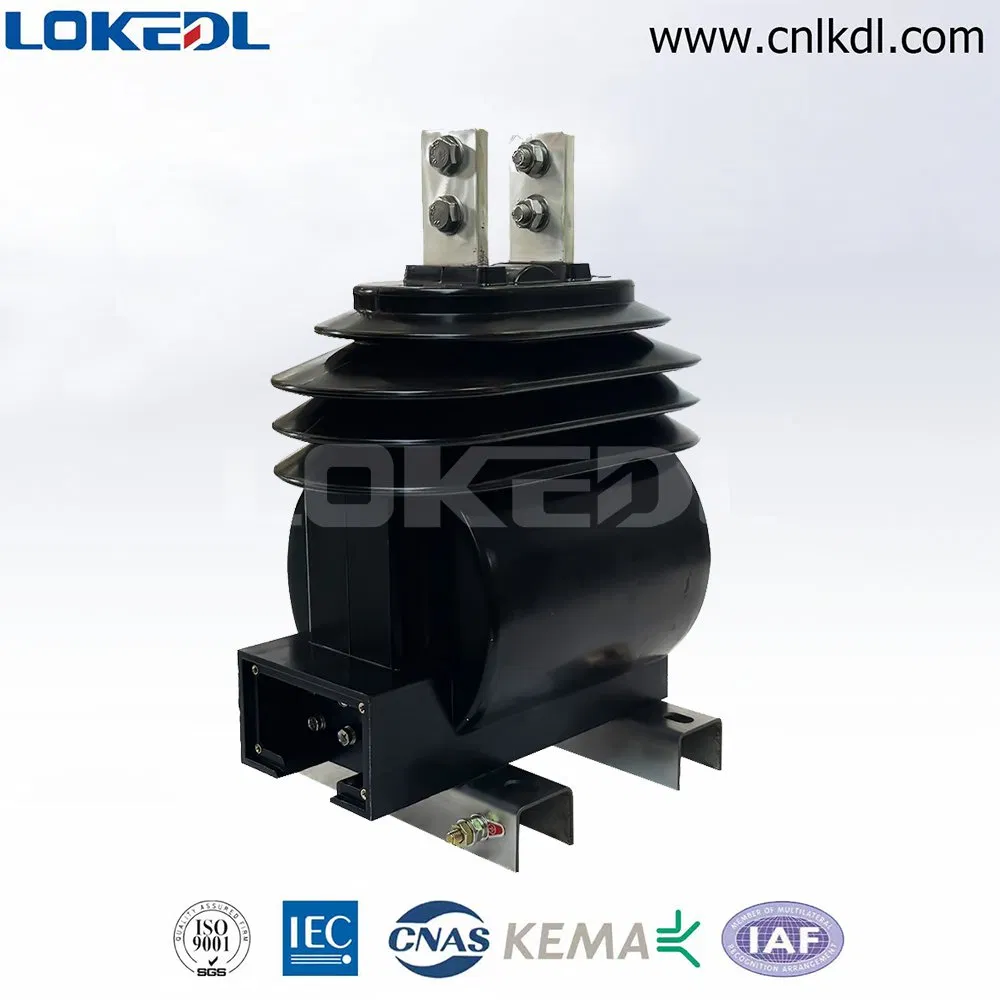

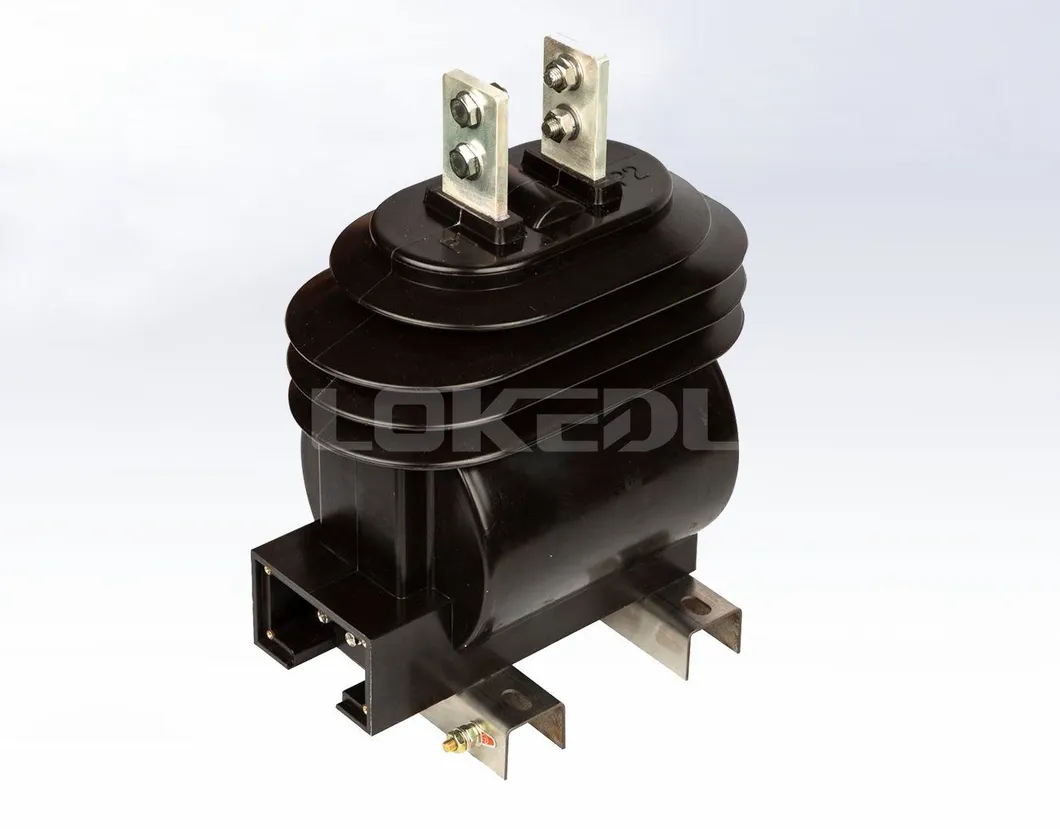

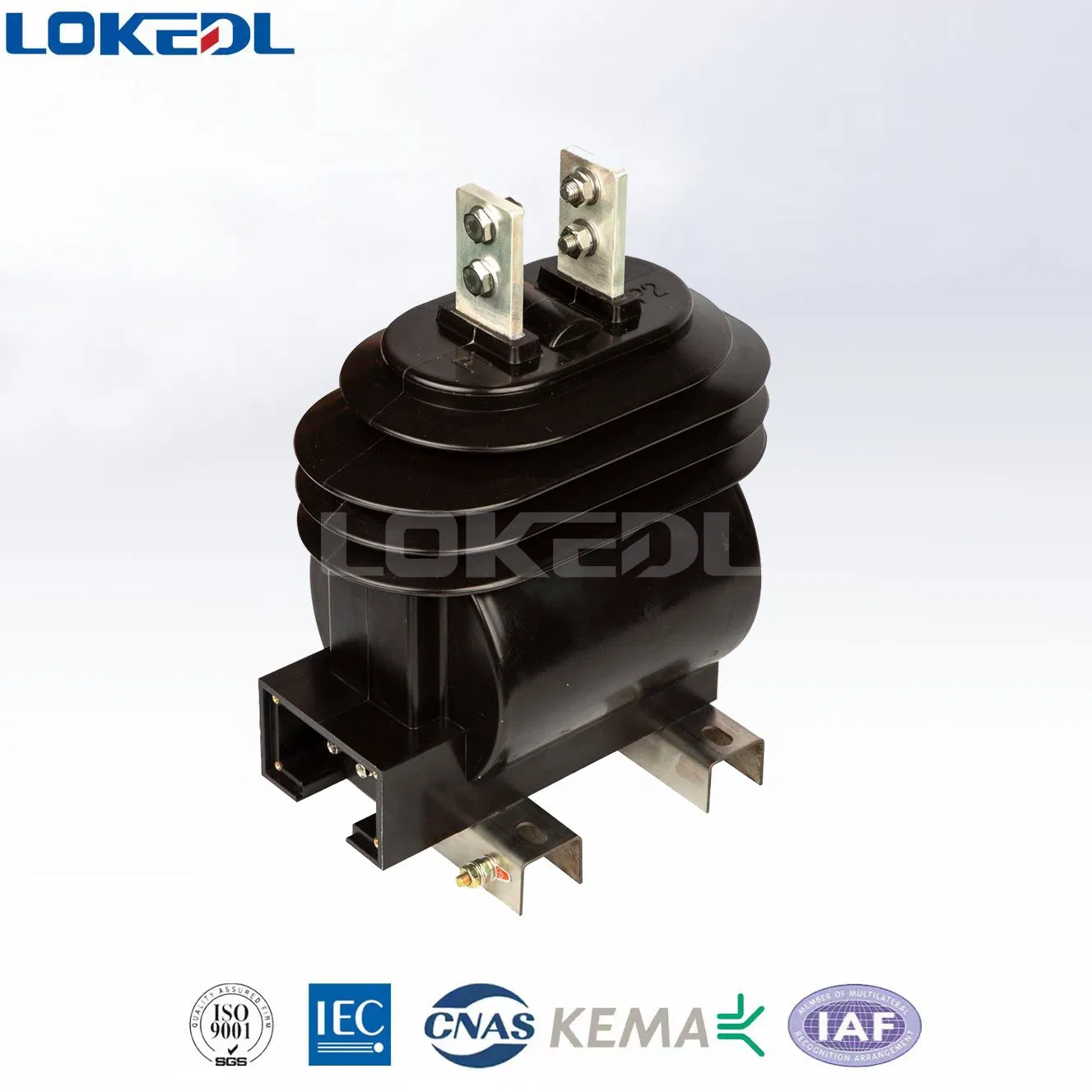

Medium voltage 10/11KV Outdoor Current Transformer

This outdoor dry type current transformer is specifically designed for 3.3kV to 13.8kV power systems. It is widely used for pole-mounted installations and transmission lines to provide accurate measuring and reliable protection.

✓ High-quality ultraviolet-proof epoxy resin insulation.
✓ Amorphous alloy core for high-precision metering.
✓ Pure electrolytic copper windings with advanced shielding.
✓ Compliant with international IEC 61869 and IEEE C57.13 standards.

Product Parameters

Rated Primary Current (A)	Accuracy Class	Output (VA)	Short-time Thermal (kA/1s)	Rated Dynamic (kA)
5 - 75	0.2s / 0.5s / 10P	10-15	0.5 - 7.5	12.5 - 18.75
100 - 500	0.2s / 0.5s / 10P	10-15	10 - 50	25 - 125
600 - 800	0.2s / 0.5s / 10P	15-20	60 - 80	150 - 200
1000 - 2000	0.2s / 0.5s / 10P	15-30	80	200

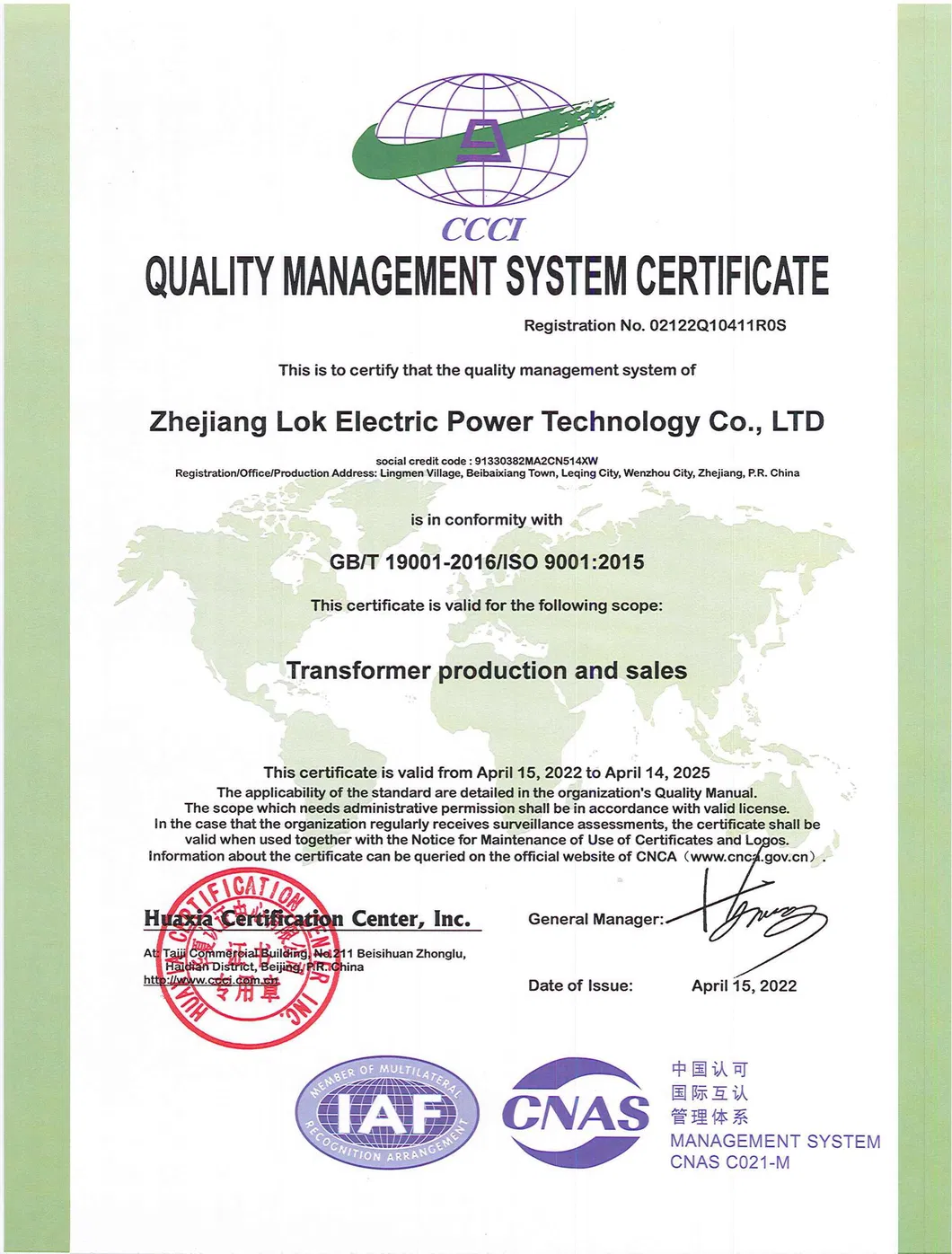

Quality Certifications

Our Advantages

1. Premium Materials: High-grade silicon steel or nanocrystalline cores for minimal losses.

2. Superior Performance: Accuracy classes up to 0.2S, compliant with global standards (IEC, IEEE, ANSI).

3. Robust Design: Epoxy resin ensures stability in harsh outdoor environments with low thermal rise.

4. Reliable Signal: EMC immunity shields against electromagnetic interference.

Packaging & Shipping

We use export-grade plywood crates (12mm-15mm) and 5-layer corrugated cardboard boxes with custom foam inserts to ensure shock absorption and moisture protection during transit.

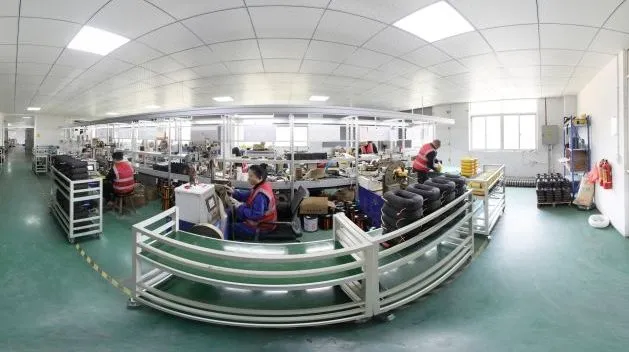

Workshop & Team Exhibition

Frequently Asked Questions

1. What customization options do you offer?

We provide tailored solutions based on specific requirements, including adjustments to dimensions, performance specifications, and technical parameters.

2. Are there minimum order quantities (MOQ) for customized products?

MOQ depends on the complexity of the design. Standard products may have low MOQs, while highly specialized designs are discussed on a case-by-case basis.

3. What's the lead time for orders?

Standard products typically ship within 2-4 weeks. Expedited options are available for urgent project needs.

4. Can you meet international certifications?

Yes, our products comply with major international standards including IEC, CE, and ISO. We can provide specific test reports upon request.

5. How do you ensure product quality?

We conduct 100% routine in-house testing and offer third-party inspections. We maintain a "zero major failure" record through rigorous quality control.

6. Do you provide technical support after purchase?

We offer lifelong technical assistance, including installation guidance, troubleshooting, and spare parts supply.
