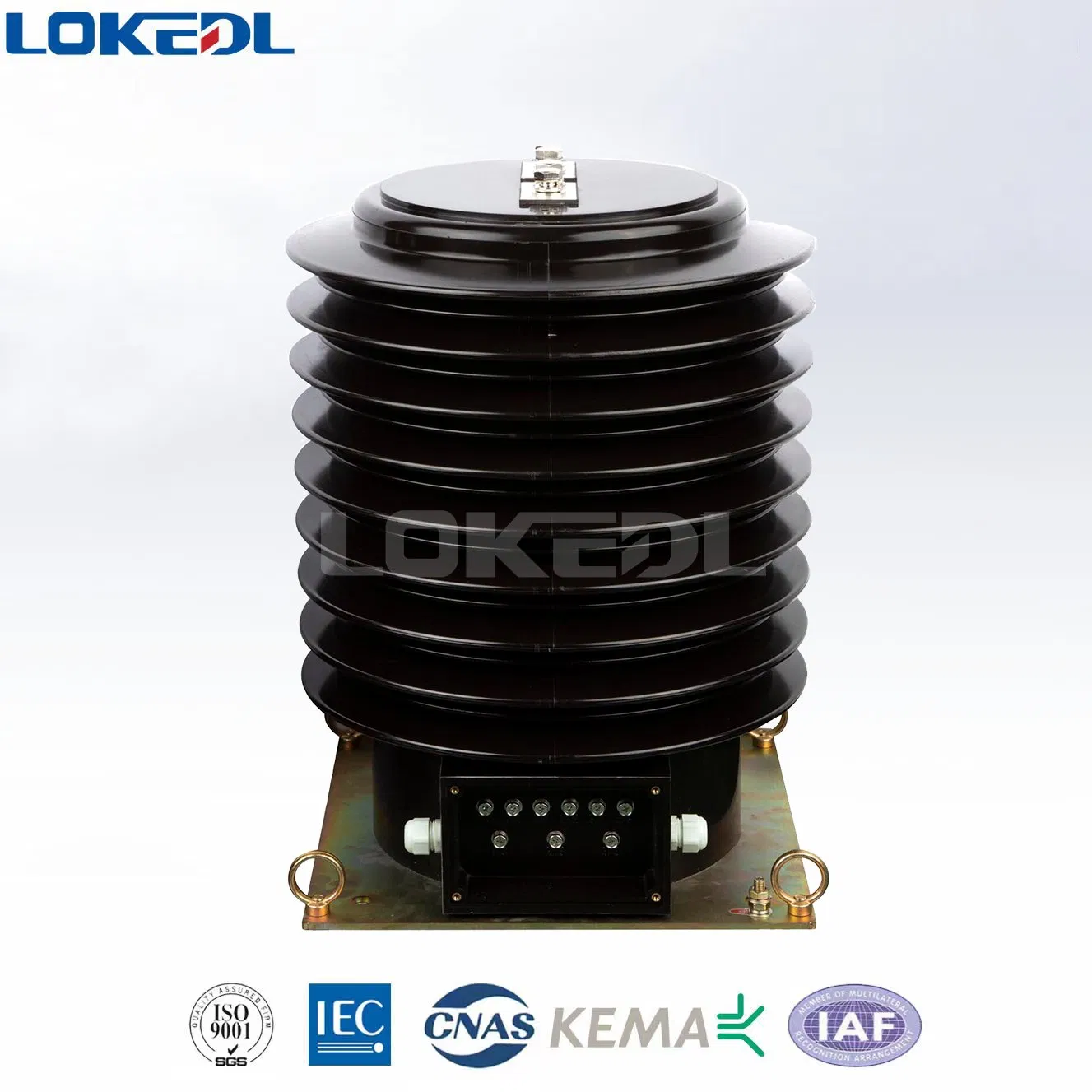

33kv Outdoor Epoxy Resin Current Transformer Factory Direct to Global Supply

📋 Basic Information

Model NO.	LZZW1-36
Phase	Single
Operation Condition	Outdoor
Usage	Protection, Measurement
Insulating Medium	Epoxy Resin
Rated Voltage	33kv, 35kv, 36kv, 40.5kv
Standard	IEC61869-2
Origin	China

⚡ Product Description

Medium voltage Outdoor Current Transformer

Outdoor epoxy resin current transformer
Single phase
Rated voltage: 33kV, 35kV, 36kV, 40.5kV
Metering class for CT: 0.2S, 0.2, 0.3, 0.5, 0.5S, 0.6, 1, 3
Standard: IEC61869 / IEEE C57.13

This outdoor dry type current transformer is used in 33kV, 35kV, 36kV and 40.5kV power system, for measuring and protection. It has been used in outdoor pole mounted and transmission line. The current transformer is made from high quality ultraviolet-proof epoxy resin, amorphous alloy core for metering and high quality silicon steel core for protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.

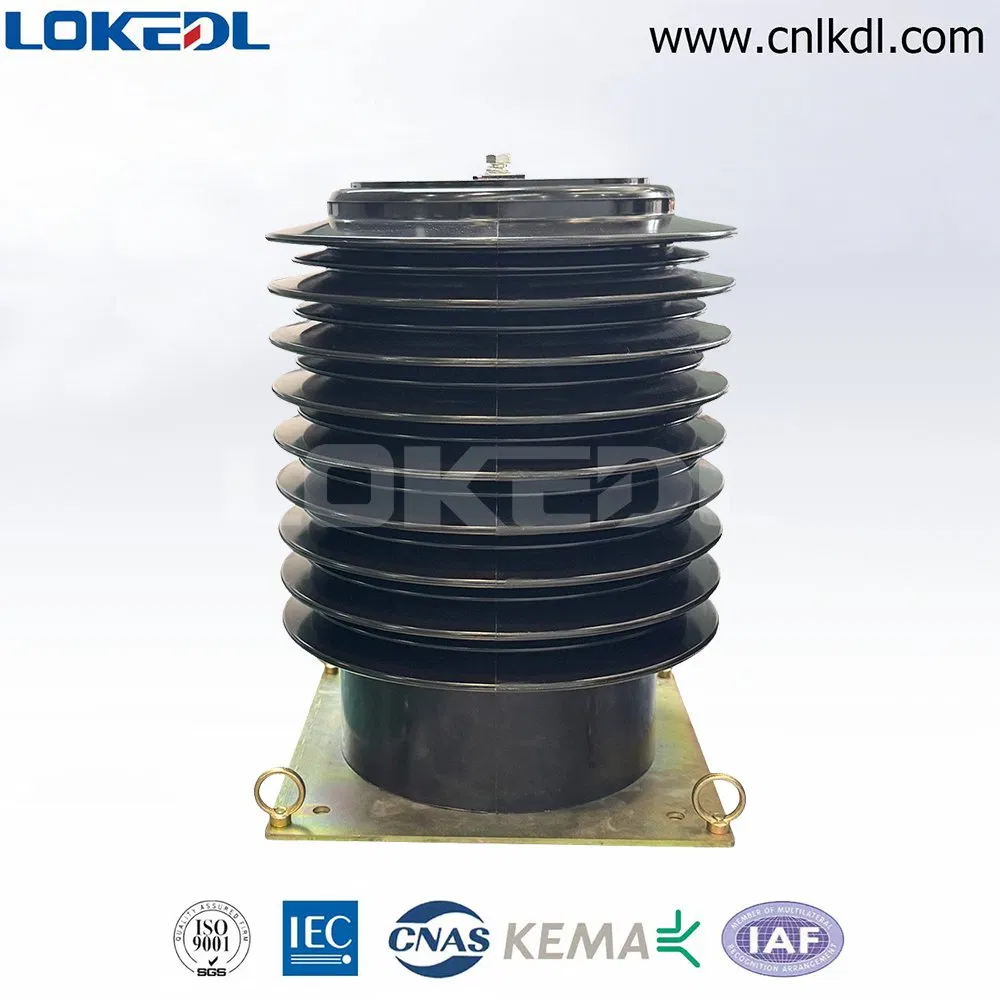

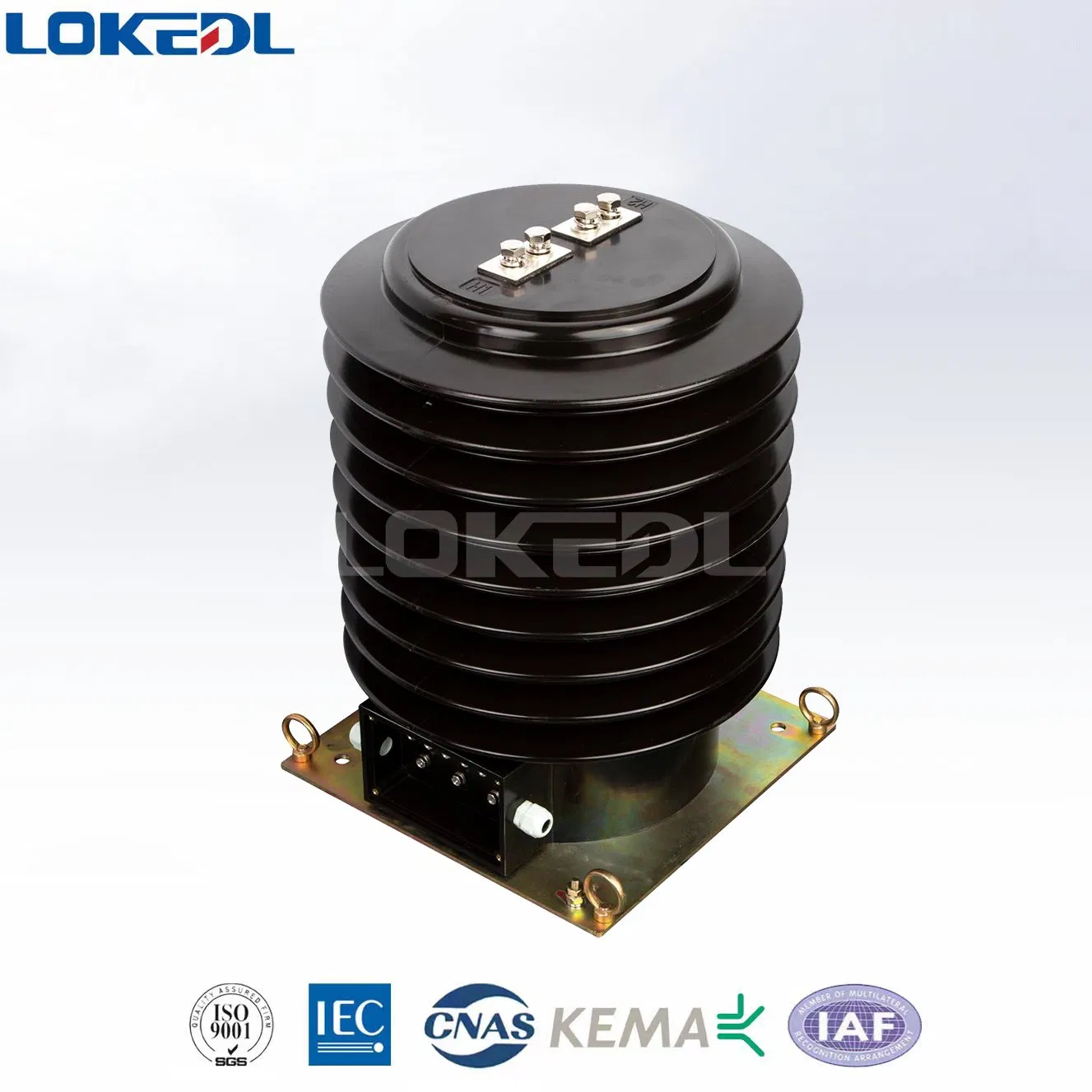

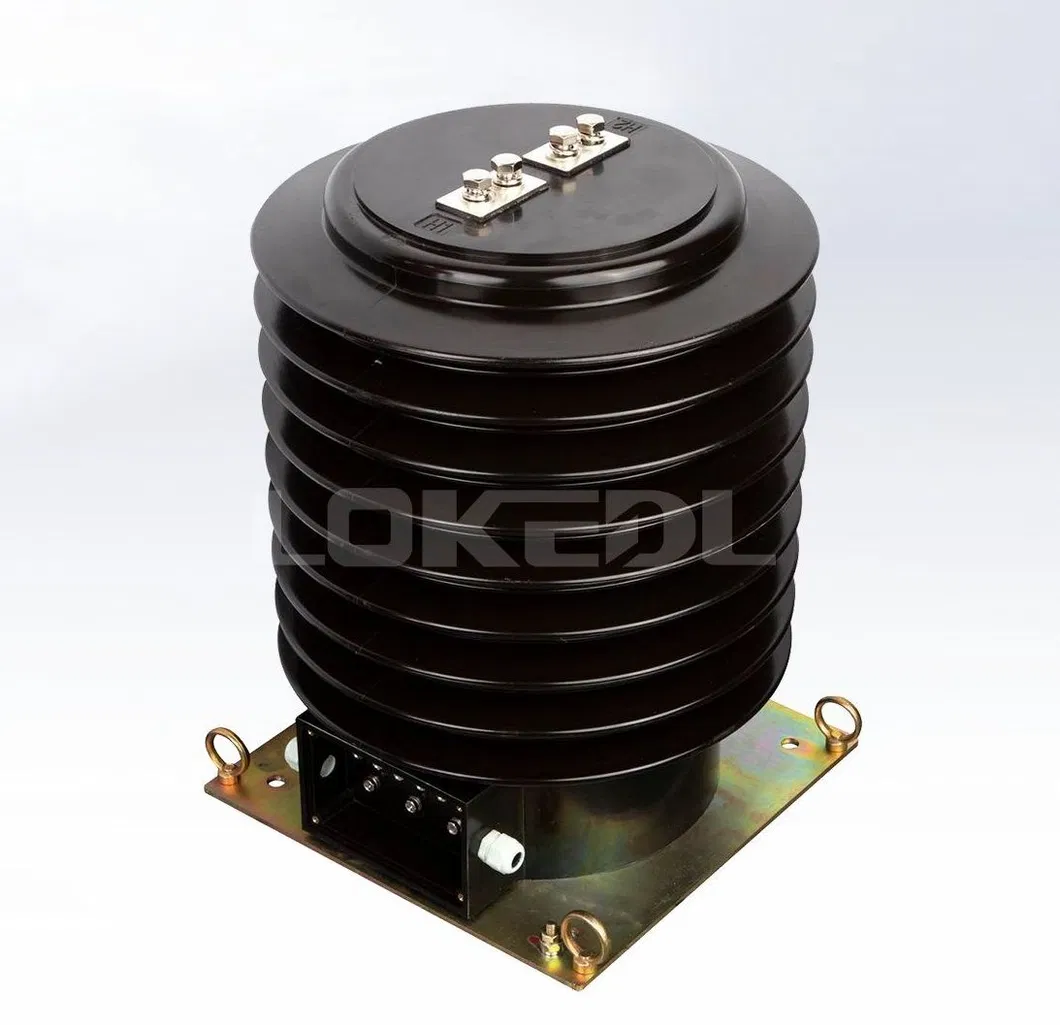

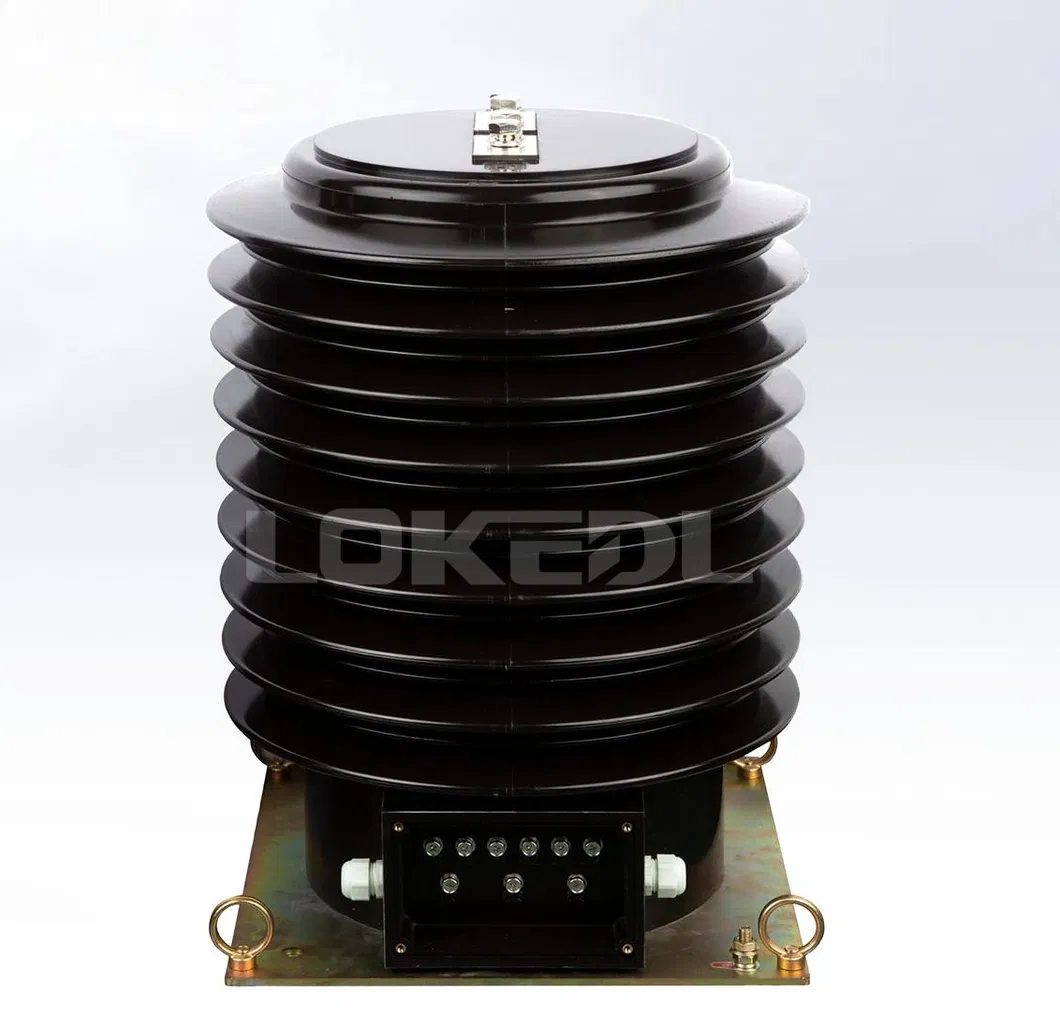

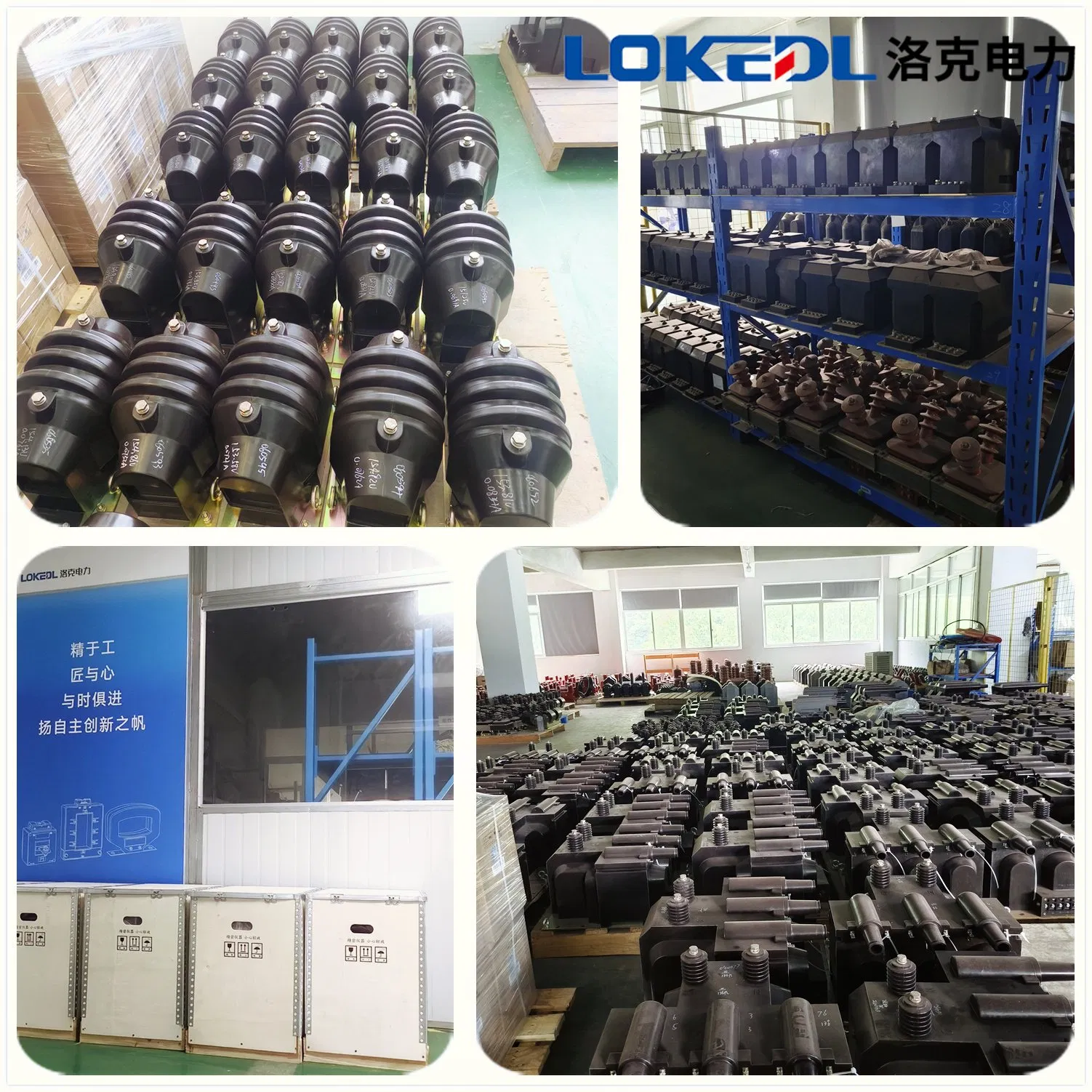

📸 Detailed Photos

📊 Product Parameters

Rated primary current(A)	Accuracy classes combination	Accuracy class and output (VA)							Short-time thermal current(kA/1s)	Rated dynamic current(kA)
Rated primary current(A)	Accuracy classes combination	0.2s	0.2	0.5s	0.5	10P10	10P15	10P20	Short-time thermal current(kA/1s)	Rated dynamic current(kA)
5 - 75	0.2S/10P10 0.2S/10P15 0.2S/10P20 0.2/10P10 0.5/10P20	10	10	10	10	15	15	15	0.5 - 7.5	12.5 - 18.75
100 - 500		10	10	10	10	15	15	15	10 - 50	25 - 75
600 - 800		15	15	15	15	20	20	20	60 - 80	150 - 200
1000 - 2000		15	20	15	30	30	30	20	80	200

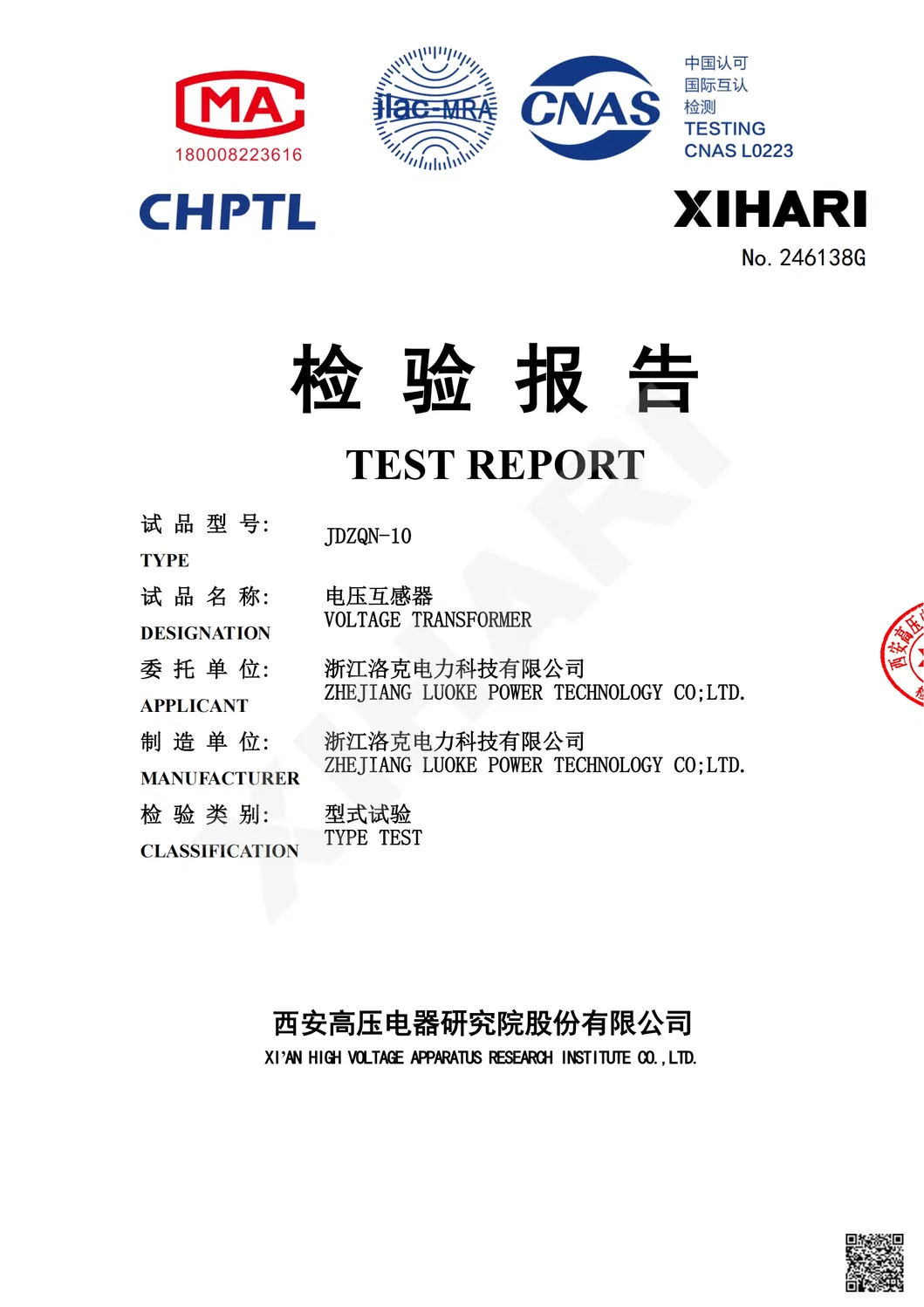

📜 Certifications

📦 Packaging & Shipping

Optimized Packaging Solutions:

Small Products: Heavy-duty 5-layer corrugated boxes with internal foam protection.
Heavy Products: Export-grade 12mm-15mm plywood crates.
Shock Absorption: EPE foam edges to handle vibrations during transit.
Palletized Safety: Standard pallets for efficient forklift handling.

⭐ Our Advantages

Premium Materials

High-grade silicon steel or nanocrystalline cores for minimal losses and robust epoxy resin for long-term stability.

Superior Performance

Accuracy Class 0.2/0.5 for metering. Supports 0.6kV-36kV systems with low thermal rise and EMC immunity.

Service & Support

Custom ratios and connectors. Global certifications (IEC, CE, ISO) and 24/7 technical aid.

👥 Team & Exhibition

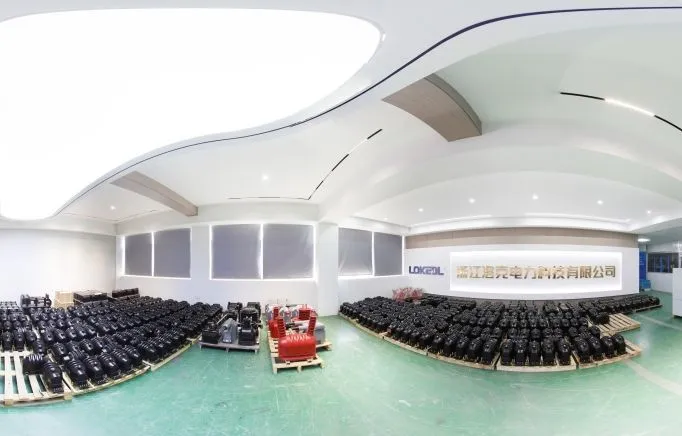

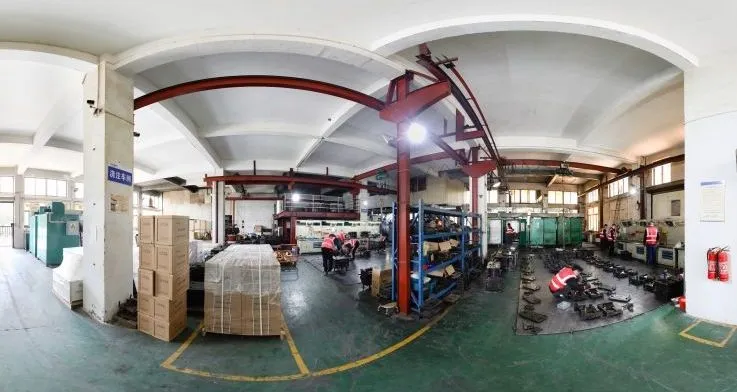

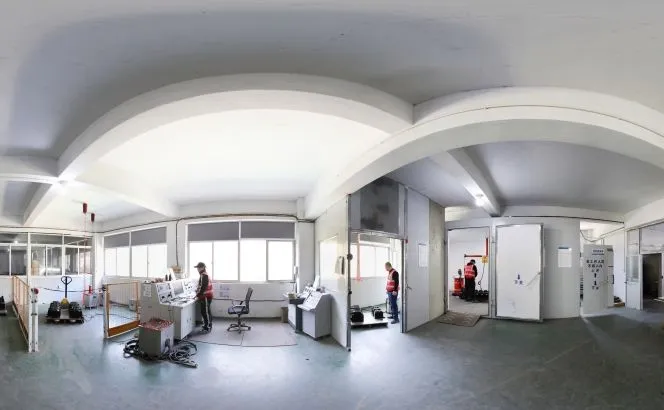

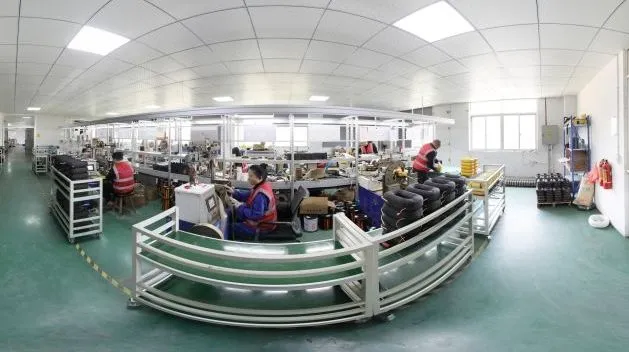

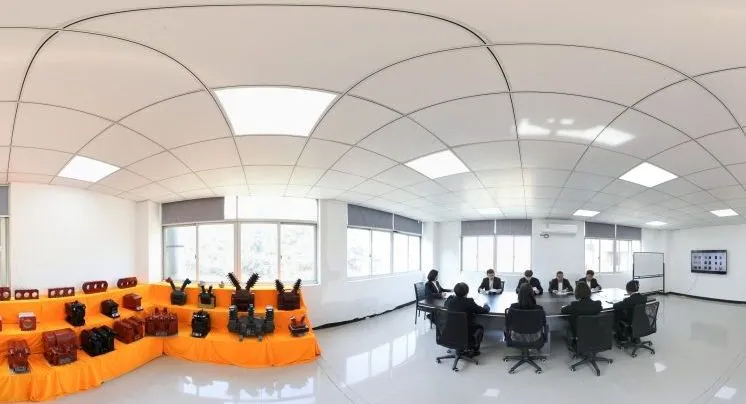

🏭 Our Workshop

❓ Frequently Asked Questions

What customization options do you offer?

We provide tailored solutions based on your specific requirements, including adjustments to dimensions, performance specifications, and other technical parameters.

How do I request a custom product?

Simply send us your detailed specifications (e.g., technical drawings or performance standards). Our team will evaluate and provide a solution within 2 business days.

What's the lead time for orders?

Standard products typically ship in 2 weeks, while custom projects may take longer depending on design complexity.

Can you meet international certifications?

Yes, we comply with major international standards including IEC, CE, ISO, and IEEE. Specify your requirements and we will ensure compliance.

How do you ensure quality for custom products?

We conduct rigorous in-house testing and offer third-party inspections. 100% routine tests are performed with reports provided.

Do you offer technical support after purchase?

Our team provides lifelong technical assistance, including installation guidance, troubleshooting, and spare parts support.
