Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
1 / 5
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer
Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer

Three Phase Oil Immersed Type 10kv Oil-Immersed Stereoscopic Rolled Iron Core Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📑 Basic Information
Model NO.
10kV Oil-immersed Stereoscopic Rolled Iron Core Tr
Core
Amorphous Alloy Transformer
Cooling Method
Onan
Winding Type
Cylinder Type
Certification
ISO9001-2000
Usage
Distribution Transformer
Frequency
Power Frequency
Nominal Voltage
10kv
Rated Frequency
50/60Hz
Rated Capacity
50-800kVA
Coupling Groups
Dyn11
Origin
China
💡 Product Overview

Silicon Steel Three-Dimensional Wound Core Transformer

The core employs high-efficiency, low-loss, high-permeability, heat-resistant notched silicon steel sheets wound into a three-phase independent framework structure. The core magnetization direction is aligned with the rolling direction of the silicon steel sheets, ensuring uniform magnetic flux distribution throughout the magnetic circuit, without obvious high-resistance zones or magnetic flux distortion at seams. It features low no-load loss and low noise.

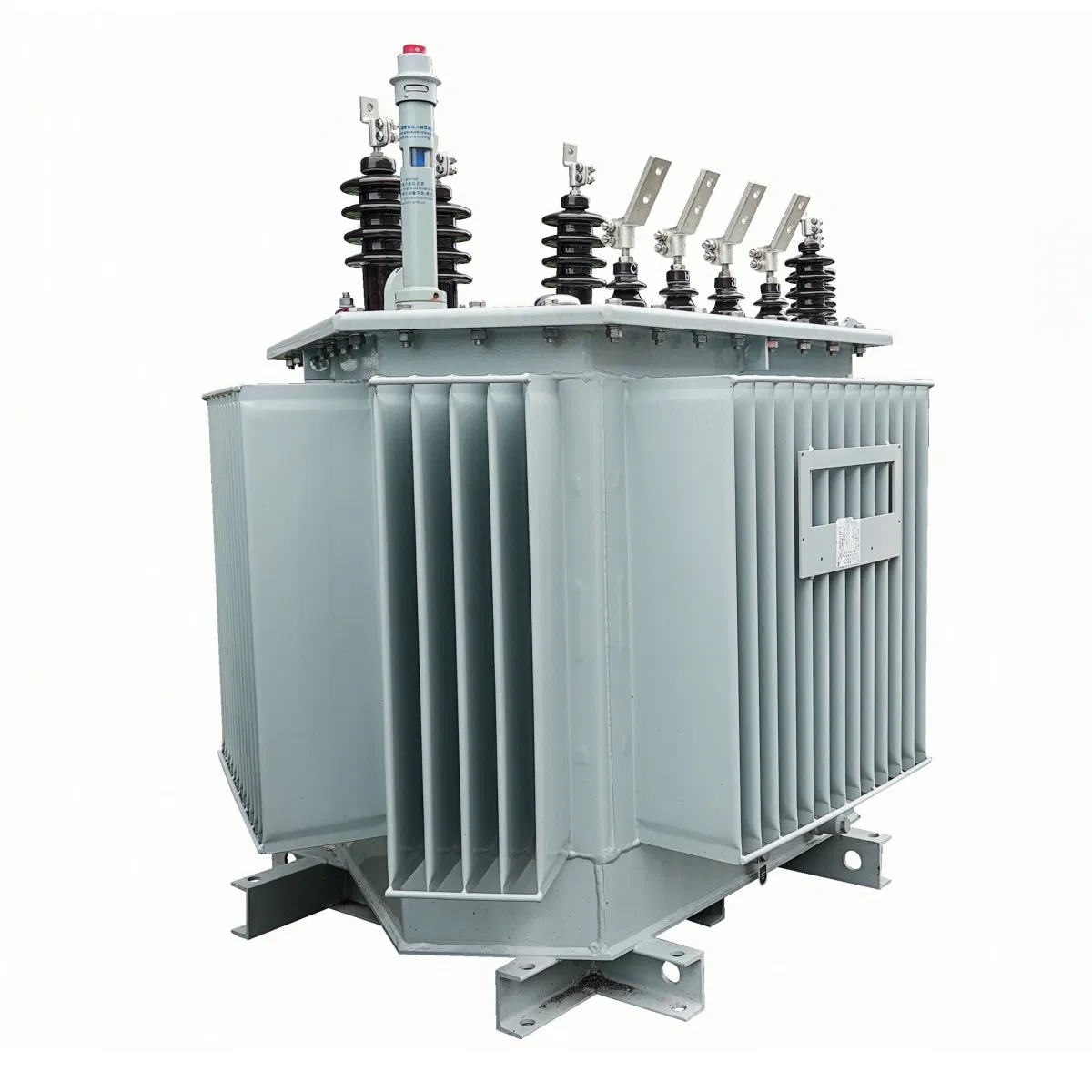

10kv Oil-Immersed Transformer
Stereoscopic Rolled Iron Core Details
🚀 Features and Advantages

The three-dimensional wound core transformer is an energy-saving power transformer that innovatively reforms the laminated magnetic circuit structure and three-phase layout of traditional power transformers. Compared to traditional transformer cores, it offers:

  • Three-phase balance and material efficiency
  • Low no-load loss and low no-load current
  • Strong short-circuit resistance
  • Low noise levels
  • Reduced electric and magnetic fields
📊 Technical Parameters (S20-M.RL)
Items Unit Parameter Details
Maximum equipment voltagekV12
Rated voltage (High-voltage)kV10
Rated voltage (Low-voltage)kV0.4
Core material-Cold-rolled oriented silicon steel sheet
Core structure-Closed three-dimensional wound core
Winding material-Enameled copper wire, copper foil
Rated capacitykVA50 / 100 / 200 / 400 / 630
Connection group-Dyn11
Voltage regulation scope-±2×2.5%
Cooling method-ONAN
Temperature rise limit (Winding)K65
Manufacturing Process
Transformer Structure
Quality Inspection
Full Product View
❓ Frequently Asked Questions
When can I receive a quotation after sending an enquiry?
We will respond within 8 hours to confirm details. A detailed and accurate quotation requires a thorough technical review of your requirements.
Can I get a sample before placing a bulk order?
Yes, sample orders are supported. The minimum order quantity for a sample is 1 unit, allowing you to evaluate quality and performance firsthand.
Do you support OEM and custom logo printing?
Absolutely. We offer comprehensive OEM services, including custom logo printing and technical modifications to meet your specific site requirements.
What is the standard warranty policy?
We provide a standard 1-year warranty. For specific projects requiring longer support, we are open to discussing extended warranty terms.
What is the general production lead time?
Standard production lead time is 30-45 days. Final delivery schedules depend on order quantity, customization level, and current capacity.
Do you provide technical support or installation guidance?
Yes, we provide comprehensive technical support, including detailed documentation, installation guidance, and online assistance. On-site support is available for complex projects.
