Product Description

Product Overview

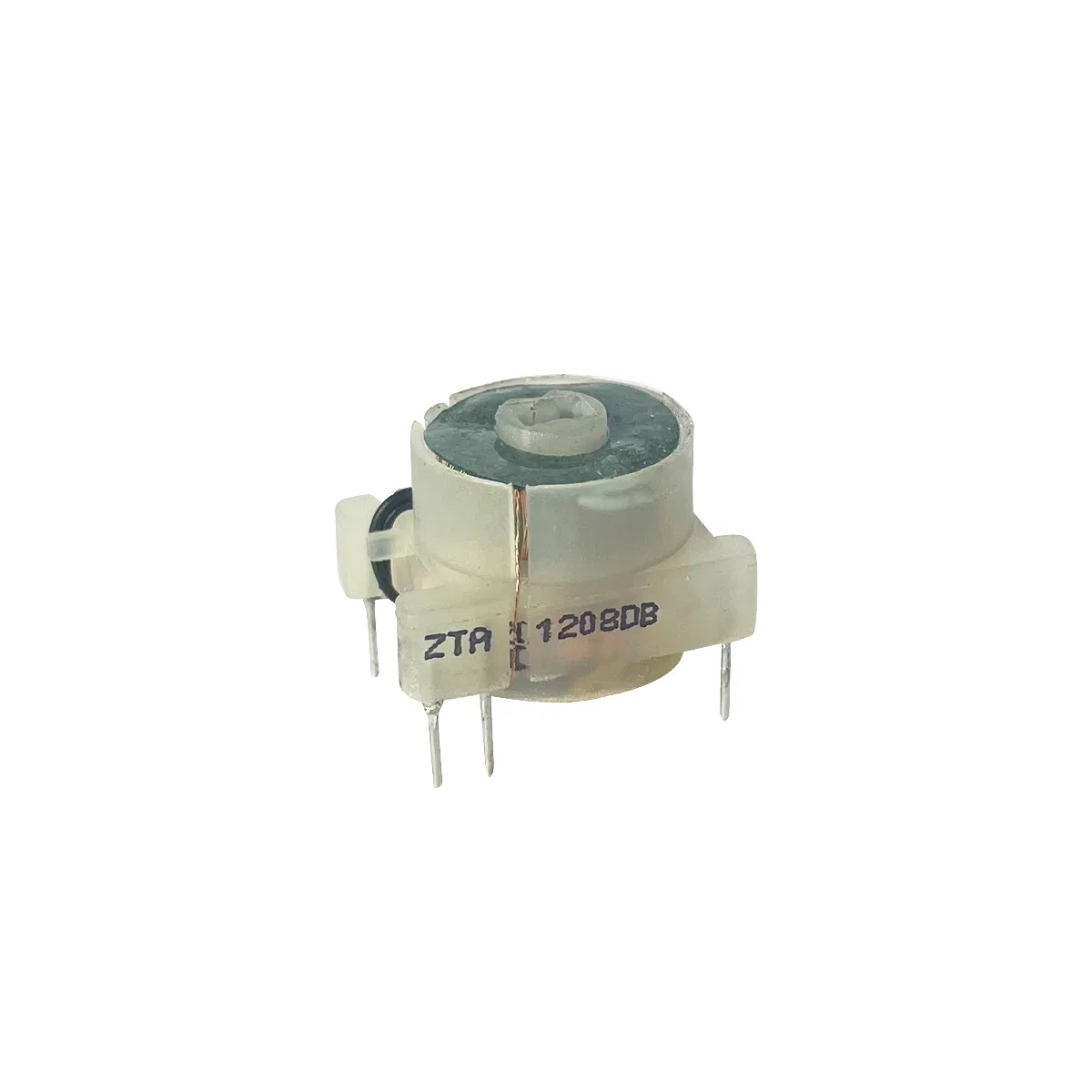

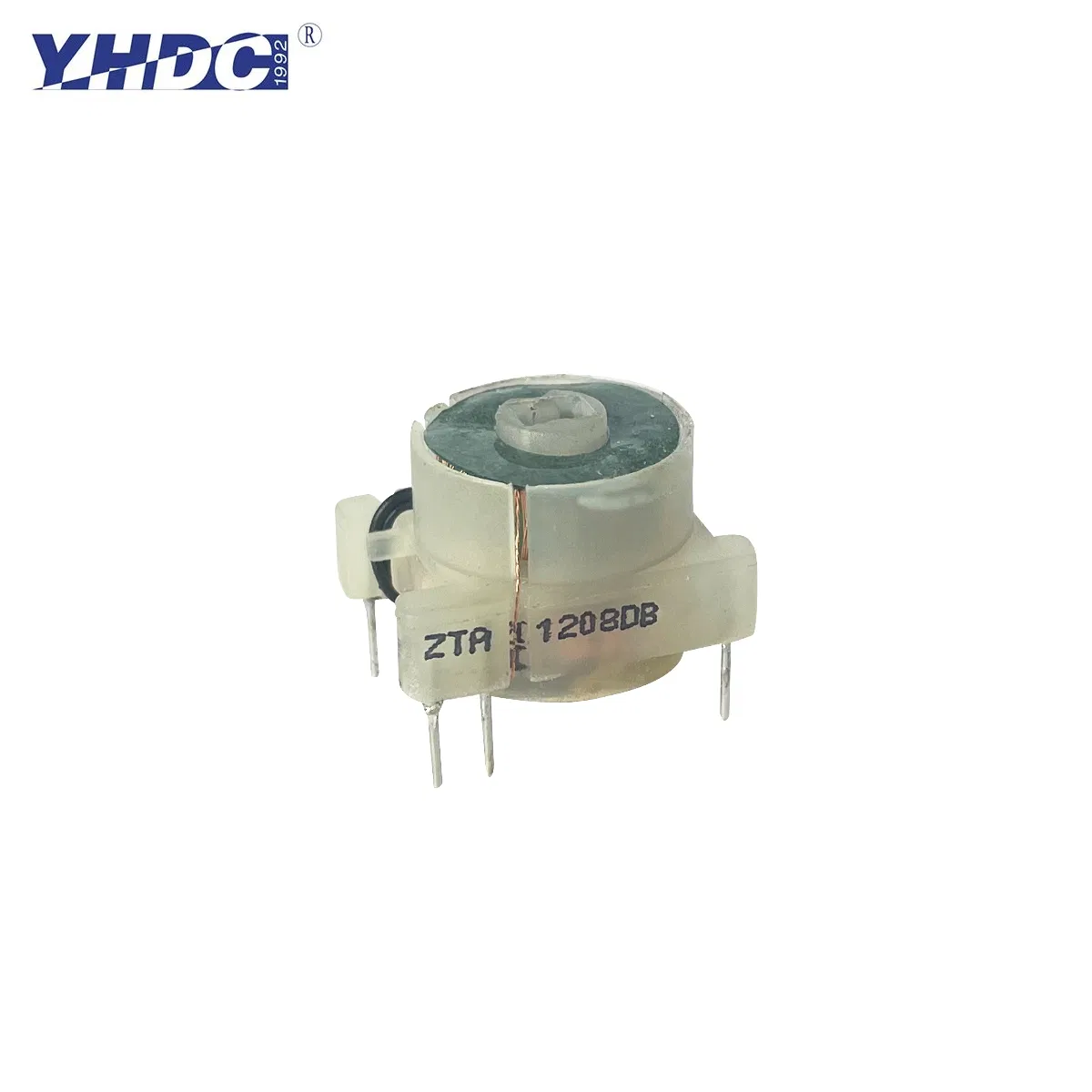

Zero sequence current/leakage current transformer ZTA1208DB-100

The ZTA1208DB is a zero-sequence current transformer designed specifically for domestic appliances. It consists of multiple coils and combines the functions of leakage current detection, earth fault detection and functional test detection. The built-in shielding layer is not affected by external electromagnetic noise and can detect the smallest mA leakage current. It is widely used in appliances, water heaters, GFCI, ELCB, hair dryers, lawn mowers, etc.

Model NO.
ZTA1208DB-100
Phase
Single
Usage
Protection, Measurement
Input
1A
Output
1.25mA
Accuracy
1%
Installation
PCB
Rated Voltage
720V
Frequency
20Hz-20kHz
Technical Parameters
Mounting Type PCB
Material of Core Permalloy and Ferrite
Operating Temperature -25ºC ~ +70ºC
Storage Temperature -35ºC ~ +85ºC
Dielectric Strength 3KV 50Hz 1min
Insulating Medium Epoxy Resin

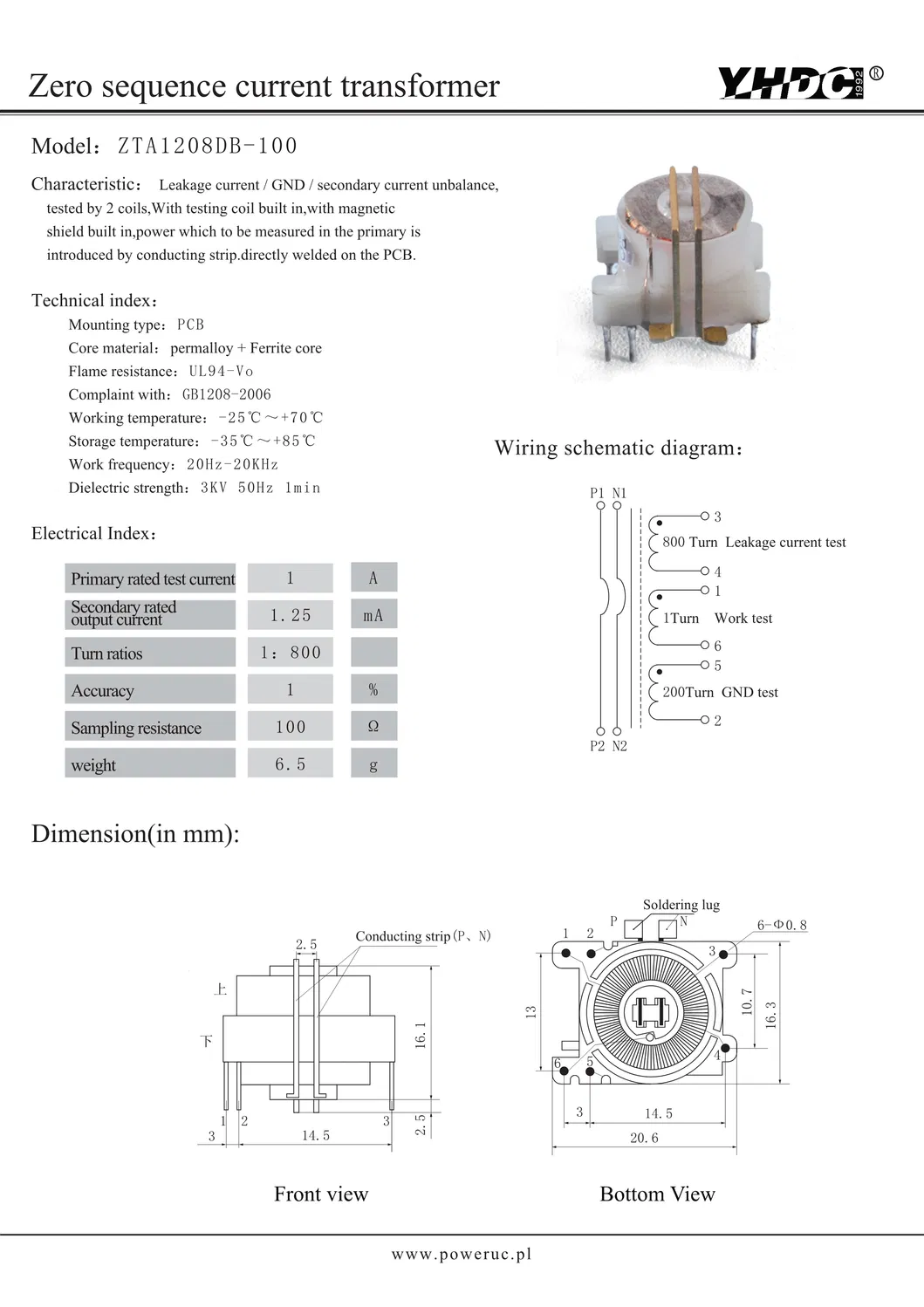

Dimensions (mm)
Dimensions
Product Showcase
Transformer View 1
Transformer View 2
Transformer View 3
Transformer View 4
Packaging & Delivery
Package Size
20.00cm * 18.00cm * 7.00cm
Gross Weight
0.500kg
Transport Package
Carton
Frequently Asked Questions
Do you provide samples for testing?
Yes, we provide samples and the products can be customized to meet specific requirements.
What is the standard delivery lead time?
The standard delivery time is usually 5-7 working days depending on the order quantity.
Are you a manufacturer?
Yes, we are a professional factory specializing in electromagnetic components and devices.
What is the core material used in the ZTA1208DB-100?
The transformer utilizes a combination of Permalloy and Ferrite for high precision and performance.
Which industries use this leakage current transformer?
It is widely used in domestic appliances, water heaters, hair dryers, lawn mowers, and medical or industrial equipment requiring high reliability.
What certifications do these products have?
Our products are certified with CE, RoHS, Reach, and ISO9001 standards, ensuring high quality and environmental compliance.
