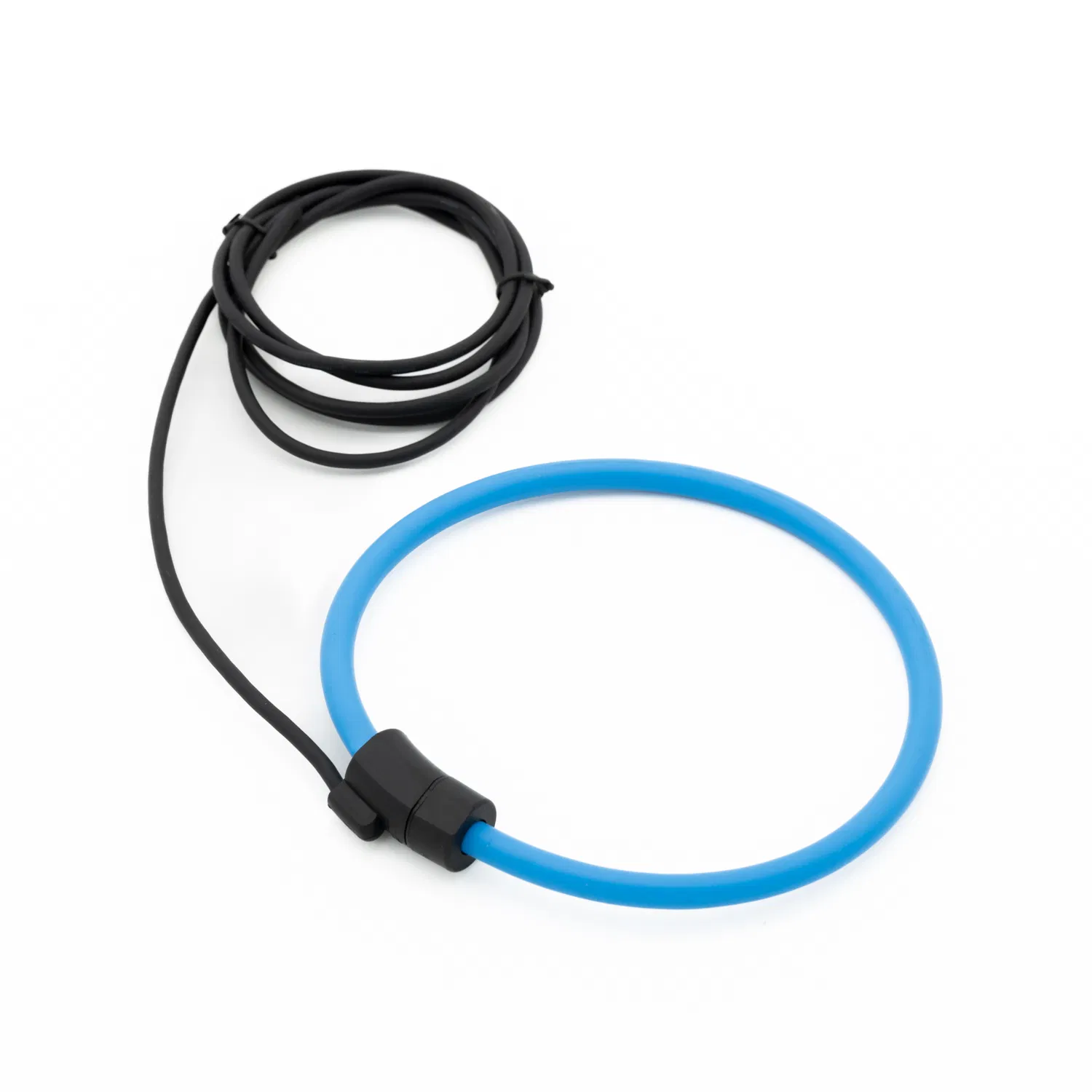

Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer

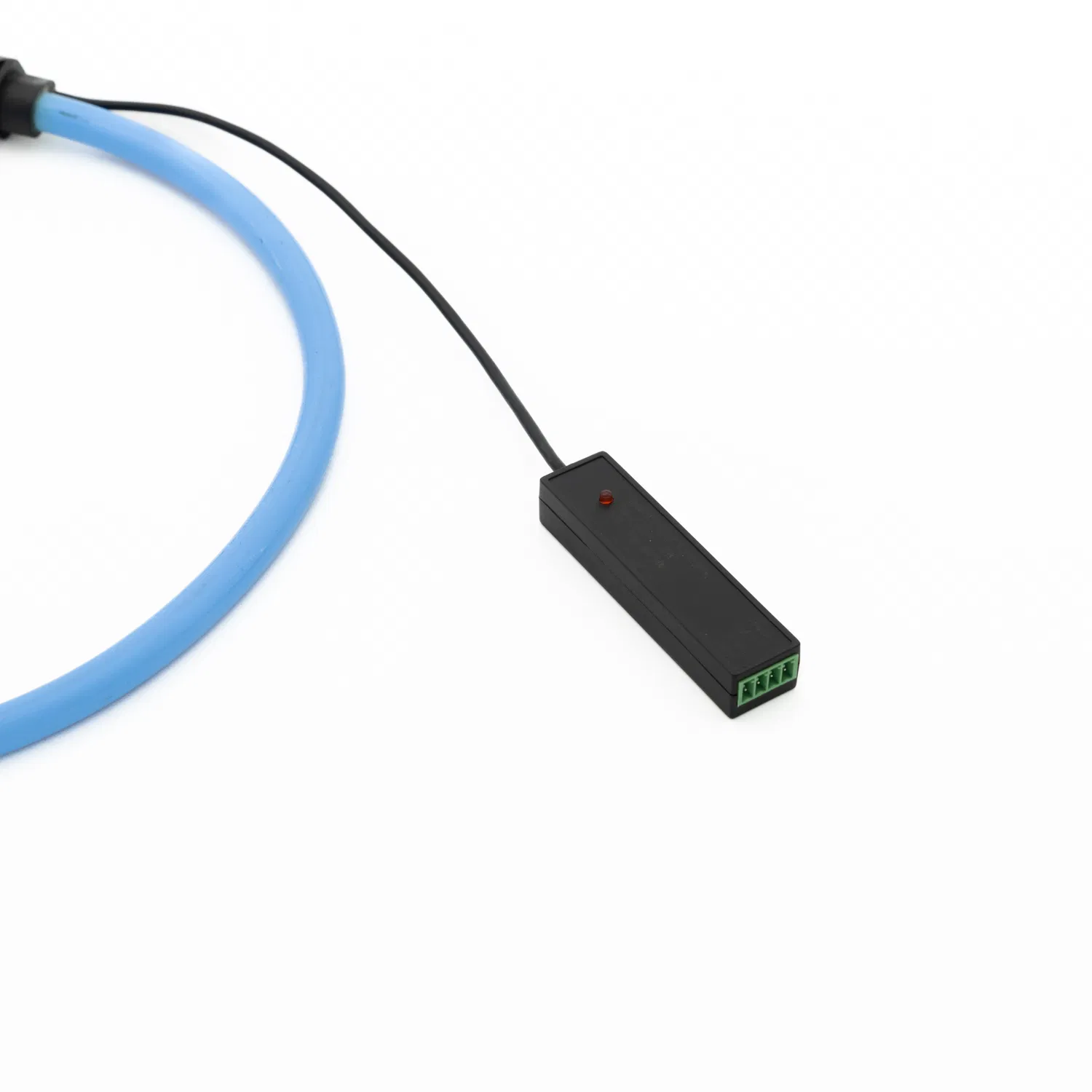

Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer

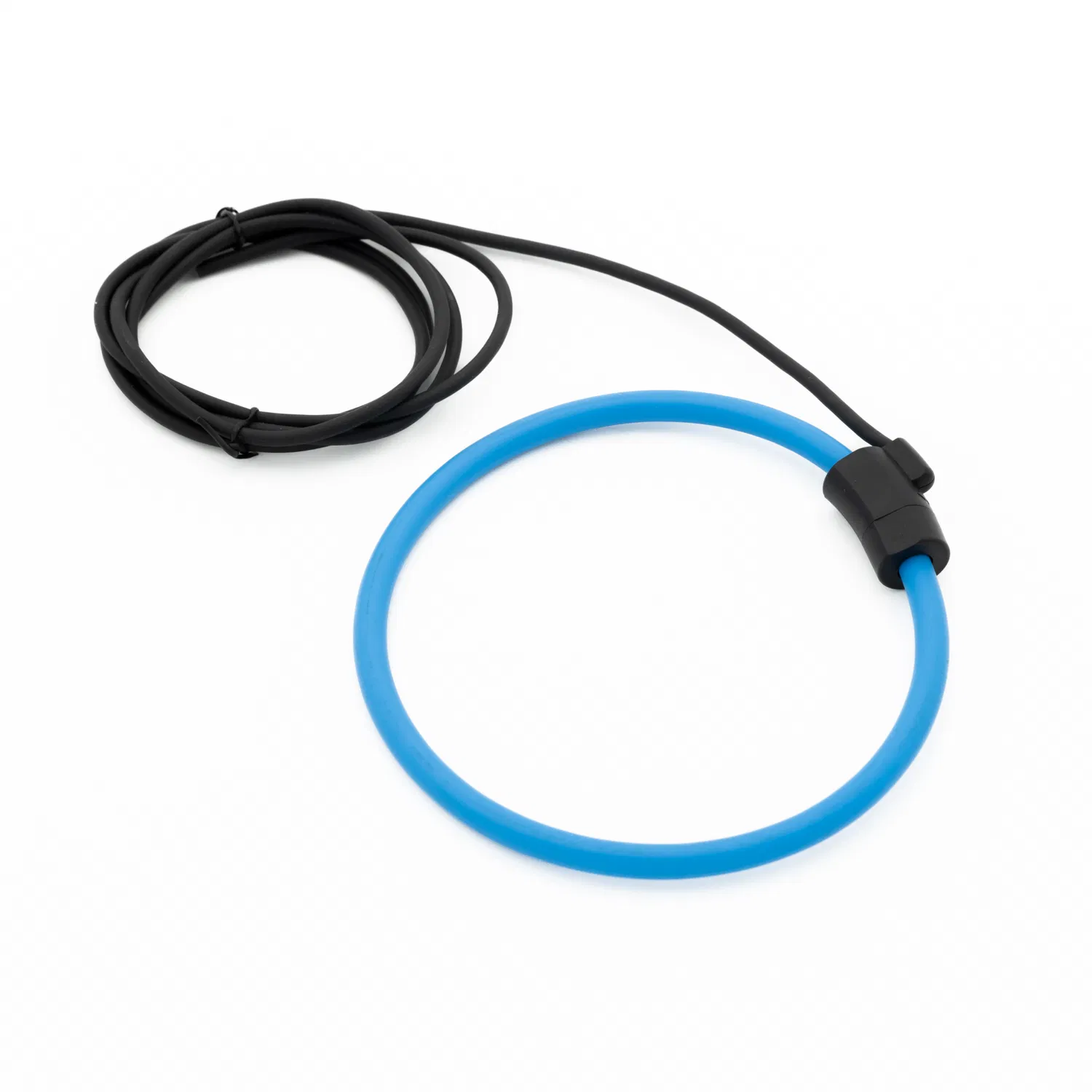

Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer

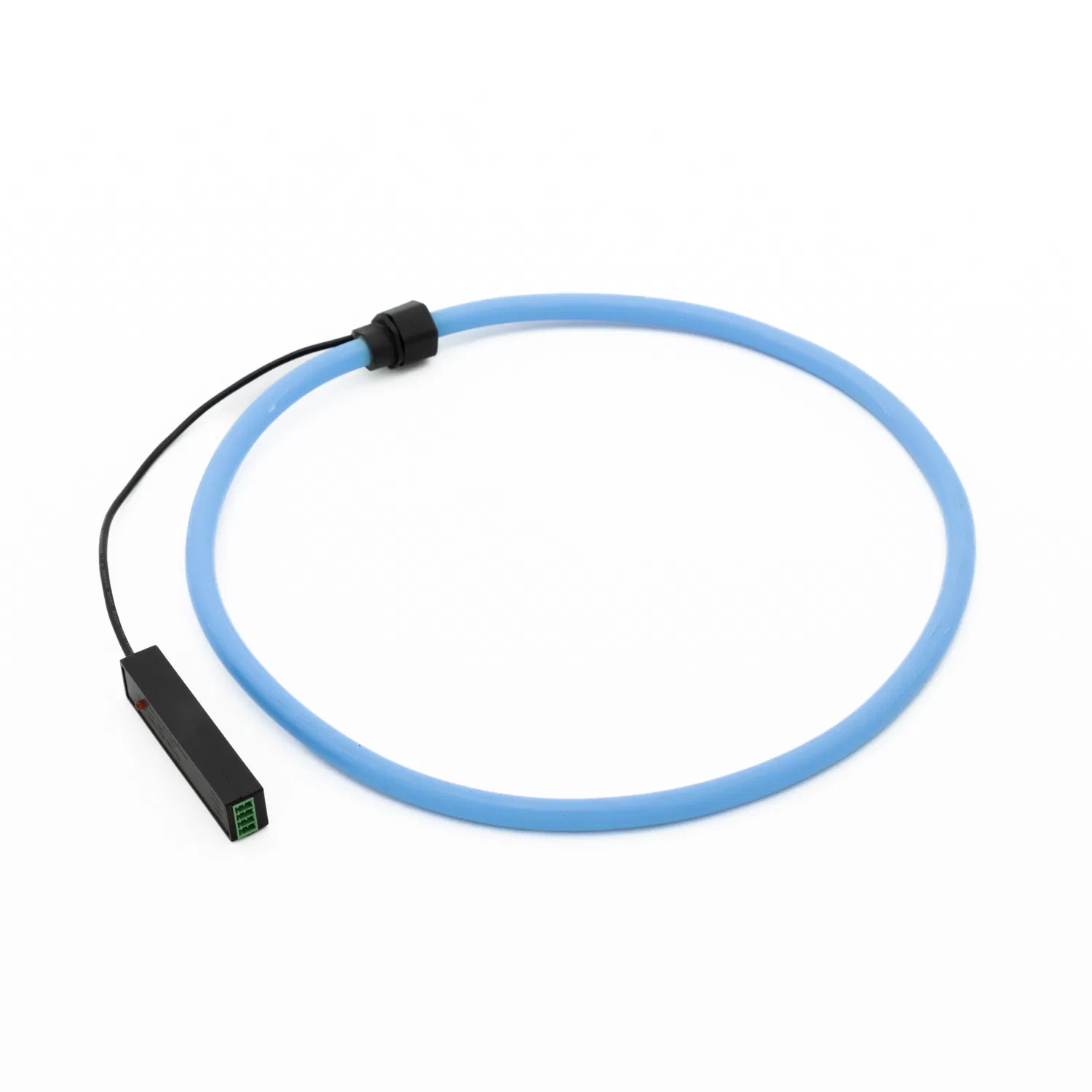

Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer

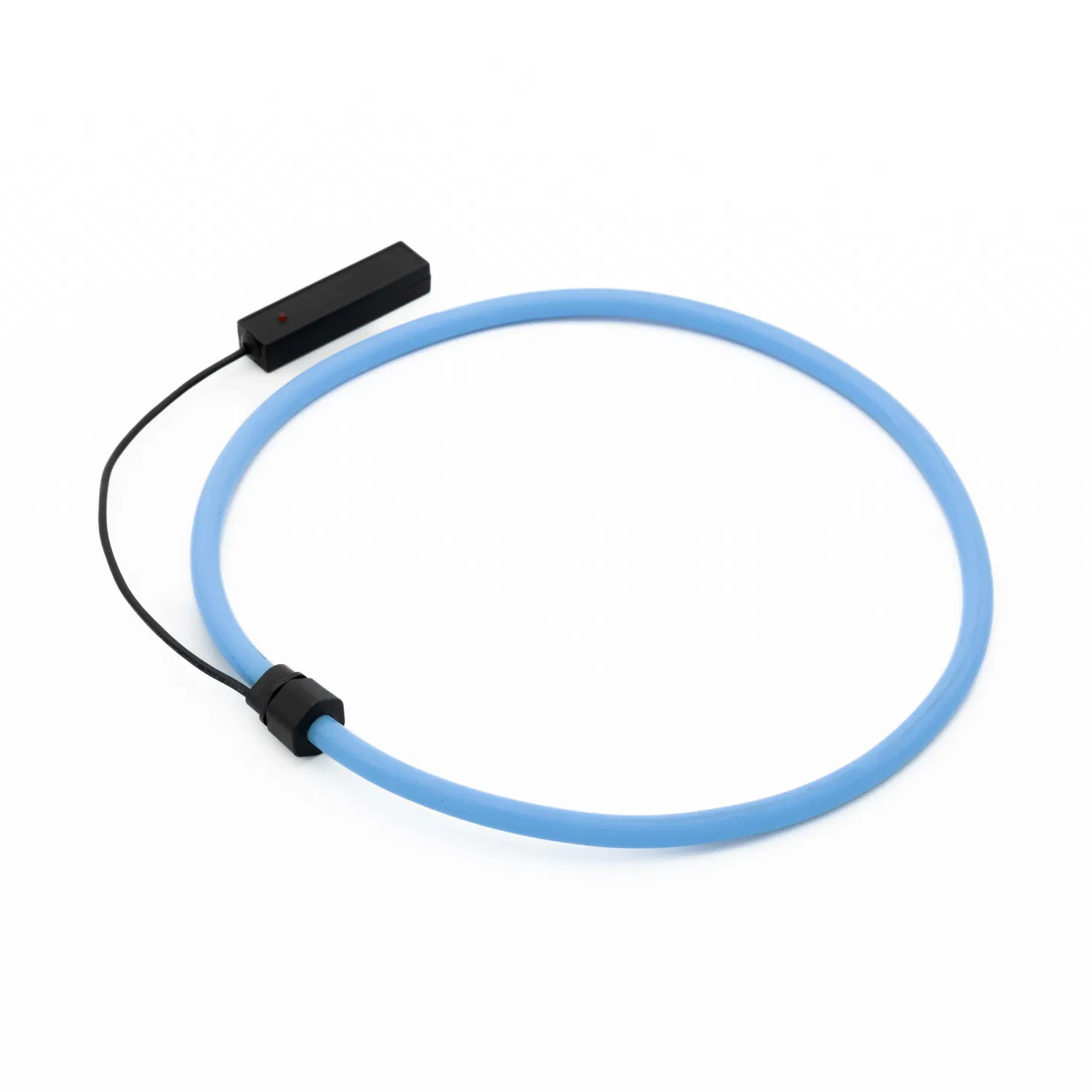

Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer
1 / 5
Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer
Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer
Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer
Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer
Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer

Rogowski Current Transformer 333mv Flexible CT Probe Rogowski Coil Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
TRKLS-04
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Insulating Paper
Installation
Active Type
Voltage Level
0.4/0.66/0.72kv
Rated Input Current
10~2000A
IP Protection Class
IP65
Skeleton and Quilt
Silicone Rubber
Origin
China

Product Overview

TRKLS-R series split-core three-phase flexible Rogowski coils are mainly used for the measurement and protection of three-phase current in power lines. The output signal is the differential of the current against time, and through an integrator, the measured current can be truly restored. The coil has excellent transient response ability, no hysteresis and magnetic and saturation phenomenon, wide measurement range, high precision and wide frequency response range. The split-core structure, flexible silicone rubber quilt and skeleton, can be used to measure the current of conductors with large size or irregular shape.
Rogowski Current Transformer

Performance Parameters

Technical Performance
Working Temperature -40ºC ~ +70ºC Relative Humidity ≤90%
Voltage Level 0.4/0.66/0.72KV Accuracy Class 5% (no integrator) / 1% (with)
Rated Input Current 10~2000A Phase Error ≤60' (45Hz~65Hz)
Linear Range 5%~200% Response Bandwidth 1Hz~1MHz
Shell Material PC Flame Retardant 94-V0 Protection Class IP65

Dimensions & Models

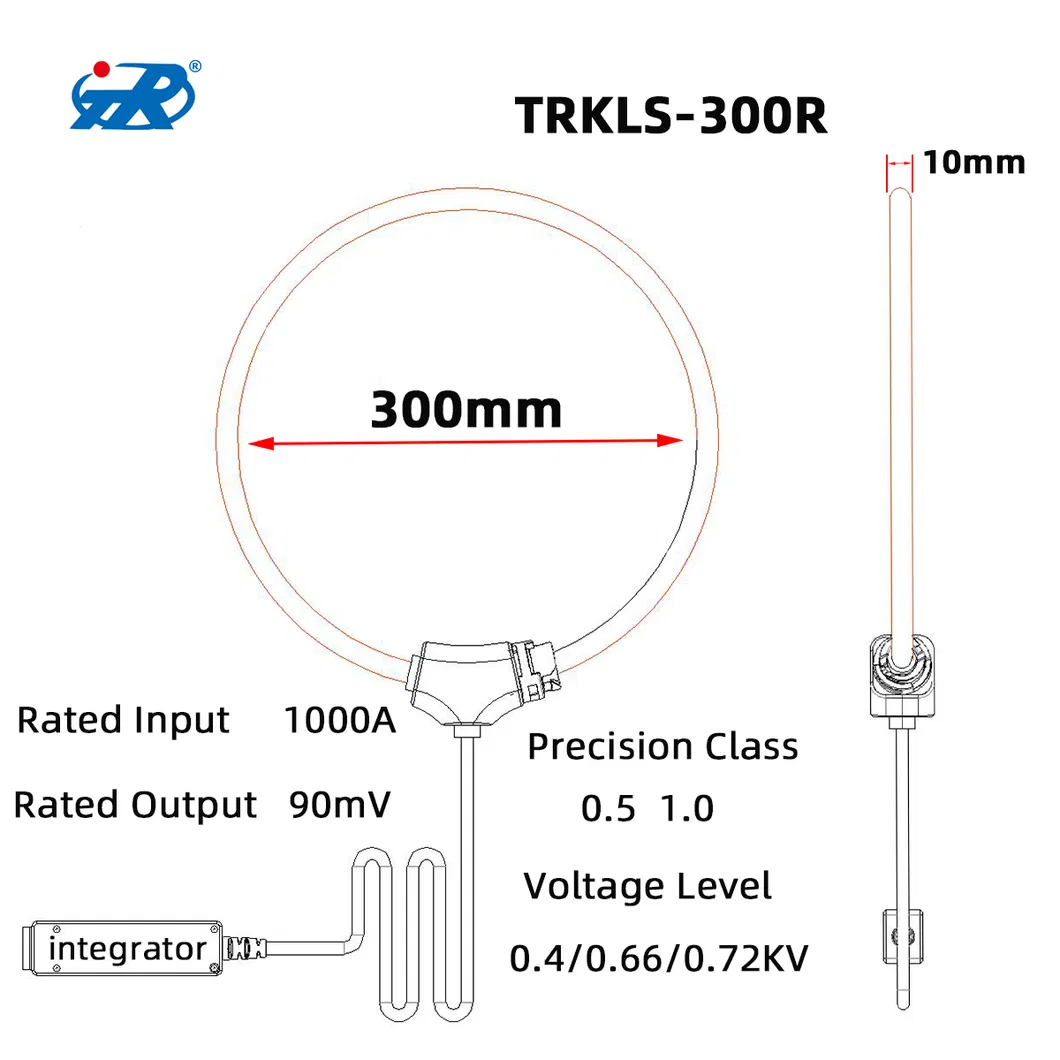

Model No. Rated Input Rated Output Precision Class Φ1 (mm) Φ2 (mm)

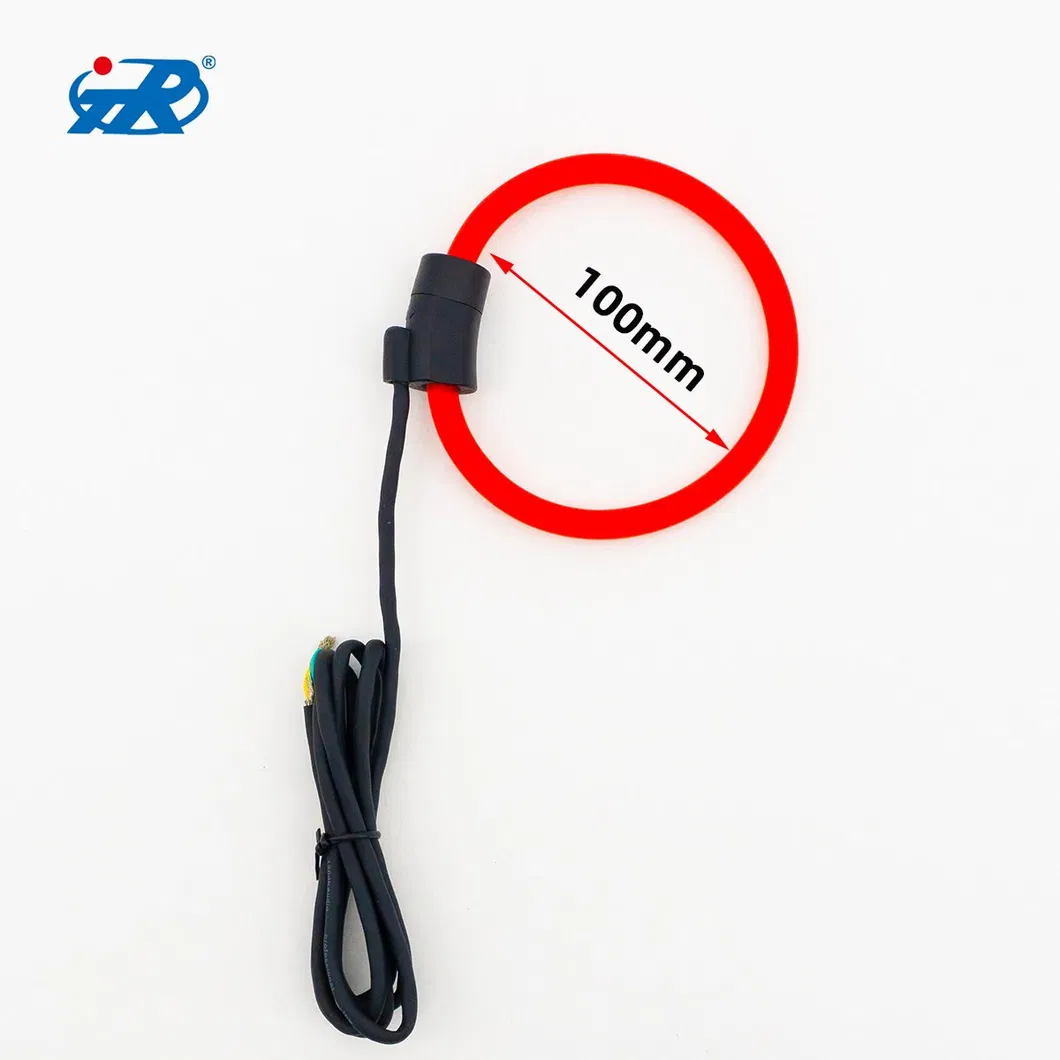

TRKLS-100R 600A 333mV 0.5 / 1.0 100 8

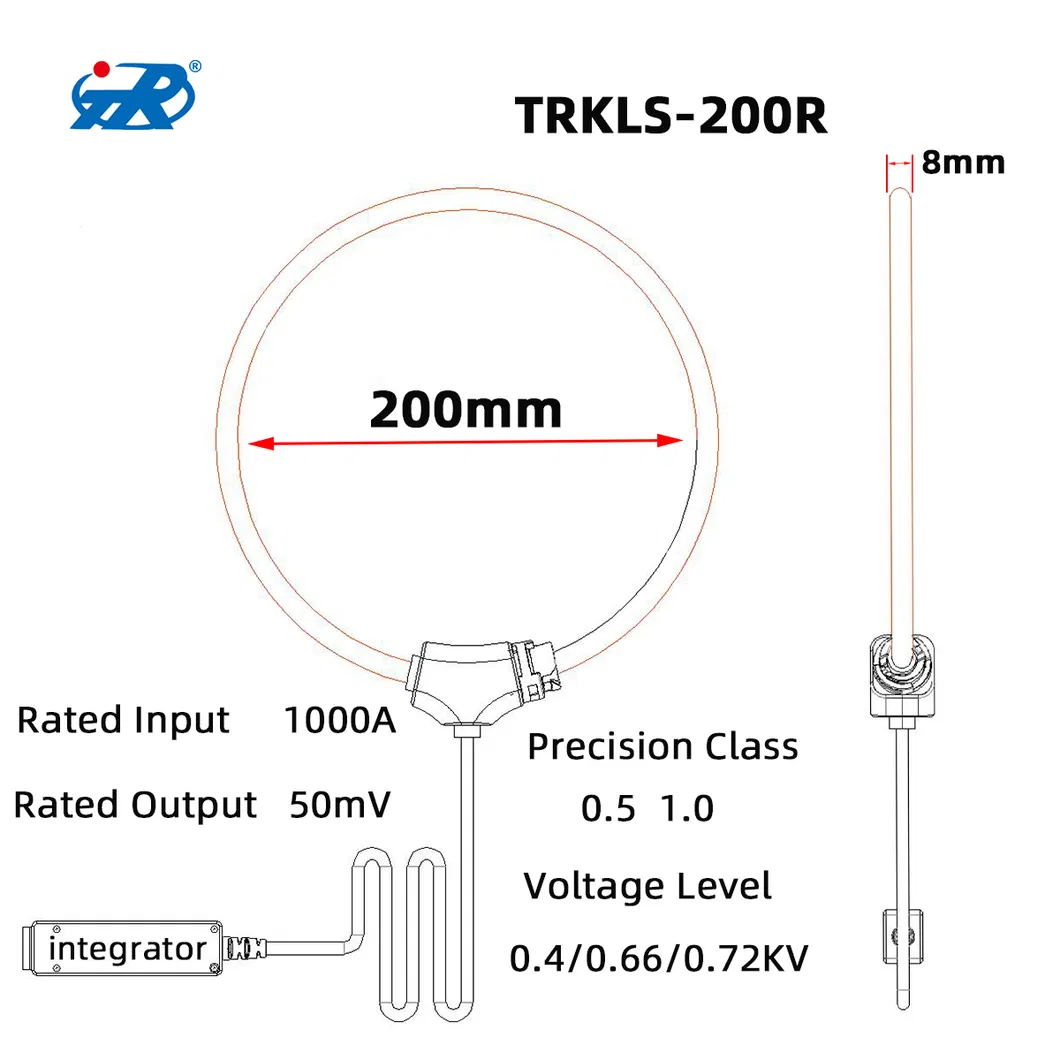

TRKLS-200R 1000A 50mV 0.5 / 1.0 200 8

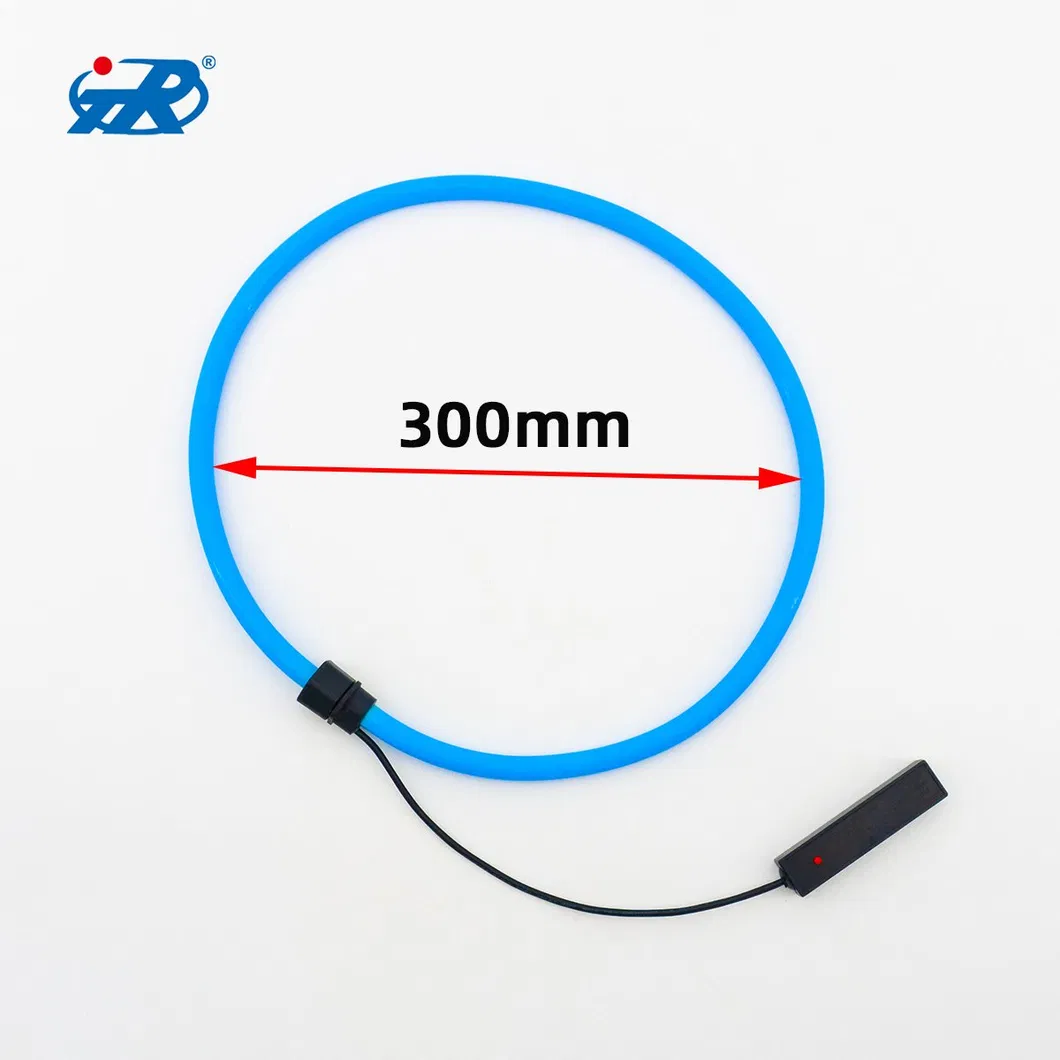

TRKLS-300R 1000A 90mV 0.5 / 1.0 300 10
Product Features

Product Features

  • Split-core structure for easy on-site installation without disconnecting cables.
  • Flexible design for detecting current in irregular primary conductors.
  • High linearity and wide frequency range with no magnetic saturation.
  • Secondary output via RJ45 terminal, customizable cable lengths.

Scope of Application

Measurement of high current AC signals (short-circuit current), pulse signals (lightning current), harmonic analysis, electric welding machines, and irregular conductor currents like rail current measurement.

Application Scope

Product Gallery

Gallery Image 1

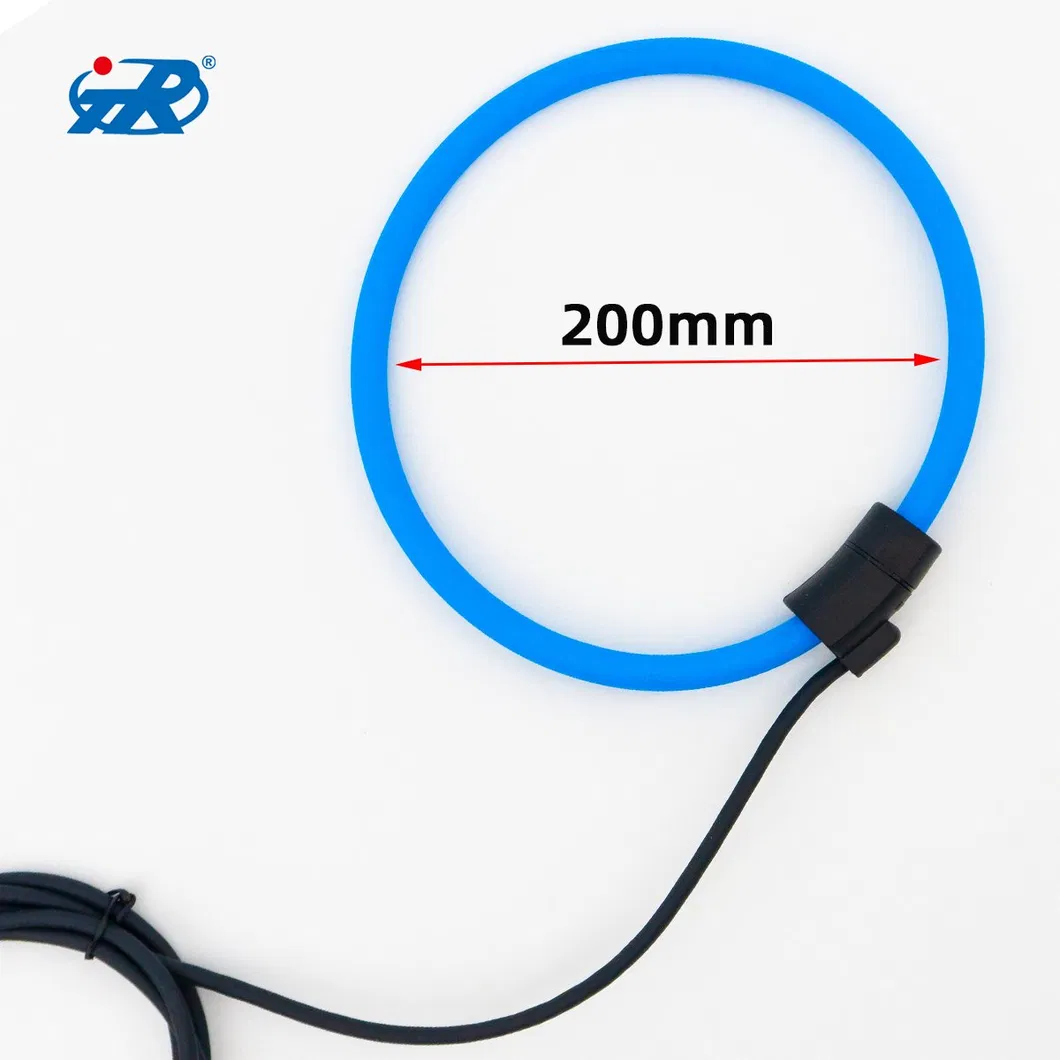

Gallery Image 2
Gallery Image 3

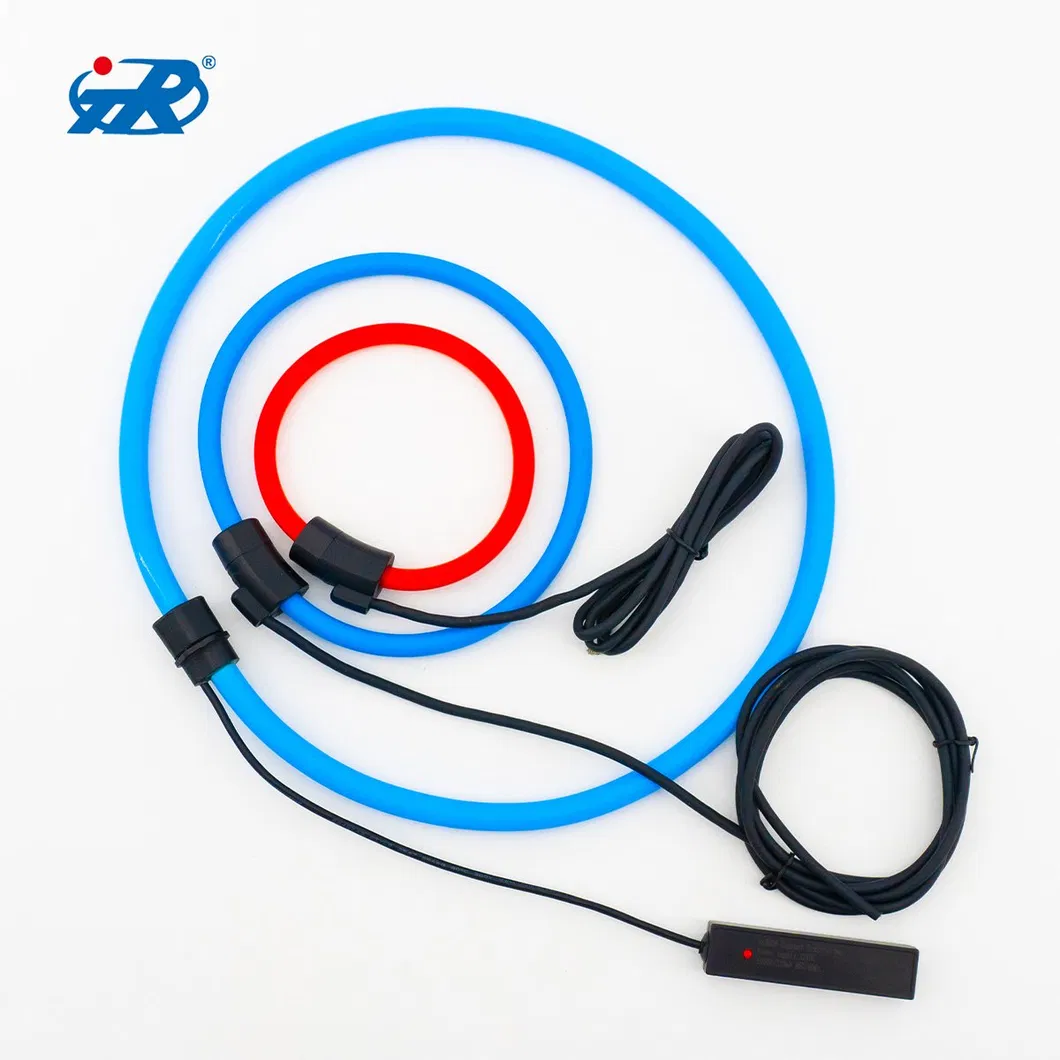

Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7
Gallery Image 8
Gallery Image 9
Gallery Image 10
Gallery Image 11
Gallery Image 12
Gallery Image 13

Frequently Asked Questions

What is the advantage of the split-core design?
The split-core structure allows for quick and easy installation or removal without disconnecting the primary cable, ensuring safe and efficient current testing.
Does the Rogowski coil experience magnetic saturation?
No, because it has no magnetic core, it is free from hysteresis and magnetic saturation, allowing for a very wide measurement range and high linearity.
What is the protection rating of this product?
The TRKLS-R series has an IP65 protection class, making it suitable for various indoor environments with high durability.
Can it measure irregular conductor shapes?
Yes, the flexible silicone rubber skeleton and quilt allow the coil to be used on conductors with large sizes or irregular shapes where traditional CTs cannot be used.
What is the operating temperature range?
The product is designed to operate reliably in temperatures ranging from -40ºC to +70ºC.
What kind of output terminal does it use?
The secondary output typically adopts an RJ45 crystal terminal network cable, and the length can be customized based on specific requirements.
