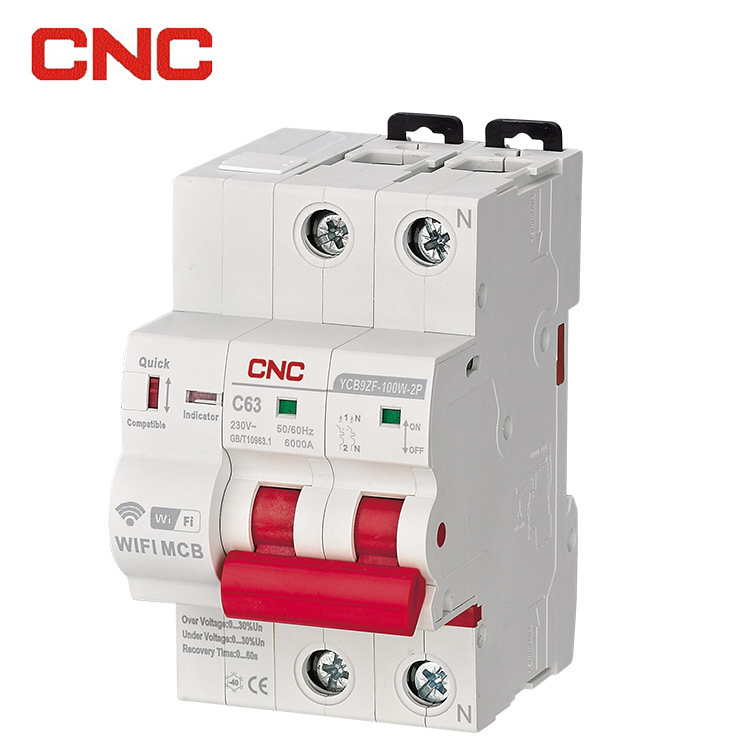

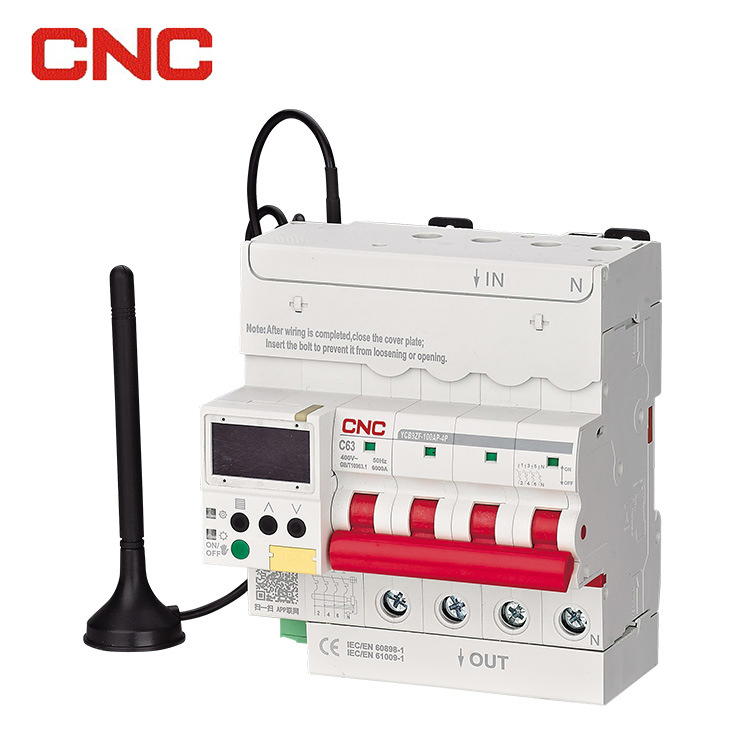

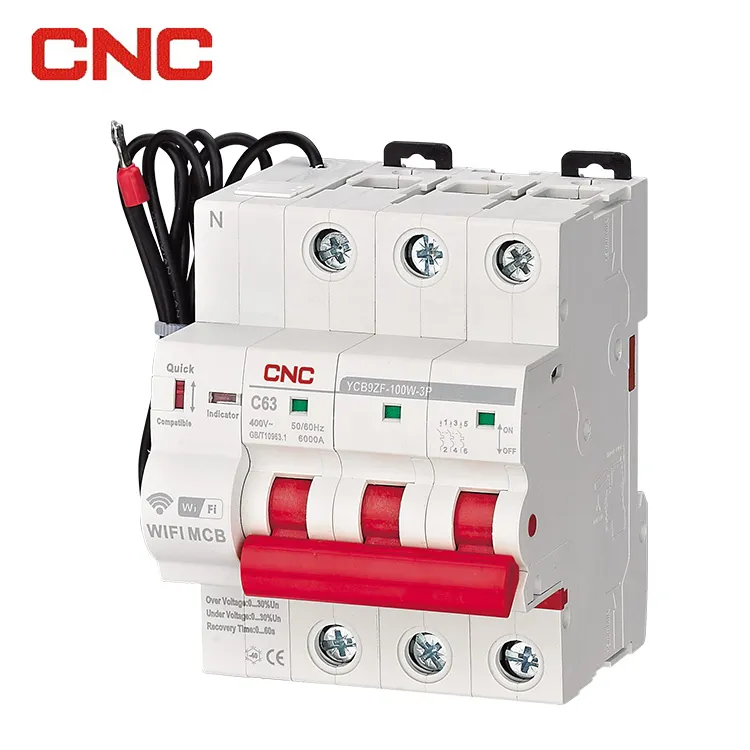

Low Voltage Breakers Manual Type Electric Energy Consumption Miniature Circuit Breaker

Customization: Available
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type

Product Description

i

Basic Specifications

Model NO.
YCB9ZF
Speed
Normal Type Circuit Breaker
Arc-extinguishing
Air
Installation
Insert
Structure
MCB
Poles Number
1p, 1p+N, 2p, 3p+N, 4p
Certification
CE
Rated Voltage
Single-Phase AC230V; Three-Phase AC440V
Rated Current
0~63A, 100A
Residual Current
0-500mA (Adjustable)
Breaking Capacity
Icn=Lcs=6ka
Protection Grade
IP20
!

Product Description

Low Voltage Breakers Manual Type Electric Energy Consumption Miniature Circuit Breaker

YCB9ZF series Internet of Things circuit breaker is a multi-functional intelligent switch that integrates the functions of electric quantity measurement, overload, short circuit, over-low voltage, leakage, over-temperature protection, remote opening and closing, timing, network communication, etc.

It can be widely used in smart electricity management places such as commerce, agriculture, schools, hospitals, hotels, entertainment places, railway stations, cultural relic protection units, urban street lamp control, etc. It can also be widely used in energy management of industrial and mining enterprises, office buildings and other places.

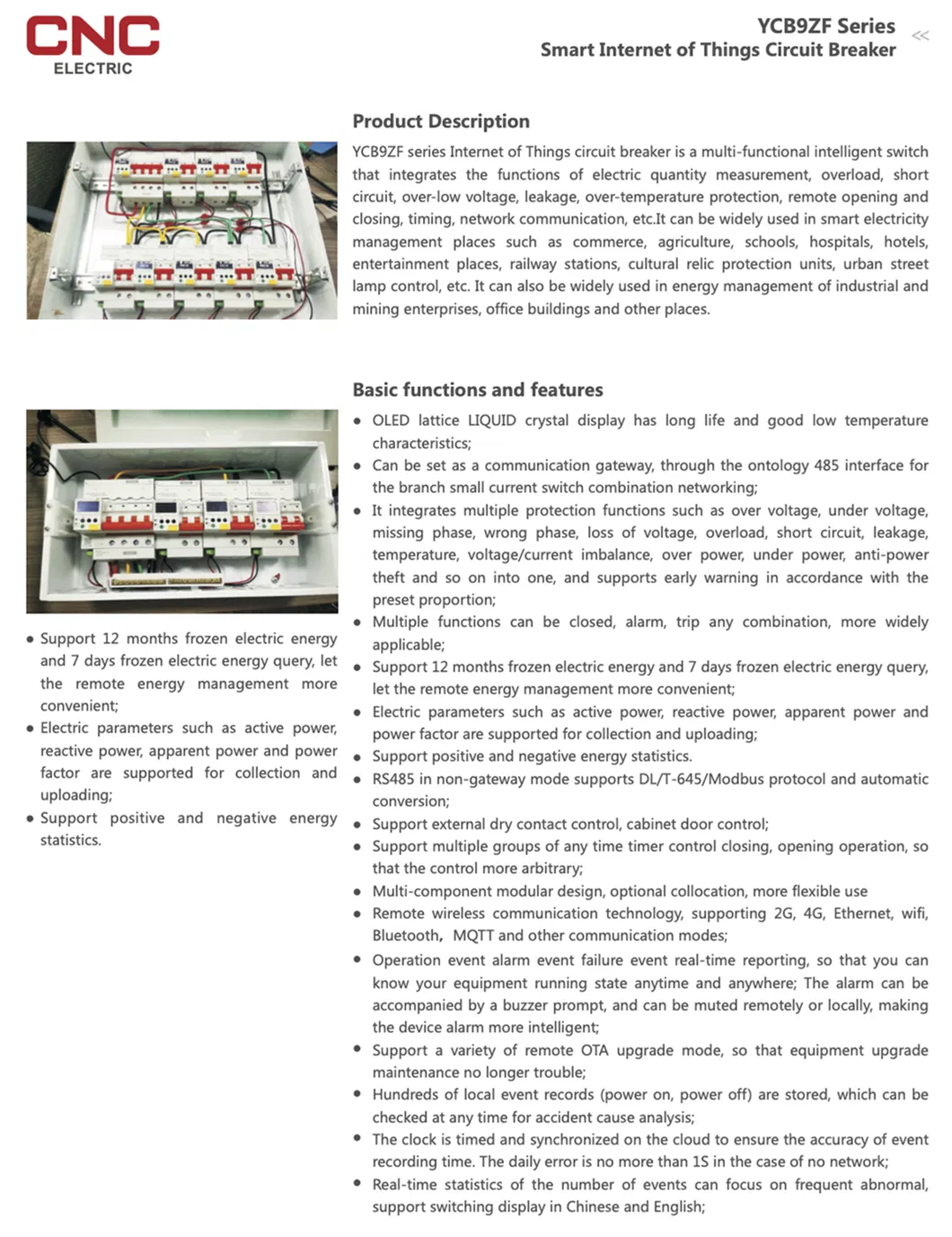

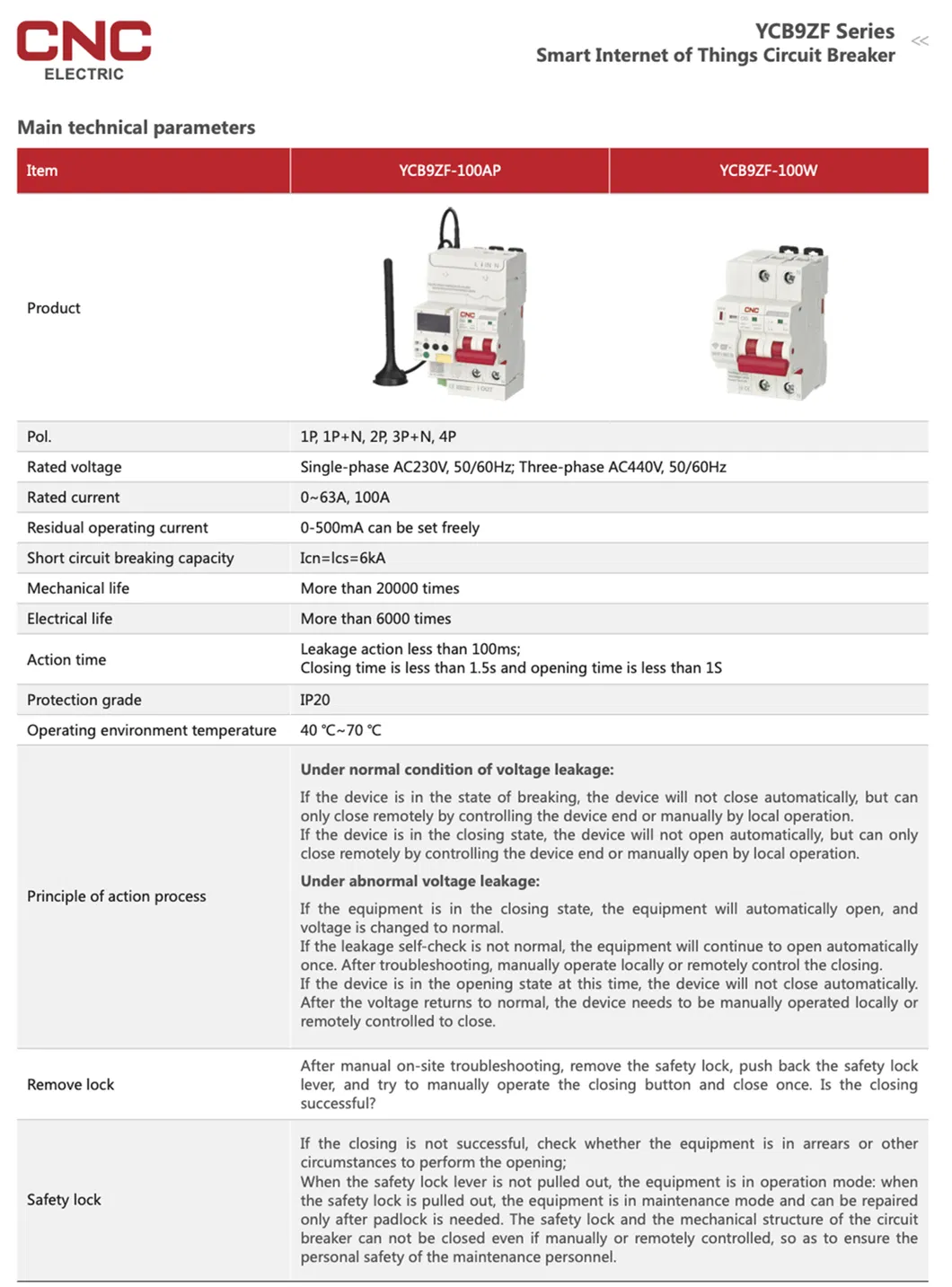

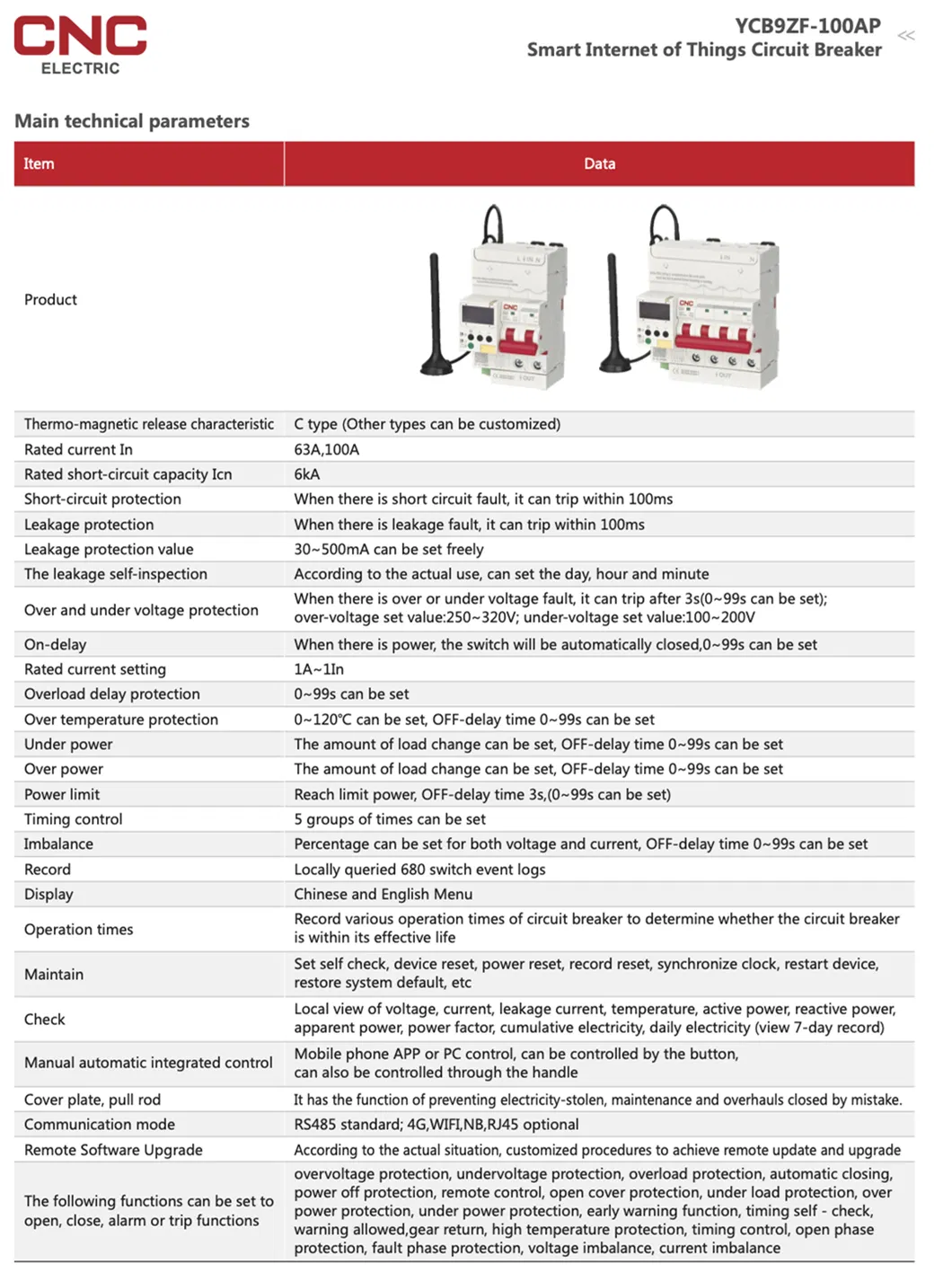

Technical Specifications Detail
V

Visual Documentation

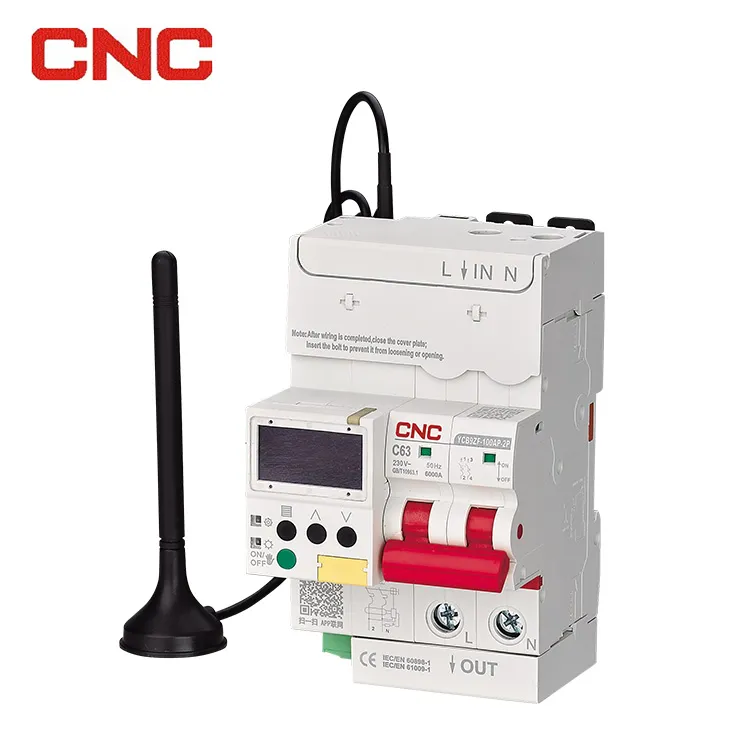

Detailed Product View
Internal Structure
Wiring Diagram
?

Frequently Asked Questions

1. What are the key features of the YCB9ZF series circuit breaker?
The YCB9ZF series is an IoT-enabled intelligent switch that combines electric quantity measurement, overload and short circuit protection, over-low voltage protection, leakage protection, and remote opening/closing capabilities via network communication.
2. Where can this intelligent circuit breaker be applied?
It is ideal for smart energy management in diverse sectors including commerce, agriculture, schools, hospitals, hotels, railway stations, urban street lamp control, and industrial or mining enterprises.

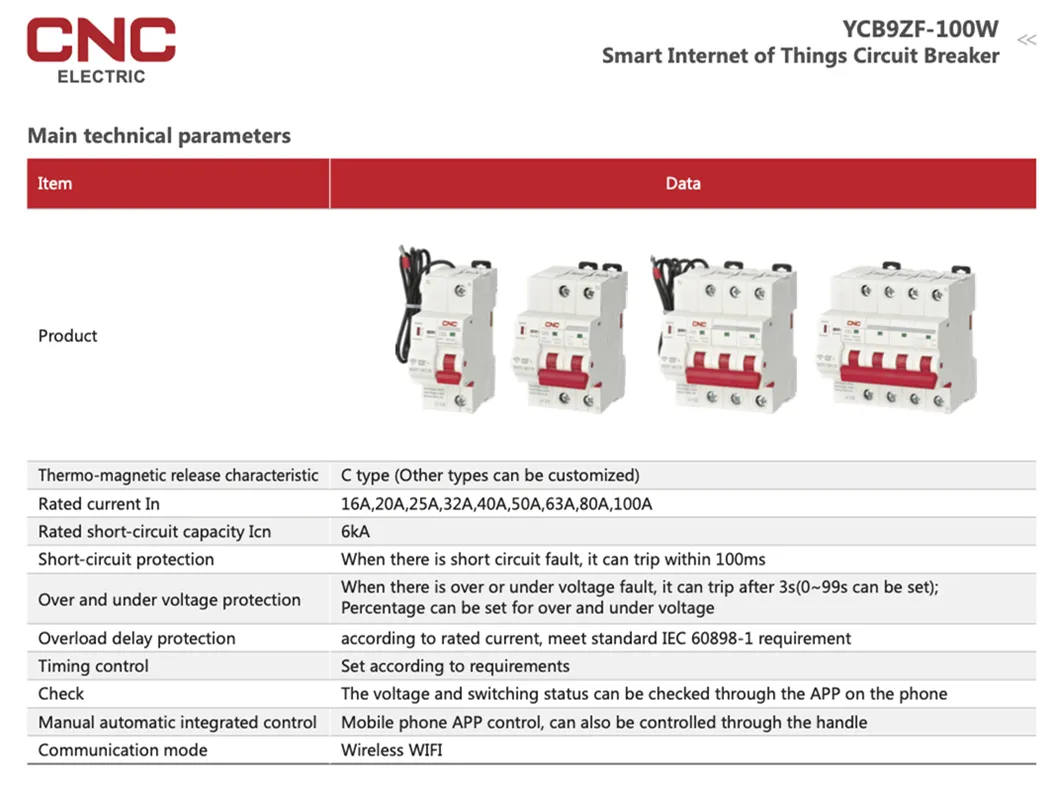

3. What are the electrical ratings for this device?
The rated voltage supports single-phase AC230V (50/60Hz) and three-phase AC440V. The rated current range is between 0-63A and up to 100A, with a short circuit breaking capacity of 6ka.
4. Can the residual operating current be adjusted?
Yes, the residual operating (leakage) current can be set freely within the range of 0-500mA according to specific safety requirements.
5. What is the expected lifespan of the YCB9ZF circuit breaker?
The device is designed for durability, featuring a mechanical life of more than 20,000 operations and an electrical life exceeding 6,000 operations.
6. Does it support remote monitoring and timing?
Yes, as an Internet of Things (IoT) device, it supports remote opening and closing, timing functions, and continuous network communication for intelligent electricity management.
