| Model NO. | XH-SCT-S21 | Phase | Single |
| Operation Condition | Indoor | Usage | Protection, Measurement |
| Winding Form | Multilayer Honeycomb Type | Insulating Medium | Insulating Paper |
| Installation | Extension Type | Hole Size | 21mm |
| Current Rating | 300A | Output | 100mA |
| Current Error | 0.5 Class | Material | Nylon |

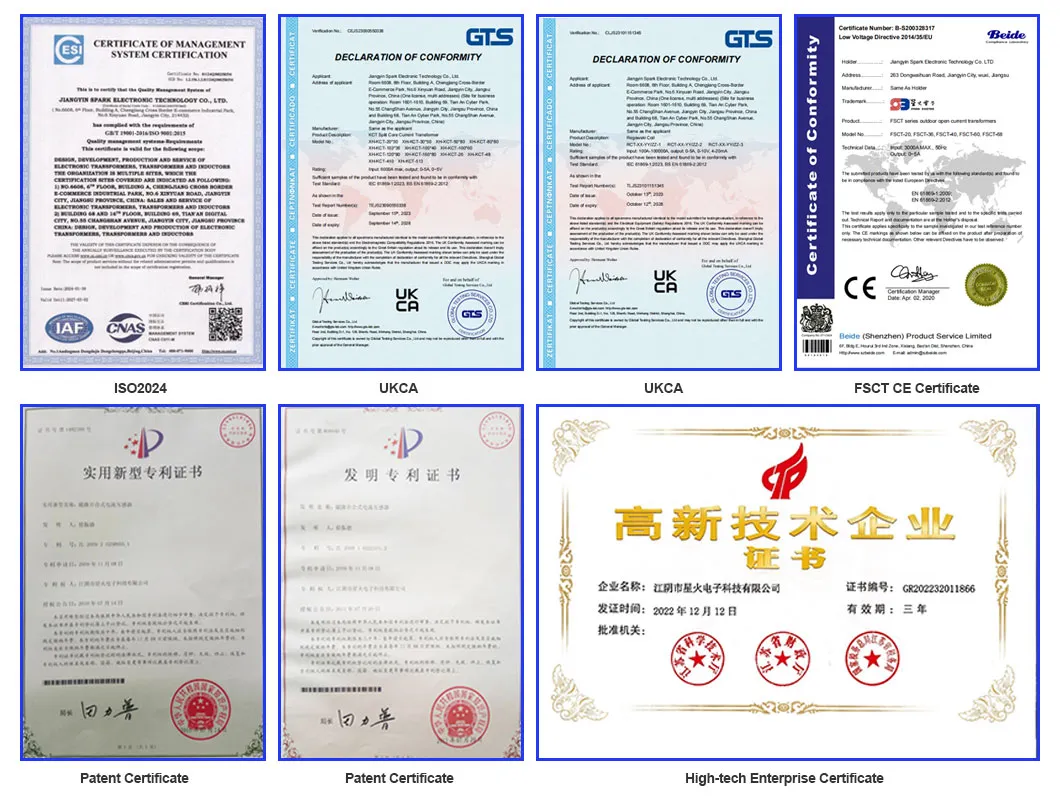

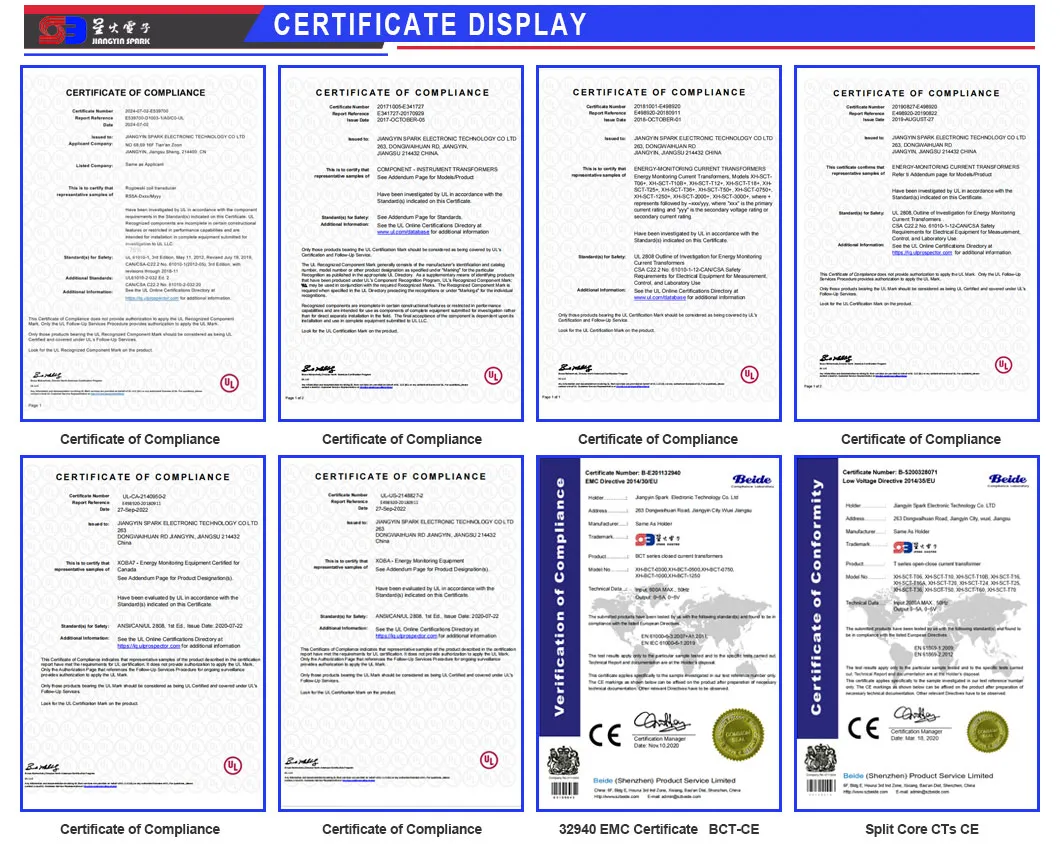

| Production Capacity | 250,000 PCS/Month | Certificate | UL2808, CE, ROHS, ISO9001 |

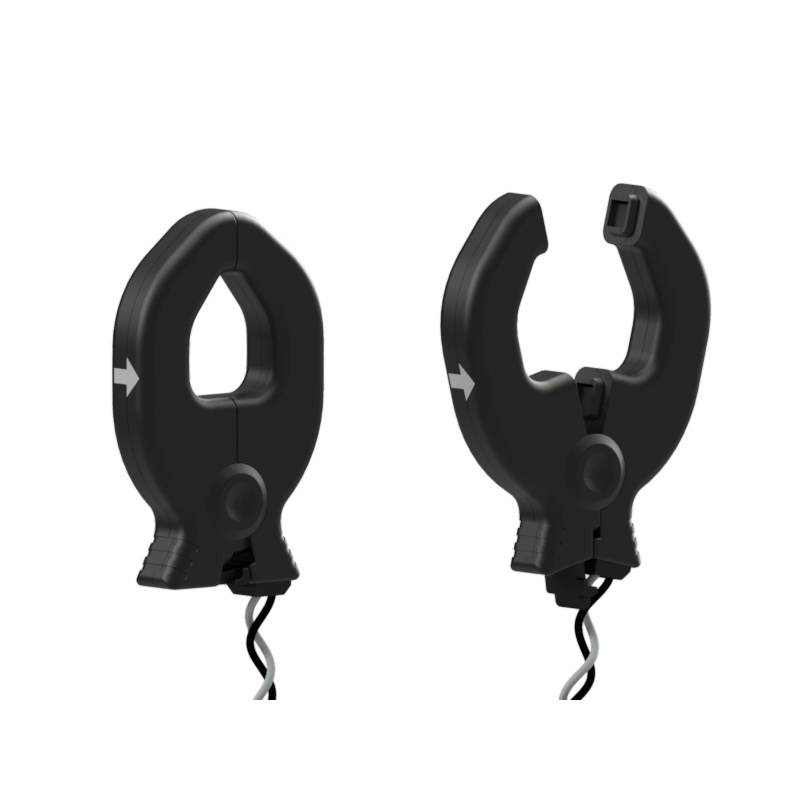

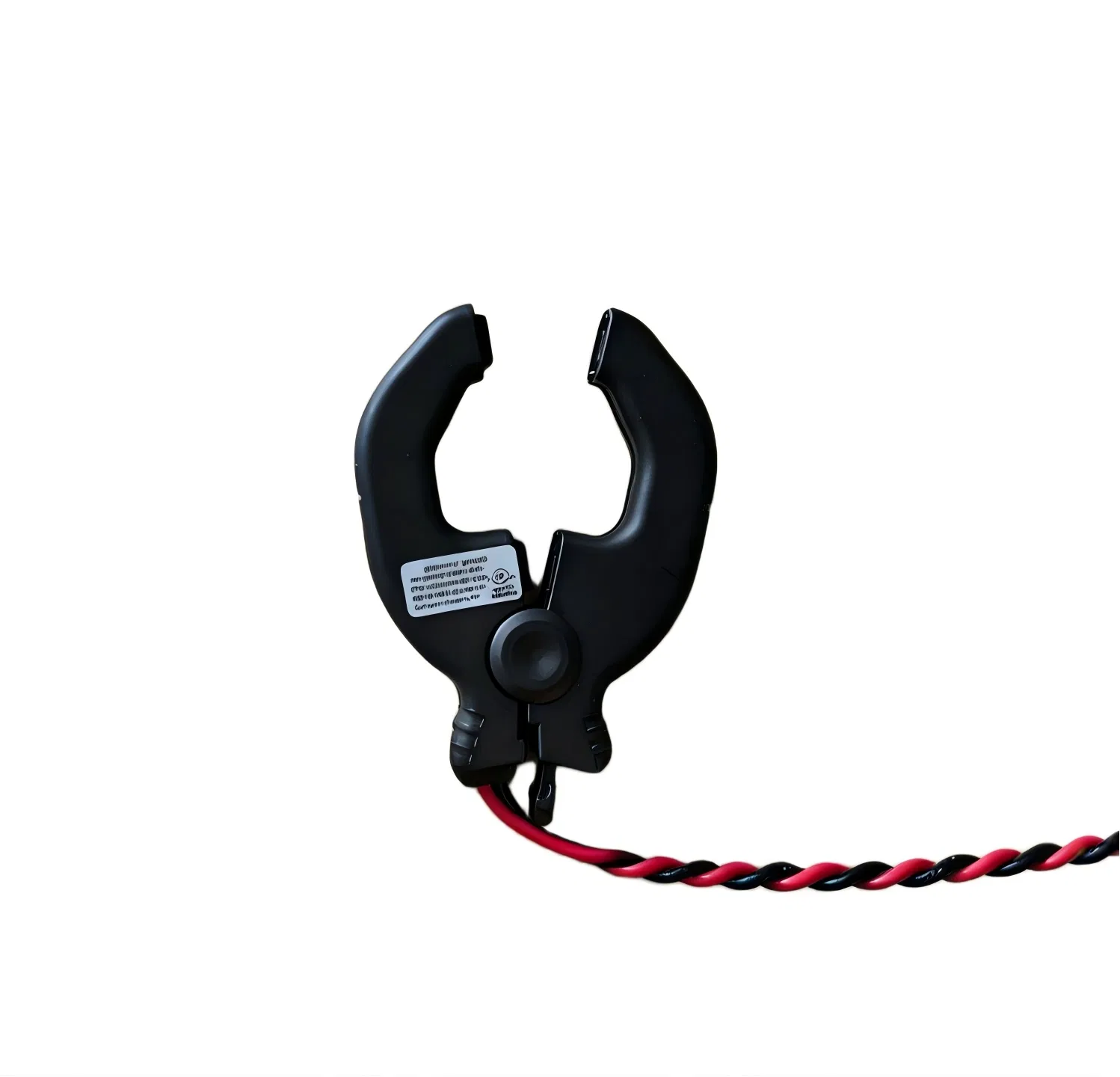

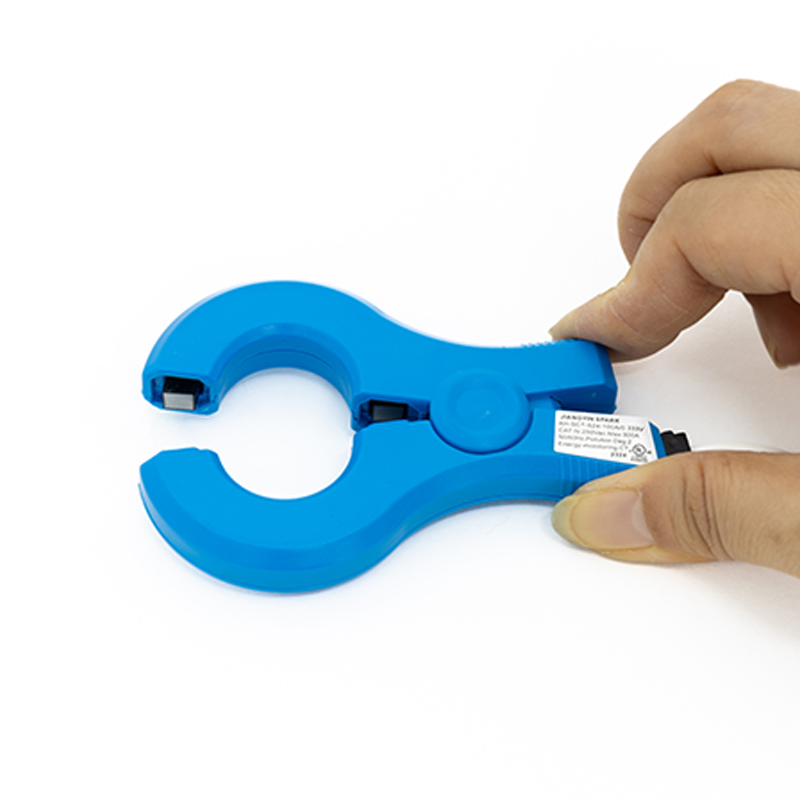

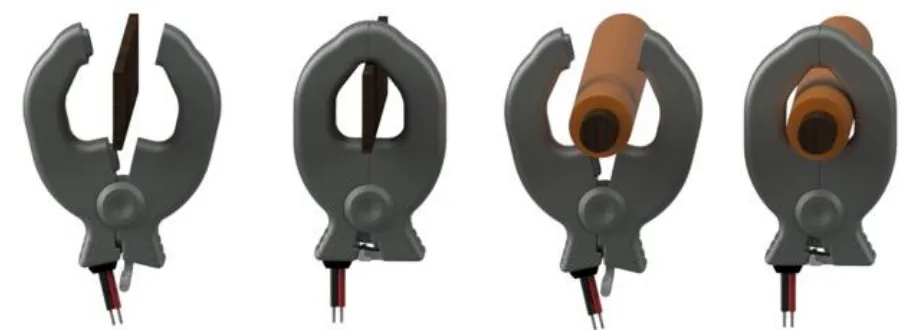

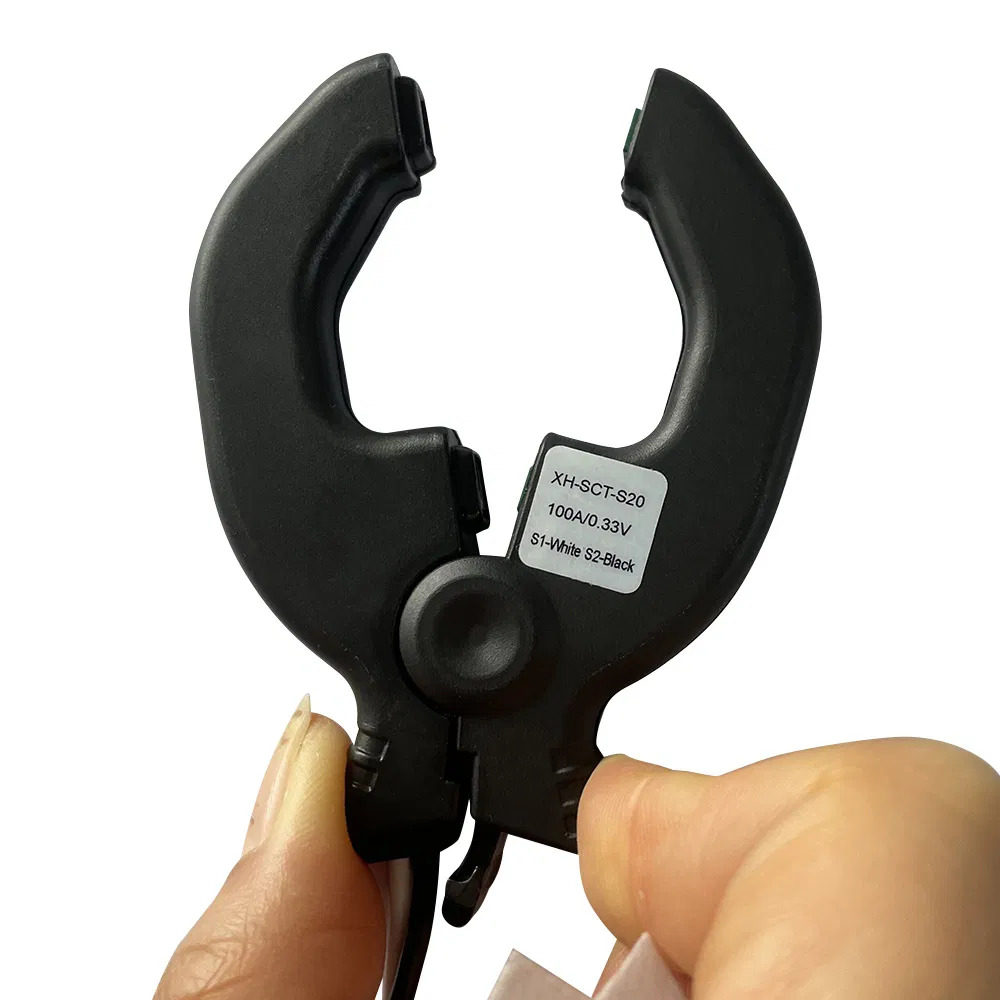

The XH-SCT-S21 Clamp on current sensor senses AC current from 50 to 300 Amps passing through the center conductor. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement.
| Model | Input current(A) | Max current(A) | Output |
|---|---|---|---|
| XH-SCT-S21 | 0.2-300Aac | 320Aac | mA / 0.333Vac / 0-3Vac |

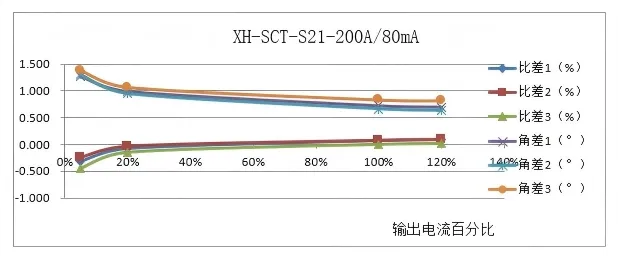

| Accuracy | ± 0.5% |
| CT Phase Angle | Rated input < 1.5 Degrees |
| Nominal Line Frequency | 50 / 60 Hz |
| Current Rating | 10-300 A |
| Output Ratio | 2500:1, 3000:1, 4000:1, 5000:1 etc. |
| Over voltage Category | CATIII 600V |

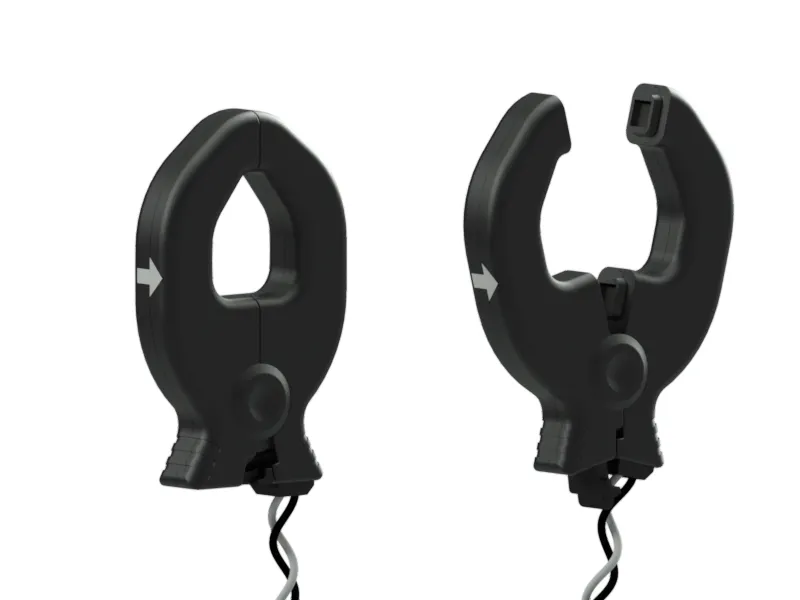

| Type | Split core, clamp design |

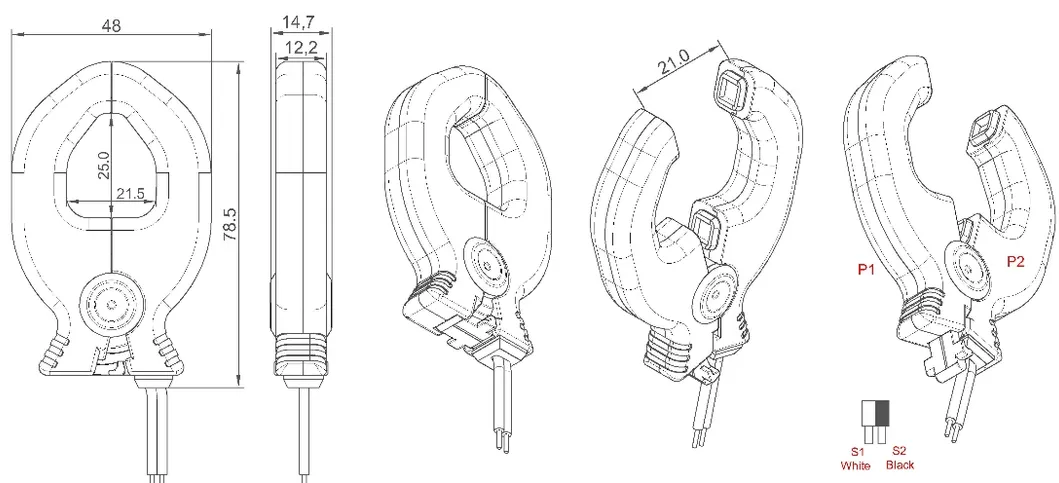

| Average Window Diameter | 21.5mm (tolerance +/- 0.5mm) |

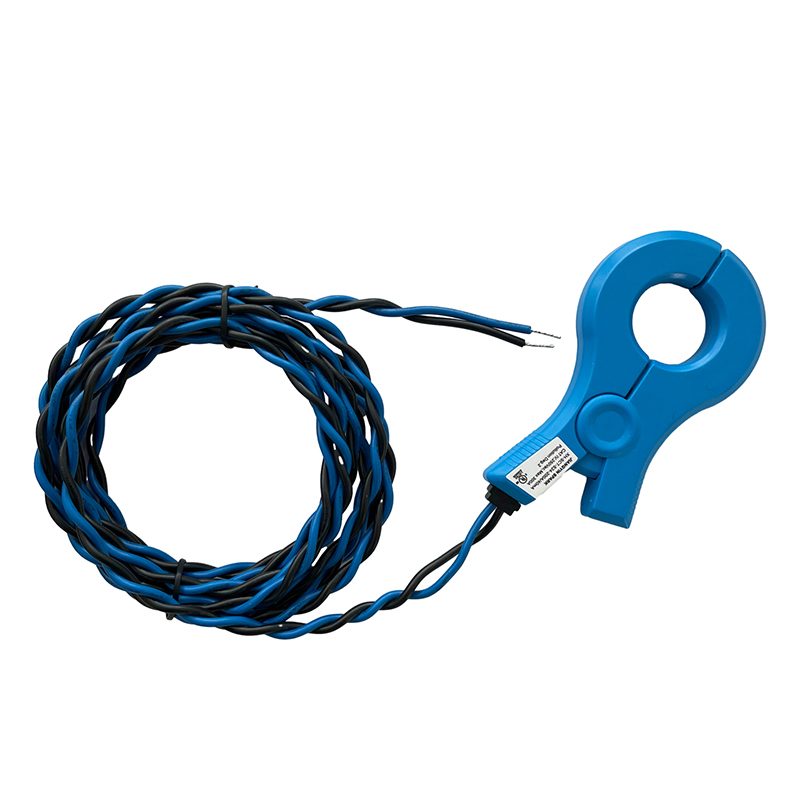

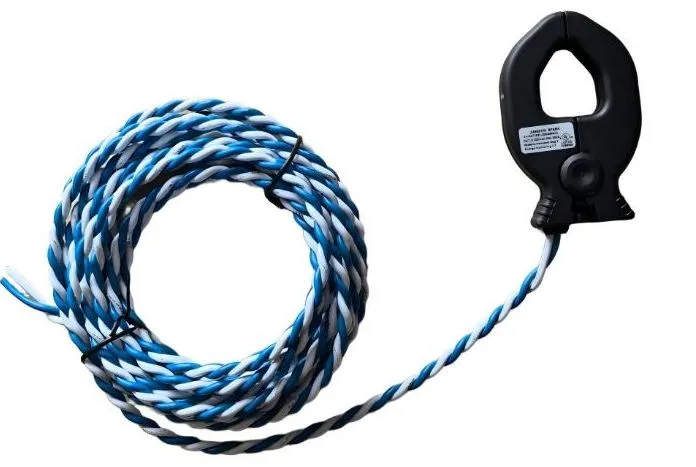

| Lead Wire | Twisted pair, MTW UL1015, 22 AWG, 1m/2.4m/5m |
| Operating Temperature | -40 to 85 °C |
| IP Rating | IP30 (NEMA 1) |
| Model | I.D. | Input Current | Output | Accuracy |
|---|---|---|---|---|
| XH-SCT-S16 | 16mm | 0.2-150Aac | mA/0.333Vac | 0.5, 1.0 |
| XH-SCT-S21 | 21mm | 0.2-300Aac | mA/0.333Vac | 0.5, 1.0 |
| XH-SCT-S24 | 24mm | 0.2-300Aac | mA/0.333Vac | 0.5, 1.0 |
| XH-SCT-S50 | 50mm | 50-1000Aac | 1A, 5A, mA | 0.5, 1.0 |
Package: All CTs are well packed with bubble wrap and white boxes in a sturdy outer carton. OEM packaging and custom labeling are available.
Shipping: We ship via UPS, DHL, FedEx, TNT (door to door), or by air/sea for large quantities. Lead time is typically 3-7 days for standard orders under 1000PCS.
Warranty: 1-year warranty provided. Defective products must be reported within 3 days of receipt for refund or exchange.
Our Commitment: Factory direct sales for better pricing, 20+ years of experience for superior quality, and 24-hour rapid response.
