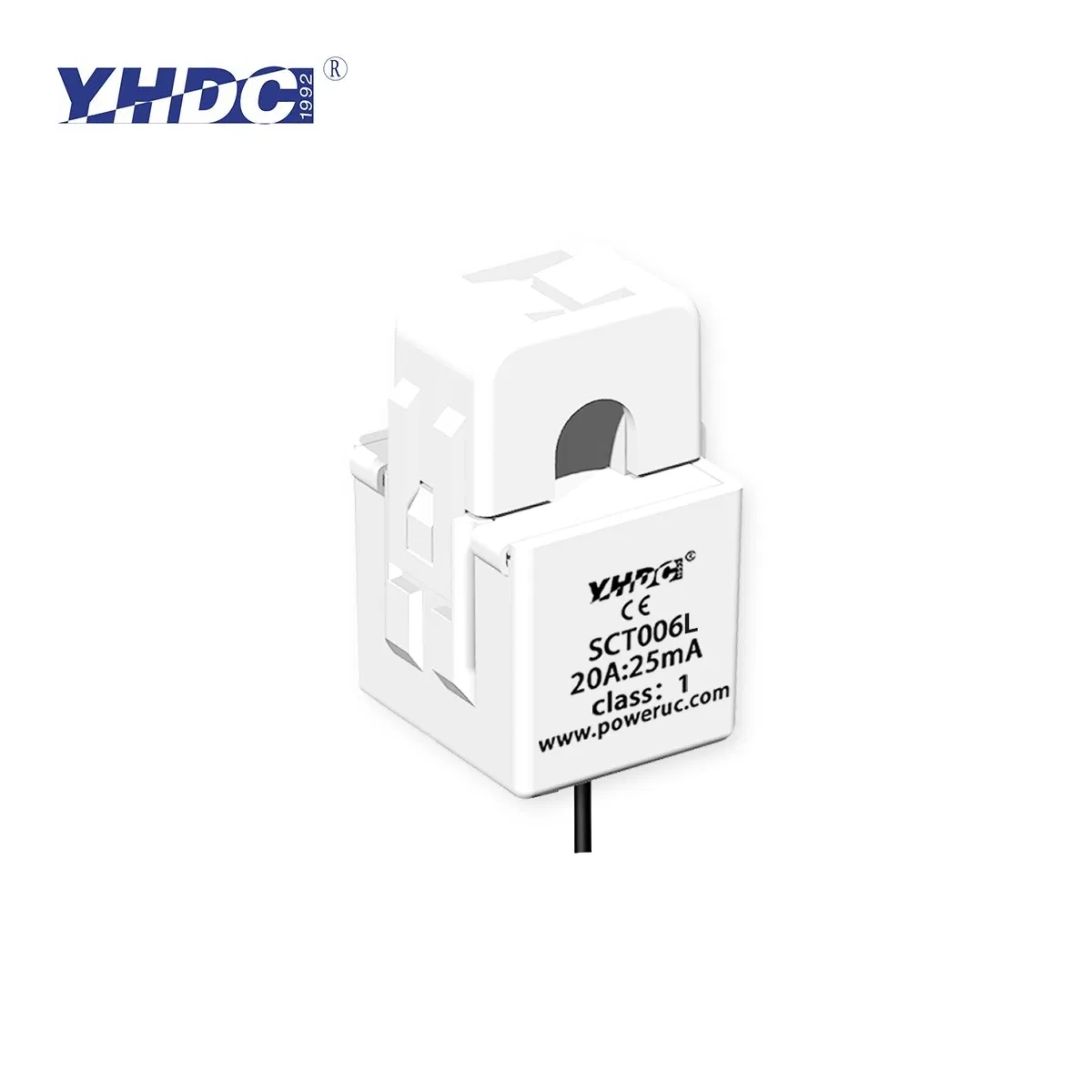

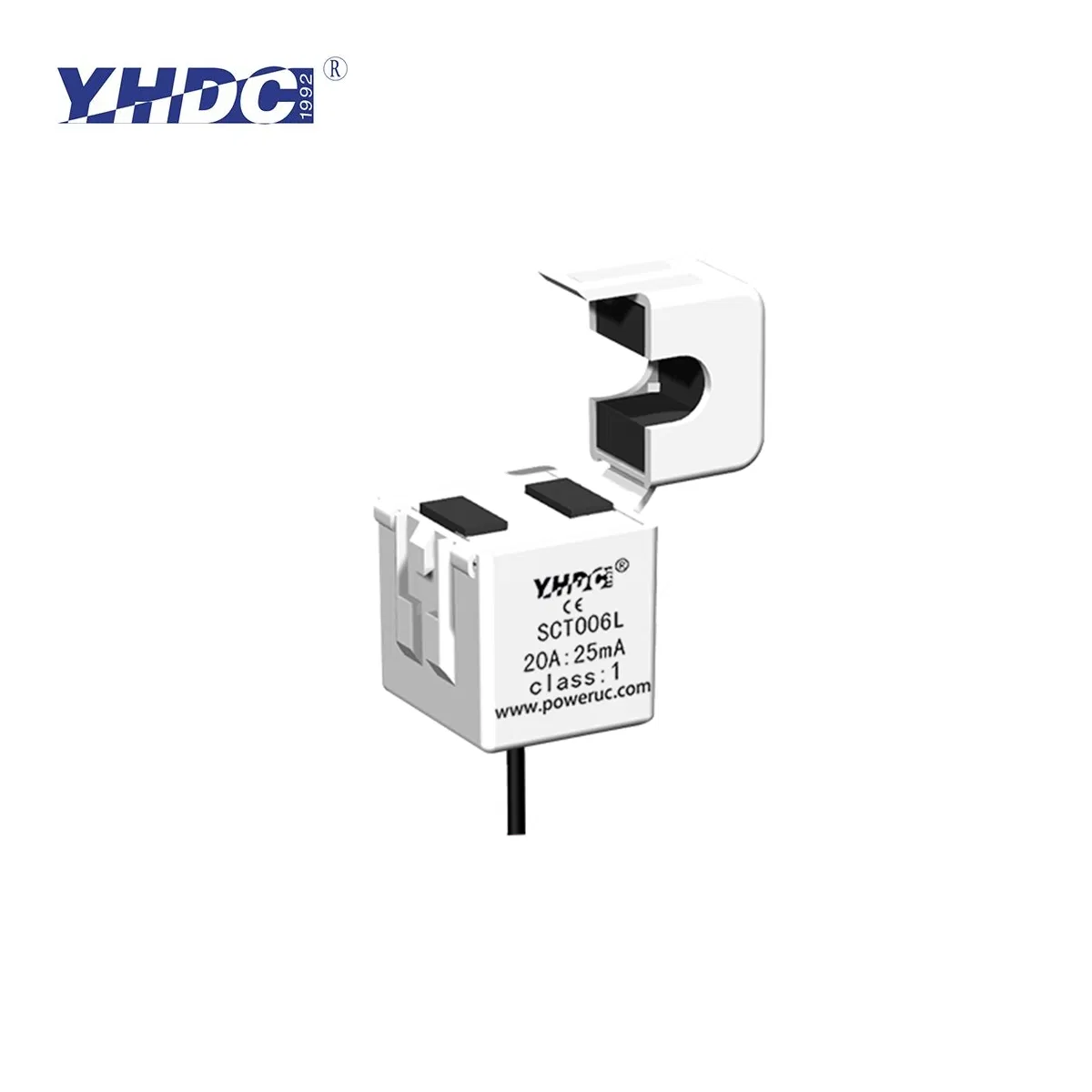

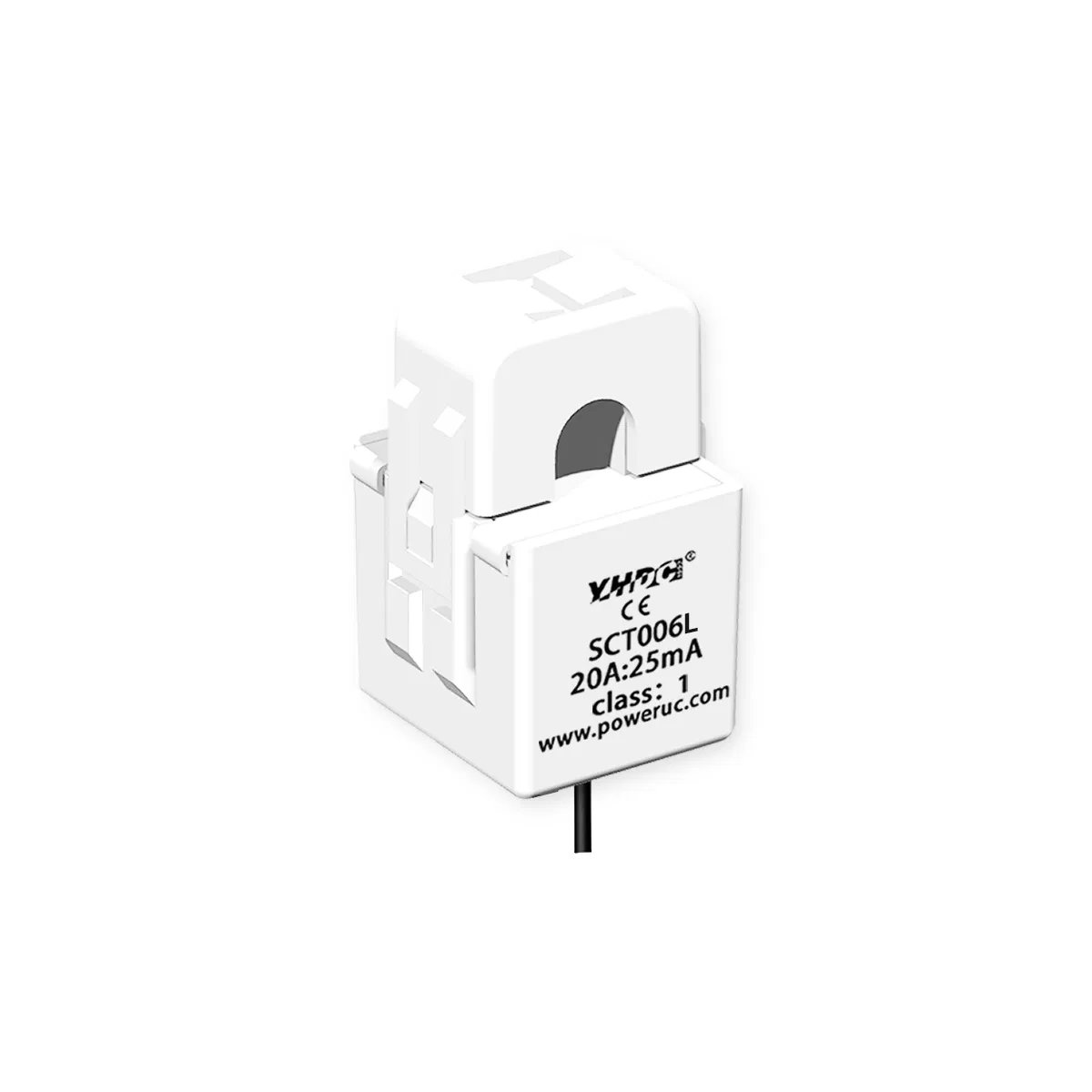

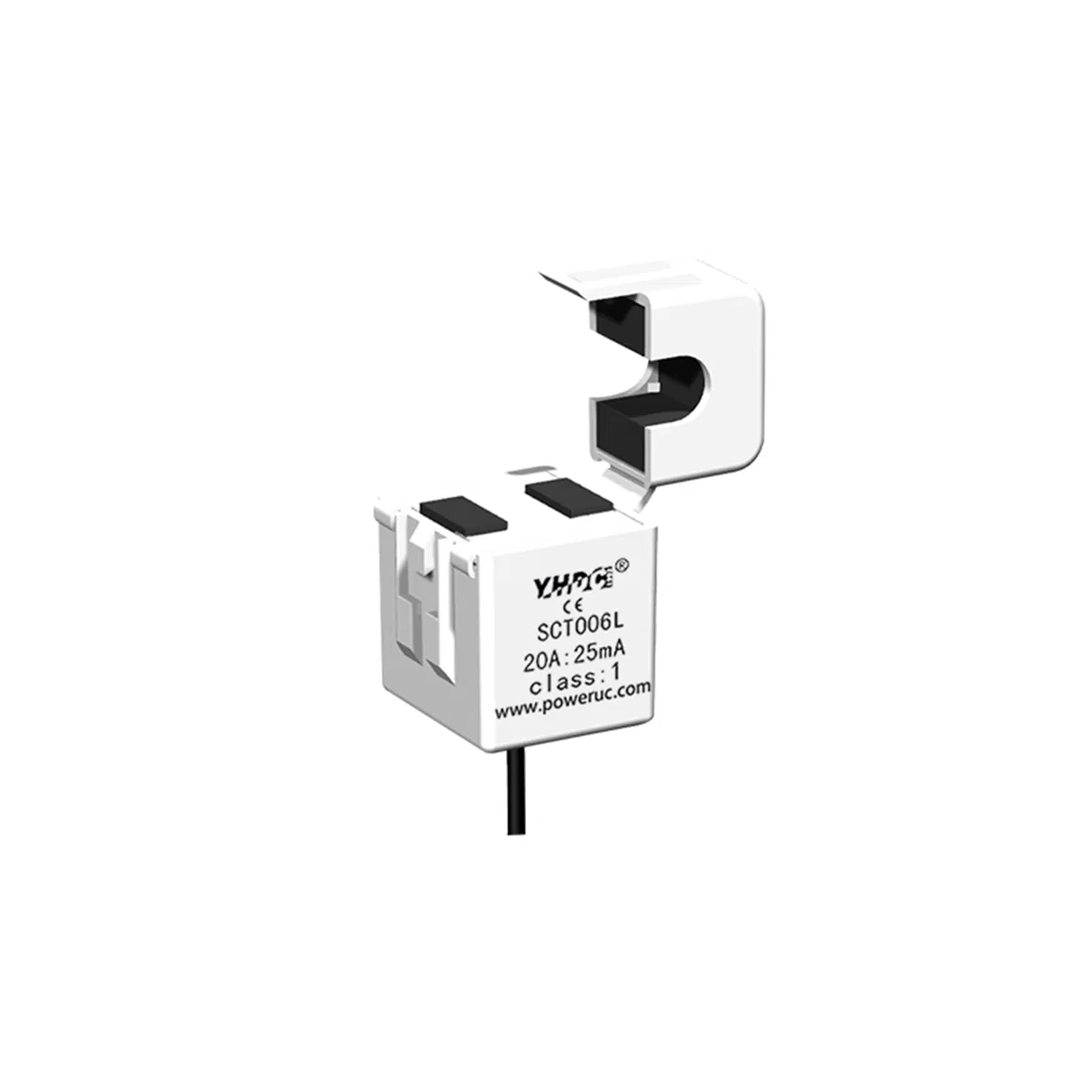

Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
1 / 5
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L
Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L

Yhdc 6mm Hole Split Core Current Transformer, Current Clamp Sct006L

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
SCT006L
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound
Insulating Medium
Insulating Paper
Installation
Free Hanging (in-Line)
Magnetic Structure
Single Stage Type
Core Material
Ferrite
Opening Size
6mm
Input Range
1A/5A/10A/20A
Output Range
1mA - 25mA
Accuracy
1% or 0.5%
Rated Voltage
720V
Frequency
50-1kHz
Certificates
CE/RoHS/Reach/ISO9001
🔍

Product Overview

6mm Hole Split Core Current Transformer, Current Clamp SCT006L

Split core current transformers are designed for installation on current-intensive power lines or equipment. They output measured current signals for monitoring, measurement, or protection purposes.

The SCT type split core current transformers are specifically engineered to be compact and easy to open while maintaining the high accuracy required for kWh meters. The primary benefit is the ability to place them into position easily without disturbing or disconnecting the main cables being monitored.

⚡

Key Applications

  • Current measurement, monitoring, and protection for electrical wiring and equipment.
  • Power measurement for electric motors, lighting, air compressors, and HVAC systems.
  • Automation-control systems and energy monitoring devices.
  • Relay protection devices and charging piles.
  • Data center power management.
⚙️

Technical Index

Mounting Type
Free hanging (In-Line)
Standards
GB20840-2014
Operating Temp
-25ºC ~ +60ºC
Waterproof Grade
IP00
Dielectric Strength
AC 3.5KV/1min 50Hz
Feature
Safety lock buckle, easy installation
📊

Product Parameters

Model SCT006L
Input 1A 5A 10A 20A
Output 1mA 2.5mA 5mA 10mA 5mA 10mA 20mA 20mA 25mA
📐

Dimensions & Visuals

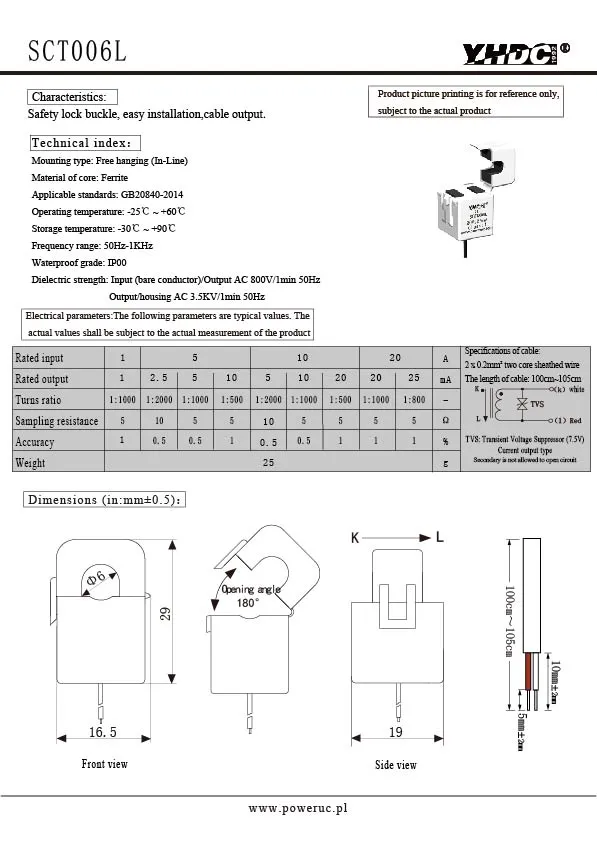

SCT006L Dimensions 1

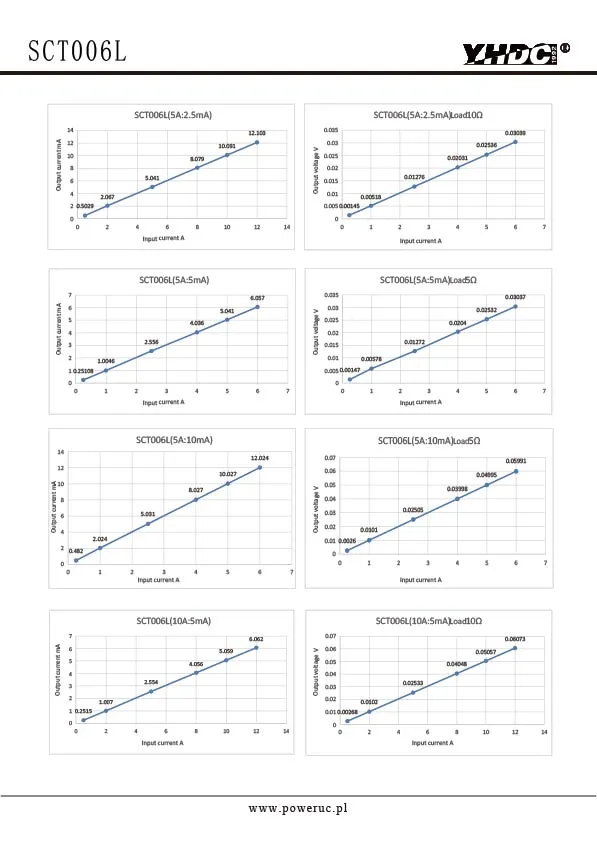

SCT006L Dimensions 2

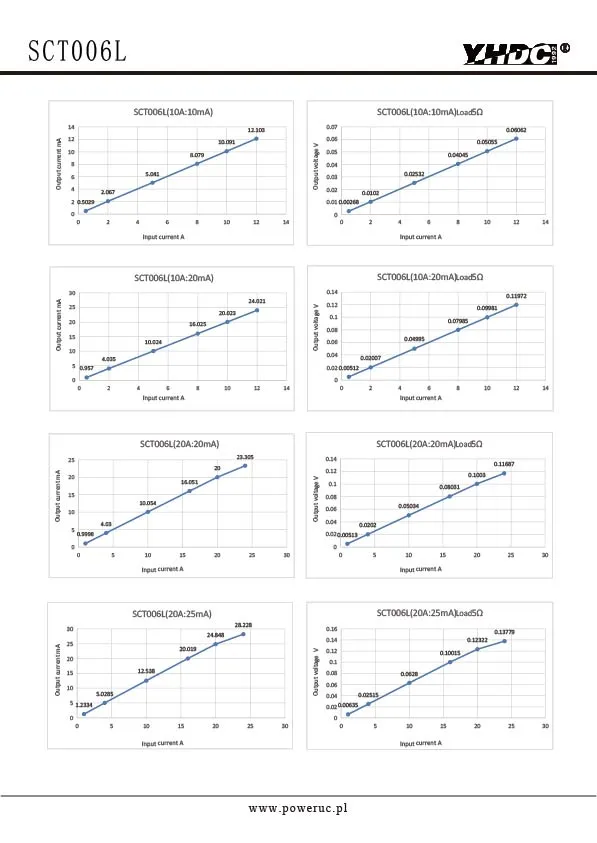

SCT006L Dimensions 3
SCT006L Product View 1
SCT006L Product View 2
SCT006L Product View 3
SCT006L Product View 4
SCT006L Product View 5
❓

Frequently Asked Questions

What is the main advantage of the split-core design?
The split-core design allows for easy installation on existing power lines without the need to disconnect or interrupt the circuit, saving time and reducing installation costs.
What is the maximum cable diameter that can fit through the SCT006L?
The SCT006L has an opening size of 6mm, making it suitable for cables with an outer diameter of up to 6mm.
Can the output signal be customized?
Yes, we provide customization options for different input and output requirements (e.g., 1mA, 5mA, 20mA, etc.) to suit your specific monitoring equipment.
Is this current transformer suitable for outdoor use?
The SCT006L is designed for indoor operation conditions with an IP00 waterproof grade. It should be protected from moisture and direct environmental exposure.
What is the typical lead time for orders?
Standard delivery time is approximately 5-7 working days depending on the order quantity and customization requirements.
How do I place an order or request samples?
You can contact our sales team via email with your specific requirements, and we will guide you through the ordering process or sample request.
