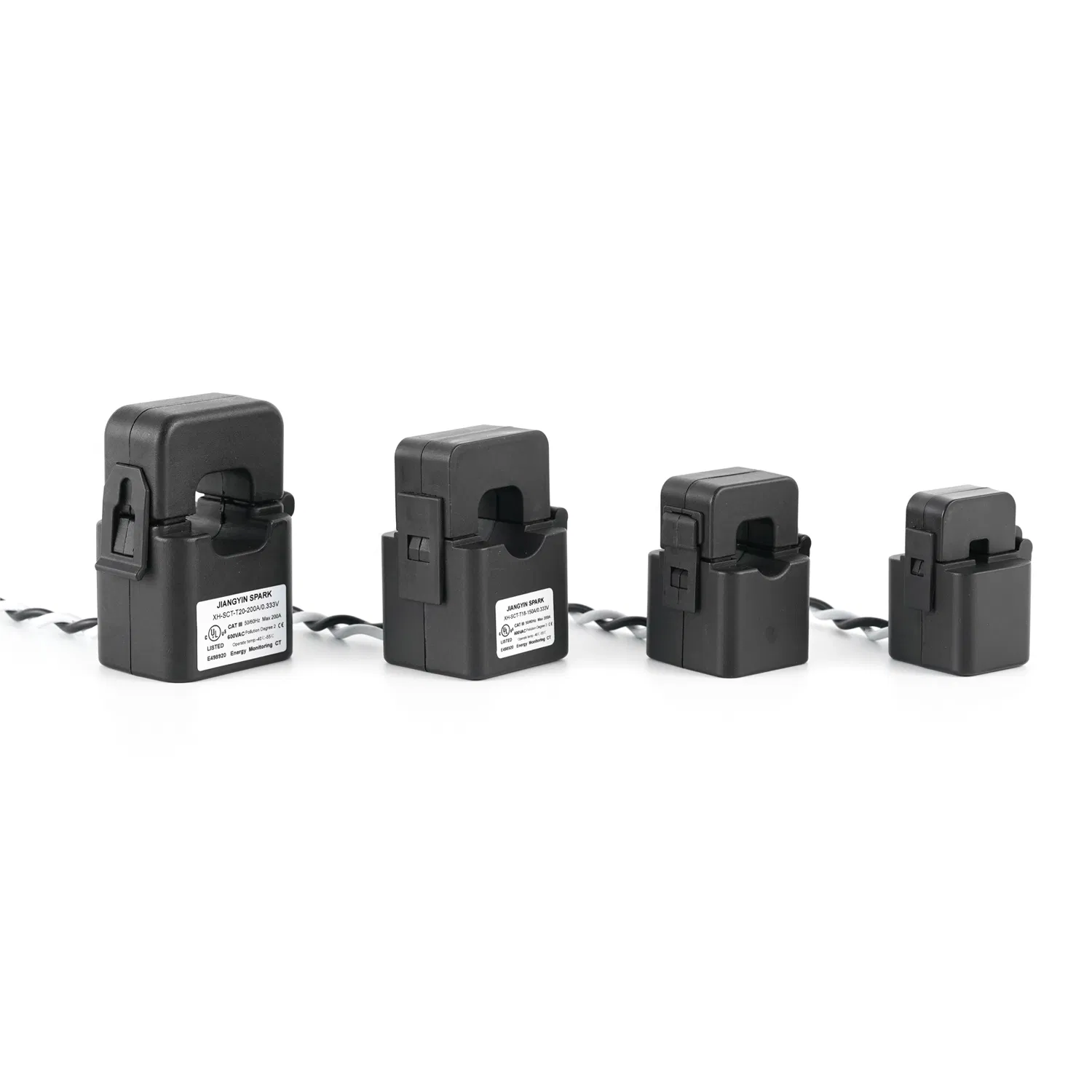

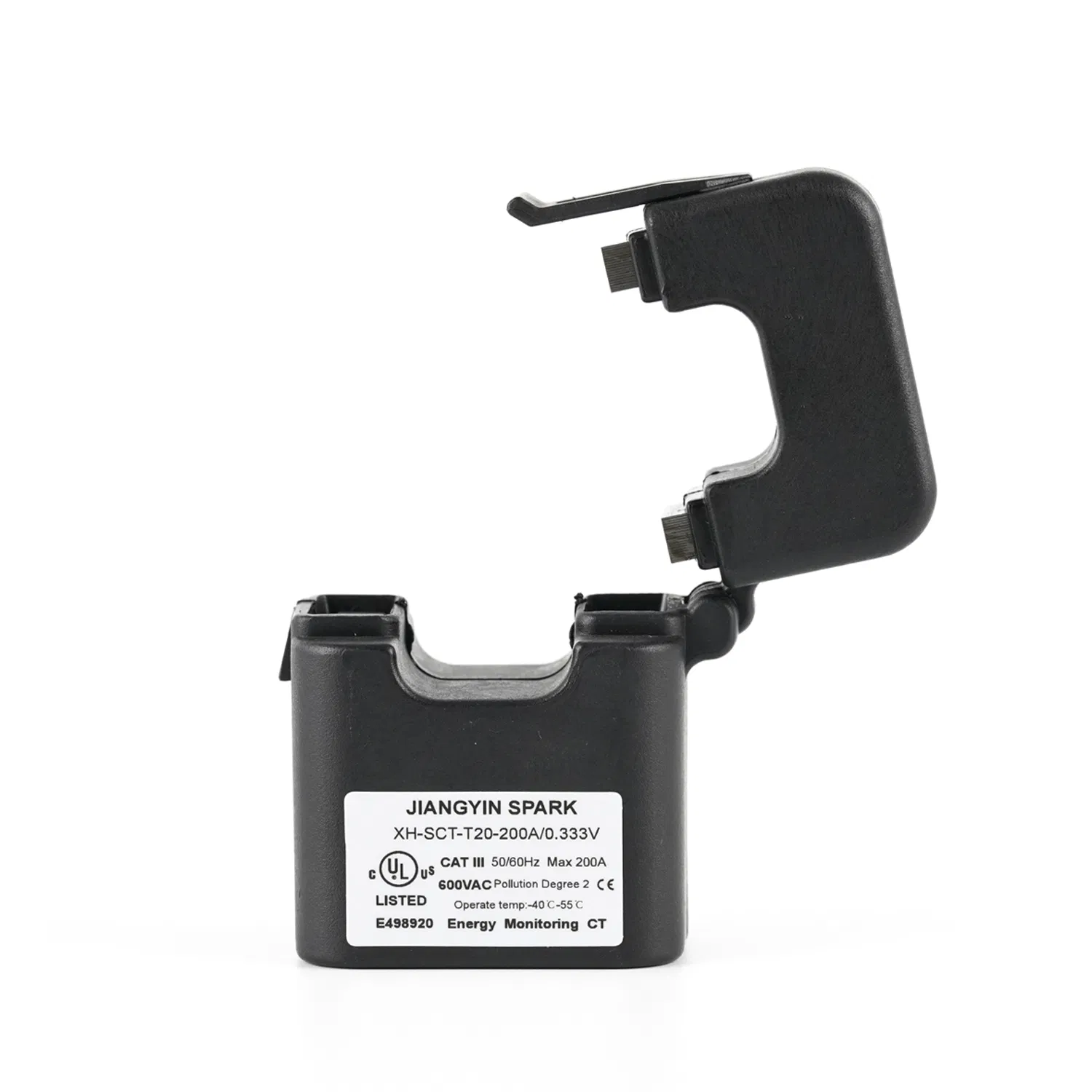

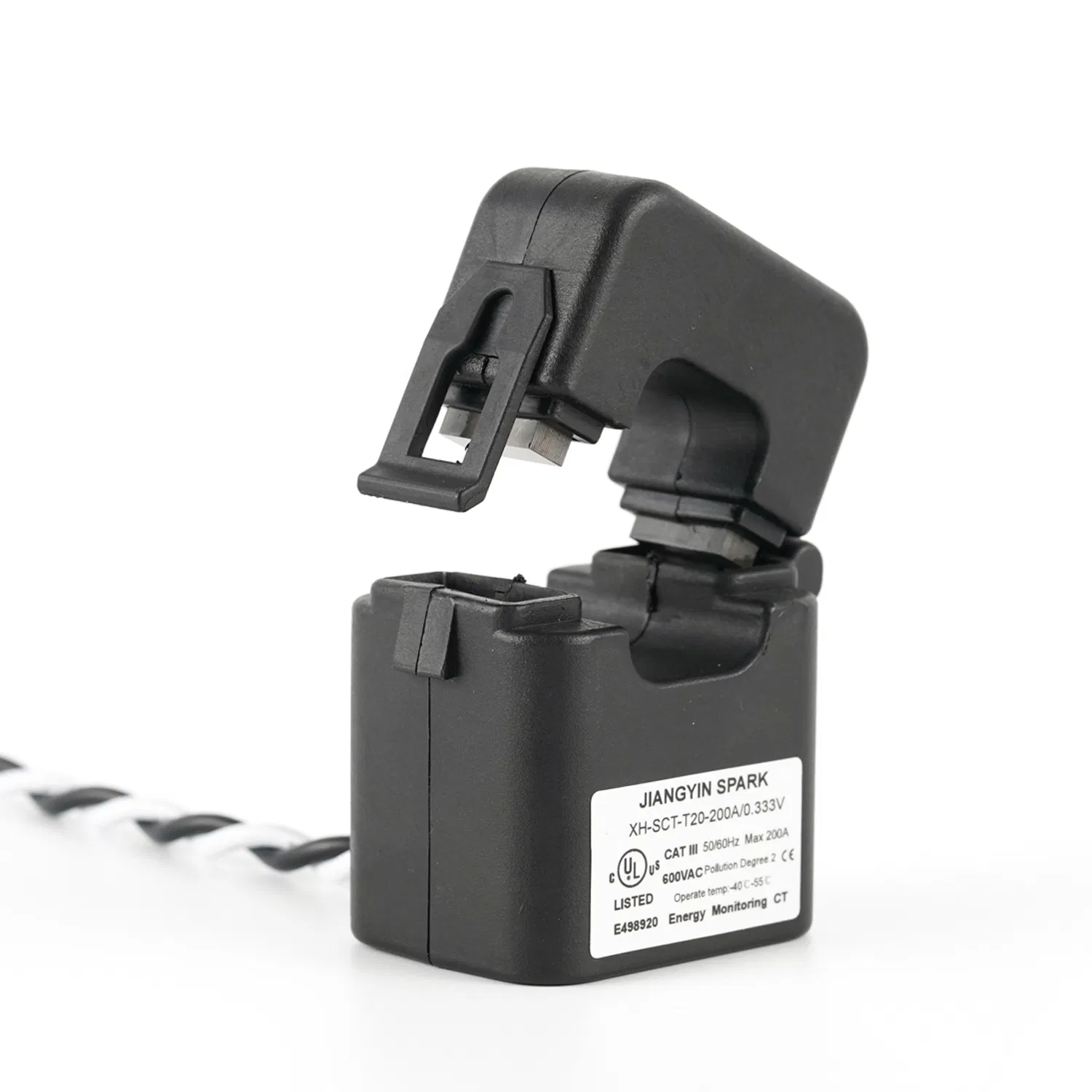

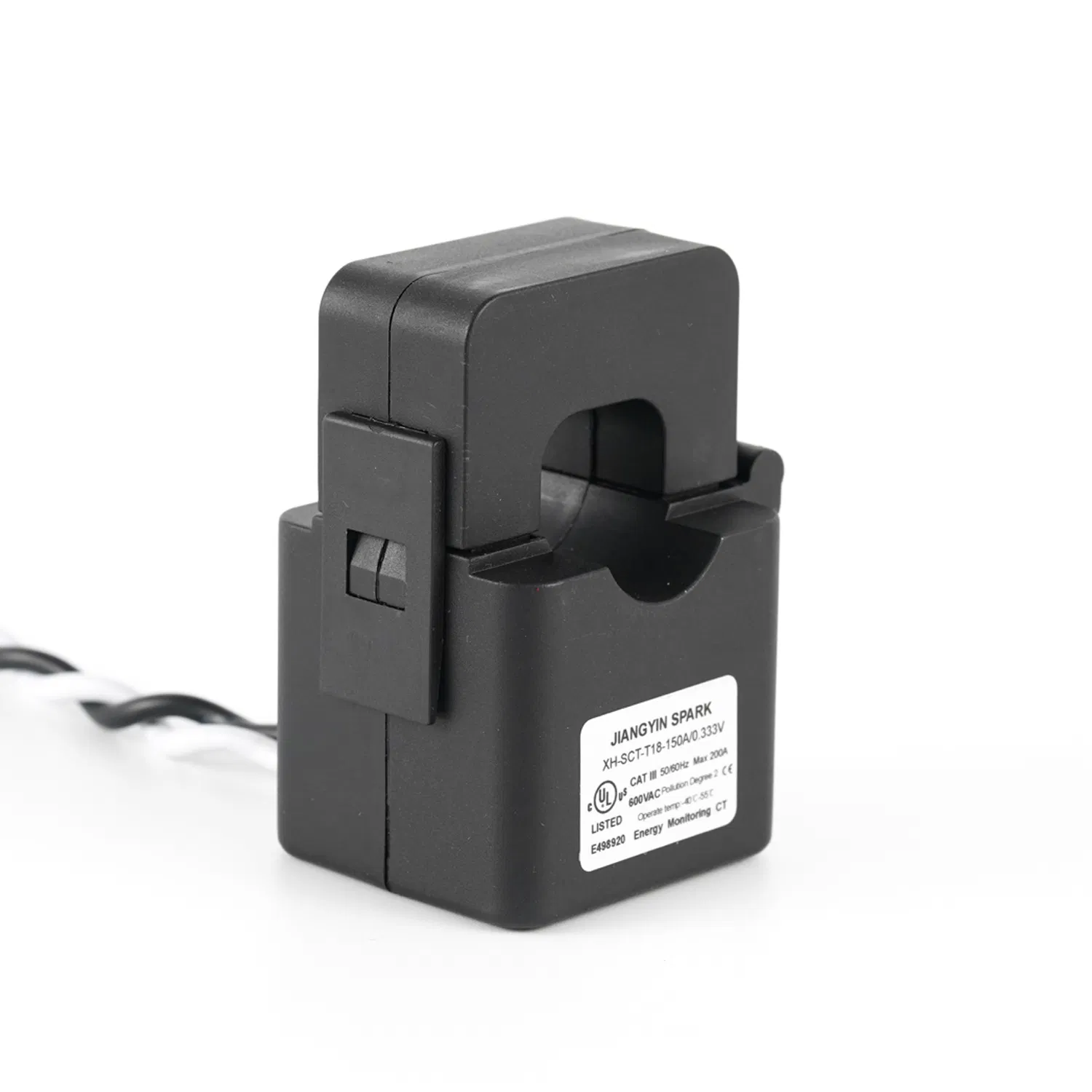

UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
1 / 5
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer
UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer

UL2808 Xoba Xh-Sct-T20 200A/66.66mA Clamp on CT Sensor Split Core Instrument Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
SCT20-200A/66.66mA
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Active Type
Magnetic Circuit
Single Stage Type
Voltage Principle
Capacitive Type
Accuracy
1%
Withstand Voltage
5.4kv/1mA/1min
Output Options
66.6mA, 0.333V or Others

Product Description

🔍 Overview

The UL2808 clamp-on CT sensor is designed for energy monitoring with AC current from 1 to 300 Amps. The split-core design permits fast and easy installation via non-contact current measurements through magnetic field induction. There is no requirement for the primary wire to be taken offline or disconnected during installation.

The built-in resistor provides a 0.333V output, making it a safer and highly portable solution for current measurement.

⚡ Technical Features
  • 1 Input Range: 1A to 300Aac
  • 2 Output: 0.333V, mA, or mV at rated current
  • 3 Rated Voltage: 0.66KV
  • 4 Insulation Voltage: 5400V
  • 5 Rated Frequency: 50-400Hz
  • 6 Operating Temp: -40ºC to 85ºC
  • 7 Flame Resistance: UL94-V0
  • 8 Leads: UL 1015 18awg

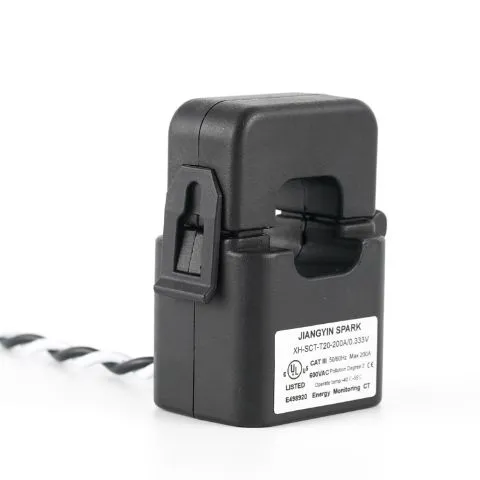

Current Transformer Sensor

Dimensions & Parameters

Model Rated Input (A) Output L (mm) W (mm) H (mm) O (mm)
XH-SCT-T06 0.2-80Aac mA / 0.333Vac / 0-3 Vac 32 34.5 45.5 6
XH-SCT-T12 0.2-120Aac 34.5 40 49 13
XH-SCT-T18 0.2-300Aac 36 46.5 61 17
XH-SCT-T20 0.2-300Aac 36 54 69 20

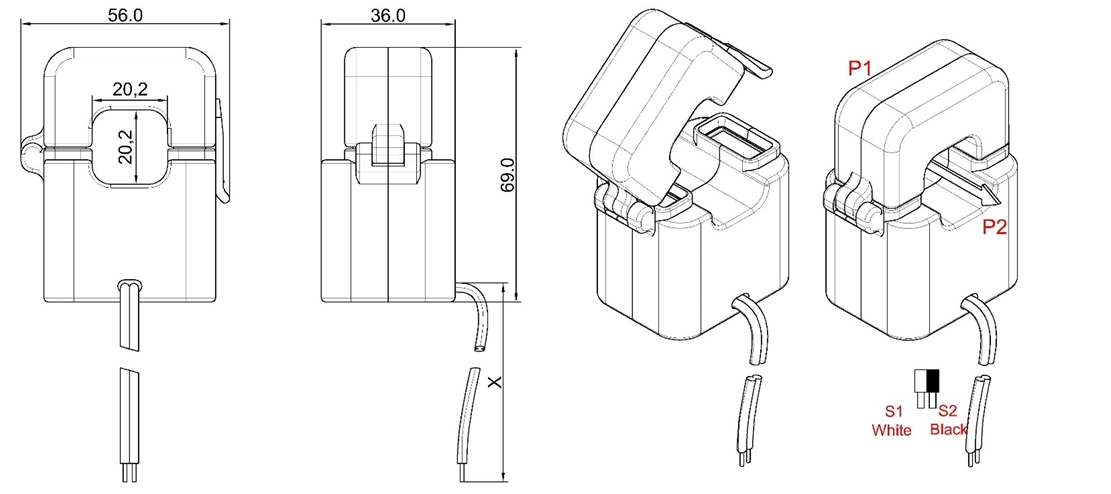

Dimension Diagram 1 Dimension Diagram 2

Packaging & Shipping

Package Size
9.50cm * 4.50cm * 12.00cm
Gross Weight
0.300kg
Carton Details
Outer Carton with Smaller Inner Carton
Shipping Method
UPS, DHL, FedEx, TNT, Air or Sea
🛡️ Warranty

We provide a 1-year warranty. Defective products must be notified within 3 days of receipt. All items must be returned in original condition for refund or exchange.

🤝 Commitment

Enjoy direct factory prices, premium quality backed by 20+ years of experience, and 24-hour response times for all technical requirements.

Related Products

Frequently Asked Questions

1. What is a Split Core Current Transformer? It is a transformer designed with a "split" core, allowing it to open and snap around a conductor without disconnecting the primary wire, making installation fast and safe.
2. Does this model support UL2808 standard? Yes, this series meets UL2808, CE, and RoHS certifications, ensuring high safety and quality standards for indoor use.
3. Can I get a customized output signal? Standard outputs are 0.333V or mA, but we can provide other custom output signals based on your technical requirements.
4. What is the lead time for standard orders? For quantities under 1000PCS, the typical lead time is 3-7 days after payment, provided the items are not heavily customized.
5. Is the material fire-resistant? Yes, the internal structure uses epoxy and the casing is rated UL94-V0 for flame resistance.
6. Do you offer samples for testing? Yes, we provide free samples for testing. You can evaluate the performance before committing to a bulk purchase.
