Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
1 / 5
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT
Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT

Q8a2 Split Core AC Current Transformer 10A AC Clamp on CT

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

🟧 Basic Information
Model NO.
Q8A2
Process
Integration
Material
Metal
Accuracy Grade
0.1%, 0.2%
Application
Phase Angle Meter
IP Rating
IP67
Certification
CE
Transport Package
Carton
Specification
250g, 45*158*25mm
Trademark
UL, CE, CNAS mark
Origin
China
Capacity
50000 Pieces/Year
🟧 Product Description
Max 20A Q8A2 Permalloy Core 0.1% Accuracy with Harmonic Measurement Function
Q8a2 Split Core AC Current Transformer
Q8a2 Split Core AC Current Transformer
Q8a2 Split Core AC Current Transformer
Q8a2 Split Core AC Current Transformer
Q8a2 Split Core AC Current Transformer

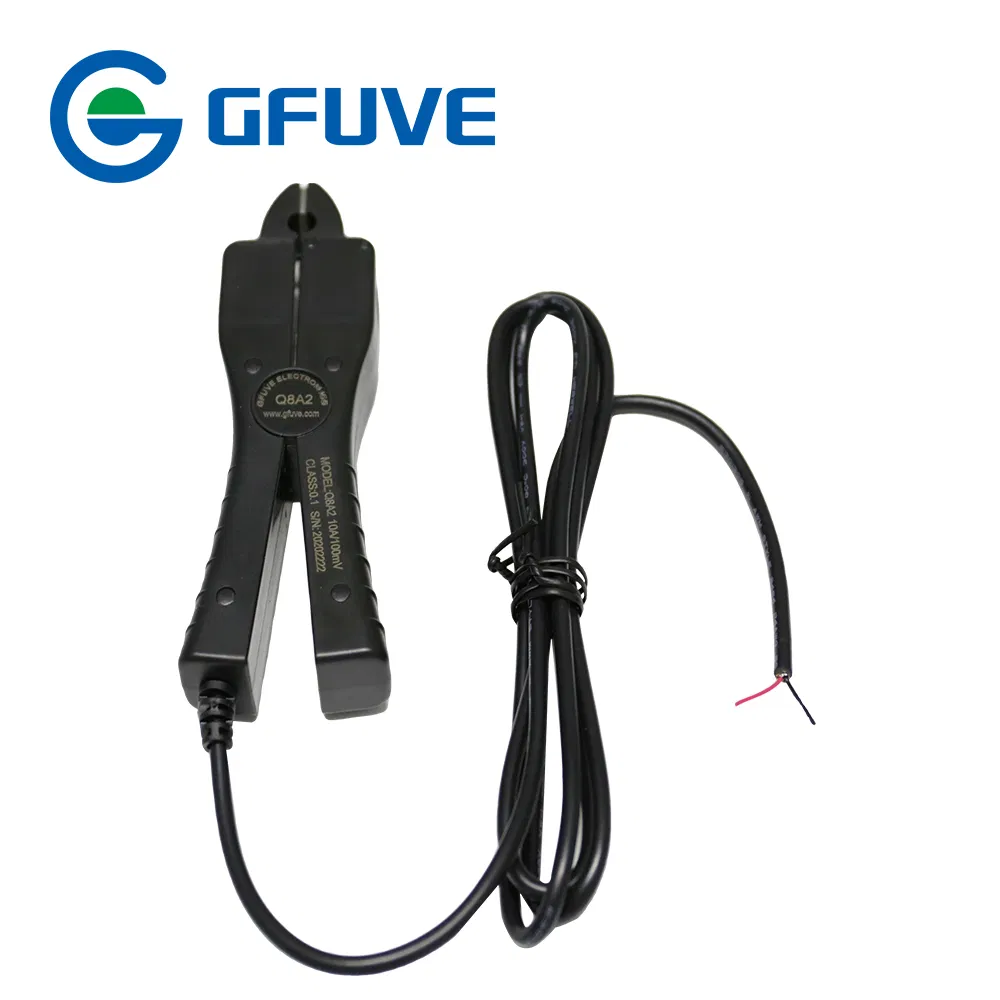

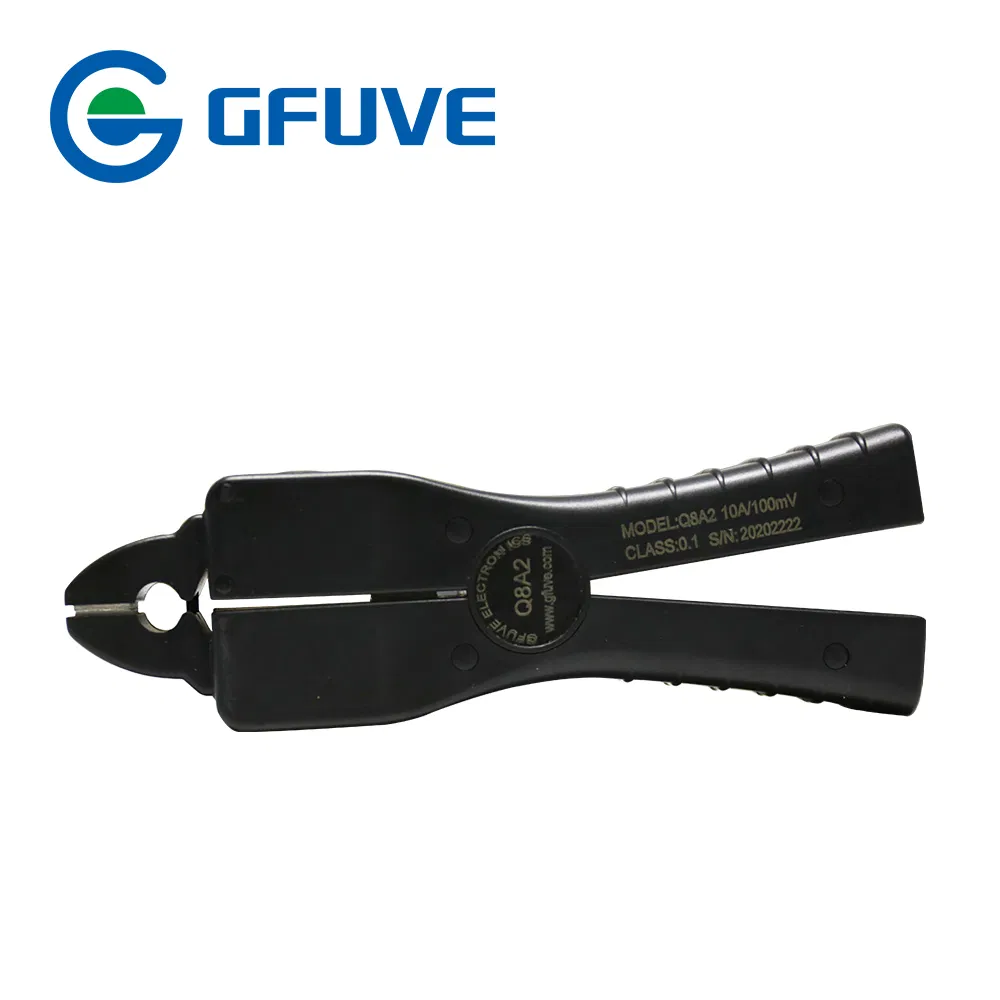

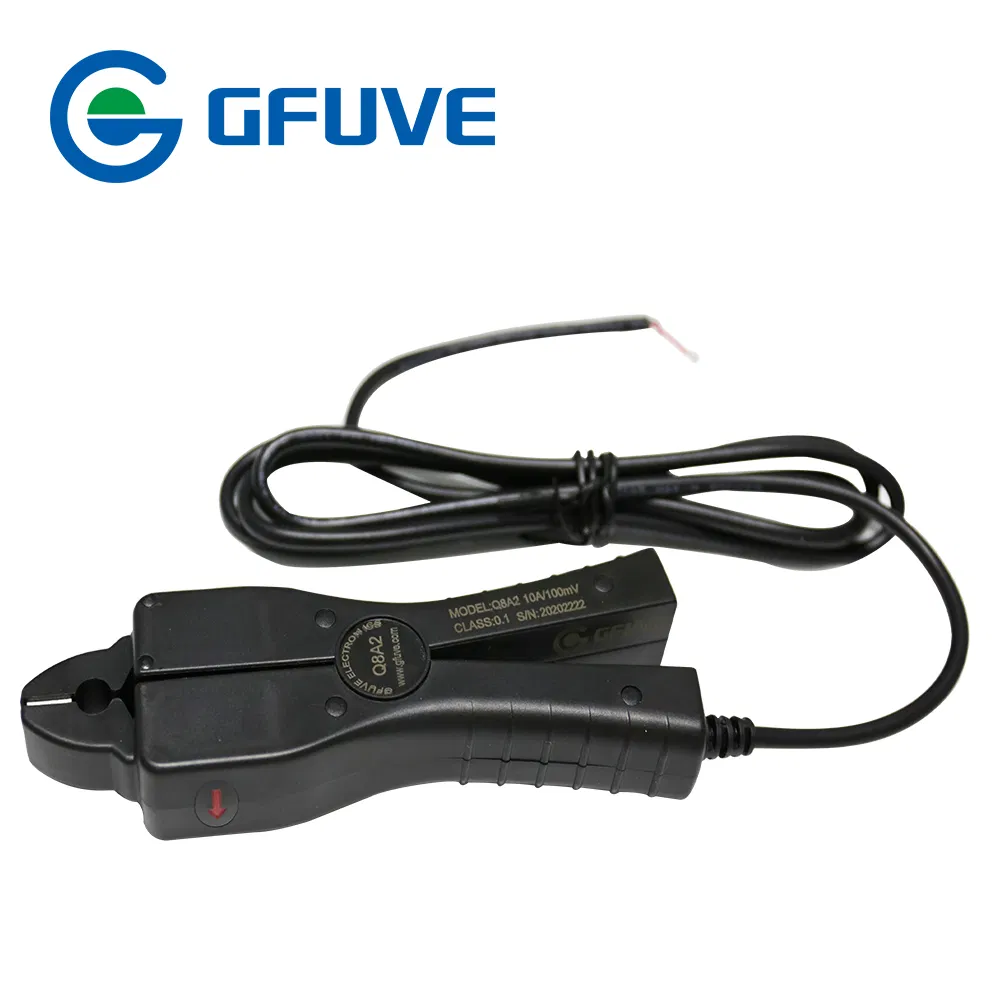

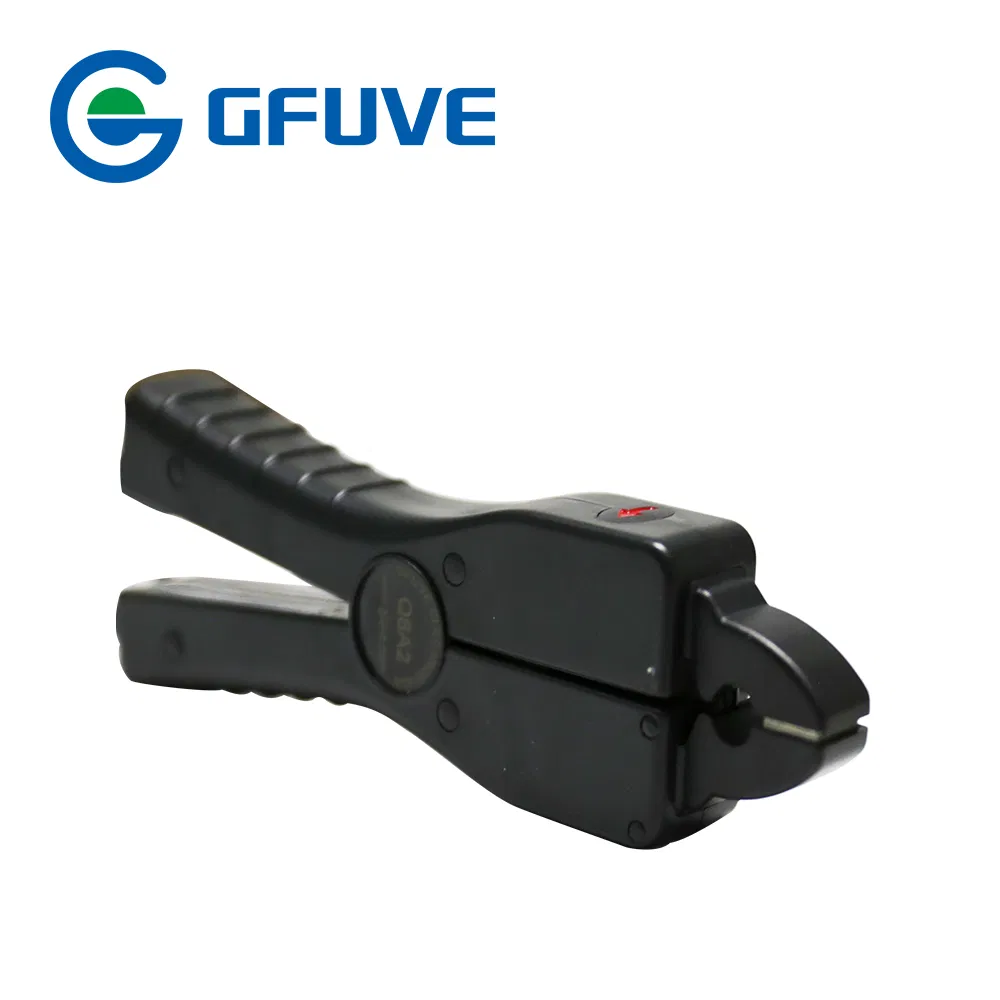

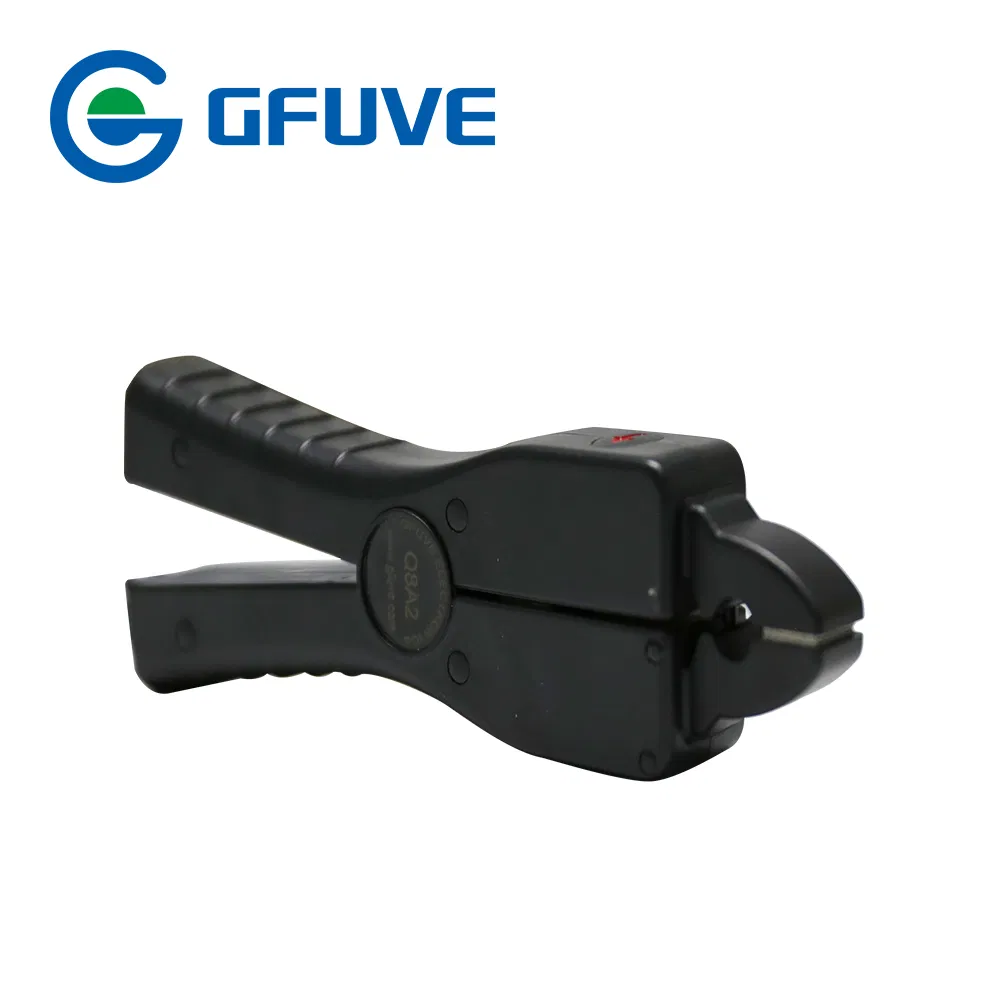

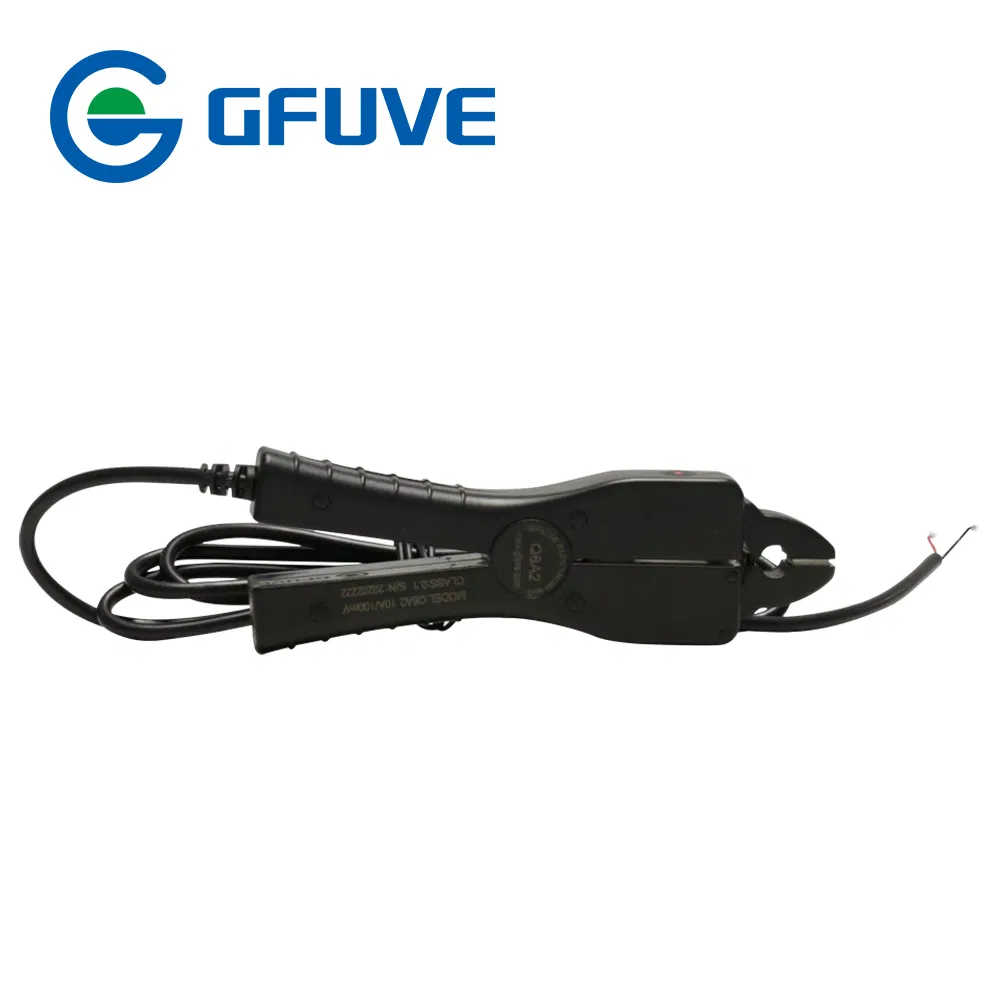

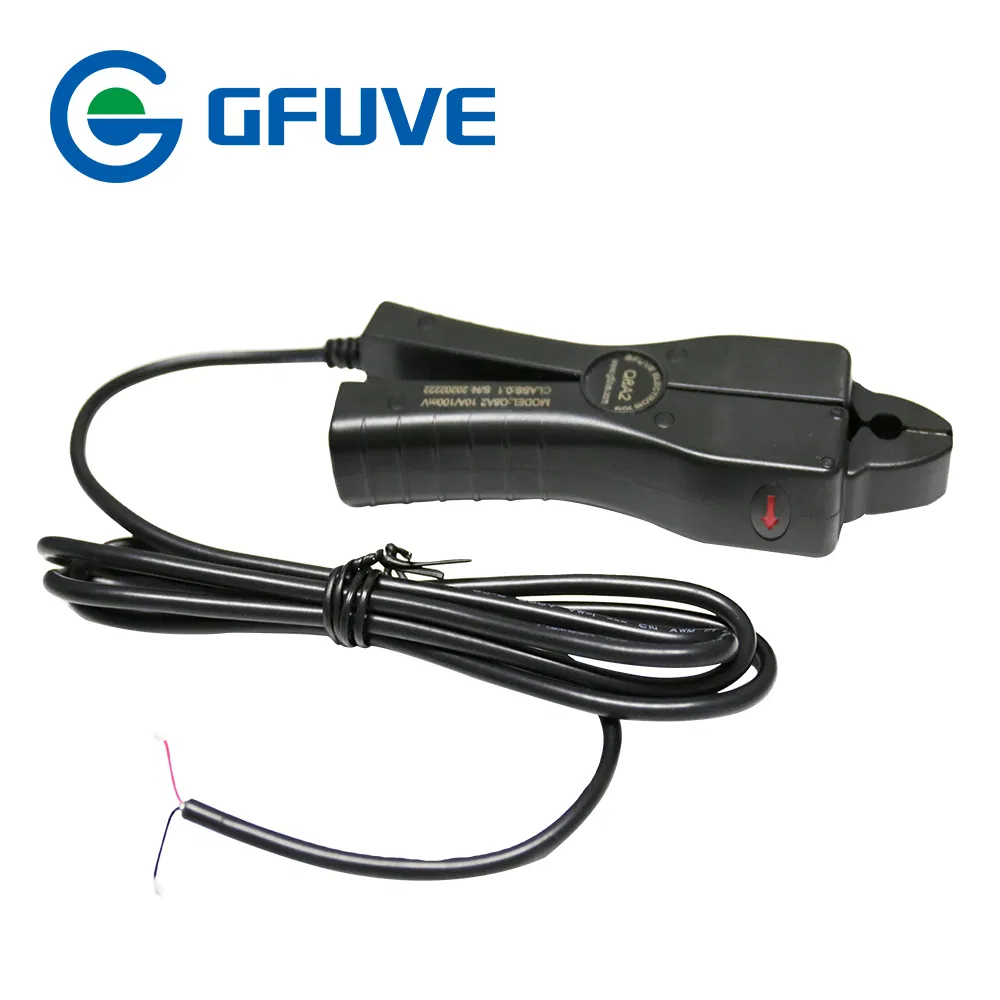

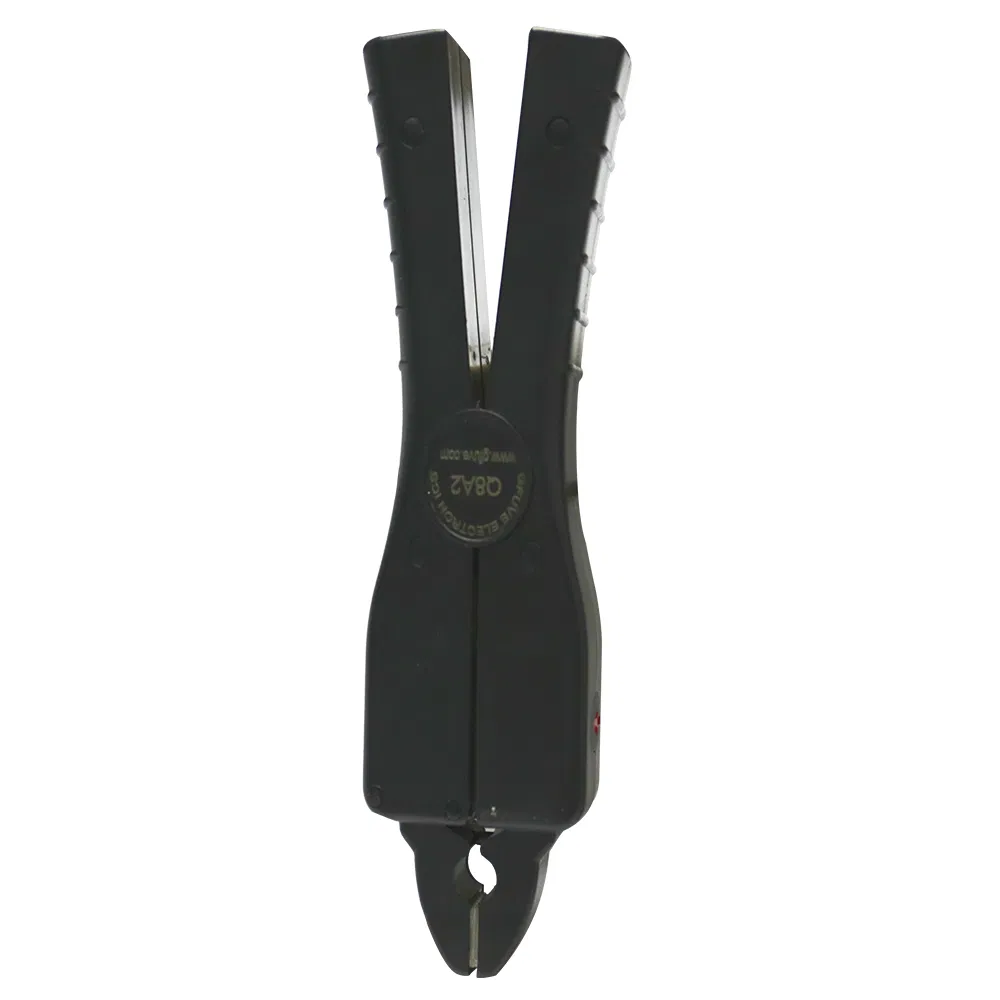

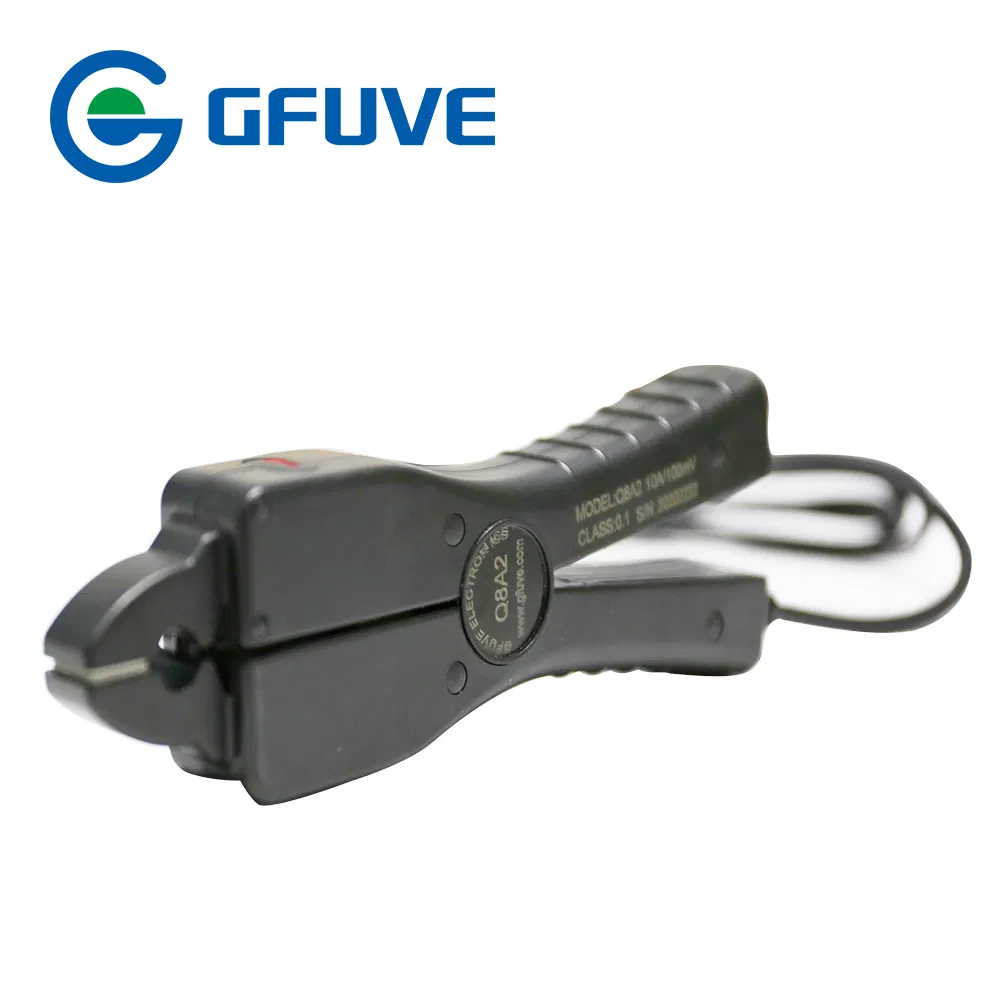

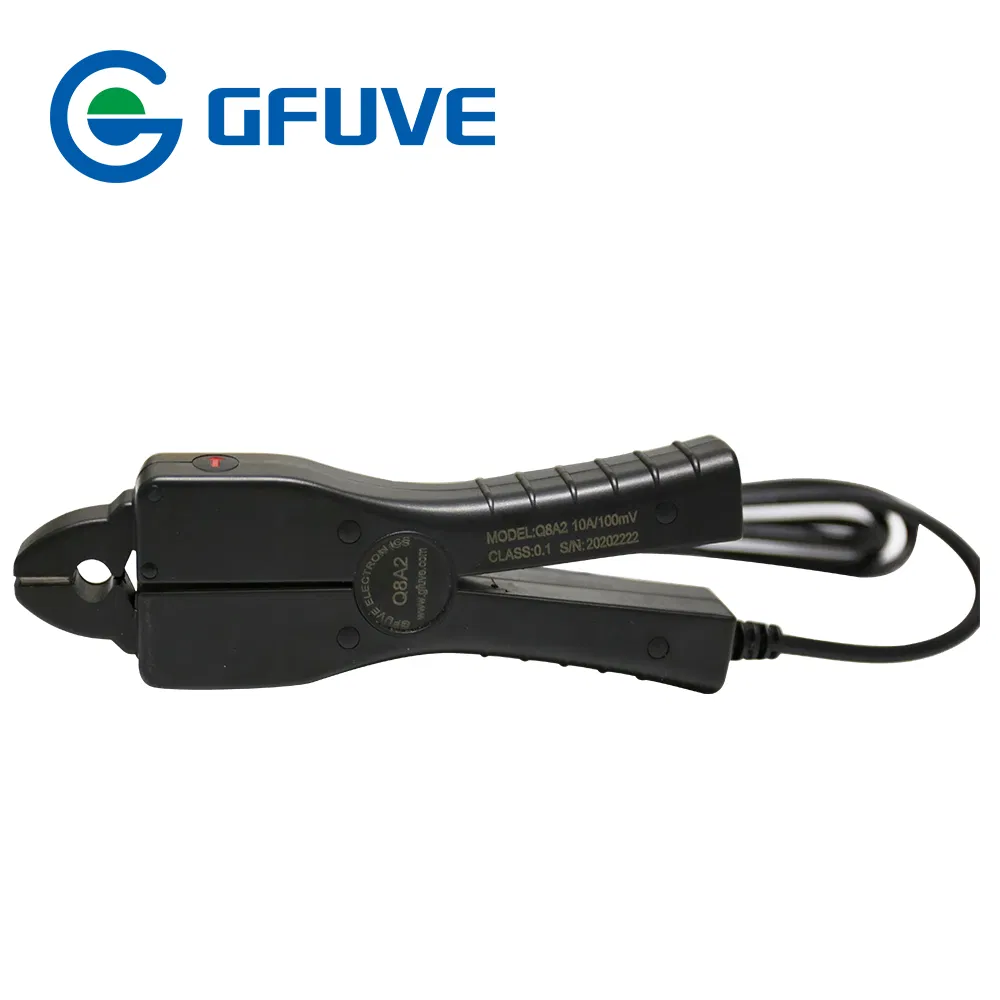

The model Q8A2 permalloy core ac current clamp ct with high accuracy up to 0.1% has been designed for use with energy meter tester, multimeters, recorders, power analyzers, safety testers etc. It has low phase shift for power measurement, greatly suitable for electric energy meter calibrator and oscilloscope. This Q8A2 clamp ct can convert 0 - 10A AC current to 0 - 10mA AC current with real shape, max 20A measurement, but with harmonic measurement function. It is suitable for leakage current measurement in the field.
🟧 Key Features
✔UL, CE, CNAS mark certified
✔Holding wire diameter: φ8mm
✔Frequency 10Hz-2MHz Bandwidth
✔High times harmonic measurement
✔Conforms to EN 61010, 600V CAT III
✔Measurement range of 1mA to 20A AC
✔Low phase shift for power measurement
✔High content nickel metal permalloy core
✔Min 1mA for leakage current measurement
✔Improved ergonomic design & easy operation
✔High precision 0.1% for current measurement
✔Designed for DMMs, recorders, oscilloscopes
🟧 Technical Parameters
Ratio1000: 1, 2000:1 or 2500:1 (customized)
Accuracy class0.1 %, 0.2%
Primary current0 - 5A AC, 0 - 10A AC, 0 - 20A AC
Secondary current0 - 10mA AC or 0 - 100mV AC (customized)
Max. Cont. Input current6A, 12A, 24A
Load capacity≤20Ω, Standard 4Ω
Over voltage categoryCAT III 600V
Output signal (AC current)From 0 to 10mA AC at nominal input current
Output signal (AC voltage)From 0 to 100mV AC at nominal input current
Signal ratio1mA/A, 1mV/A, 10mV/A, 100mV/A
Frequency range10Hz-200KHz
Dielectric strength3KV 50Hz/60Hz at 1 minute
Temperature range-20°C to +55°C
Output2.5 meter cable with D01 connector
Max. voltage720 V (not insulated conductors)
StandardEN 61010-1, EN 61010-2-032, IEC61869-2
InstallationClamp type
ConnectorBNC, 4mm banana, Audio plug, customized
Frequently Asked Questions
1. What is the maximum measurement accuracy of the Q8A2?
The Q8A2 permalloy core current clamp offers high precision with an accuracy grade of 0.1% to 0.2%, making it ideal for professional power analysis.
2. Can this clamp be used for leakage current measurement?
Yes, it is designed for leakage current measurement in the field, with a minimum measurement capability of 1mA.
3. What equipment is the Q8A2 compatible with?
It is specifically designed for use with DMMs (Digital Multimeters), recorders, oscilloscopes, power analyzers, and energy meter testers.
4. Does it support high-frequency harmonic measurements?
Yes, the Q8A2 features a wide frequency bandwidth of 10Hz to 2MHz, allowing for high-order harmonic measurement functions.
5. What is the core material used in this current transformer?
The device utilizes a high-content nickel metal permalloy core, which ensures low phase shift and high stability for power measurements.
6. What safety certifications does the product hold?
The Q8A2 current clamp conforms to EN 61010 standards and is rated CAT III 600V, with UL, CE, and CNAS certifications.
