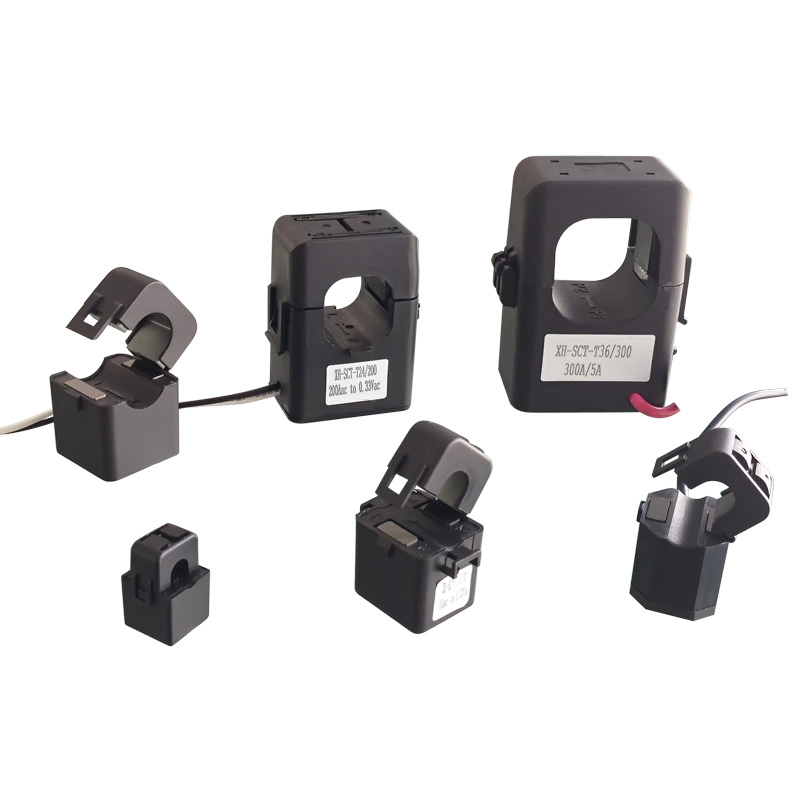

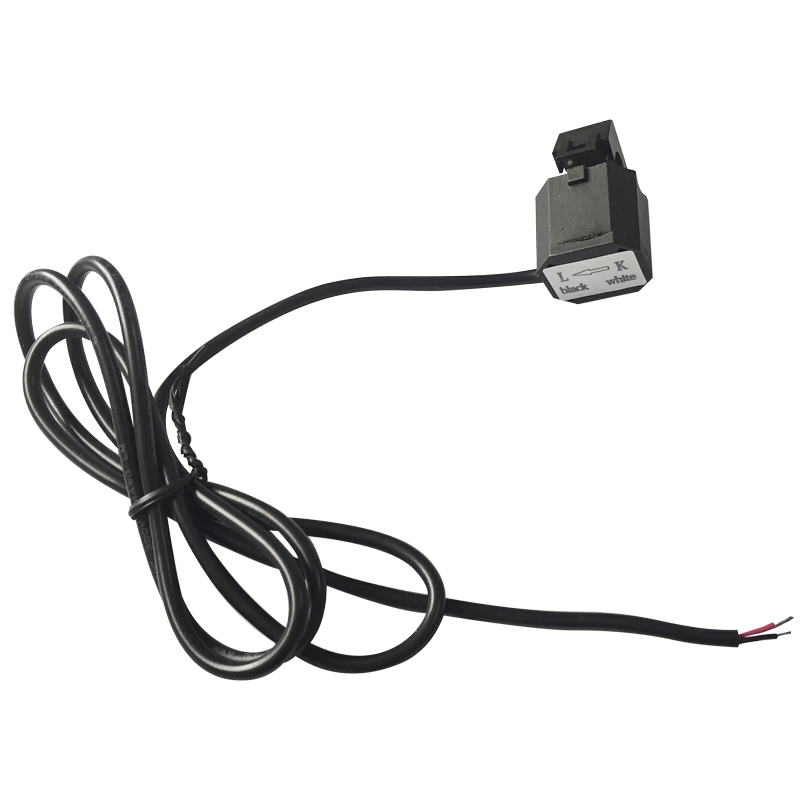

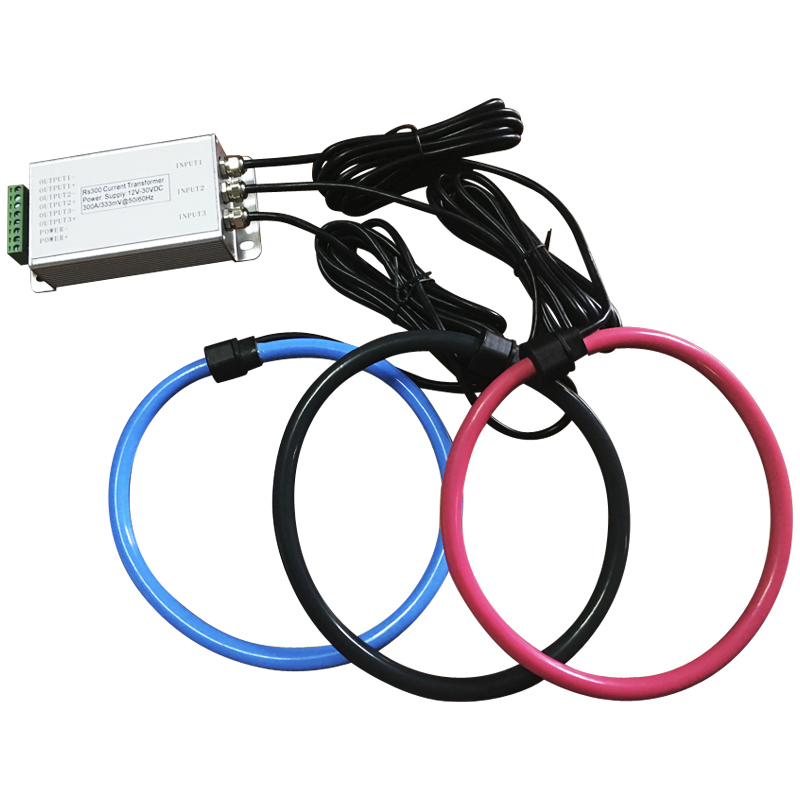

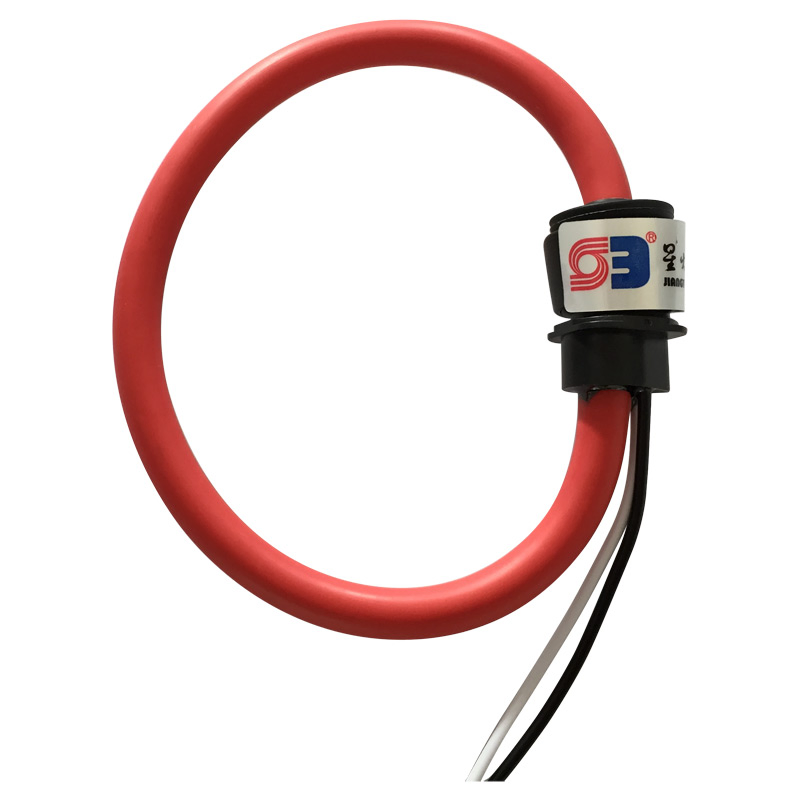

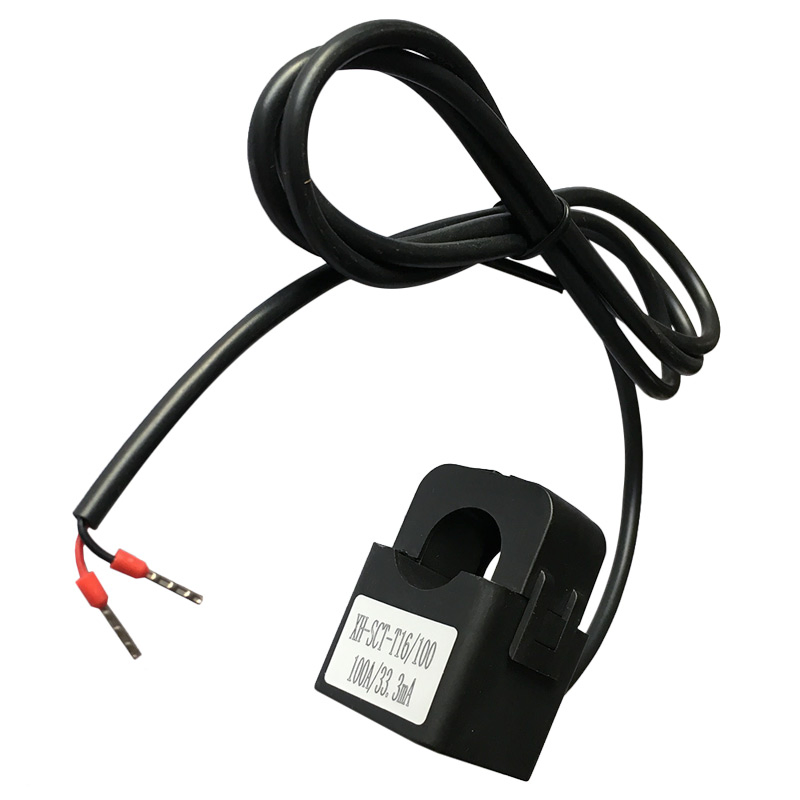

Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
1 / 5
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer
Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer

Jianyin Spark Xh-Sct Series Split Core Clamp on Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
XH-SCT-T16
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation Principle
Capacitive Type
Window Size
16mm
Rated Input Current
0-100A
Rated Output Current
0.333VAC ,Mv or Ma
Origin
China
Production Capacity
100000PCS/Month
Product Description

XH-SCT Series Split Core Clamp-on Current Transformer

φ16mm Opening With 50 To 120 Amp Rating

The XH-SCT-T16 Series split-core current transformer measures AC current from 50 to 120 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation. This method permits a safer, easy and portable current measurement.

Current Transformer Description

Key Features

Maximum continuous primary current 120 A AC
Output: mA or 0.333 Volt at rated current
Current Ratio: 500:1, 1000:1, 2000:1, 2500:1, 3000:1
Maximum Primary Voltage: 5000Vac (Insulated Conductor)
Phase angle: Less than 1.5 degrees at rated current
Frequency Range: 50 Hz to 400 Hz
Accuracy: ± 1% from 5% to 120% of rated current
Operating Temperature: -15°C to 60°C
Insulation Voltage: 600Vac
Leads: 4Foot (105cm), UL 1015, Twisted Pair, 24AWG
CE and RoHS compliant
Applications
Sub-Metering Accurate Measurement
Data Loggers to analyze Building & Machinery Performance
Digital Fault Recorders
Smart Grid Application Features
Load Center & Three Phase Balance Control
Inverters for Solar & Wind Turbine Systems
Power Measurement Device For PLC
Model Input (A) Max Current (A) Output
XH-SCT-T16 0.2-100AAC 120AAC mA / 0.333VAC / 0-3 VAC

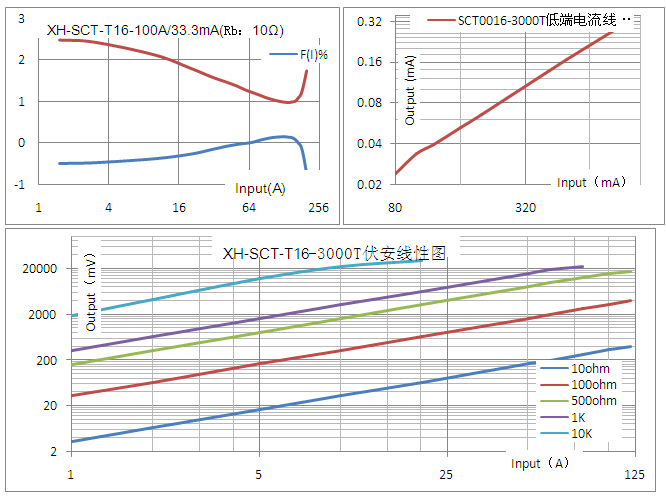

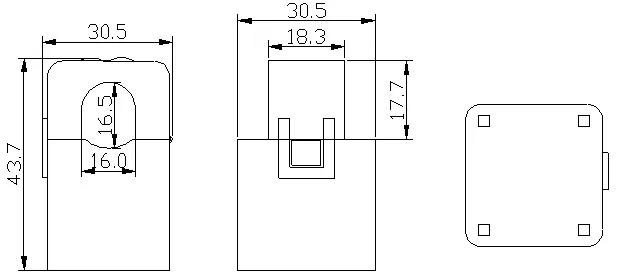

Technical Drawing
Installation Guide
Product Gallery

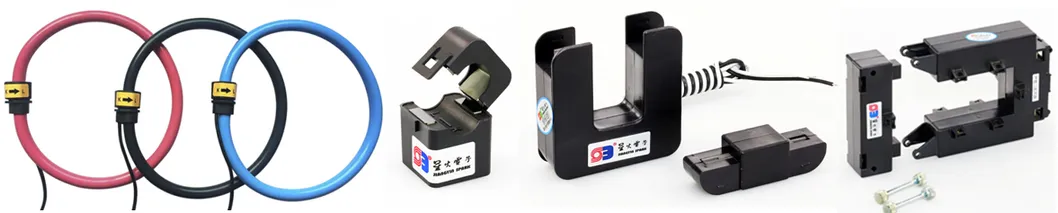

Product Range 1
Product Range 2
Frequently Asked Questions
What is the main advantage of a split-core current transformer?
The split-core design allows for easy installation without needing to disconnect the primary wire or take the system offline, making it safer and more convenient for retrofitting.
What is the window size of the XH-SCT-T16 model?
This model features a 16mm opening, suitable for conductors carrying up to 120A AC.
What kind of output does this sensor provide?
It provides a linear output of either mA or 0.333 Volts at the rated primary current, compatible with most monitoring devices.
Is the XH-SCT-T16 suitable for outdoor use?
No, this specific model is designed for indoor operation conditions.
What is the accuracy level of this current transformer?
The device offers high accuracy of ± 1% within a range of 5% to 120% of the rated current.
Can the leads and output be customized?
Yes, the output specifications and lead lengths can be customized to meet specific project requirements.
