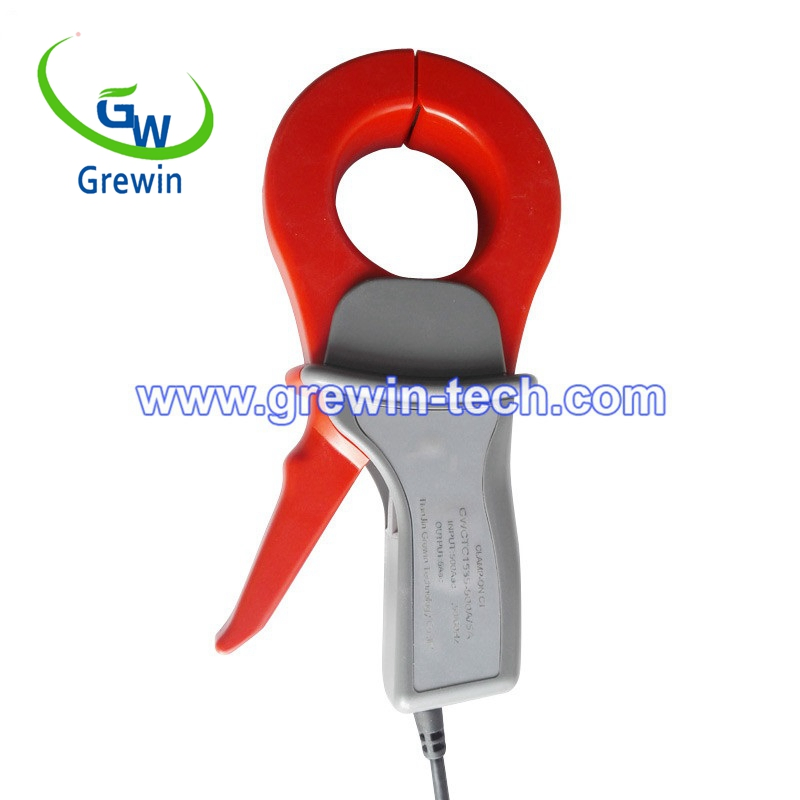

0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
1 / 5
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a
0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a

0.1A 1000A Current Transformer Split Core Current Transformer Current Clamp on Current Probe Flexible CT Clamp Current Transformer with Ma/a or Mv/a

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview

High Precision 0.1A-1000A Split Core Energy Management Current Transformer

Clamp on Current Transformer with 0.333V Output Signal. Reliable solution for current measurement, split-core design for easy installation.

Basic Info
Model NO.
GWCTP1535
Phase
Single or Three
Usage
Measurement
Accuracy
1%
Primary Current
0.1-1000A
Frequency
10Hz to 100kHz
Safety
Cat III 600V
Output Signal
Ma/a or Mv/a
Detailed Photos

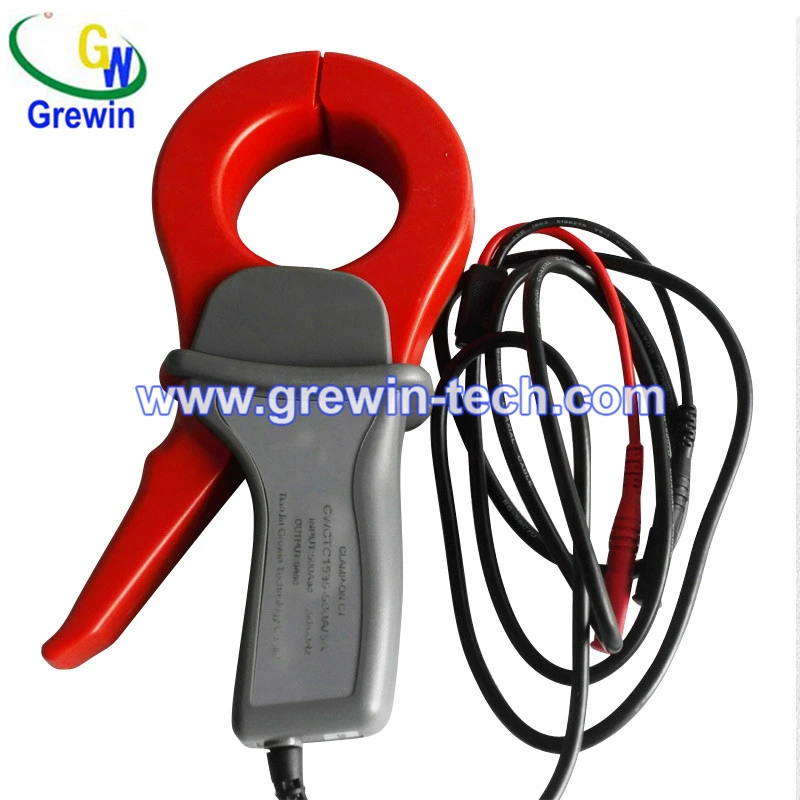

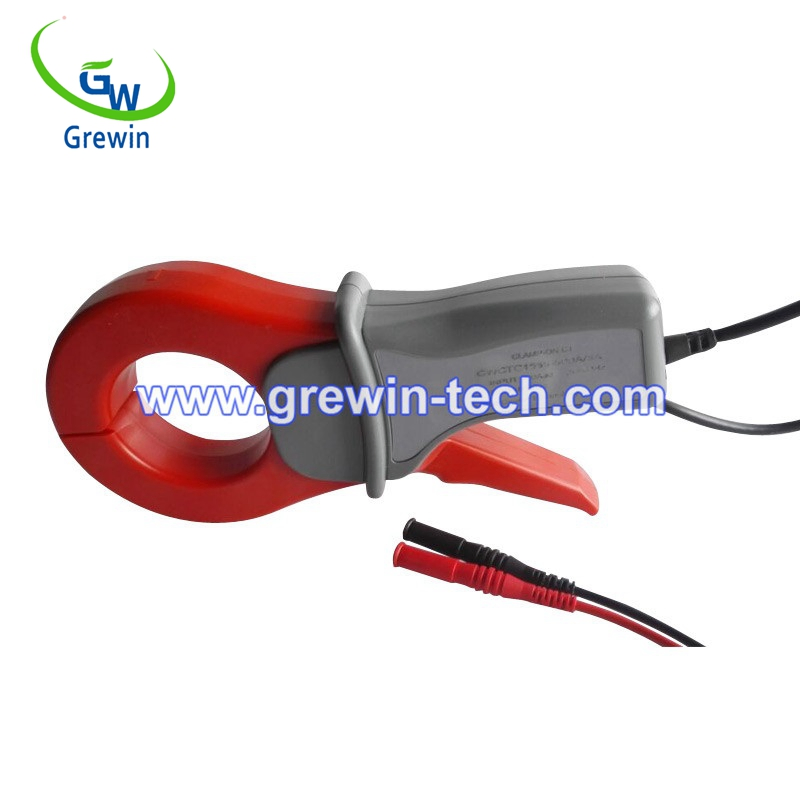

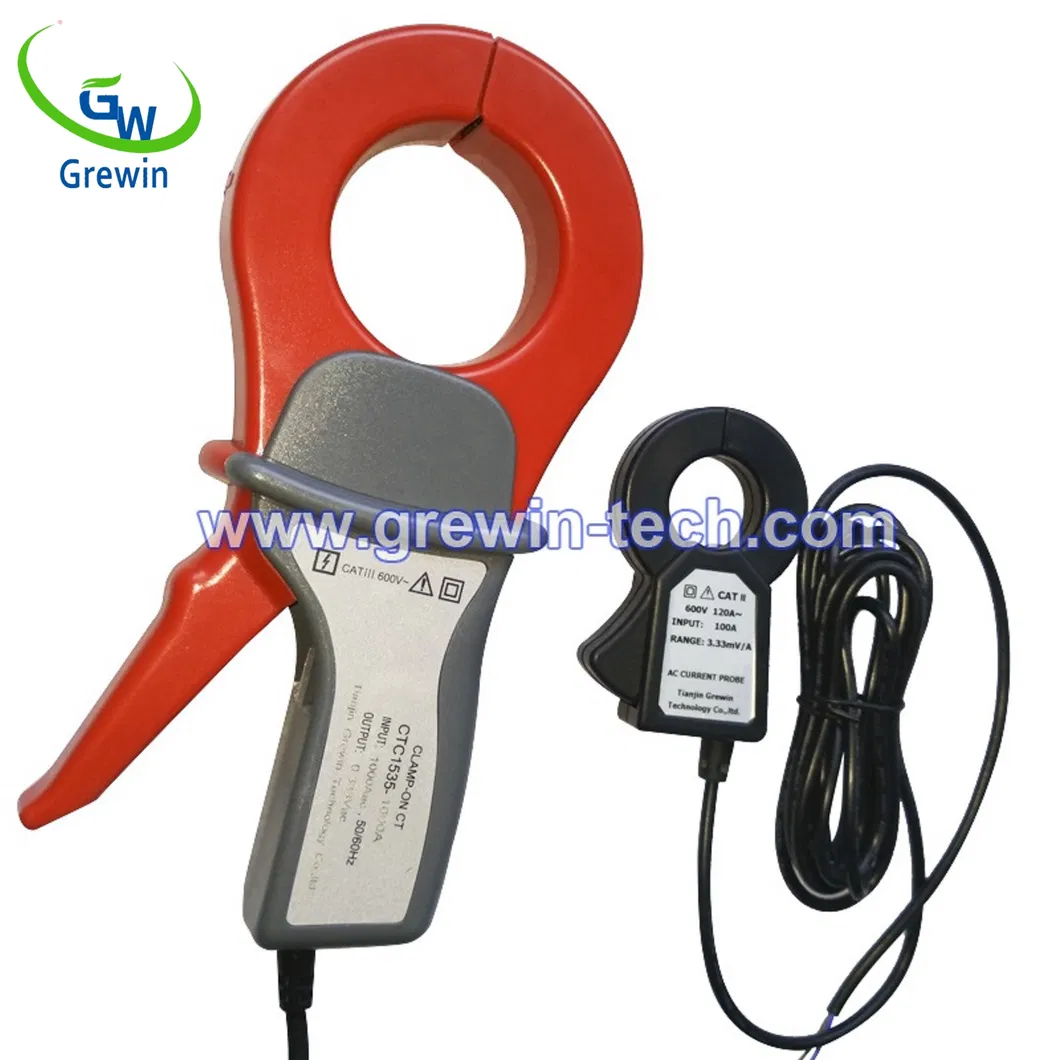

Split Core Current Transformer

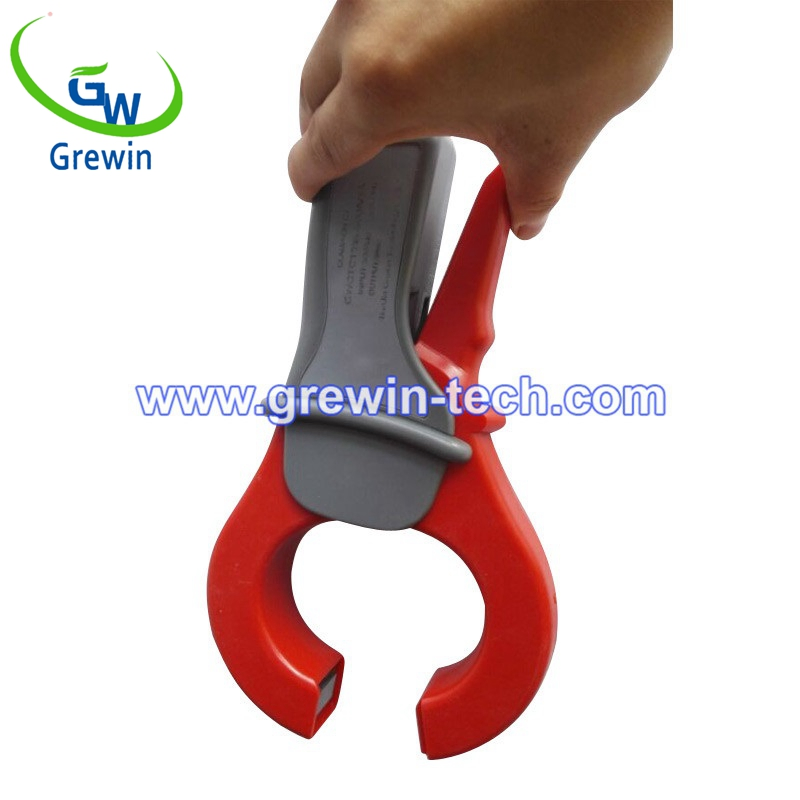

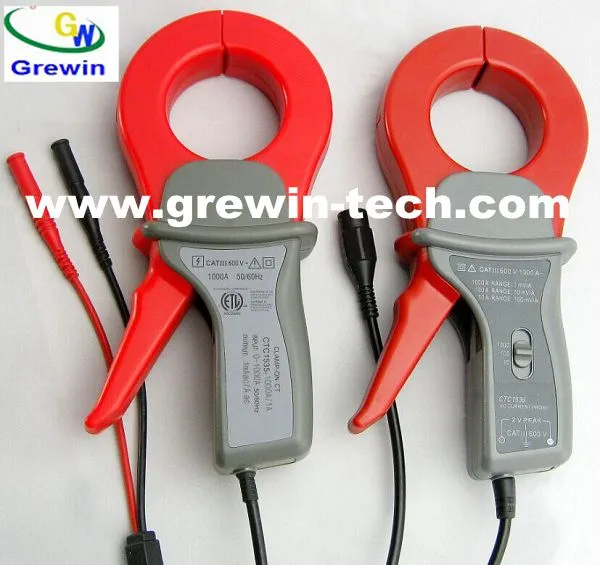

Flexible CT Clamp

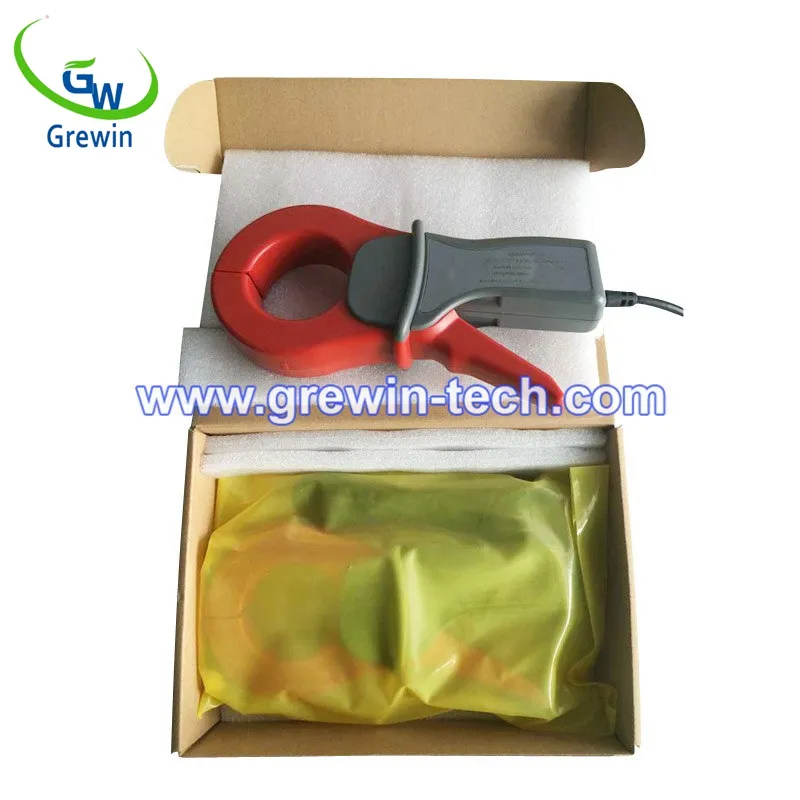

Current Probe Clamp

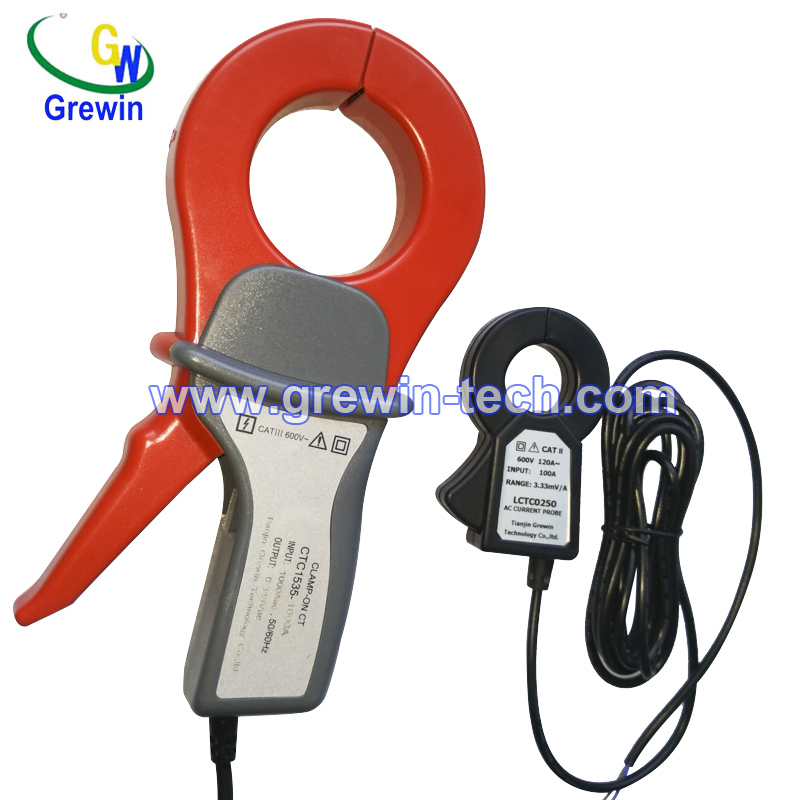

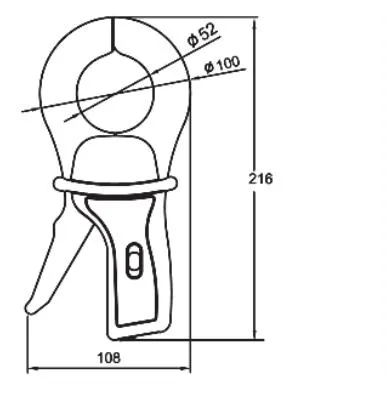

Current Transformer Detail
Technical Specification
ParameterValue
Rated Primary current0.1A-1000A
Output signalmA/A or mV/A
Maximum Non-Destructive Current2000A
Basic Accuracy1%
Dielectric Resistance1000MOhms @ 500 Vdc
Case MaterialPolypropylene resin UL 94-V0
Maximum Cable Diameter2.05 inches (52 mm)
Operating Temperature-10ºC to +50ºC
StandardIEC 60044-1

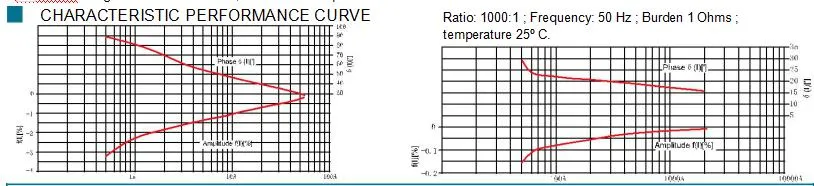

Characteristic Performance Curve
Performance Curve
Features & Applications
Key Features
  • Clamp-on core design for safer and easier installation
  • Highly portable with high accuracy nickel alloy cores available
  • Low cost with 5 standard sizes
  • Multiple voltage and current output signal options
Applications
  • Power energy monitoring devices
  • Power Factor Correction devices
  • Oscilloscope and harmonic waves analyzers
  • Industrial power quality monitoring
Packaging & Production

All products are manufactured following strict quality control. Finished products are packed using export standard cartons and reinforced with strong pallets for global shipping.

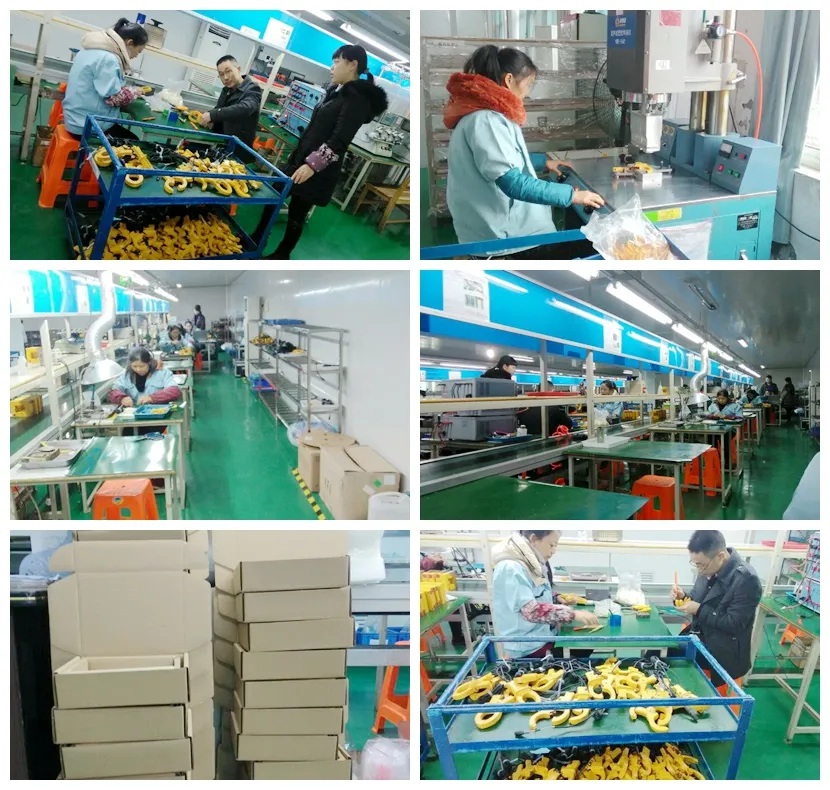

Packing Standard

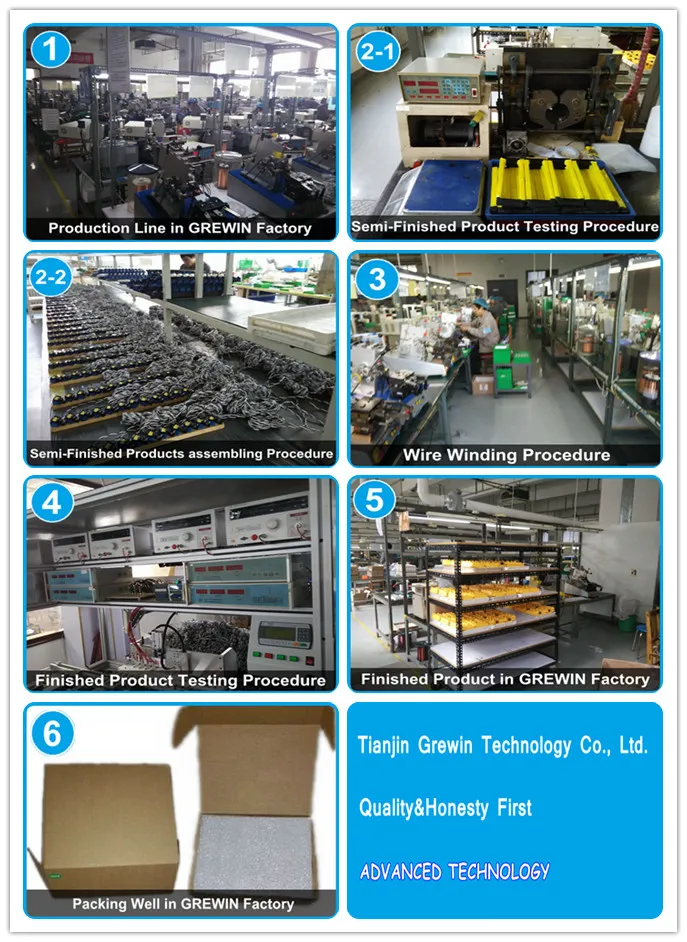

Production Line
Certifications

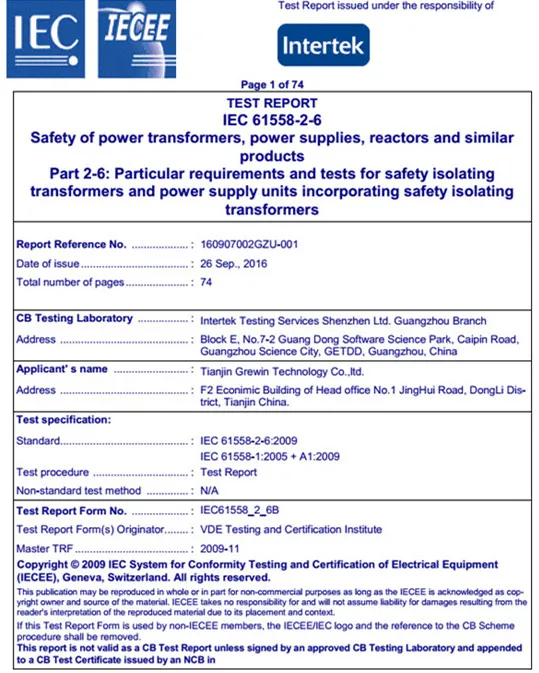

ISO Certification

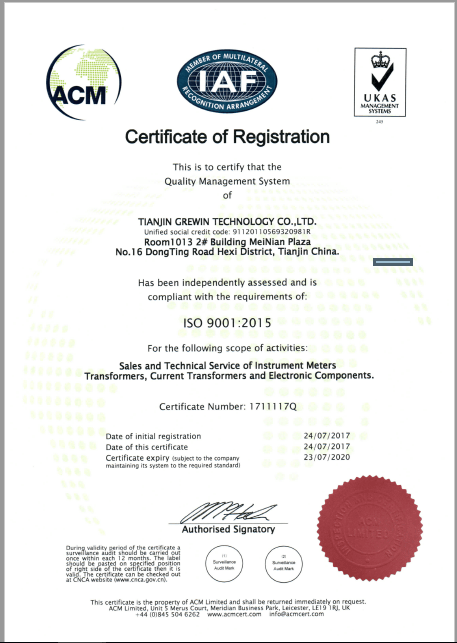

CE Certification
Terms & Shipping
Shipment:
UPS / DHL / EMS / FedEx / TNT (3-7 days). Delivery within 20 days for standard quantities.
Warranty:
1-year warranty provided. Defective products must be notified within 3 days of delivery.
FAQ
Q1: What is the main advantage of the clamp-on design? The clamp-on (split-core) design allows for easy installation on existing power lines without needing to disconnect or cut the wires, ensuring safety and convenience.
Q2: What is the accuracy class of the GWCTP1535 model? The standard accuracy class is 1.0 (1%), suitable for most industrial measurement and monitoring applications.
Q3: Can this transformer be used for high-frequency measurements? Yes, the usable frequency range is from 10Hz up to 100kHz, making it versatile for various electrical analysis needs.
Q4: What are the output signal options? Depending on the specific configuration, the output can be mA/A, mV/A, or a 0.333V signal.
Q5: Is the product certified for international markets? Yes, our products are RoHS compliant and carry CE and ETL approvals, meeting international safety and quality standards.
Q6: What is the maximum cable diameter supported? The GWCTP1535 model can accommodate cables with a maximum diameter of up to 2.05 inches (52 mm).
