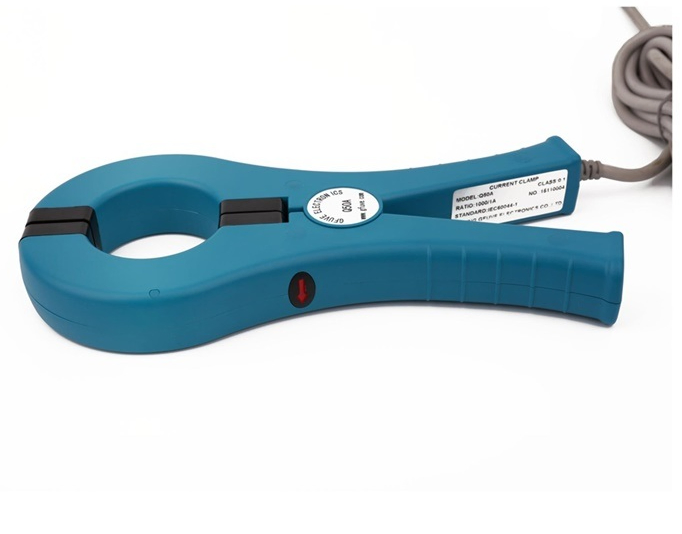

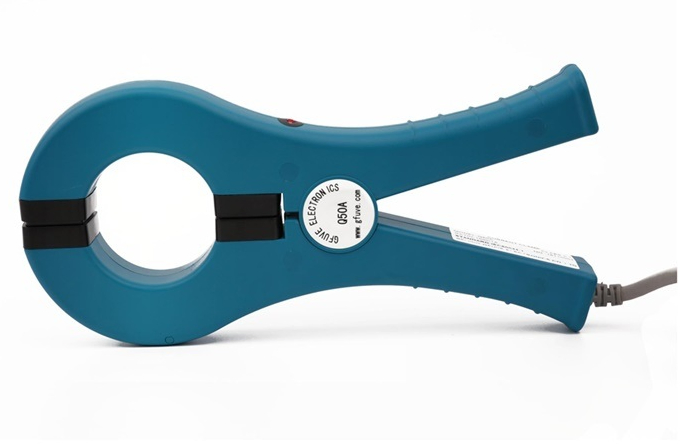

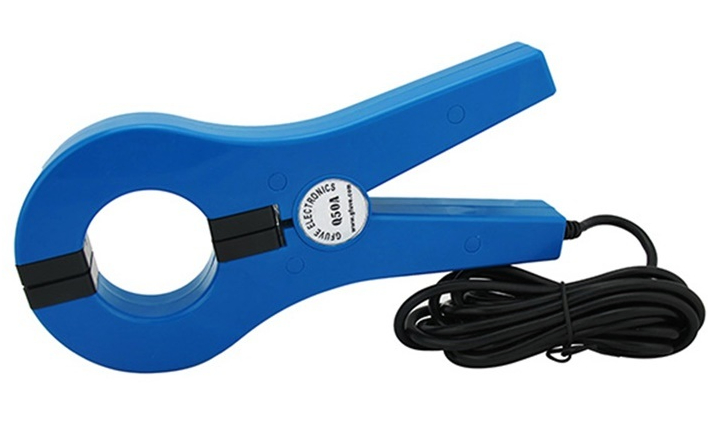

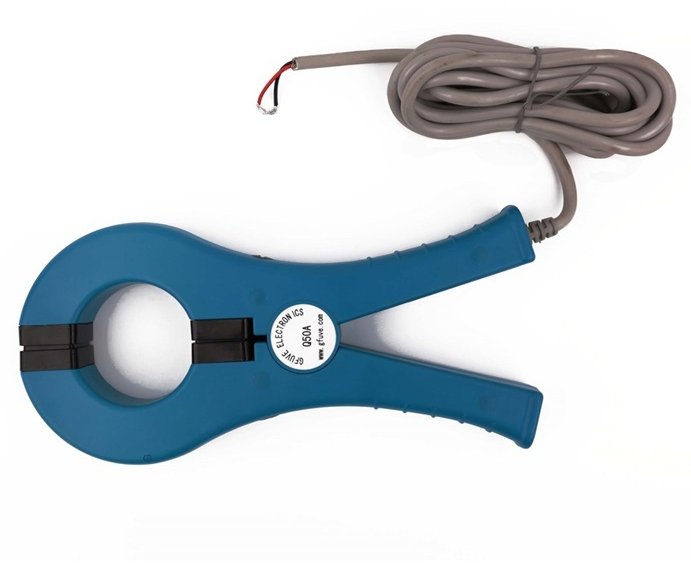

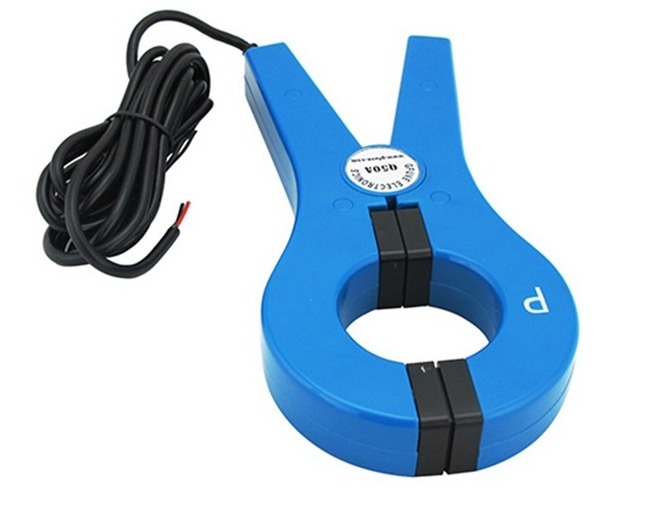

Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
1 / 5
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor
Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor

Gfuve 0.1% 1000/1A Clamp on Current Transformer with Split Core Current Sensor

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Q50A
Production Process
Injection
Material
Permarlloy Core
Accuracy Grade
0.1G
Application
Power Quality Analyzer
IP Rating
IP20
Certification
ISO
Customized
Customized
Key Word
Clamp on Current Transformer
Range
0-1000A
Class
0.1
Color
Blue
Weight
650g
Transport Package
Standard Export Carton
Specification
CE, ISO9001: 2008, IEC approved
HS Code
930000
Production Capacity
20000PCS/Month
🔍 Product Description
Current Sensor: The model Q50A 1000A clamp on current transformer is designed for fast and easy measure the current in industrial and power environment. It has a wide range of current measurement from 1mA to 1000A, high precision of 0.1%, and easy operation for measurement instruments. Meet EN61010-2-032 standard.
The Q50A AC current clamp are designed to extend the current measuring capabilities of DMMs or BNC, power instruments, oscilloscopes, hand-held scopes, recorders or loggers, clamp type grounding resistance tester, double clamp phase angle meter, energy meter calibrator and other diverse instruments.

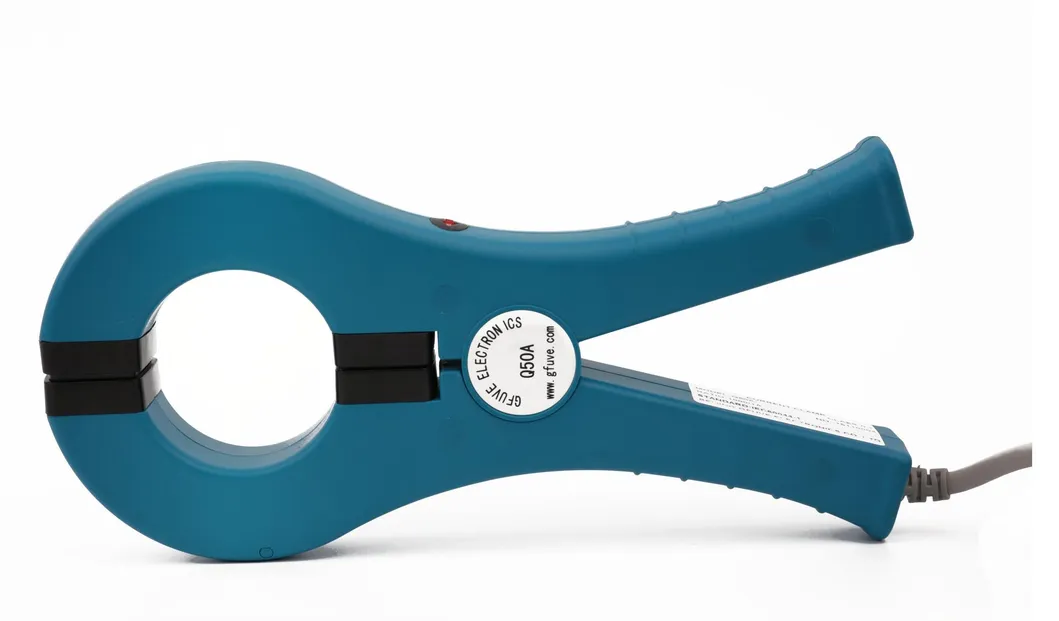

Clamp on Current Transformer

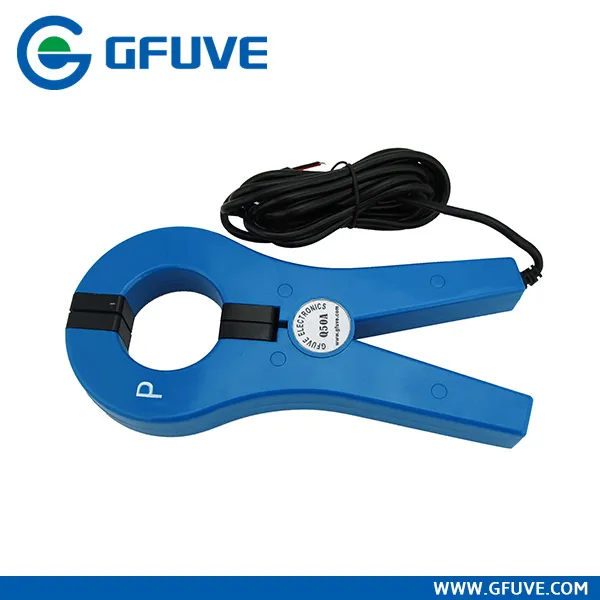

Split Core Current Sensor

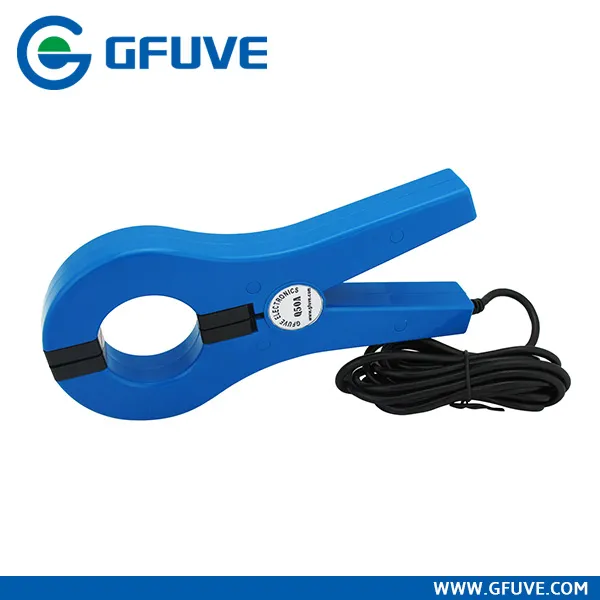

Current Sensor Detail

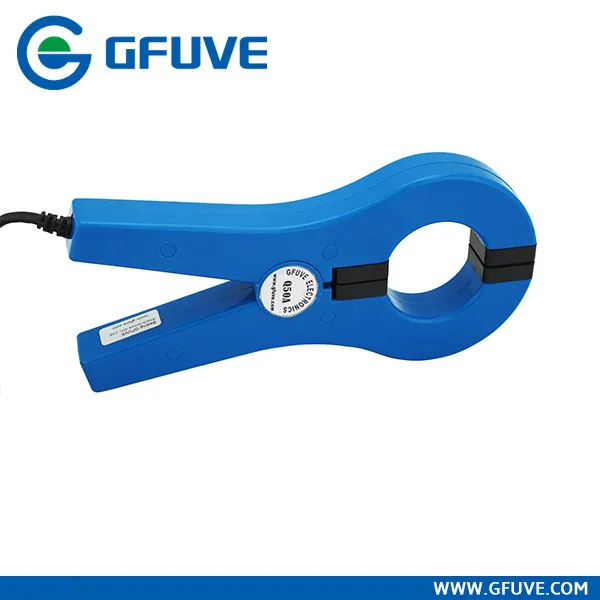

Current Sensor Measurement
⚙️ Characteristics & Application
  • Suitable for 1000 A cable online measurement
  • Holding wire diameter: Φ 50mm
  • Dimension: 101mm × 219mm × 26mm
  • Installation: Clamp type
  • Output mode: Lead output
  • Load capacity: Ma output ≤ 4Ω, 1A output 0.1Ω, 5A output 2.5VA
📊 Technical Specifications
Primary Current Secondary Current Precision Class
10A2.5mA / 5mA0.1%, 0.2%, 0.5%
20A5mA0.1%, 0.2%, 0.5%
100A20mA / 40mA / 50mA / 100mA0.1%, 0.2%, 0.5%
200A80mA / 100mA / 200mA0.1%, 0.2%, 0.5%
300A120mA / 150mA / 200mA / 300mA0.1%, 0.2%, 0.5%
500A100mA / 200mA / 250mA / 500mA0.1%, 0.2%, 0.5%
600A120mA to 600mA0.1%, 0.2%, 0.5%
700A200mA / 350mA / 700mA0.1%, 0.2%, 0.5%
800A160mA to 800mA0.1%, 0.2%, 0.5%
500A ~ 1000A1A0.1%, 0.2%, 0.5%
200A5A1%
300A ~ 1000A5A0.2%, 0.5%
❓ Frequently Asked Questions
What is the maximum measurement range of the Q50A?
The Q50A current transformer supports a wide measurement range from 1mA up to 1000A AC.
What is the accuracy grade of this clamp-on sensor?
It offers high-precision performance with an accuracy grade of up to 0.1%.
What size of cable can the clamp accommodate?
The clamp is designed to hold wires or cables with a diameter of up to Φ 50mm.
What instruments are compatible with the Q50A?
It is compatible with DMMs, oscilloscopes, power quality analyzers, energy meter calibrators, and data loggers.
Does it meet international safety standards?
Yes, the device is CE and IEC approved and meets the EN61010-2-032 safety standard.
What is the core material used in the Q50A?
The transformer utilizes a high-quality Permalloy core for superior magnetic performance and accuracy.
