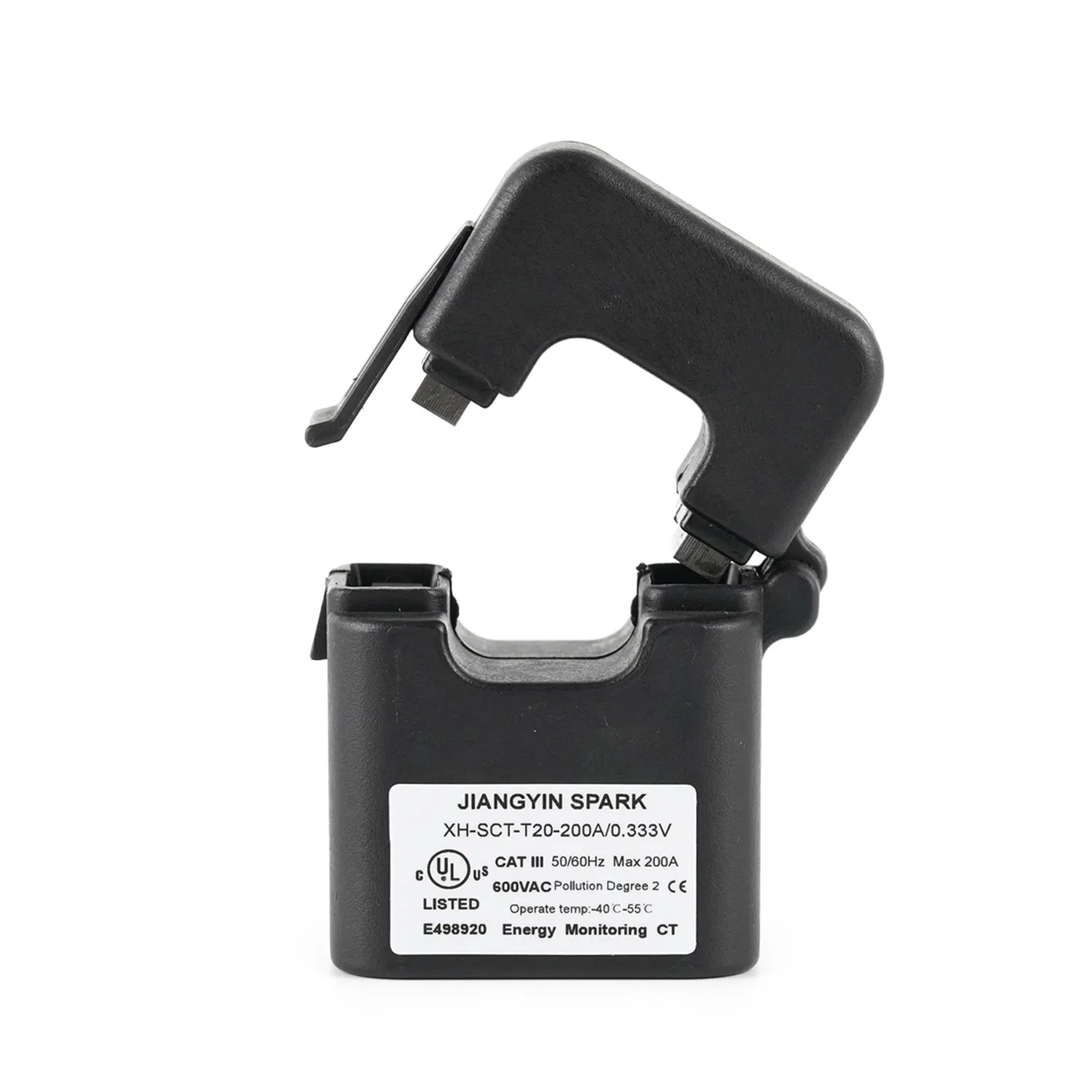

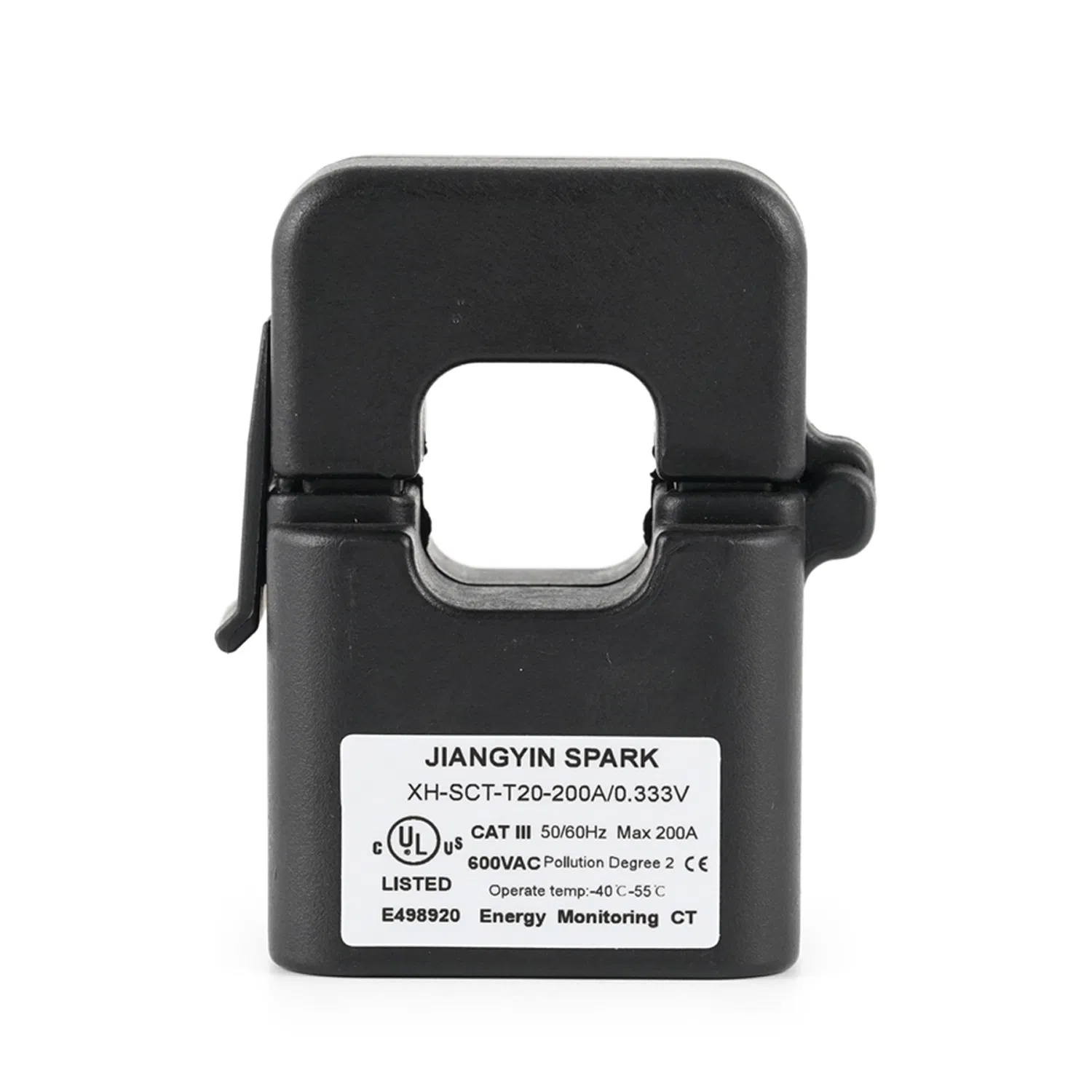

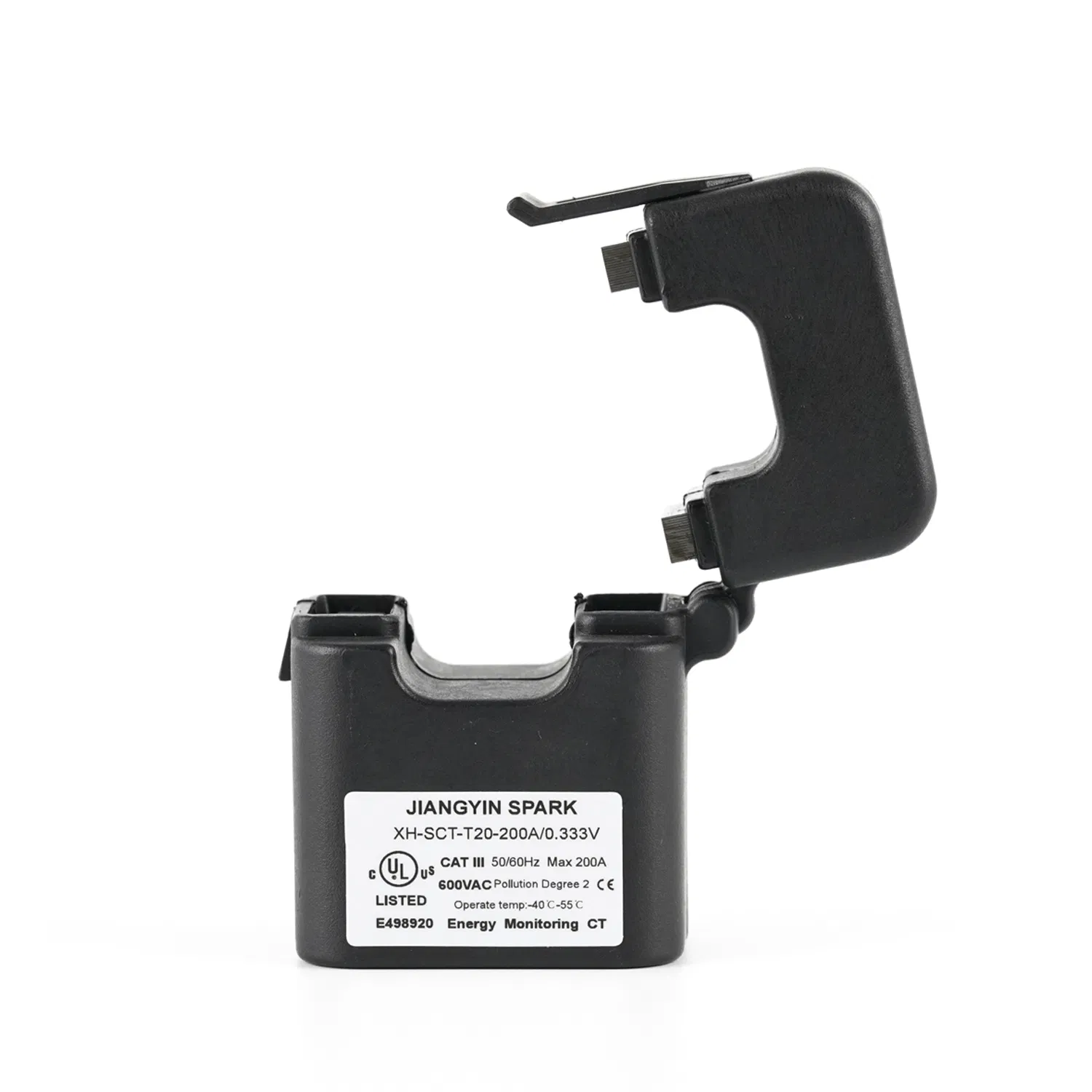

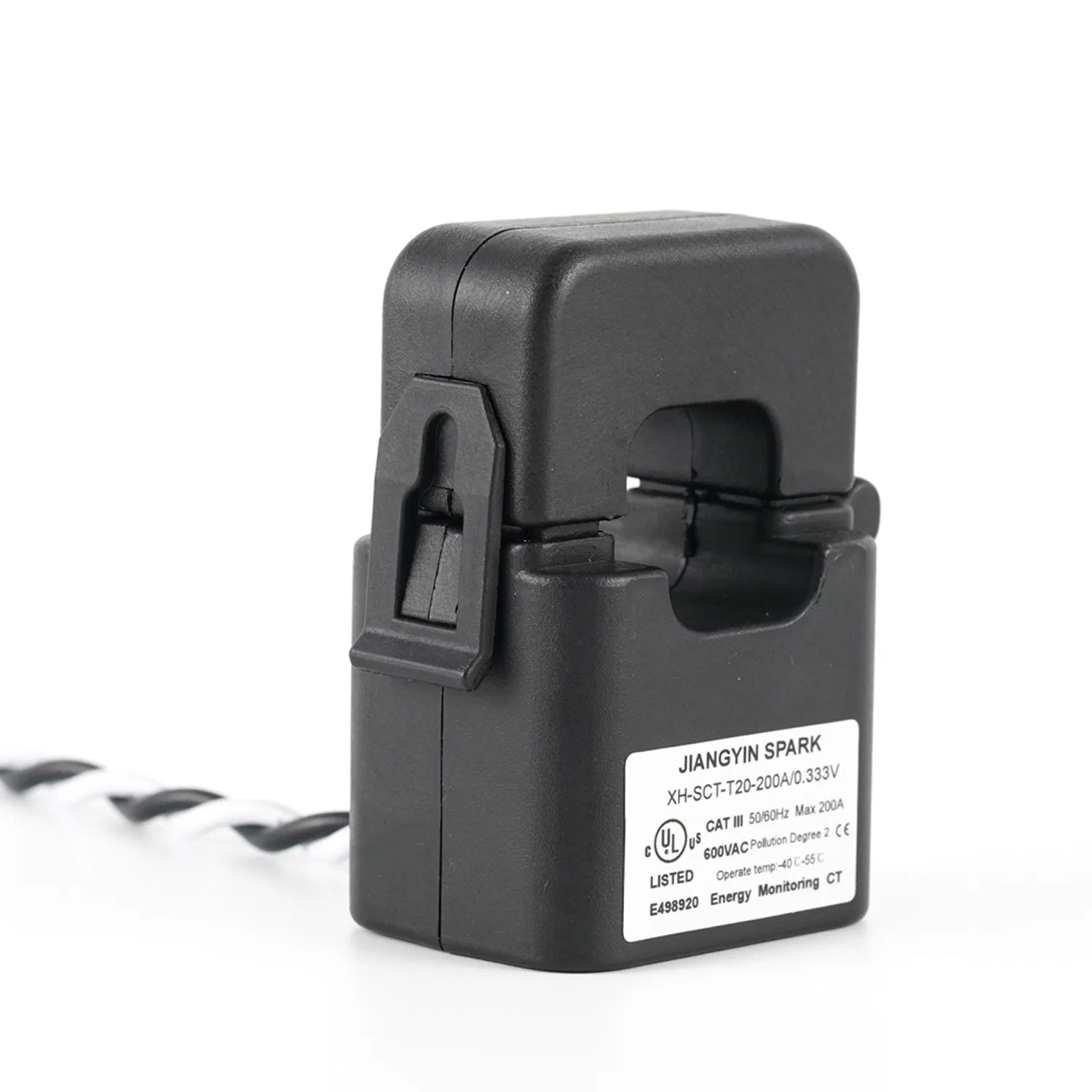

UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
1 / 5
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer
UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer

UL2808 Xoba Xh-Sct-T20 Clamp on CT Sensor Split Core Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Model NO.
SCT20-100A/0.333V
Phase
Single
Operation Condition
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Active Type
Magnetic Circuit Structure
Single Stage Type
Voltage Principle
Capacitive Type
Model
UL2808 Split Core CT Xh-Sct
Output
0.333V, mA or mV
Withstand Voltage
5.4kv/1mA/1min
Internal Structure
Epoxy
Origin
China
HS Code
8504
Capacity
90,000 PCS/Month

Product Description

⚡
UL2808 XOBA Split Core Current Transformer
Designed for fast and easy installation, our energy monitoring split core current transformers handle AC current from 1 to 300 Amps passing through the center conductor.
🛠️
Non-Contact Measurement
The split core design permits magnetic field induction measurement without requiring the primary wire to be taken offline or disconnected.
🛡️
Safe & Portable
Built-in resistor provides a 0.333V output, ensuring a safer and easier current measurement method. Features a one-handed opening and closing mechanism for snap installation.

Technical Specifications:

Input Range 1A to 300A AC
Rated Output 0.333V or mA / mV at rated current
Rated Voltage 0.66KV
Insulation Voltage 5400V
Frequency Range 50-400Hz
Operating Temp -40ºC to 85ºC
Flame Resistance UL94-V0
Lead Wires UL 1015 18awg
Certificates UL2808, CE, RoHS, IEC61010-1

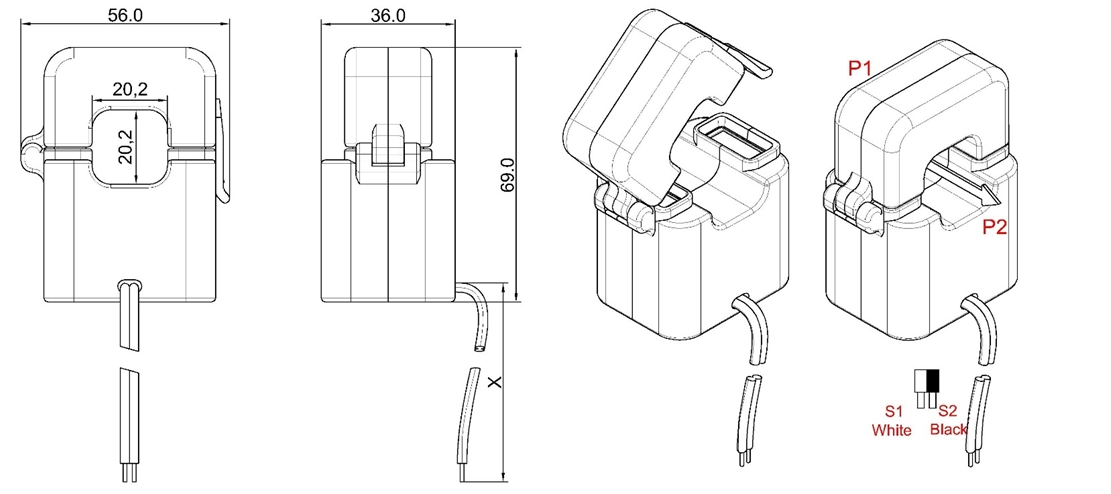

Dimensions (mm):

Model Rated Input (A) Output L (mm) W (mm) H (mm) O (mm)
XH-SCT-T060.2-80AmA / 0.333Vac / 0-3 Vac3234.545.56
XH-SCT-T120.2-120A34.5404913
XH-SCT-T180.2-300A3646.56117
XH-SCT-T200.2-300A36546920

Product Testing & Visuals:

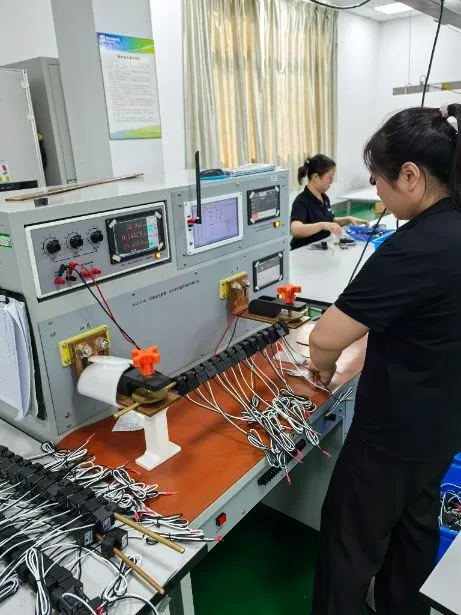

Split Core CT Sensor Test
UL2808 Current Transformer Diagram
Clamp on CT Sensor
Current Transformer Sales Selection

Service & Commitment

Notes:

  • FREE samples are available for testing.
  • Please specify model, input current, output signal, and lead length when ordering.
  • OEM/ODM services are fully supported.

Package & Shipping:

  • Securely packed with bubble wrap and white boxes in outer cartons.
  • Shipped via UPS, DHL, FedEx, TNT (3-7 days delivery).
  • Air and sea freight available for large quantities.

Our Warranty:

  • 1-year quality warranty provided.
  • Defective products can be notified within 3 days of receipt for exchange.

Frequently Asked Questions

Q: Can I install this current transformer without cutting the power?
A: Yes, the split core design allows for non-contact induction measurement, meaning you can install it around existing wires without disconnecting the primary circuit.
Q: What is the benefit of a 0.333V output?
A: A 0.333V output is much safer for secondary equipment and installers compared to traditional 5A secondary currents, as it limits high-voltage risks if the circuit is opened.
Q: Does this product meet safety standards for North America?
A: Yes, this model is UL2808 certified, which is a key standard for current transformers used in energy monitoring and field installation in North America.
Q: What is the maximum current this series can handle?
A: The XH-SCT series can handle a wide range of input currents from as low as 1A up to 300A AC, depending on the specific model selected.
Q: How long is the delivery time for a standard order?
A: For standard quantities under 1000 PCS, the typical lead time is 3-7 days upon receiving payment.
Q: Is the material fire-resistant?
A: Yes, the housing and structure meet the UL94-V0 flame resistance standard, ensuring safety in industrial environments.
