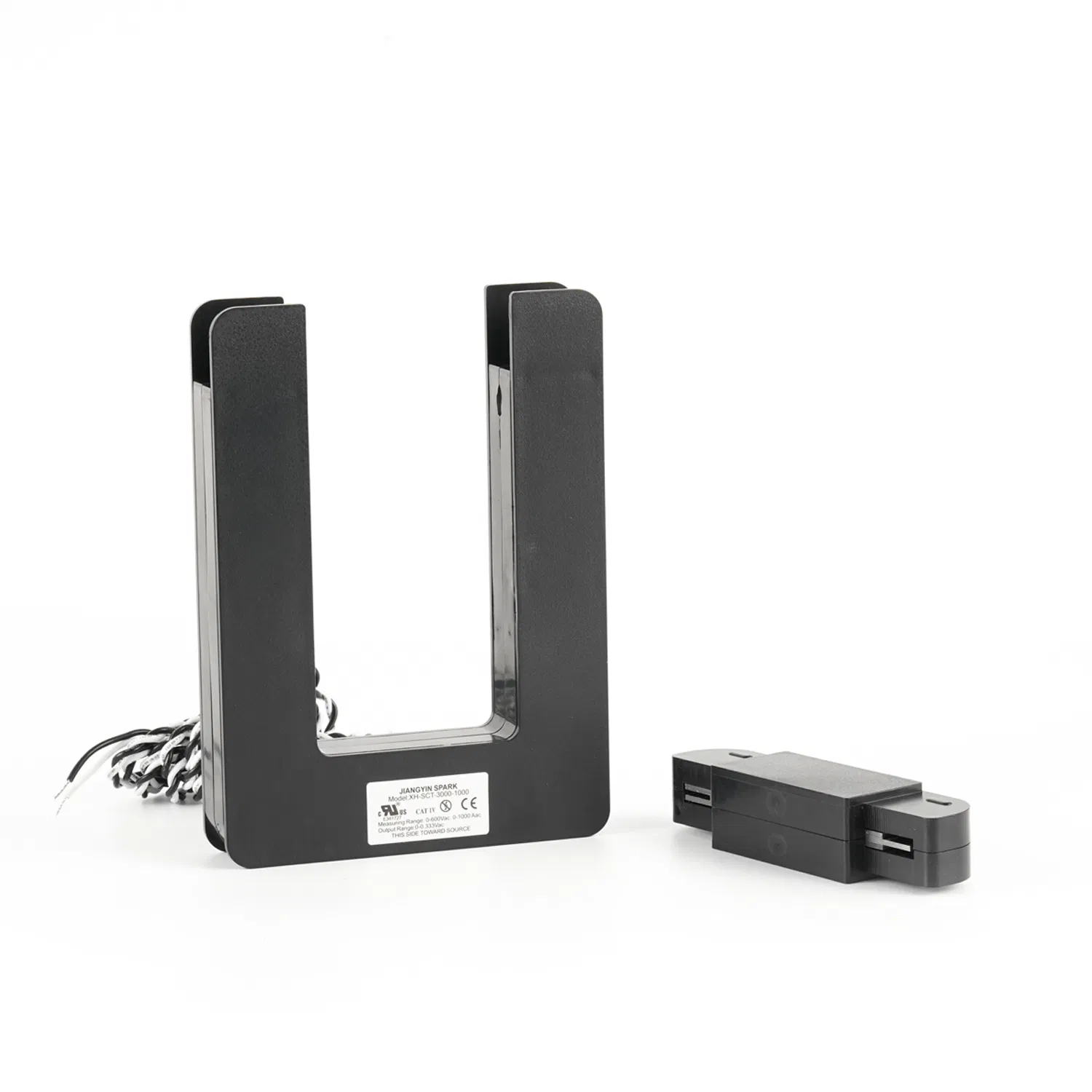

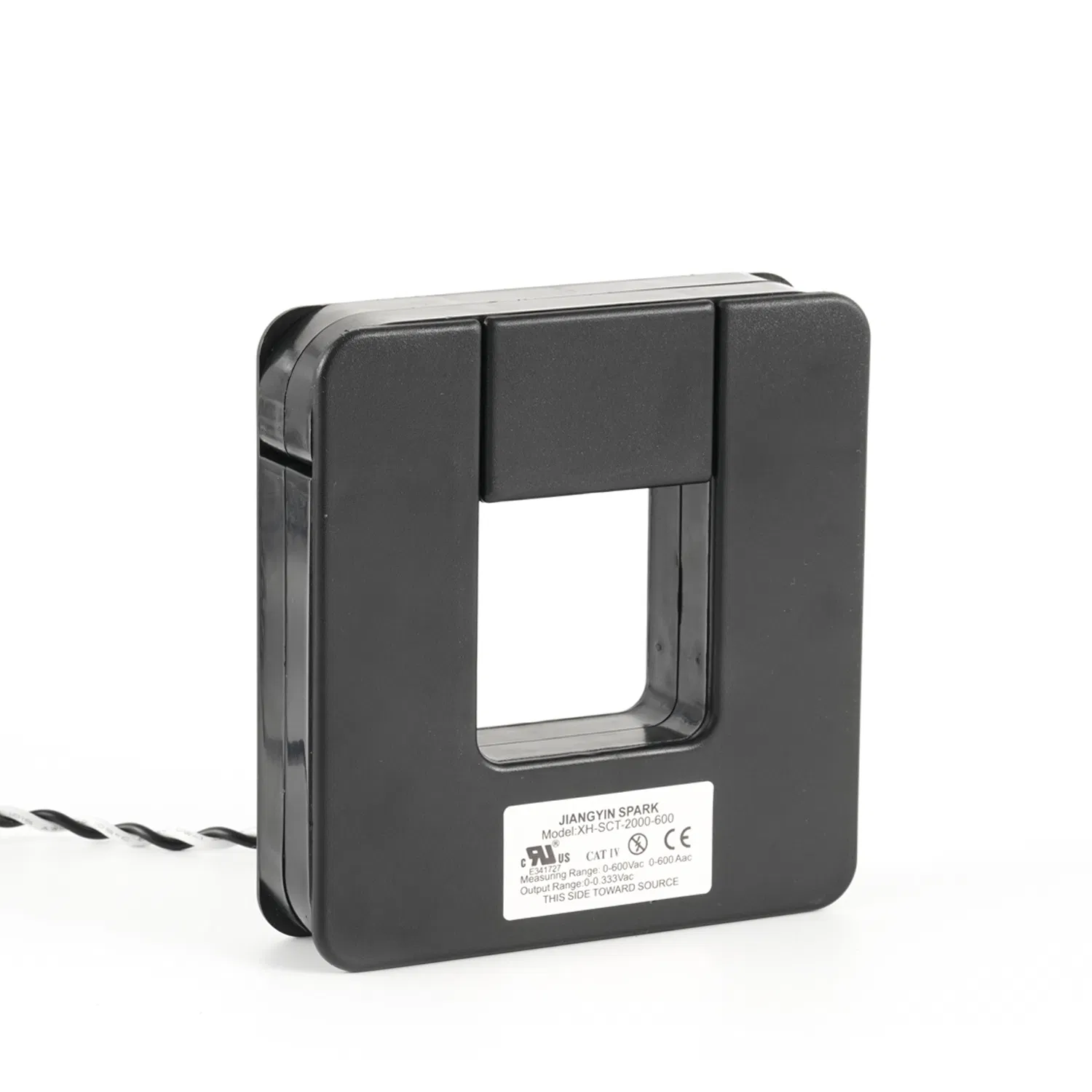

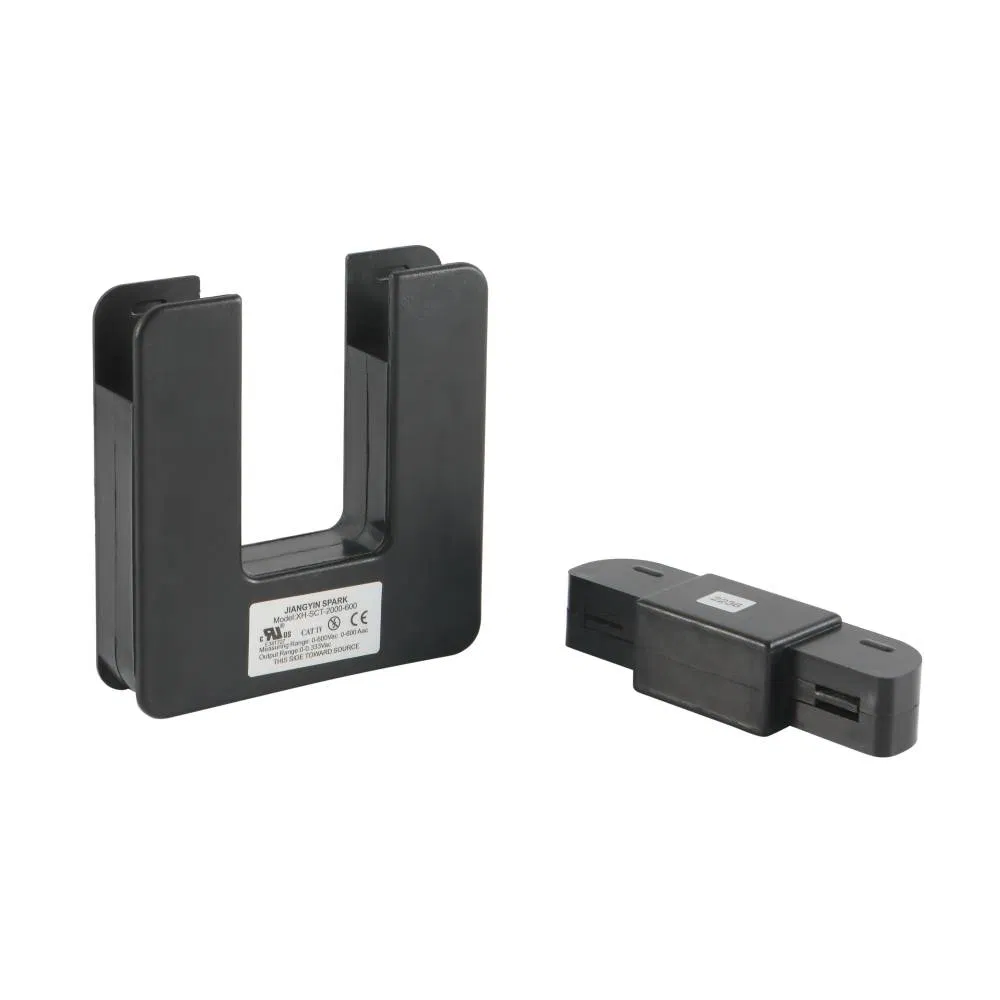

UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
1 / 5
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer
UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer

UL CT China Manufacturer Sct 1000A 333mv Xh-Sct-2000 Split Core Clamp on Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
XH-SCT-T10/T16/T24/T36/0750/1250/2000
Phase
Single
Operation Condition
Indoor
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Active Type
Usage
Measurement
Rated Input Current
1000A
Output
0.333V
Accuracy
1.0
Certificates
UL2808, CE, RoHS
Production Capacity
50000PCS/Month
🔍 Product Description

The series of split core current transformer are designed for fast and easy installation. Split-core current transformers are ideal for installation on existing electrical wiring by snapping around the conductor. This method permits a safer, easy and portable current measurement.

⚡ Technical Specifications:
  • Maximum continuous primary current 5A to 5000AAC
  • Current Ratio: 500:1 to 3000:1
  • Output: 0.333V, mV or mA
  • Accuracy: ± 1% from 5% to 120% of rated current
  • Insulation Voltage: 600VAC
  • Maximum Primary Voltage: 5000VAC (Insulated Conductor)
  • Phase angle: Less than 2 degrees at 50% of rated current
  • Frequency Range: 50 Hz to 400 Hz
  • Operating Temperature: -15C to 60C
  • Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG)
  • CE recognized, and RoHS compliant
📊 Model Specifications
Model I.D. (mm) Rated Amps Output Accuracy Size A Size B Size C
XH-SCT-075019.15-200A0.333V1.051.654.116.6
XH-SCT-125031.870-600A0.333V1.082.385.326.4
XH-SCT-200050.8400-1200A0.333V1.012012529.6
XH-SCT-300076.2x1271000-3000A0.333V1.014519930.5
Model I.D. Ratio Rated Amps Accuracy
XH-SCT-T066mm1000:11, 5, 10, 15, 200.5, 1.0
XH-SCT-T1010mm3000:15, 15, 30, 50, 75, 800.5, 1.0
XH-SCT-T1616mm3000:150, 70, 100, 1200.5, 1.0
XH-SCT-T2424mm3000:1100, 150, 200, 3000.5, 1.0
XH-SCT-T3636mm3000:1300, 400, 500, 6000.5, 1.0
📸 Product Gallery
Split Core CT
Current Transformer Detail

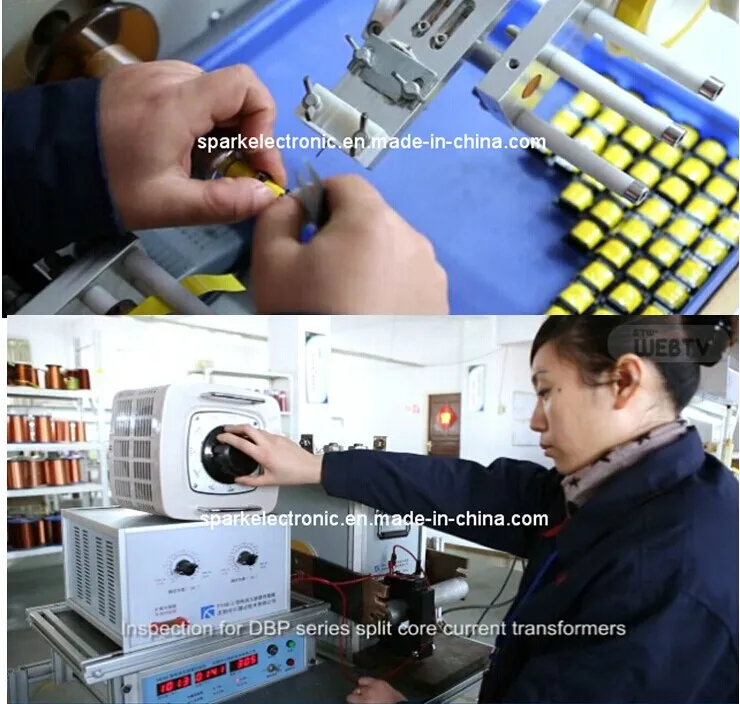

SCT Measurement
Technical Drawing

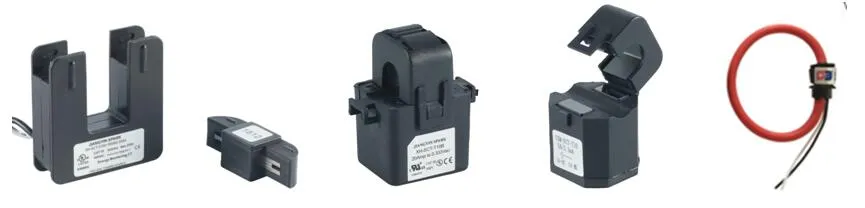

Hot Sales Models
📦 Packaging & Shipping

Package: All CTs are well packed with bubble wrap and white boxes in a sturdy carton. Neutral packing or OEM labeling is available.

Shipping: Products are shipped via UPS, DHL, FedEx, TNT (door to door), or air/sea shipment for larger quantities. Lead time is typically 3-7 days for quantities under 1000PCS.

Warranty: We provide a 1-year warranty. Defective products must be reported within 3 days of receipt for refund or exchange.

Frequently Asked Questions
What is the main advantage of a split-core current transformer?
The primary advantage is easy installation. You can snap it around an existing conductor without disconnecting the electrical circuit, making it safer and faster to deploy.
What output signals are available for these CTs?
The standard output is 0.333V, but we can also provide customized outputs in mV or mA based on your technical requirements.
Are these transformers suitable for outdoor use?
These specific models are designed for indoor operation conditions with an operating temperature range of -15°C to 60°C.
What certifications do your current transformers hold?
Our products are UL2808 recognized, CE certified, and RoHS compliant, ensuring they meet international safety and quality standards.
Can the lead wire length be customized?
Yes, while the standard lead length is 4 feet (105cm), both the output type and lead wire length can be customized to fit your specific application.
What is the accuracy class of the XH-SCT series?
The standard accuracy is Class 1.0, maintaining precise measurement from 5% to 120% of the rated current.
