3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
1 / 5
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv
3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv

3 in 1 Three Phase Flexible Current Transformer Built in Rogowski Coil Integrator 333mv

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
STP/MRC-24
Production Process
Integration
Material
Metal
Accuracy Grade
0.5G
Application
Electronic & Electrical Cases
IP Rating
IP20
Certification
CE
Current Range
0.5-100ka AC
Output
150mv - 3V
Bandwidth
20Hz to 2kHz
Power Supply
3.3V-5V DC
Terminal
RJ45/ 8pin
Three Phase Flexible Current Transformer

3 in 1 Three Phase Flexible Current Transformer

Built-in Rogowski Coil Integrator Selectable

Product Description

STP with a selectable built-in integrator outputs a three-way Rogowski coil signal through an RJ45 port or 8 Pin. This portable mini design is optimized for easy installation and high-precision monitoring.

✓ Portable mini size for restricted spaces.
✓ Flexible power supply (3.3V - 5V DC).
✓ Multiple output options: 150mV, 333mV, 500mV, 1V, 1.5V, 3V AC.

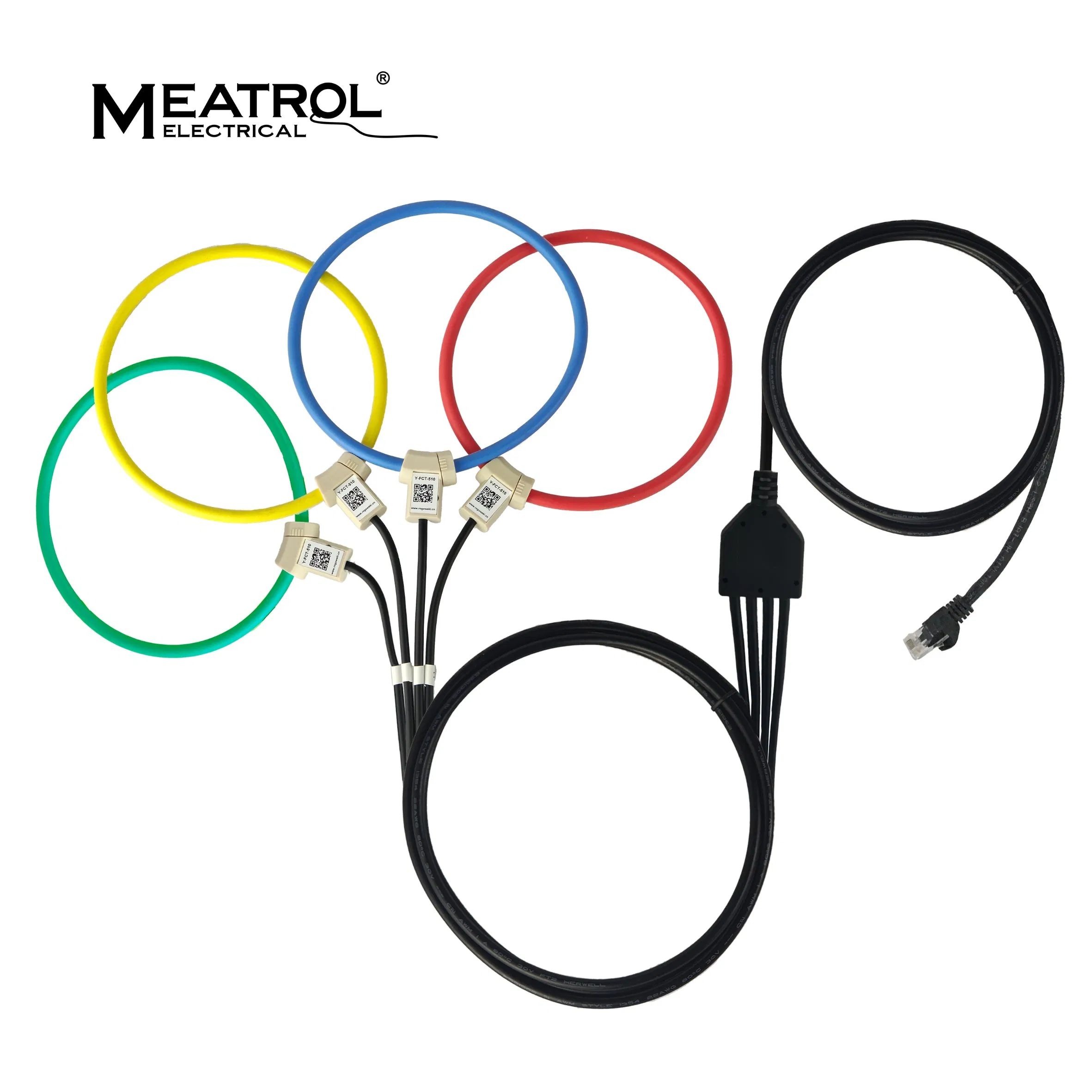

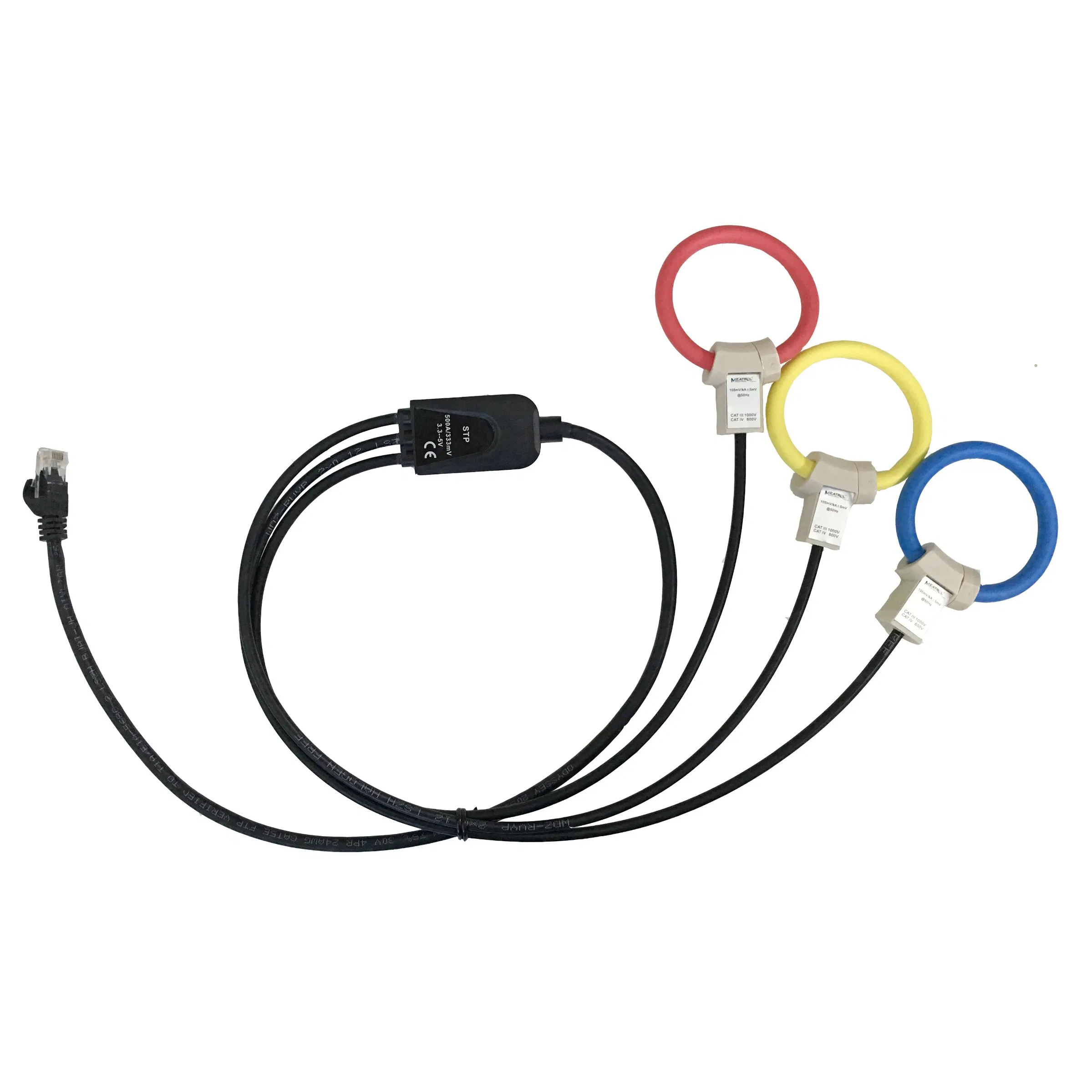

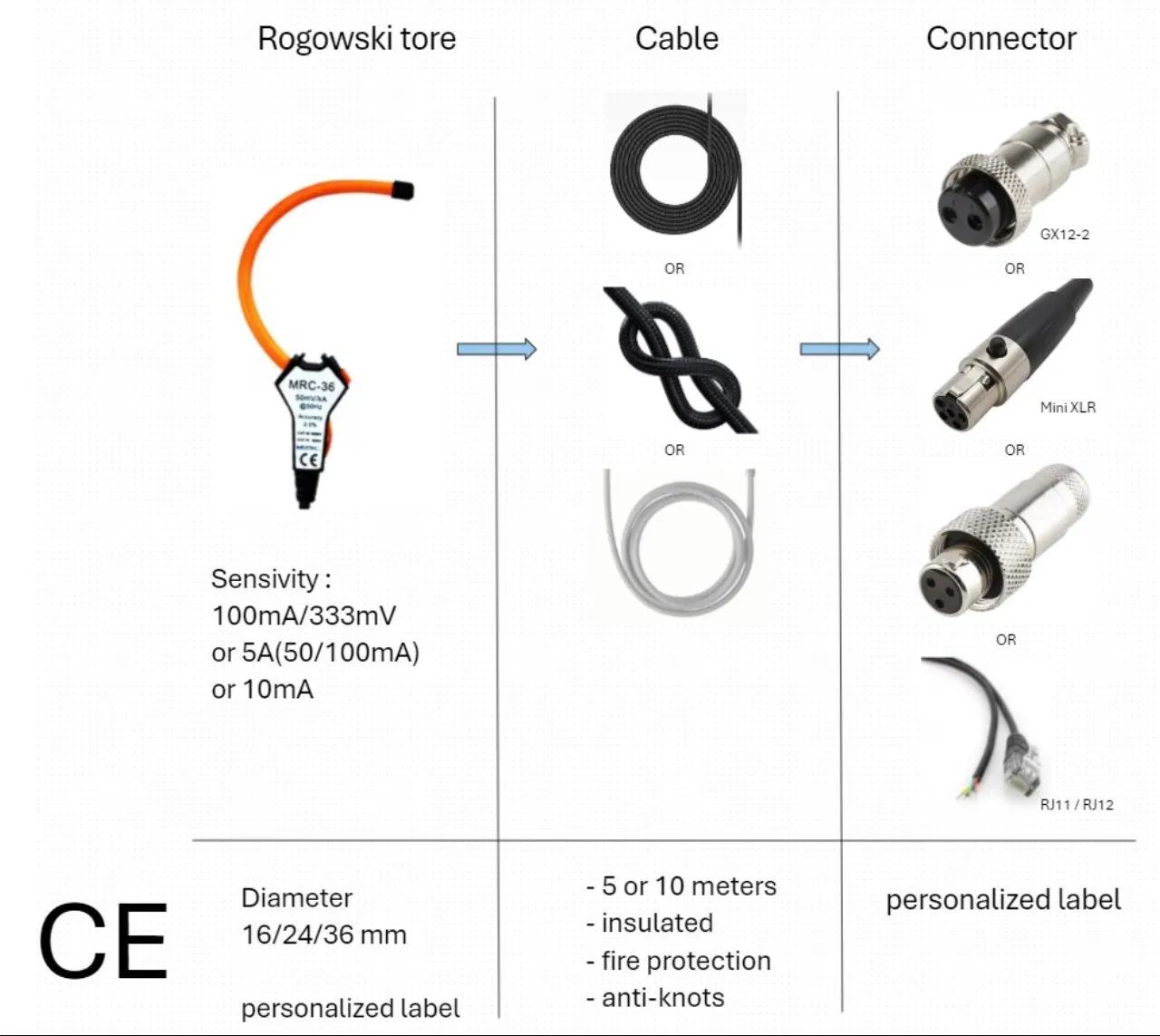

STP Splitter Detail

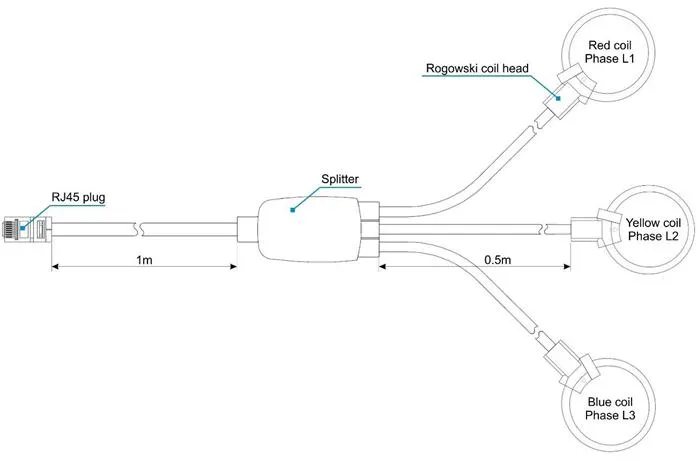

Connection Diagram

Technical Specifications

Parameter Specification Details
Rated Output Options100A, 600A, 1000A, 3000A, 6000A
Standard Output333mV AC
Maximum Overload3V rms
Power Consumption≤20mW
Read Accuracy1% typical (10A to 200% rated current)
Linearity±0.2% (5% - 200%)
Phase Error≤0.5°
Operating Temp-20ºC to 70ºC
Protection DegreeIP20

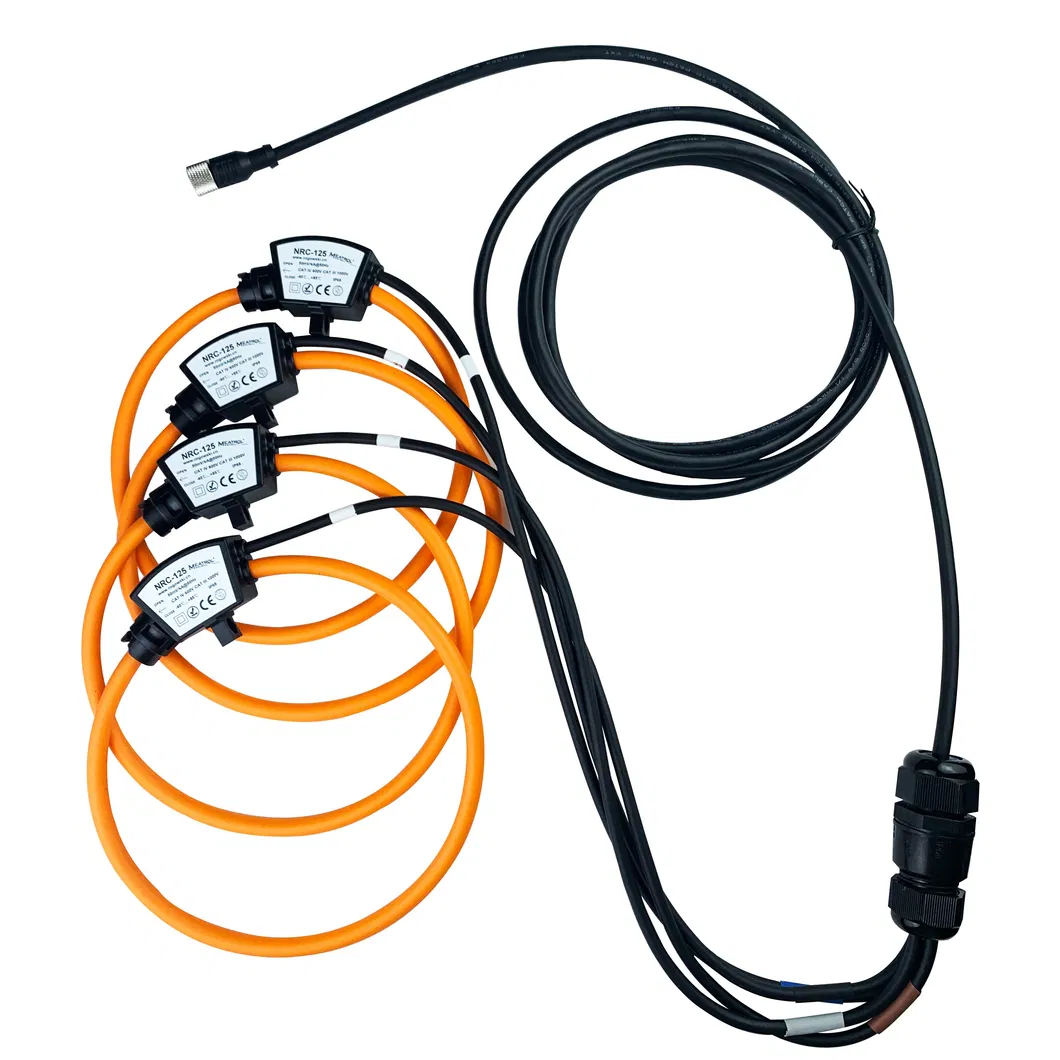

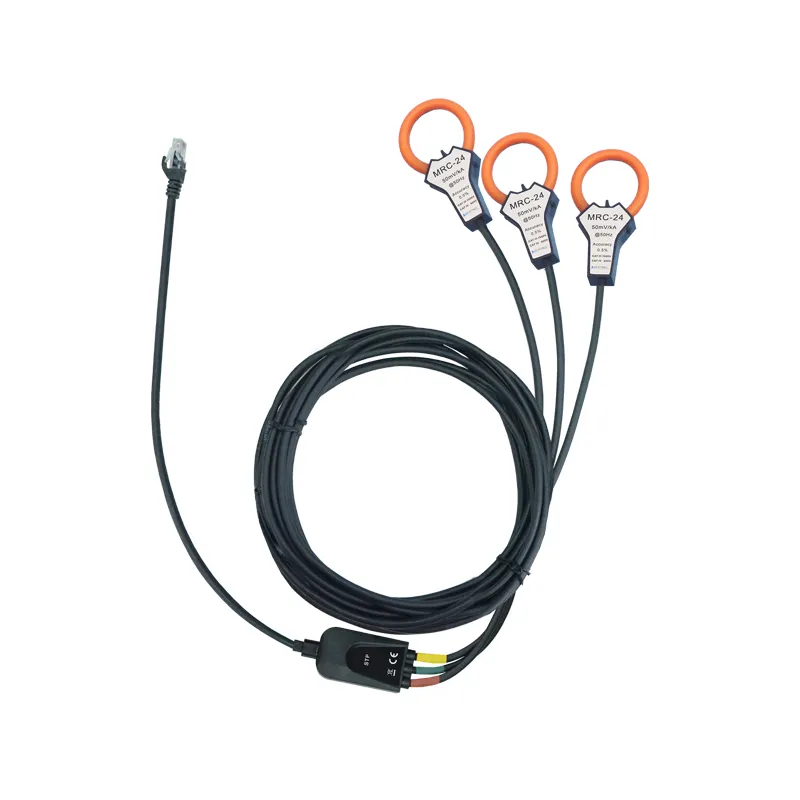

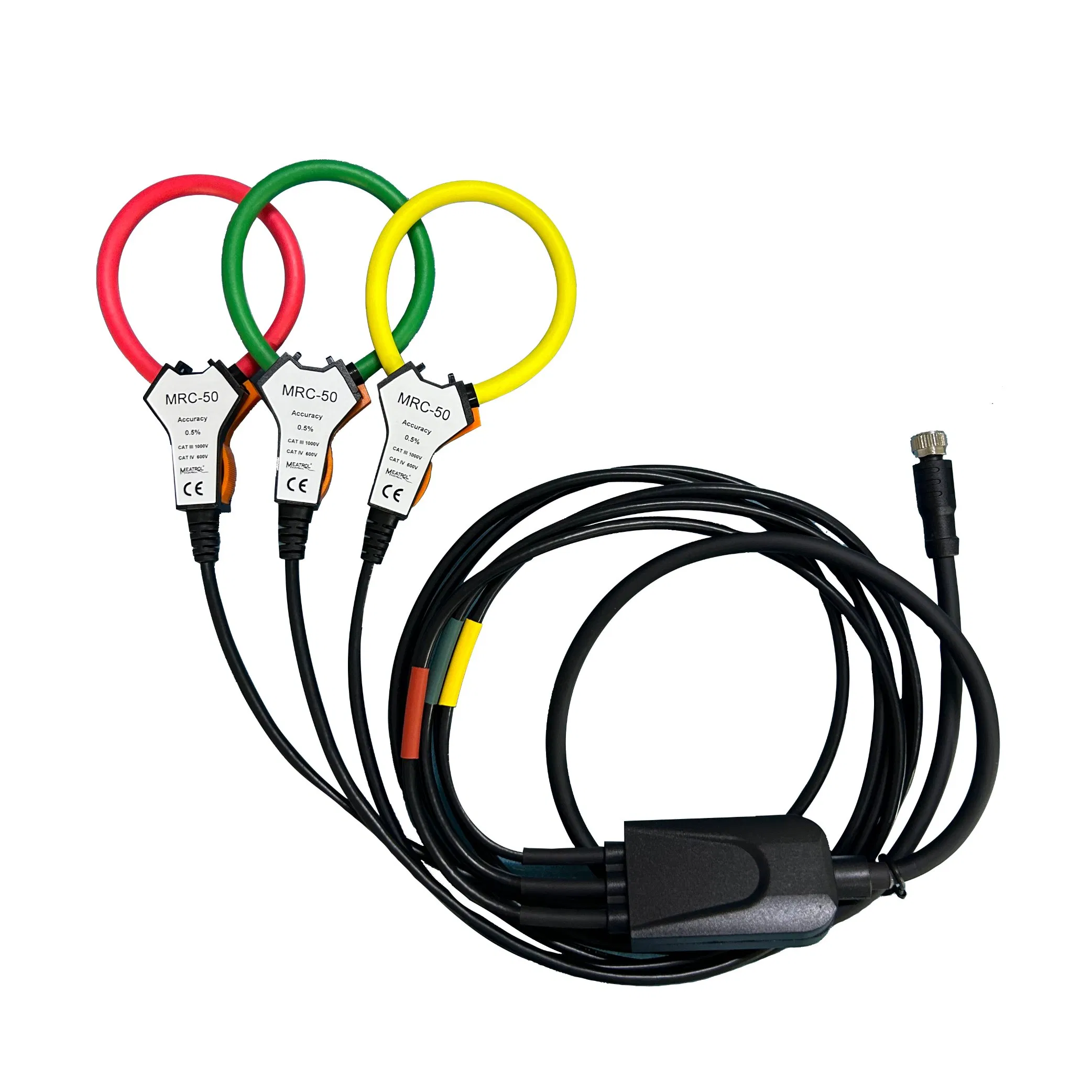

Product View 1
Product View 2

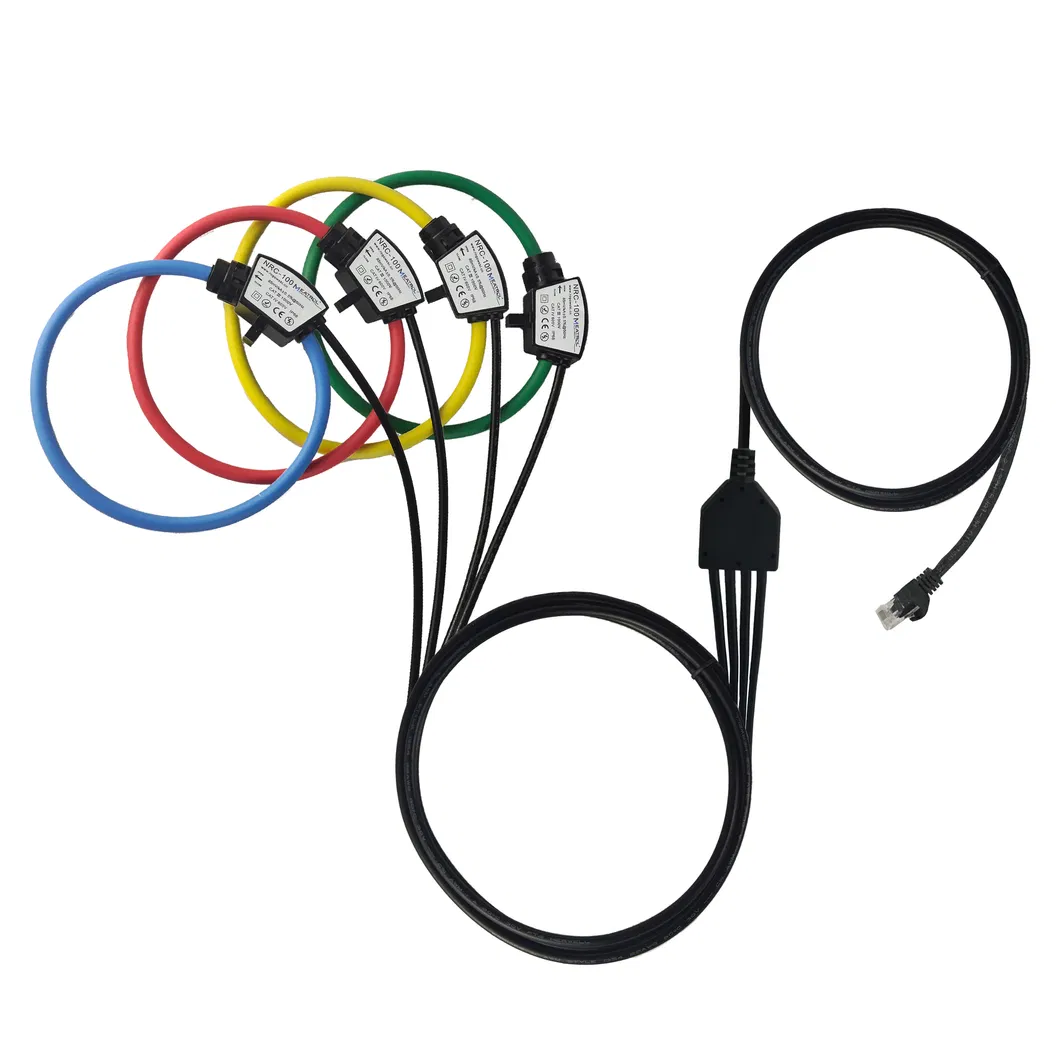

Product View 3
Product View 4
Product View 5
Product View 6

Understanding Rogowski Coils

Rogowski coils are air-cored coils placed around conductors to measure AC current via the magnetic field induced voltage. The output is proportional to the rate of change of current, which is then integrated for accuracy.

★Wide Dynamic Range: Capable of measuring very low to very high currents.
★High Linearity: Consistent performance across the measurement spectrum.
★Non-Intrusive: Draws no power from the main circuit.
★Safe: No danger from open-circuited secondaries compared to traditional CTs.

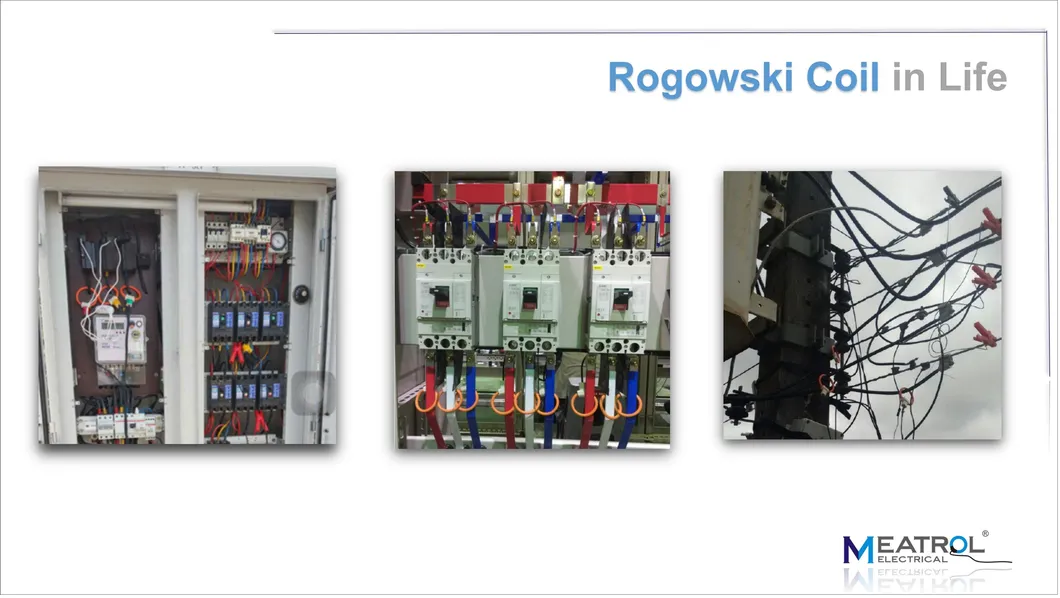

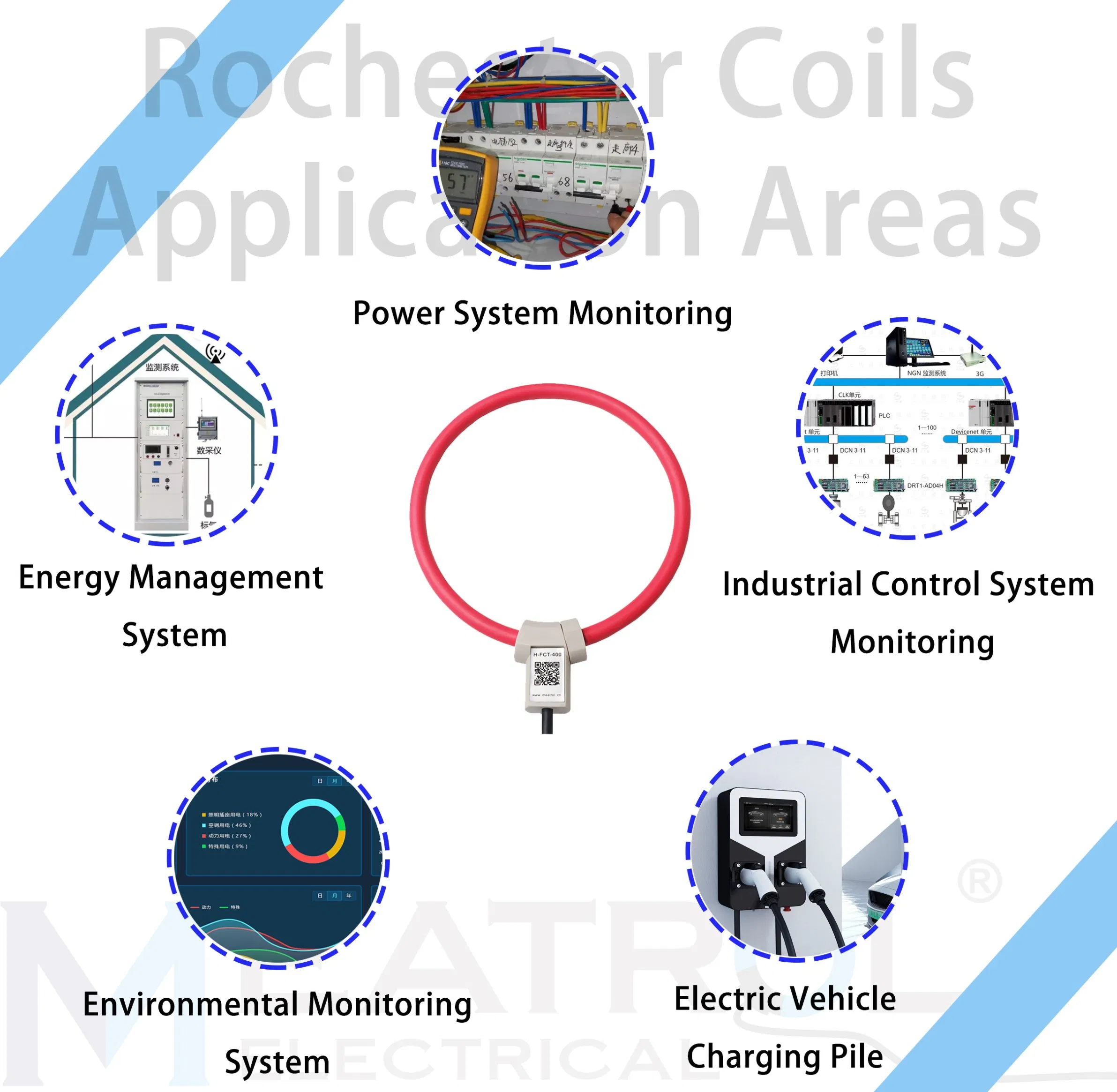

Rogowski Coil Principle Technical Drawing Application Scenario

Frequently Asked Questions

What is the main benefit of a 3-in-1 splitter?
It integrates three phases into a single output port (RJ45 or 8-pin), simplifying wiring and saving space in electrical cabinets.
What current range can this sensor handle?
The STP/MRC-24 supports a wide current range from 0.5A up to 100kA AC, depending on the specific configuration.
Does it require an external power supply?
Yes, the built-in integrator requires a DC power supply between 3.3V and 5V.
Is this sensor suitable for outdoor environments?
The current model has an IP20 rating, meaning it is designed for indoor use or should be placed within a protected enclosure.
How accurate is the measurement?
It features a typical accuracy of 0.5% at central position and 25℃, with high linearity across the range.
Can the output signal be customized?
Yes, we offer multiple selectable output voltages including 150mV, 333mV, 1V, and up to 3V AC.
