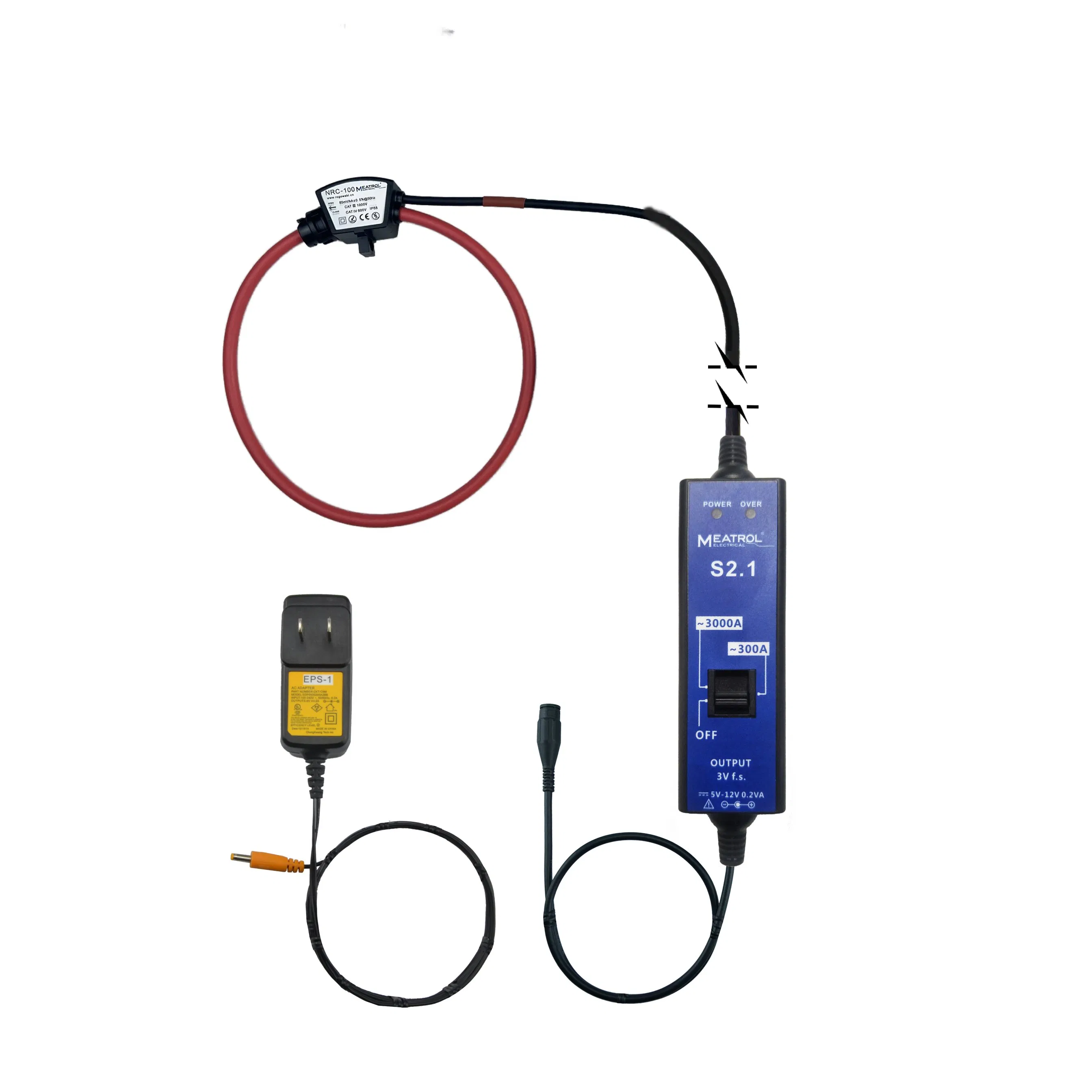

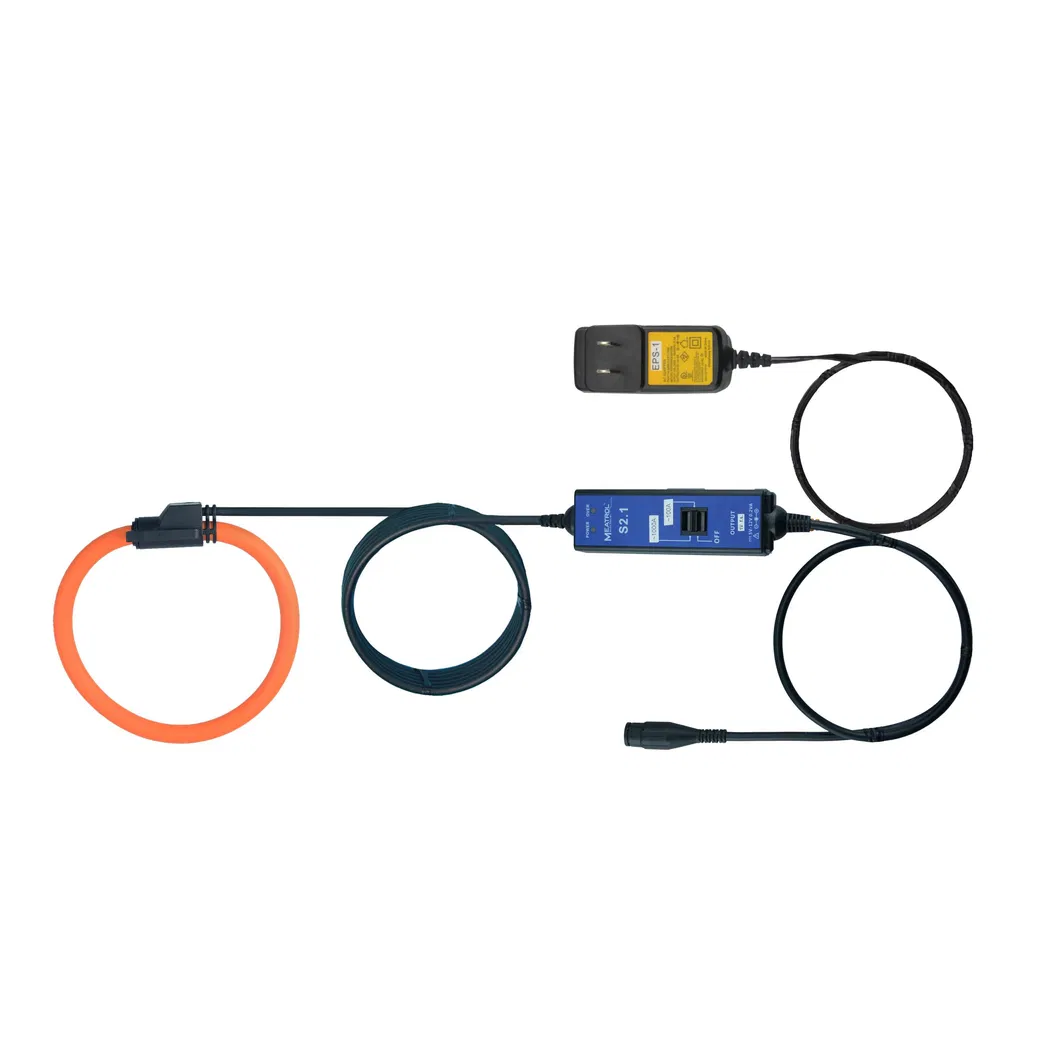

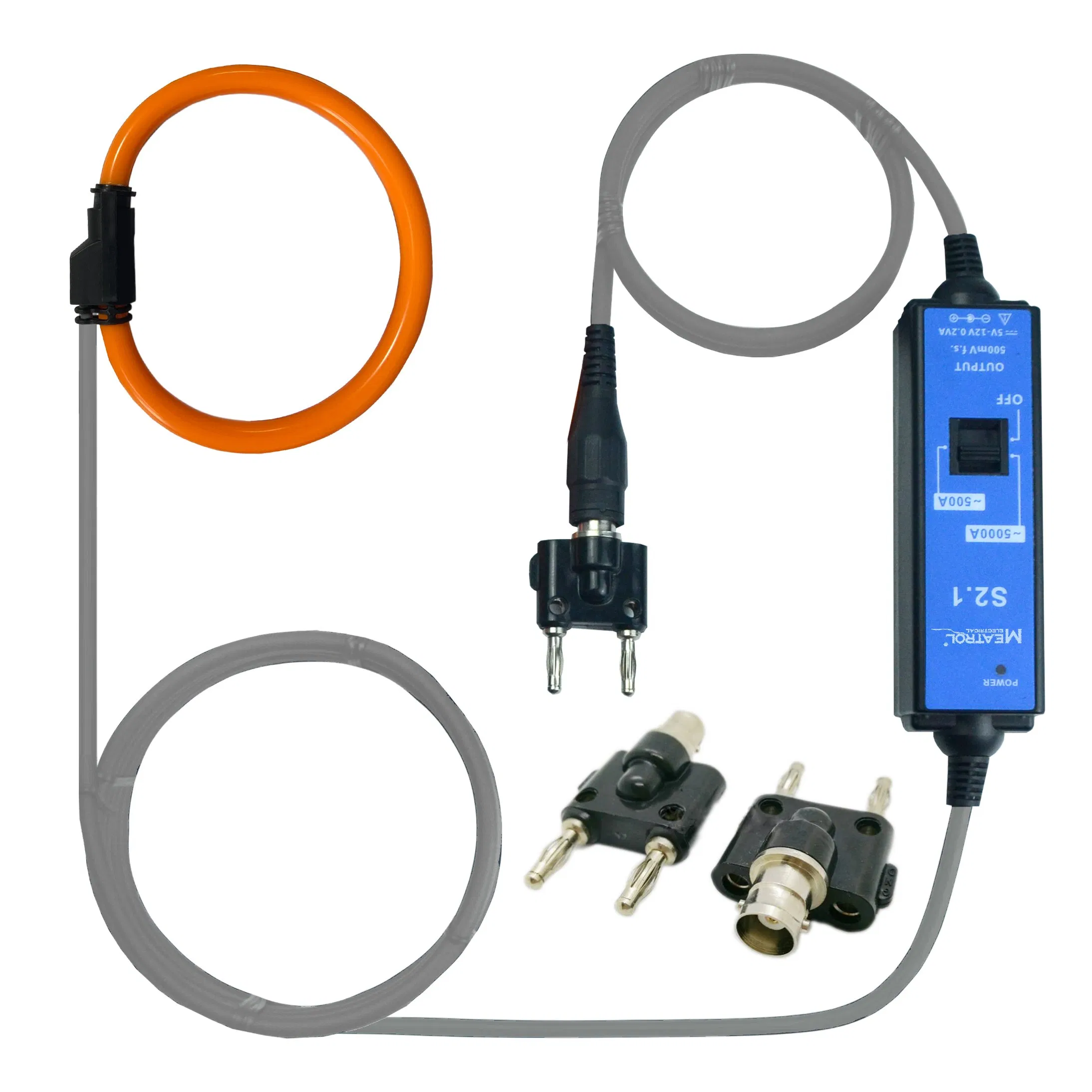

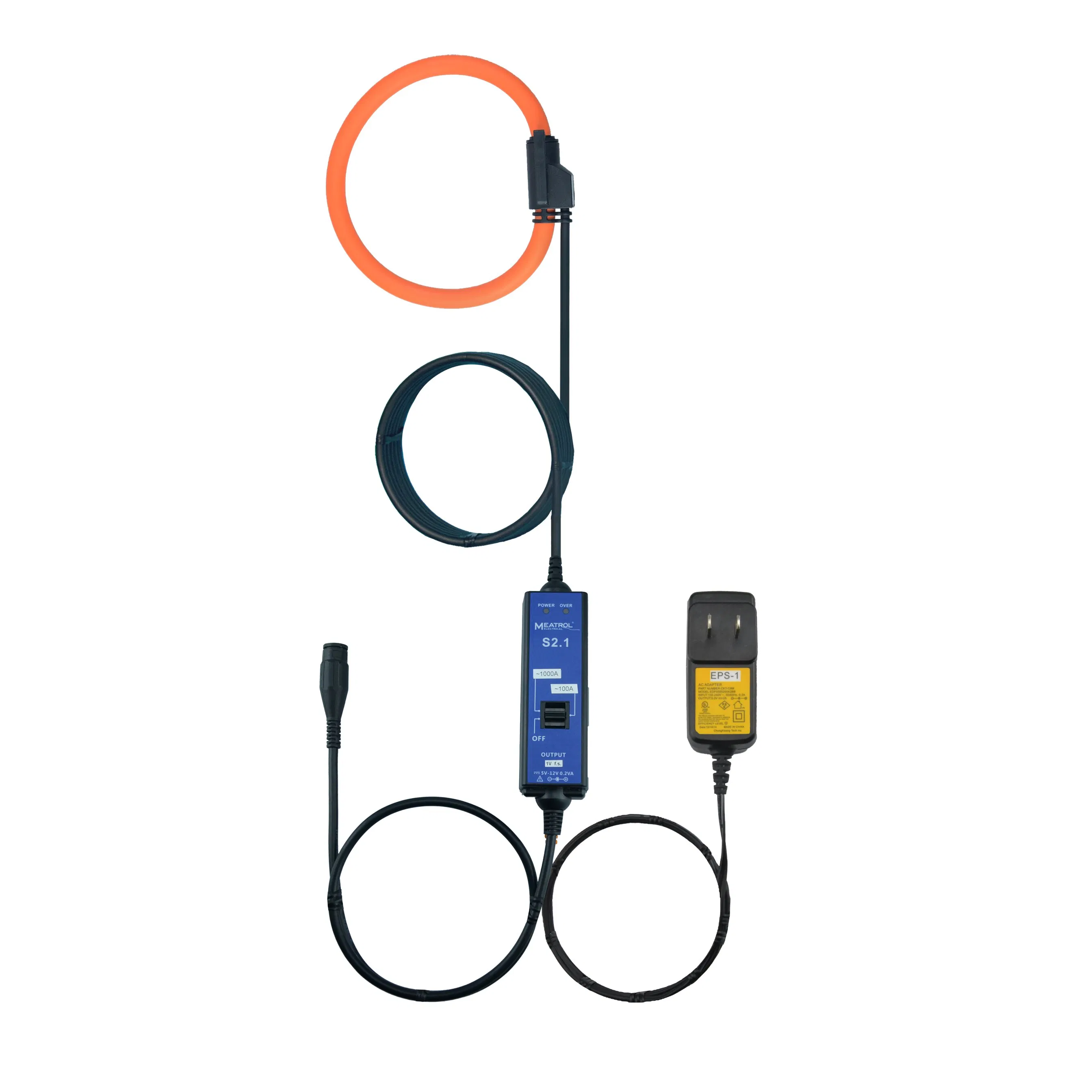

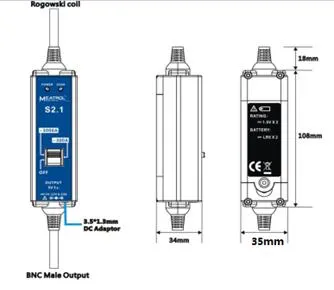

The S2-LC is a professional leakage current measurement set combining a Rogowski coil (SRC-50) and an integrator (S2.1). It is designed to measure from 1mA to 50A with high precision, making it ideal for power analysis and oscilloscope connections.
| Key Advantages | Primary Applications |
|---|---|
| • 1mA to 50A measurement range • Mini handheld design • Low power consumption |
• Leakage current measurement • Small current detection • High power load analysis |
| Model | S2-LC | |
| Rated Input | 5A/50A (Switchable) | |
| Rated Output | 3V AC RMS | |
| Response Time | ≤1us | |
| Bandwidth | 10Hz to 10kHz | |
| Read Accuracy | 10.0 mA ... 99.9 mA | ±10% |
| 100.0 mA ... 999 mA | ±2% | |
| 1A ... 4.99 A | ±0.5% | |
| 5A ... 50A | ±0.5% | |
| Linearity | ±0.2% of reading | |
| Operating Temp | -20ºC to 70ºC | |
Caution! Risk of Danger: Ignoring warnings can lead to serious injury. Installation must be performed by qualified personnel.
Caution! Risk of Electrical Shock: Ensure all measures are taken to protect against shock. Disconnect main power before maintenance.
Mechanical Stress: Do not twist, puncture, or apply excessive pressure to the coil as it will degrade accuracy.
