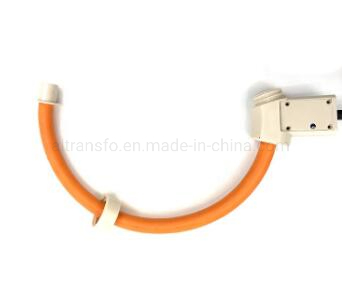

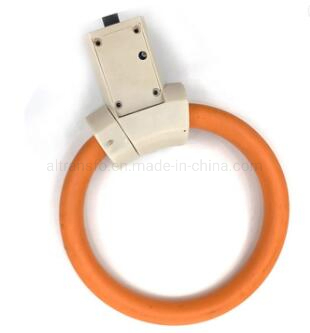

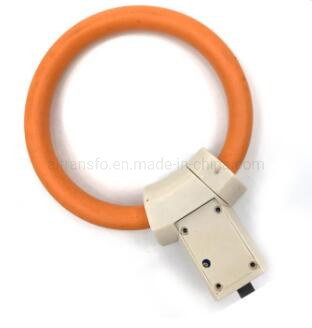

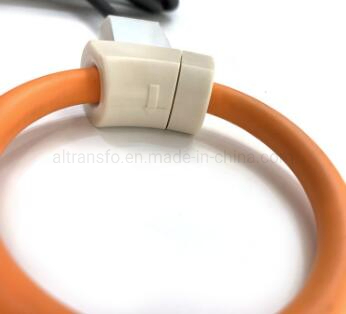

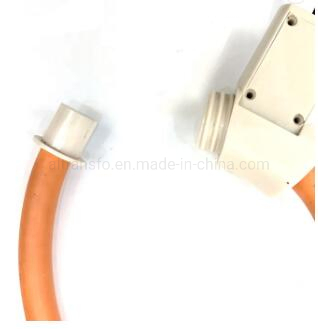

Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger
1 / 5
Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger
Rogowski coil flexible current transformer for energy power meter data logger

Rogowski coil flexible current transformer for energy power meter data logger

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊Basic Information
Model NO.AL-RC14
PhaseSingle
Operation ConditionIndoor
UsageProtection, Measurement
Winding FormSmall Fixed Type
Insulating MediumCommon Insulating Materials
InstallationActive Type
Magnetic Circuit StructureSingle Stage Type
Voltage Transformation PrincipleElectromagnetic Type
Coil StructureToroidal
Secondary OutputCustomized
Primary InputCustomized
Operation Temp- 25 to + 75c
Accuracy0.5/1 Class
Insulation Strength3kv
Lead WireAccording to Customer Requirements
Frequency50/60Hz
Inner Diameter16~51mm
OriginChina
HS Code85045000
Production Capacity8000PCS/15days
📦Packaging & Delivery
Package Size33.00cm * 35.00cm * 20.00cm
Package Gross Weight10.000kg
Specification50pcs/box
Transport PackageCarton
📝Product Description

Flexible Rogowski coil Current Transformer has been designed for accurate measurement of wide AC current, pulsed DC or distorted waveforms. It may be used to measure AC current over a wide dynamic range and from 10Hz to 20kHz. Customized current ratio available.

✨ Key Features
  • Flexible and light weights, exquisite appearance
  • Easy & quick installation in tight spaces
  • No danger from open-circuited secondary
  • No core saturation or damage if overloaded
  • Excellent linearity
  • Multi-size are available
  • Maximum measuring current up to 6000A

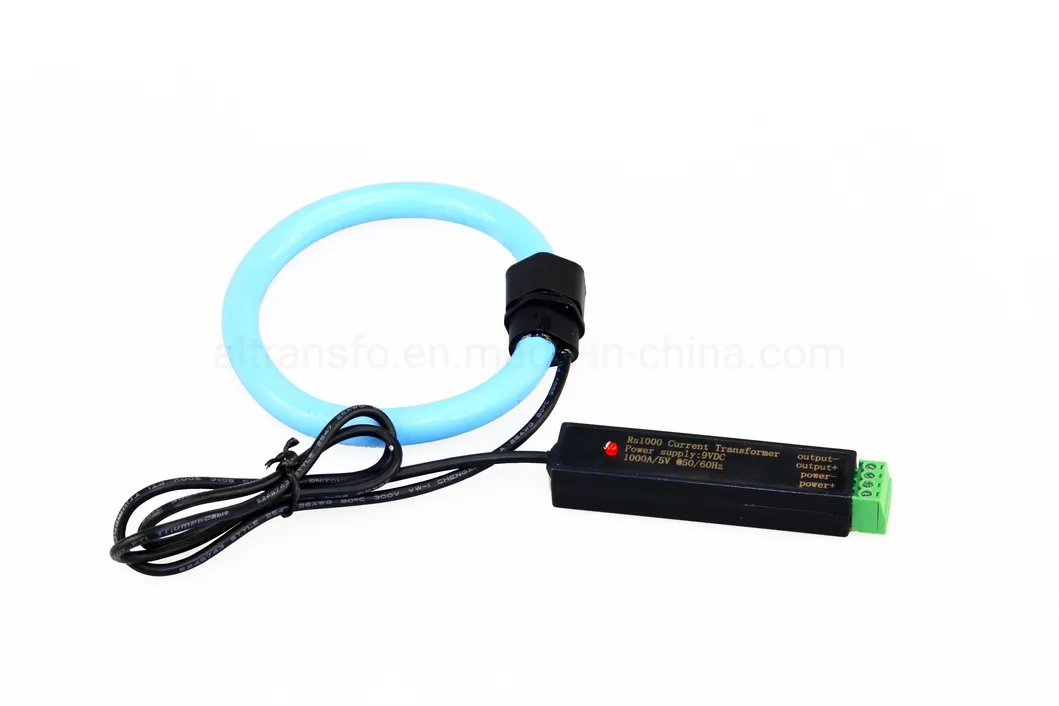

Flexible current transformer
⚙️General Data
  • Operating temperature & humidity 0 to 50°C (32-122ºF), <=80%RH(No condensate)
  • Storage temperature & humidity: -10 to 60°C (14-140ºF), <=80%RH(No condensate)
  • Operating environment: Indoor, altitude up to 2000 meters
  • Standards Safety: IEC61010-1:2001, 600V CAT III
🚀Applications
  • Power quality monitoring
  • CT secondary current detection
  • Smart logger
  • Distributed measurement systems
📸Product Showcase
Packaging display

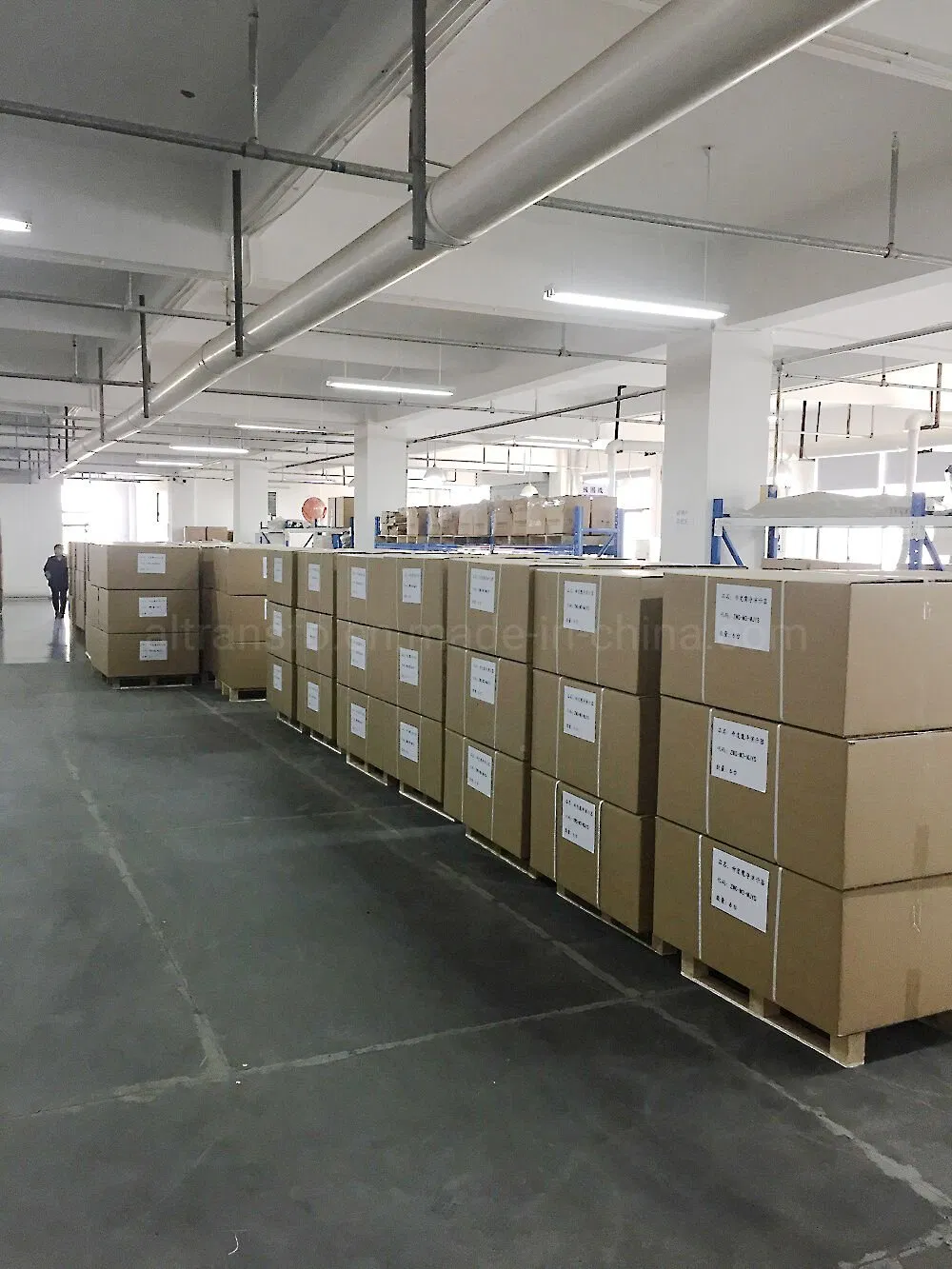

Product details
Service and quality
Technical specifications
❓Frequently Asked Questions
What is the main advantage of a flexible Rogowski coil?
The primary advantages are its flexibility and light weight, allowing for quick and easy installation in tight spaces where traditional rigid core transformers cannot fit.
What is the maximum current this coil can measure?
This Rogowski coil can measure current up to a maximum of 6000A with excellent linearity across the range.
Can the current ratio be customized for specific needs?
Yes, customized current ratios and secondary outputs are available based on your specific application requirements.
Is there a risk of damage if the secondary circuit is left open?
No, unlike traditional current transformers, Rogowski coils pose no danger when the secondary circuit is open-circuited.
What standards does this product comply with?
The product meets IEC61010-1:2001 standards and is rated for 600V CAT III safety environments.
What is the typical lead time for production?
We have a production capacity of approximately 8000 PCS every 15 days to ensure timely delivery of your orders.
