Basic Information
Cooling Method
Dry-type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001-2000
Usage
Single-phase Transformer
Transport Package
Strong Cartons on Pallets
Specification
10A to 2000A
Production Capacity
500,000/Month
Product Description

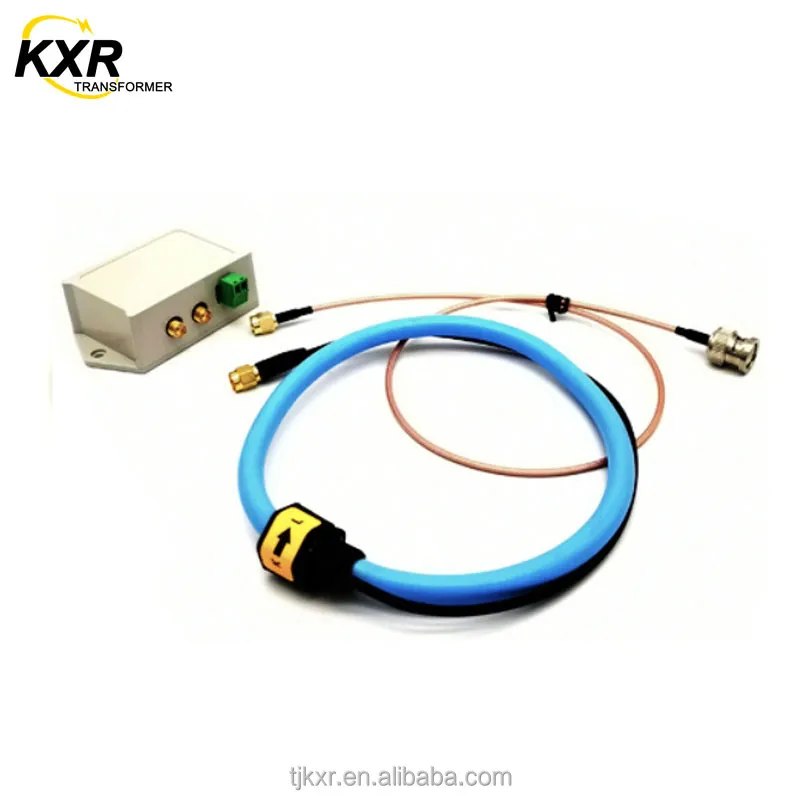

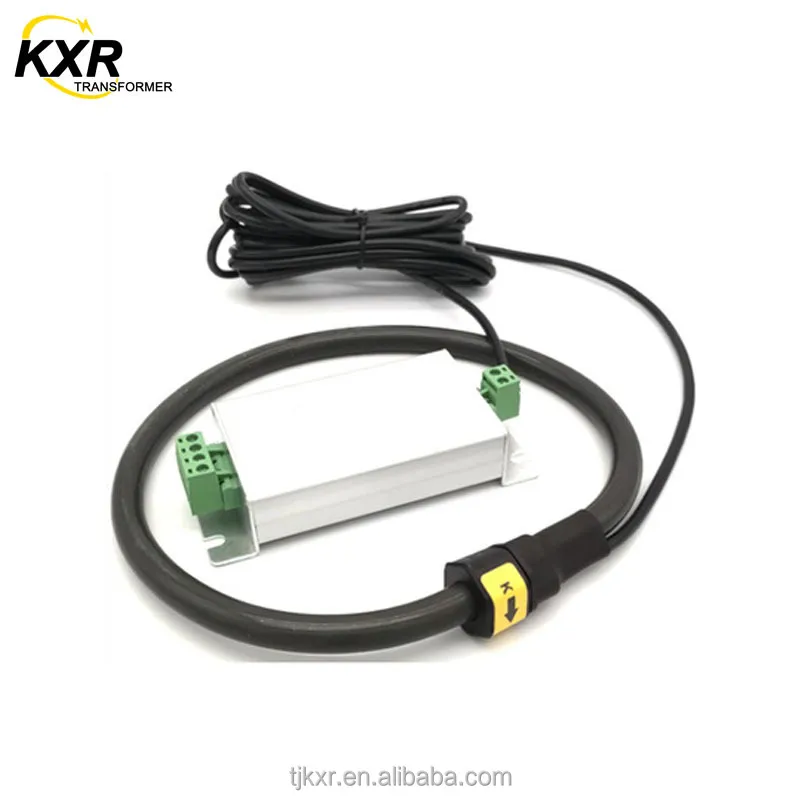

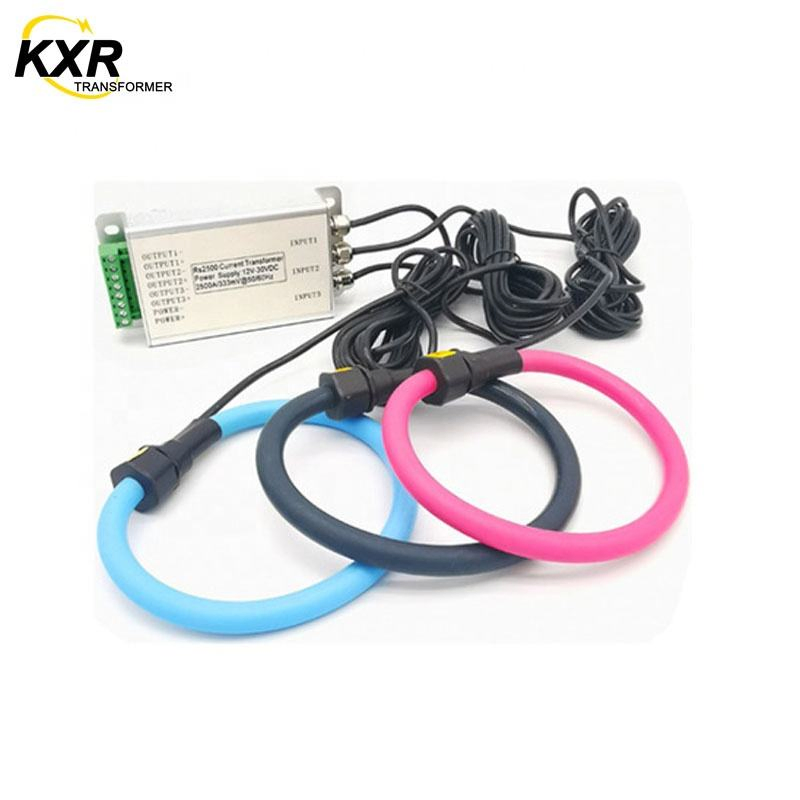

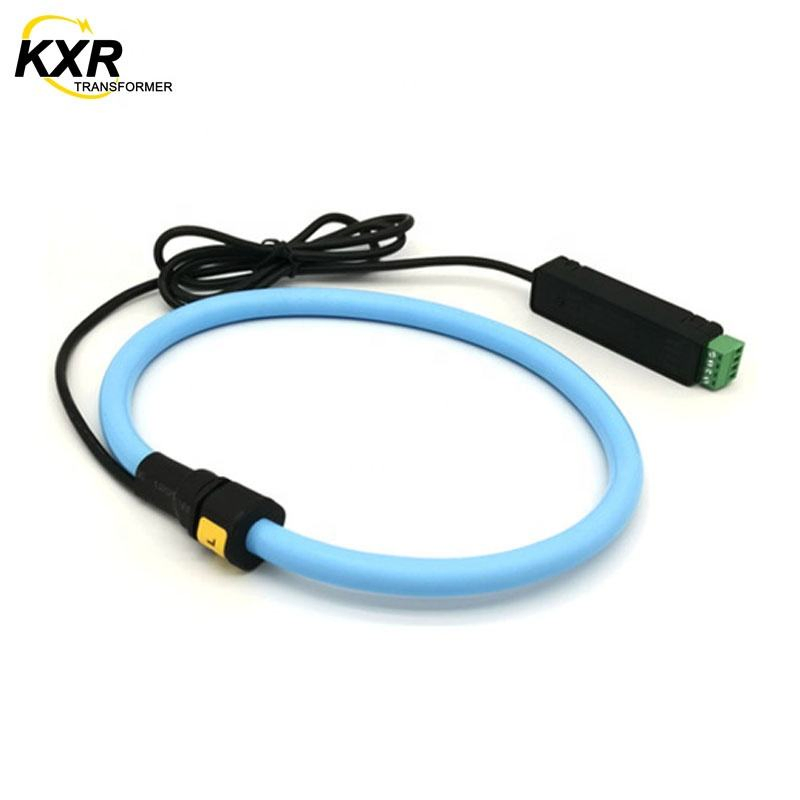

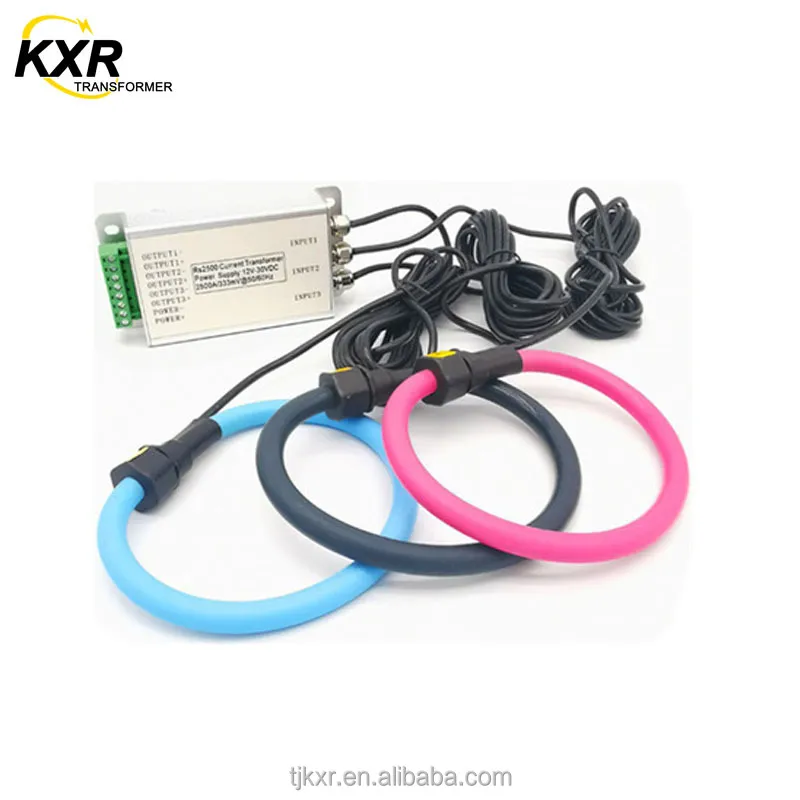

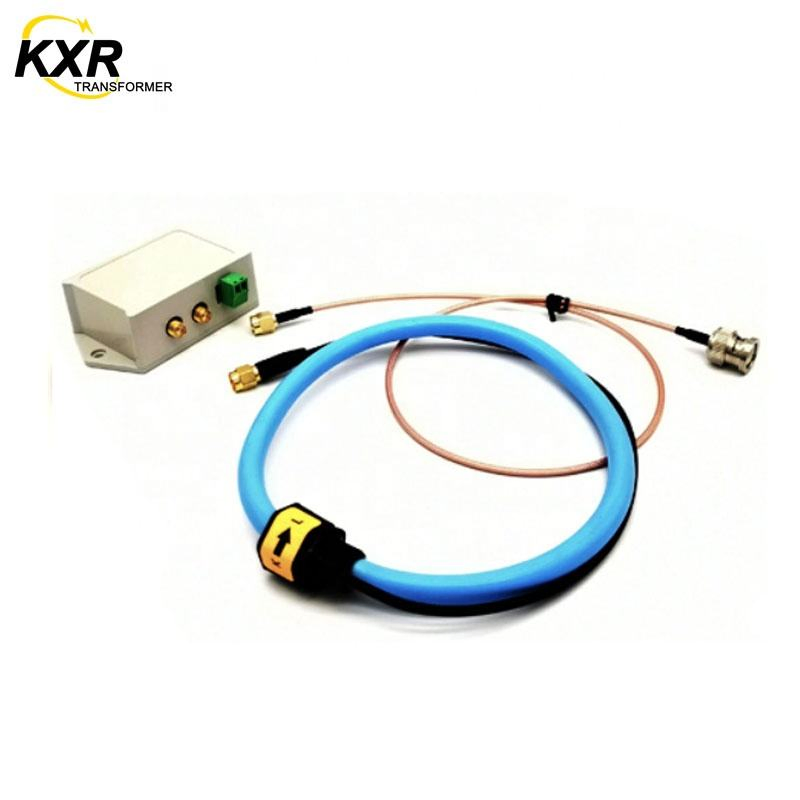

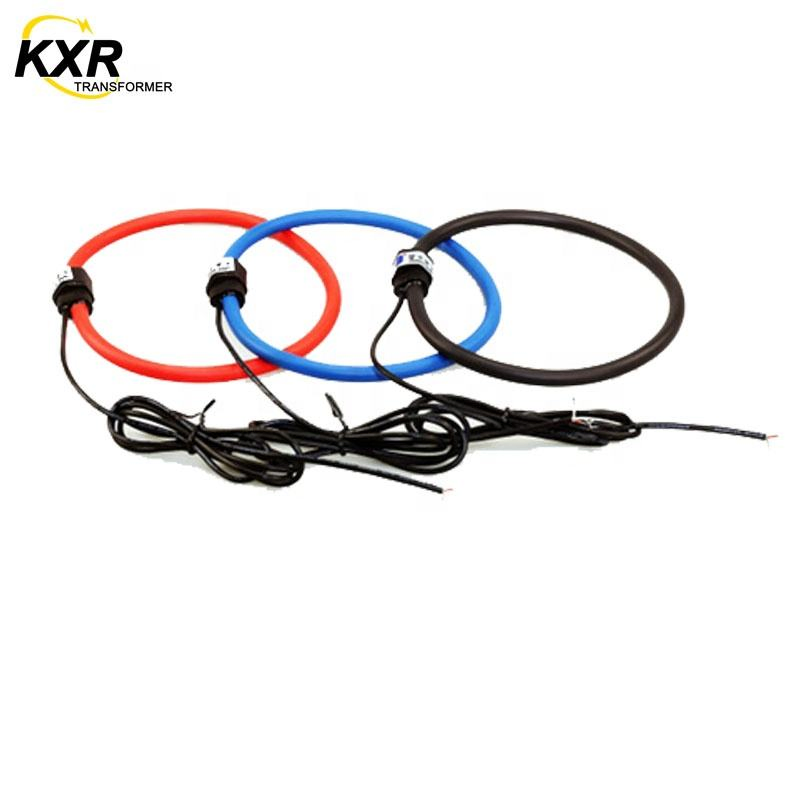

Flexible Rogowski Coil Current Transformer With Integrator 10A to 2000A provides a versatile solution for current measurement.
Customized CTs are available upon request
Key Features
Flexible air-cored sensor
Can be opened easily for quick access
Non-intrusive installation without interrupting the circuit
Fast and convenient installation process
Ideal for awkward spaces or large conductors
Flexible and lightweight measuring head

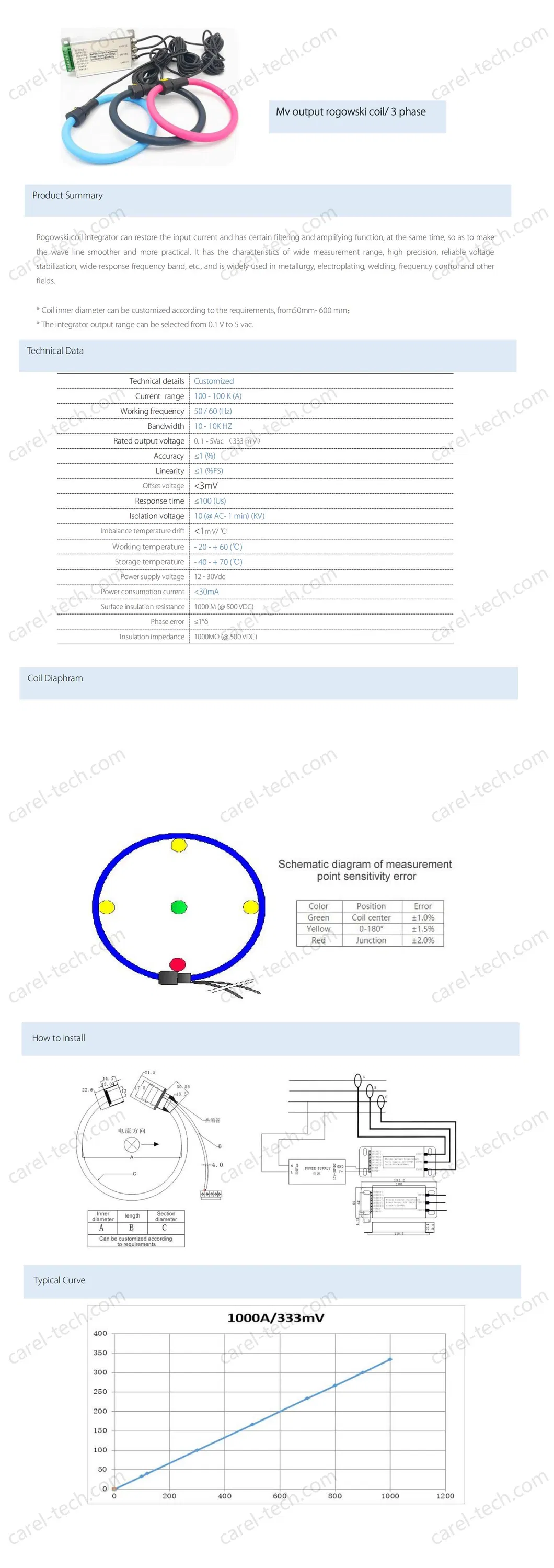

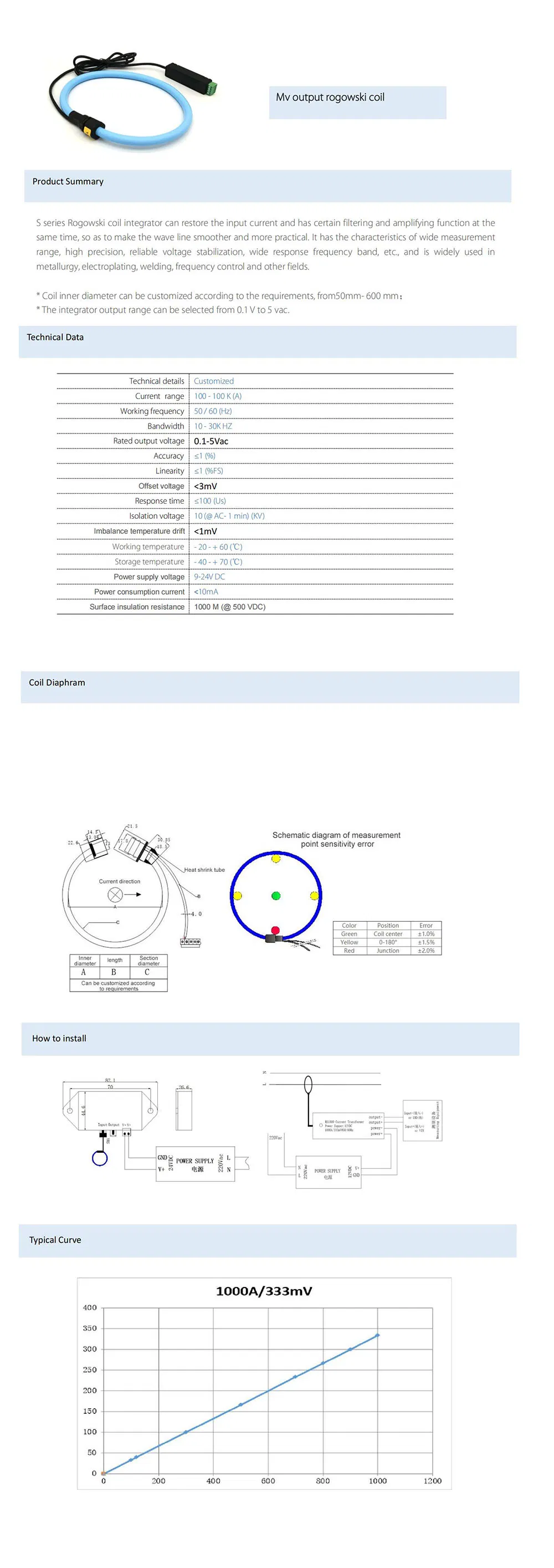

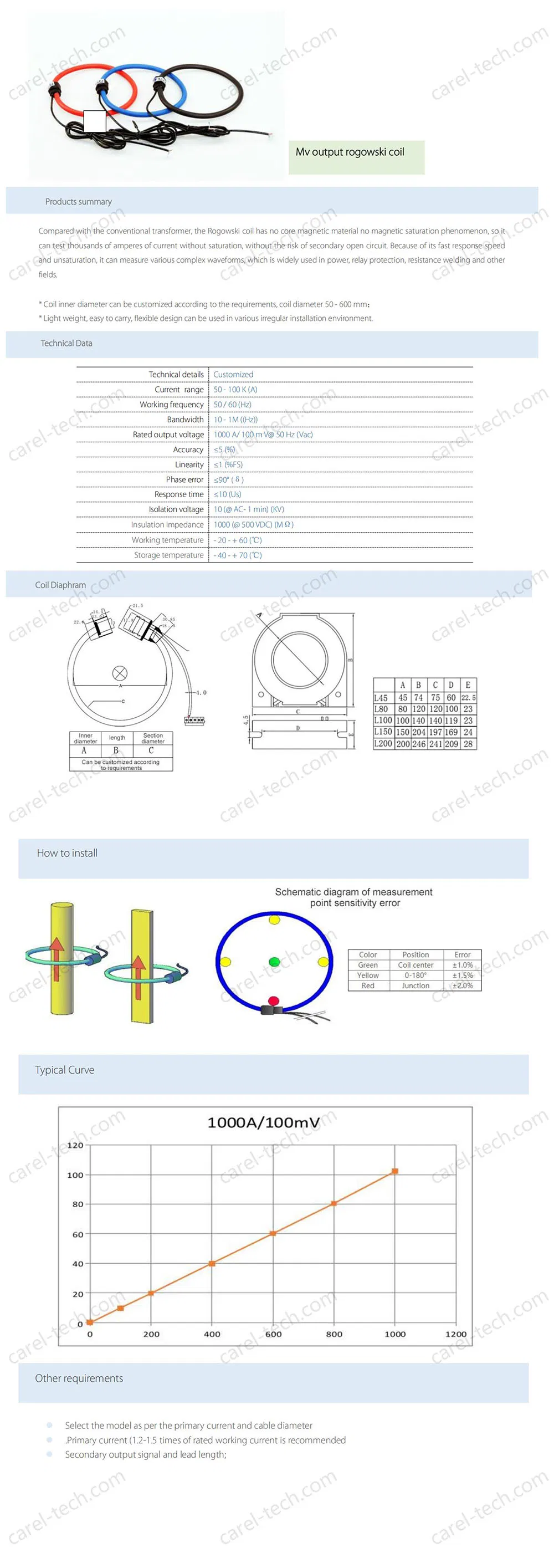

Technical Specifications
| Parameter |
Specification Details |
| Type | Flexible Current Transformer |
| Output signal (di/dt) | 144 mV/1000A @ 60 Hz, 120 mV/1000A @ 50 Hz |
| Accuracy | <1% typical at 10% to 200% of rated current |
| Linearity | ±0.2% of reading |
| Bandwidth (-3dB) | 2Hz to 100kHz |
| Internal resistance | 80 ± 10% Ohms/400mm |
| Conductor sensitivity | ±1% of reading |
| Response time | 1us |
| Phase error | ≤1% |
| Load Resistance | >1kΩ |
| Lead time | 15-25 days |
Frequently Asked Questions
What is the minimum order quantity (MOQ)?
The minimum order quantity is 100pcs per order.
What are your payment terms?
We require a 40% downpayment, with the remaining balance to be paid before shipment.
What is the typical lead time for an order?
Generally, the lead time is 15 days from the day the down payment is received.
Do you provide a warranty for the products?
Yes, we provide a 2-year product warranty.
What is the sample policy?
We supply free samples (for values up to 10 USD), but the customer is responsible for the shipping fees. Sample lead time is 4-7 working days.
Can you handle customized product requests?
Yes, we accept OEM/ODM projects and can manufacture products according to the customer's specific design and labeling requirements.
