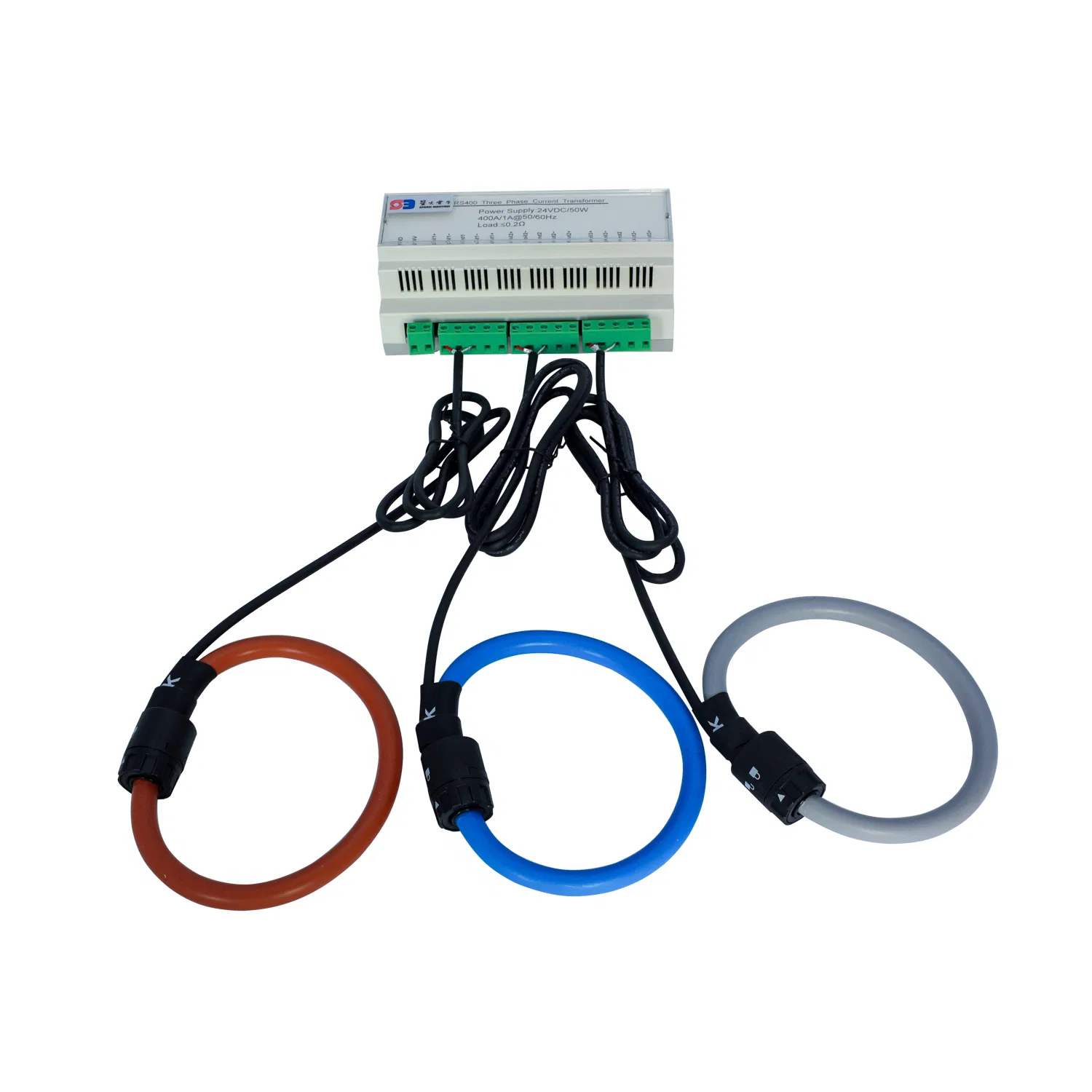

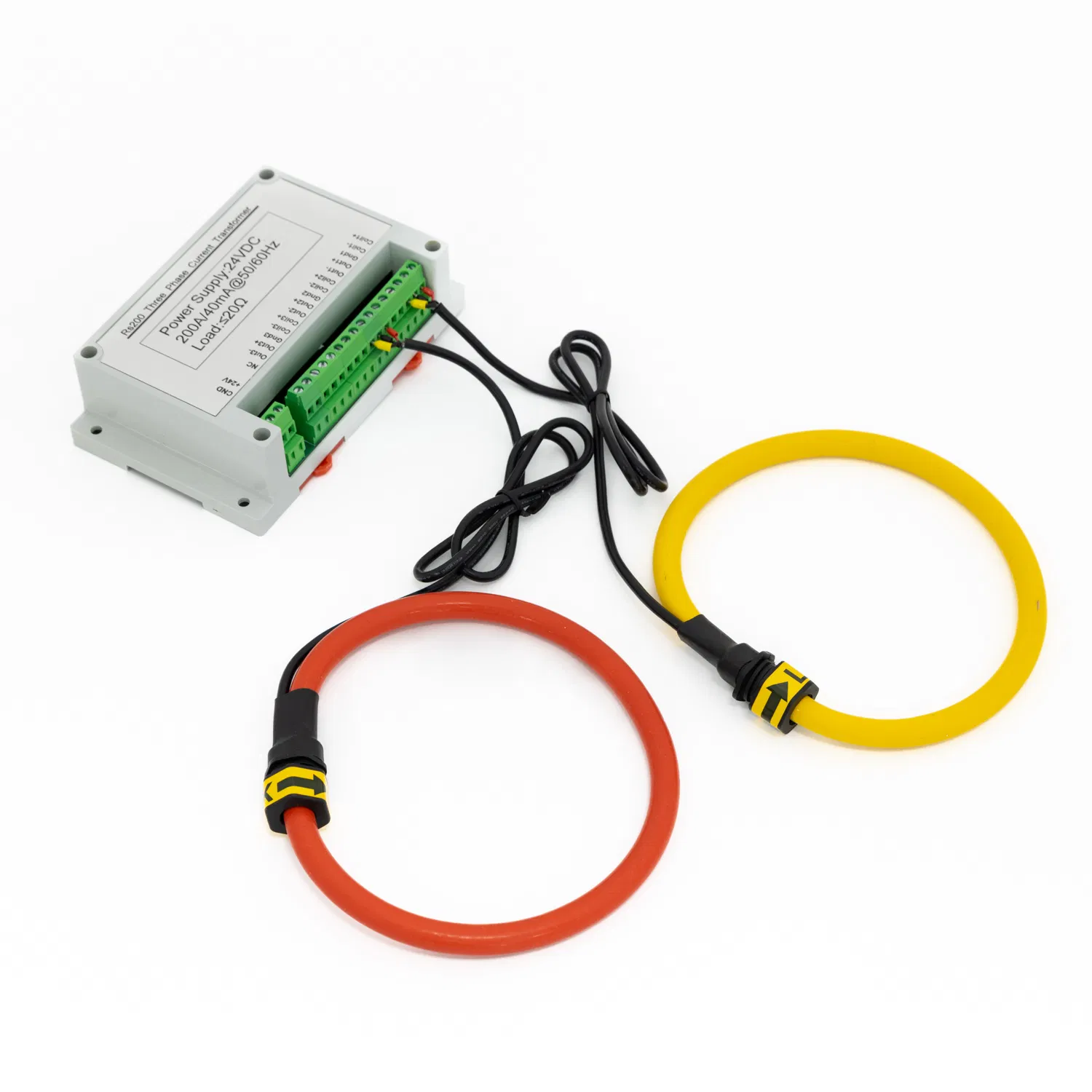

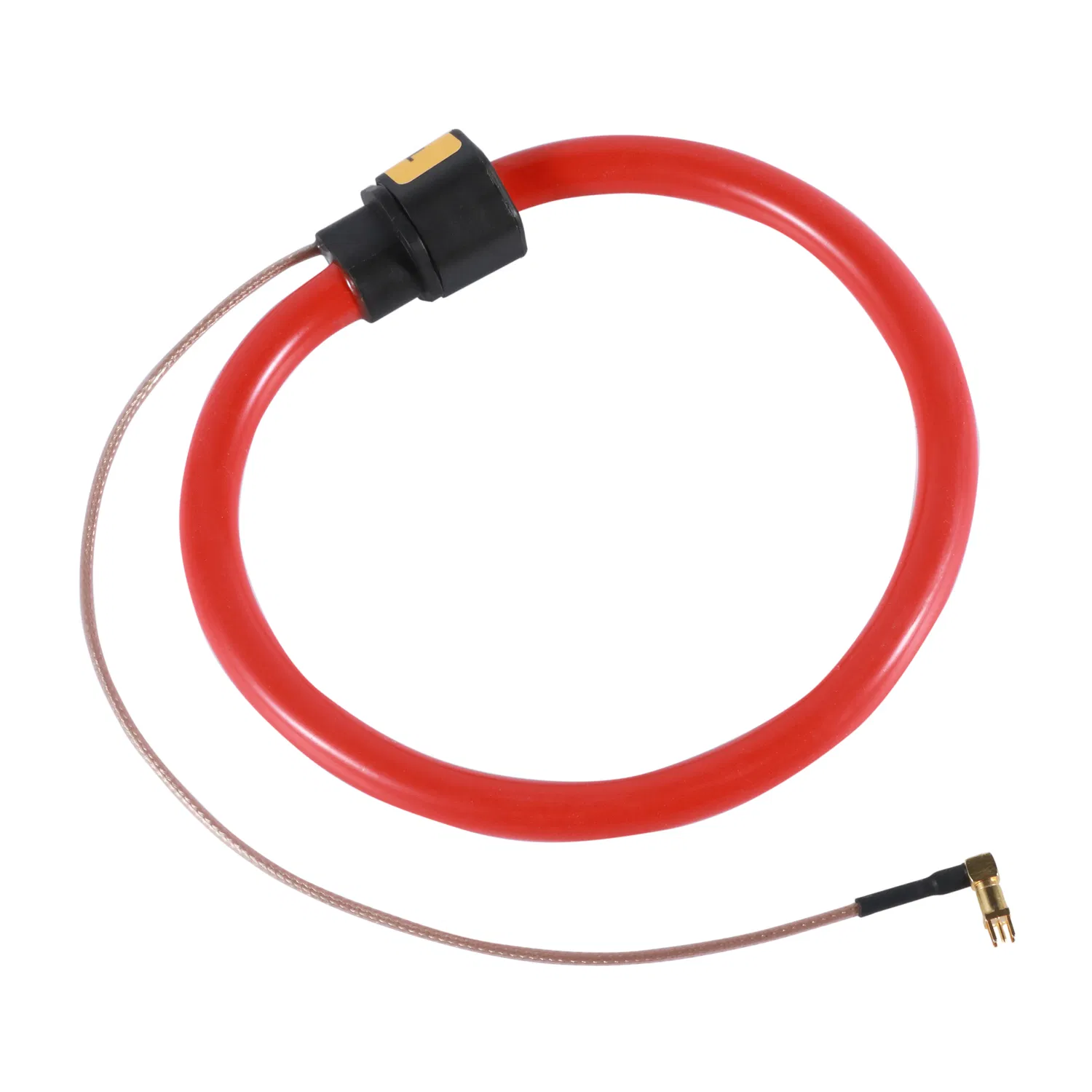

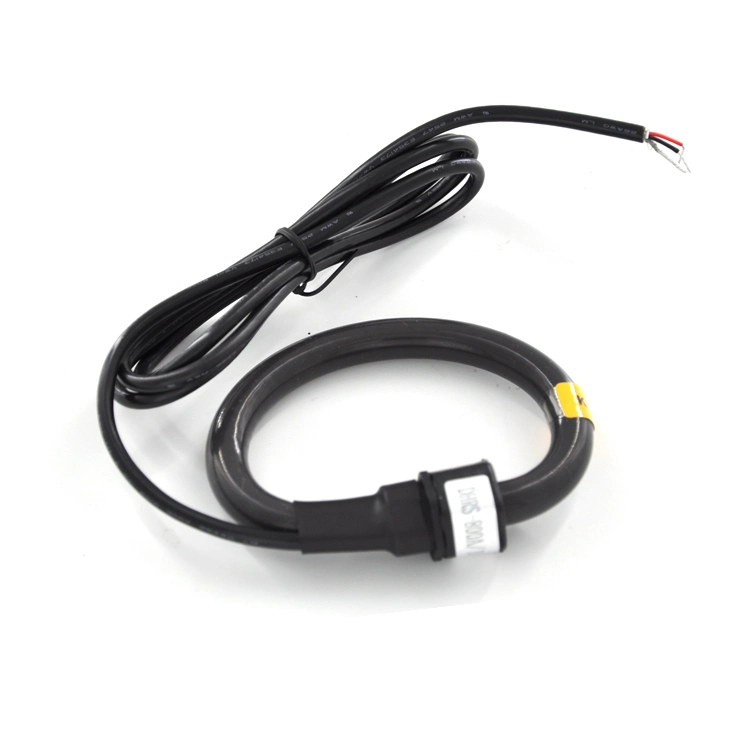

RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
1 / 5
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski
RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski

RS400 Three Phase 400/1A Rogowski Coil Current Transformer with 1A Output Flexible CT Rogowski

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
RSCT
Production Process
Integration
Material
Metal
Accuracy Grade
1.0G
Application
Switching Power Supply
IP Rating
IP67
Certification
RoHS, CE, ISO9001
Output
0-0.333V AC or 0-5V AC
Insulation
3kv
Frequency
50/60Hz
Production Capacity
5000 PCS / Per Week
Package Size
28.00cm * 20.00cm * 5.00cm

Product Description

Split Core Flexible Rogowski Coil with high frequency

Split Rogowski Coil current sensors are designed for fast and easy installation on existing primary conductors/ BUS bars. The split design permits non-contact AC current or current pulse measurement without requiring that the primary conductor be taken offline and disconnected for the current sensor installation. This method provides for the safe, easy and portable measurement of current.

A current sensor that is based upon the Rogowski Coil principle offers significant advantages over the standard magnetic core current transformer products. Specifically, since the sensor does not incorporate a magnetic core, magnetic core saturation is avoided.

Rogowski Coil 1
Rogowski Coil 2

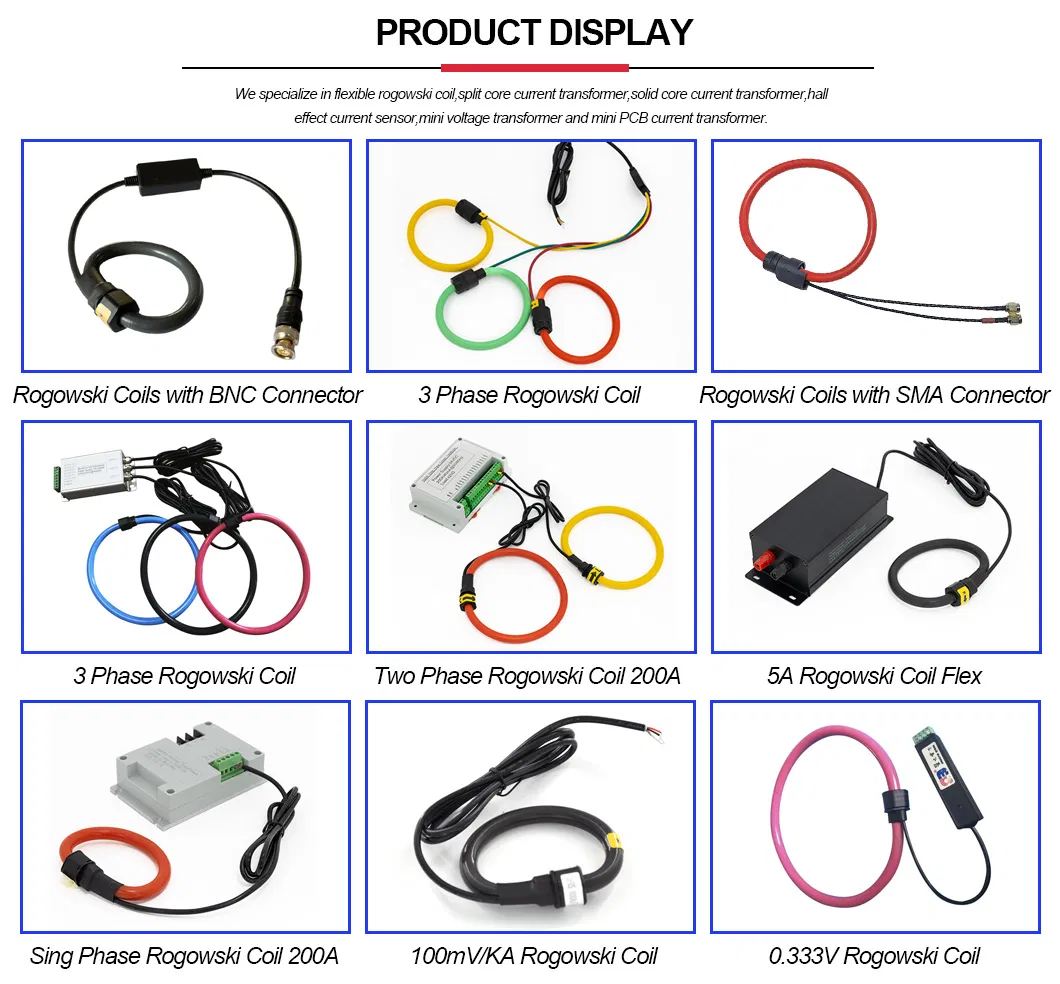

Rogowski Coil 3

Technical Parameters

Parameter Range / Value Unit
(AC) Current range100-10KA
Measure range5% - 120%%
Power frequency45-65Hz
Rated output1Aac
Load≤0.2Ω
Supply voltage12/24VDC/≥50W--
Power Consumption<100mA
Accuracy≤1%
Linearity≤1%FS
Response time≤20ms
Galvanic isolationAC, 1min 10KV
Operating temperature-25 to +60ºC
Dimensions
Hot Sales

Our Commitment & Shipping

✔ Better Price: Factory Direct Sale ensures competitive pricing.
✔ Quality Assurance: 20+ years of experience in current transformer production.
✔ Fast Delivery: 3-7 days for standard quantities under 1000PCS.
✔ Global Shipping: UPS, DHL, FedEx, TNT (door to door) or sea shipment.
✔ Warranty: 1-year warranty provided for all products.

Frequently Asked Questions

Q1: What are the advantages of a Split Rogowski Coil? A: It allows for non-contact measurement without disconnecting the primary conductor, making installation fast, easy, and safe for existing systems.
Q2: Does the Rogowski Coil suffer from magnetic saturation? A: No, because it does not incorporate a magnetic core, it avoids saturation issues common in standard current transformers.
Q3: What is the IP rating of this sensor? A: This model is rated IP67, providing excellent protection against dust and water ingress.
Q4: Can I get a sample for testing? A: Yes, we provide free samples for testing. You can purchase once you are satisfied with the trial results.
Q5: What is the typical lead time for an order? A: For quantities lower than 1000PCS, the lead time is usually 3-7 days upon receiving payment.
Q6: Do you support OEM or customized requirements? A: Yes, OEM/ODM is welcomed. We can customize input current, output signals, and cable lengths according to your technical requirements.
