Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp
1 / 5
Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp
Split Core Cts 225A Current Transformer Clamp

Split Core Cts 225A Current Transformer Clamp

Customization: Available
Application: Electronic, Instrument, Position Sensor, Audio, Lighting
Type: Clamp on Current Transformer
Send Inquiry

Product Description

Basic Specifications
Model NO.
XH-SCT-S24
Phase
Single
Operation
Indoor
Usage
Measurement
Winding Form
Multilayer Honeycomb Type
Insulating Medium
Insulating Paper
Installation
Active Type
Current Rating
225A
Output Voltage
333mvac
Current Error
0.5 Class
HS Code
8504
Capacity
200,000 PCS/Month
Product Description

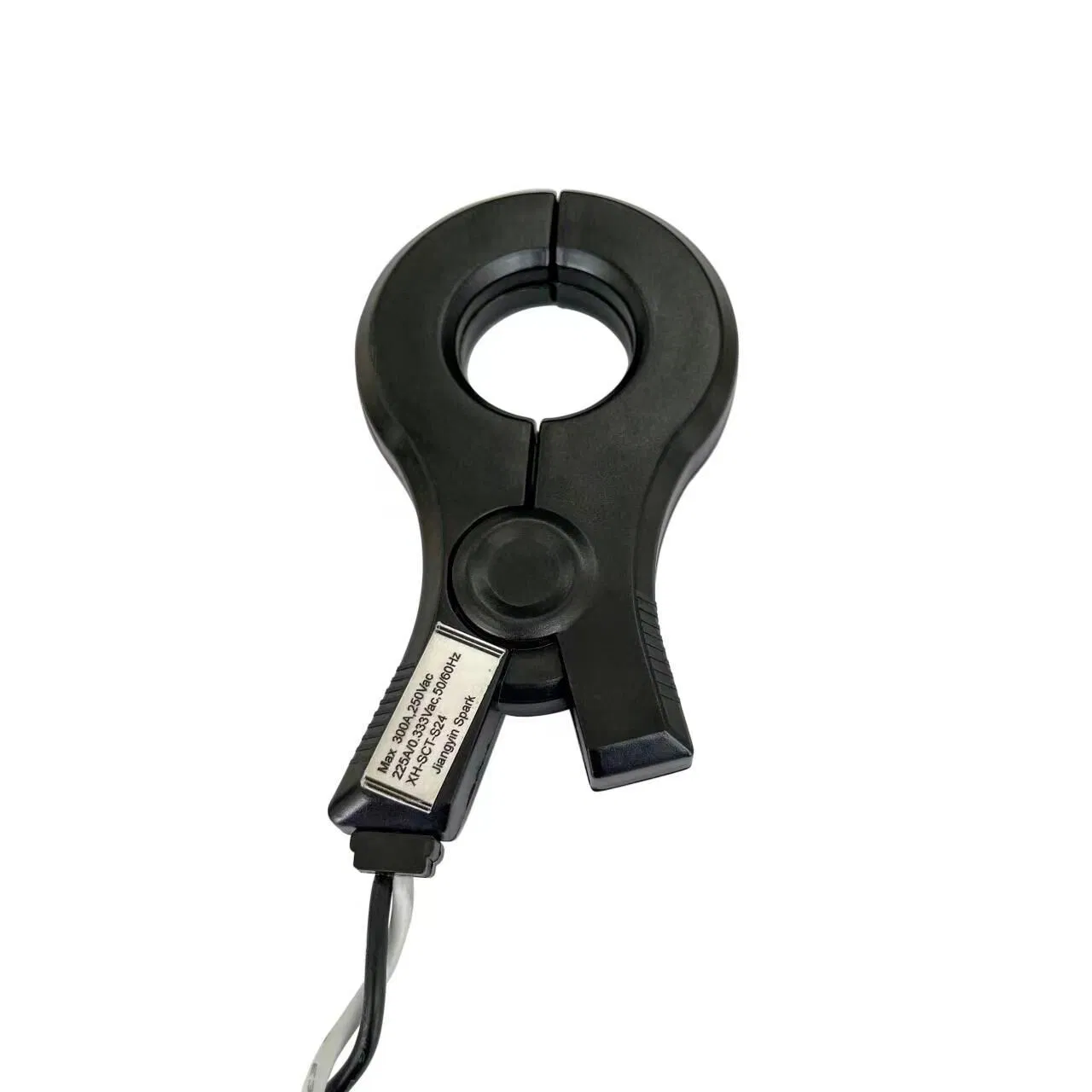

Split-Core AC Current Transformer XH-SCT-S24

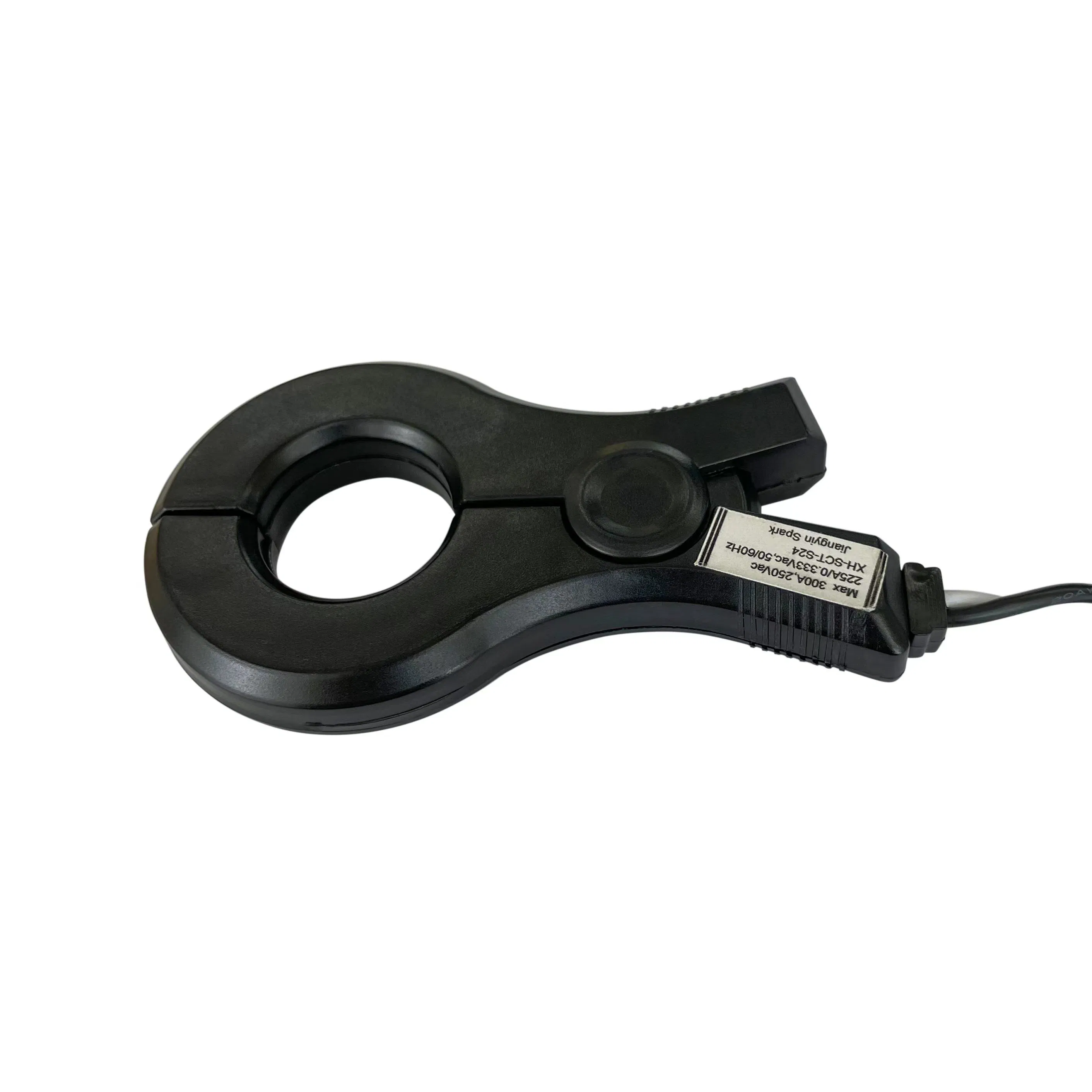

The XH-SCT-S24 Clamp-on current sensor senses AC current from 50 to 300 Amps passing through the center conductor. These CTs feature a clamp and split-core design, allowing for single-handed installation. Designed for fast and easy deployment, the split-core design permits non-contact current measurements through magnetic field induction without requiring the primary wire to be taken offline or disconnected. This method ensures a safer, easier, and more portable current measurement experience.

Smart Grid Application Features
⚡
Load Center & Three Phase Balance Control
🏠
In-Factory & In-Home Displays
☀️
Inverters for Solar & Wind Turbine Systems
📊
Power Measurement Devices for PLC
Model Input (A) Max Current (A) Output
XH-SCT-S24 0.2-300AAC 320AAC mA / 0.333VAC / 0-3 VAC
Split Core CT 225A
Current Transformer Clamp
Technical Specifications

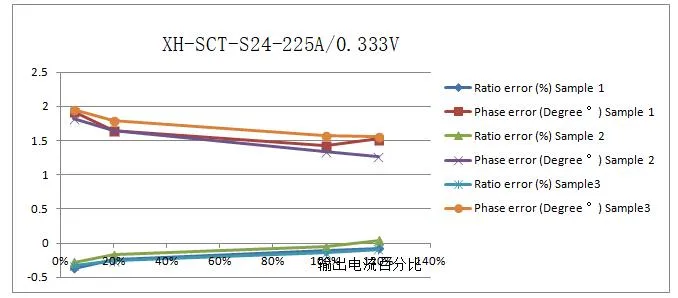

Accuracy (1% - 100% of rated current) ±0.5%
CT Phase Angle (5% - 120% of rated current) 0.5 (Ultracrystalline) / 1.5± 0.5 (Silicon iron) Degrees
Nominal Line Frequency 50 / 60 Hz
Output Voltage 0 - 333 mVac
Overvoltage AC 5000V/0.3mA/60S (50HZ/60HZ)

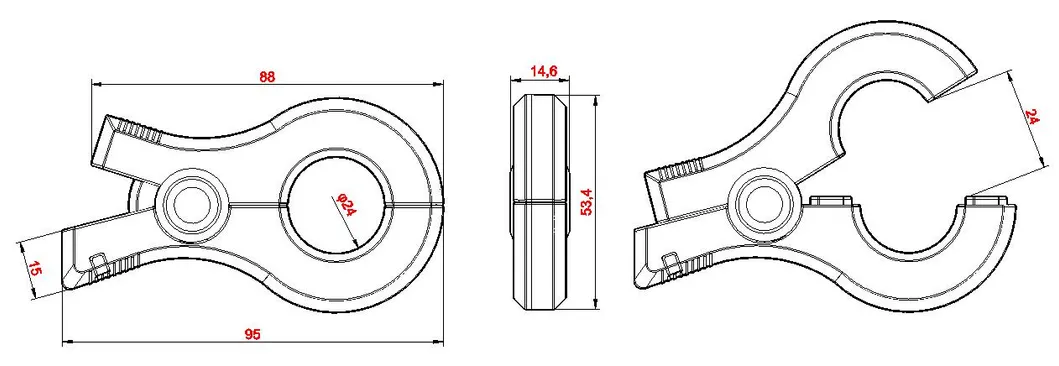

Window Diameter 24 mm
Lead Wire Twisted pair, 17ft/5.2m, 20 AWG
Operating Temperature -40 to 60 °C
IP Rating IP30 (NEMA 1)
Product Visuals & Testing

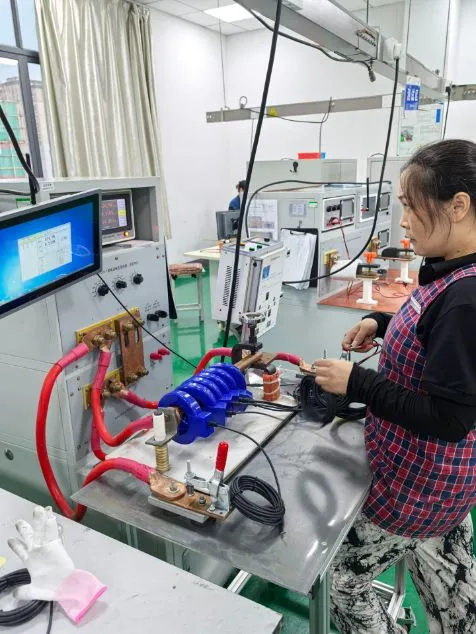

Testing CT

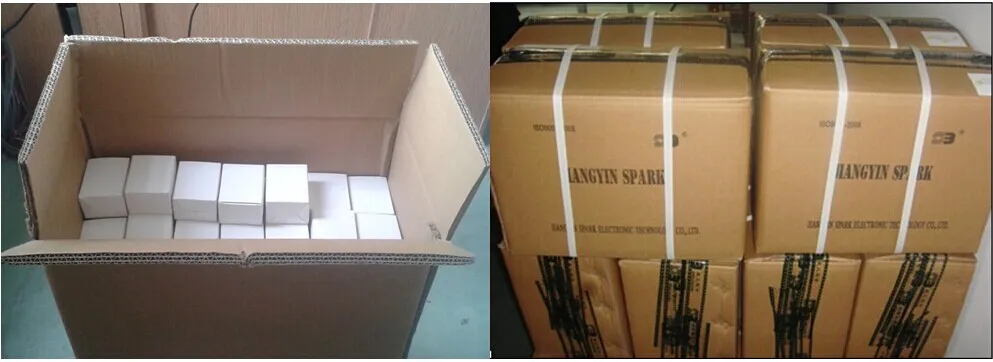

Shipment Preparation

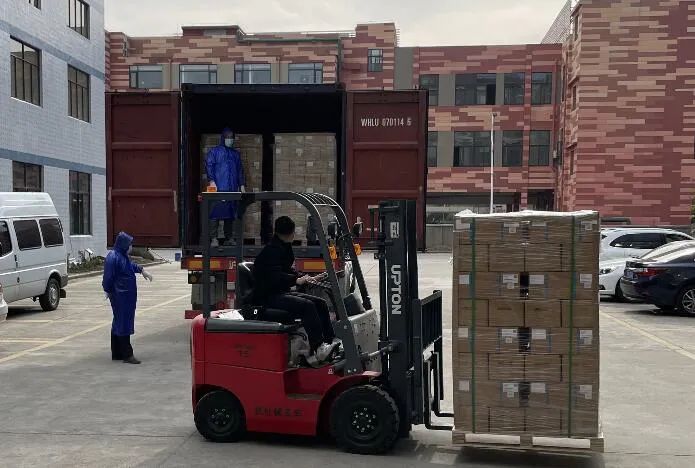

Packaging
Other Related Products

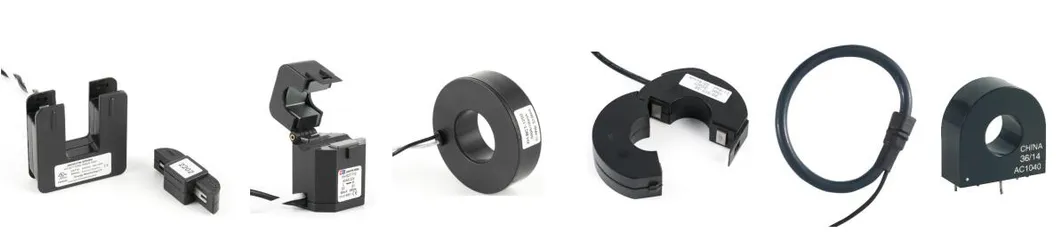

Hot Sales Products
Frequently Asked Questions
What is the main advantage of the split-core design?
The split-core design allows for non-contact current measurement without disconnecting the primary wire, making installation safer and faster.
What is the maximum current this model can handle?
The XH-SCT-S24 is rated for 225A but can handle a maximum continuous current of up to 320A AC.
What is the accuracy class of the XH-SCT-S24?
This model features a 0.5 Class accuracy rating, ensuring precise measurements for monitoring and billing applications.
Can this current transformer be used outdoors?
This specific model is designed for indoor operation conditions with an IP30 rating.
What is the standard output signal?
The standard output is 333mVac, which is a safe low-voltage signal compatible with most power meters and PLCs.
What size conductor can fit through the opening?
The transformer has a window diameter of 24mm, suitable for various cable sizes within that range.
