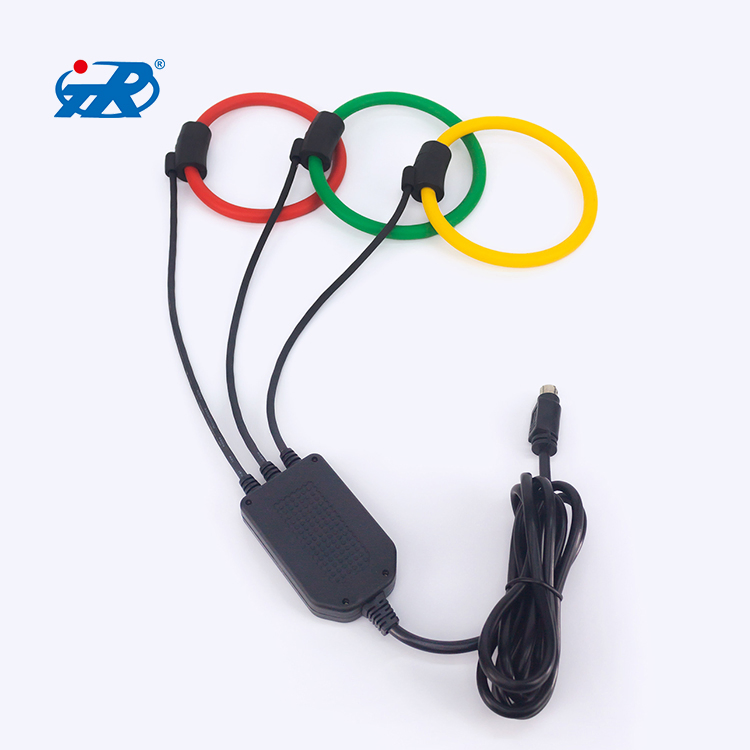

| Model NO. | TRKLS-150R |
| Phase | Single |
| Operation Condition | Indoor |
| Usage | Protection, Measurement |
| Winding Form | Single Layer & Tightly Wound Type |
| Insulating Medium | Insulating Paper |
| Installation | Active Type |
| Magnetic Circuit Structure | Single Stage Type |
| Voltage Level | 0.4/0.66/0.72kv |
| Rated Input Current | 10~2000A |
| Integrator Power Supply | 5~15VDC |
| IP Protection Class | IP65 |
| Specification | 35HOLE |
| Origin | China |
| PERFORMANCE SPECIFICATIONS | |||
|---|---|---|---|
| Working Temperature | -40ºC ~ +70ºC | Relative Humidity | ≤90% |
| Voltage Level | 0.4/0.66/0.72KV | Accuracy Class | 1% (with integrator) |
| Rated Input Current | 10 ~ 2000A | Rated Output Voltage | 333mV |
| Linear Range | 5% ~ 200% | Response Bandwidth | 1Hz ~ 1MHz |
| Shell Material | PC Flame Retardant (94-V0) | Insulation Strength | 1000MΩ/500V/min |

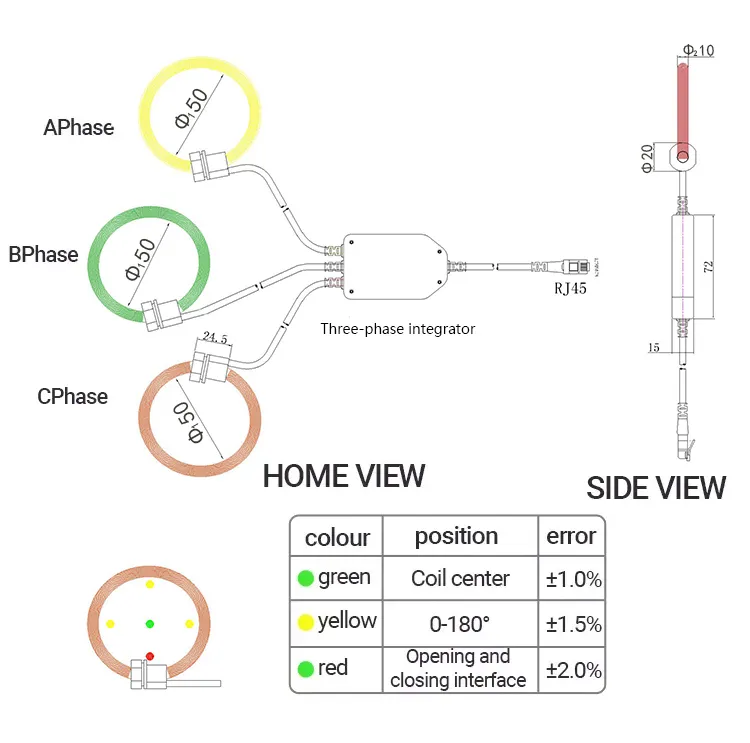

| Model No. | Rated Input | Rated Output | Precision Class | Φ1 (mm) | Φ2 (mm) |
|---|---|---|---|---|---|

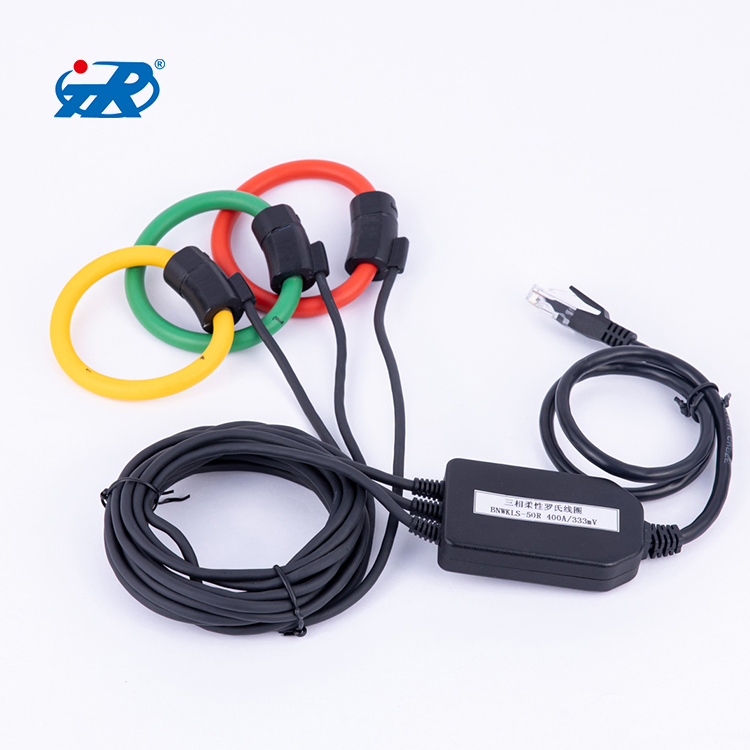

| TRKLS-50R | 400A | 333mV | 0.5 / 1.0 | 50 | 10 |
| TRKLS-80R | 800A | 80 | 10 | ||
| TRKLS-150R | 1200A | 150 | 10 |
A: The split-core design allows for installation or removal without disconnecting the primary cable under test, making site installation quick, easy, and safe.

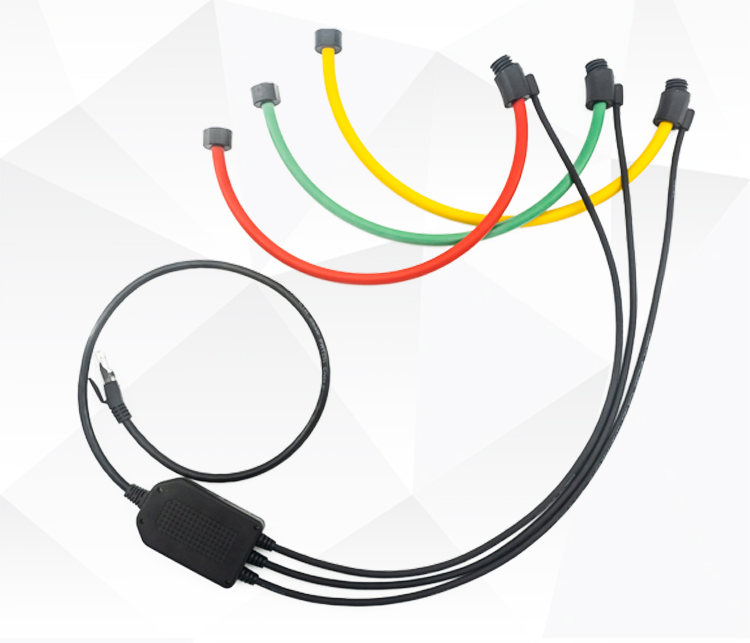

A: Yes, the flexible structure is specifically designed to detect current in conductors with irregular shapes where traditional rigid CTs cannot be used.
A: This product has an IP65 protection class, making it resistant to dust and low-pressure water jets, suitable for various indoor and protected environments.

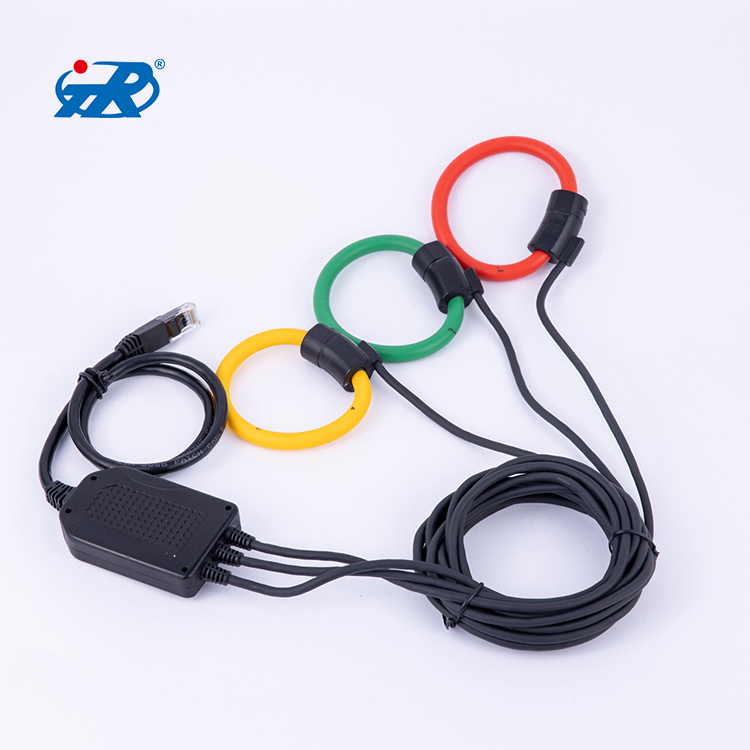

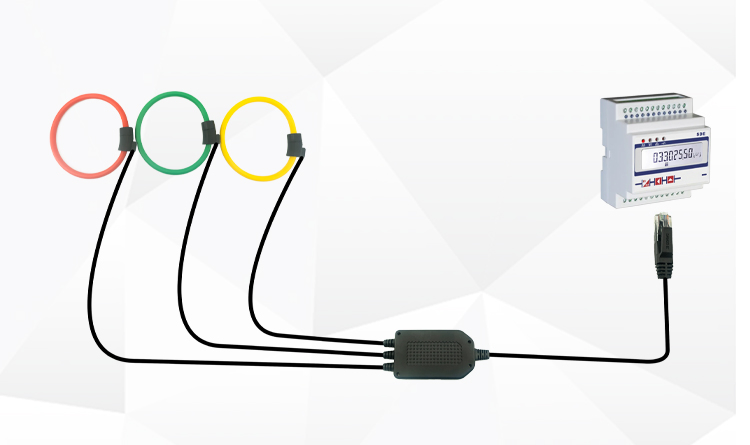

A: The secondary output is equipped with an RJ45 crystal terminal network cable, and the cable length can be customized based on specific requirements.
A: No, since it is an electromagnetic type without a magnetic core, it does not experience saturation even with high input currents, ensuring high linearity.
A: The coil is designed to operate reliably in temperatures ranging from -40ºC to +70ºC.
