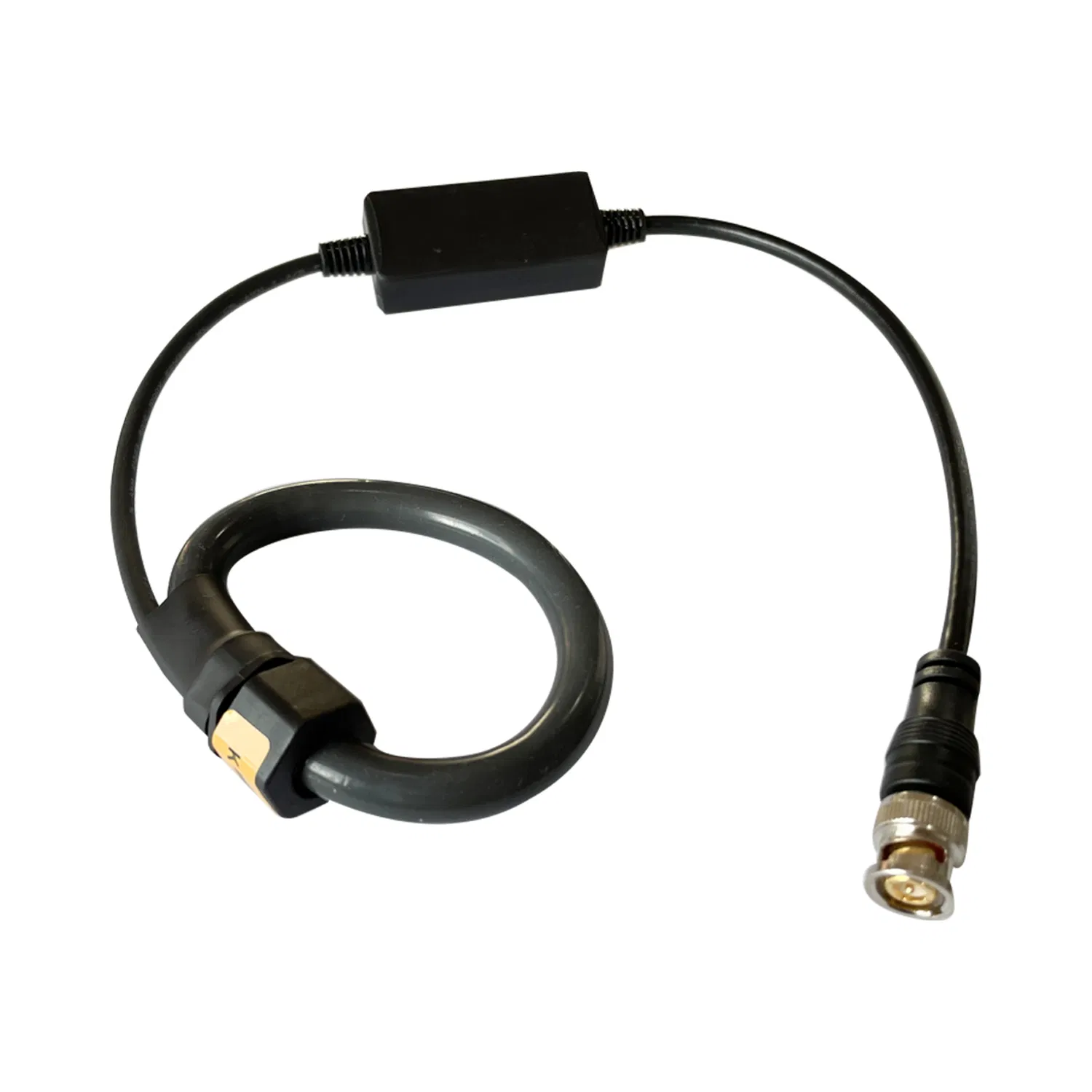

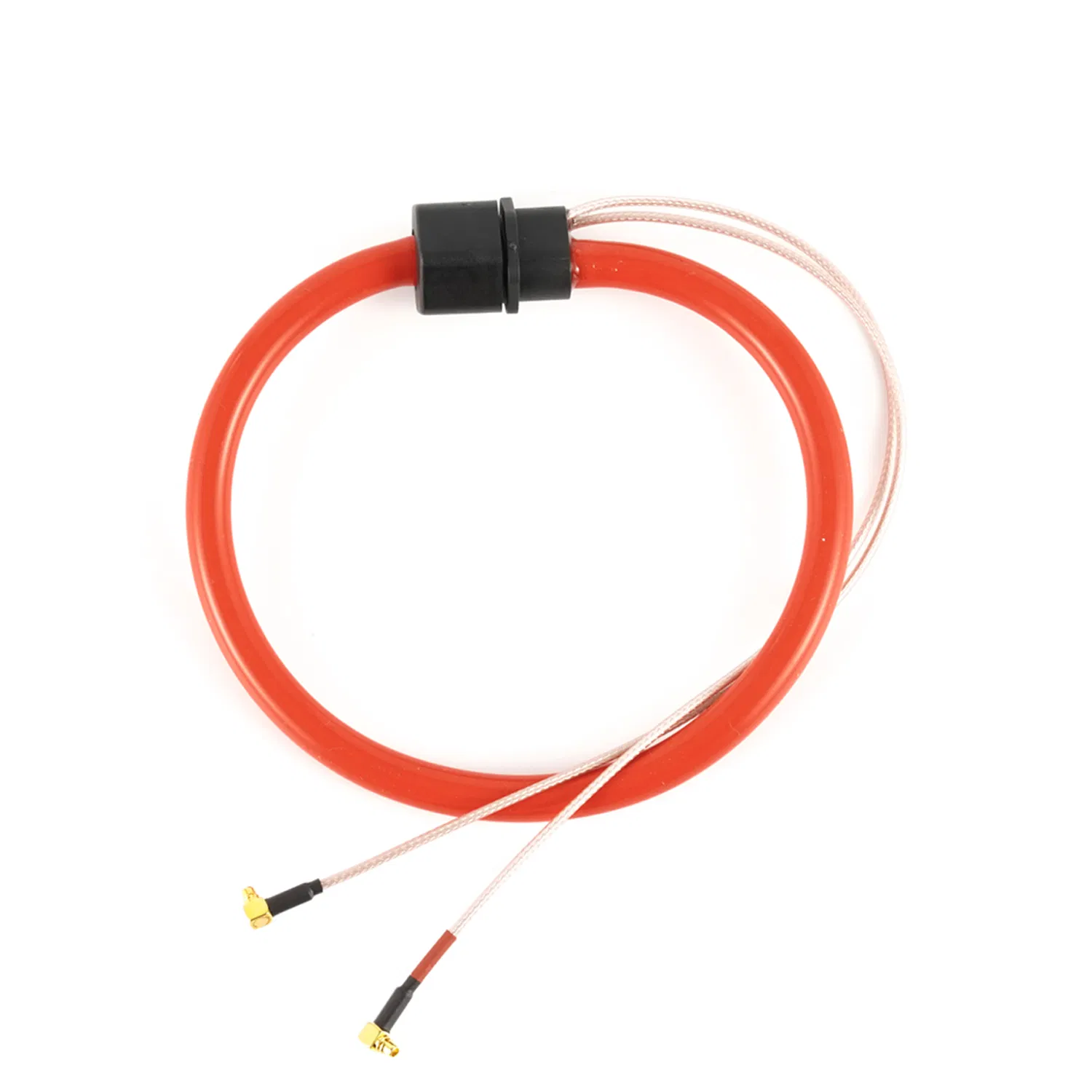

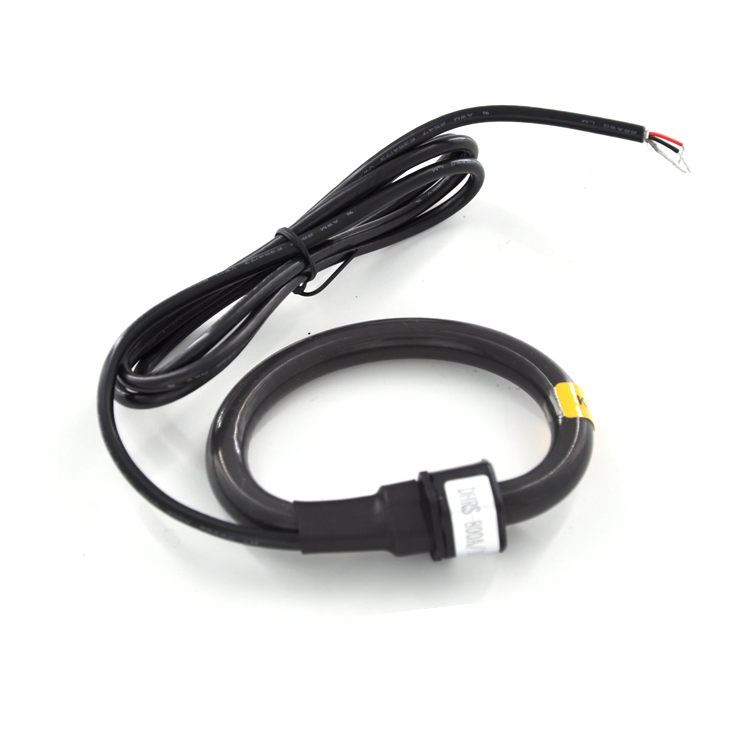

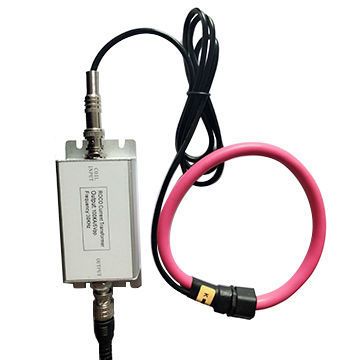

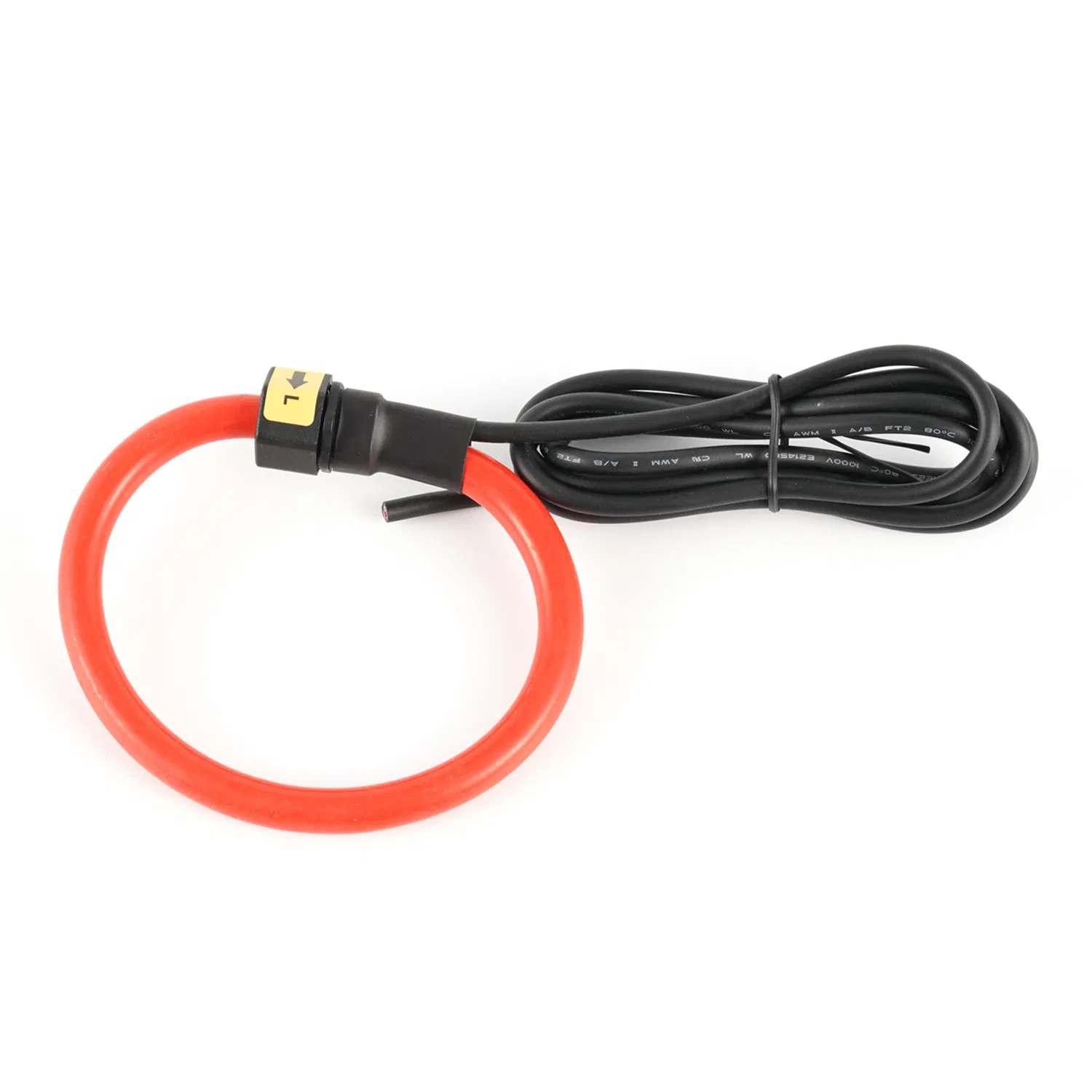

Rogowski 20ka 3V Flexible Rogowski Coil Current Transformer

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
RSCT-60D/20KA
Production Process
SemiConductor Integrated
Material
Metal
Accuracy Grade
1.0G
Application
Switching Power Supply
IP Rating
IP67
Certification
RoHS, CE, ISO9001
Model
Rogowski Coil 2000A
Output
2000A/0.33V
Insulation
3kv
Frequency
50/60Hz
Colour
Black, Red, Blue
Production Capacity
60,000 PCS/Month
🔍 Product Description

This Flexible Rogowski Coil Current probe is designed for versatility and ease of use. Its rope-like flexibility allows it to be used in spaces where traditional solid or split-core current transformers simply cannot fit. Key advantages include high accuracy, a wide measurement and frequency range, and an exceptionally light weight.

The probes feature a flexible air-cored sensor that can be easily opened, enabling installation around primary conductors without the need to interrupt the circuit. This lightweight measuring head ensures quick installation in hard-to-reach areas and around large conductors.

⚙️ Specifications
Rated Current (rms) 10A - 100KA
Output Options mV (without integrator) / 0.333V, 0-5V AC (with integrator)
Power Supply 9V, 15V, 24V DC
Coil Length 20cm - 200cm
Tube Material UL material
Wire Lead Shielded cable
Isolation Voltage 3000V
Operating Temperature -25ºC to +70ºC
Frequency 50Hz - 60Hz
Accuracy ±1%

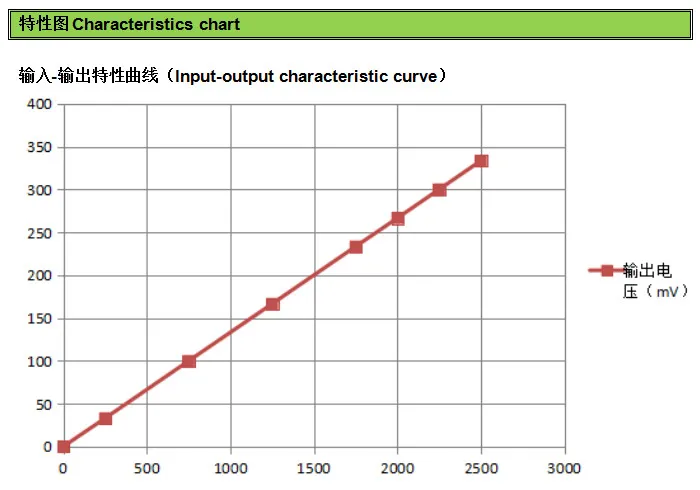

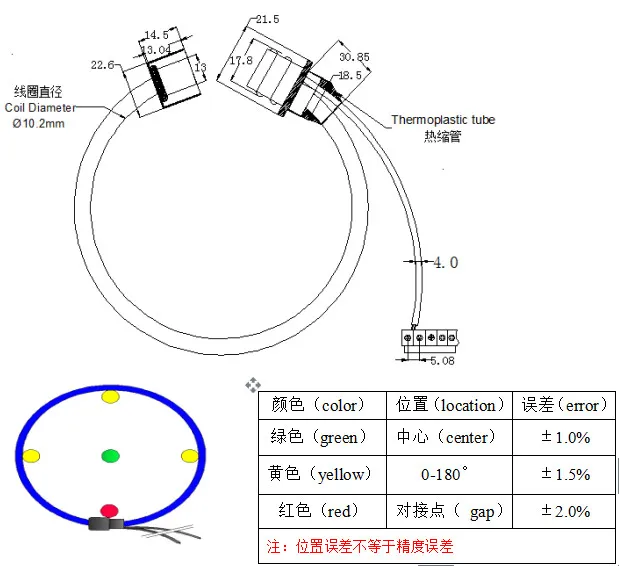

📐 Technical Drawings
🧪 Testing & Performance

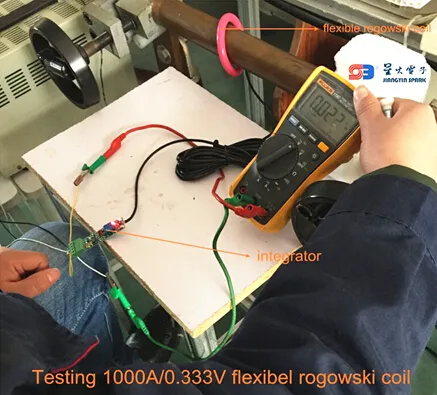

Flexible Rogowski Coil Test
🔥 Hot Sales Products
Hot Sales Current Transformers
Frequently Asked Questions
What are the main advantages of a flexible Rogowski coil?
The primary advantages are its flexibility, allowing it to wrap around large or irregular conductors, its lightweight design, and the ability to install it without breaking the circuit.
What is the accuracy grade of this current transformer?
The device features an accuracy grade of 1.0G, with a typical accuracy of ±1%.
Can this coil be used outdoors?
Yes, it has an IP67 rating, making it highly resistant to dust and water, suitable for demanding environments.
What output signals are available?
It can provide a mV output without an integrator, or 0.333V and 0-5V AC outputs when used with an integrator.
What is the operating temperature range?
The Rogowski coil is designed to operate reliably in temperatures ranging from -25ºC to +70ºC.
Is the coil length customizable?
Yes, the coil length can be customized between 20cm and 200cm to suit specific application requirements.
