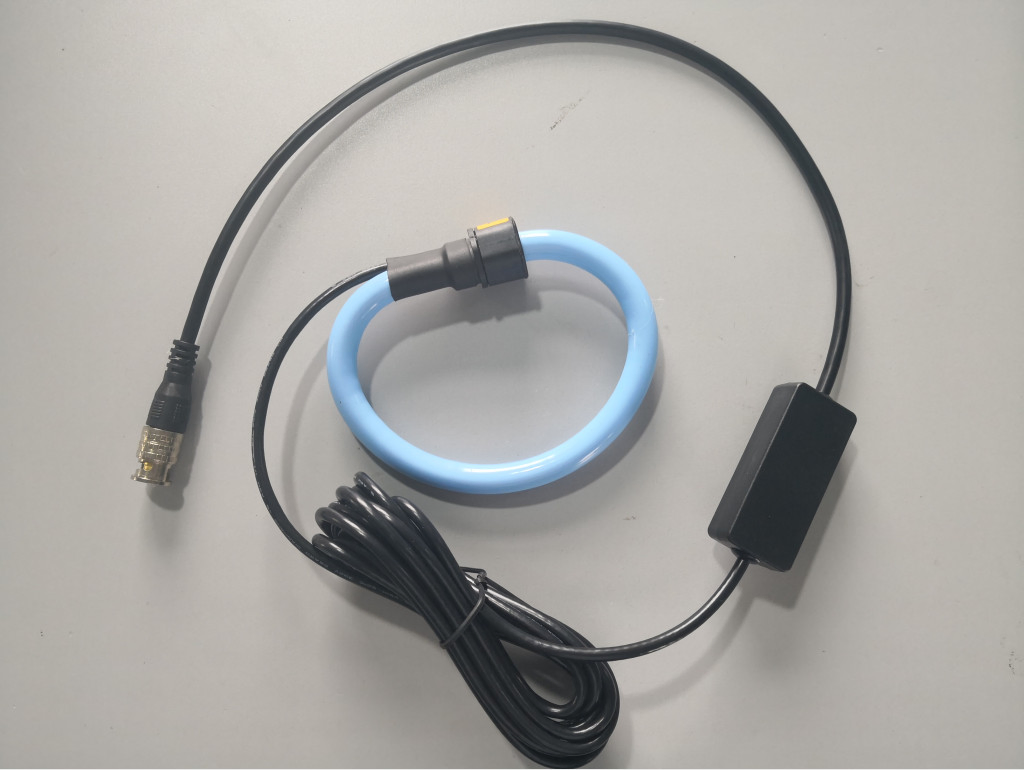

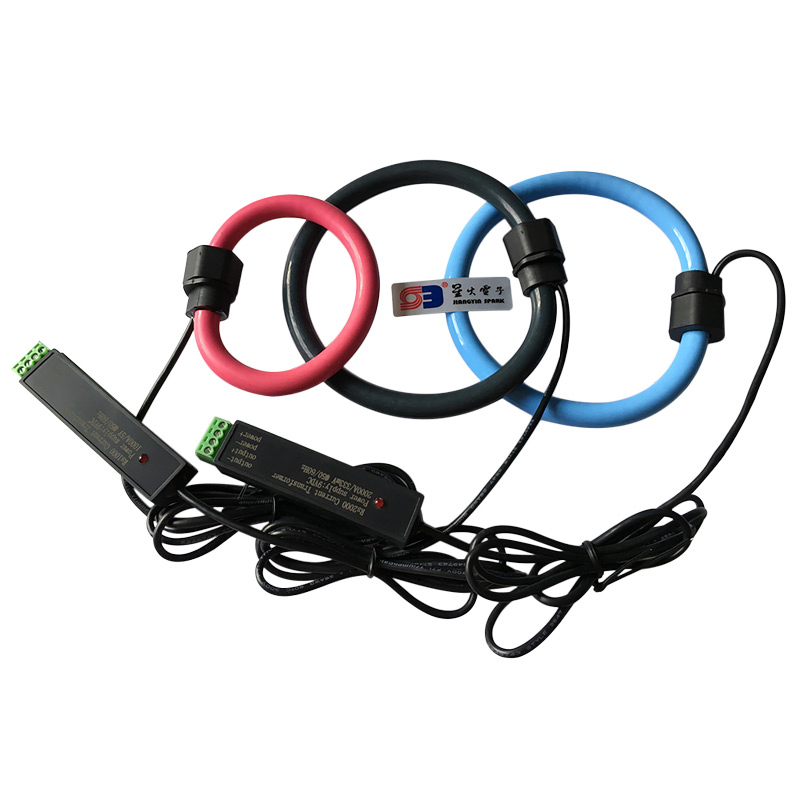

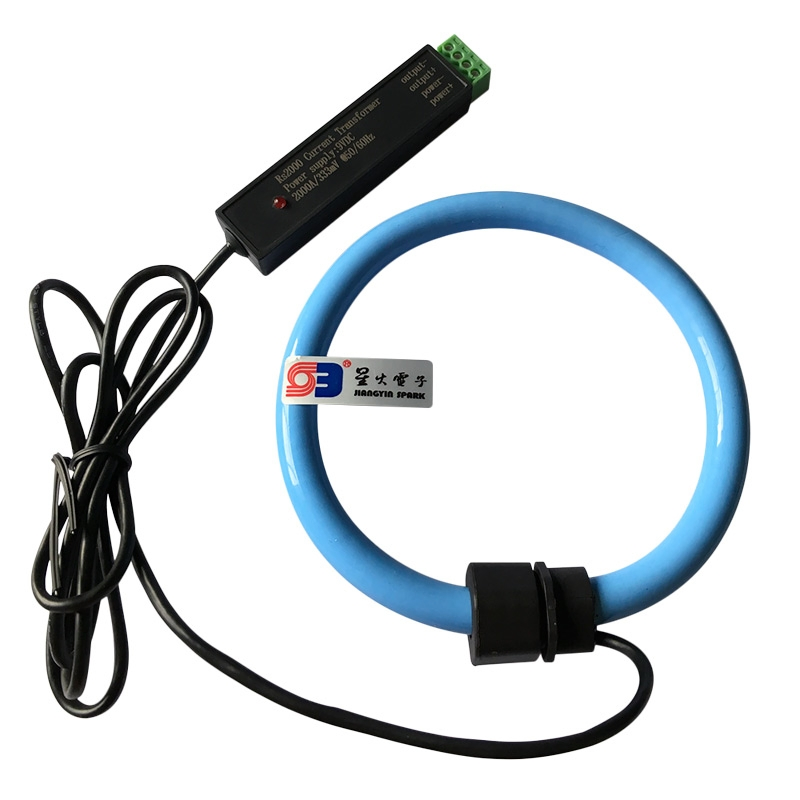

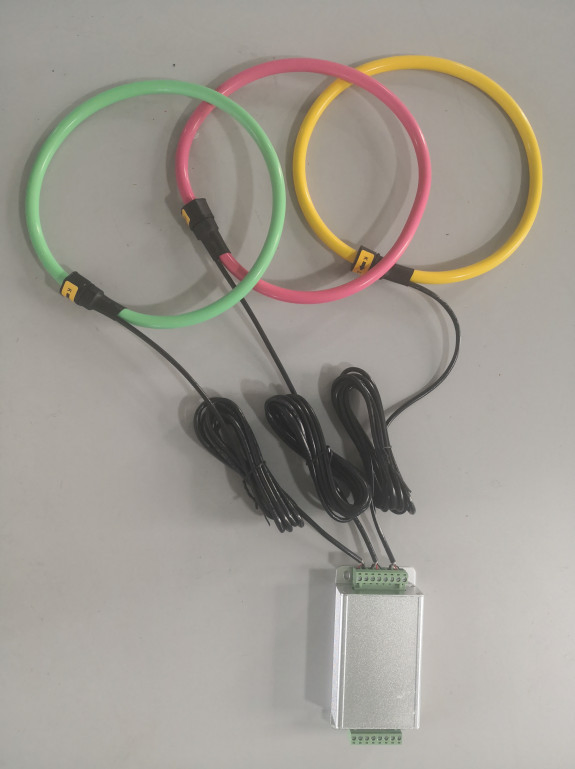

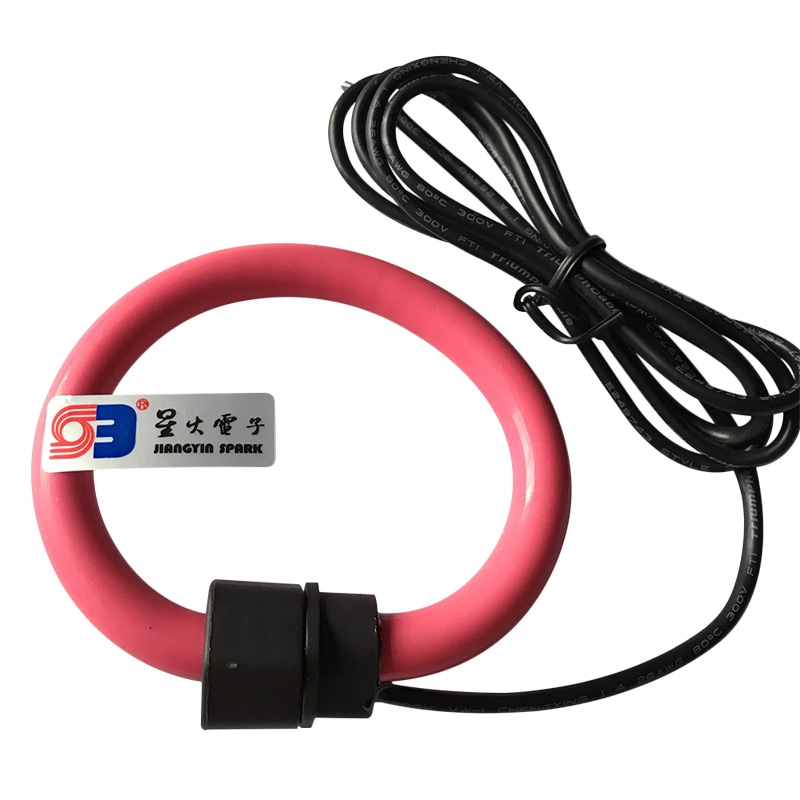

Technical Specifications of RC-10000 Flexible Rogowski Coil
Coil length: 0.2m - 2m
Input current range: 100A - 100KA
Output options: 0-0.333V AC, 0-5V AC, mA, 1A, 4-20mA DC, 0-5V DC, or 0-10V DC
Measurement Accuracy: 1%
Performance Details
Capable of accommodating a range of primary conductor sizes.
Characterized by high sensitivity, accuracy, linearity, and minimum phase shift.
Suitable for harsh operating environments (temperature, humidity, EMI).
Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical).

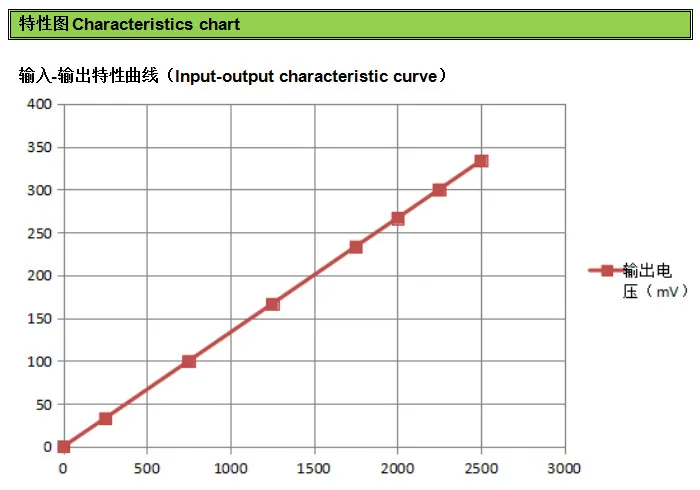

Linearity: ±0.2% from 10% to 100% of rated primary current.
Coil Working voltage: 1000VRMS or 1000VDC.
Dielectric Surge Withstand: 5kVRMS for 1 minute.
Operating temperature: -20ºC to +60ºC.

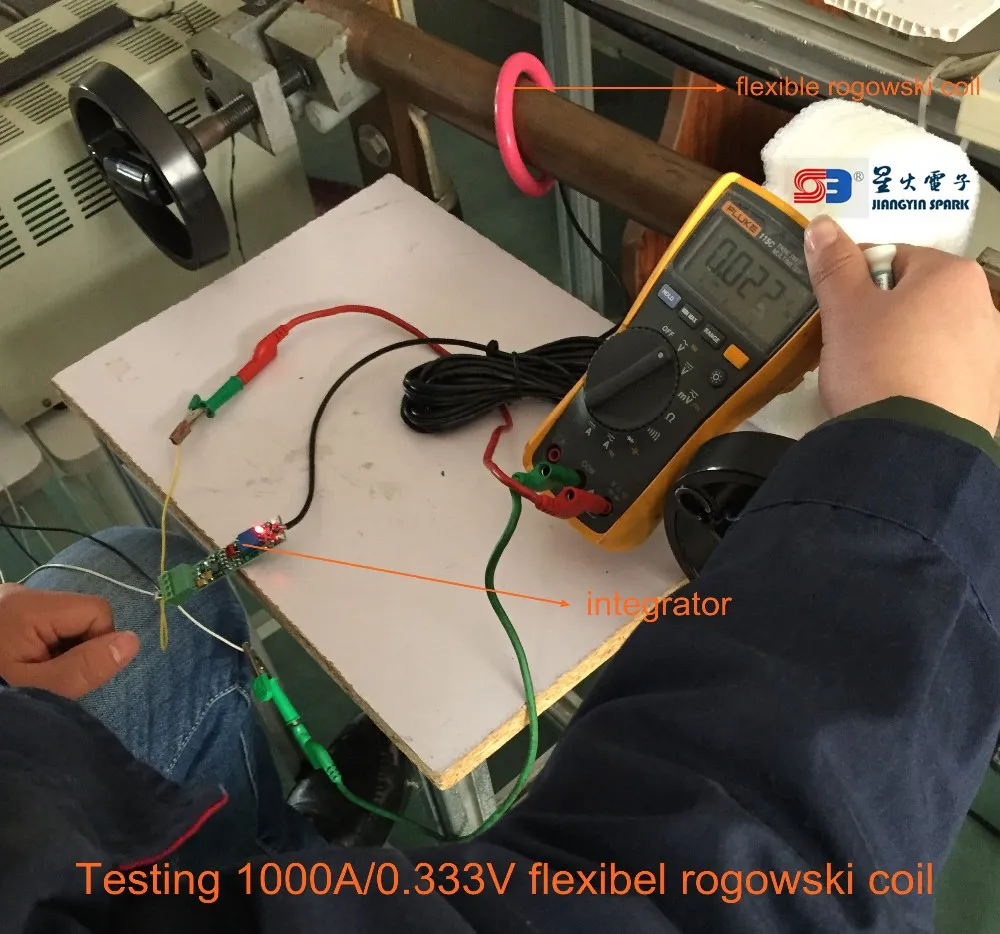

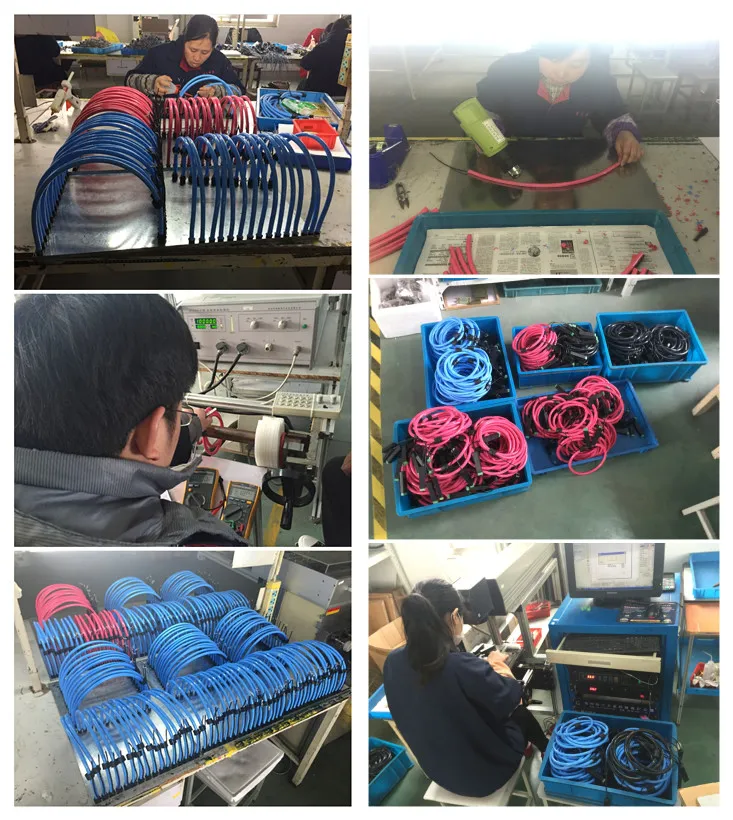

Production Showcase
