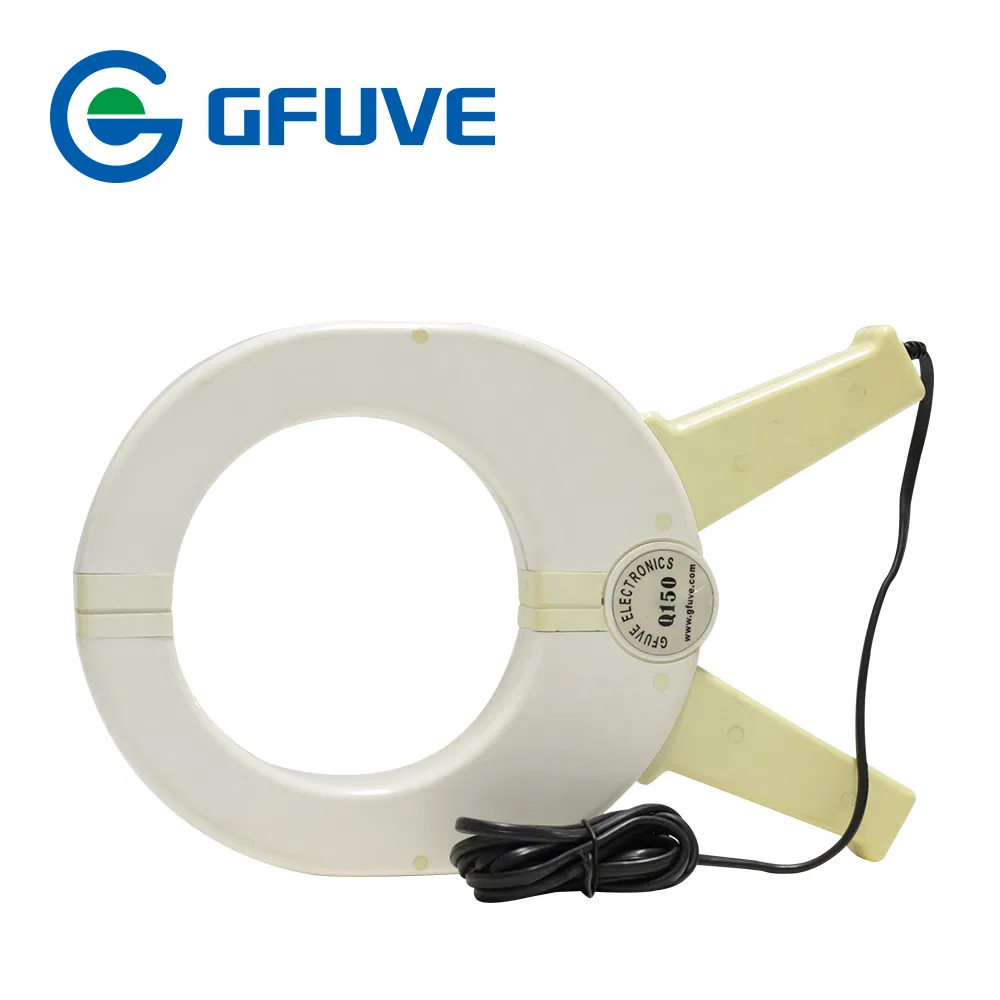

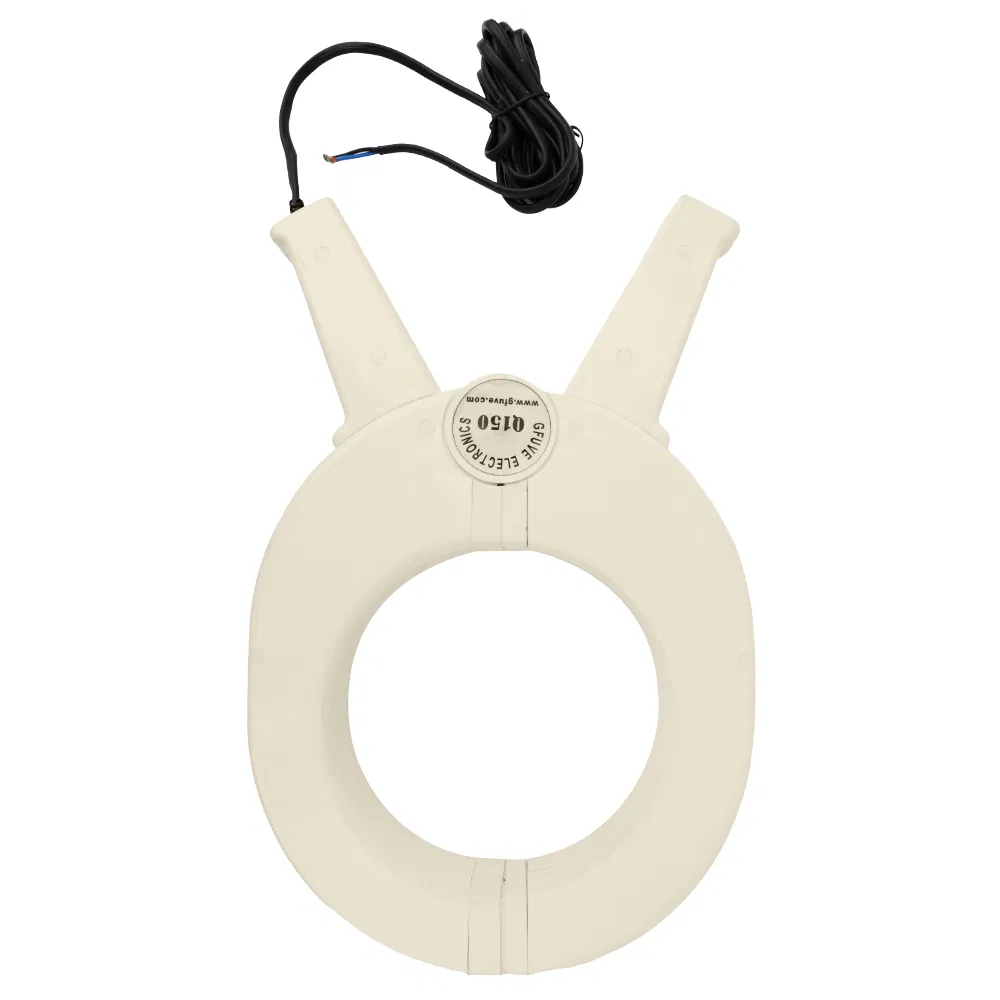

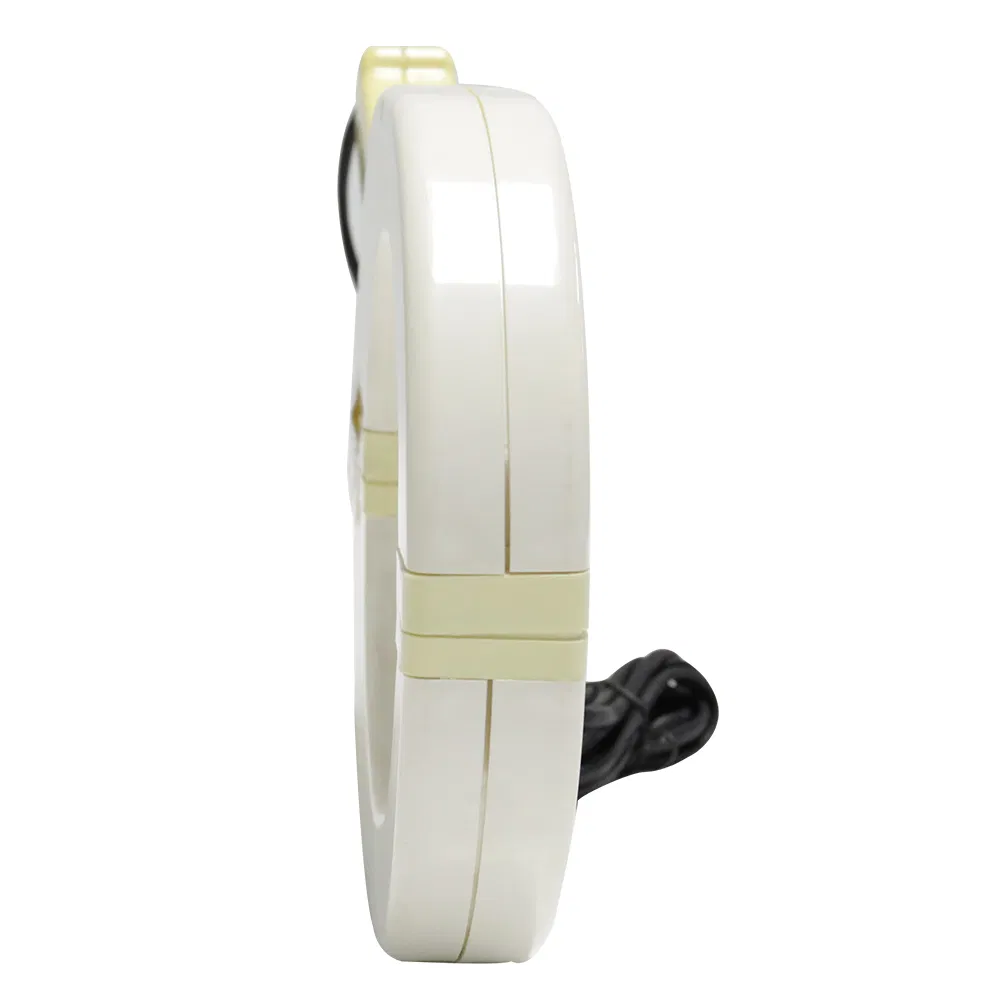

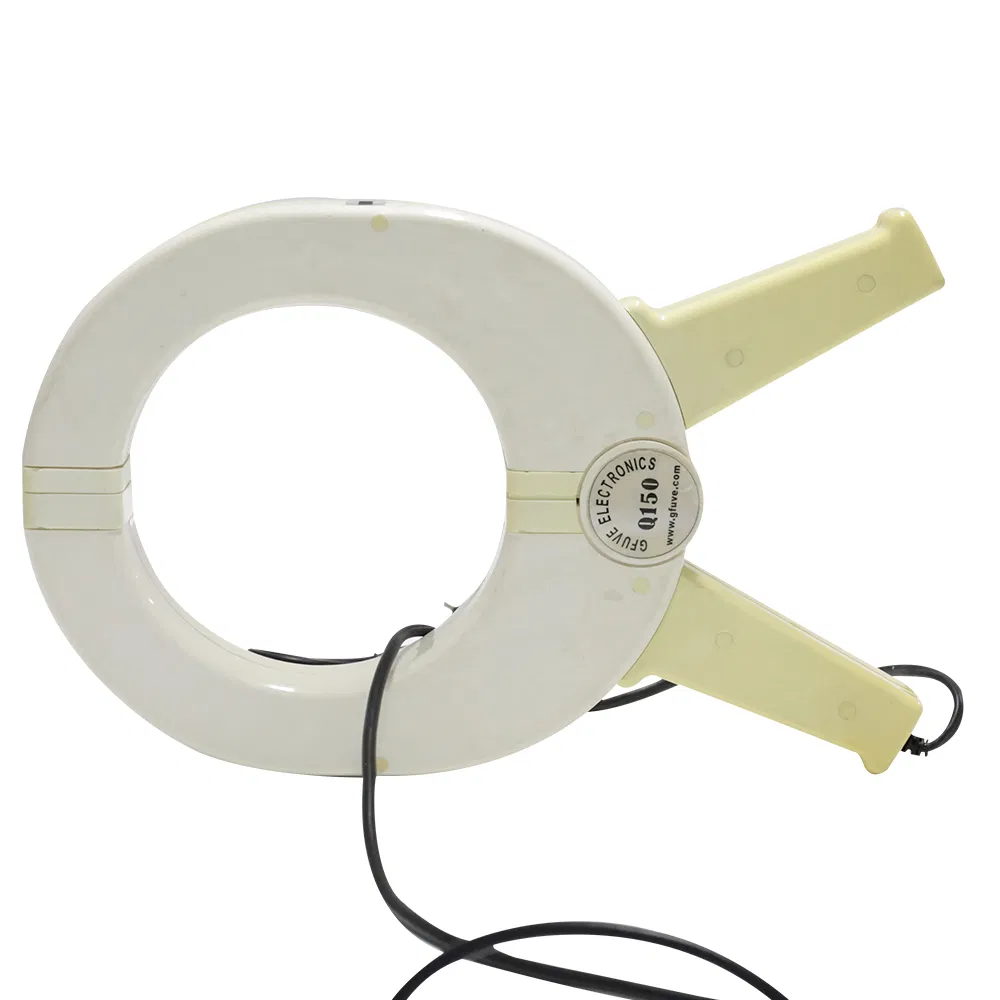

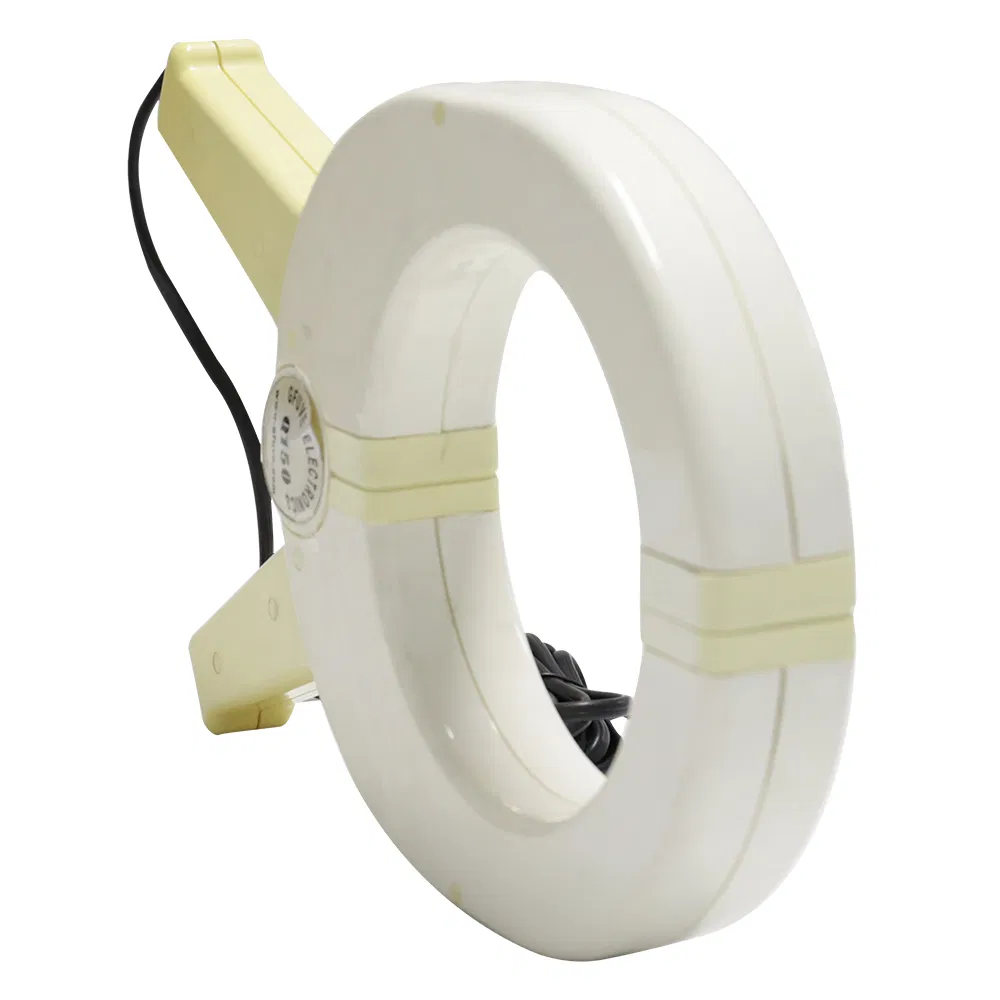

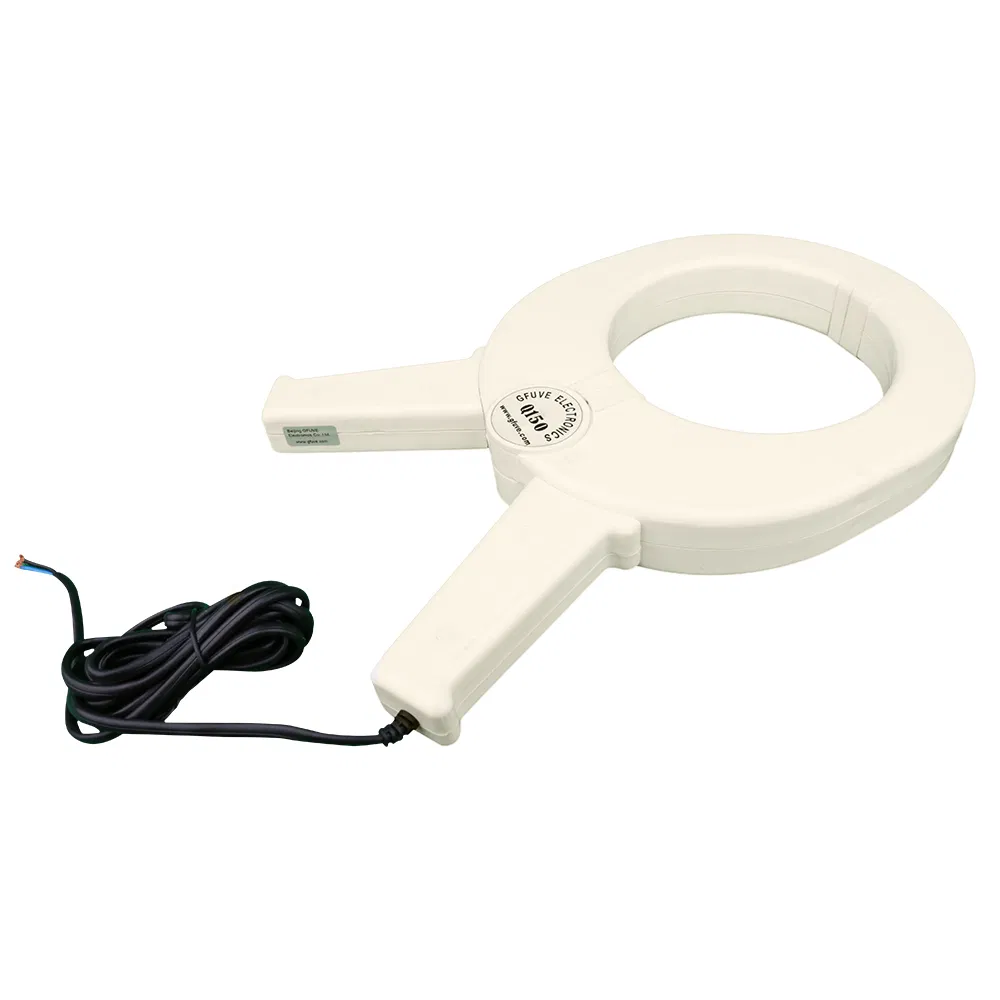

Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
1 / 5
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)
Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)

Q150 3000/5A Split Core Clamp-on Current Transformer (150mm Opening)

Customization: Available
Type: Electromagnetic
Output Signal Type: Analog Output
Send Inquiry

Product Description

Overview & Basic Info

Model NO.Q150
ProcessInjection
MaterialMetal / PC+ABS
Accuracy Grade0.1G / 0.2%, 0.5%, 1%
ApplicationNon-Contact Current Measurements
IP RatingIP30
CertificationCE, UL, CNAS
Frequency Range40Hz-2000Hz
Max. Jaw Opening150mm
Voltage CategoryCat III 600 V

Product Description

Q150 Split Core Current Transformer

The model Q150 current transformer clamp is designed for large current scenarios, working seamlessly with cable fault testers and identification devices. It can measure up to 3000A AC and output 0-5A AC for various measuring or analyzing systems.

With an accuracy class of 0.5% and ratios like 1000/5A, 2000/5A, or 3000/5A, it is highly suitable for power plants, factories, and mines to monitor power loads effectively.

Q150 Split Core Clamp-on Current Transformer

Key Applications

✓HVAC & Power Meters
✓Energy & Harmonic Meters
✓Cable Fault Testing
✓Plant & Industrial Maintenance
✓Electrical Laboratory Work
✓Power Quality Analyzers

Technical Features

★Large 150mm jaw opening for cable bundles
★Broad frequency bandwidth: 40Hz-2000Hz
★Conforms to EN 61010, 600V CAT III standards
★Low phase shift for precise power measurement
★Ergonomic industrial design for easy operation
★High dielectric strength: 3KV 50Hz/60Hz

Technical Parameters

Electrical Parameters
Ratio600:1, 1000:1, 2000:1, 3000:1 (Customized)
Accuracy Class0.2%, 0.5%, 1%
Primary Current0 - 3000A AC
Secondary Current0 - 5A AC (Customized)
Max. Continuous Input3600A
Load Capacity≤2.5VA or 20Ω
Output Signal (Voltage)333mV, 500mV, 1V, 5V AC
Temperature Range-20°C to +55°C
Mechanical Parameters
Dimensions (mm)229 x 364 x 44
Weight (g)1700
Holding Wire Diameterφ150mm
MaterialPC+ABS, UL94 V0

Product Gallery

Q150 Detail 1 Q150 Detail 2 Q150 Detail 3 Q150 Detail 4 Q150 Detail 5 Q150 Detail 6

Frequently Asked Questions

Q1: What is the maximum current measurement capacity of the Q150? A: The Q150 can measure large AC currents up to 3000A, with a maximum continuous input of 3600A.
Q2: What is the size of the jaw opening? A: It features a large 150mm jaw opening, making it ideal for measuring around thick cable bundles.
Q3: What accuracy levels does this current transformer provide? A: Depending on the requirements, it offers accuracy classes of 0.2%, 0.5%, or 1%.
Q4: Is the Q150 compatible with power quality analyzers? A: Yes, it is specifically designed for use with power quality analyzers, harmonic meters, and data loggers.
Q5: What safety certifications does the device hold? A: The Q150 is CE certified and conforms to EN 61010-1 and EN 61010-2-032 standards with a CAT III 600V rating.
Q6: What is the operating temperature range? A: The device operates reliably in temperatures ranging from -20°C to +55°C.
