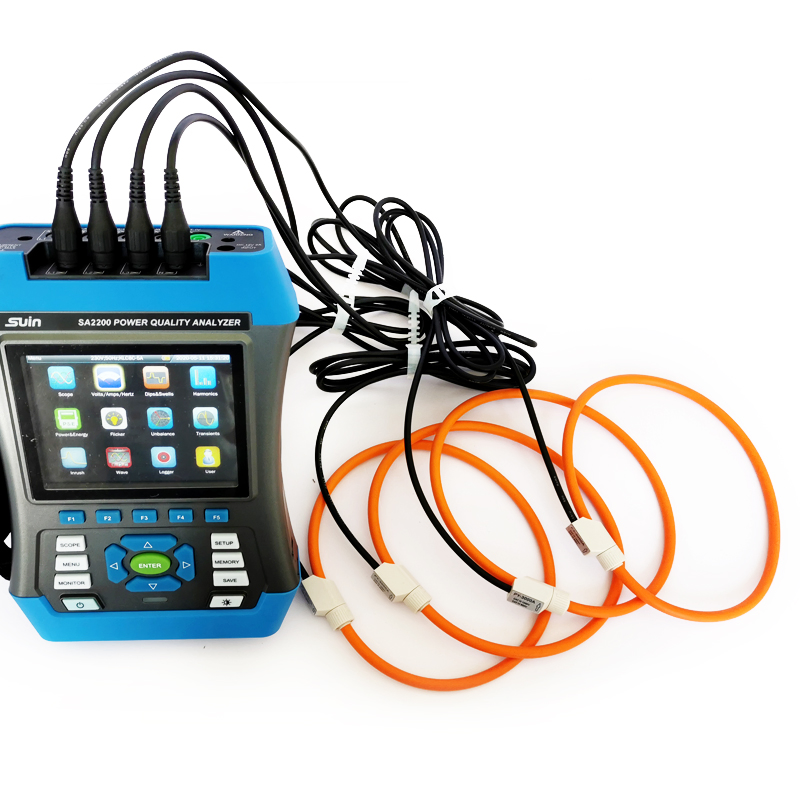

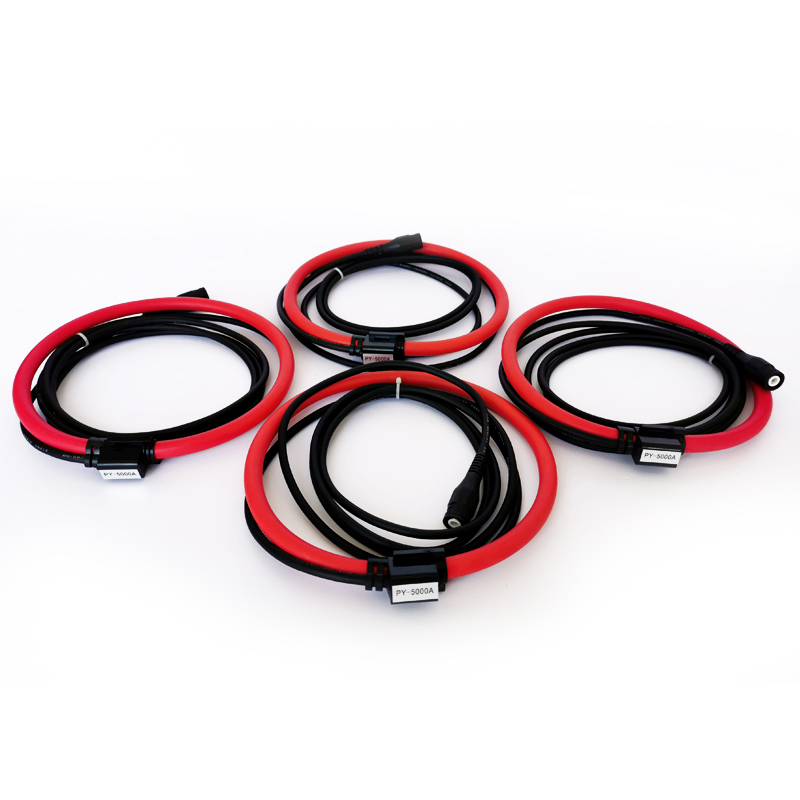

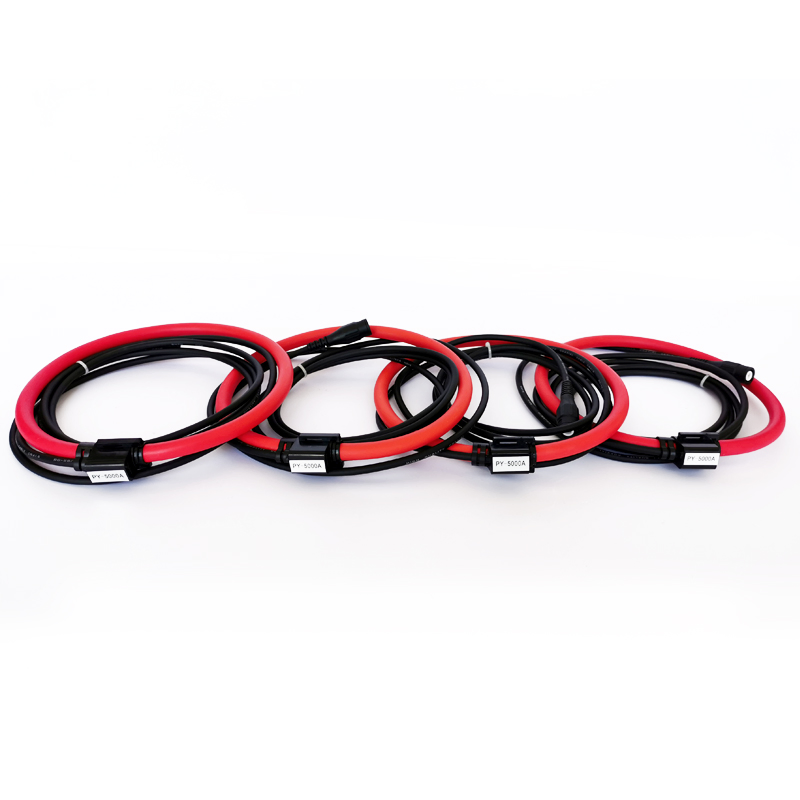

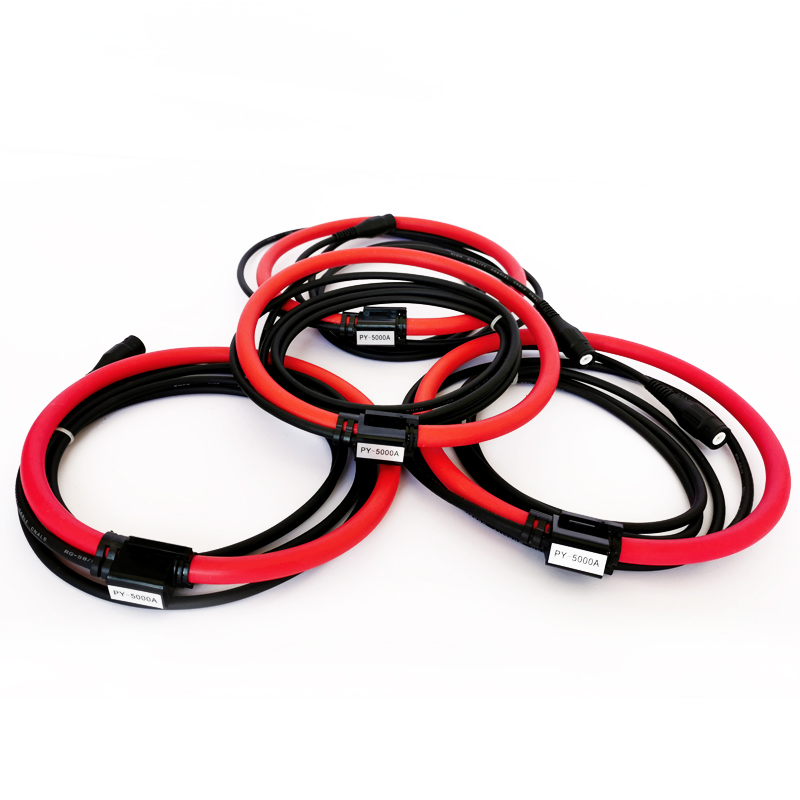

Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
1 / 5
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer
Py-5000A High Current Range Rogowski Coil Flexible Current Transformer

Py-5000A High Current Range Rogowski Coil Flexible Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i
Basic Specifications
Model NO.
PY-5000A
Measurement Range
20-5000A
Production Process
SemiConductor Integrated
Material
Metal
Accuracy Grade
1.0G
Application
Switching Power Supply
IP Rating
IP20
Certification
ISO
Output Voltage Ratio
50mv/1000A @ 50Hz
Trademark
Neutral
Customized
Customized
HS Code
8504311000

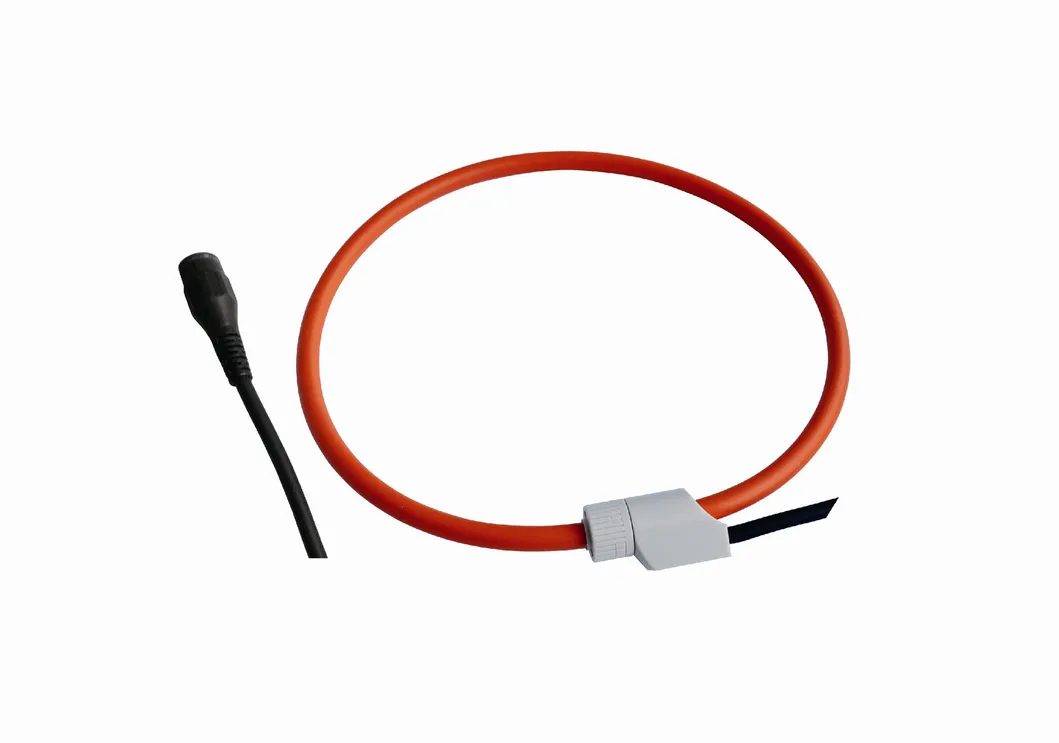

Rogowski Coil Flexible Current Transformer

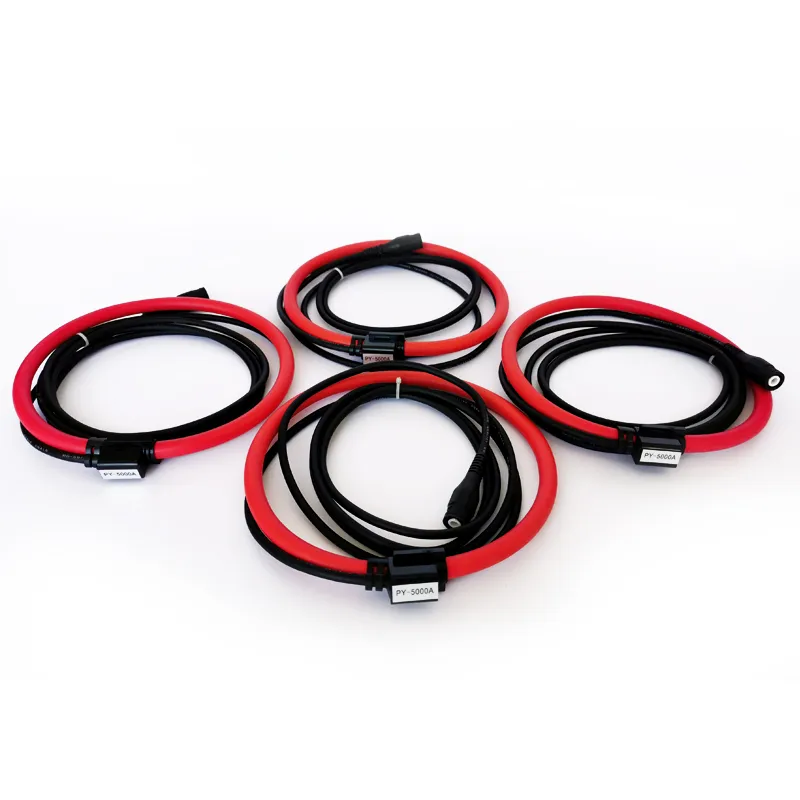

High Current Range Rogowski Coil Flexible Current Transformer Detail

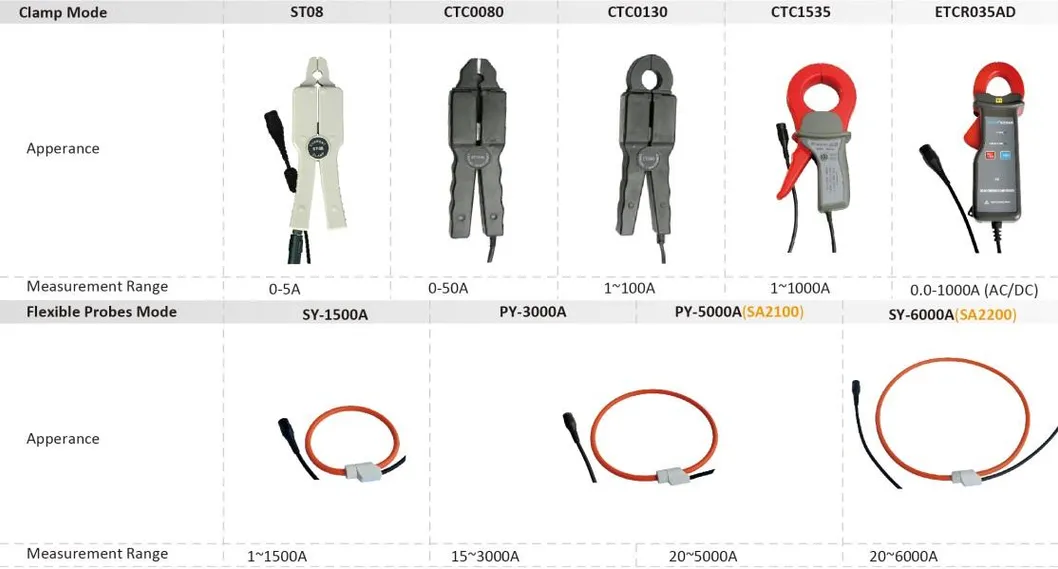

Product Application
T
Product Technical Description
Model PY-3000A PY-5000A
Measurement Range15~3000A20~5000A
Output Voltage Ratio65mV/1000A@50Hz50mV/1000A @ 50Hz
Accuracy±1% + Position Error
Maximum Allowable Input100KA
Phase Error<±1°
Noise<2mVrms (10Hz~10KHz)
Frequency Characteristic10Hz~10KHz(-3dB)
Weight130g
CT Perimeter50cm
P
Packaging & Logistics
Package Size
26.00cm * 15.00cm * 18.00cm
Gross Weight
0.200kg
Transport Package
Carton
Production Capacity
50000PCS/Year

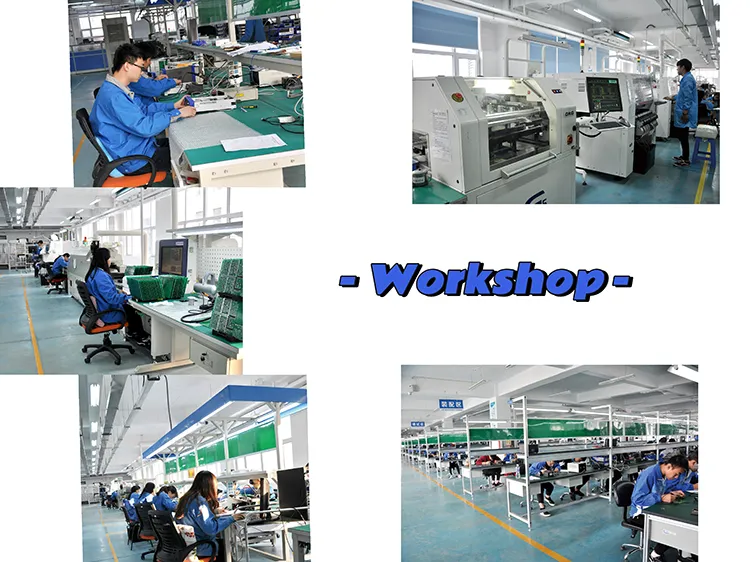

Production Facility Test Instruments Quality Control
?
Frequently Asked Questions
What is the measurement range of the PY-5000A model?
The PY-5000A model supports a high current measurement range from 20A up to 5000A.
What is the accuracy grade for these Rogowski coils?
The product features an accuracy grade of 1.0G, with a typical accuracy of ±1% plus position error.
Can the output voltage ratio be customized?
The standard output for PY-5000A is 50mv/1000A @ 50Hz, but the product supports customization based on specific requirements.
What are the environmental ratings for this current transformer?
It has an IP20 rating, making it suitable for protected industrial applications such as switching power supplies.
What is the maximum allowable input for these coils?
These flexible current transformers can withstand a maximum allowable input of up to 100KA.
What is the physical size and weight of the device?
The unit is lightweight at approximately 130g, with a CT perimeter of 50cm and a total lead length of 200cm.
