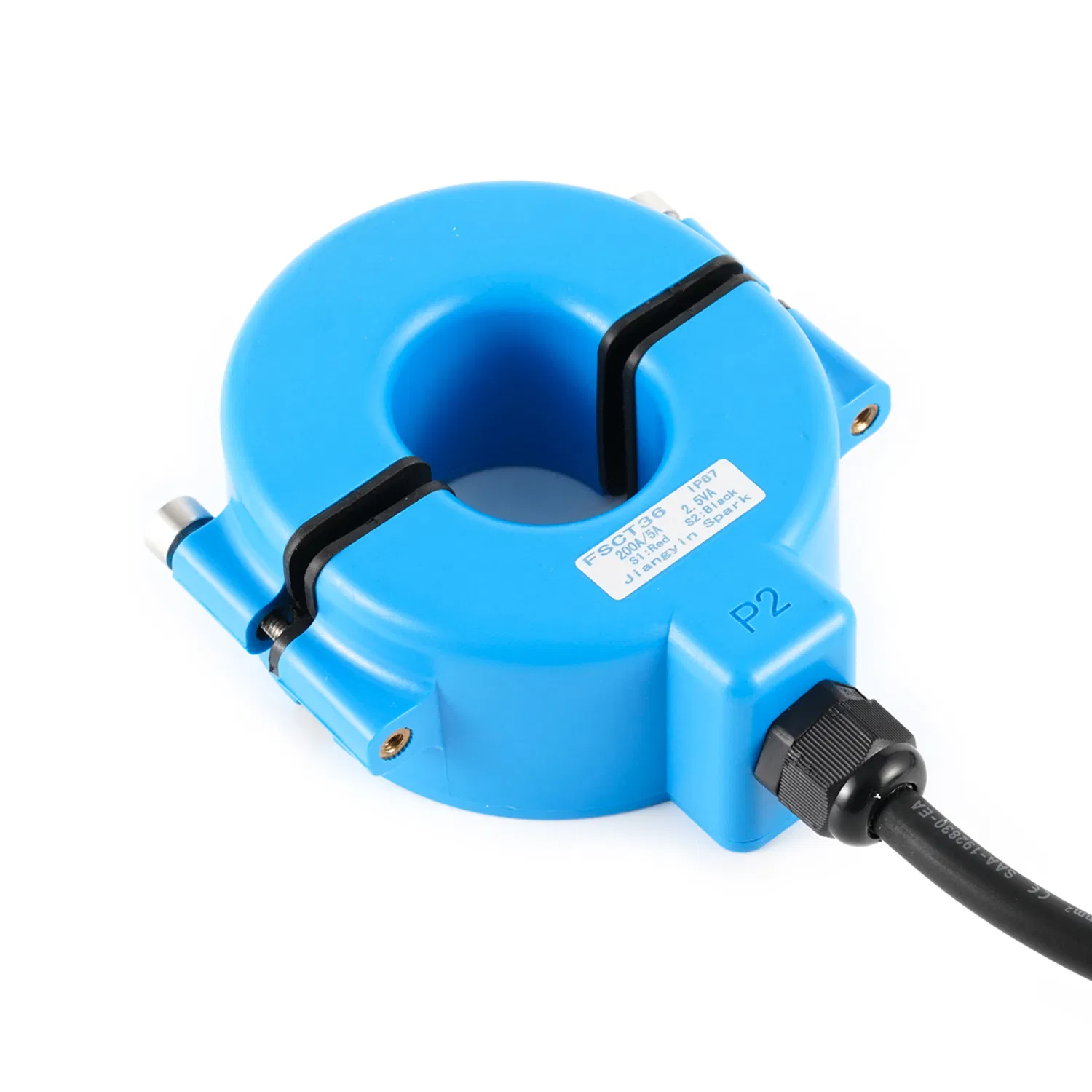

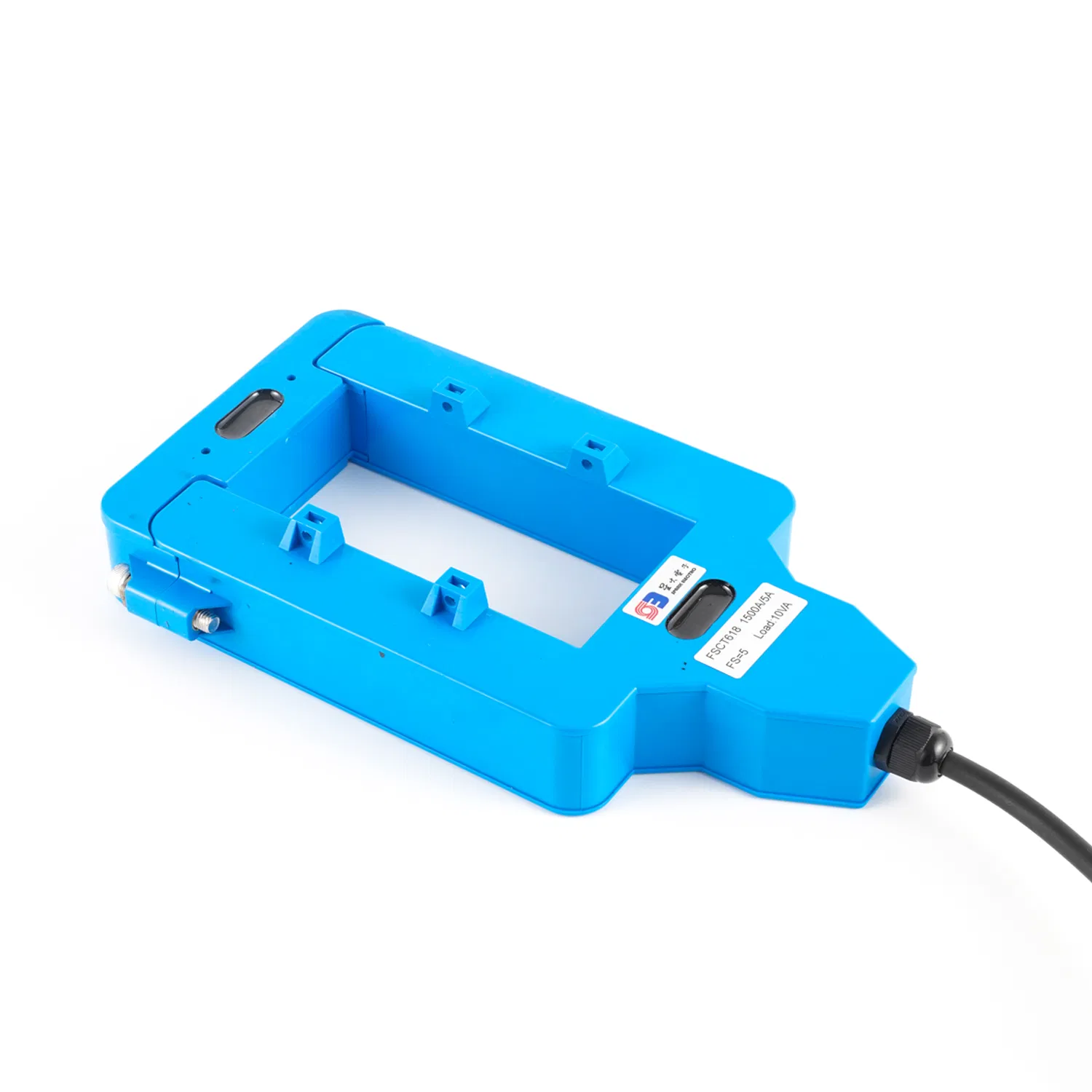

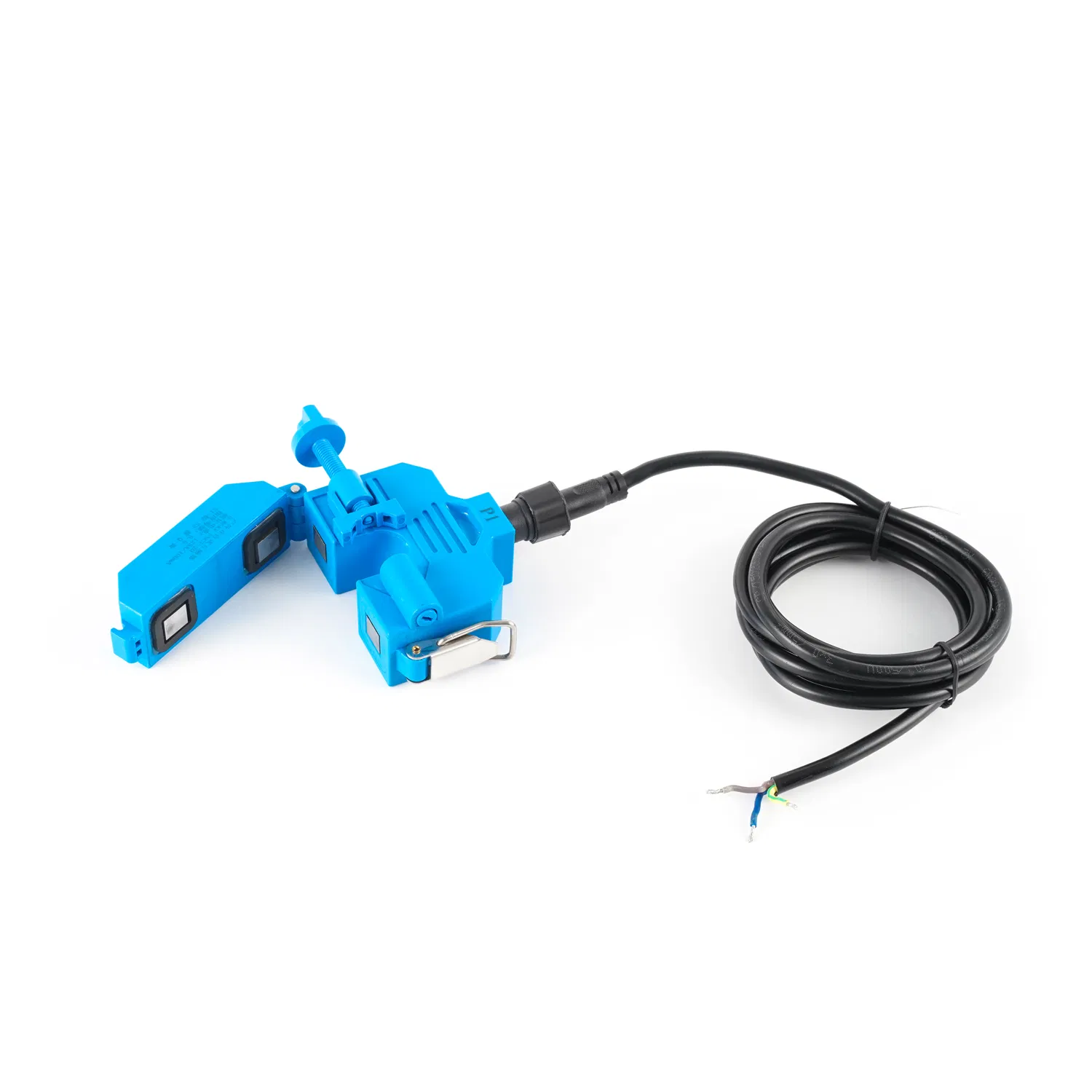

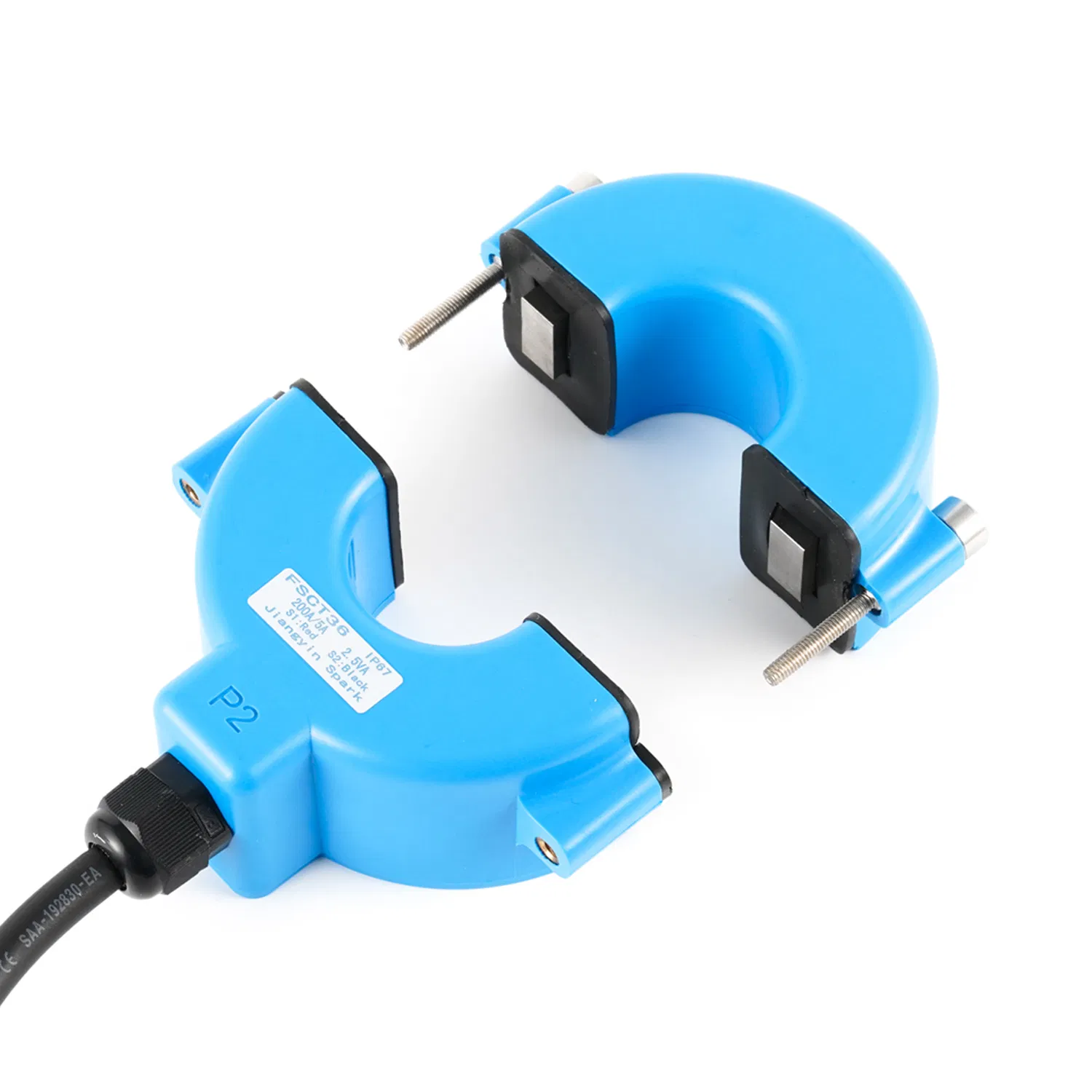

Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
1 / 5
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer
Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer

Outdoor IP67 Waterproof Clamp on Fsct-20 200A/1A Split Core Current Transformer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.

Model NO.
FSCT-20
Phase
Single
Operation Condition
Outdoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Injection Molding
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Photoelectric Type
Color
White
Output
1A
Transport Package
Box
Specification
CE, UL, ROHS, ISO9001: 2008
Origin
China
HS Code
8504
Production Capacity
50000pieces/Week

Product Description

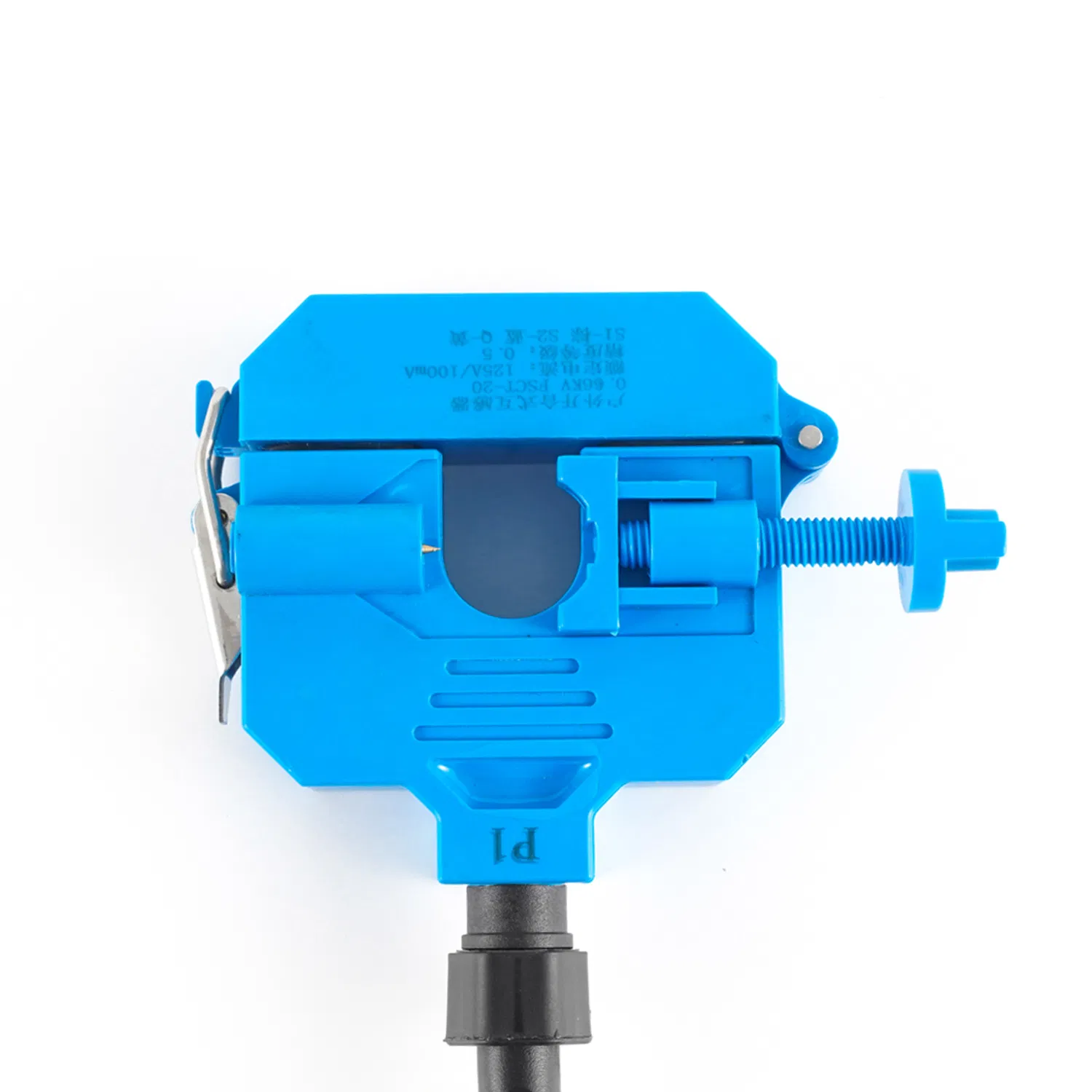

Outdoor Clamp on Current Transformer XH-FSCT-20
φ20mm Opening With 10 To 600 Amp Rating

Description:
Outdoor Waterproof Clamp on Current Transformer, split core type.

✓Utilities pole probe monitoring, measurement
✓Power distribution line monitoring
✓Building, factory energy management system
✓Measurement, monitoring of low current in outdoor application
✓Current balancing monitoring
✓Smart grid application, energy efficiency
✓Inner Diameter: 20mm
✓For cable line measuring below 600A
✓Primary Current: 0~600A
✓Accuracy Class: 0.5%, 1%
Outdoor IP67 Waterproof Clamp on Fsct-20
Outdoor IP67 Waterproof Clamp on Fsct-20 Specifications
ModelFSCT-20
StandardsGB 20840 (IEC 61869), GB4208
Equipment maximum voltage0.33/0.72KV
IP ratingIP 67
Rated current10-600 Arms
Max current1000 Arms
Turns100-3000T
Accuracy class0.5, 1.0
Rated outputmA/mV/1A/5A
Wire lead3*0.75mm2 sheathed wire
Insulation strength3KVAC/min
Insulation impedanceDC500V/100MΩ
Rated frequency50-400HZ
Working temperature-25ºC~50ºC
Storage temperature-30ºC~90ºC

Curve Performance:

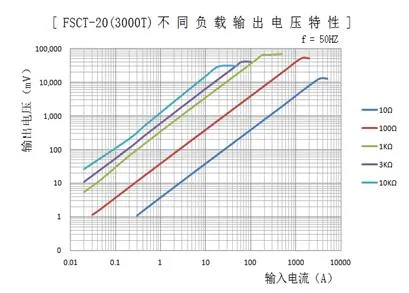

Performance Curve 1

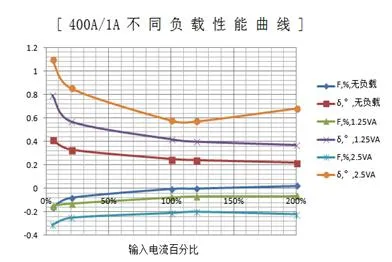

Performance Curve 2

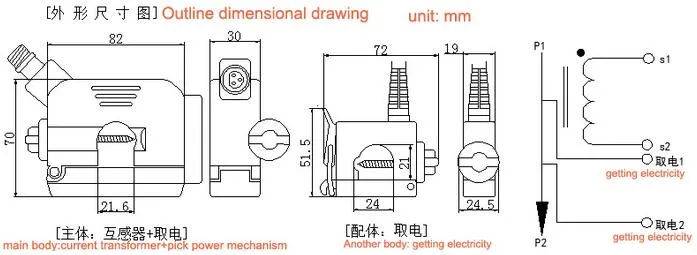

Dimensions

Other hot sales:

Other Hot Sales Products

Frequently Asked Questions

Q: What is the IP rating of the FSCT-20 current transformer?
The FSCT-20 features an IP67 rating, making it completely waterproof and suitable for outdoor applications.
Q: What is the primary current range for this model?
The primary current range for the FSCT-20 is from 0 to 600A, with a maximum current capacity of 1000 Arms.
Q: What are the typical applications for the FSCT-20?
It is commonly used for utilities pole probe monitoring, power distribution line monitoring, factory energy management systems, and smart grid applications.
Q: What is the inner diameter of the transformer opening?
The FSCT-20 has an inner diameter of 20mm, designed for easy clamping onto cables.
Q: What accuracy classes are available?
This model supports accuracy classes of 0.5 and 1.0, ensuring precise measurement and protection.
Q: What is the operating temperature range?
The device is designed to work reliably in temperatures ranging from -25ºC to 50ºC.
