Three in one STP Splitter (Built-in integrator selectable)

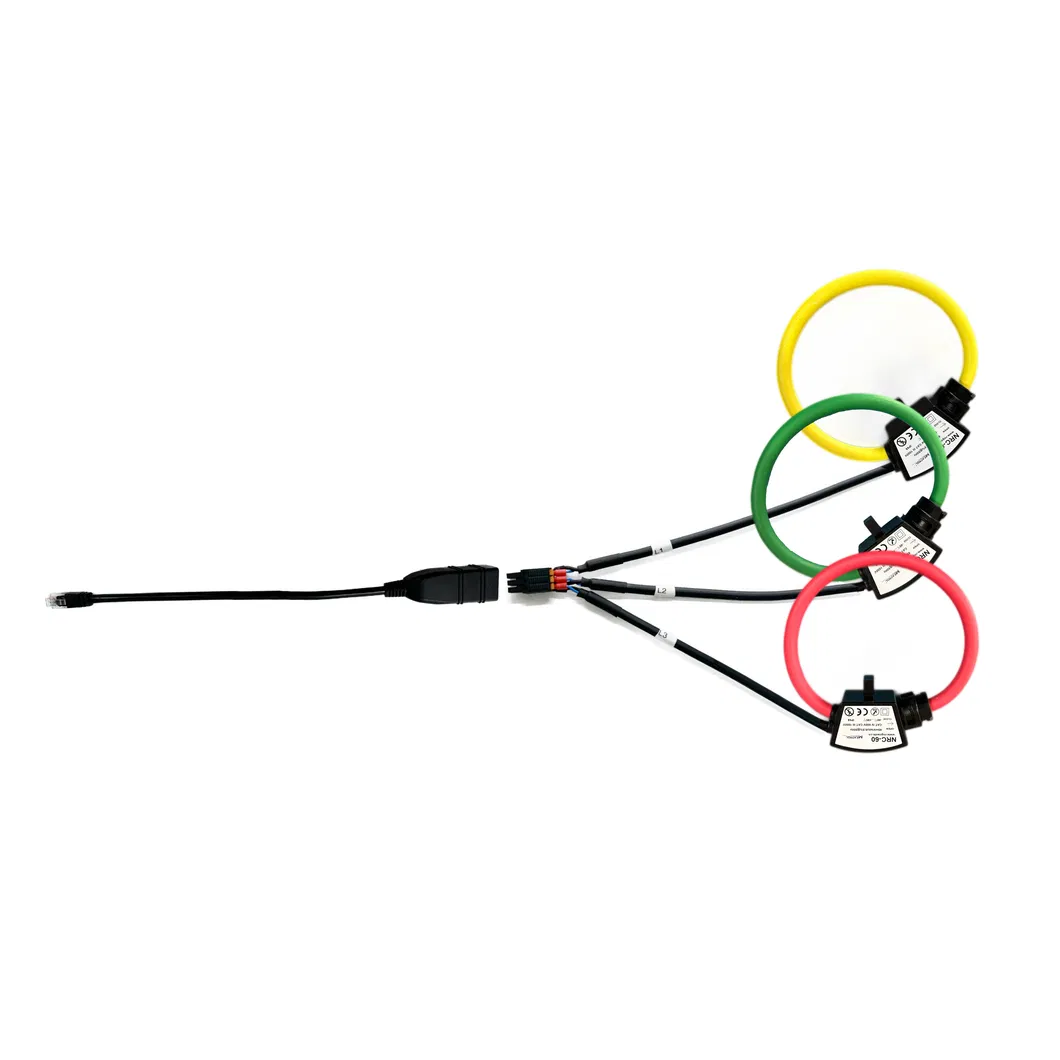

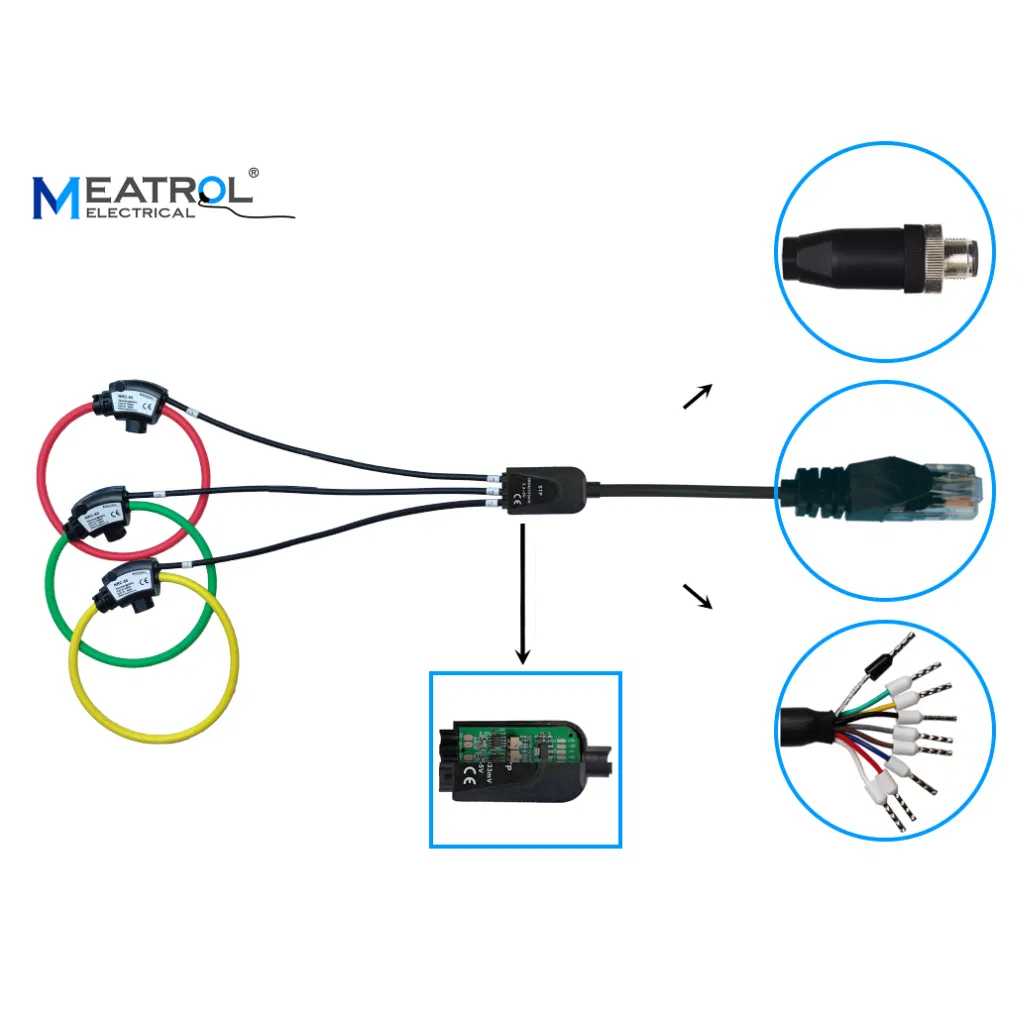

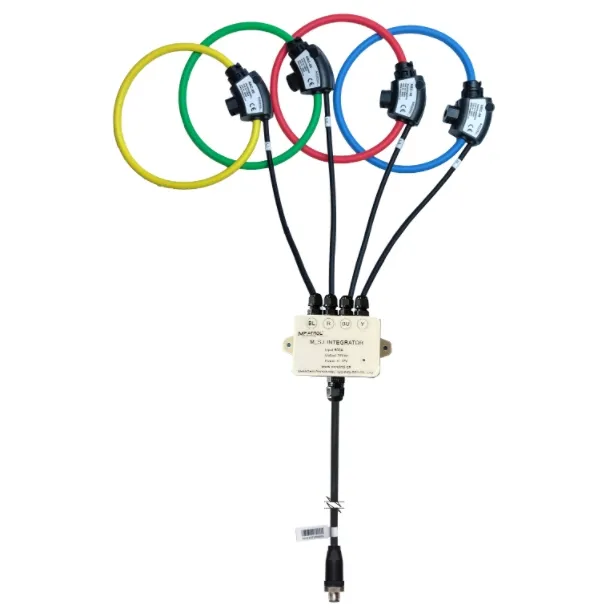

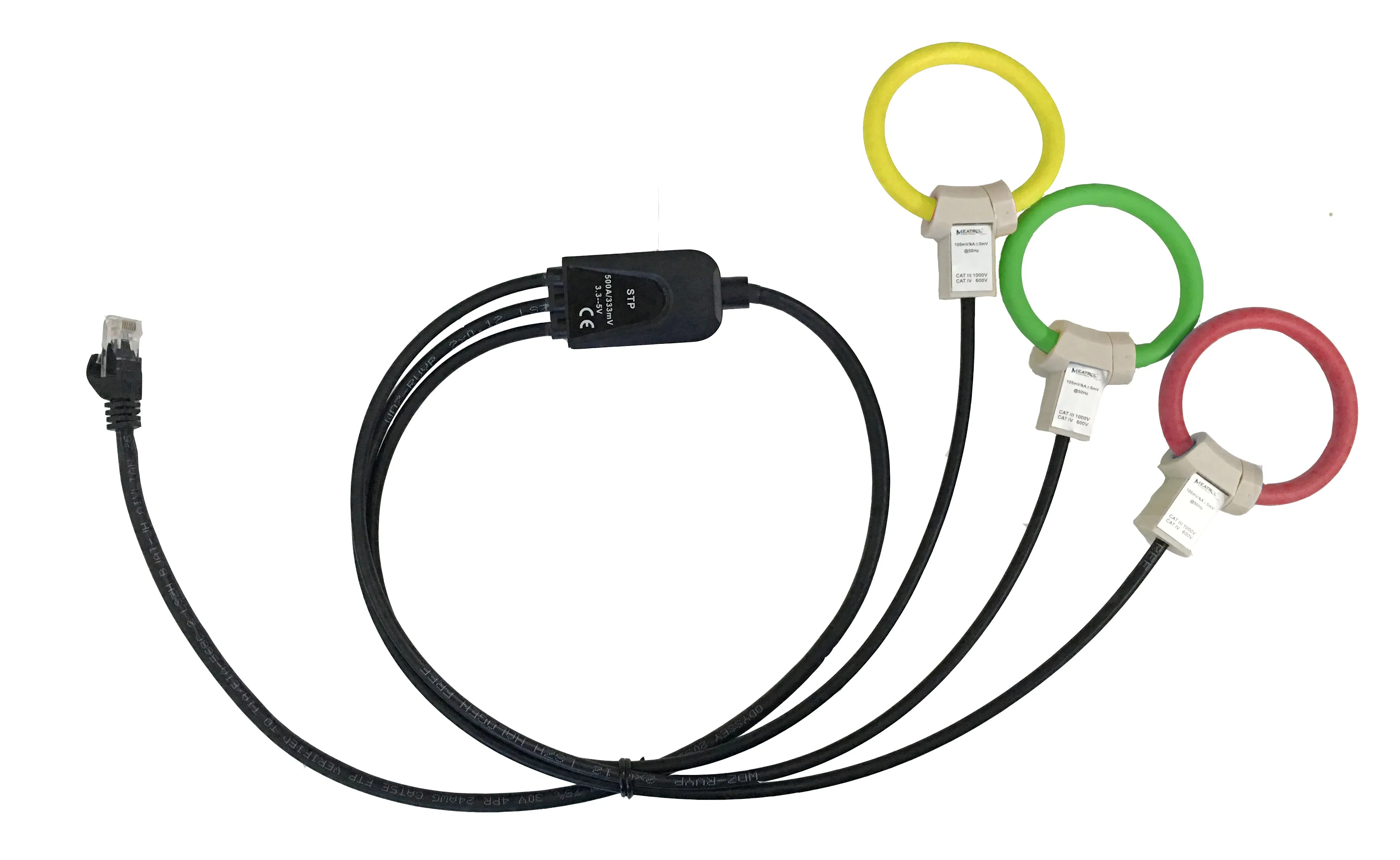

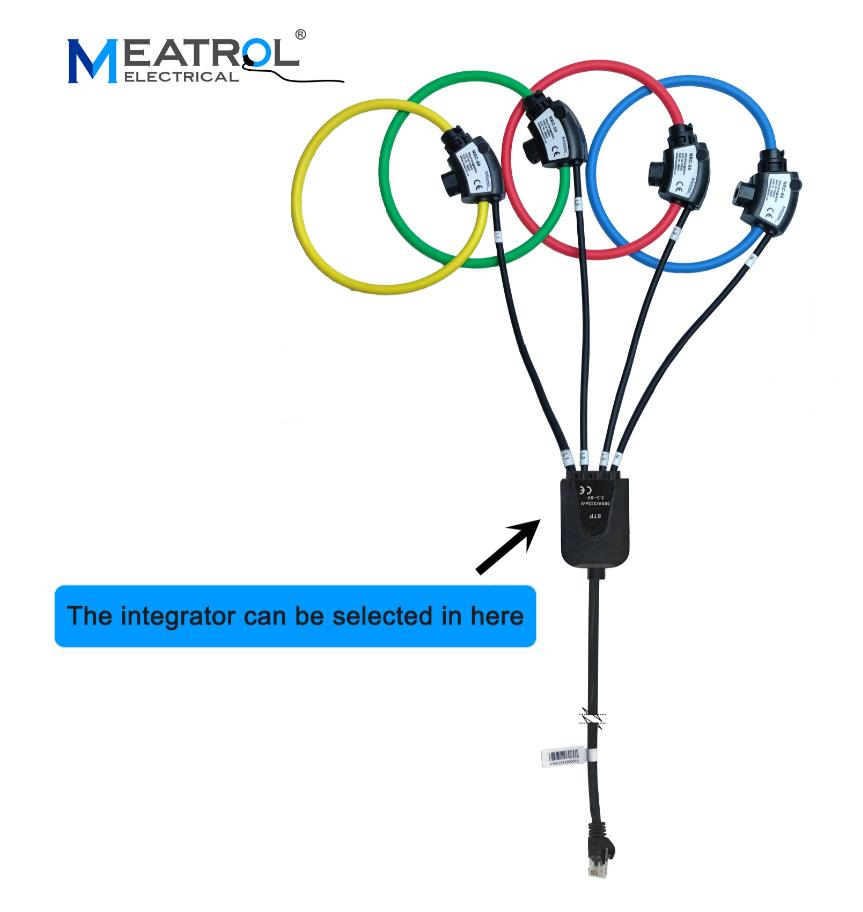

STP with a selectable built-in integrator that outputs a three-way Rogowski coil signal through an RJ45 port or 8 Pin. Power supply 3.3 ~ 5V. Output options include 150mV, 333mV, 500mV, 1V, 1.5V, 3V AC.

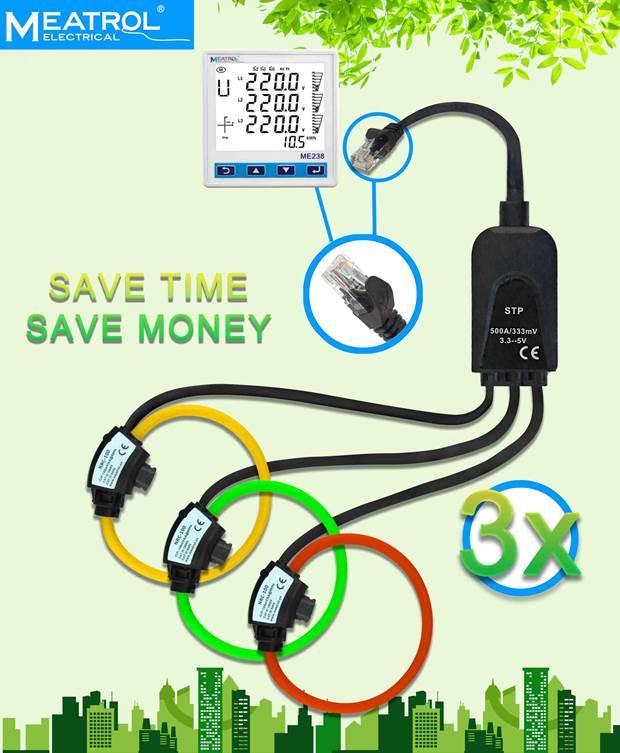

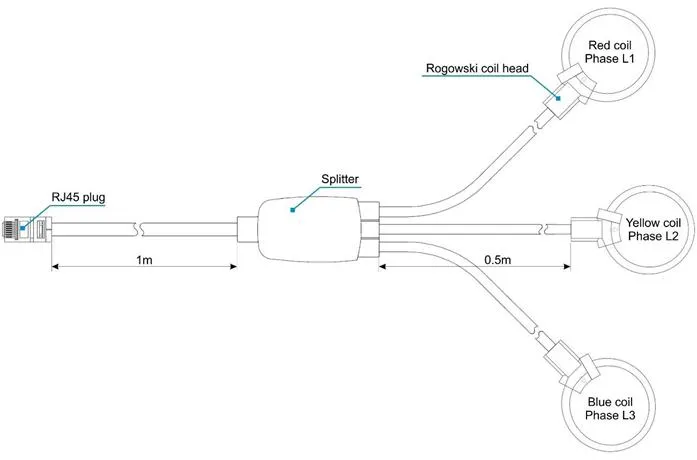

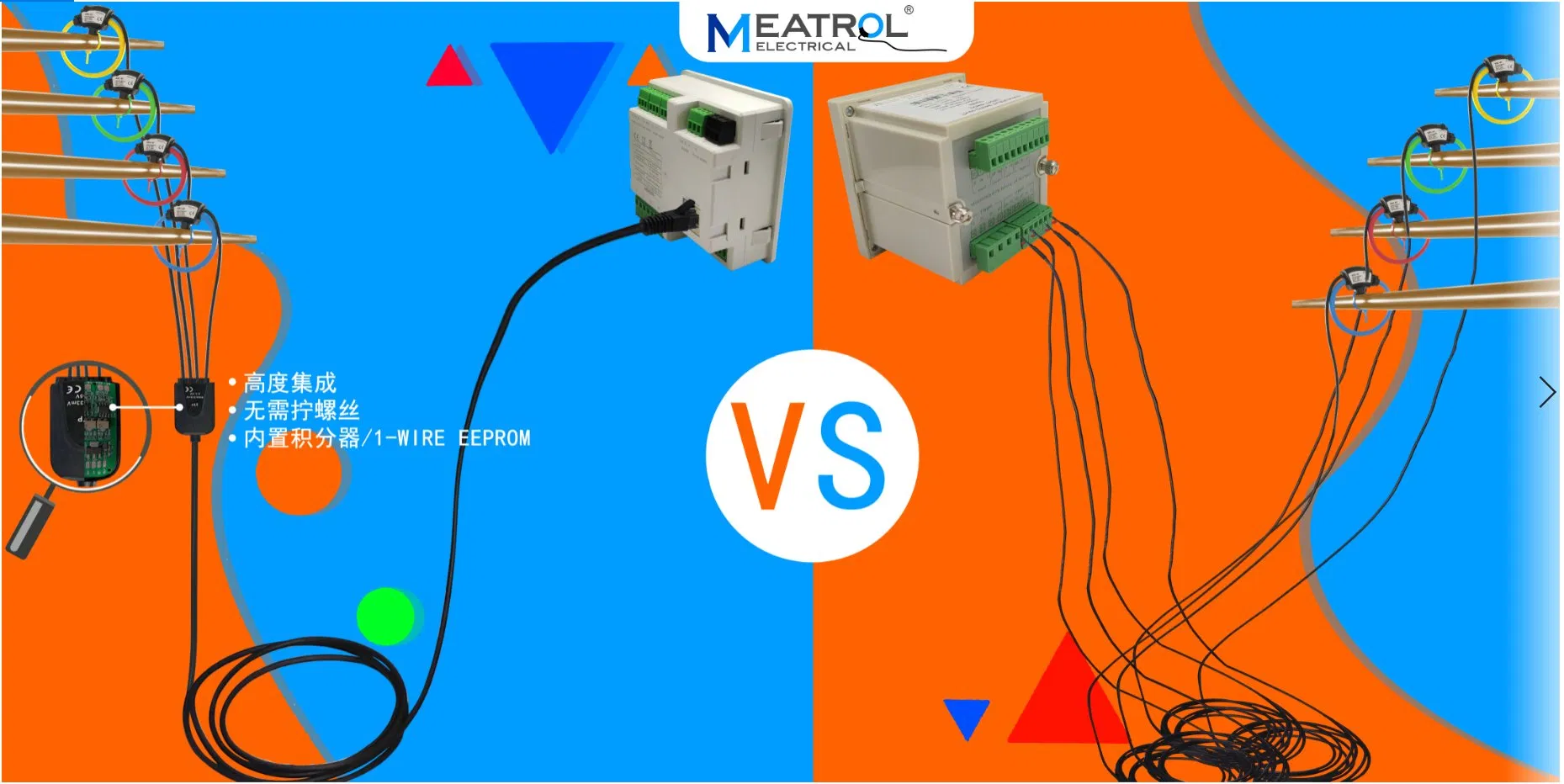

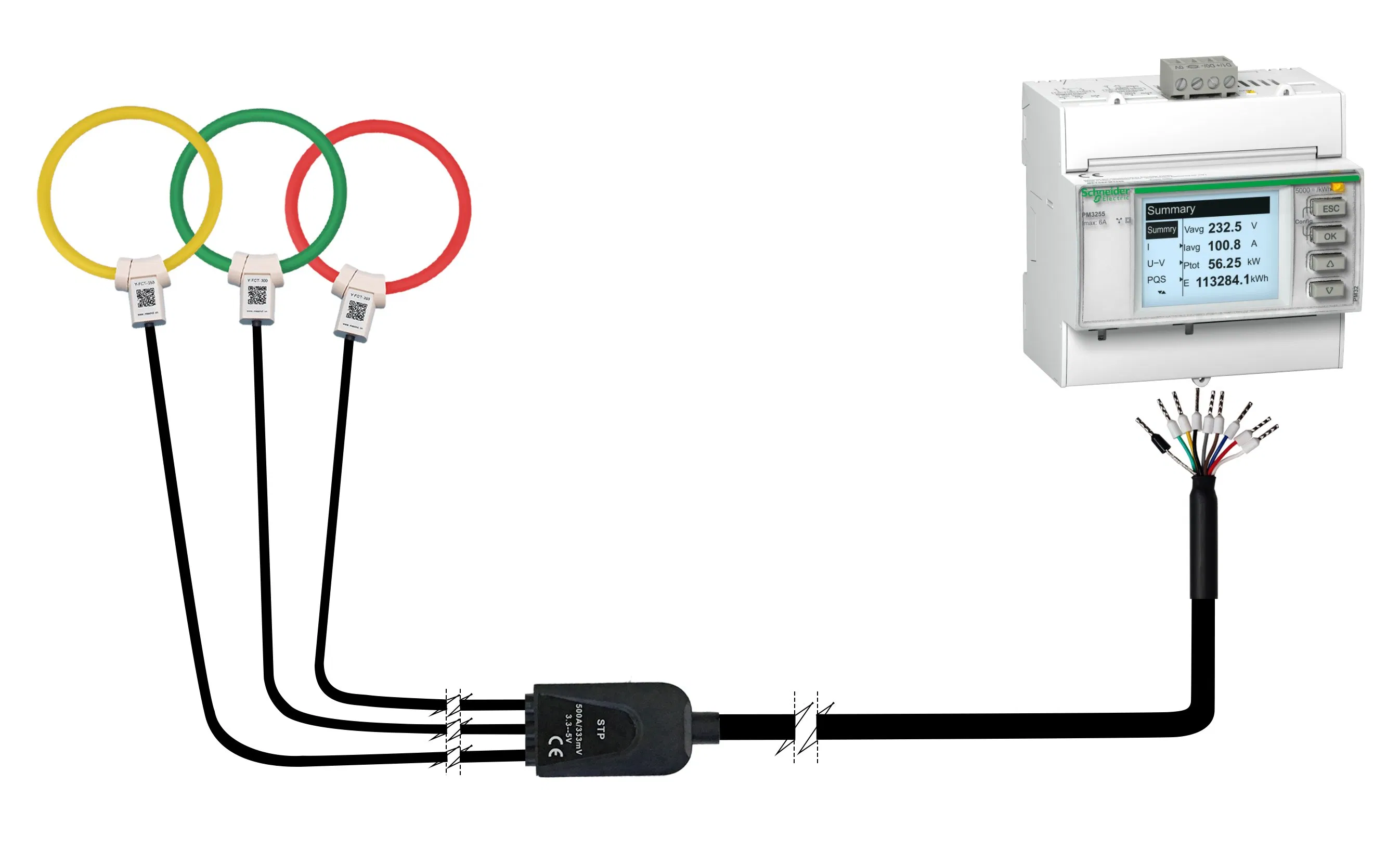

Analog Connection Diagram

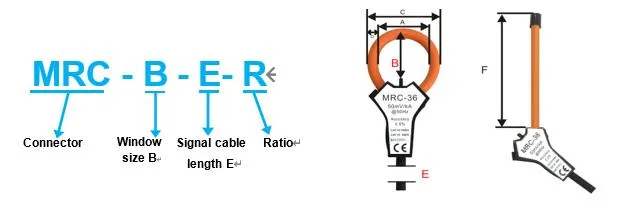

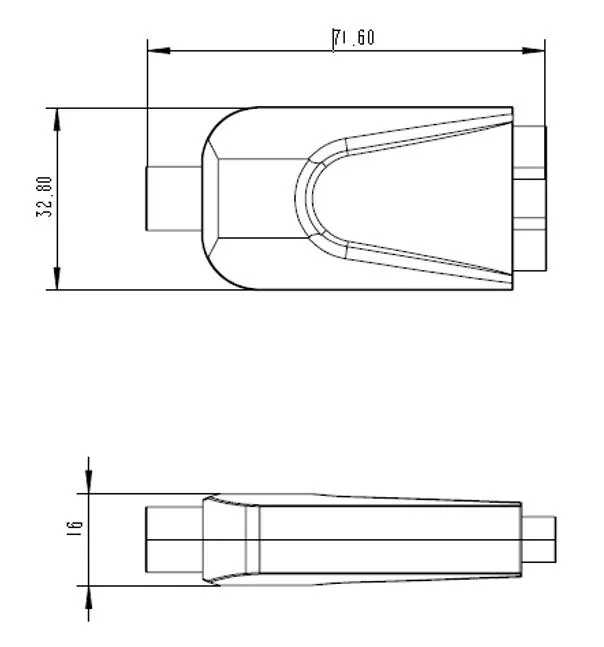

Size Chart

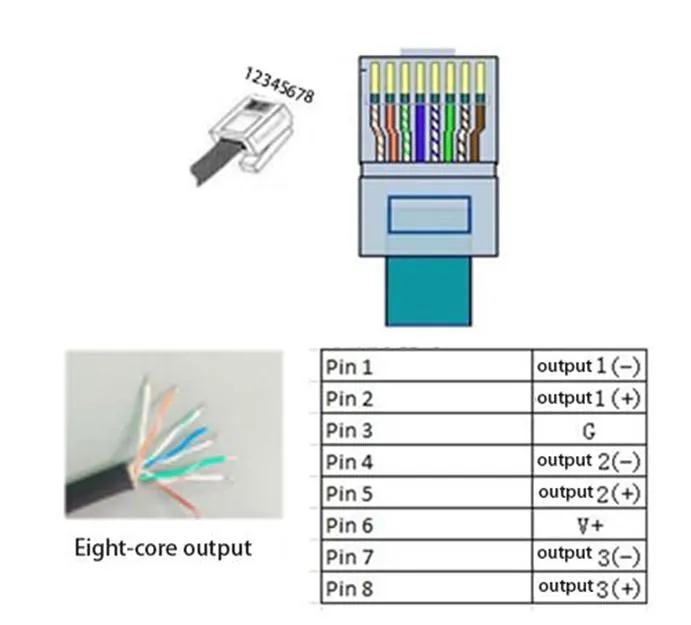

RJ45 Connector Definition
| Parameter | Details |
|---|---|
| Model | STP |
| Rated Output | 100A, 600A, 1000A, 3000A, 6000A... (333mV AC typical) |
| Maximum Output | 3V rms (Overload) |
| Power Supply | 3.3V-5V DC |
| Bandwidth | 20Hz-2kHz |
| Read Accuracy | 1% typical at 1%(≥10A) to 200% of rated current |
| Linearity | ±0.2% (5% - 200%) |
| Phase Error | ≤0.5° |
| IP Rating | IP20 |
⚠️ Warning! Ignoring this warning can lead to serious danger. Installation and operation must be carried out by qualified professionals with electrical training.
⚡ Electric shock warning! Ensure all necessary measures are taken to prevent electric shock. Do not touch conductive parts after installation.
Attention: Do not damage the coil. Twisting, pricking, or over-bending will greatly reduce accuracy and service life.

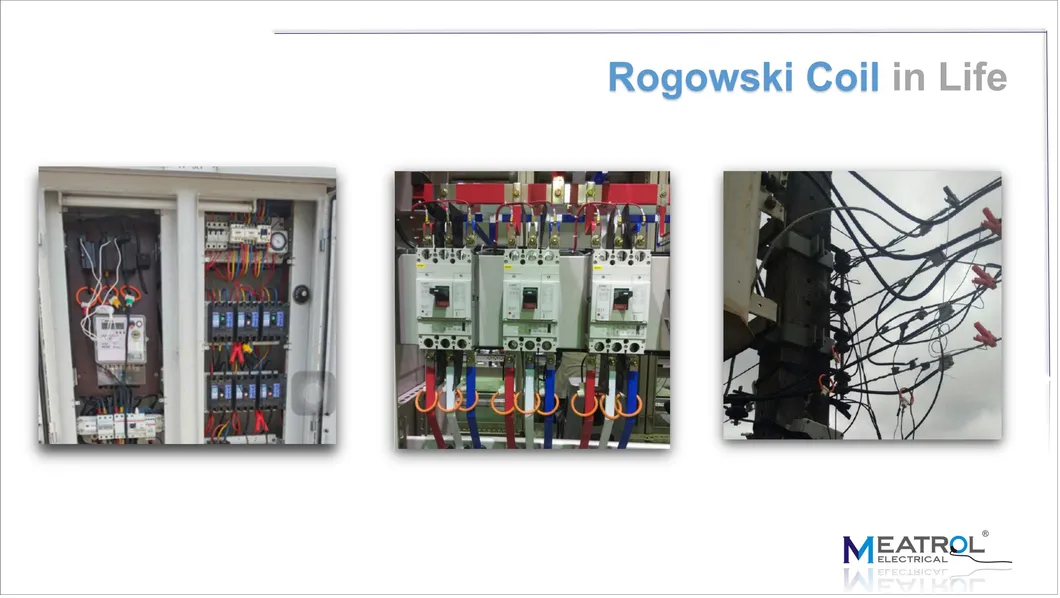

Rogowski coils are air-cored coils placed around a conductor. The magnetic field produced by the current induces a voltage in the coil proportional to the rate of change of current. By using precision winding techniques, the output is not influenced by the position of the conductor and rejects external magnetic field interference.
