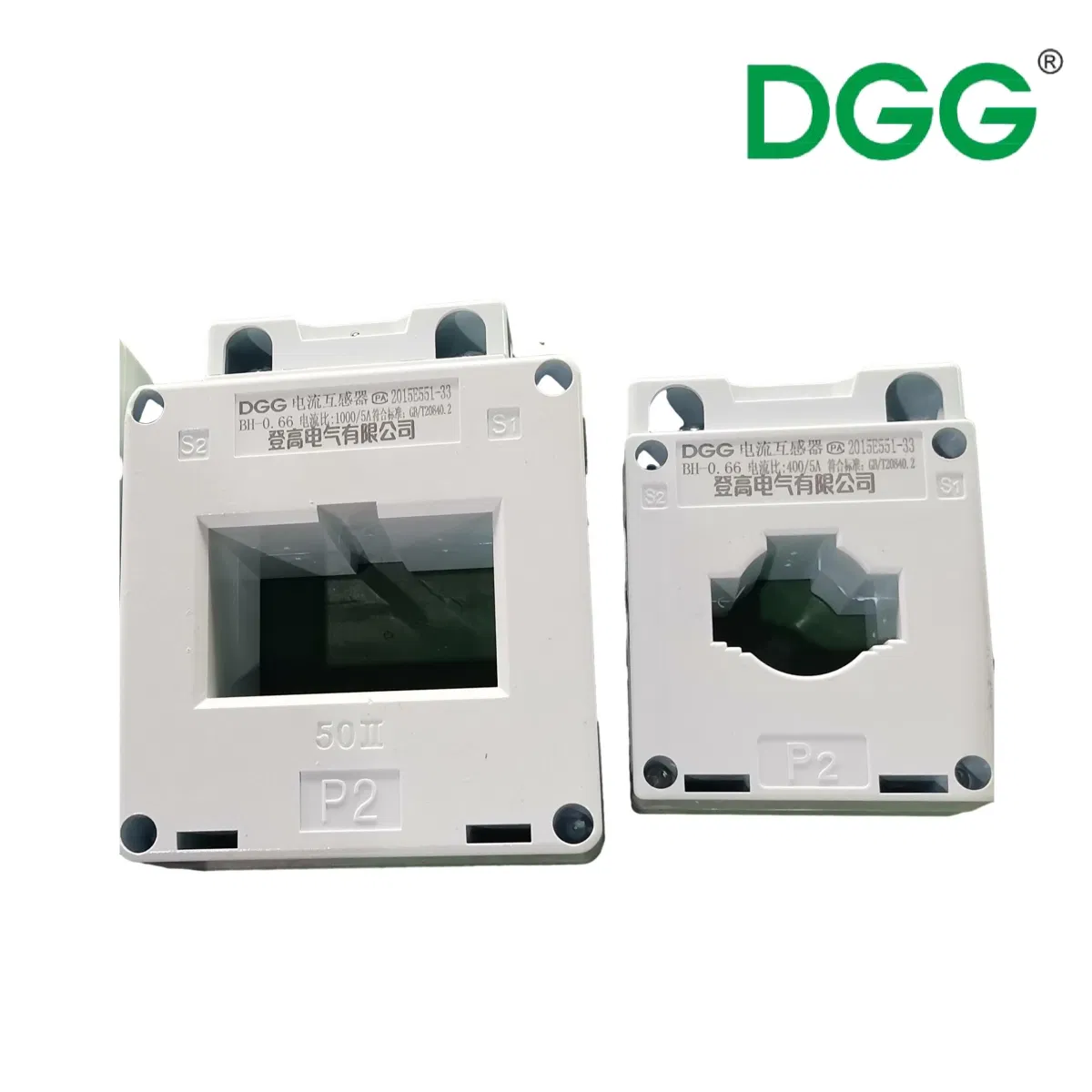

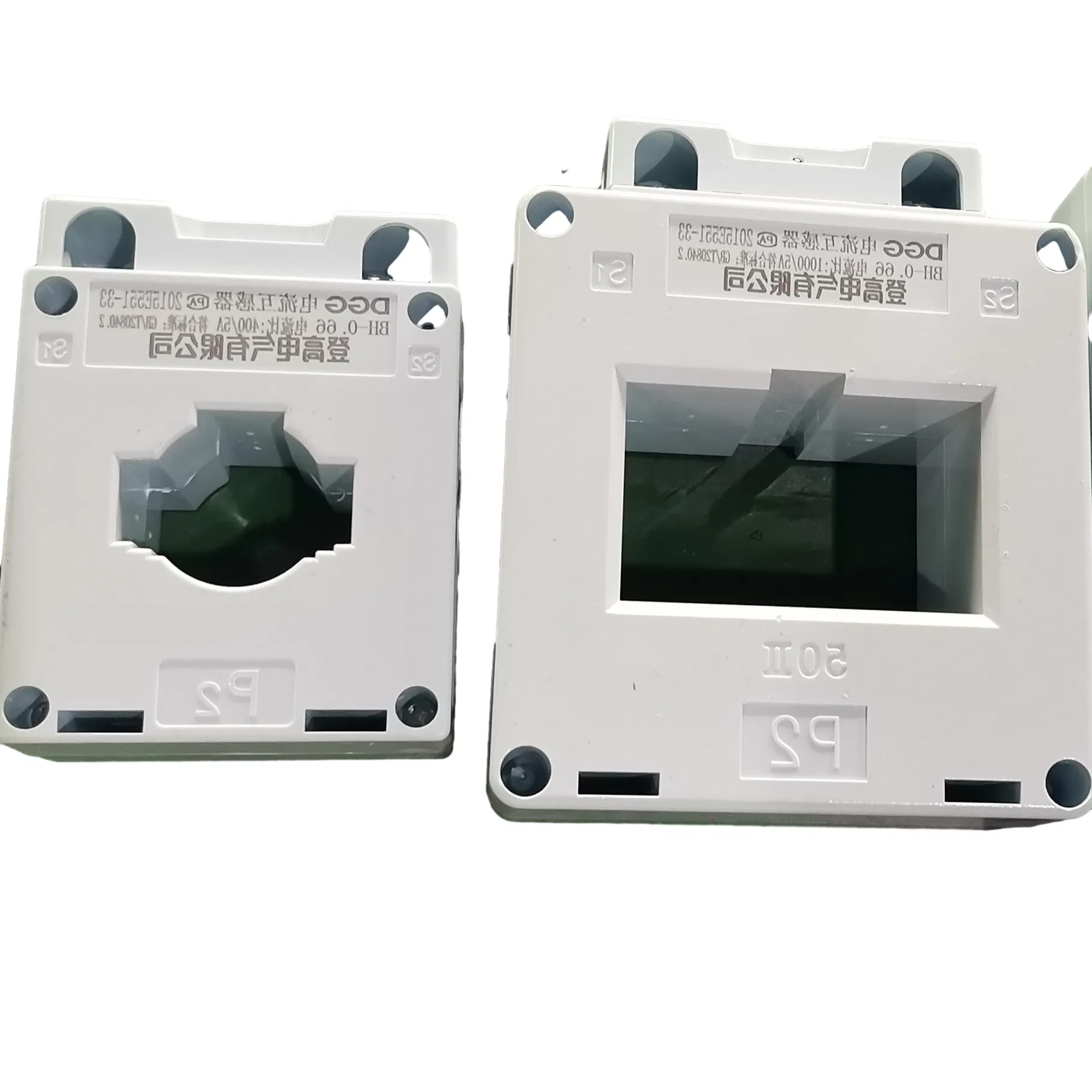

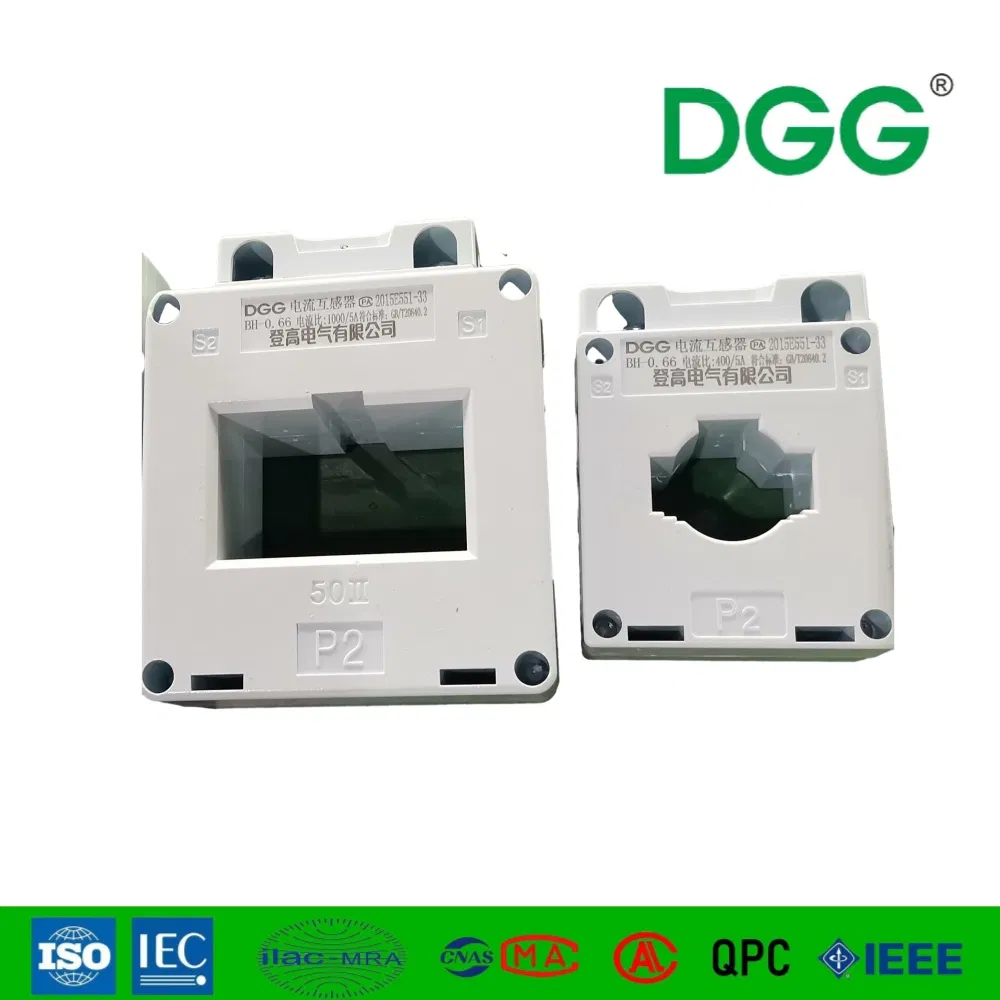

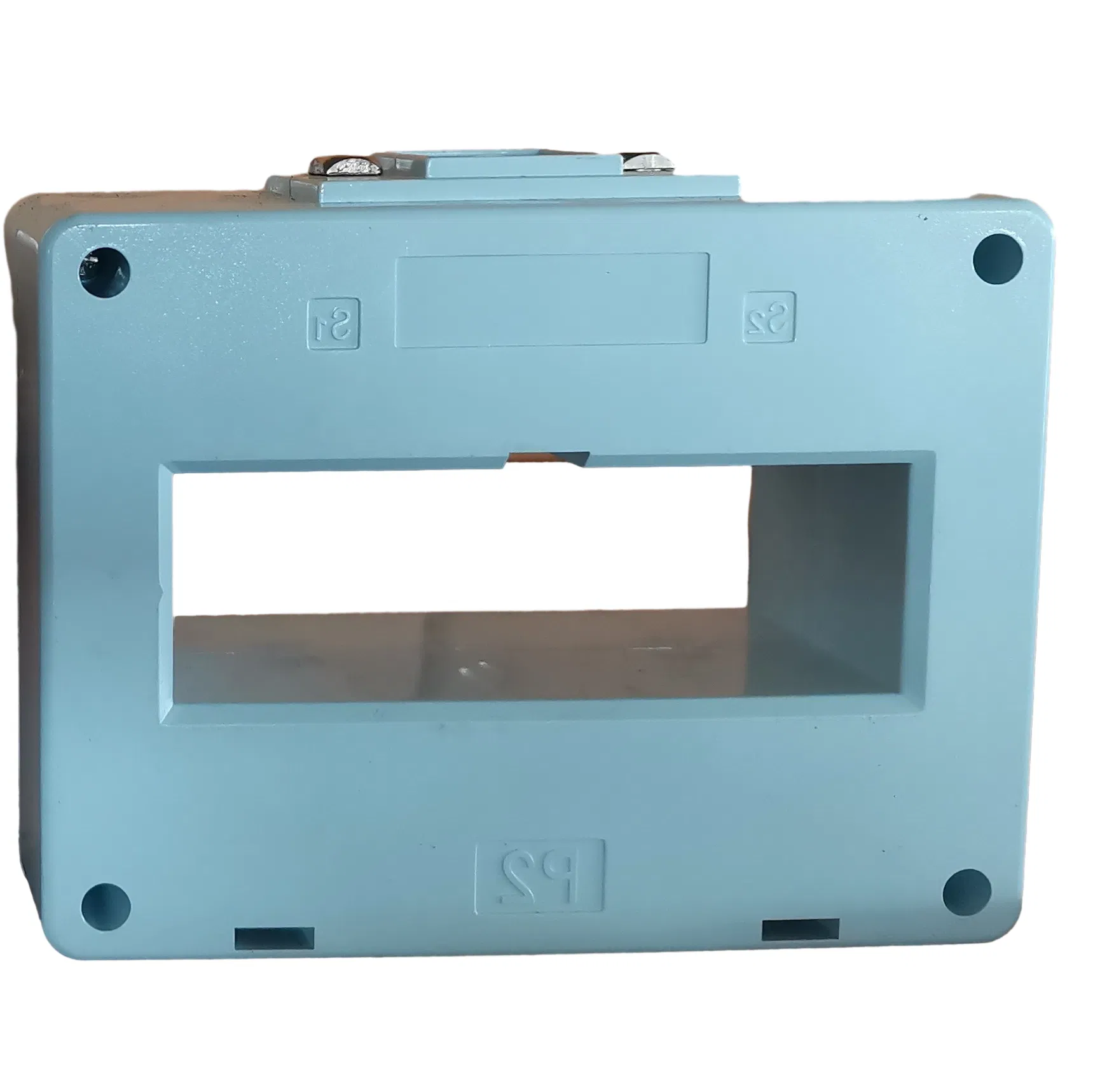

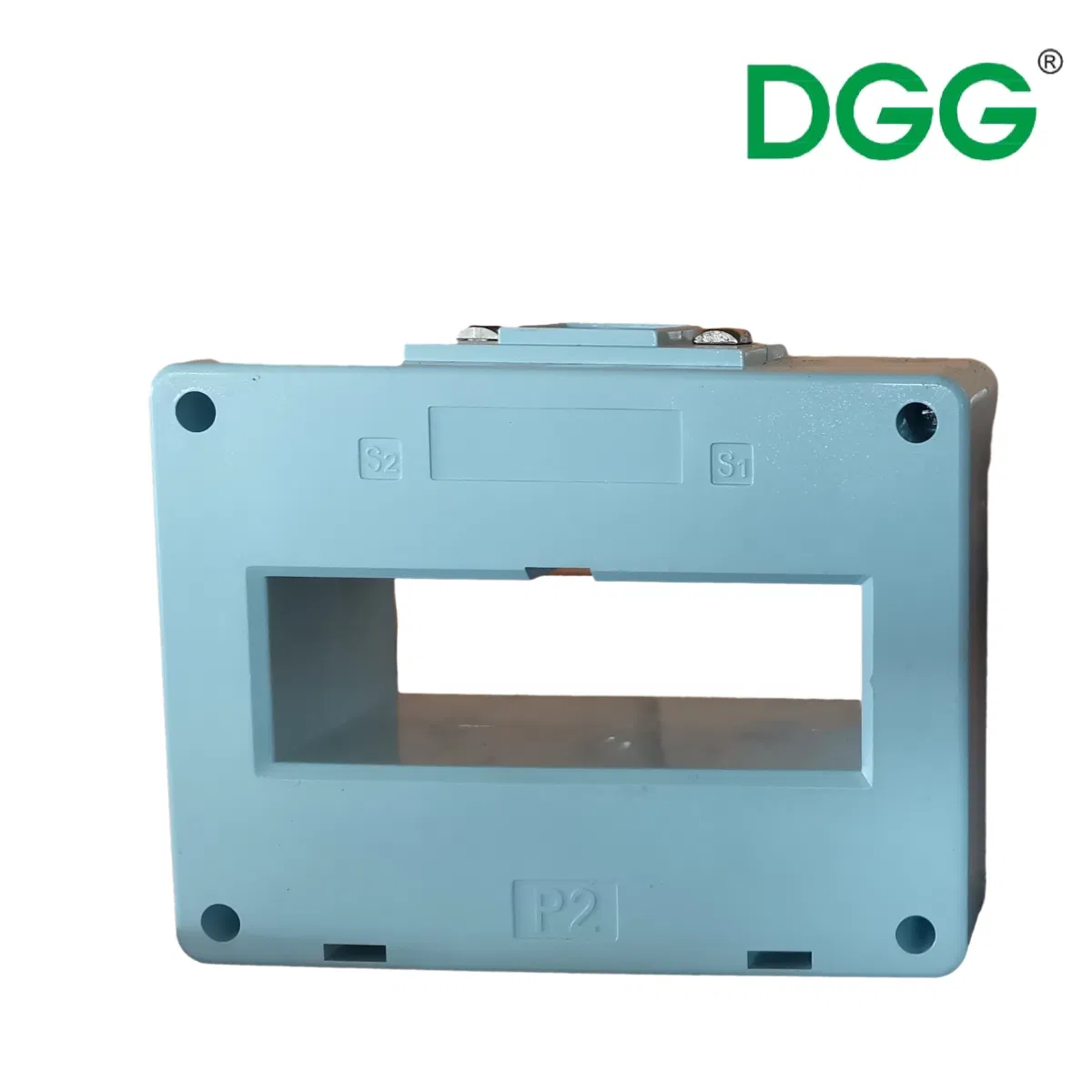

Introducing the Single Phase Low Voltage Current Transformer: Engineered to deliver unparalleled precision, this state-of-the-art current transformer operates at 0.66kV, specifically designed for precision instrumentation.

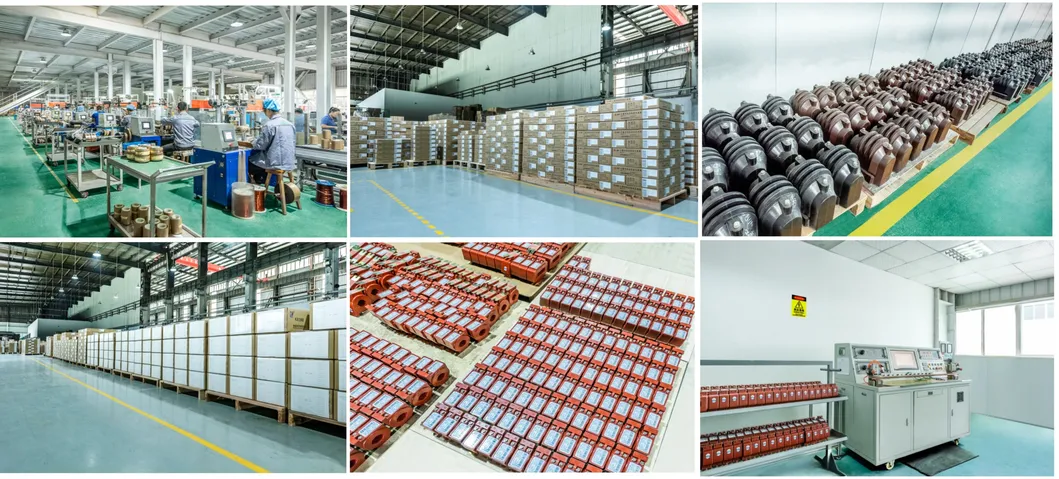

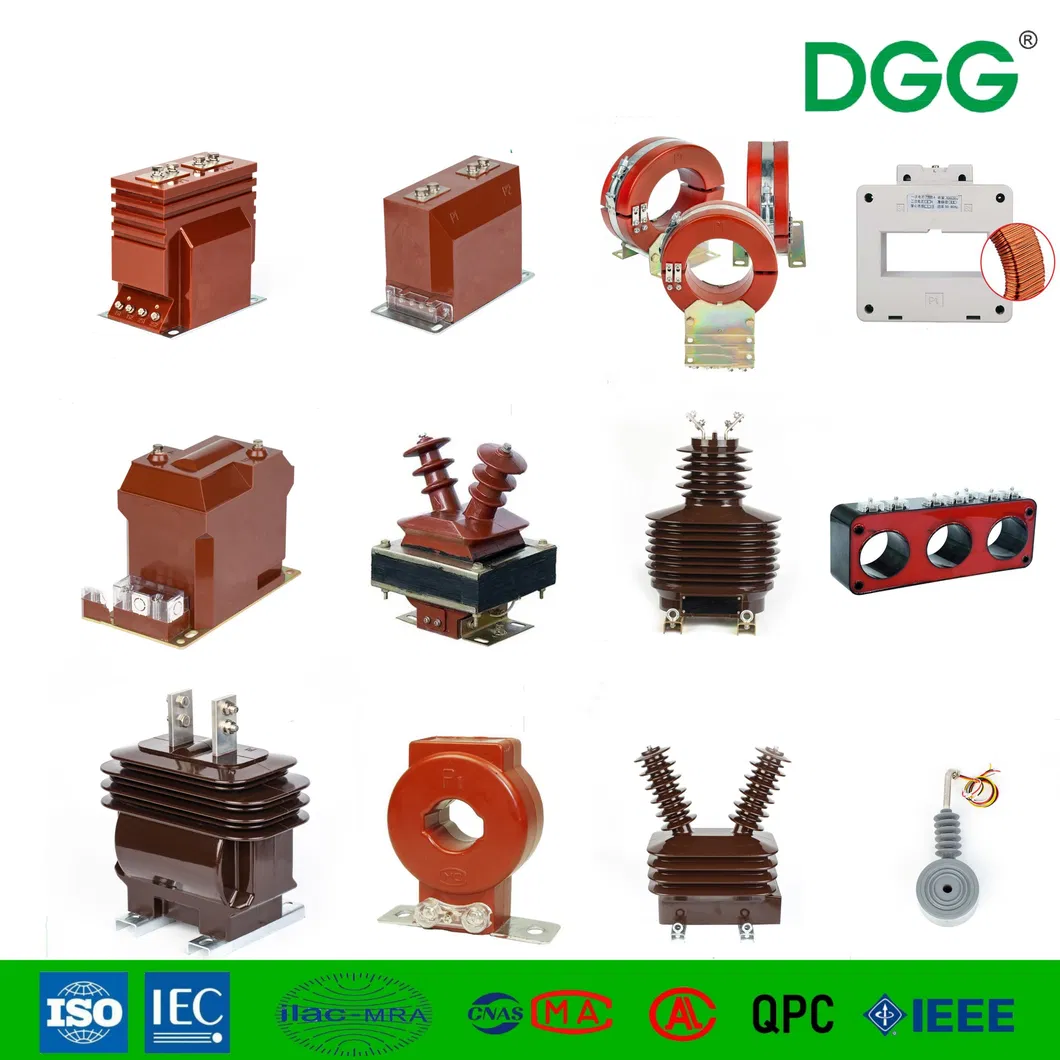

We are a distinguished and professional manufacturer, renowned for our exceptional craftsmanship and dedication to quality. Our expertise covers Zero Sequence Current Transformers, Dropout Fuse Cutouts, and Voltage Transformers.
We specialize in delivering customized production based on your specific drawings, ensuring each product aligns perfectly with your precise specifications. All products undergo rigorous testing to ensure they meet the highest standards.

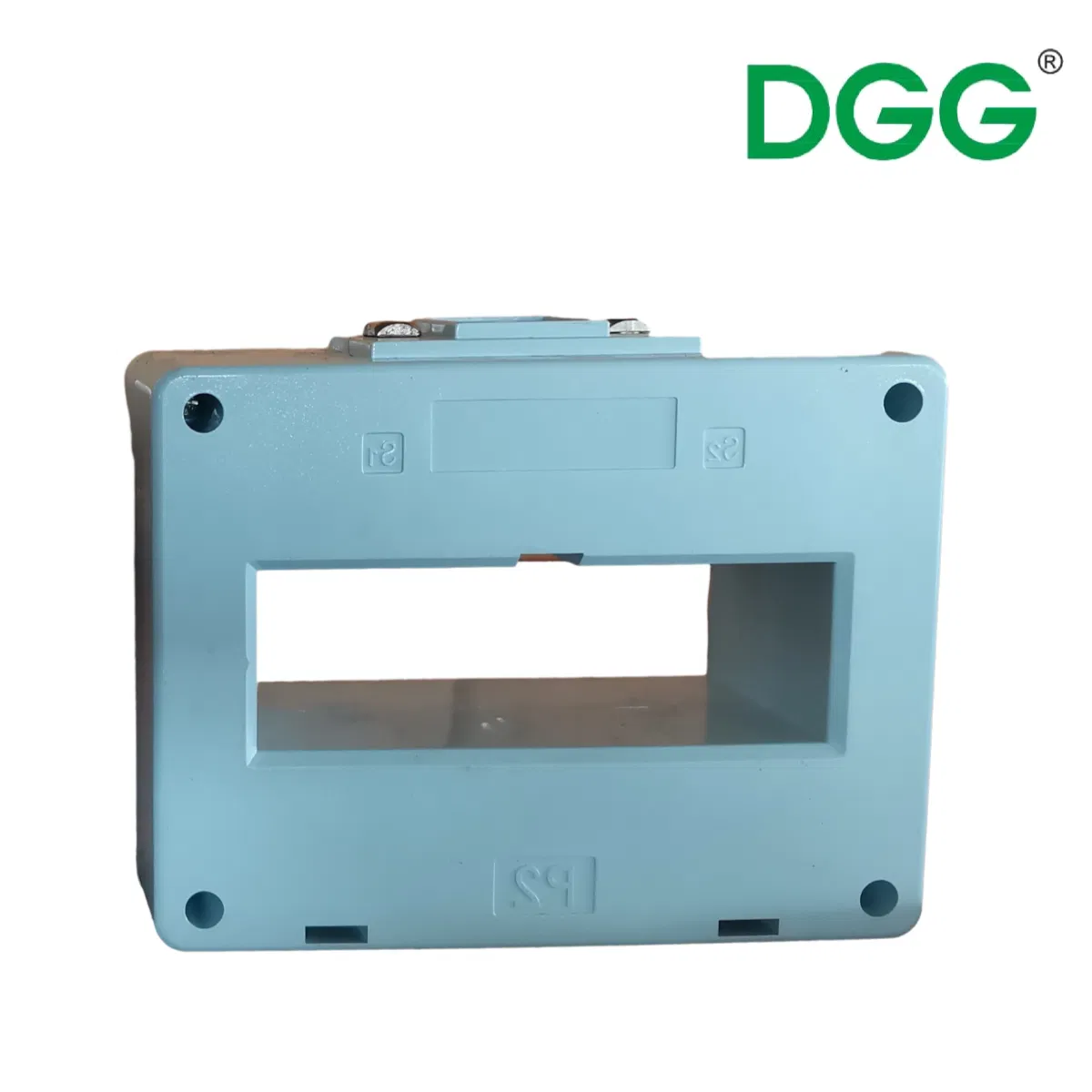

This innovative transformer is designed with an integral casting structure, making it perfectly suitable for power systems operating at a rated frequency of 50Hz or 60Hz. It efficiently handles power systems with a rated voltage up to and including 0.66kV.
Essential for accurate current measurement, electric energy metering, and robust relay protection, it complies with the Q/GDW1572-2014 technical specification.
| Type | Rated Primary Current (A) | Rated Output VA (COS phi=0.8lag) | ||||
|---|---|---|---|---|---|---|
| 0.2S | 0.2 | 0.5S | 0.5 | 1 | ||
| LFZ1D-DGG1 | 10-60 | 5-2.5 | 5-2.5 | 5-2.5 | 5-2.5 | 5-2.5 |
| LMZ(1D,2D)-DGG1 | 75-500 | 5-2.5 | 5-2.5 | 5-2.5 | 5-2.5 | 5-2.5 |
| LMZ(3D,4D)-DGG1 | 600-1500 | 10-3.75 | 10-3.75 | 10-3.75 | 10-3.75 | 10-3.75 |

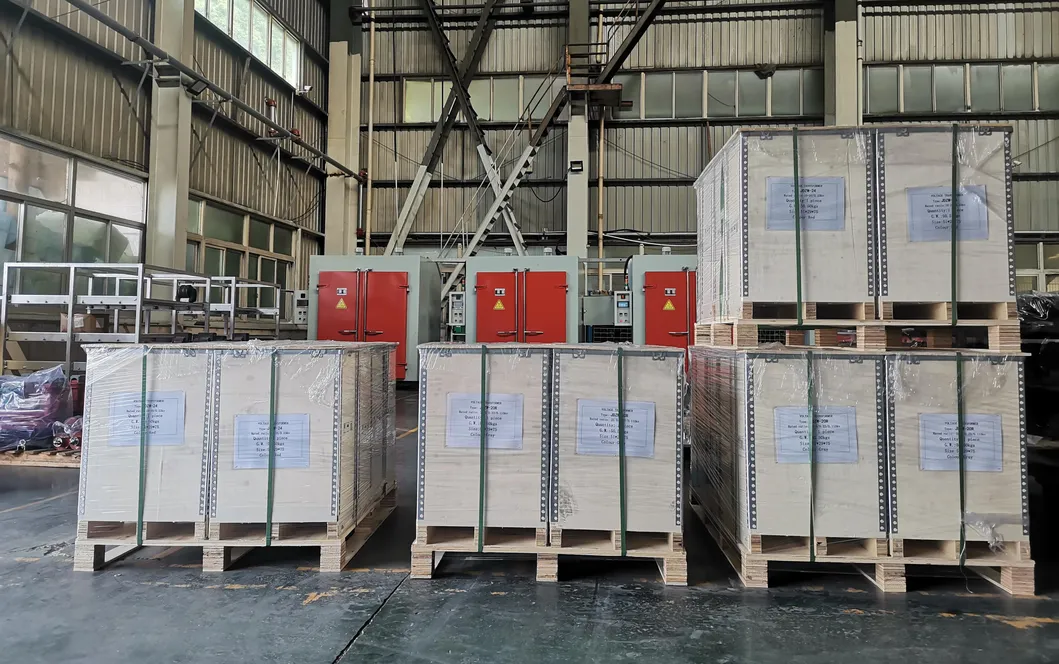

We take immense pride in exporting our superior range of products internationally, establishing a strong foothold in countries including Ghana, Ethiopia, Philippines, South Korea, Australia, Pakistan, and beyond.
Our skilled team is devoted to developing highly cost-efficient power solutions, participating in international bidding and designing advanced distribution plans for our esteemed customers.

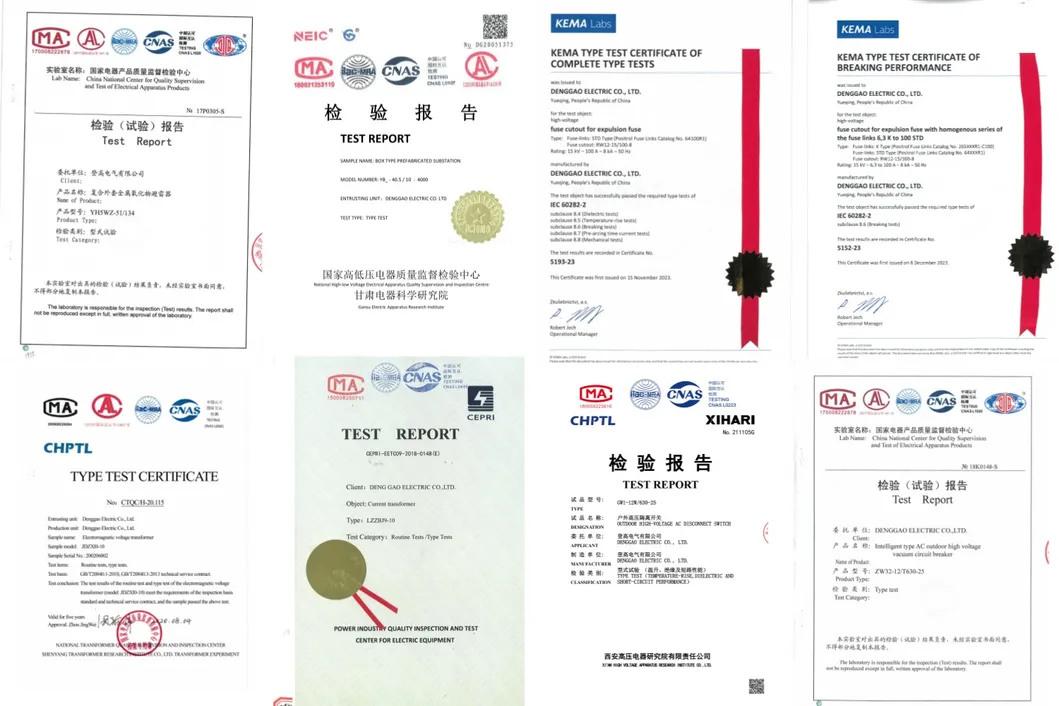

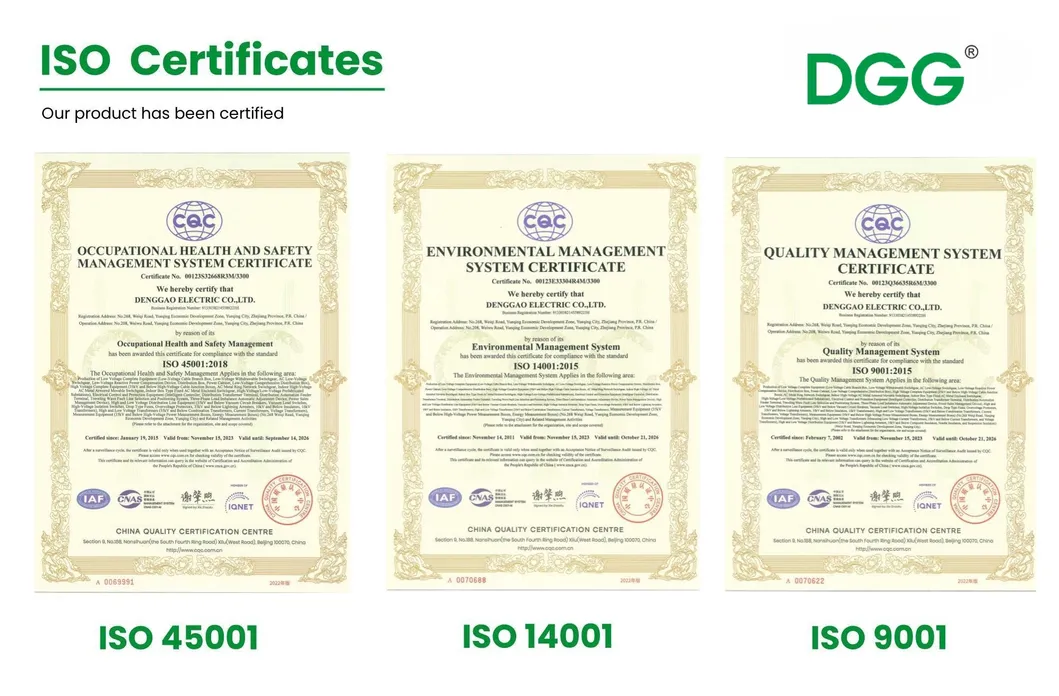

Our products are reinforced by an exceptional suite of certifications, prominently featuring ISO certification and Kema certification, showcasing our dedication to quality.
