Compliance Standards: GB/T 20840.1 & 2 and IEC61869-1 & 2.
Insulating Property: Primary winding to secondary winding and ground, and secondary winding to ground can bear the power frequency withstand voltage 3kV for 1min.
Power Factor: (cosφ) = 0.8 (lagging).
| Specifications | Rated Primary/Secondary Current (A) | Busbar Size | Short-time Thermal Current | Rated Loading Accuracy (VA) | Accuracy Grade | Primary Ampere-turn |
|---|---|---|---|---|---|---|
| Size (mm) | Root No. | |||||
| BH-30 | 15/5 | - | - | 2.5 | 1 | 5 |
| BH-30 | 20/5 | - | - | 2.5 | 1 | 4 |
| BH-30 | 50/5 | - | - | 2.5 | 1 | 2 |
| BH-30 | 100/5 | 30x10 | 1 | 2.5 | 1 | 1 |
| BH-30 | 150/5 | 30x10 | 1 | 2.5 | 0.5 | 1 |
| BH-30 | 200/5 | 30x10 | 1 | 5 | 0.5 | 1 |
| BH-30 | 300/5 | 30x10 | 1 | 5 | 0.5 | 1 |
We stand as a distinguished leader in the manufacturing of 0.5kV to 35kV current and voltage transformers. Driven by the principles of innovation and technology, we are committed to a people-centric management approach. We prioritize scientific development, align with market demands, and view product quality as our backbone.

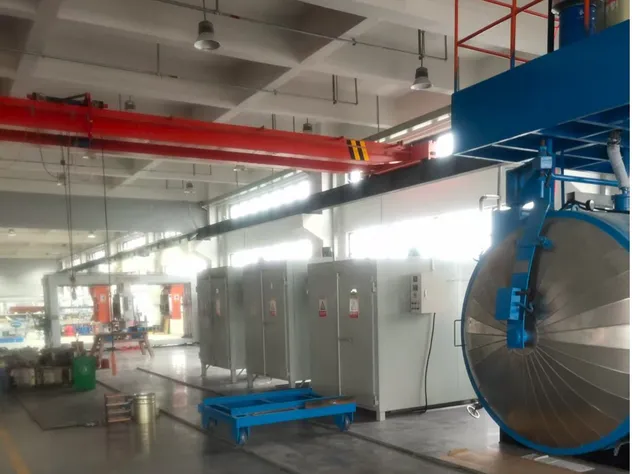

Equipped with cutting-edge domestic production facilities and a robust management system, we ensure excellence in every product. Our expansive 3000 square meter factory is home to 100 dedicated employees, including senior engineers passionately engaged in pioneering new product development.
Specify Requirements: Provide detailed descriptions, drawings, or reference images of your needs.
Tailored Solutions: Receive a detailed quotation and customized solution within 24 hours.
Mass Production: Upon approval, production commences followed by prompt shipment.
